3.6Nm 4A Nema23 Closed Loop Stepper Motor Kit| HBS57 2-Phase Stepper Motor with 57HBS36 Hybird Servo Driver

3.6Nm 4A Nema23 Closed Loop Stepper Motor Kit| HBS57 2-Phase Stepper Motor with 57HBS36 Hybird Servo Driver

Application

It is suitable for electronic devices such as dispensing machines, woodworking machines, welding machines, screw machines, surface mount machines, packaging machines, engraving machines, etc.

Specification

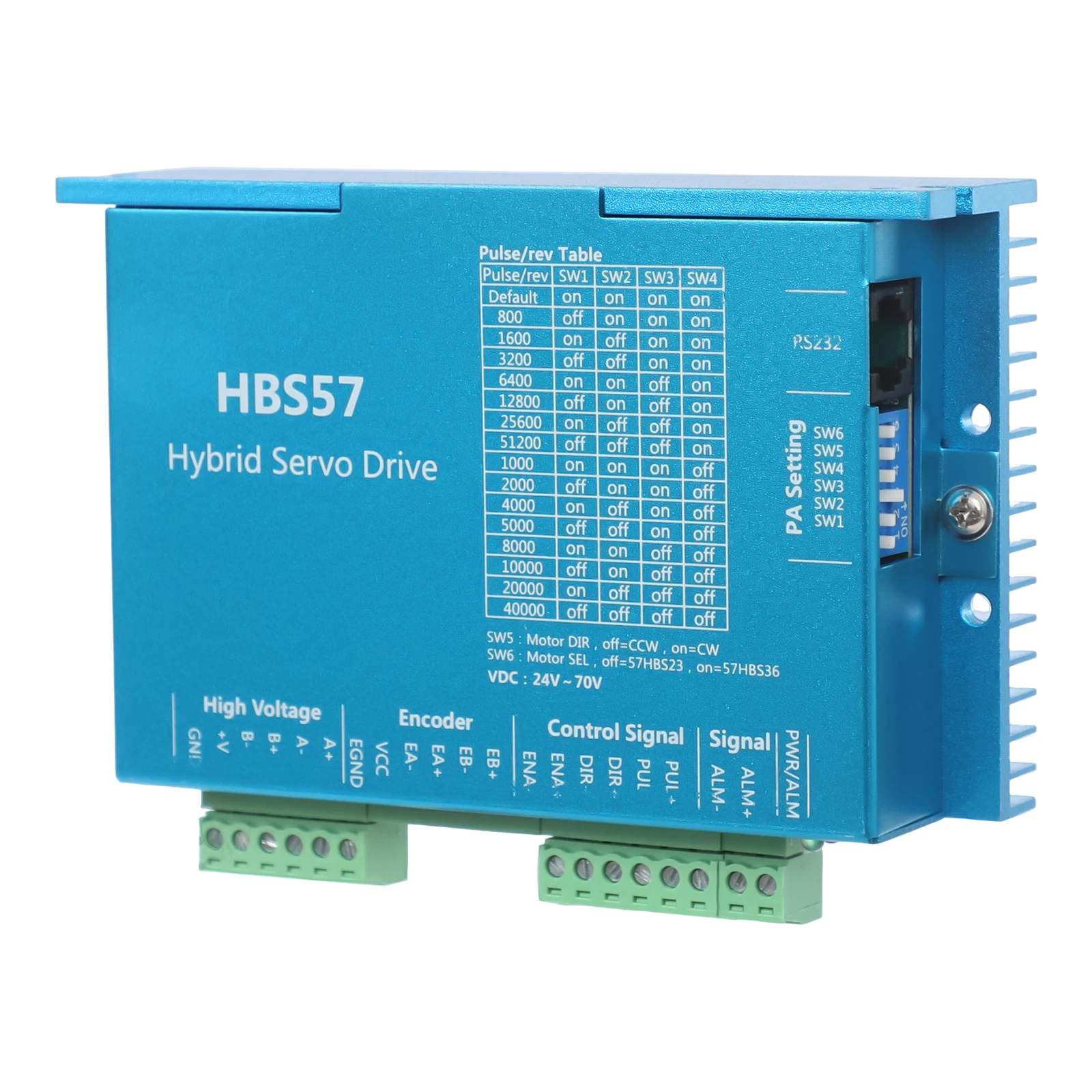

Driver

Driver Model: HBS57

Voltage: DC 24V-60V

Maximum Peak Current: 5A

Subdivision: 200-51200ppr

Pulse Response Frequency: 200 kHz

Cooling Method: Natural Cooling

Insulation Resistance: 500 MΩ

Signal Input: Pulse+Direction, Dual Pulse (Differential)

Logic Input Current: 1-16mA

Working Temperature: 0~50℃/32~122℉

Humidity: 40-90% RH

Vibration: 10-55Hz/0.15mm/0.01in

Storage Temperature: -20~65 ℃/-4~42.8℉

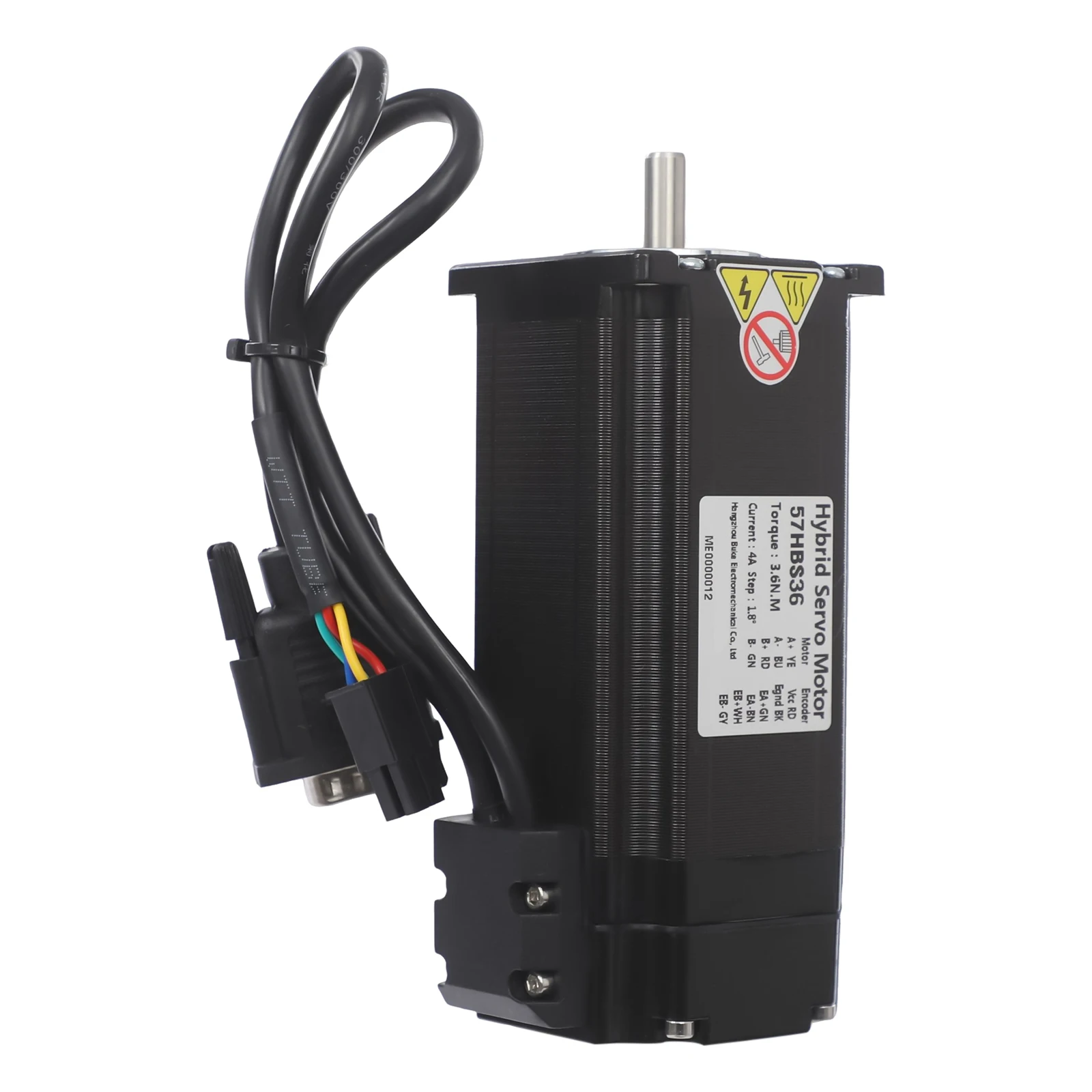

Motor

Motor Model: 57HBS36

Step Angle:1.8° ±5%

Phase: 2 Phase

Rated Current: 4.0A

Resistance: 0.86Ω±10%/Phase(At 20℃/68℉）

Inductance: 3.6mH±20%/Phase(at 1k Hz, 1Vrms)

Hold Torque: 3.6N.m

Insulation: B

Rotor Inertia:800 g.cm²

Description

Our stepper motor kit has a high torque output of 3.6Nm, which can provide a powerful driving force in various application scenarios. Its feature of easy-to-program ensures efficient and stable operating performance, making it suitable for industrial automation equipment that requires precise control and high load capacity. The combination of compact design and excellent performance makes it an ideal choice in various industrial fields.

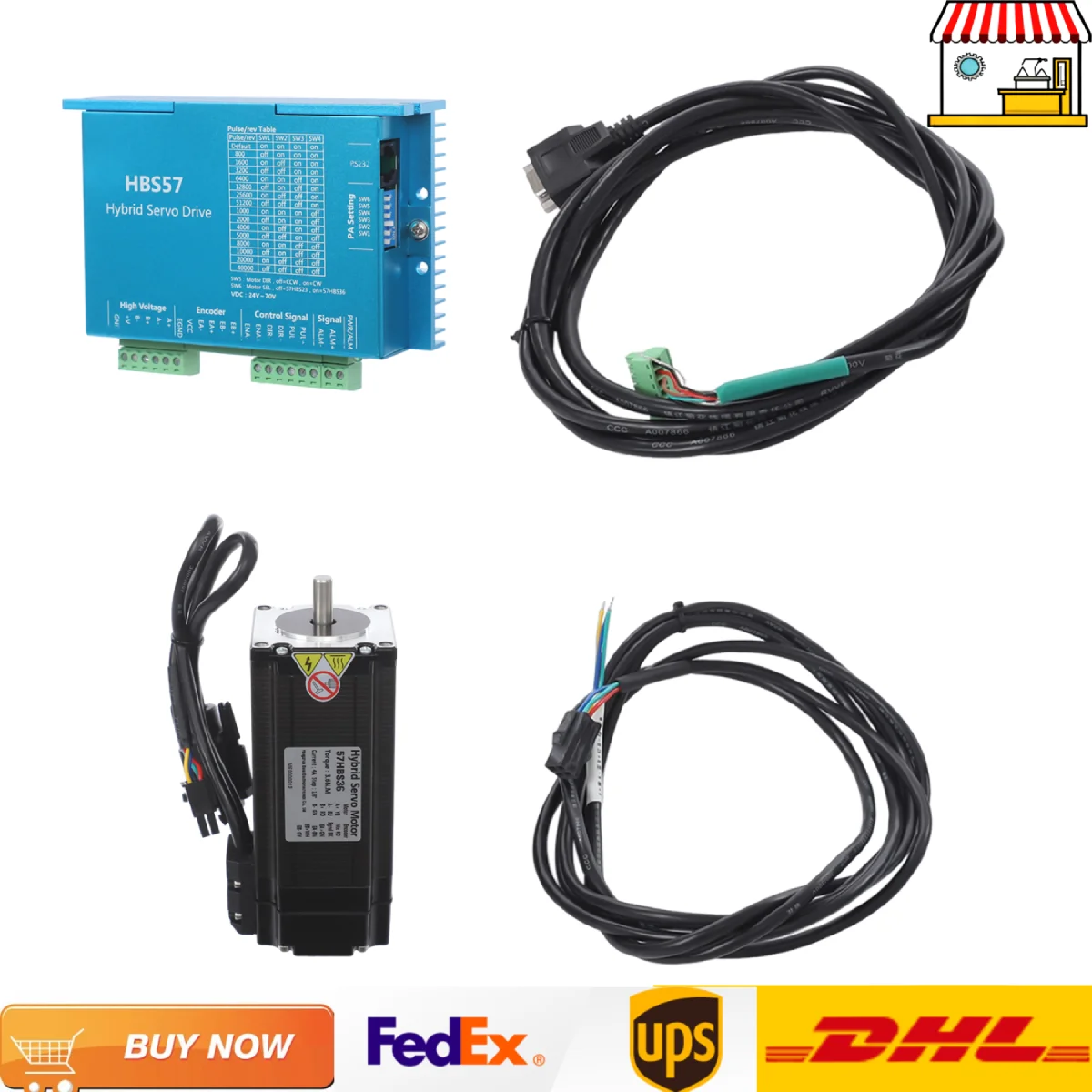

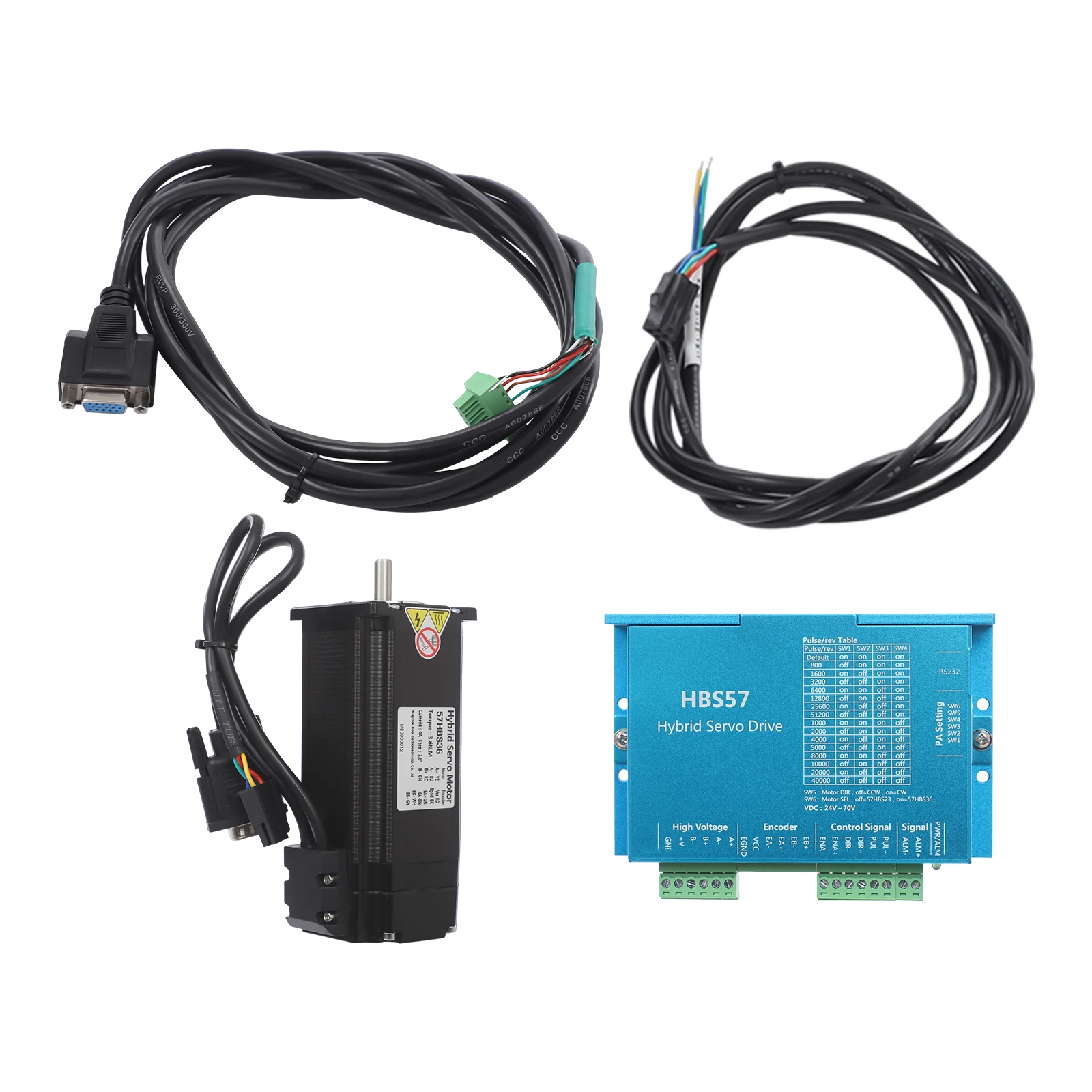

Package Included

1* Driver

1* Motor

1* Motor Line

1* Encoder Line

Key Features

Premium Material: It is made of excellent aluminium material, with an oxidation process, which is wear-resistant, rust-resistant, and not easy to deform, ensuring a long service life.

Excellent Performance: This product adopts the latest dedicated motor control DSP chip and vector closed-loop control technology, overcoming the problem of step loss in open-loop stepper motors. At the same time, it significantly improves the high-speed performance of the motor, reduces motor heating and vibration, increases machine processing speed and accuracy, and reduces machine energy consumption.

High Reliability: When the motor is continuously overloaded, the driver will promptly output an alarm signal, and its reliability is the same as that of an AC servo mechanism. At the same time, the drive also has protection functions such as overvoltage, overcurrent, tracking error, and out-of-tolerance, allowing you to use it with confidence.

Powerful Function: The driver can achieve vector closed-loop control, ensuring high torque output of the motor and improving work efficiency. The serial communication function, and the adjustable design of current and subdivision, signal edge, and alarm output logic function further enhance the programmability of this product, allowing you to easily adjust according to actual working conditions, simplify processes, and save costs.

Compact Design: The motor and driver are compact in size and lightweight, which do not take up too much workspace, making your operation and use more convenient.

Easy to Clean: It has a smooth surface and a simple structure, so you only need to wipe the dust with a dry towel regularly.

Ideal Gift: It is an ideal gift for friends who need to work with closed-loop stepper motors and drivers, bringing convenience to their work.

Buy with Confidence: We stand behind all our guests and look forward to assisting you with your purchase. It is our pleasure to answer your confusion and questions. The end of the story between us is not "we sell and you buy".

Details

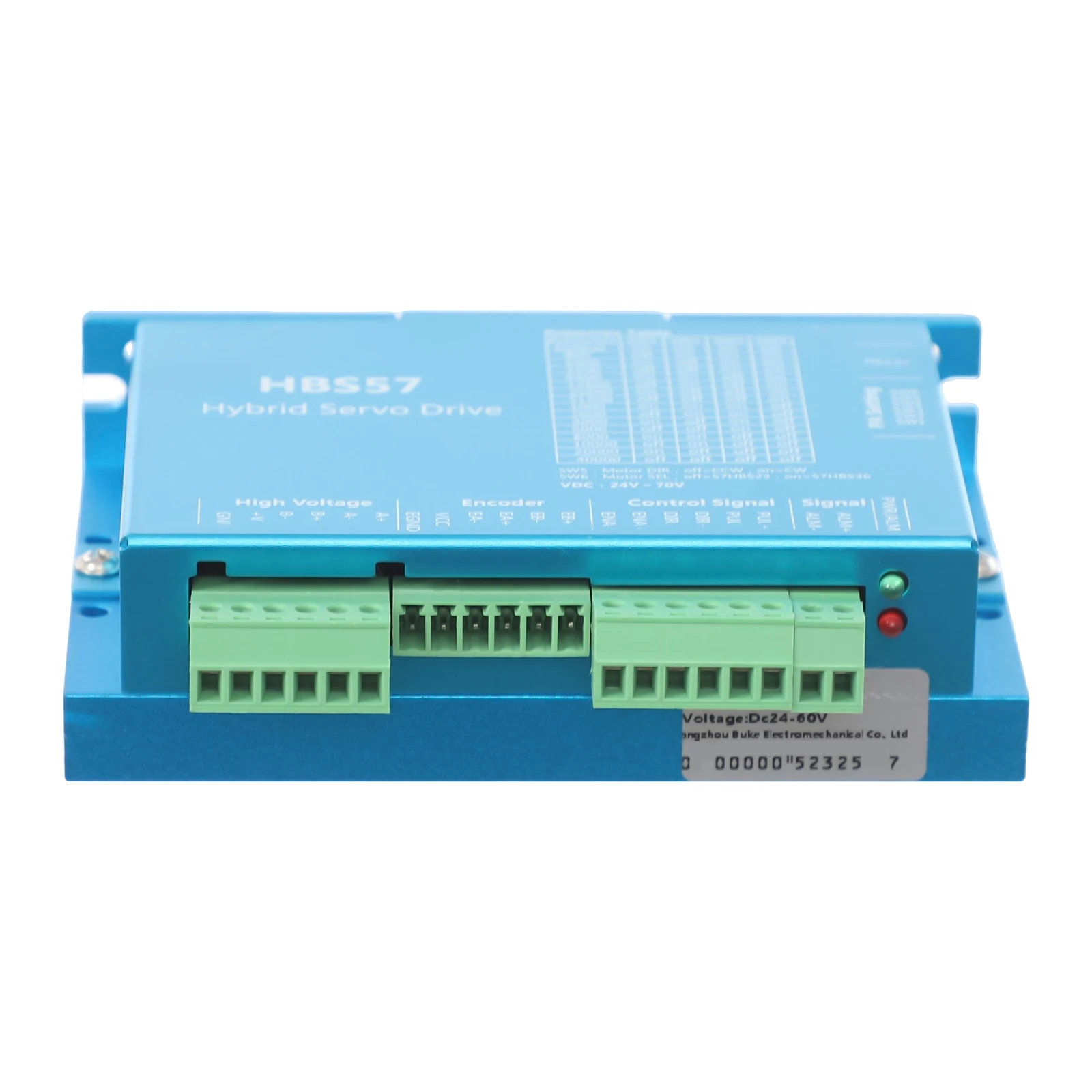

LED Indicator Light: When this product is running normally, the indicator light displays green. When the product malfunctions, the indicator light is red, enabling you to promptly monitor work status and take appropriate measures.

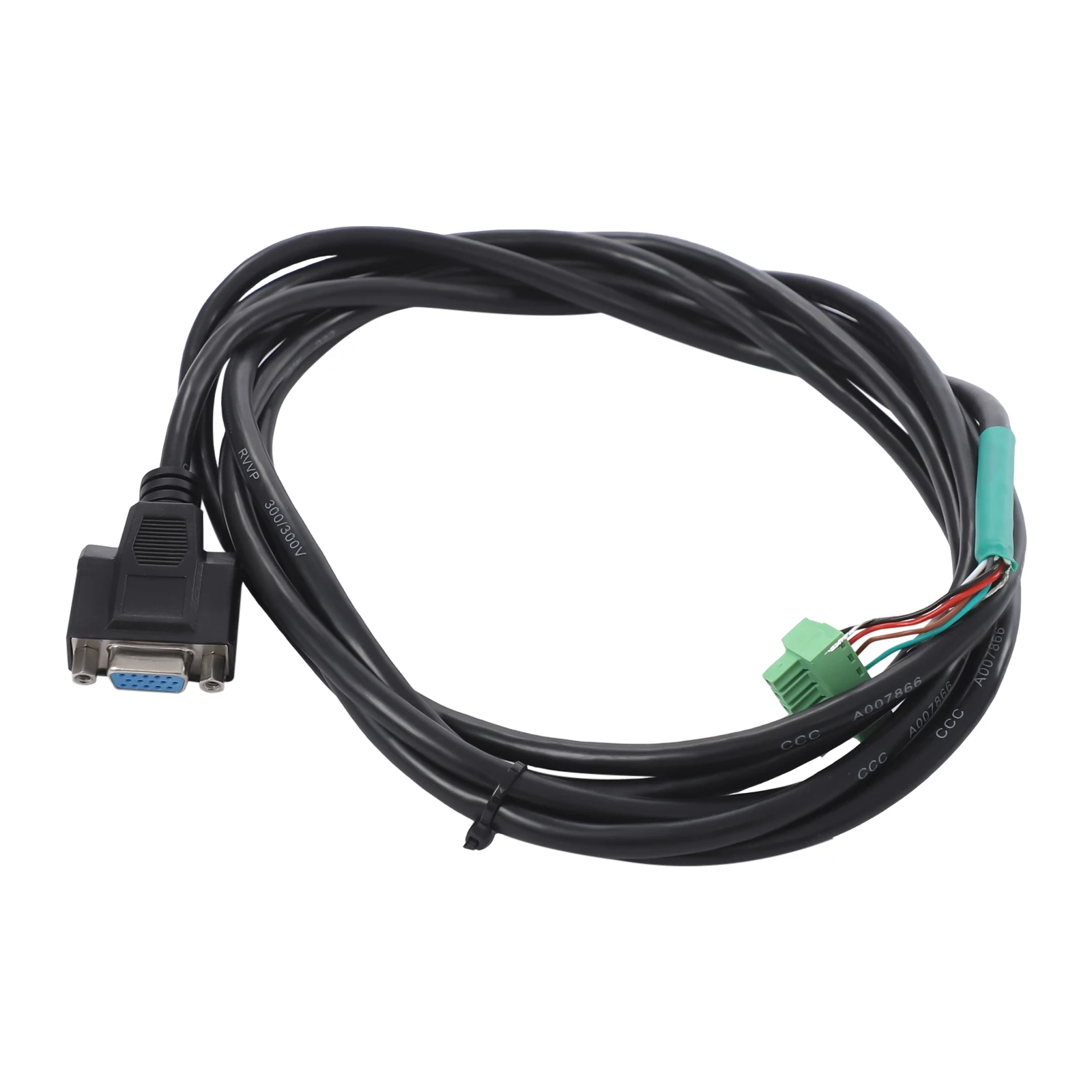

Long Motor & Encoder Lines: Their length is 9.84ft, which can provide you with more usage positions and more convenient use.

Notes

1.Please note that this product is not waterproof, oil-resistant, or dustproof.

2.Please ensure that the power supply voltage and current meet the requirements of the driver and motor when using, to avoid overvoltage or overcurrent damage to the equipment.

3.Please connect the wiring of the motor and driver correctly to avoid faults caused by short circuits or reverse connections.

4.Please set the driver parameters reasonably according to actual application needs to achieve better performance and efficiency.

5.Please carefully check the parameters and sizes of this product before placing an order.

6.Please allow the slight color difference caused by the shooting light and the 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
