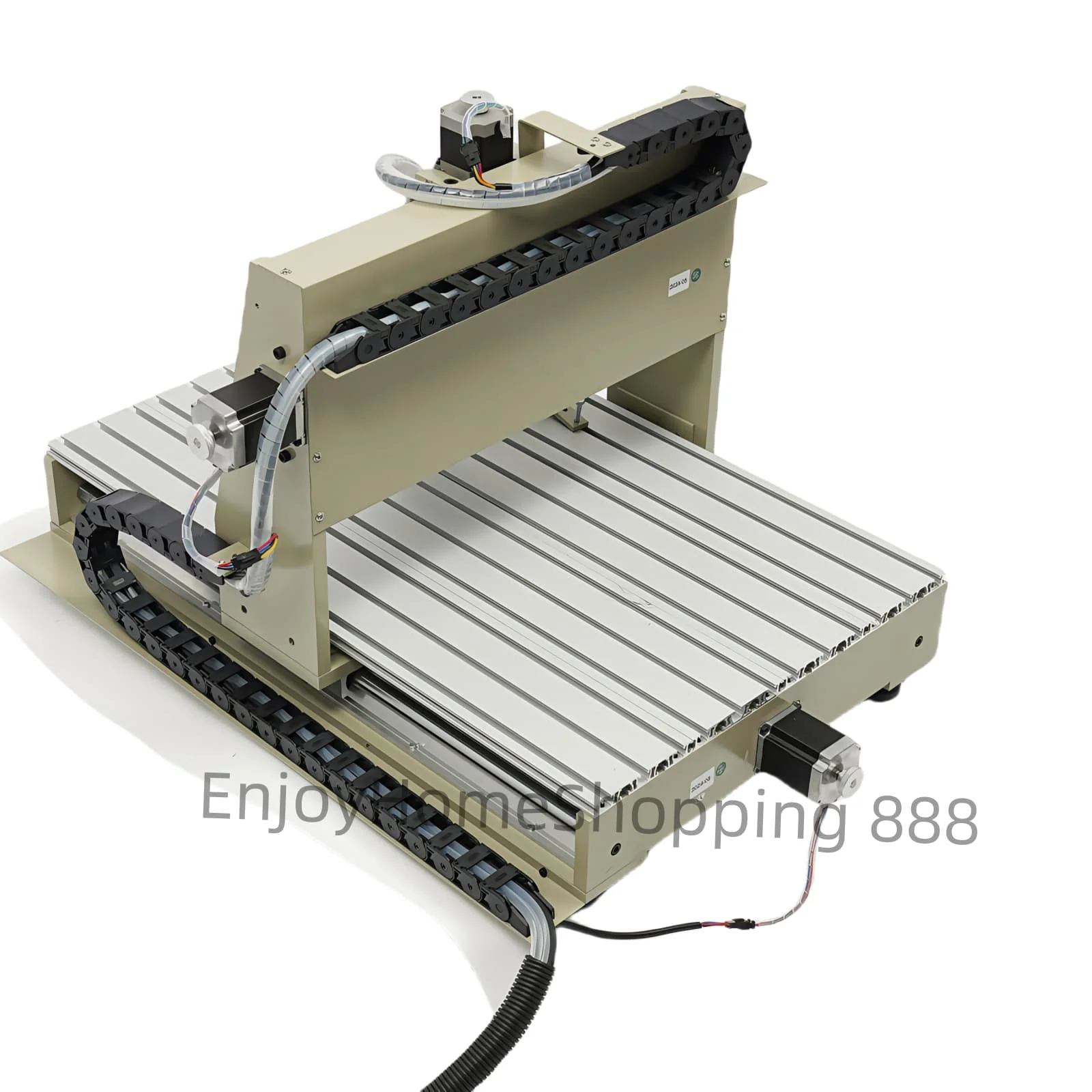

CNC 1500W 4 Axis Wood Router 6040 Engraving Drilling Machine PCB Metal Milling Machine

CNC 1500W 4 Axis Wood Router 6040 Engraving Drilling Machine PCB Metal Milling Machine

How to Install

1. Assemble a good machine, place it on a sturdy platform and adjust the four legs of the machine so that the table is placed horizontally.

2. Verify that your computer has a USB port and a 25-pin original parallel interface.

3. Place the control box on a dry, ventilated, sturdy platform protected from heat and dust.

4. Connect the control box with the 25-pin parallel interface to the computer and lock it to prevent disconnection.

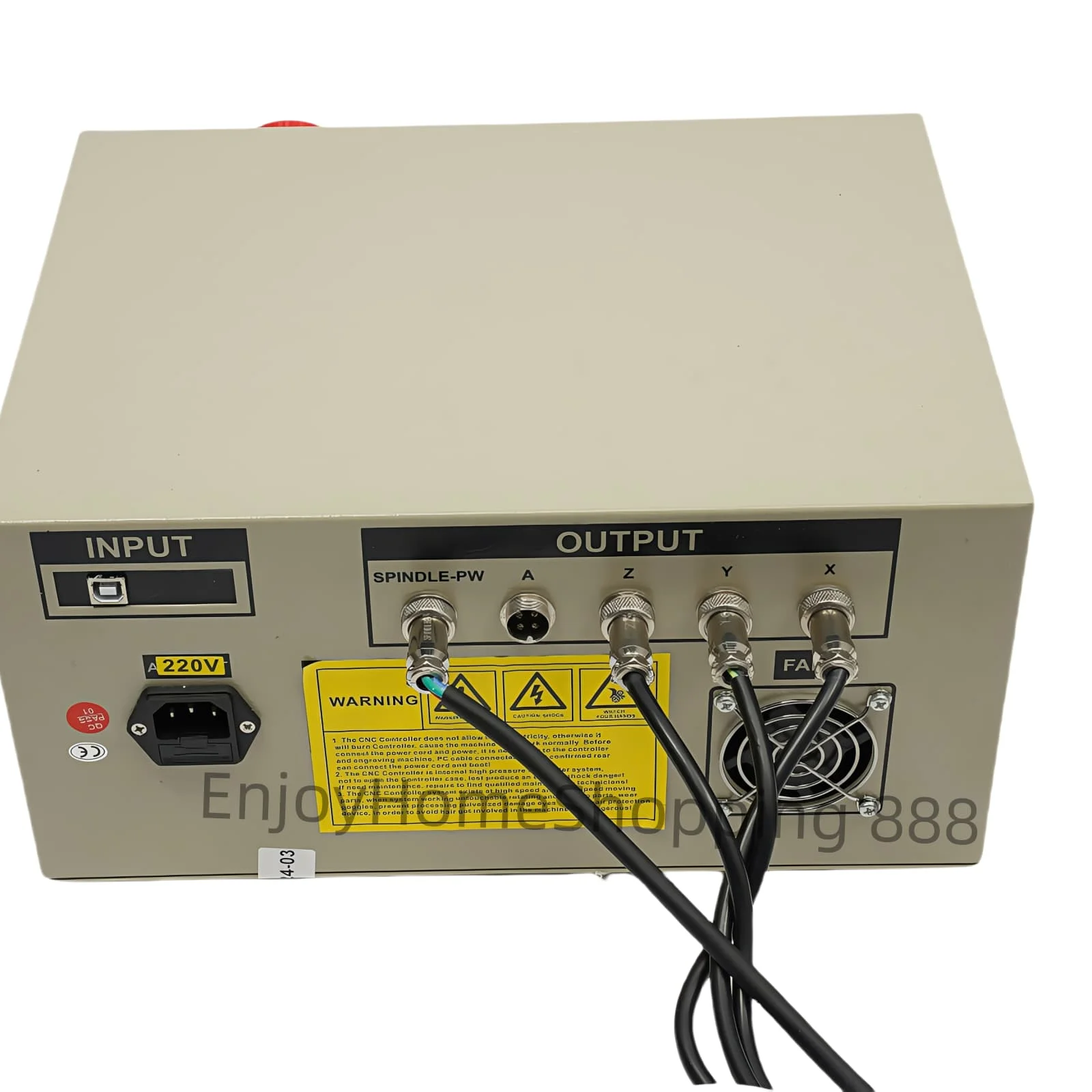

5. Connect the mainframe and control box wiring, X, Y, Z, A, z axes and the spindle motor with the correct cable must not be vacant, otherwise it will damage the control box drive unit.

6. Install the spindle motor and cooling pump piping, the pump can be placed underwater, then the pump is energized to check if the water circulation and cooling system is running properly.

7. Mach3 correctly installs or EMC2 software to your computer.

8. Check the wiring connection, water circulation and confirm before powering on the machine for test.

Details

USB Cord: It is easy for you to connect and easy to transfer the text you want to engrave.

4 Rubber Non-slip Feet: They can stabilize the product well and are less likely to slip.

Sealing Tape: It seals pump fittings that are prone to leakage for increased safety in use.

Practical DVD Disk: You can use this product by reading the contents of the disk and downloading the software.

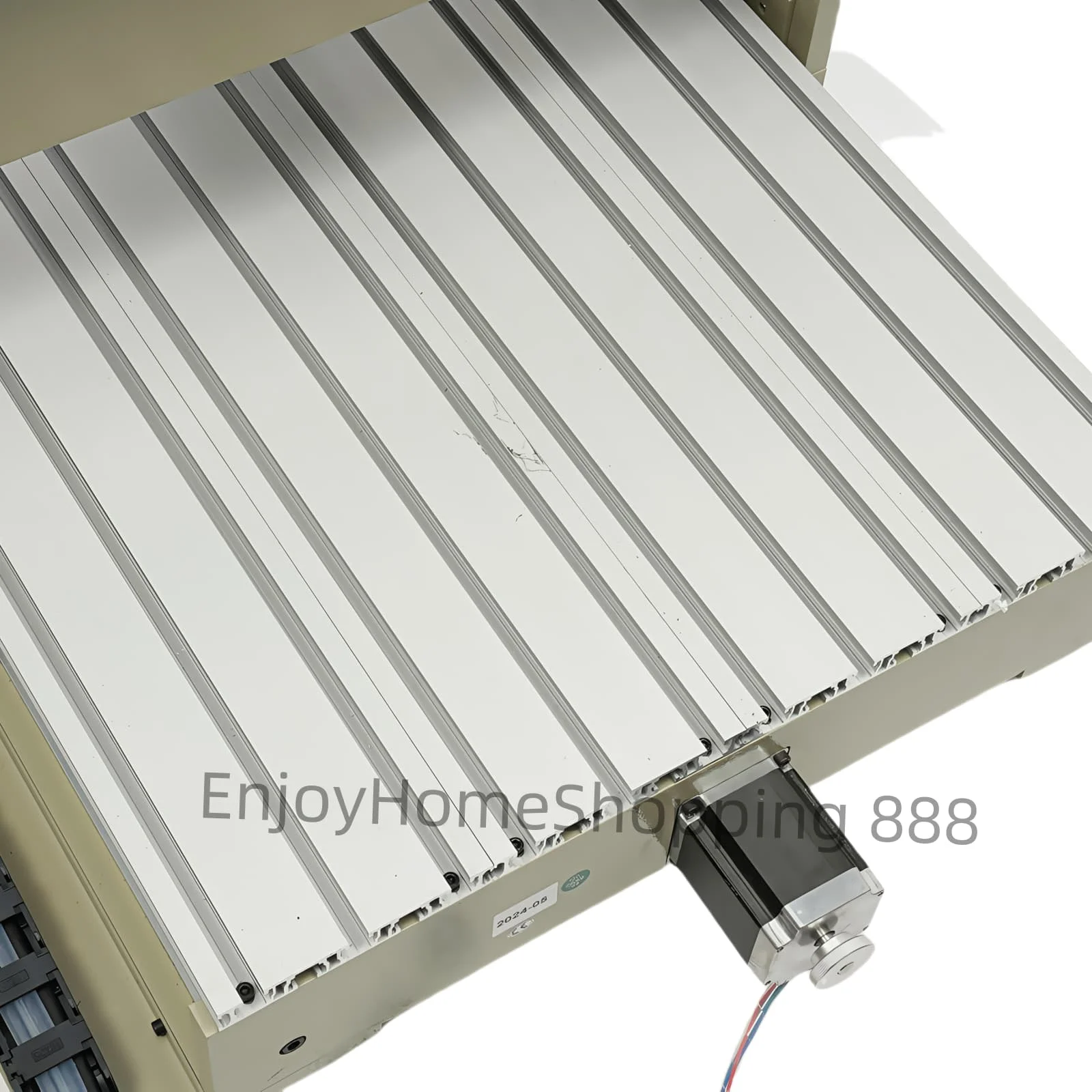

Fixed Platen: It can be used to fix the engraving material, thus making the engraving process more accurate and stable.

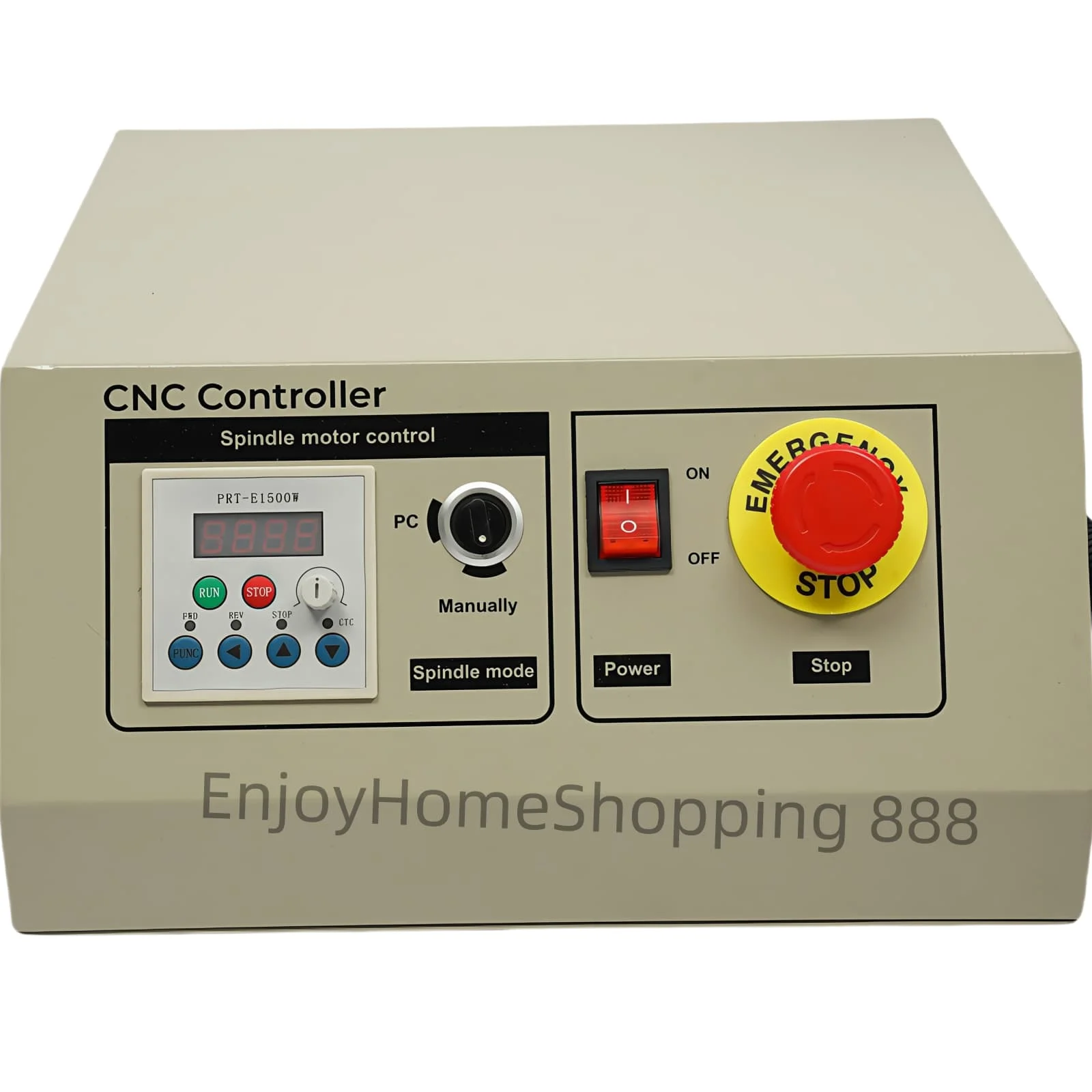

Clear Control Panel: You can operate the product with a clear digital tube display and buttons.

Application

It is suitable for PCB, wood, PVC, acrylic crystal, resin, plastic, seals MDF, composite materials, aluminum materials, copper and other materials. It can be used in industry, technical research, advertising design, art creation, teaching, student projects and hobbies.

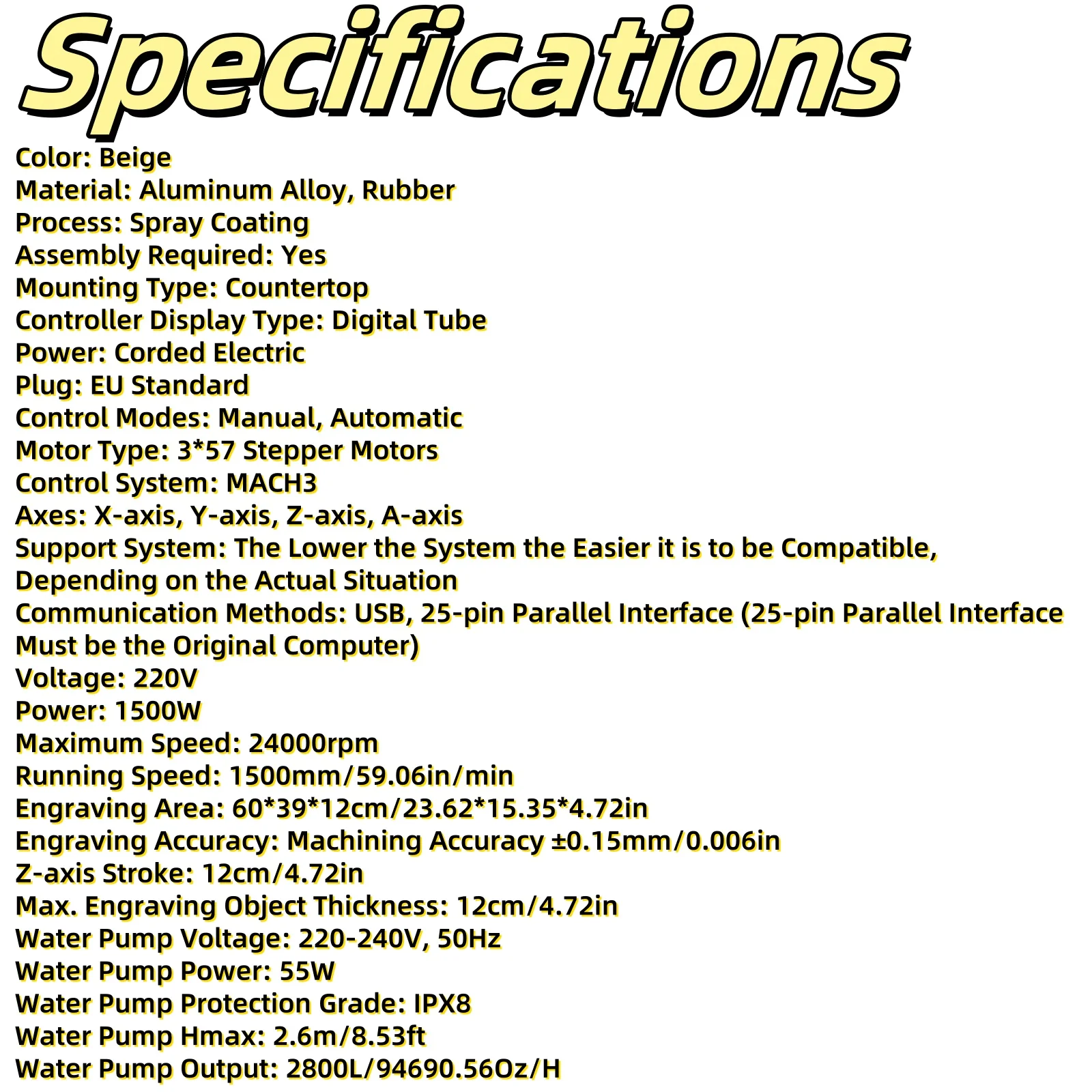

Key Features

Build to Last: This product is made of high-quality aluminum alloy and rubber with a spray coating process, which is sturdy, corrosion and abrasion-resistant, and can be used for a long time without frequent replacement.

High Efficiency: With 1500W of power, three 57-stepper motors and 24,000 rpm, it delivers better engraving in less time and with greater efficiency.

High Precision:  The product has a machining accuracy of 0.006 inches, which allows for very precise engraving of patterns and text that need to be engraved.

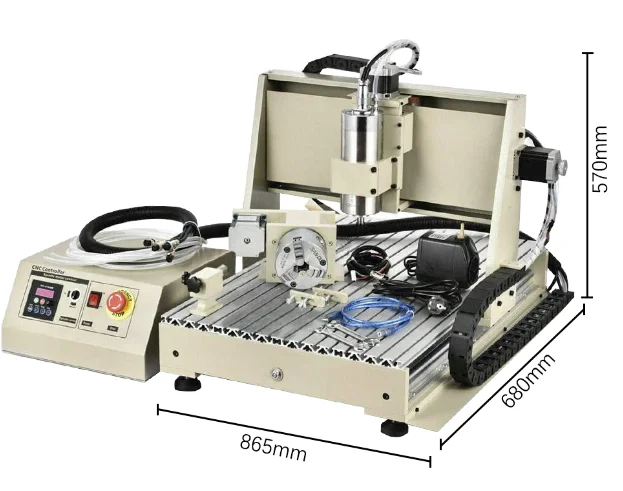

Large Engraving Area: Its engraving area can be up to 23.62*15.35*4.72in, and the maximum thickness of engraved items is 4.72 inches, which allows you to utilize it as you like and fully satisfy your imagination.

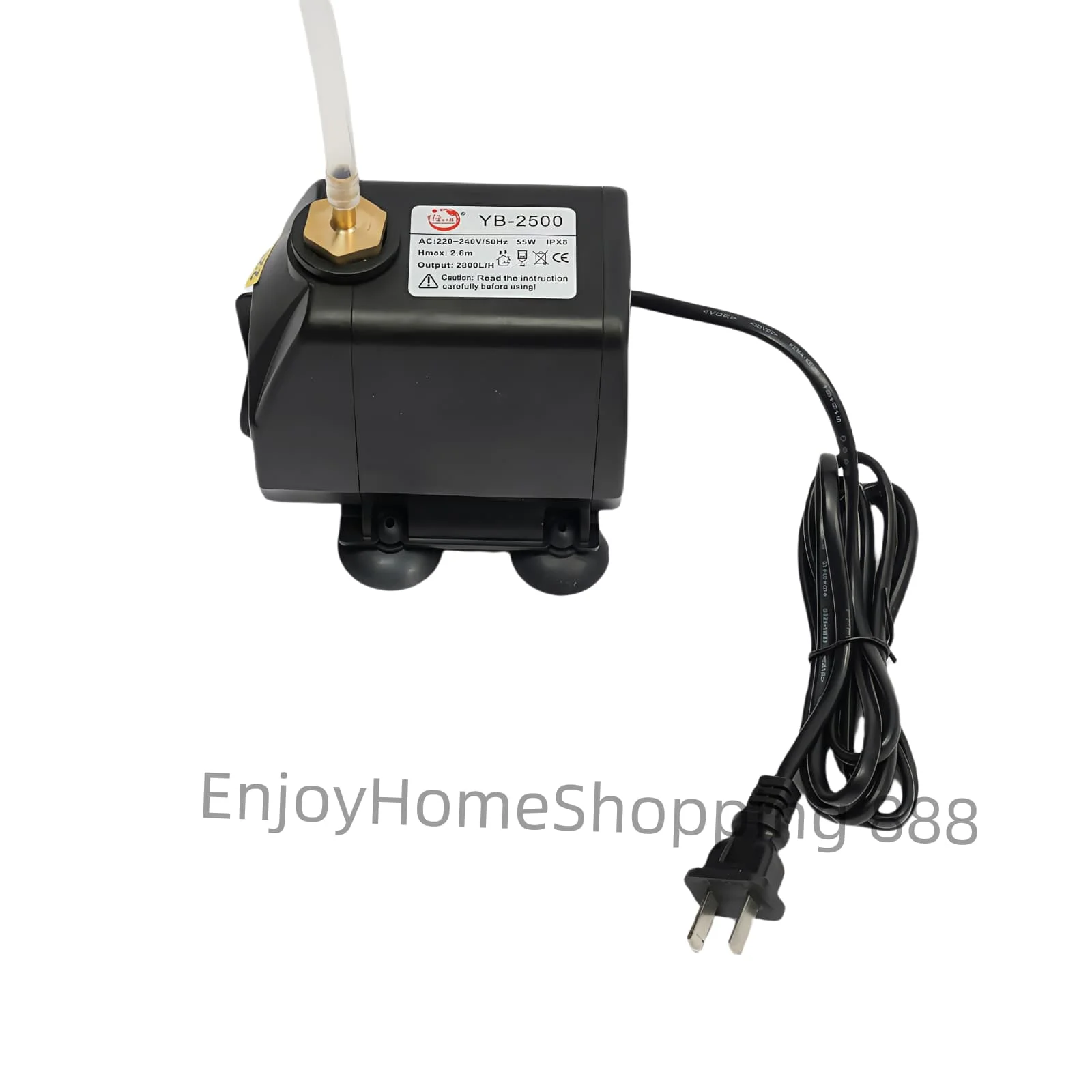

Excellent Heat Dissipation Performance: The product is equipped with a water pump(water pump Hmax: 8.53ft, water pump output: 94690.56Oz/H) to cool the spindle well. In addition, the small fan on the mainframe can also play a good role in cooling.

Safety Guard: The pumps are IPX8-rated and can be placed directly in the water. In addition, the product has an emergency stop button on the control panel, which allows you to pause the machine in time for servicing in case of emergency.

DIY Fun: With it, you can engrave some special numbers, words, etc. on plastic or wood to commemorate your love and affection in a more special way!

Easy to Use: All you need to do is place the item (not included) on the machine, connect it to your computer and select the text you need to print. In addition, you can easily control it from the control panel or the keypad (not included).

Hassle-free Cleaning:It has a smooth surface and an open structure, so you only need to wipe the dust or residue with a towel(not included).

Ideal Gift: It is a special gift to your friends to exercise their hands-on skills and let them experience the fun of DIY by completing the carving works.

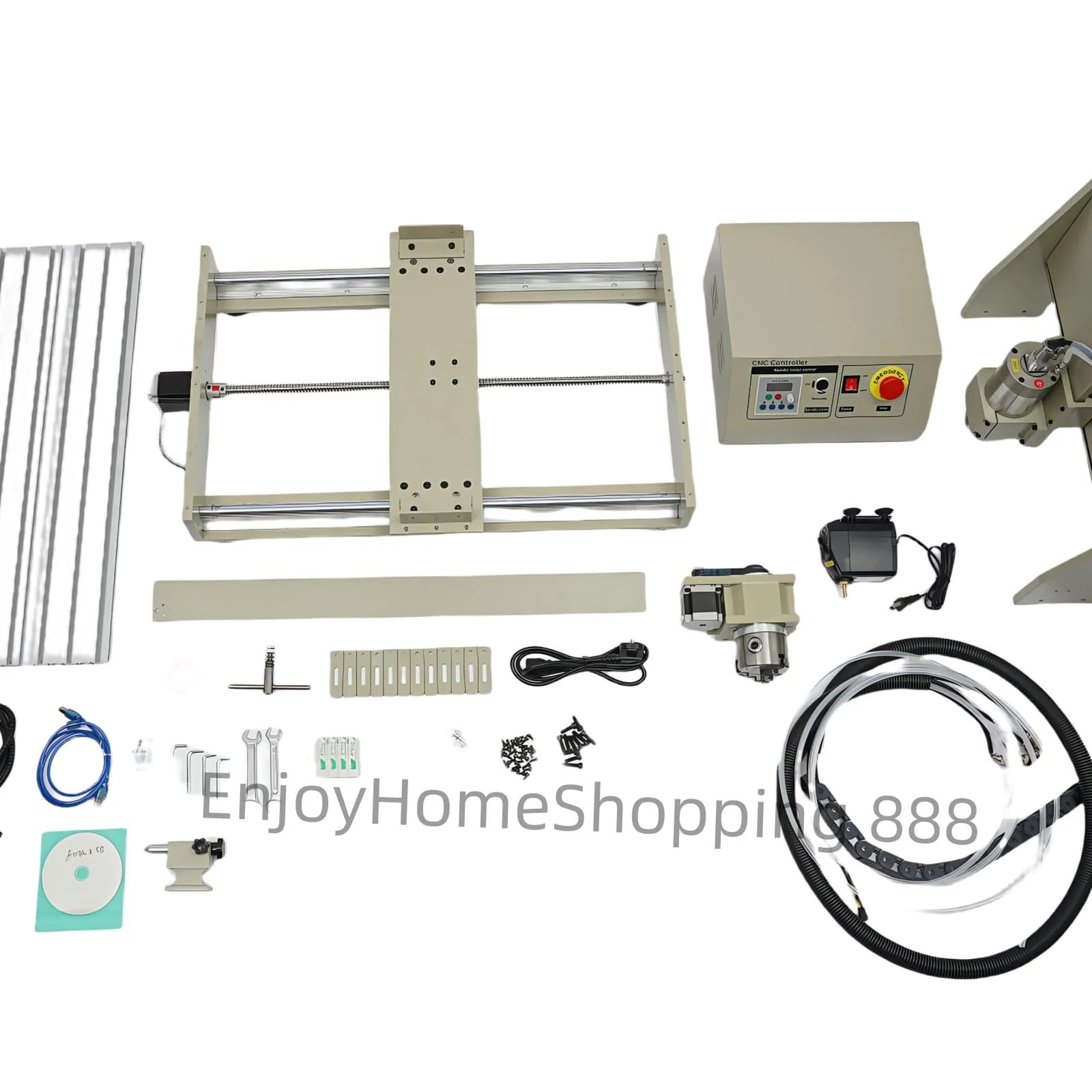

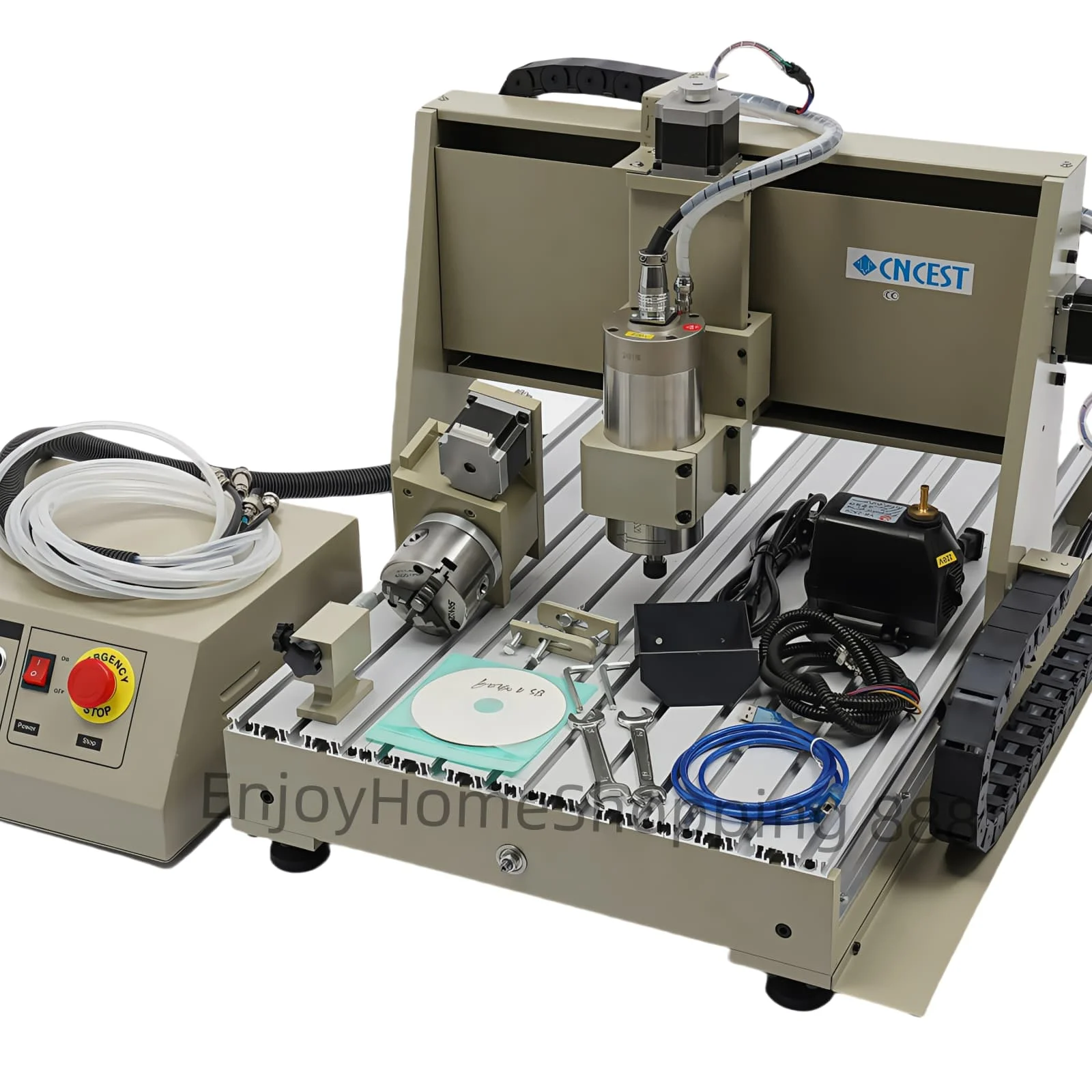

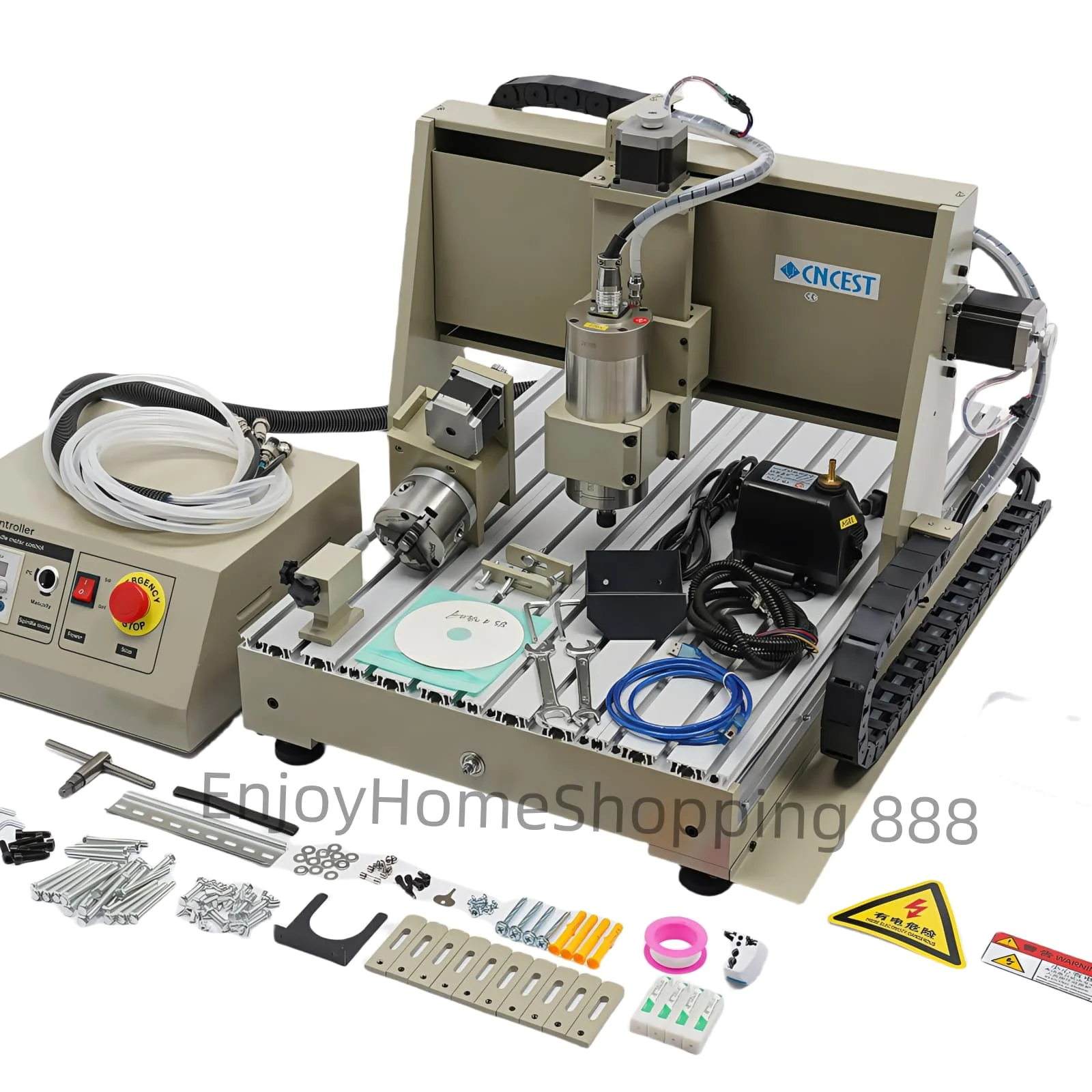

Package Included
1*Engraving Machine
1*USB Cord
1*Power Cord
1*Water Pump
1*Sealing Tape
1*Engraving Thimble
1*DVD Disk
1*English Manual
All Accessories for Assembly


Notes
1.Please note that before connecting the power cord and turning on the power, you must connect the controller and engraving machine, cable, and all to confirm that there is no error before connecting the power cord and power on!

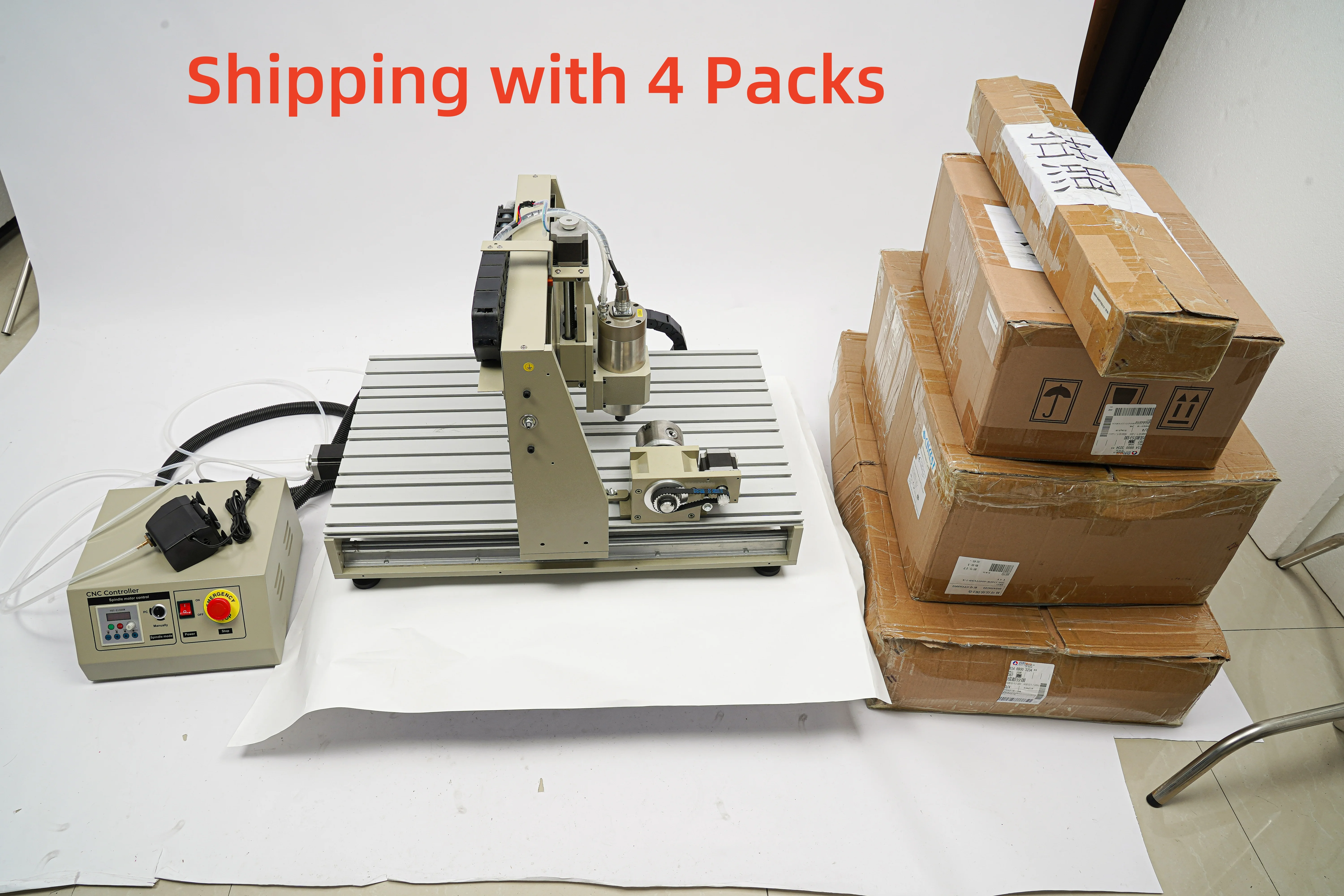

2.We ship the control box, base, aluminum panel and gantry separately to protect the product from damage during shipping. Please be patient as all parts arrive.
3.Please note that this product does not include engraving materials.
4.Please note that the CNC controller is an internal high-voltage controller system, and must not open the controller shell, in order to avoid the danger of electric shock! If you need to repair, please have it serviced by a qualified service technician!
5.Please note that there are high-speed and high-speed moving parts of the CNC controller system, the system works not to touch the rotating and moving parts, wear goggles (not included) to prevent processing dust damage to the eyes. Install a hair protector (not included) to prevent hair from getting caught in the machine and endangering lives!
6.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
