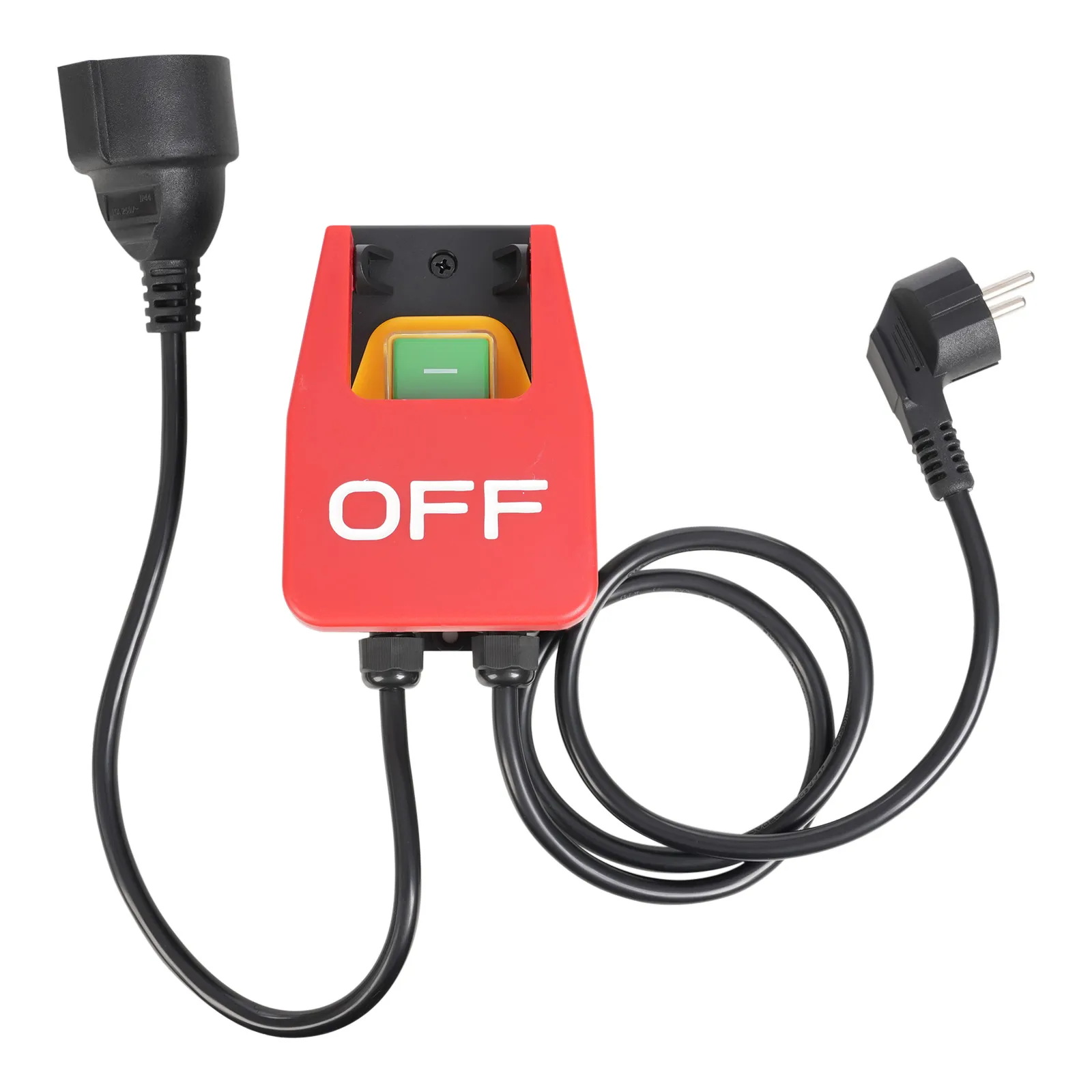

2000W Electromagnetic Switch Safety Switch with Socket Emergency Stop Switch AC250V 50/60Hz

Specification

Material: PA66

Process: Plastic Spraying, One-piece Molding

Voltage: AC250V 50/60Hz

Power: 2000W

Current: 16A

Switch Type: Silver Contact

Actuator Type: Push Button

Control Method: Touch

Mount Type: Freestanding

Assembly Required: No

Working Temperature: -5℃~40℃/23~104°F

Ambient Temperature: T85/55℃, 185/131°F

Protection Level: IP55

Cycle Times: 100,000

Power Source: Corded Electric

Plug Type:  EU Standard

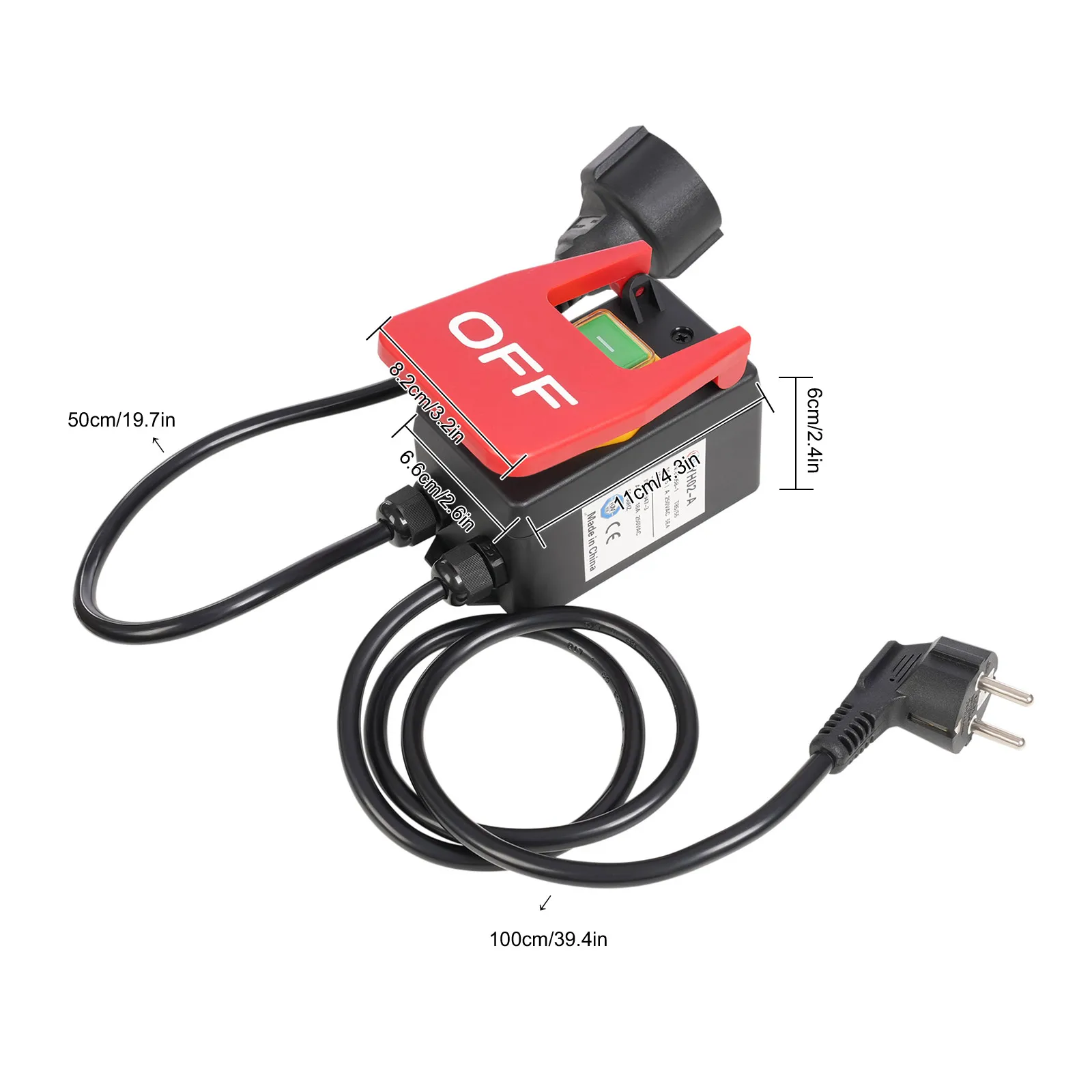

Protective Cover Width: 8.2cm/3.2in

Socket Cord Length: 50cm/19.7in

Power Cord Length: 100cm/39.4in

Product Size: 6.6*11*6cm/2.6*4.3*2.4in

Package Size: 21*14*11cm/8.27*5.51*4.33in

Gross Weight: 0.6kg/1.32lbs

Net Weight: 0.5kg/1.1lbs

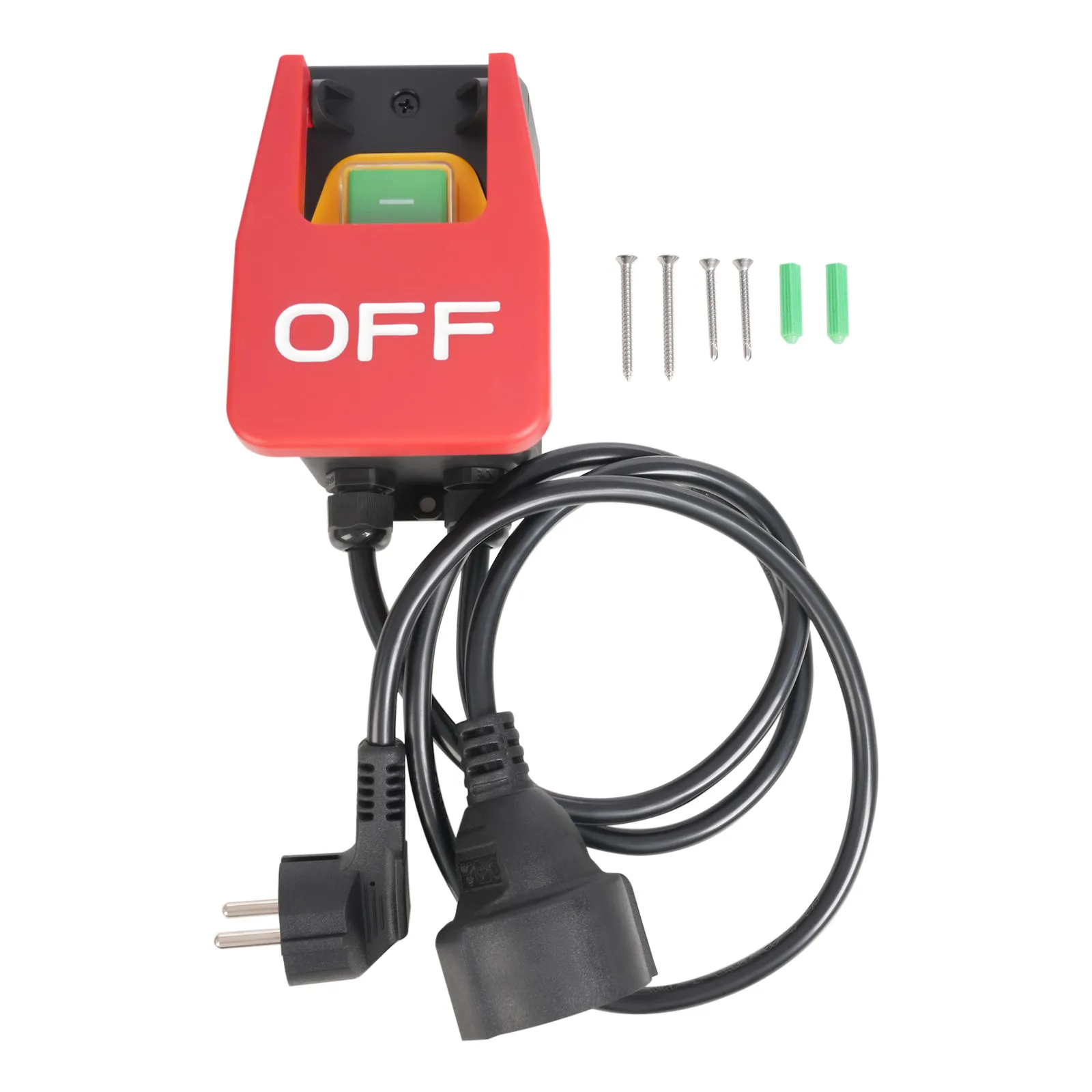

Package Included

1* Emergency Stop Switch

Notes

1. It is recommended that a professional perform the installation.

2. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement and make sure you do not mind before ordering.

Description

This advanced emergency stop switch  boasts a socket design that not only facilitates swift installation and maintenance but also enhances user flexibility. It empowers operators to swiftly halt machinery in case of an unexpected event, thereby minimizing risks and upholding workplace safety standards. Its robust housing shields the intricate electromechanical components from dust, humidity, and mechanical shocks, thereby extending the service life and maintaining consistent performance over time.

Key Features

Build to Last: Made of high-quality PA66, plastic spraying treatment of the shell, one-piece molded panels, and bottom shell, with excellent heat resistance and wear resistance, to ensure stability and longevity under long-term use.

Safe and Reliable: PA66 has excellent insulating properties, while the switch is also specially designed with under-voltage protection to ensure your safety.

Waterproof and Dustproof: IP55 protection level plus waterproof cover and rubber sealing gasket can effectively prevent moisture, dust, etc. from entering into the inside of the switch and enhance the sealing, which guarantees the safety and stability of the use.

High Efficiency: It has a power of up to 2000W and a short action time, which can quickly turn on or off the circuit. The design of the built-in electromagnetic coil also greatly improves the response speed and accuracy.

Easy to Use: Simple buttons help you quickly master the operation method. You can press the green button to lock it, at this time the switch is on, and press the red button, the green button pops up and the switch is disconnected. There's also a large red "OFF" paddle, so you can see the workflows.

Quick Installation: You connect the female wire to the plug of your power tool, then plug the male wire of the switch into the socket and you are ready to go.

Practical Tool: It provides hands-free protection for your workshop, woodworking machinery, and power tools. It features an easy-to-find and easy-to-use design that eliminates the need to constantly search for power tool switches under your desktop.

Customer Service: We aim to provide quality products and services. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

Details

Silver Contact: It gives you more intuitive control over the circuit on-off.

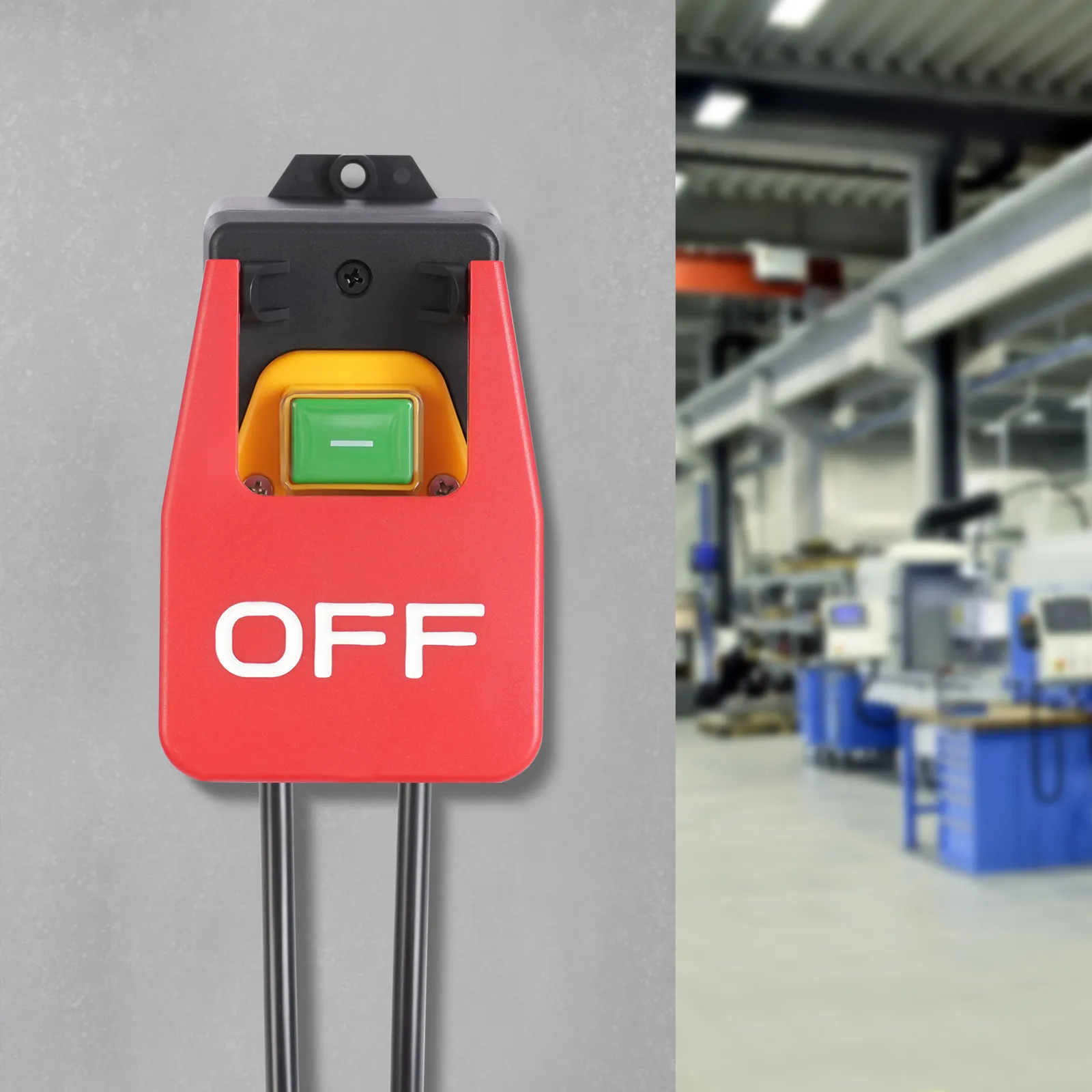

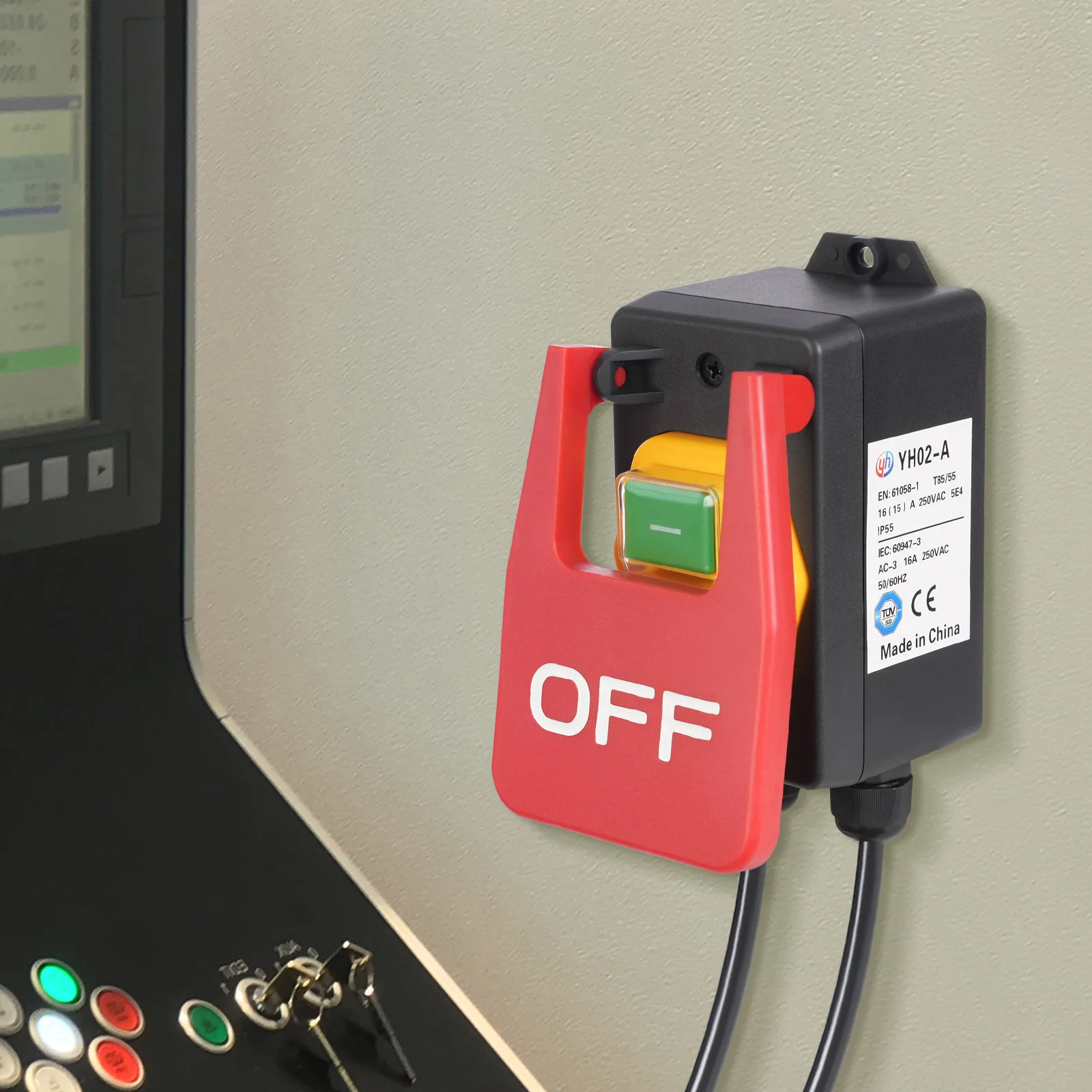

Pre-drilled Holes: Two pre-drilled holes on the back make it easy for you to hang it on a wall or fix it in your workshop.

Long Cords: 19.69 in socket cord with 39.37 in plug cord provides more flexible usage scenarios.

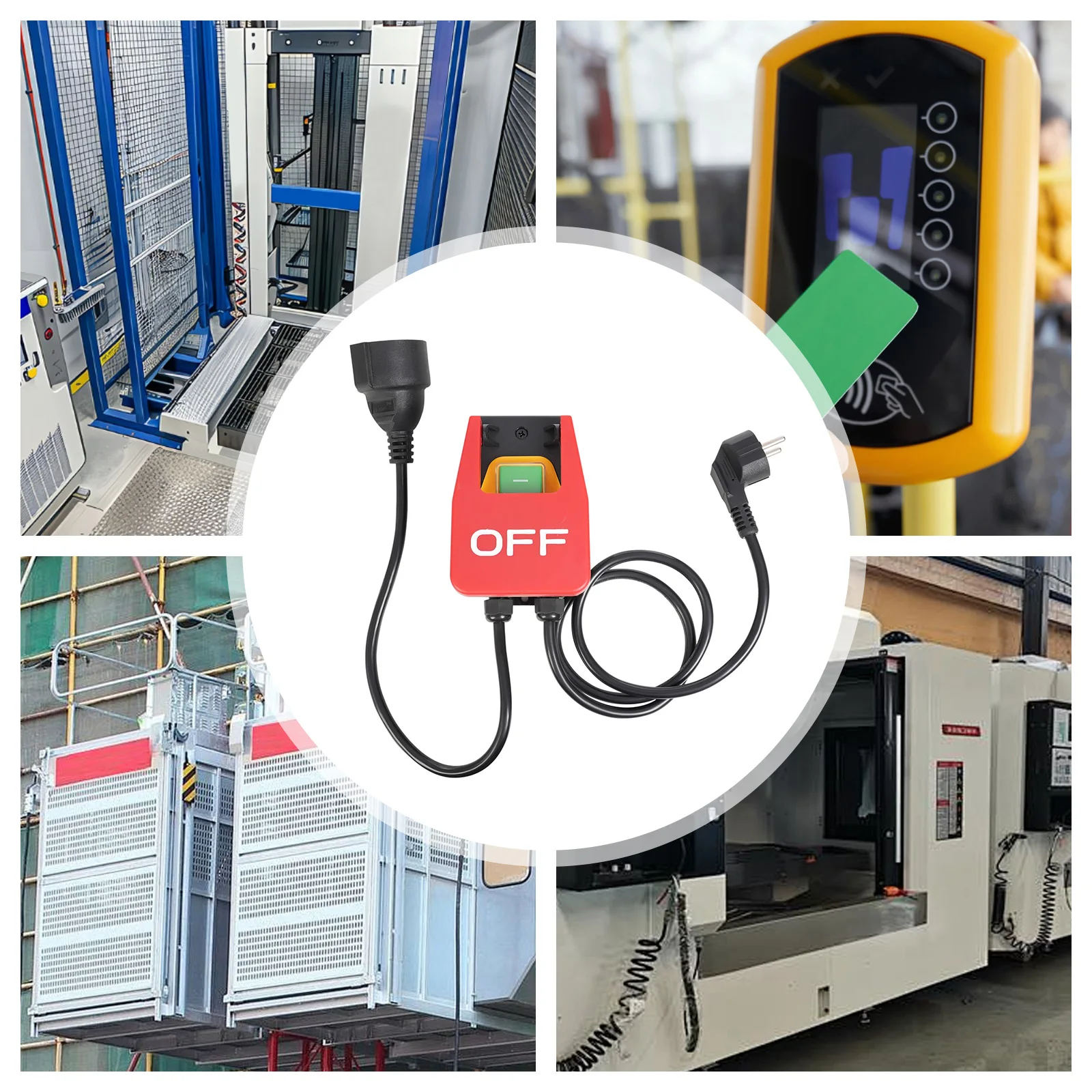

Application

It is widely used in automation control organizations, household appliances, automobiles, industrial equipment, workshops, woodworking machinery, milling tables, power tools, etc. It is usually used with routers, table saws, drills, band saws, woodworking machinery, and other power tools (all excluded).
