90W 20K Induction Motor with Gear Controller and Bracket| 1.2*2.8cm Shaft 220V AC Motor for Packaging Machine

90W 20K Induction Motor with Gear Controller and Bracket| 1.2*2.8cm Shaft 220V AC Motor for Packaging Machine

Application

It is widely used in food packaging, food mixing, office equipment, medical equipment, packaging machinery, printing machinery, leather shoe polishing machinery, metal cutting machine tools, etc. It is suitable for the packaging industry, machinery and machinery industry, transportation equipment, textile machinery, electric welding machine, automobile industry, etc.

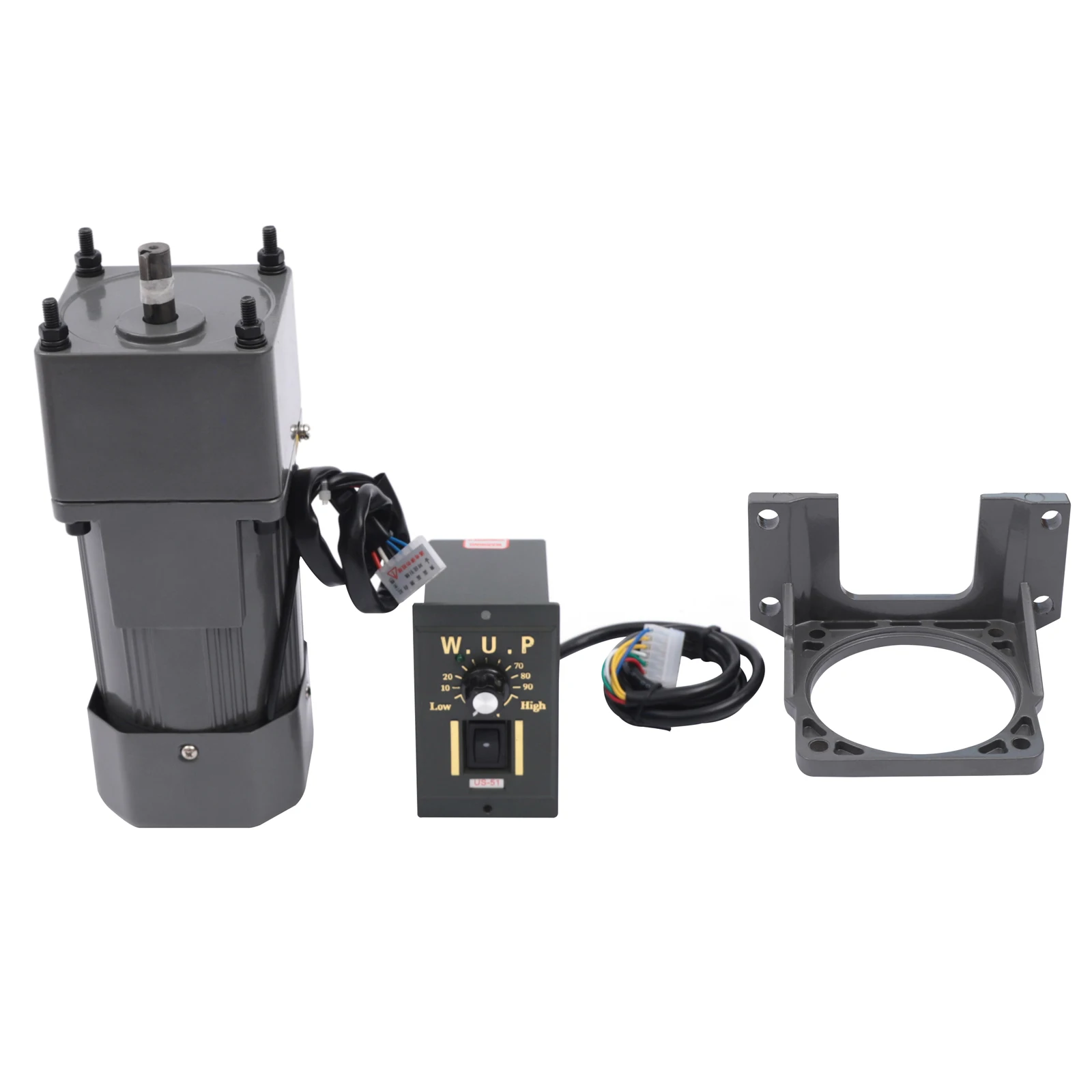

Package Included

1 x Motor

1 x Reducer

1 x Speed Regulator

1 x Bracket

Key Features

Increasing Power: This motor achieves the purpose of reducing speed through the arrangement of gears, thereby generating more power and making your machine run faster.

Stable Performance: The motor adopts copper coils with better heat dissipation, and the torque is large, which can keep the overall performance of the motor stable.

Low Noise: This motor adopts an aluminum alloy casing, which has low vibration and low noise during operation.

Small Size: This motor is compact in structure and small in size, and will not take up too much space.

Adjustable Speed: The motor is equipped with a speed regulator, you can adjust the speed according to your various needs to achieve better power matching and achieve high efficiency of a machine.

Complete Accessories: The product includes a complete set of accessories. In addition to the motor, it is also equipped with a bracket, a reducer, and a speed regulator. You do not need to configure other accessories separately, which is very convenient and simple.

Long Service Life: The product is made of high-quality and high-strength metal, and the metal surface is painted, so it is anti-rust and anti-corrosion, and durable.

High Torque: The motor has large torque, strong speed-up capability, and a stronger overload capacity, and can reach the power required by the machine faster.

Trustworthy: The manufacturer has been committed to the production of motors and gear motors for a long time, and the mechanical equipment is excellent. This motor has passed the 3C certification, and its quality and professionalism are quite trustworthy.

Easy to Use: The overall motor is complete, and the governor is also equipped with corresponding numbers and presentations. You only need to adjust to the required speed, and the operation is very simple.

Description

This gear adjustable motor is primarily used to reduce the speed of a series of gears, thereby producing more power torque. This motor has high power, and high torque, and can also be switched for speed regulation. This high-quality motor with excellent performance is suitable for various industries.

Specification

Material: Iron, Aluminum Alloy, Copper

Color: Black

Shape: Rectangular

Gross Weight: 5.13kg/11.3lbs

Product Weight: 4.50kg/9.9lbs

Package Size: 28.5*24.1*12.5cm/11.2*9.5*4.9inch

Reducer Size: 6.2*9*9cm/2.4*3.5*3.5inch

Motor Size: 16.5*9*9cm/6.5*3.5*3.5inch

Shaft Size: 1.2*2.8cm/0.5*1.1inch

Key Depth: 2.5cm/1.0inch

Keyway Size: 0.4cm/0.2inch

Distance Between Diagonal Mounting Holes: 10.4cm/4.1inch

Distance Between Mounting Holes on the Same Side: 7.35cm/2.9inch

Diameter of Disc Stop: 3.4cm/1.3inch

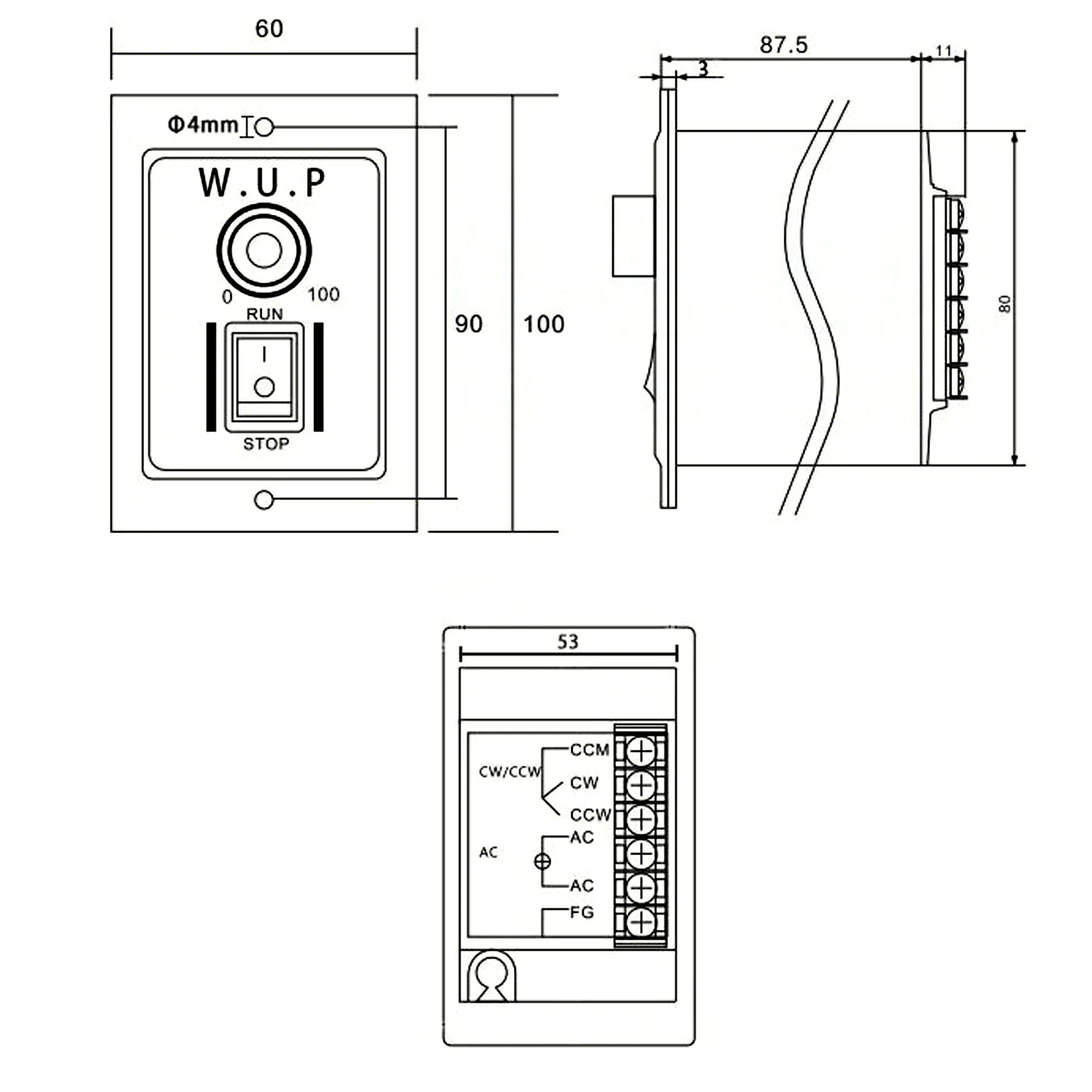

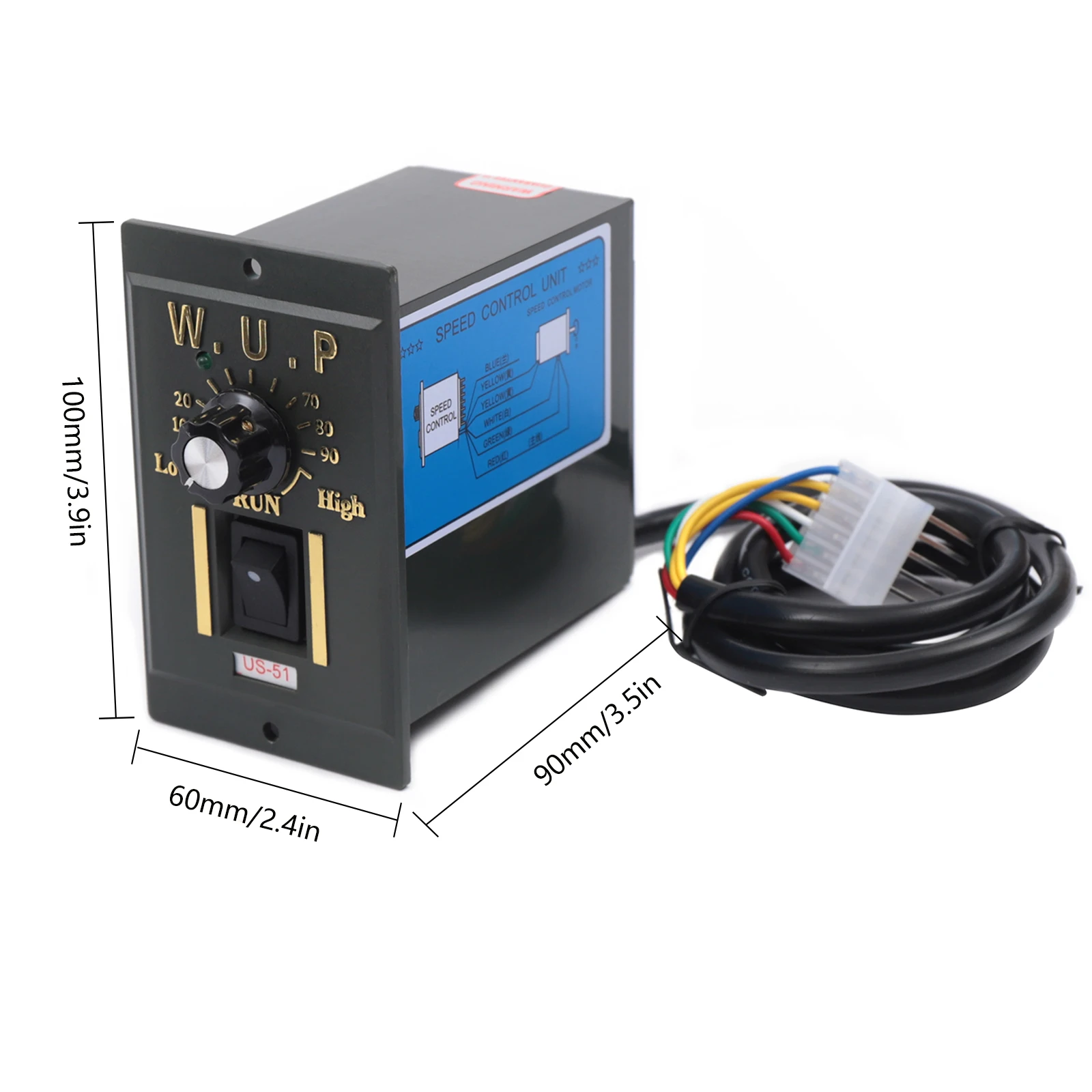

Speed Regulator Size: 6*9*10cm/2.4*3.5*3.9inch

Voltage: 220V

Rated Power: 90W

Engine Speed Ratio: 20K

Details

Copper Coil: The copper coil has better heat dissipation, good conductivity, and longer service life.

Thickened Metal Gear: The gear mechanism is precise, the thickness is thicker, the wear resistance is good, the service life is prolonged, and the motor torque is increased.

Notes

1.Do not plug or unplug the lead wire when the power is on.

2.The product does not include a power cord, which needs to be purchased separately.

3.Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
