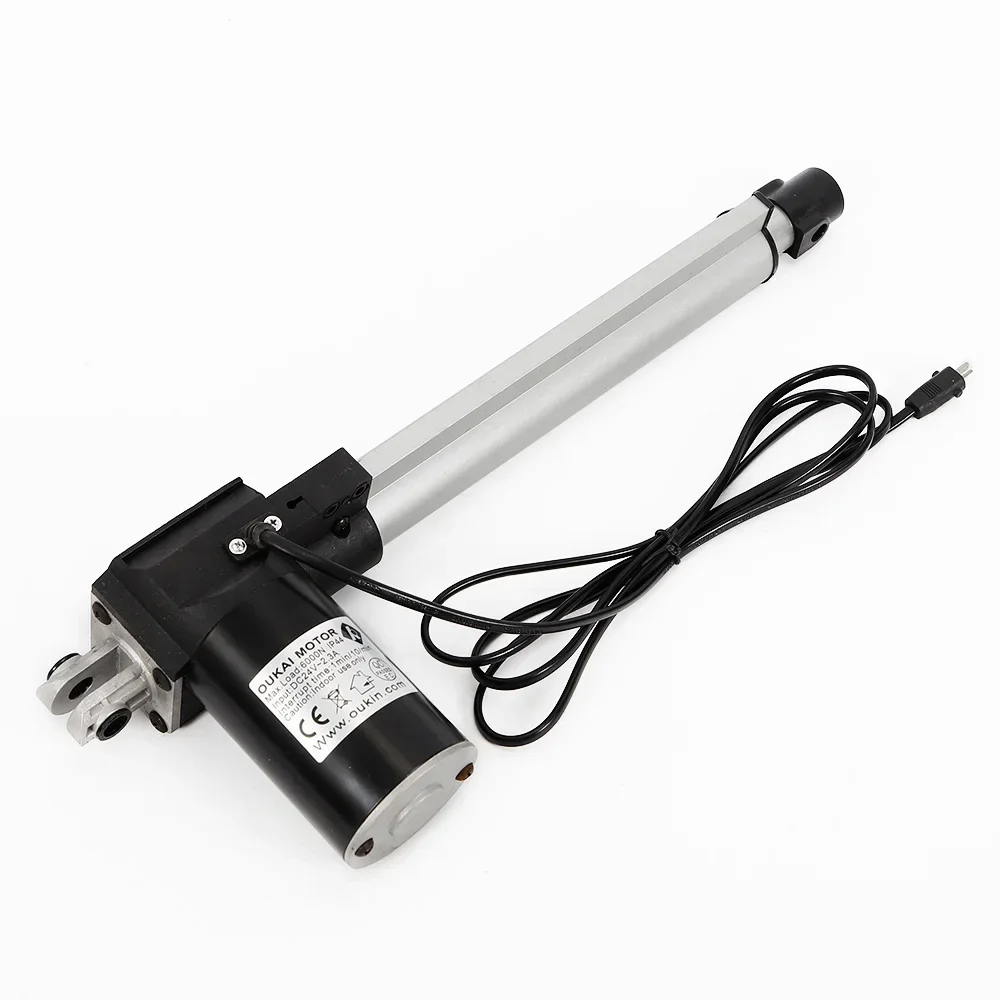

24V DC Linear Drive 600kg Max Lift 230mm Stroke Electric Motor for Electric Chairs

Application:

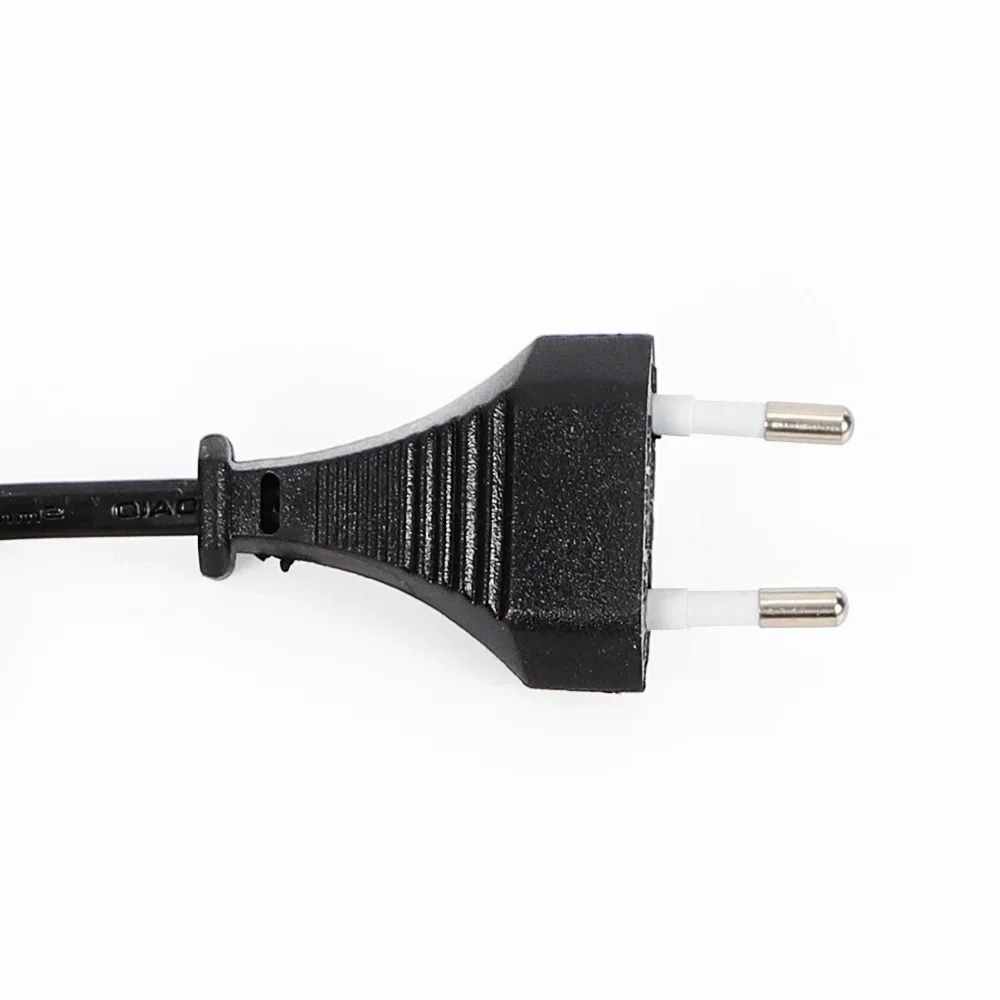

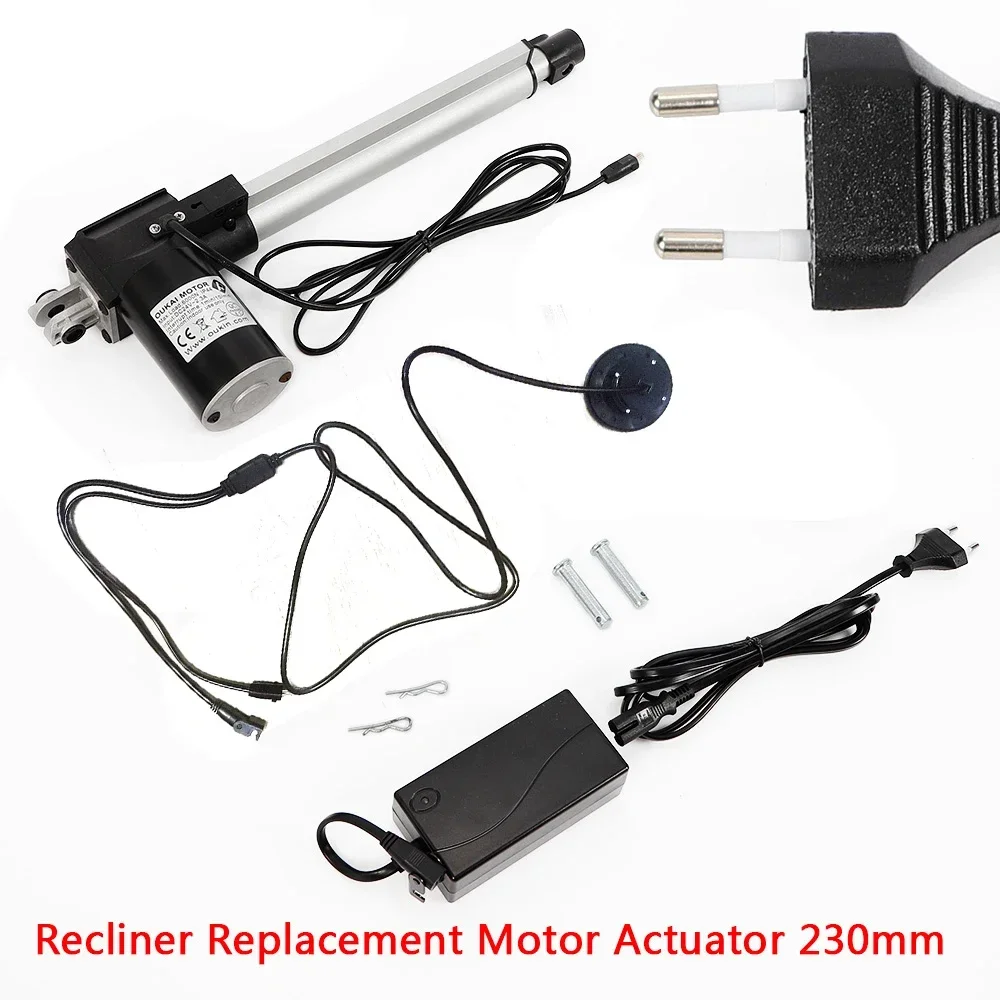

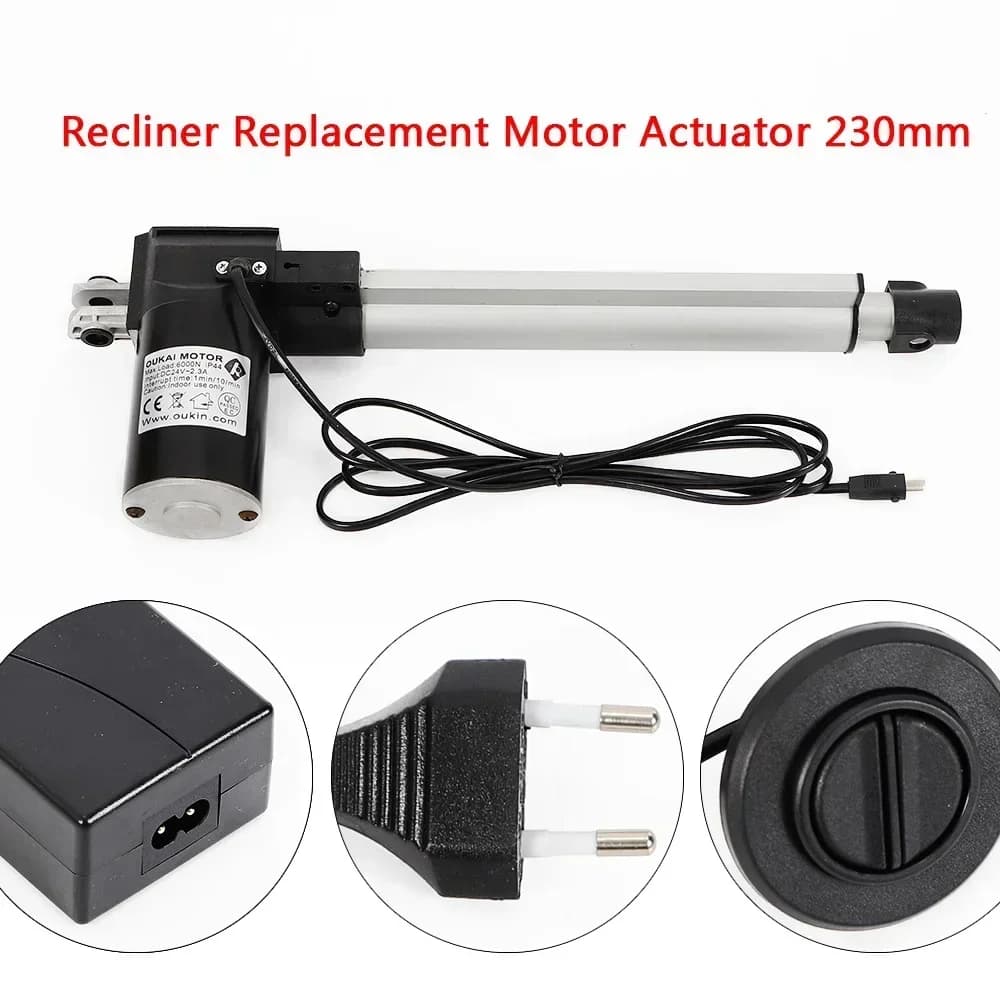

This Power Recliner Lift Chair Linear Actuator Motor Will Open And Close The Lift Mechanism Of Power Recliner Or Lift Chair. Connects To Motor Handset Hand Control Via 5 Pin Style Connector, And Connects To The Power Transformer Via The Standard 2 Pin Style Connector.
Specifications:
Product: Power Recliner Motor Actuator
Stroke Length: 230mm
Unextended Size: 230 + 175 = 405mm
Extended Size: 230 + 175 + 230 = 635mm
Permanent Magnet Dc Motor Drive;
Voltage: 24VDC
Maximum Push / Pull: 600KG / 600KG
Minimum Installation Size (Distance Between The Push Holes And The Two Holes Before And After The Return Of The Putter):L = S (Stroke) + 175mm;
The Distance Between The Push Rod And The Two Holes Before And After Is Extended To =2Xs (Stroke) +175mm
Rated Load Rate: 5mm / S (600KG)
Ambient Temperature: -5 C + + 50 C
Standard Protection Level: IP44
Net Weight:2.5kg
Gross Weight:2.95kg

Features:
24Vdc Permanent Magnet Motor
Thrust Up To 6000 N In Push.And Up To 4000 N In Pull.
Elegant And Compact Design With Small Installation Dimensions
Built-In Limit Switches (Not Adjustable)
Aluminium Outer Tube Ø30 Mm
Aluminium Inner Tube Øø24mm
Steel Back Fixture
Standard Protection Class, IP44
Noise Level 48 dB (A), Actuator Not Loaded.
Duty Cycle, Max 10% Or 2 Minutes Continuous Use Followed By 18Minutes Not In Use.
Option:
Standard Stroke, 25-800 Mm, Can Design As Customer's Requirement.
Free Load Speed, 6.5mm-45mm/s
Rated Load Speed, 4.5mm-40mm/s
