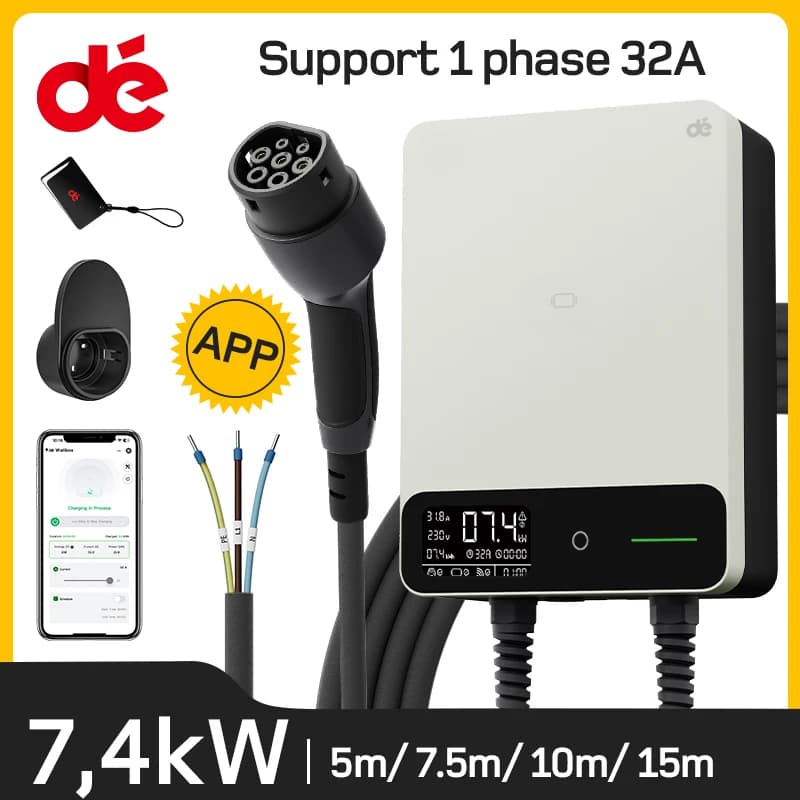

dé Wallbox 7kW White With APP 32A 1Phase Home Charging Station 5m 7.5m Type 2 Charging Cable EV Charger with Electricity Meter

Plug & Play: Plug and play by default, Swipe card for 10s to enable the RFID function.
Adjustable charging current: adjust the charging current at the touch of a button and choose between 6A, 10A, 13A, 16A, 20A, 24A or 32A.

Set Delay Time: You can also set a charging delay of 0.5 to 8 hours to control the charging process according to your needs. All settings are made directly on the charger.

Comprehensive safety protection: dé 7kW wallbox from dé is equipped with an RCD type B: AC 30mA + DC 6mA, which provides protection against residual current, over-current, over-voltage and undervoltage.

LCD display and 7.5 m cable length: the LCD display shows real-time information on power, current, voltage and charged capacity and provides a clear overview of the operating status. The cable length of 7.5 metres allows a wider range to charge a second vehicle in the driveway or garage.

2-Year Warranty: Our company offers a two-year warranty. If you have any problems, our professional engineering team is happy to help.

Specification

Voltage: 230V [1-phase]
Power: Max 7,4kW (32A, 1-phase)
Current: 6A/10A/13A/16A/20A/24A/32A
RCD: Type-B AC 30mA + DC 6mA
Operating Temperature: -25°c to+55°C
Standard: IEC 61851-1 IEC 62196-2
Certification: CE
IP Rating: IP 54(Wallbox], IP 55 (Type 2 coupled)
Wallbox Dimension: 297x214x105 mm
Warranty: 2-Year Warranty

dé Wallbox 7.4kW with Type 2 Charger Cable

32A/ 1-phase/ 230V
RCD Type-B: AC 30mA + DC 6mA
Current: 6A-32A
cable: 5m/ 7.5m/ 10m/ 15m

Fixed Installation/ Install CEE Plug

Fixed Installation on the Distribution Box.
Install the Included CEE Plug and Connect It to the CEE Socket.

Smart Charging Reservation

Press X1: Adjust Current
6A/10A/13A/18A/20A/24A/32A

Press & hold: Schedule Time
0.5H-8H

High-Resolution LCD screen

All information at a glance

Includes a Cable Holder

Easy storage of the cable and Type 2 plug.

“tuya smart" App Remote Control

RFID Card x3

The charging station supports multiple RFID cards for family use. Each member can have their own card to start or stop charging with a single swipe, ensuring convenience and safety.

5m Cable from the Wallbox

Flexible for short distances

7.5m cable from the wallbox

Longer than you need, charge your car effortlessly

10m Cable from the Wallbox

Great for extended reach

15m Cable from the Wallbox

Ideal for larger spaces

How to Use?

Step 1: Insert the CEE plug.
Step 2: Adjust the current and delay time setting.
Step 3: Insert the Type 2 plug into your vehicle.
Step 4: Use the RFID Card till the icon is

Remote Control via the "tuya smart" App

Monitor your charging activity anytime, anywhere

Convenient Charging with or without RFID Card Authorization

RFID is deactivated by default.
Hold the card for 10 seconds to activate the RFID function.

How to install the Wallbox?

1. Flip the product over to the back and locate the pre-installed wall mounting backplate.

2. Press the elastic limiting clips on the backplate to the left to separate the limiting clips on the box and slide the backplate downward.

3. Fix the backplate with the raised side facing outward and the limiting clips facing downward to the wall with expansion screws, and check whether the backplate is firmly installed.

4.Align the snap bit on the back bear of the box with the snap bit on the backplate, and slide the box down after fitting the backplate, and then the control box and the backplate will snap into place when a clear "click" sound.

How to remove the Wallbox?

1. Locate the bottom removal hole and insert a long, hard stick such as a screwdriver until it reaches the elastic limit clip.

2. Push slightly to the eft to separate the two pieces of the limit clip.

3. Remove the Wallbox by sliding it upward while keeping the limiting clips separate.

Compatible with BEVs/ PHEVs that comply with Type 2

Compatible with IEC 62196-2 compliant models.
If you are unsure, our team is available to assist you at any time.

What's in the Box?

1. Wallbox 7kW
2.CEE 32A Plug
3. Holder
4. Microfiber Cloth
5. User guide
6. RFID Card
7. Mounting Kit
