18V Glass Solar Panel 120W 240W Bifacial Solar Panels Monocrystaillne Solar Cell 12V/24V Battery Charger For Home Roof RV Boat

Advantages of JINGYANG Tempered solar panels:

Multi-layer sheet package, sturdy and durable, good heat dissipation. No hot spots will appear.

The aluminum frame is corrosion resistant and is suitable for both indoor and outdoor use.

With a service life of more than 25 years, it is 3-4 times that of ordinary flexible solar panels. It is the best choice for motorhomes and families. It has a very high cost performance and is the best choice for home energy investment.

Product description:

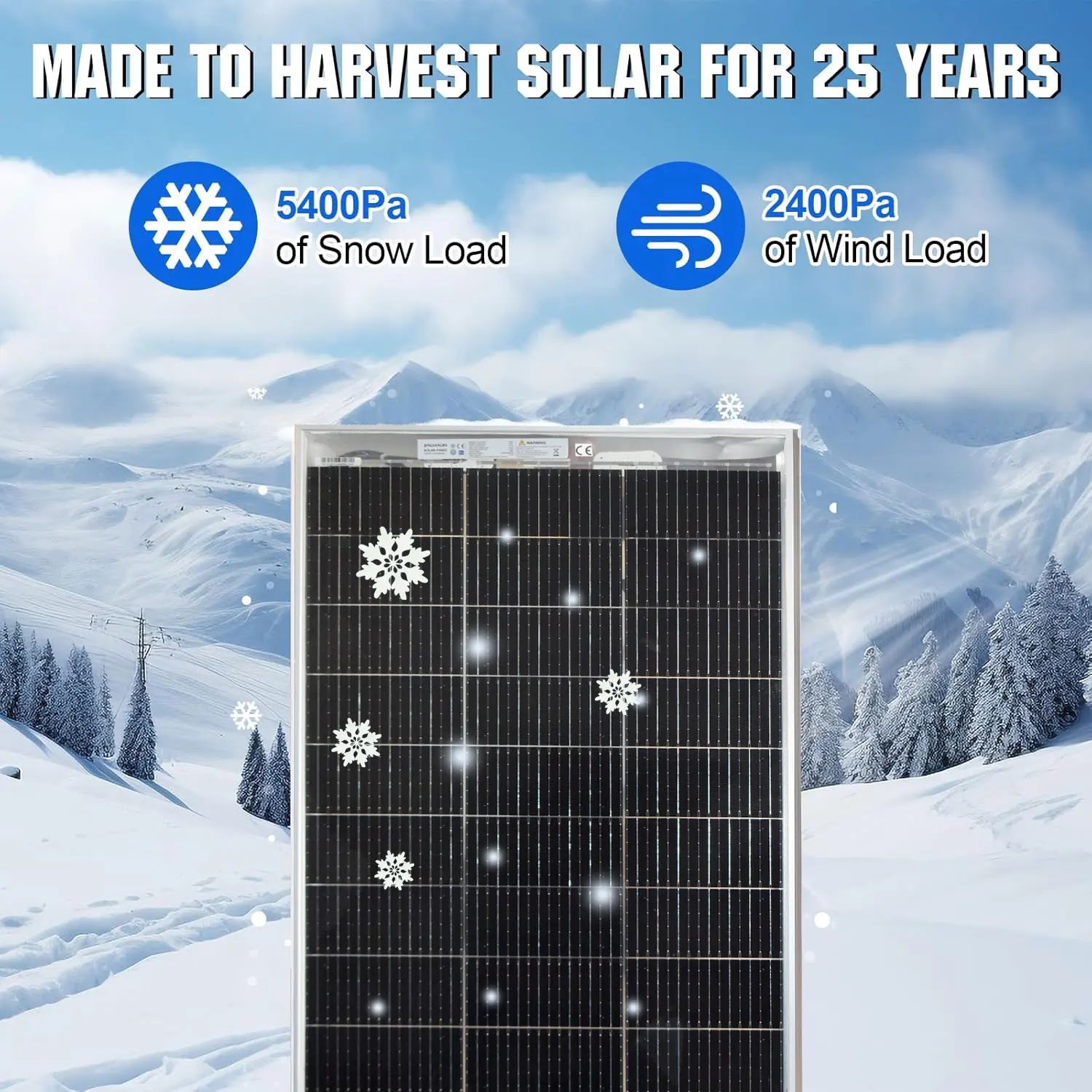

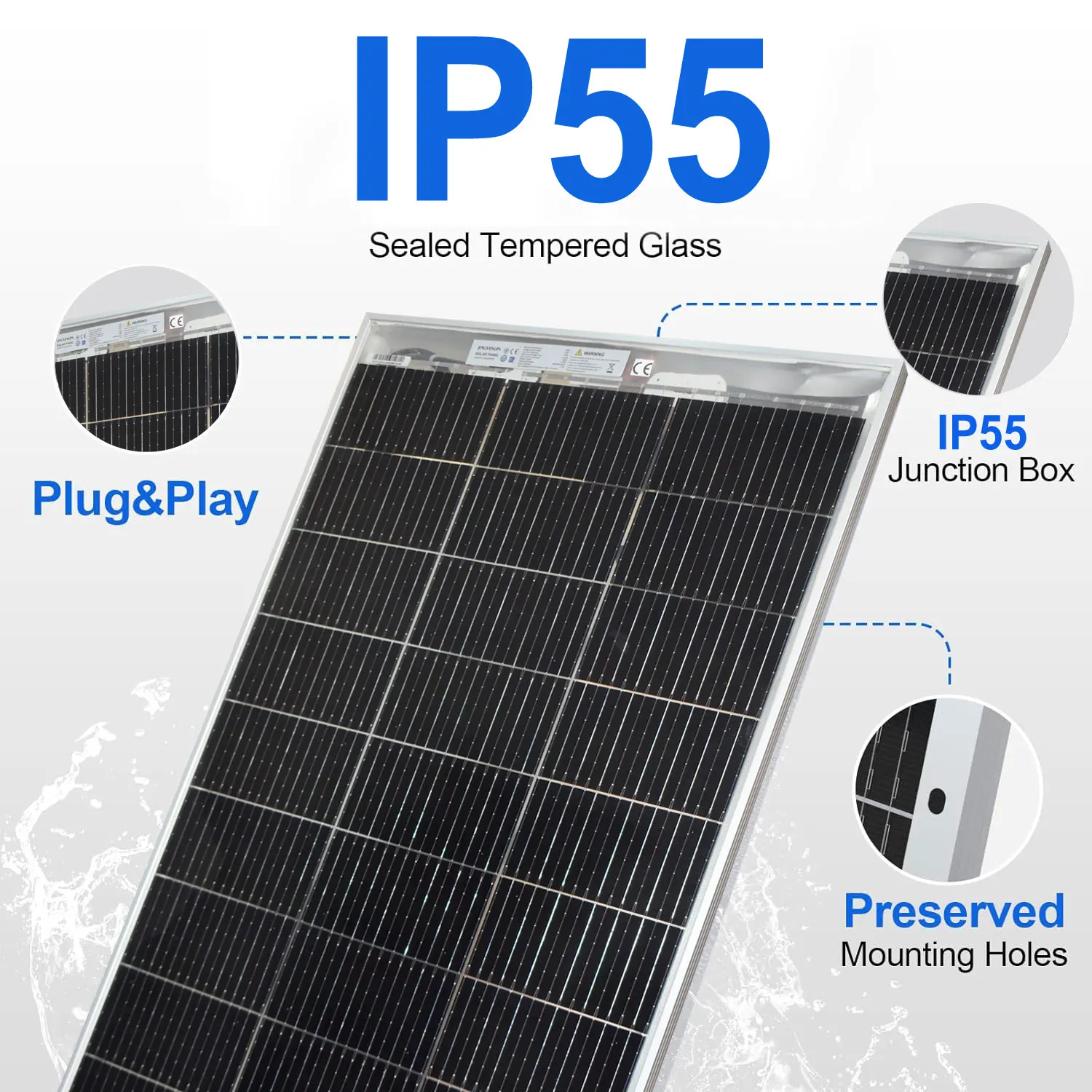

The surface is tempered glass, waterproof, snowproof, resistant to small hail.

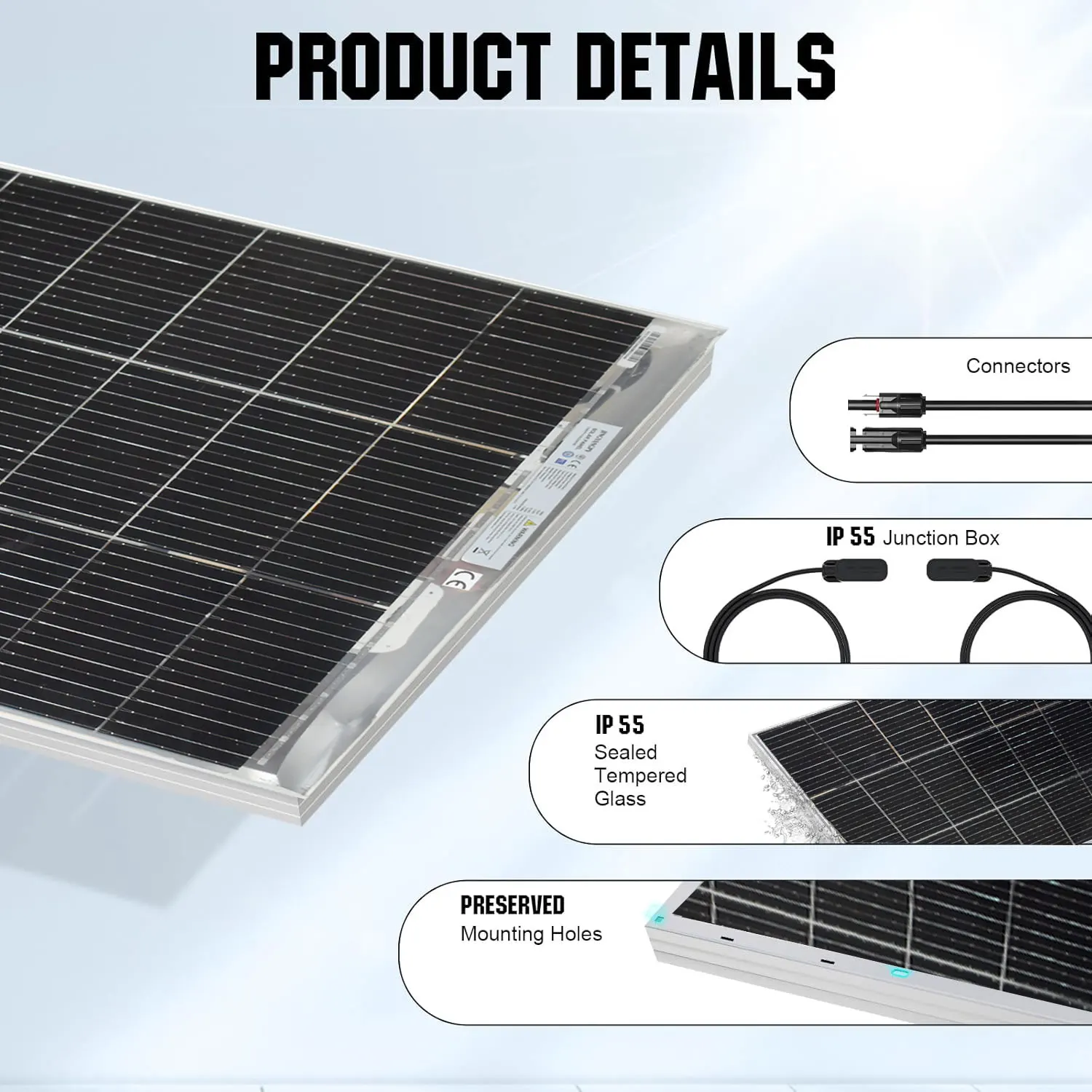

Diodes are pre-installed in junction box and a pair of 24-inches cables with MC4 connectors comes with the panel automatically

The back has 4 drill hole that can be quickly installed.

5 Years Warranty, 25 Year Lifetime

Minor reduction in efficiency under partial load conditions at 25degC: at 100 W/m2, 95%- (+/-5%) of the STC efficiency (1000 W/m2) is achieved.

Extra: We keep right to change the specification of the data, and there is about ±5%deviation for all specification, pls notice this point。

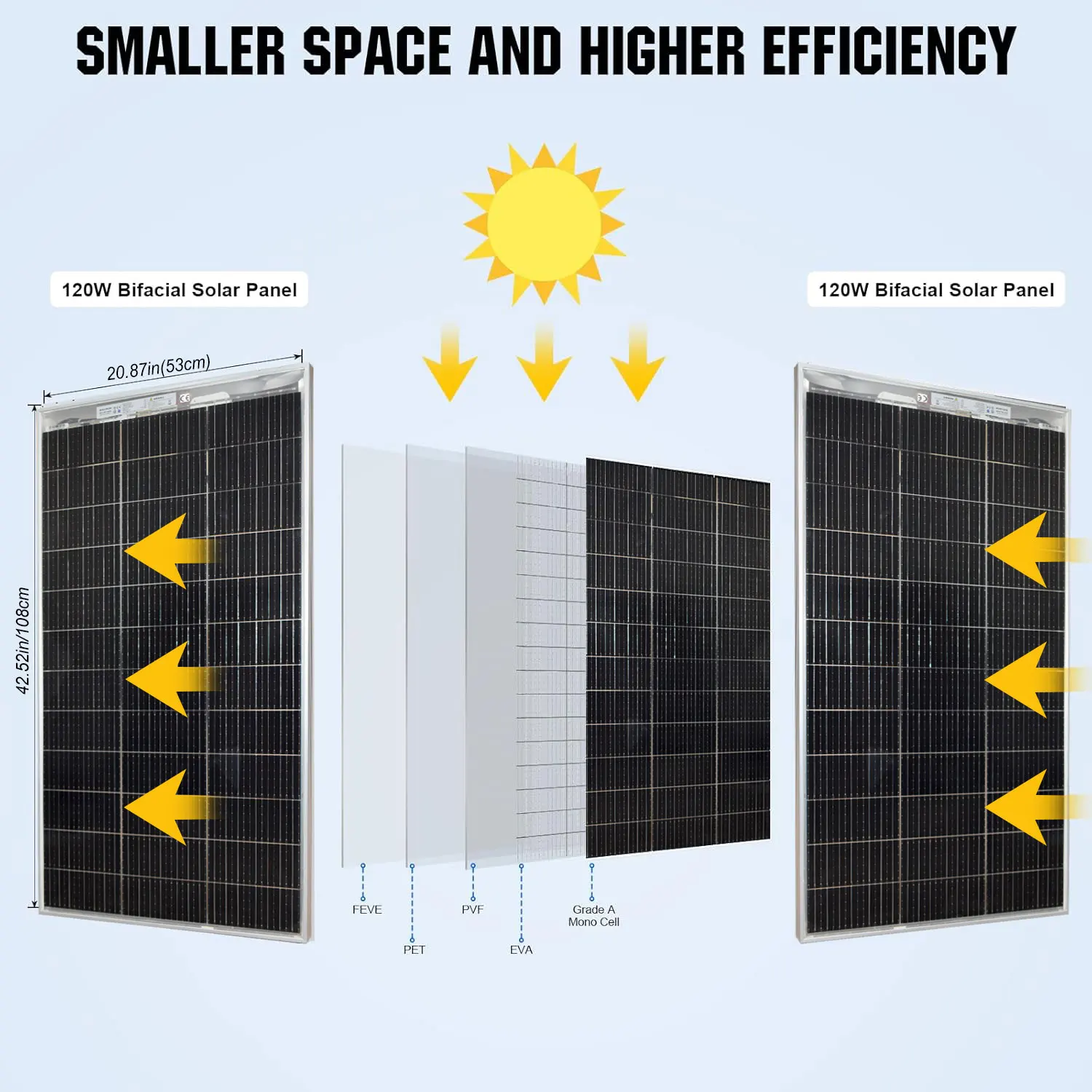

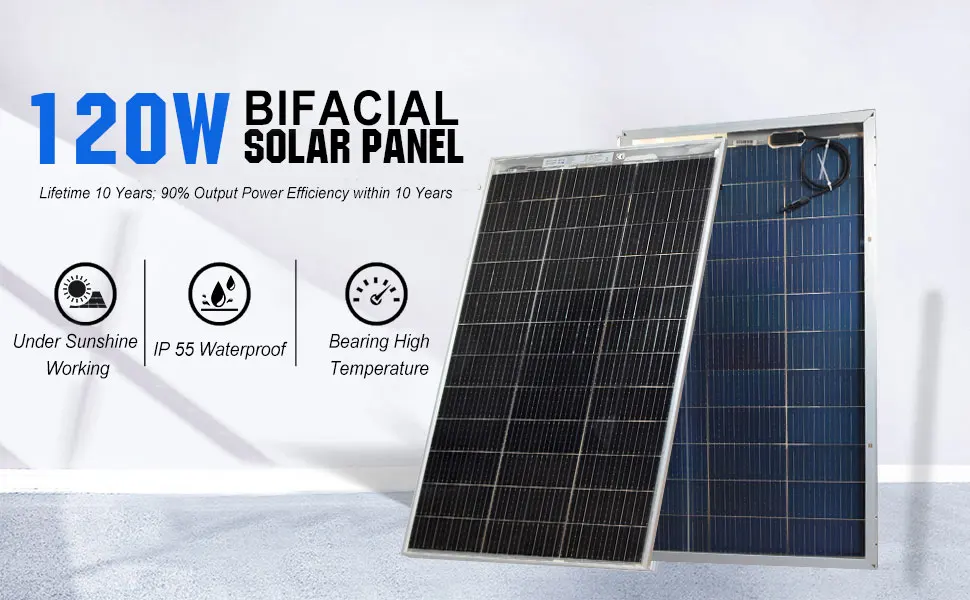

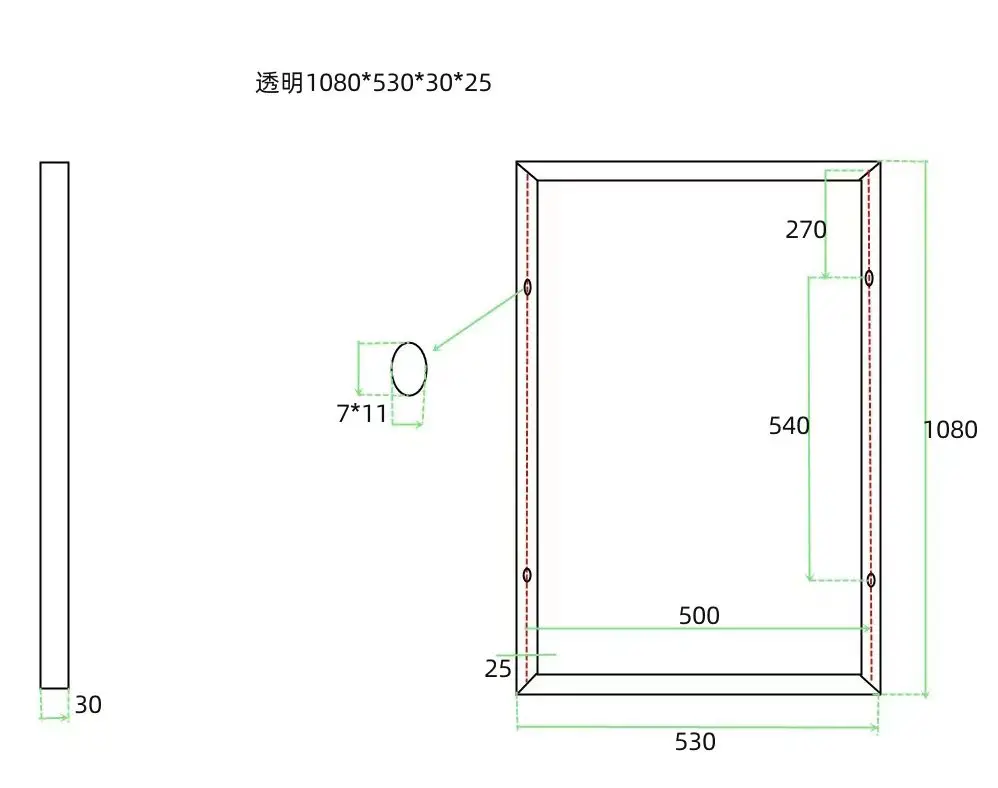

120W Transparent Solar Panel (1080mm*530mm*30mm)

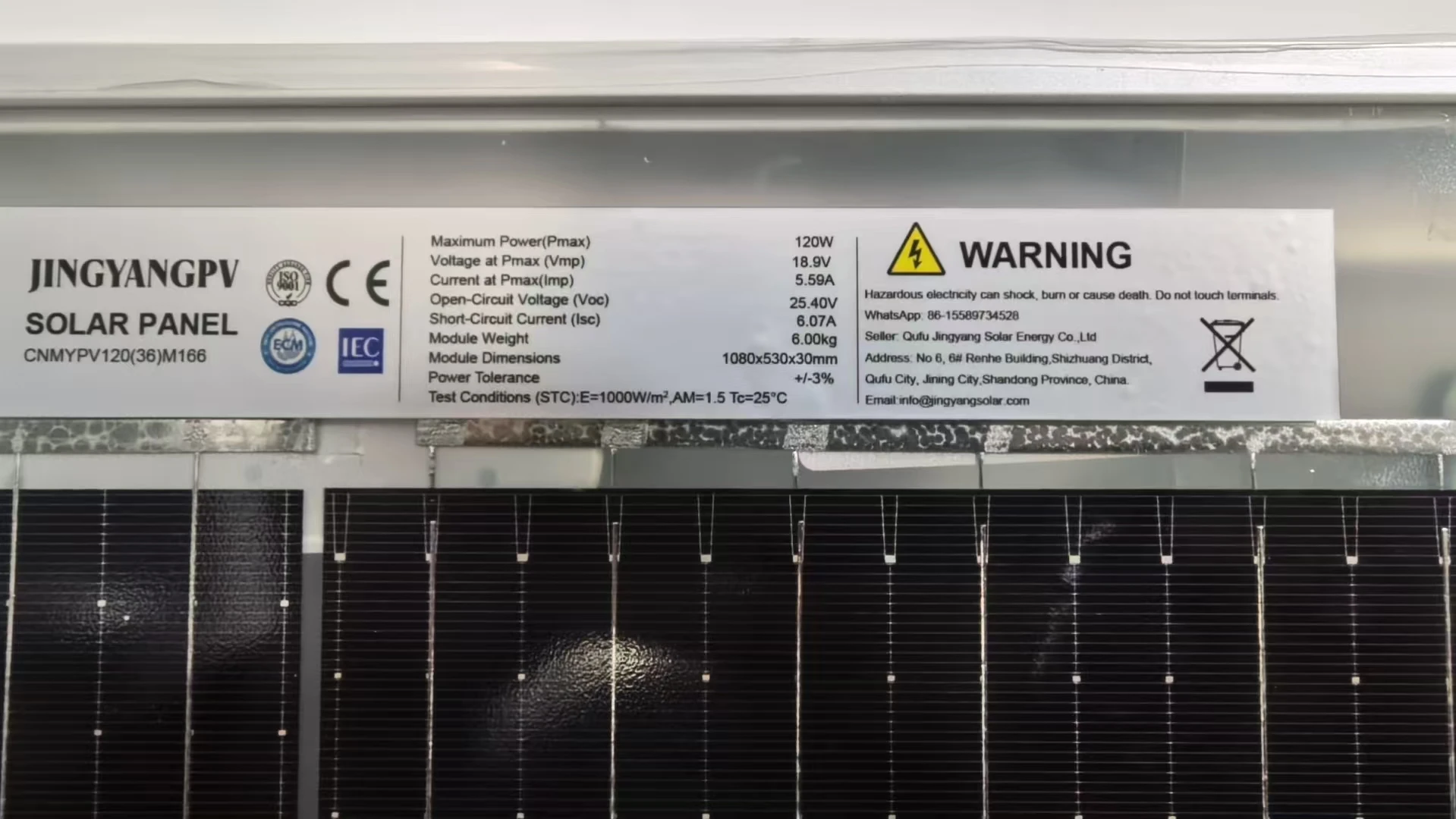

Model:CNMYPV120(36)M166

Material:Monocrystalline silicon

Maximum Power(Pmax):120W±3%

Maximum Power Voltage(Vmp):21.5V

Maximum Power Current (Imp):5.59A

Open-Circuit Voltage (Voc): 25.40V

Short-Circuit Current (Isc):5.92A

Solar Cell: Newly 166MM*166MM

Monocrystalline

Nominal Operating Cell Temp.(NOCT):-45 to 80℃

Maximum System Voltage:DC1000V

Maximum Series Fuse:10A

Dimension:1080*530*30mm

Package Weight:6kg

Quality & Warranty:

1.    Rigorous quality control meets the highest international standard

2.    5 years limited warranty on material and workmanship

3.    25-year performance guarantee at 80% of the minimal rated power output

4.    10-year performance guarantee at 90% of the minimal rated power output

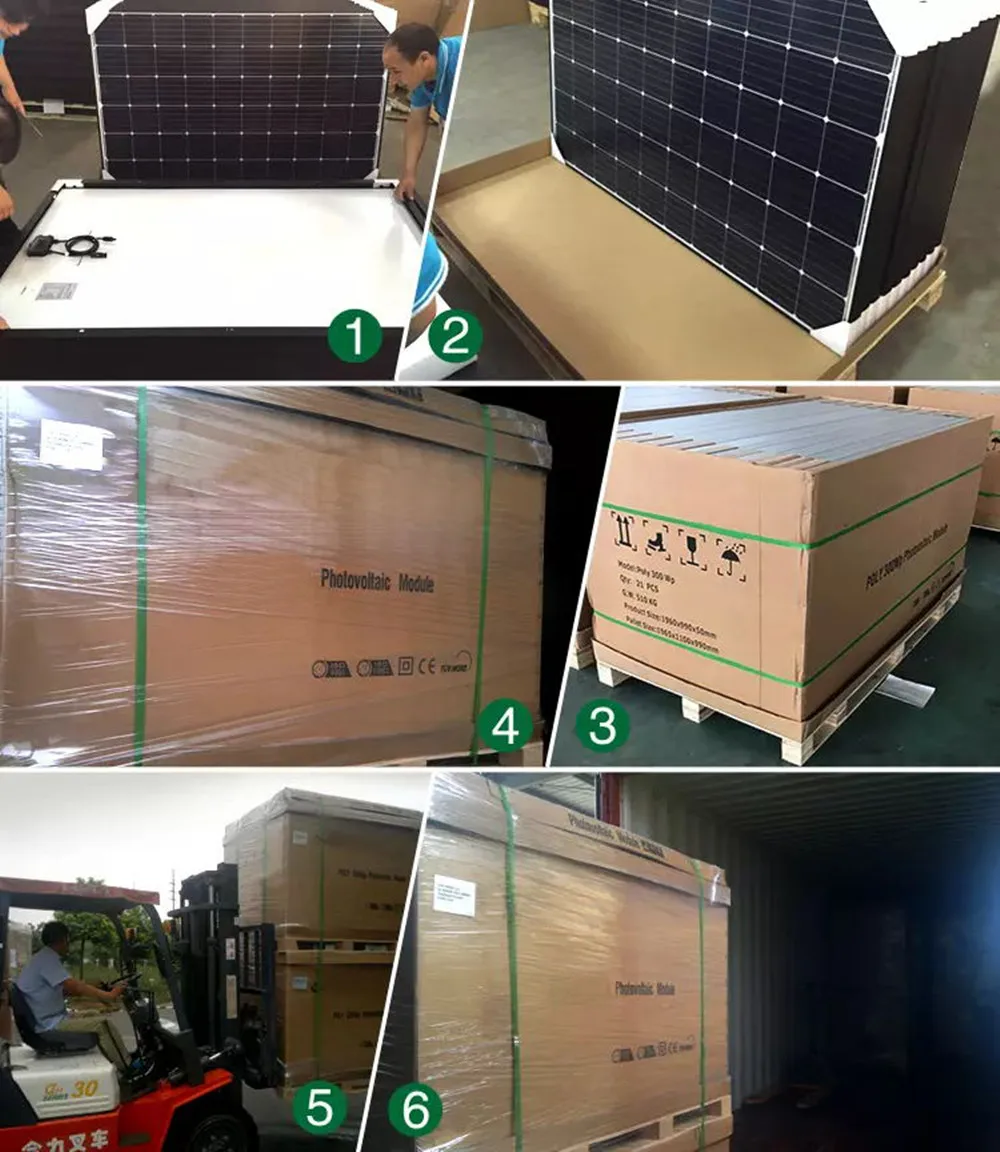

Package and delivery
