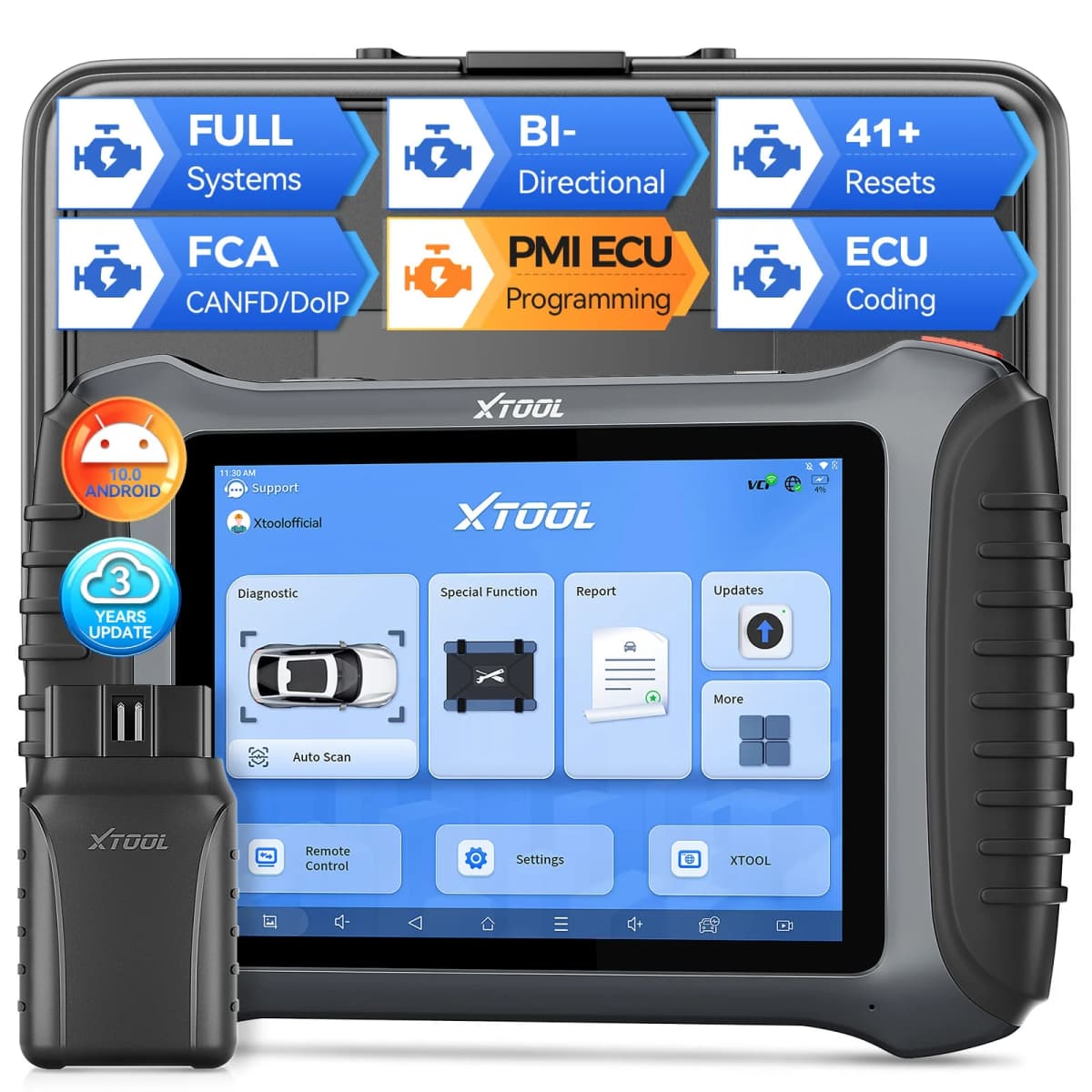

XTOOL IP900 BT Bluetooth Diagnostic Tools All System Automotive Scanner 41+ Resets Bidirectional ECU Coding With CAN FD DOIP FCA

XTOOL InPlus IP900 BT Car Diagnostic Scanner--2026 Newest All-In-One Automotive Diagnostic Scan Tool Has Packed All Capabilities Auto Technicians Would ever need for daily repair & maintenance services: Added FCA AutoAuth Function, ECU Coding for VW, for Audi, for Skoda; PMI for Ford, for Lincoln, for Mazda; ECU Configurations, 41+ Services Resets, Relearns, Initializations, Adaptations, Bi-Directional Control, OE All Systems Diagnosis, Export Data & 8-In1 Graphing, 10,000 Car Coverage, CAN FD & DoIP, Android 10, Works with Key Programmers/ Endoscope/ EEPROM Adapter all into this 8” diagnostic tablet.

XTOOL InPlus IP900 BT AUTOMOTIVE DIAGNOSTIC SCAN TOOL SELLING POINT

ADVANCED ECU CODING & FLASH HIDDEN FUNCTIONS & PMI

XTOOL InPlus IP900 BT Automotive Scanner comes with ECU coding for Audi, for VW, for Skoda to perform, ECU Coding, Component Matching, Adaptive Data Reset; Flash Hidden Functions for Ford, for Lincoln, for Mazda, for BMW, for VW, for Audi, for Skoda, for Toyota, for Lexus, and etc. to optimize vehicle performance and customize car settings, like disable seat belt alarm/auto start_stop/daytime running light and maximum speed limiter, etc. ; PMI for Ford/Lincoln/Mazda to copy code into used modules.

OE-LEVEL ALL SYSTEMS DIAGNOSTICS

XTOOL InPlus IP900 BT Full System Diagnostic Tools can scan all available vehicle systems like Engine, Trans, ABS, Airbag, Brake, Body, Chassis, HVAC, Radio and etc to perform dealer-level diagnostics: read/clear DTCs, data stream & graphing like fuel trims/misfire/trans oil temp./ mass airflow/ clutch sensors/ O2 sensors/ ABS speed sensors, export data as CSV, and active tests(bidirectional controls), retrieve freeze frame & ECU info and turn off warning lights/reset monitors on various systems.

ADDED FCA AUTOAUTH FUNCTION--NEWEST

XTOOL InPlus IP900 BT Automotive Diagnostic Scanner Supports Access to the Security Gateway Module on 2018 and For Fiat/Chrysler/Dodge/Alfa Romeo Vehicles (No Need FCA 12+8 Cable). Note: The buyer is required to register an FCA account, any charges have nothing to do with the seller.

SUPPORT CAN FD & DOIP PROTOCOL VEHICLES + BROAD VEHICLE COVERAGE

Newest XTOOL InPlus IP900 BT Automotive Diagnostic Tool, Supports OBDII, EOBD, DOIP and CAN FD Protocol vehicles(for GM 2020+ cars) to Perform Diagnostics. It can work on 88+ car Brands, 140+ Models and 10,000 Cars Globally, including 12V Sedans, Light Duty Trucks, SUVs, Mini Vans, Hybrids. With Software Updates, the Vehicle Coverage Grows Continuously!

41+ SPECIAL FUNCTIONS

XTOOL InPlus IP900 BT Car Diagnostic Tools comes with comprehensive special functions: Oil Reset, EPB, SAS, BMS, Throttle, Injector Coding, ABS Bleed, Key Programming, A/T Match, Suspension, TPMS Reset, Headlight, Window, Seat, Power Balance, ABS Initialization, VSC Yaw Rate, SWS Calibration, Fuel Alcohol, Content Reset, Trans Fluid Counter Reset, Idle Relearn and etc. Added Special Features: GPF, Sunroof Initialization, Camshaft Learning. Note: Special Functions do NOT work on all cars.

FULL BI-DIRECTIONAL CONTROLS/ACTIVE TEST

InPlus IP900 BT is a Full Bi-Directional Control scan tool that can command car ECUs to Perform various active tests like: Injector Tests, Fuel Injector Balance, Compression Test, Cooling Fan, A/C Clutch On/Off, ABS Motor Pump, Windows, Wipers, Sunroof, Doors to provide in-depth diagnostic tests and pinpoint fault causes like locating bad injector efficiently & accurately. Note: Active Tests available vary across vehicles. Older vehicles tend to have less tests available.

POWERFUL KEY PROGRAMMING-IMMOBILIZER TOOL

XTOOL InPlus IP900 BT Key Fob Programmer Can Disable a Lost Vehicle Key and Program the Replacement Key Fob. One or More Replacement Key Fobs Can be Programmed. Like Programming New Key Fobs, Read PIN Code/Pin Code Calculation, Check Number of Keys, Generate Key, Add Key, All Key Lost.

NEW ADD PRE-SCAN AND POST-SCAN & DIAGNOSTIC REPORT 2.0

The PRE SCAN and POST SCAN functions generally refer to diagnostic operations before and after vehicle repairs. It can not only record the status of the vehicle before repair, but also provide reference information before repair. It can also confirm whether the problem has been solved after vehicle repair and whether the vehicle has returned to normal operation. The Upgraded Diagnostic Report 2.0 enables you to create comprehensive reports with four types, an icon display for main systems, and a customizable layout with your shop's logo.

3 YEARS FREE UPDATES + 2 YEARS WARRANTY + 24/7 TECH SUPPORT

XTOOL InPlus IP900 BT Car Diagnostic Tools 3 Years Free Update to get the latest software, which can support more functions and new model coverage. Even after the free update has expired, the device will still work normally. If you encounter any problems, our technicians will serve you for free for life.

XTOOL InPlus IP900 BT SUPPORTS 22 KINDS OF LANGUAGES

English, Spanish, French, German, Polish, Portuguese, Russian, Danish, Greek, Finnish, Hungarian, Italian, Japanese, Korean, Dutch, Norwegian, Swedish, Thai, Arabic, Turkish, Vietnamese, Traditional Chinese. Easily resolve language barriers and improve diagnostic efficiency. Note: If you cannot switch languages at will, please update the APP to the latest.

TOP HARDWARD CONFIGURATION

🚩Pre-Scan and Post-Scan🚩FCA AutoAuth Function🚩Support CAN FD/DoIP🚩3 Years Software Update🚩Android 10.0 systems🚩8 Inch Touch Screen🚩Battery 5000mAh, 7.3V🚩1024*768 Resolution🚩4 Core 1.5 GHz CPU Processor🚩2G+64G 🚩Camera 8MP

ADVANCED ECU CODING & ECU CONFIGURATION

Advanced coding capabilities are used to re-flash the vehicle control module, allowing you to update the computer software on the vehicle to the latest version, as well as reprogram certain parts with adaptive data after repair or replacement, providing solutions to the following problems: Issues such as drivability, fuel efficiency, power loss, fault codes, durability of mechanical components, etc.

➤ECU Coding Capability: For VW/AUDI/SKODA ONLY which performs online Coding, Component Matching, Adaptive Data Reset, Flash Hidden Functions, etc to optimize vehicle performance and customize car settings.

➤Flash Hidden Functions (ECU Configuration): For BMW/VW/AUDI/SKODA/TOYOTA/LEXUS/SCION/ MAZDA/For FORD/LINCOLN, help refresh hidden functions to reprogram adaptive data for certain components after making repairs or replacements. You can activate the higher-level car functions and disable any annoying features. Customize some extra options such as disabled the seat belt buzzer, wind the windows down with the remote fob.

Please Note: ECU Coding is not suitable for all vehicles, Please check the compatibility with VIN number before purchasing.

XTOOL InPlus IP900 BT DIAGNOSTIC SCANNER OE-LEVEL ALL SYSTEMS DIAGNOSIS

XTOOL InPlus IP900 BT automotive diagnostic tool can access most car ECUs to read, clear codes, retrieve live data, freeze frame, ECU information and perform active tests, matching, adaptation, turn off warning lights, reset monitors. Full range car models and full car system diagnose make it a professional automotive diagnostic tool.

Include: ABS System, Engine System, SAS System, TPMS System, IMMO System, Battery System, Oil Service System, SRS System, DPF System, Air Conditioning System, Transmission System, etc...

InPlus IP900 BT SCANNER ADD PRE-SCAN AND POST-SCAN & DIAGNOSTIC REPORT 2.0

➤Pre Scan Function: Before repairing or replacing parts, use the D8S diagnostic scanner to read the vehicle's control module to see if there are any existing fault codes, and report any faults found to the owner. The PRE SCAN report can be used as a basis before repairs to ensure that both parties are clear about the initial condition of the vehicle.

➤Post Scan Function: After repair, use the diagnostic equipment to scan the vehicle again to confirm whether the previous fault codes have been repaired or cleared, and to see whether new fault codes are generated. Ensure the quality of repairs and confirm that all vehicle problems have been resolved to avoid return repairs

➤Upgraded Diagnostic Report 2.0: Enables you to create comprehensive reports with four types, an icon display for main systems, and a customizable layout with your shop's logo. Enjoy categorizing and merging reports, adding client information, all while streamlining diagnostics to enhance customer satisfaction.

XTOOL InPlus IP900 BT BI-DIRECTIONAL CONTROL

XTOOL InPlus IP900 BT Bidirectional scanner is capable of two-way communication with the vehicle's electronic control unit (ECU), not only reading information but also sending control commands to operate or test the vehicle's various systems and components. By proactively controlling the vehicle's various systems, technicians can more accurately locate and resolve malfunctions. Various operations under actual driving conditions can be simulated for more comprehensive testing. It reduces the manual operations required in traditional testing and improves the speed and accuracy of repairs and adjustments.

➤EVAP Tests

➤Compression Test

➤Turn On/Off Radiator Fan

➤A/C Clutch On/Off

➤Fuel Pump

➤Window/Mirror/Door Lock Test

➤Pump and Value Tests

➤Interior & Exterior Lights Test

➤Sound Horn Test

41+ SPECIAL FUNCTIONS TO PERFORM COMPREHENSIVE VEHICLE SERVICE MAINTENANCE

1. ECU Configuration: Re-flash the hidden function of the car and customize the vehicle as need.

2. ABS Bleeding: Perform to bleed the brake system to restore ABS braking sensitivity and obtain a firm brake pedal.

3. Fuel Trim Reset: Reset the fuel trims provides for a chance that your adaptive fuel map could become stable.

4. Immobilizer: Disable a lost vehicle key to protect the vehicle from being stolen and add the new key.

5. Stop-Start Reset: This function is used to open or close the automatic Start/Stop function via setting the hidden function in ECU (The precondition is the vehicle equipped with hidden function and hardware support)

6. BMS Match: Reset after replacing the battery to clear the low battery fault information of the original battery and protect the new battery.

7. DPF Regeneration: Clear PM from the DPF filter through oxidation or combustion to stabilize the filter performance.

8. Injector Coding: Code a new injector to better identify injectors to accurately control fuel injection.

9. SAS Adjustment: Clear the fault steering angle sensor memories, perform reset steering angle sensor, and turn off steering wheel warning light.

10. Throttle Relearn: Reset the throttle actuators to accurately regulate throttle (or idle engine) operations, helps keep your idling and acceleration smooth.

Added Special Features:

1. GPF: Captures soot particles in the exhaust gas of the diesel engine. After regeneration or replacement of the GPF, the GPF/DPF warning light can be reset on the instrument panel.

2. Sunroof Initialization: After replacing the sunroof motor or vehicle battery, reset the mechanical limits of the sunroof "full opening" and "full closing" to ensure smooth switches.

3. Camshaft Learning: After replacing the camshaft, timing chain or VVT solenoid valve, the phase of the variable valve timing system can be calibrated to ensure accurate intake/exhaust timing, improve combustion efficiency, and reduce knocking or insufficient power problems.

More Special Functions: Oil Light Reset, EPB, SAS, DPF, BMS Reset, Throttle, TPMS Reset, ABS Bleeding, Injector Coding, Immobilizer, Gearbox Match, Suspension, Window, Initialization, Seat Calibration, Headlight, ECU Configuration, A/F, settings, Start/Stop Reset, Airbag Repair, Instrument Cluster, Language Change, Transporte Mode, Tire Size Reset, Crank Sensor Relearn, Power Balance, EEPROM, Coolant Bleeding, ADAS Calibration, Speed Limit, Clutch Adaption, SRS, EGR Relearn, FRM Reset, VGT Relearn, HV Battery, A/C Relearn, Rain/Light Sensor, Control, unit Reset

Note: Special Functions vary across vehicle makes, models, year. Please come to us with VIN number to check compatibility before purchase.

XTOOL InPlus IP900 BT DIAGNOSTIC SCANNER WORKS ON MORE PROTOCOLS CARS

1. Added FCA AutoAuth Function

XTOOL InPlus IP900 BT Automotive Diagnostic Scanner supports access to the Security Gateway Module on 2018 and For Fiat/Chrysler/Dodge/Alfa Romeo vehicles (No Need FCA 12+8 Cable), Note: The buyer is required to register an FCA account, any charges have nothing to do with the seller.

2. Support CAN FD Protocols

It is the only product in this price range that is compatible with CANFD Protocol and supports the latest For GM vehicles manufactured after 2020. Adopts advanced CRC algorithms to accommodate more data from 8 to 64 bytes in the CAN frame, which runs faster than other products and reduces the risk of undetected errors to greatly enhance the user experience.

Supports For Chevrolet Onix 2020-2021 year

Supports For Chevrolet Tracker 2020 year

Supports For Chevrolet Suburban 2021 year

Supports For Chevrolet Tahoe 2021 year

Supports For Buick

Supports For Cadillac Escalade 2021 year

Supports For Cadillac Escalade 2021 year

Supports For GMC Yukon 2021 year

Supports For GMC Yukon XL 2021 year

Supports For Holden

Supports For DAEWOO

Supports For Alpheon

Supports For Ravon

Supports For Pontiac

Supports For Saturn

Supports For Hummer

3. Support DOIP Protocols

With Diagnostics over DOIP, Diagnostics introduced over UDS are used over TCP/IP and Ethernet. This enables much higher data rates than with CAN. That makes XTOOL InPlus IP900 BT Automotive Scanner save both in terms of time and expenses in the case of complex diagnostic tasks and flash applications. Compatible For BMW (F&G chassis), For Vol*vo models (2018 later), For Land Rover & For Jaguar models (2017 later).

XTOOL InPlus IP900 BT VAG Guided Functions

Guided functions offer step-by-step guidance for VAG group cars (For VW/For Audi/For Skoda/For Seat) and skip trouble in looking up channel number and login code. with this guide function IP900BT can perform complex functions such as special functions, ECU coding, etc., to help your diagnostic step by step with instructions.

XTOOL InPlus IP900 BT MORE ADDED FEATURES WITHOUT EXTRA COST

➤8 IN 1 Live Data Dispaly: Reads, graphs and combines 8 independent streams of sensor data. Real-time data export to CSV file and data recording, playback, viewing. Allows you to export live data to a csv file for storage and comparison over time, or to view its graphical changes and textual readouts later.

➤Fast Auto Vin Scan: XTOOL InPlus IP900 BT Diagnostic Tools is based on the latest VIN auto-scan function, which can quickly identify the vehicle and scan all diagnosable ECUs and run diagnostics on the selected system. For vehicles that do not support the automatic VIN scan feature, you can manually enter the vehicle VIN.

XTOOL InPlus IP900 BT MORE ADDED FEATURES WITHOUT EXTRA COST

➤3 Years Free Update (Value of $600): 3 year free update, one-click update when the device is connected to the network, download the latest model, update the latest functions, and more functions are under development.

➤Lifetime Remote Technical Support: Contact with the seller to arrange an 1V1 appointment for remote tech support to solve your problem in time.

WORK FOR 85+ CAR MAKER, 140+ BRANDS, COVERED 10,000+ CARS

XTOOL InPlus IP900 BT Car Diagnostic Scanner all-in-one scanner is specially customized for large Maintenance Shops, Workshops, Car Dealers, Auto Mechanic. Work for 12V Petrol Sedans, SUVs, Minivans, Light-Duty Trucks across the globe.

Europe Cars: for DEMO, for VW, for MINI, for LANDROVER, for SEAT, for FERRARI, for FORD, for OPEL, for ALFA for ROMEO, for VOLVO and more

America Cars: for DEMO, for GM, for FORD, for CADILLAC, for CHEVROLET, for GMC, for HUMMER, for JEEP and more

Asia Cars: for Demo, for TOYOTA -LEXUS, for ISUZU, for MAZDA, for KIA, for INFINITI, for ACURA, for NISSAN and more

Australia Cars: for Demo, for Ford

XTOOL InPlus IP900 BT SCANNER SUPPORTS 22 KINDS OF LANGUAGE

The device can support any 2 languages at the same time, you can choose: English, Spanish, French, German, Polish, Portuguese, Russian, Danish, Greek, Finnish, Hungarian, Italian, Japanese, Korean, Dutch, Norwegian, Swedish, Thai, Arabic, Turkish, Vietnamese, Traditional Chinese.

Steps on How to Set the Language

1. Activate the device with email address and serial number

2. Switch language in settings ('Diagnossis' APP>Setting>Language)

3. Click Update Device

Note: If you cannot switch languages at will, please update the APP to the latest ('Diagnossis' APP > Setting > APP)

XTOOL INPLUS IP900 BT PACKING LIST

1PC X InPlus IP900 BT Main Unit

1PC X Quick Start Guide

1PC X Bluetooth VCI Box

1PC X Type C to Type A Adapter

1PC X Type C to Type C Charger Cable

1PC X DB15 to OBDⅡ-F Adapter

1PC X OBDⅡ-16 Connector

1PC X Charger EU

1PC X Charger US

1PC X Charger UK

1PC X Packing List

1PC X Tool Kit

1PC X Carton
