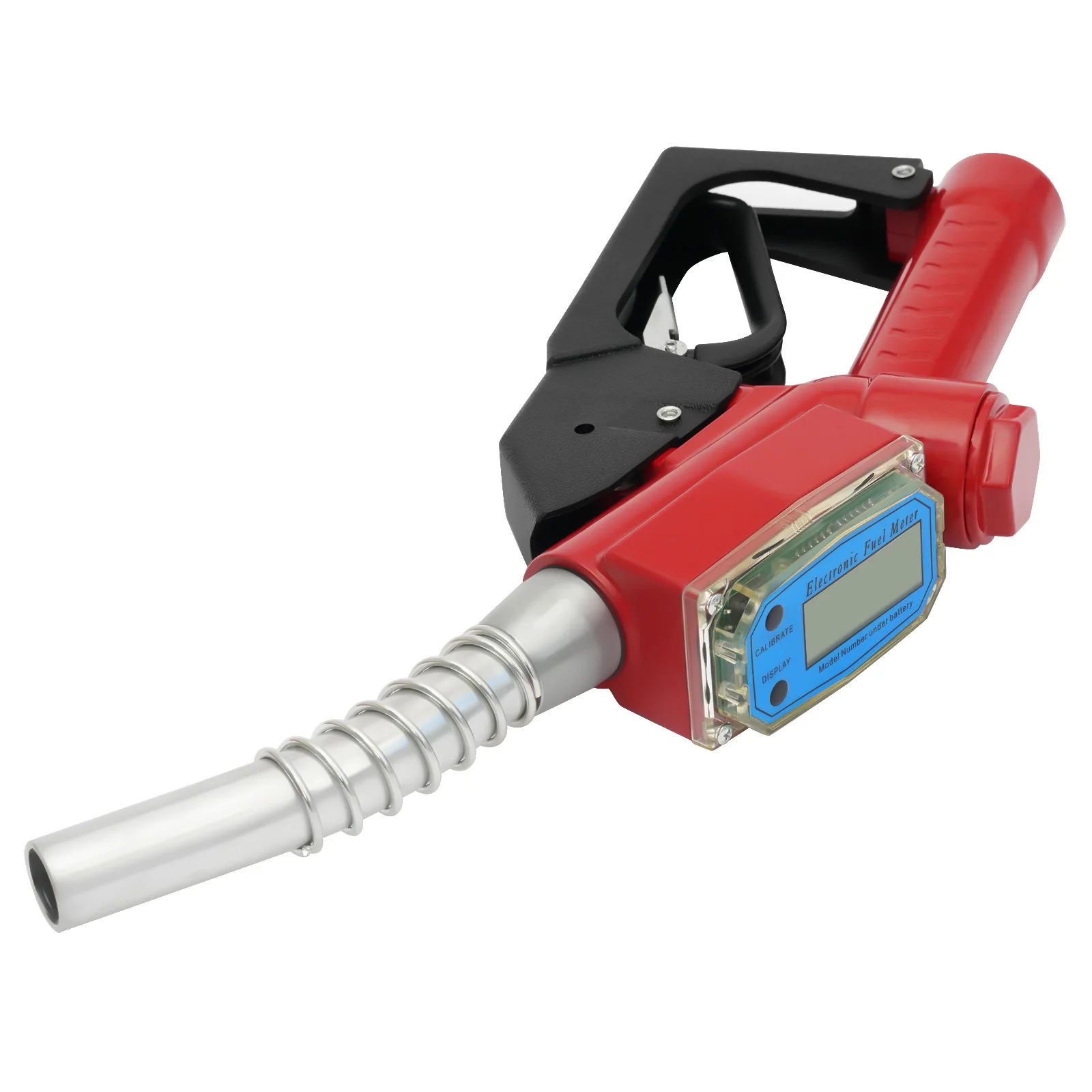

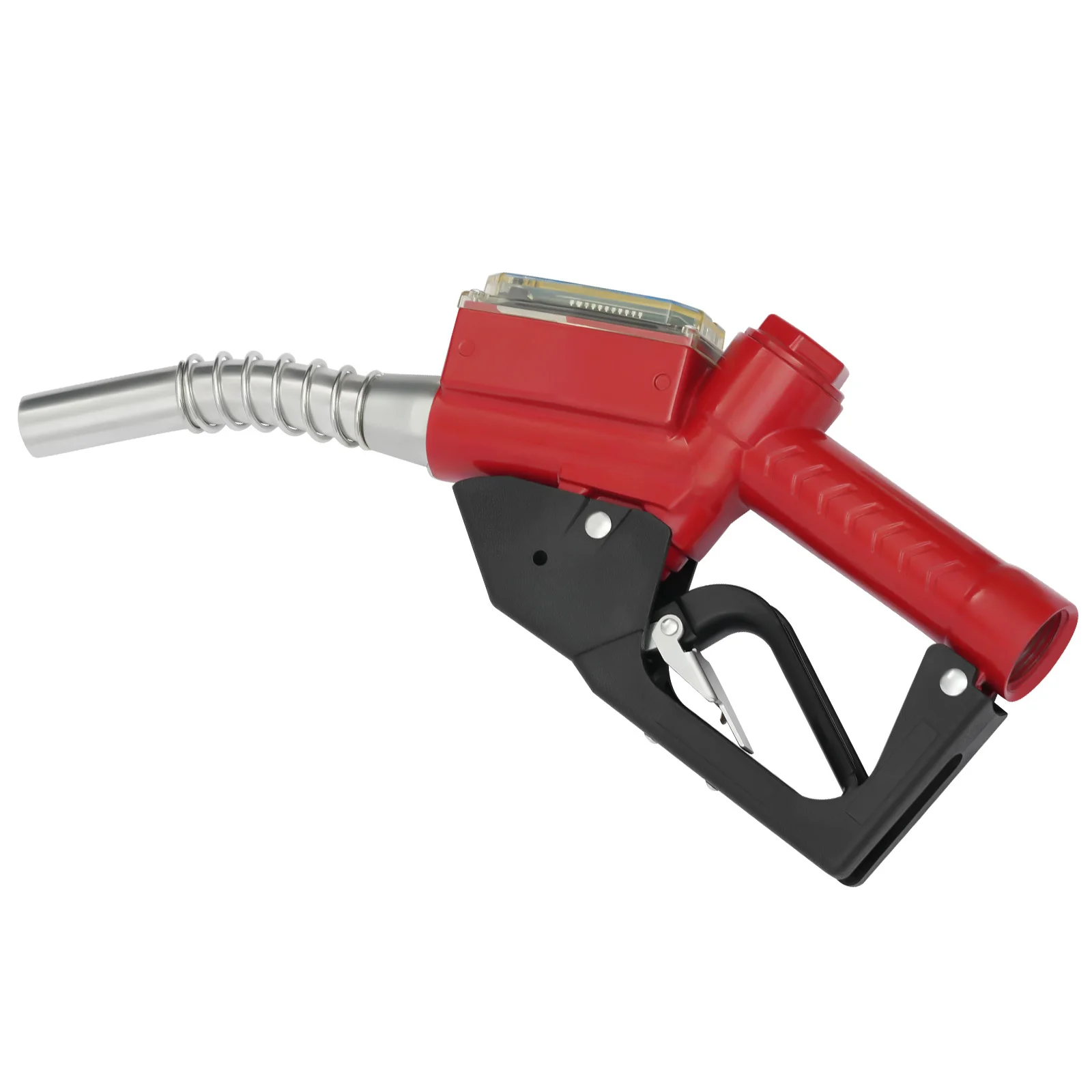

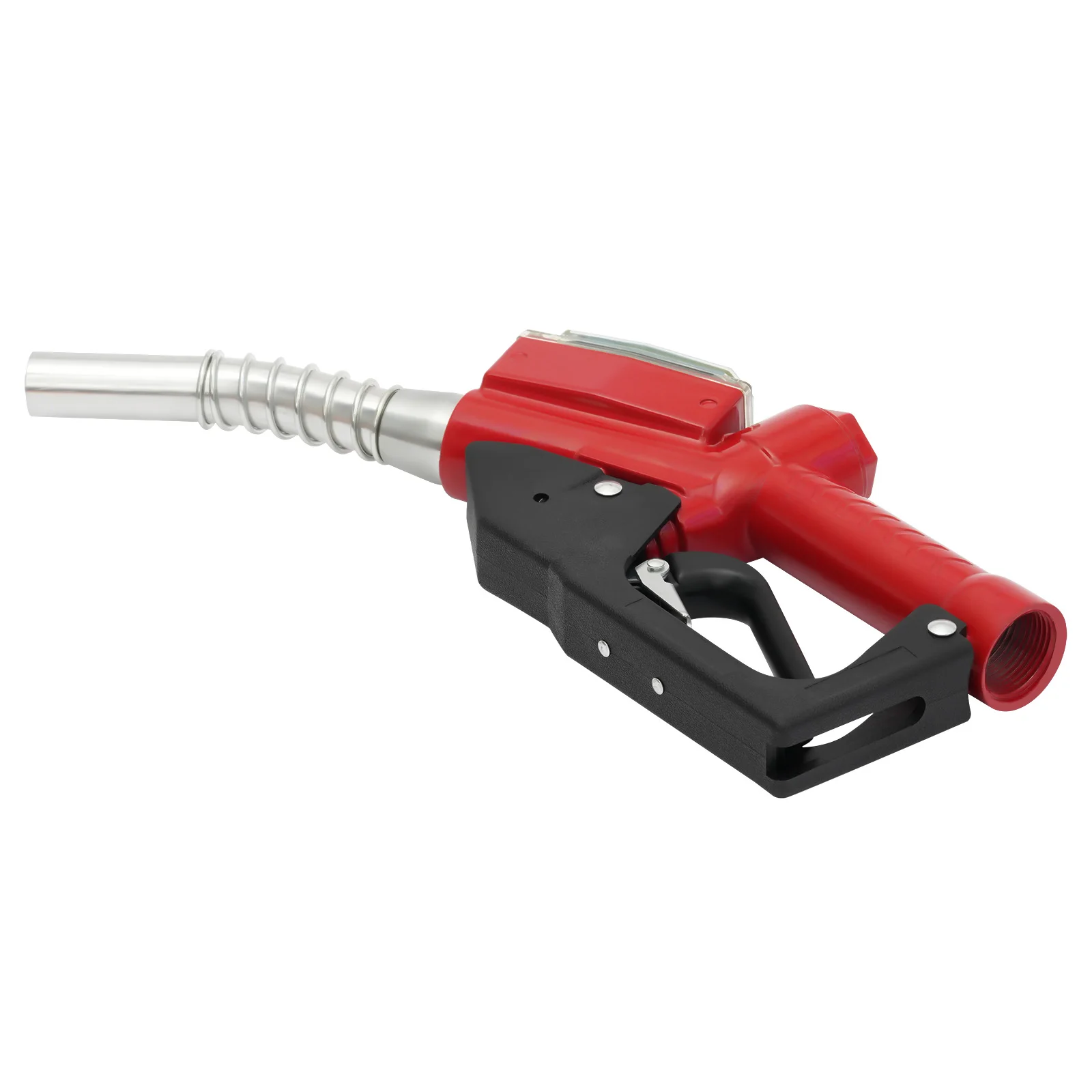

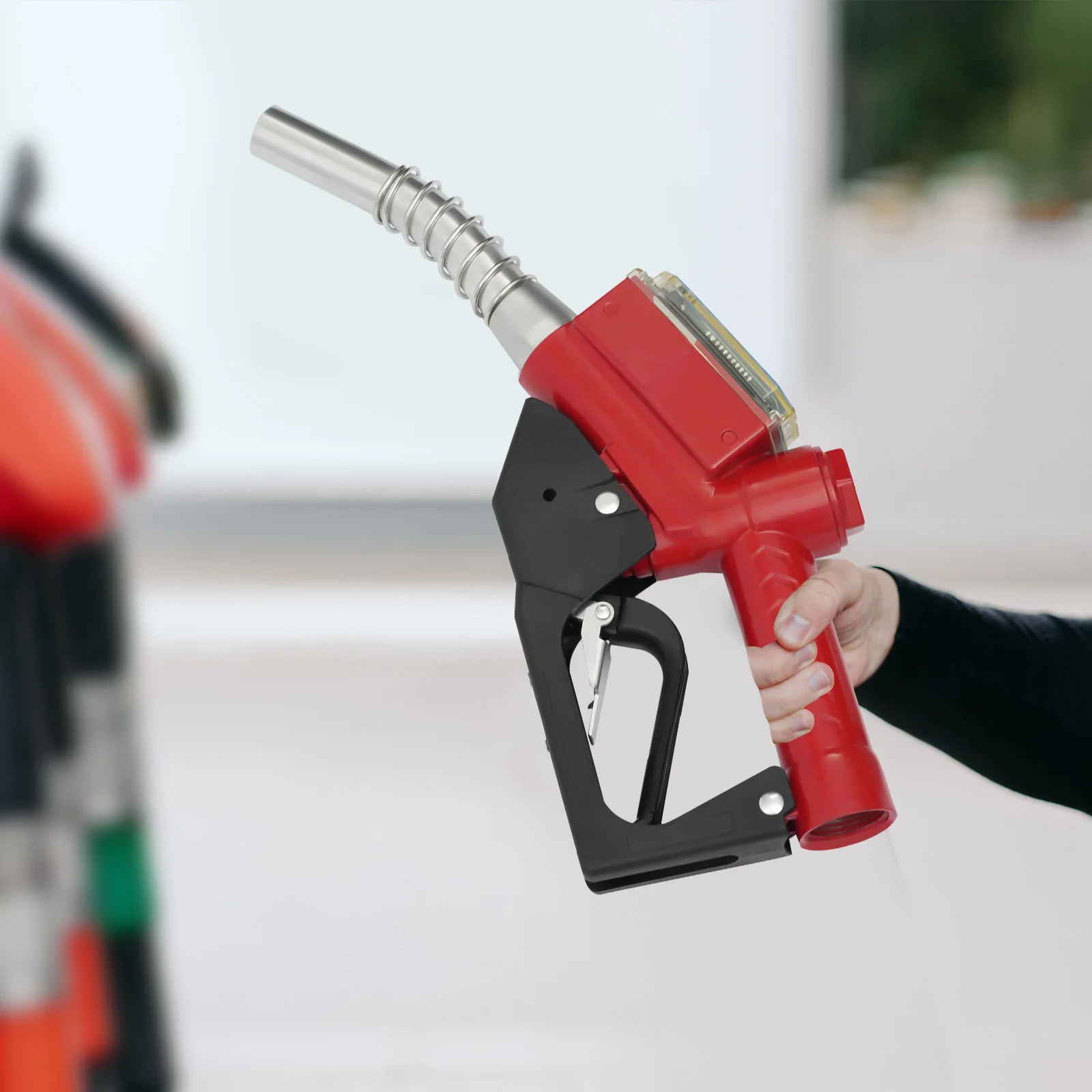

Red Aluminum Alloy AC-15A Fuel Gun 1-Inch Oil Gun Nozzle 1.5m Flow Range To Fill Diesel, Kerosene, And Gasoline For Factories

Specification

Model: AC-15A

Color: Red

Material: Aluminum Alloy

Surface Treatment: Spray Paint

Type: Oil Gun Nozzle

Battery Type: Two AAA Batteries

Applicable Media: Diesel, Kerosene, Gasoline

Unit of Measurement: Adjustable Liters, Gallons, Pints, Quarts

Flow Range: 1.5m/ 3h

Oil Inlet Size: 1”

Oil Outlet Size: 1”

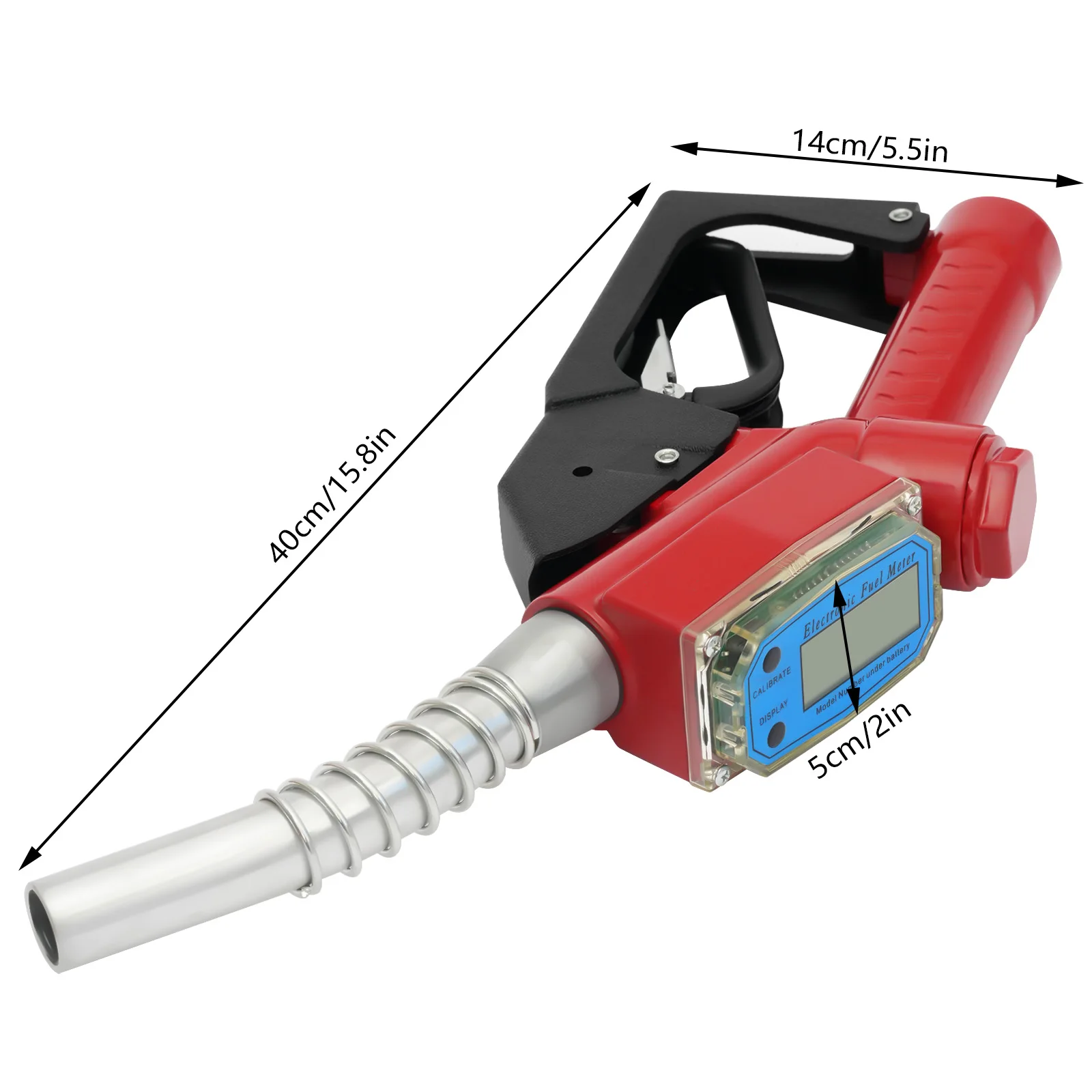

Product Size: 40*14*5cm/ 15.8*5.5*2in

Package Size: 37*24.9*9cm/ 14.57*9.8*3.54in

Net Weight: 1.1kg/ 2.43lbs

Gross Weight: 1.36kg/ 3lbs

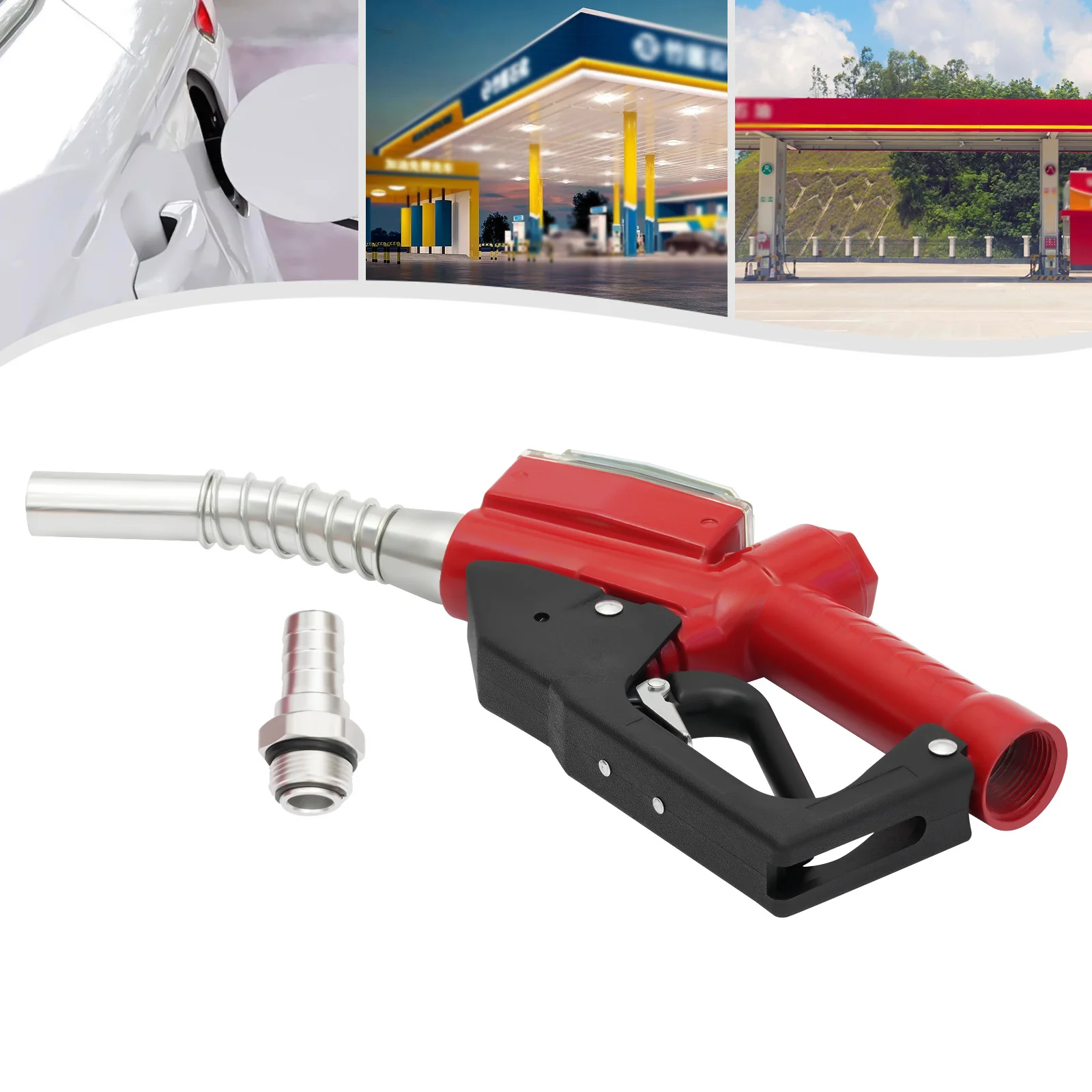

Package Included

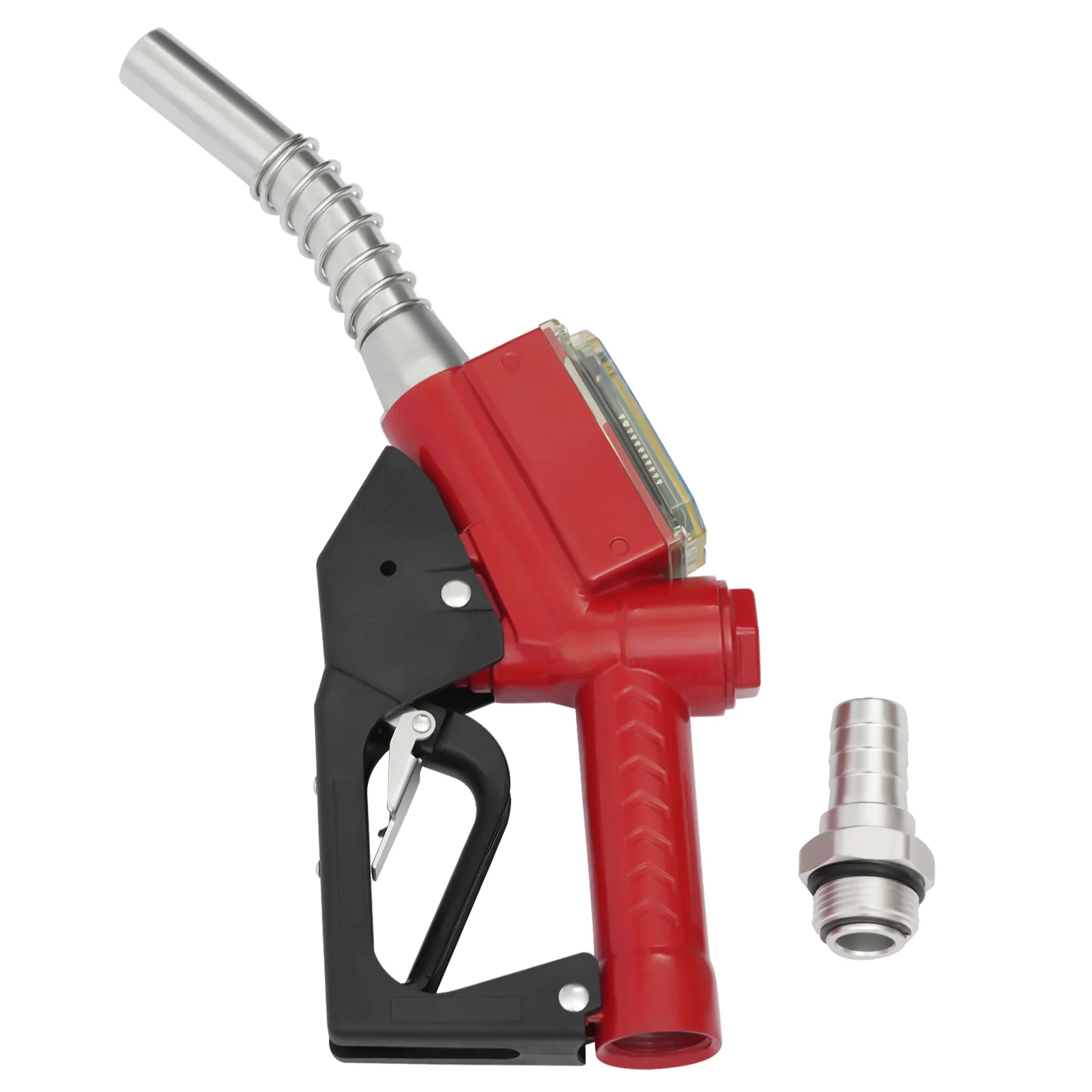

1* Connector

1* Oil Gun Nozzle

Description

A good Oil Gun Nozzle can make your refueling job less tedious. Thanks to a flow range of up to 1.5m/ 3h, you can say goodbye to long waits. The ergonomic handle and automatic padlock design allow you to enjoy automatic and comfortable refueling without long presses. It is an ideal choice for you.

Key Features

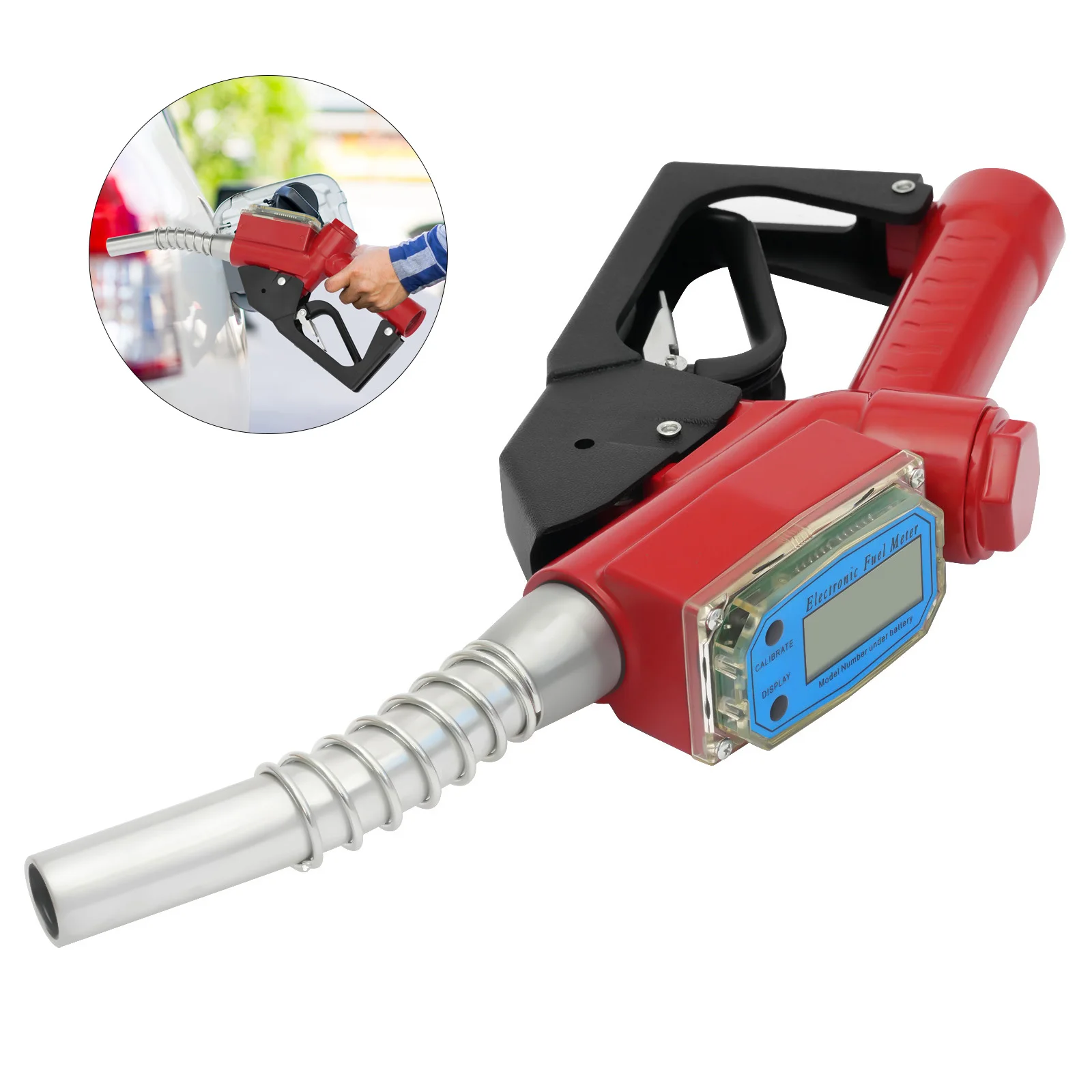

Electronic Display: The electronic display is designed to allow you to visually see the current liters and total accumulation, allowing you to check the amount of fuel in real-time.

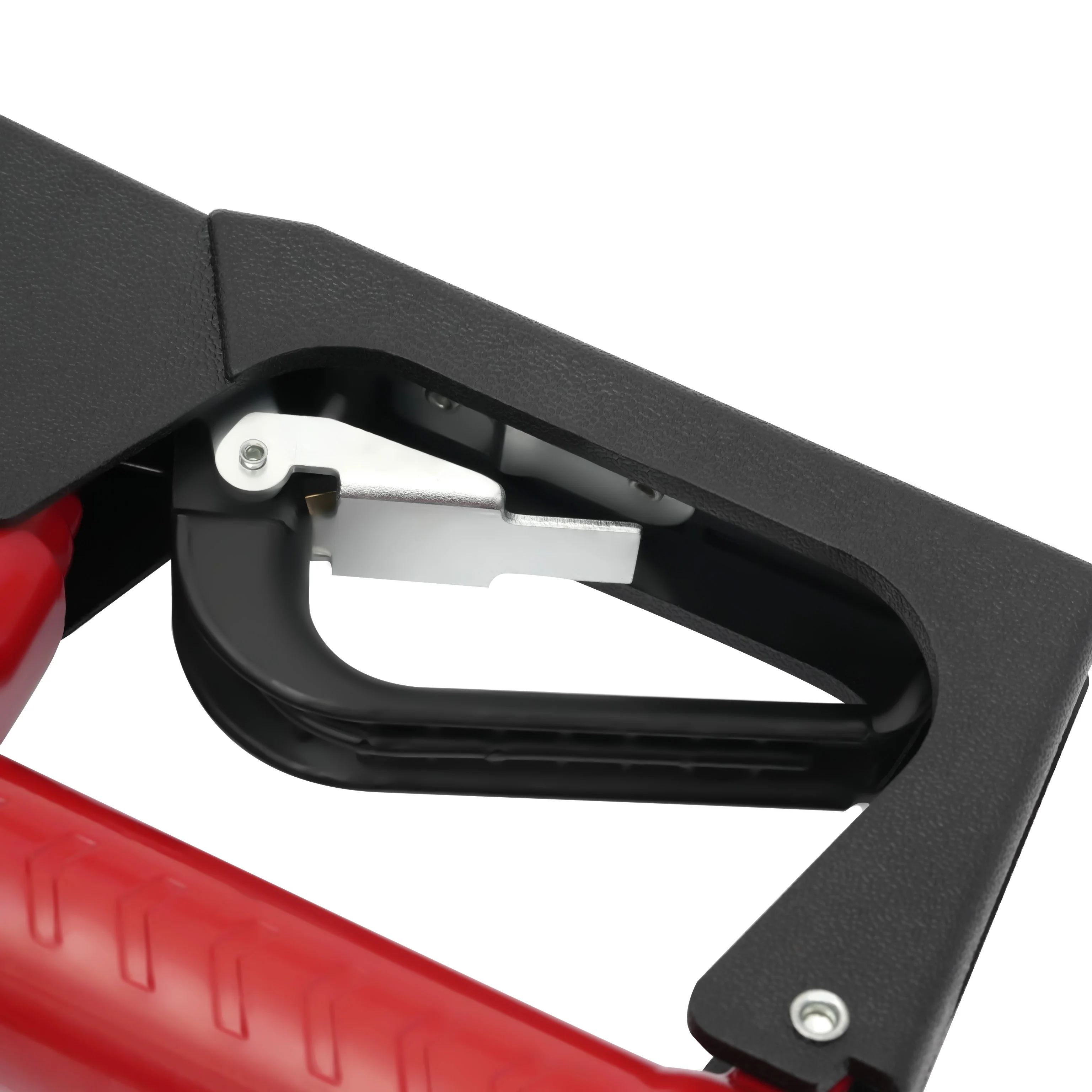

Three-speed Automatic Padlock: It comes with a three-position auto padlock, and when pressed down, the oil gun nozzle will automatically hold down until the fuel is filled. It doesn't require you to keep pressing it manually for your convenience.

High Efficiency: With a flow range of up to 1.5m/3h, it can complete the required oil filling volume in a short time, saving you time.

Durable Material: It is made of high-quality aluminum alloy material, which is hard and rust-proof, so you can use it for a long time.

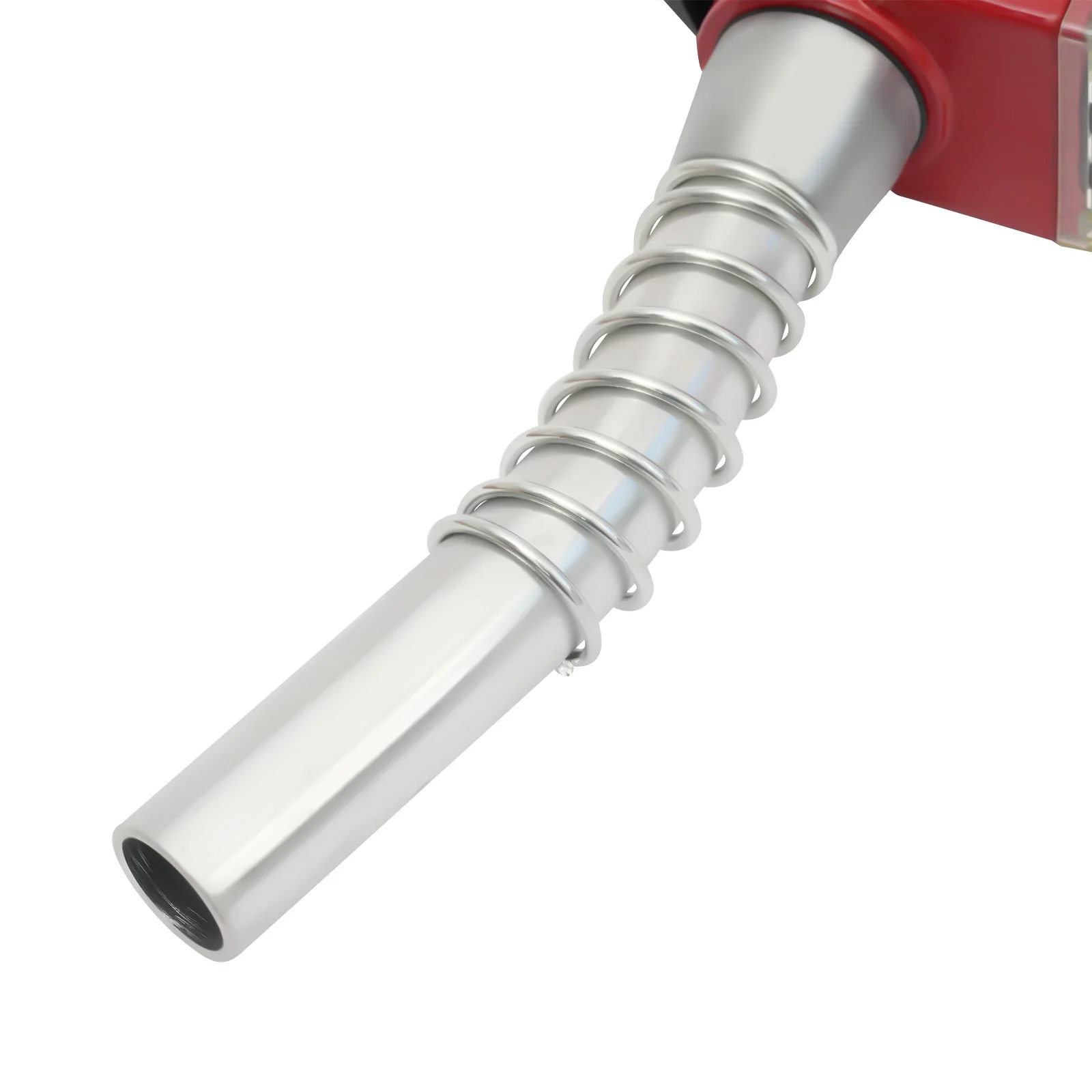

Leak-resistant: The carefully designed nozzle and the precision connections can prevent oil drop or leakage, which does not cause oil waste.

Ergonomic Design: The trigger and handle are ergonomically designed to give you a comfortable grip and make operation easier.

Compact and Lightweight: The entire body is designed to be compact and weighs only 2.43lbs, making it easy to lift and refuel with little effort.

Customer Service: We aim to provide quality products and services. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

Details

“DISPLAY” Button: Press the DISPLAY button next to the electronic display to zero the current refill amount for the next use.

“CALIBRATE” Button: It allows you to adjust the display units, and error factor and show the status of the refill amount at a glance.

360° Rotating Joint: Its joint adopts a 360° rotating design, which is easy to disassemble. At the same time, the connection is also very stable without oil leakage. So you can use it with confidence.

Spray Paint: The surface of it is treated with spray paint, which is waterproof,anti-rusting and wear-resistant to prolong the use time.

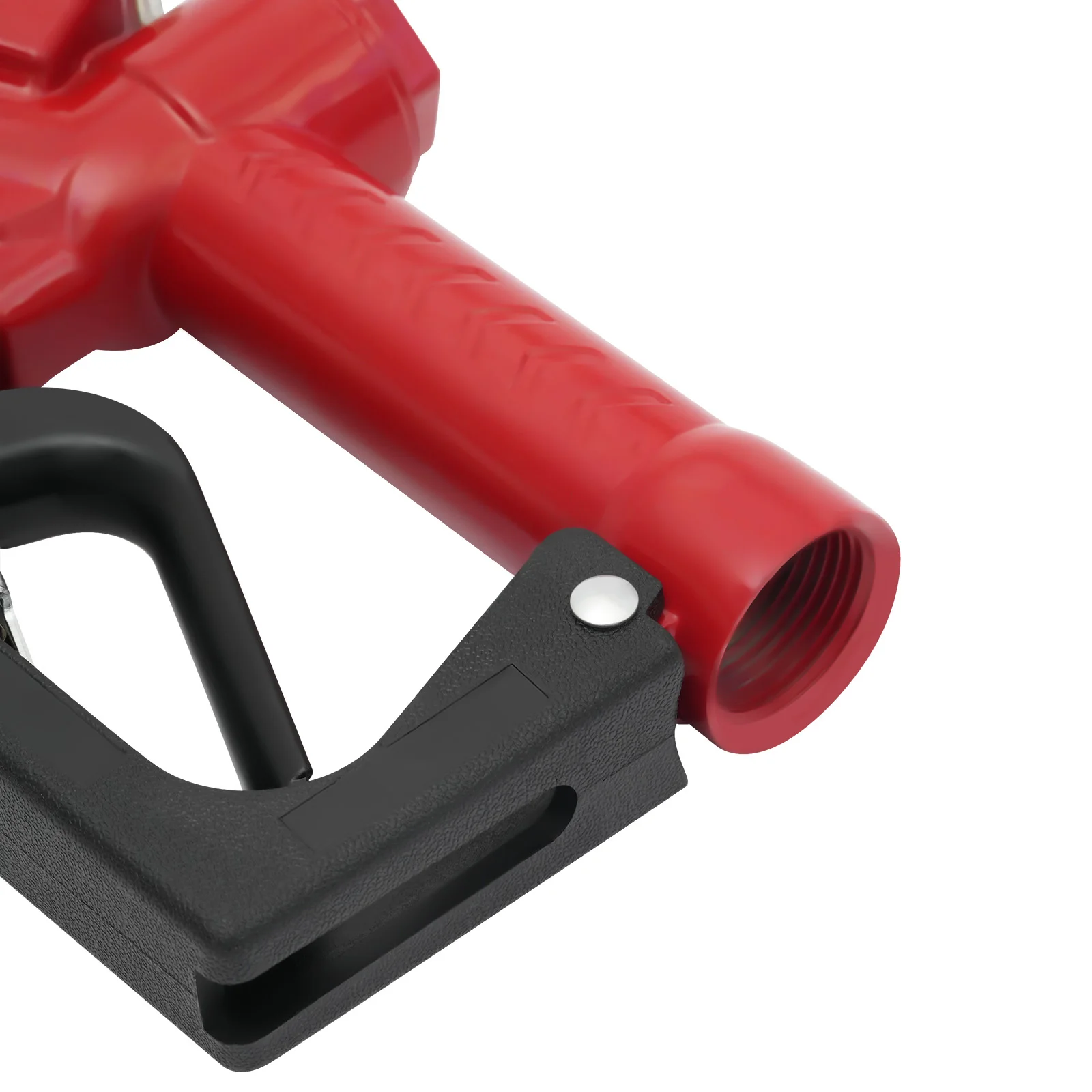

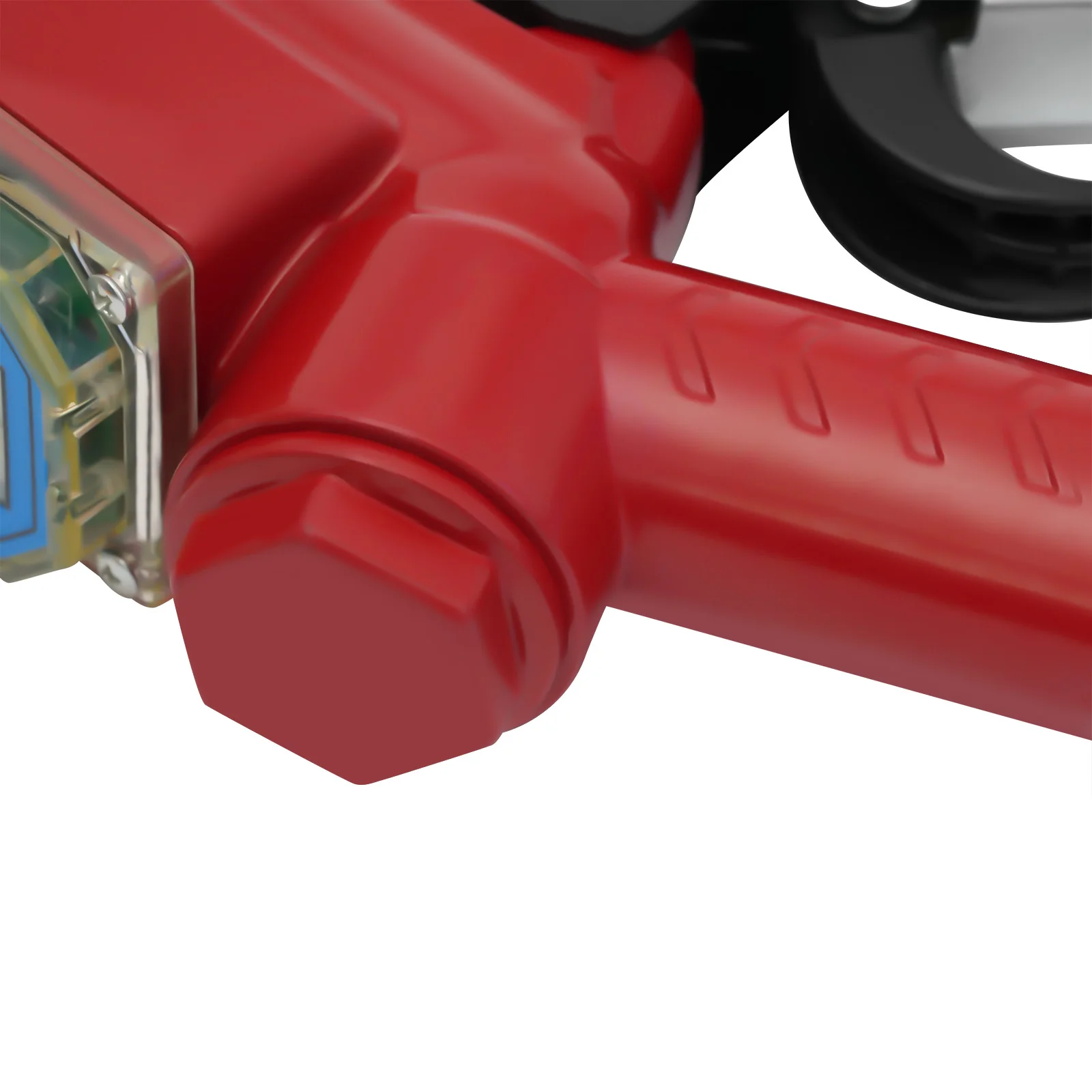

Threaded Handle: When you use it, your fingers will be tightly attached to the handle with non-slip threads, which makes it comfortable for you to hold.

Application

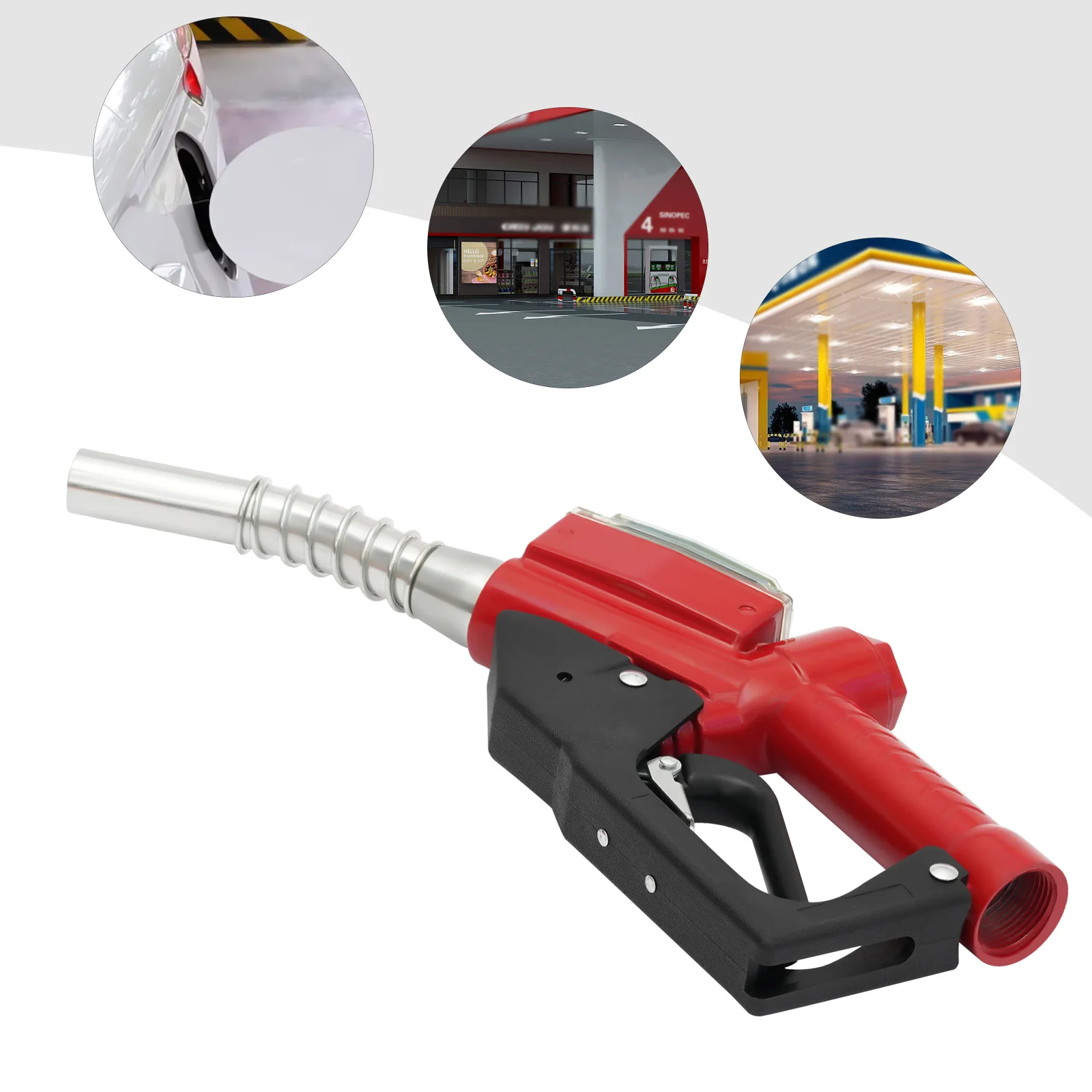

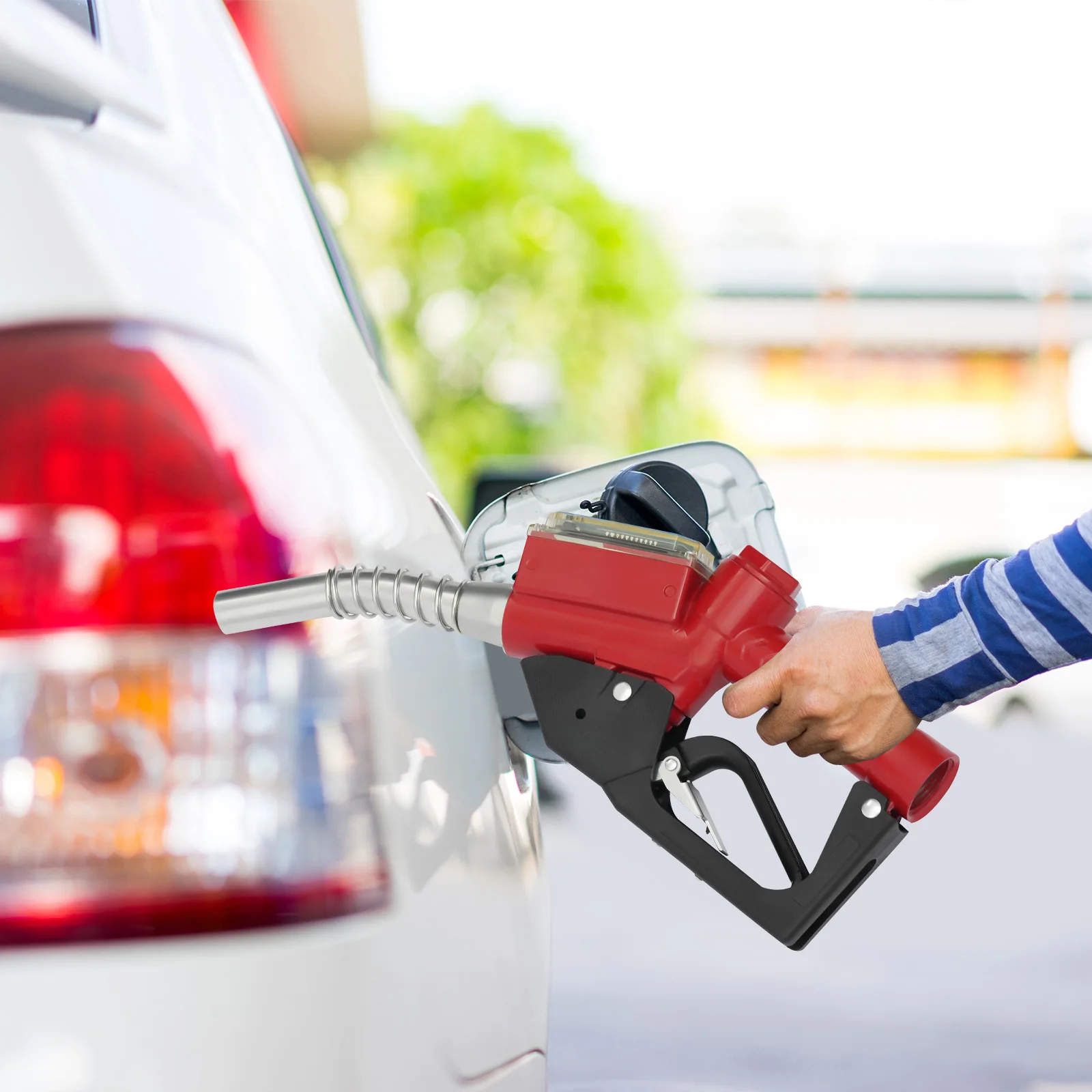

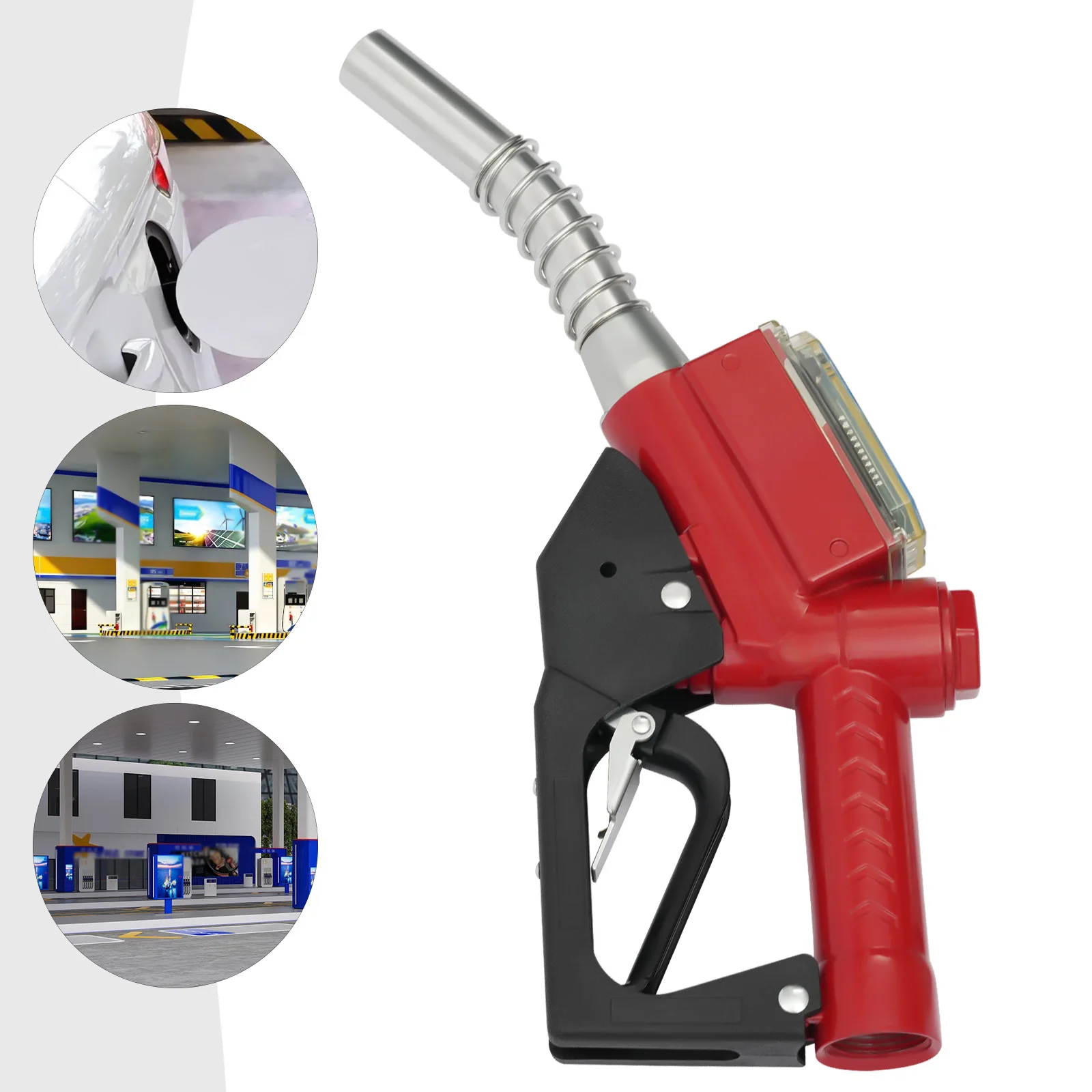

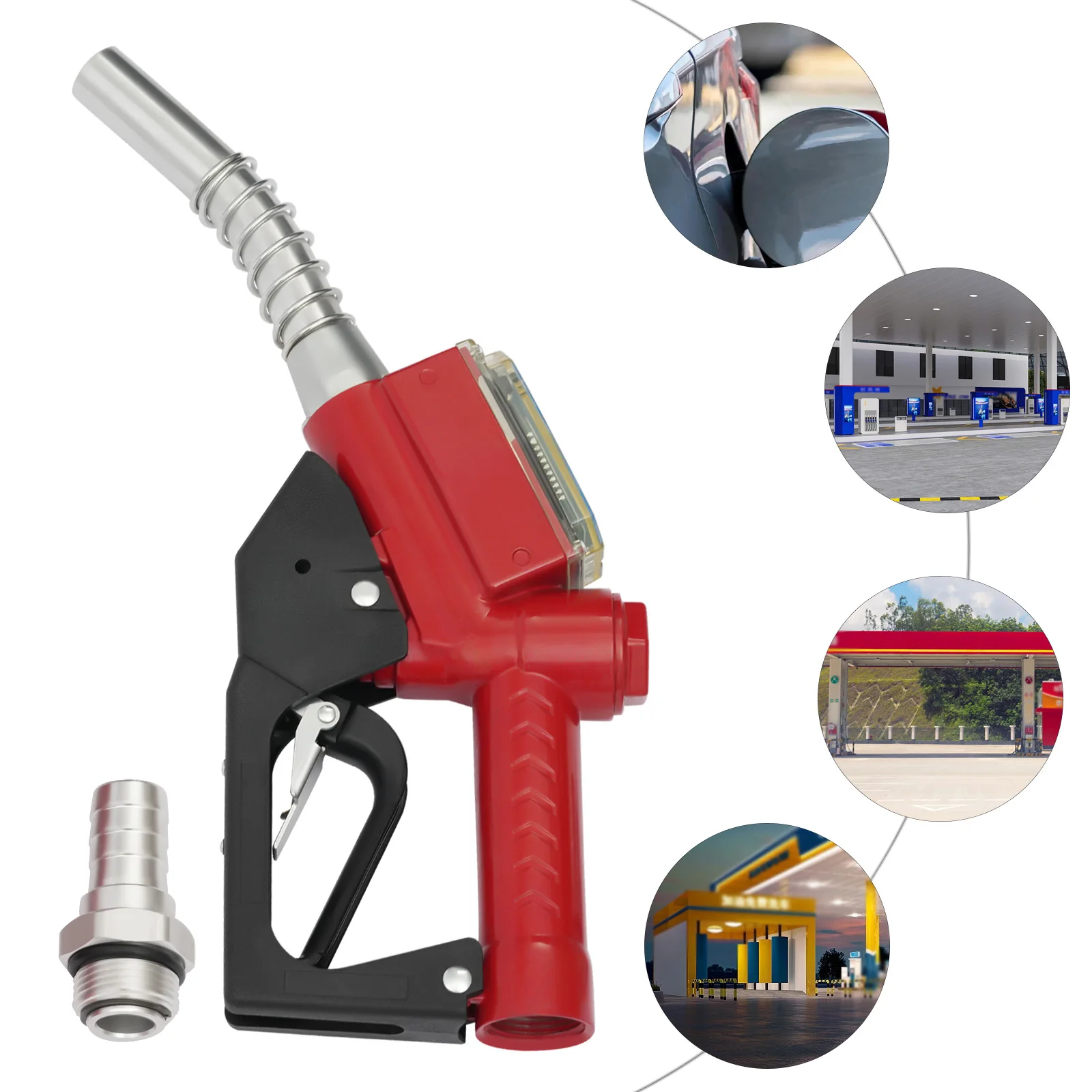

It can be used To Fill Diesel, Kerosene, And Gasoline, and is an ideal oil filling equipment For Factories, Gas Stations, etc. And it provides four units of liters, gallons, pints, and quarts for your convenience.

Specification

Model: AC-15A

Color: Red

Material: Aluminum Alloy

Surface Treatment: Spray Paint

Type: Oil Gun Nozzle

Battery Type: Two AAA Batteries

Applicable Media: Diesel, Kerosene, Gasoline

Unit of Measurement: Adjustable Liters, Gallons, Pints, Quarts

Flow Range: 1.5m/ 3h

Oil Inlet Size: 1”

Oil Outlet Size: 1”

Product Size: 40*14*5cm/ 15.8*5.5*2in

Package Size: 37*24.9*9cm/ 14.57*9.8*3.54in

Net Weight: 1.1kg/ 2.43lbs

Gross Weight: 1.36kg/ 3lbs

Units of Measure

The unit of measure can be selected by the panel keys as one of the following four: liters, gallons, pints, and quarts. To change the unit of measurement, press "CALIBRATE" for five seconds and the numbers will flash from left to right. When you press "DISPLAY" to move to the last position, the unit of measurement flashes from top to bottom. Press "CALIBRATE" to select the desired unit of measurement.

Standby Status

The standby state is a low consumption state, and the current refill amount will be displayed when a metering pulse is input.

Current Refill Level Cleared

Press the "DISPLAY" key to zero the current fill volume. The cumulative count is cleared. Press and hold "DISPLAY" while adding batteries to zero the accumulative count.

Figure Display

1. Press and hold the "CALIBRATE" key in standby mode or in the current fill level display to display the accumulated fill level.

2. When the "CALIBRATE" key is released or when a metering pulse is input. Returns to the display of the current fill level.

Error Factor Calibration

1. In the standby state or the current filling quantity display, press the "CALIBRATE" button for 5 seconds and a coefficient will be displayed. The coefficients are adjusted at the factory and should not be adjusted without special reasons. If the error may occur due to different media and pressure, the coefficients can be adjusted.

2. Adjustment method: After pressing "CALIBRATE" for 5 seconds to enter the error coefficient calibration state, the digital flashing display is the coefficient we have set. Press the "DISPLAY" button to shift the digital display from left to right, and press the "CALIBRATE" button to modify the current flashing value from 0 to 9.

Package Included

1* Connector

1* Oil Gun Nozzle

Notes

1. Please replace the battery in time when the display of the flowmeter becomes dim or appears Lbat. And use a battery that can work at least 9000 hours as a power source. Otherwise, it may lead to damage to the flowmeter due to battery leakage during operation.

2. Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
