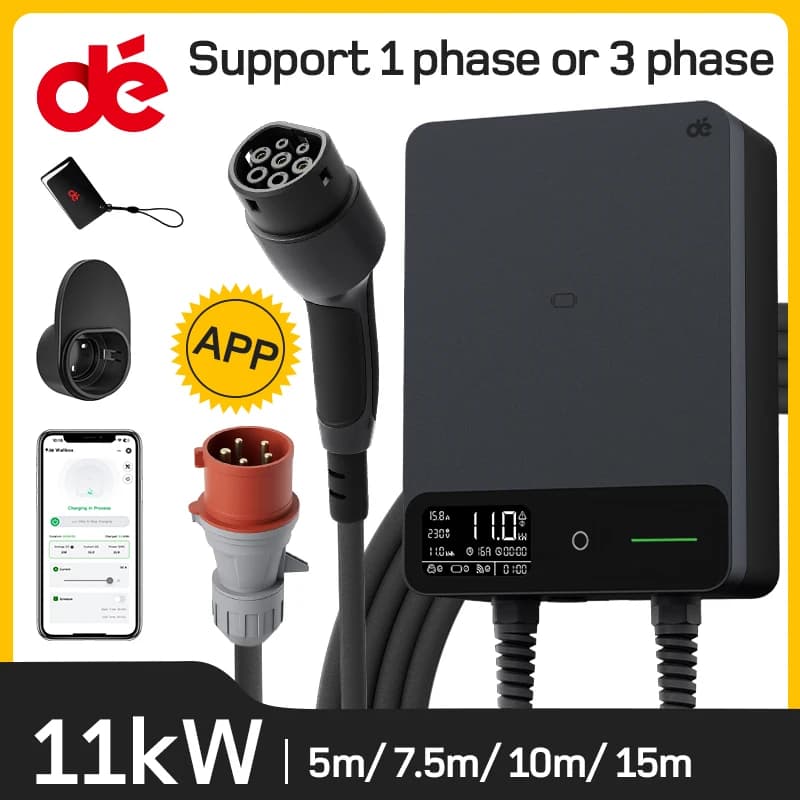

dé Wallbox 11kW with Tuya APP 5m 7.5m 10m 15m Charging Cable CEE to Type 2 16A Electric Vehicle Charger Plug & Play LED Screen

About This Item

Easy installation: CEE Plug will play and play, support APP Control and RFID function.

Comprehensive safety protection: This charging station offers double protection with an RCD type A 30mA + DC 6mA circuit breaker, which protects the charger and the electric vehicle during the charging process.

LCD display and 7.5 m cable length: The 7.5m length offers a greater range to charge a second vehicle in the driveway/garage.

Suitable for multiple scenarios: At home/charging station/garage/car park/supermarket.

2-Year Warranty: Our company offers a two-year warranty. If you have any problems, our professional engineering team is happy to help.

Specification

Voltage: 400V(3-phase)
Power: Max 11kW (32A, 3-phase)
Current: 6A/8A/10A/13A/16A
Operating Temperature: -25°C to+ 55°C
Standard: IEC 61851-1, IEC 62196-2
Certification: CE
IP Rating: IP 54[Wallbox], IP 55 [Type 2 coupled)
Wallbox Dimension: 297x214x105 mm
Warranty: 2-Year-Warranty

dé Mobile Wallbox 11kW with Type2 Charging Cable

No Installation Needed
5m/ 7,5m/10m/ 12,5m/ 15m

Simply insert the CEE plug into the socket and connect the type 2 charging cable to your electric car - the charging process starts immediately. RFID authentication and plug-and-play are both possible.

What's the Max Charging Power I Can Get?

Smart charging reservation Effortless and cost-effective

Reservation option: 0.5h to 8h
Automatic start and stop, convenient and worry-free.

Plan Electricity Consumption Save Costs

The current can be set to 6A/8A/10A/13A/16A at the touch of a button. The charging delay (0.5h-8h) can be set by holding down the button. No complex operation via the app, simple setting directly on the wallbox.

Faster charging than CEE 16A or Schuko 16A socket

Remote control via the "tuya smart" App

Track your charging activity anytime an anywhere.

High Definition LCD Screen

All information at a glance

Equipped with a dedicated cable holder for easy storage of the cable and the Type 2 plug

5m Cable From Wallbox

7.5m Cable From Wallbox

Charge your electric car any effortlessly

10m Cable From Wallbox

12.5m Cable From Wallbox

15m Cable From Wallbox

Note: The actual charging speed does not exceed the lower of the permissible value for the vehicle or the charging station.

RFID Card x3

Prefer for family members to use together

Note: RFID function can be disabled by swiping card for 10 seconds

Convenient Charging with or without RFID Card Authorization

RFID is deactivated by default.
Hold the card for 10 seconds to activate the RFID function.

Compatible with Type 2 Compliant BEVs/PHEVs

Compatible with IEC 62196-2 standard models.
If you're not sure, our team is always online to assist you.

How to install the wallbox?

1. Flip the product over to the back and locate the pre-installed wall mounting backplate.

2. Press the elastic limiting clips on the backplate to the left to separate the limiting clips on the box and slide the backplate downward.

3. Fix the backplate with the raised side facing outward and the limiting clips facing downward to the wall with expansion screws, and check whether the backplate is firmly installed.

4. Align the snap bit on the back of the box with the snap bit on the backplate, and slide the box down after fitting the backplate, and then the control box and the backplate will snap into place when a clear "click" sound

How to remove the Wallbox?

1. Locate the bottom removal hole and insert a long, hard stick such as a screwdriver until it reaches the elastic limit clip.

2. Push slightly to the left to separate the two pieces of the limit clip.

3. Remove the Wallbox by sliding it upward while keeping the limiting clips separate.

What's it in the Box?

11kW Wallbox * 1
User Guide * 1
Microfibre cloth * 1
RFID card * 3
Cable holder * 1
Back plate and installation kit * 1
