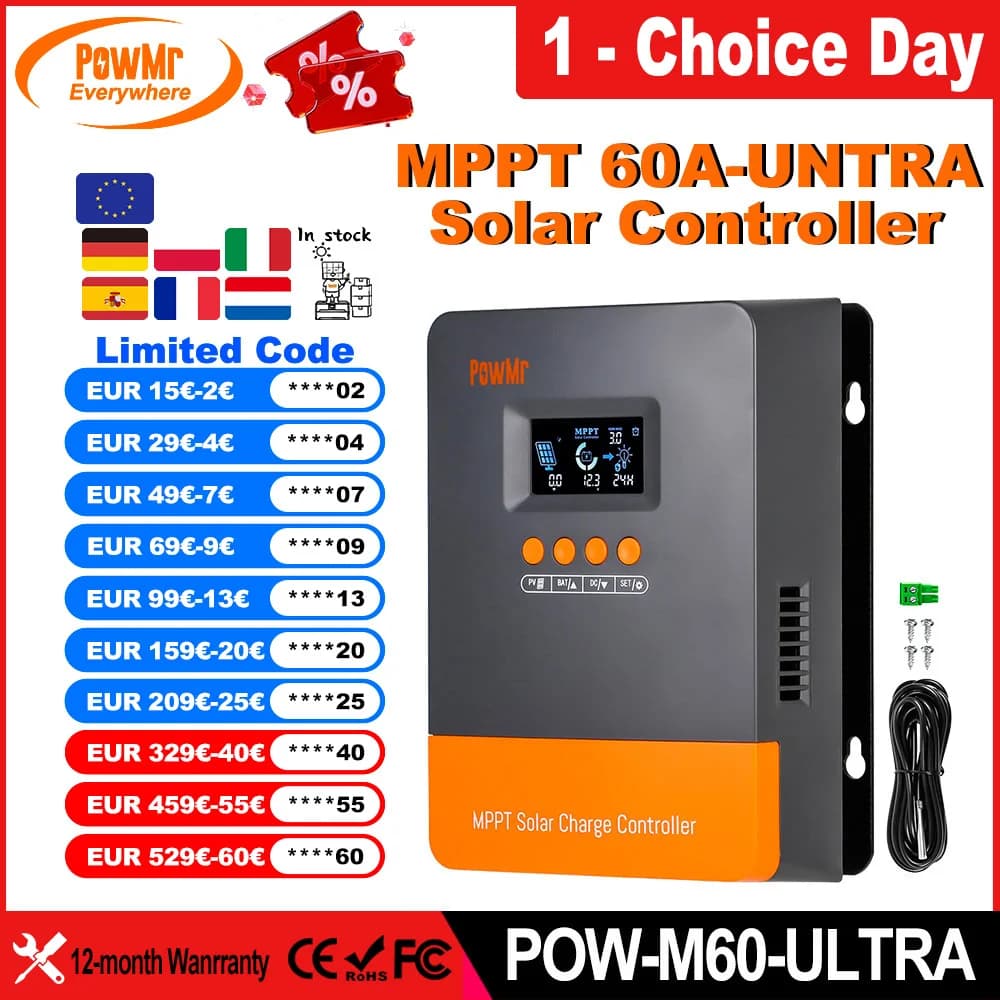

PowMr EU MPPT 60A Solar Charge Controller 12V 24V 36V 48V Plus DSP Regulator Work For Lifepo4 Battery V Solar Panel

Advantage:

1. Ship from European warehouse, delivery within 3-7 days.

2. No need to pay VAT.

Unsupported delivery areas:

1. Spanish island region. The postal code starts with "35" and "38".

2. Remote areas in France and areas with transport restrictions.

PowerMr EU MPPT 60A Solar Charge Controller 12V 24V 36V 48V Plus Version DSP Regulator Work For Lifepo4 Battery 160V Solar panel

View:

PowerMR 60Amps MPPT solar charge controller is based on an advanced maximum power point tracking(MPPT) technology developed, dedicated to the solar system, the charge controller conversion efficiency up to 97%.

Features:

● MPPT 30A/40A/50A/60A solar charge controller

● 100% MPPT technology

● 0 Layer, easy installation, easy setup

● Built-in DSP controller with high performance

● Automatic switch for 12V/24V/36V/48V battery bank

● 3-internship charging optimizes battery performance

● Overcharge protection, Input PV polarity reverse protection, output limited current protection,

● Over-temperature protection

● Troubleshooting promotion function.

● Suitable for battery types such as sealed lead acid, vent gel, and lithium battery battery, etc

● Easy to be molted

● Retore all data with one click

Specification:

Model

PV Inputt

Max Open Voltage of PV Module

160Vdc

Max. Input Power

For 12V system

720W 20-80Vdc;

For 24V system

1440W 37-105Vdc;

For 36V system

2100W 50-160Vdc;

For 48V system

2800W 72-160Vdc.

Charge Mode

Charging Technology

MPPT

Algorithm Charge

3-Internship

Nominal System Voltage

12V/24V/36V/48V

Battery Voltage Range

9 ~ 70V

Rated Charging Current

60A

Conversion Efficiency

≤98%

MPP Tracking Efficiency

>99%

Non-Consumption

0.7W-1.2W

DC output

Rated Output Current

6A

Max. DC Output Current

8A

Max. Captive Load capacity

10000µF

Environment

Operating Temperature Range

-35°C to +45°C

Humidity Range

≤95%, non-condensing

Altitude

<3000m

General Specification

Protection Class

IP32

Dimension

230*165*72mm (9.1*6.5 * 2.8in)

Net Weight

1.33kg (2.9lbs)
