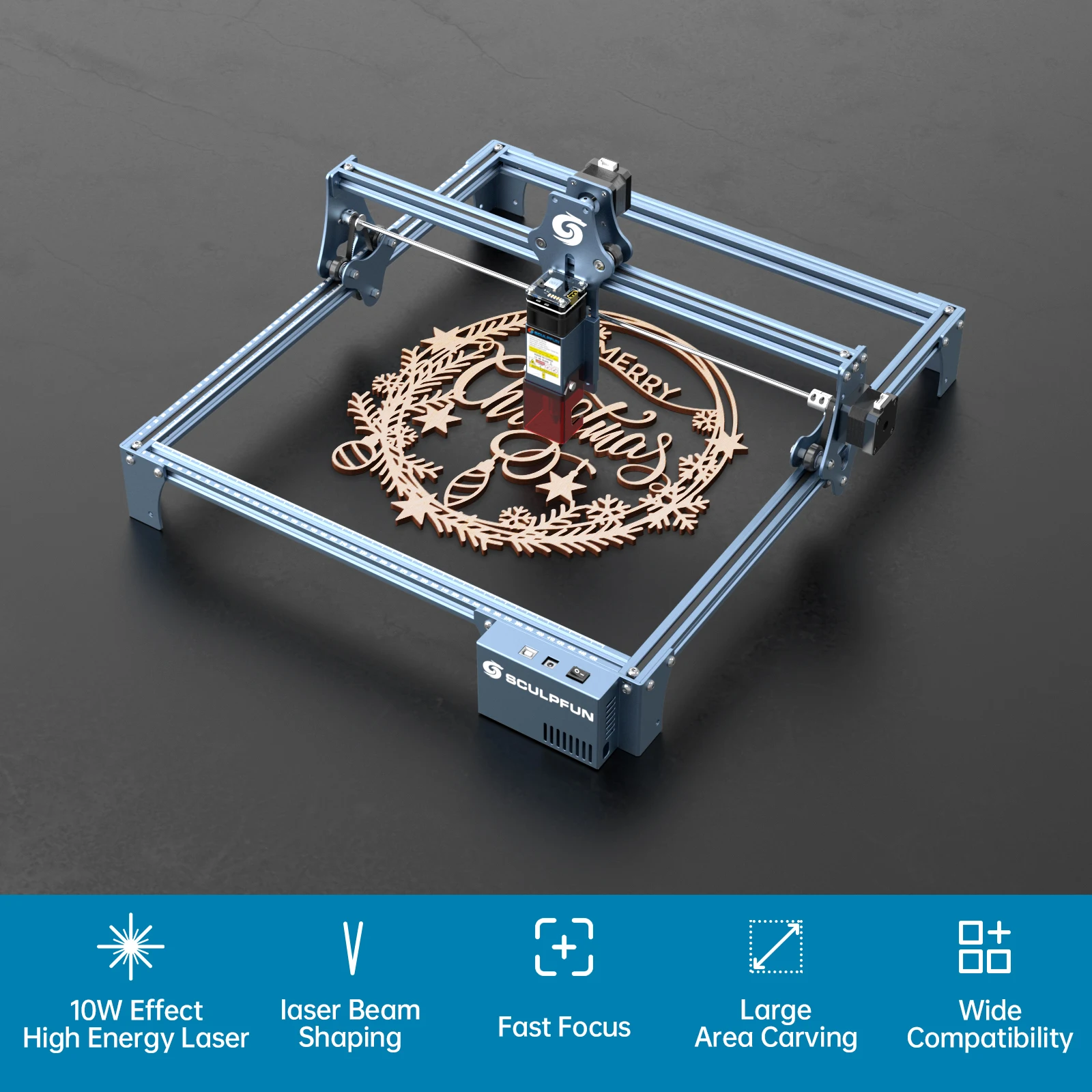

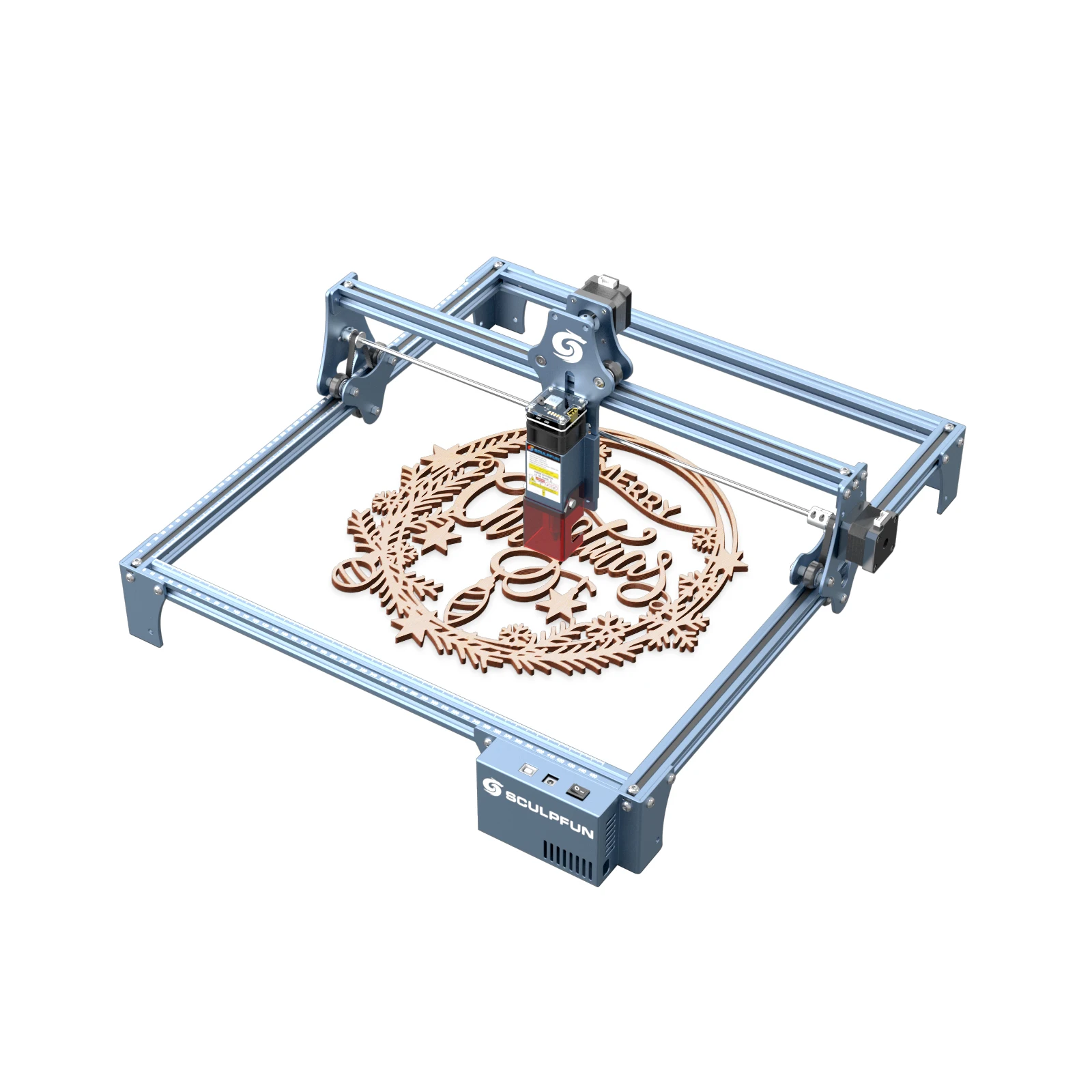

SCULPFUN S9 Pro 10W Laser Engraver Wood Acrylic Engraving Cutting Machine 400x410mm EU Fast Focusing Design

Features:

1. 10W Laser Beam Shaping Technology: Adopting the latest 10W laser beam shaping technology diode laser, the S9 Pro has an ultra-fine 0.06mm laser focus. With super cutting penetration and precision, it can cut up to 15mm thick wood board, 10mm acrylic, and engrave ceramics and stainless steel.

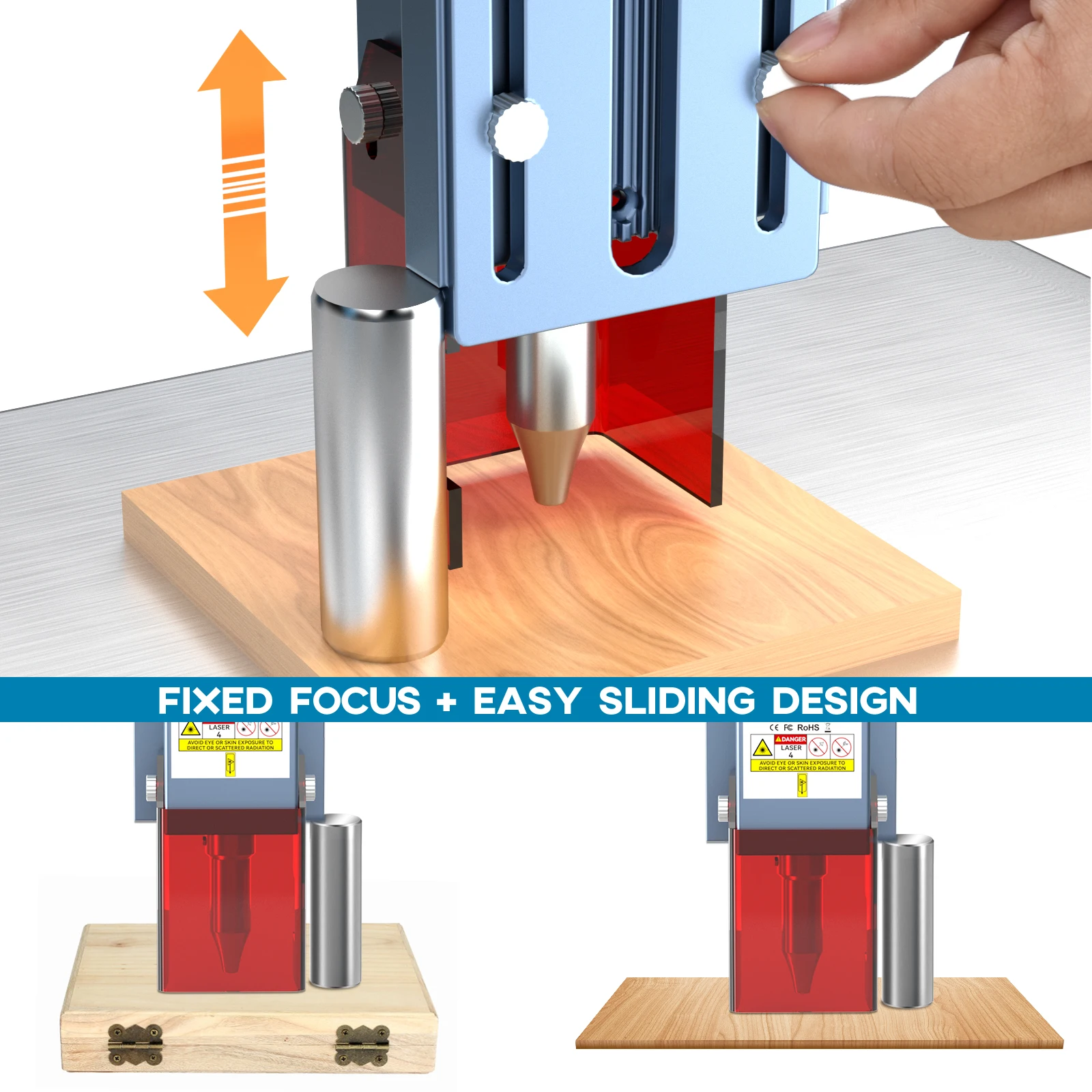

2. Fast Focusing Design: The S9 Pro laser has the fastest focus design on the market. It combines a fixed focus lens and a sliding design, allowing you to slide the laser and tighten the screws to easily complete the focus. This makes it very easy to use the laser.

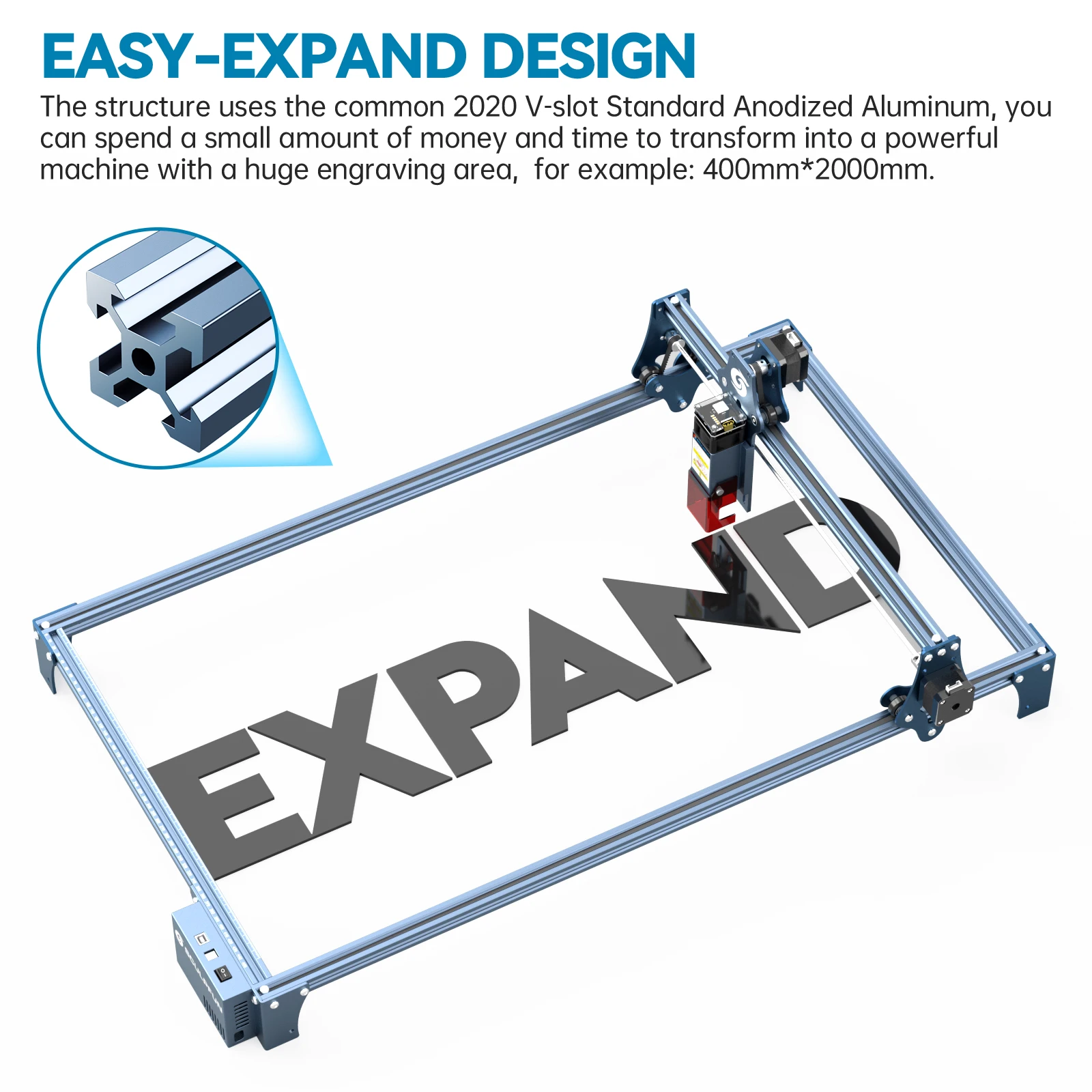

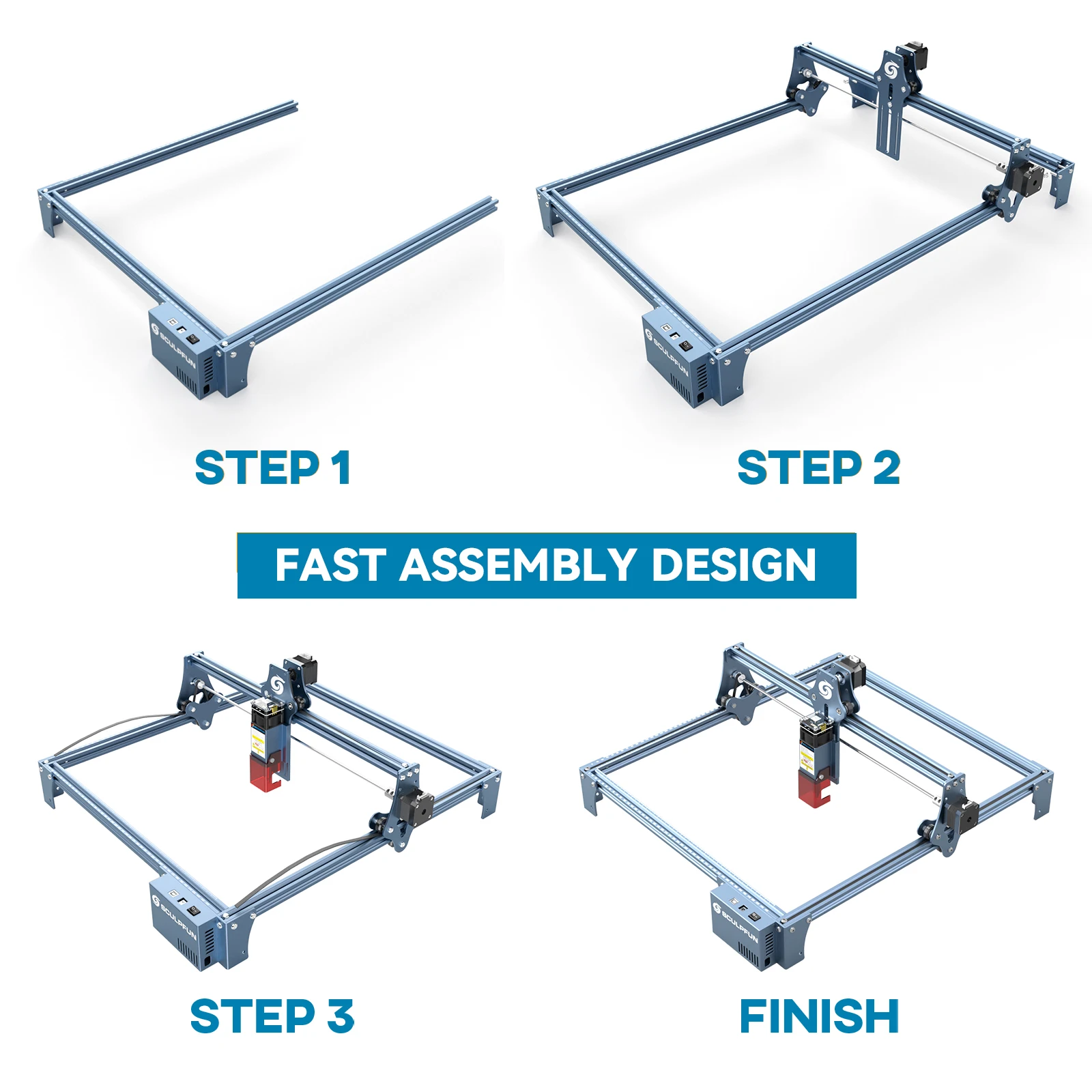

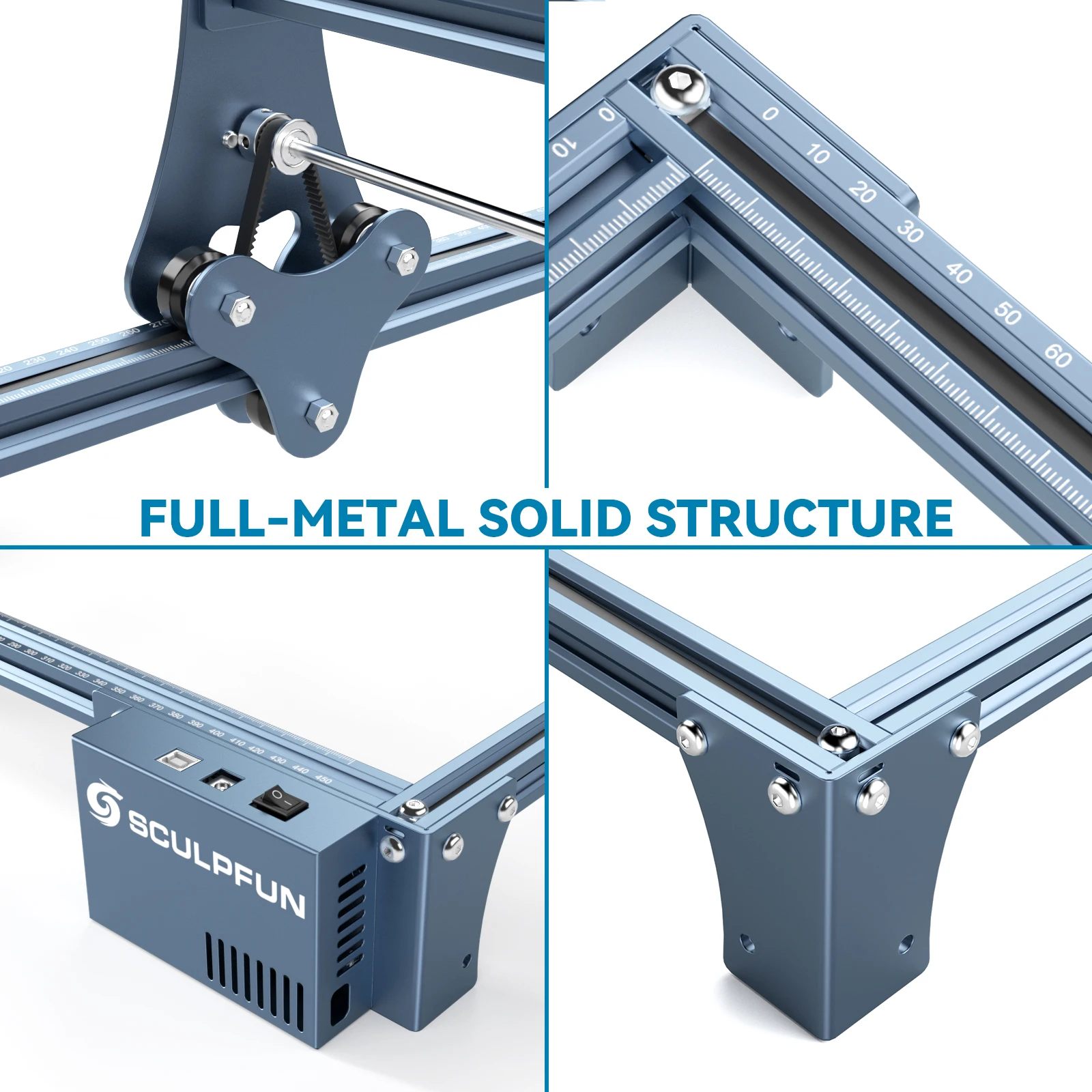

3. Solid and Easy-assembly Structure Design: Full-metal structure design enhances the solidity of the machine, significantly improving the accuracy of engraving. The whole structure is designed for easy-assembly, which can be completed in 10-20 minutes. The structural frame is very durable and remains open to upgrade. During use, you can keep the frame and replace it with other new lasers, or replace longer metal beams to expand the engraving area.

4. New Eye Protection Design: 98% of ultraviolet light can be filtered out by the laser filter cover. You and the people around you can watch the laser engraving without wearing goggles. At the same time, it can prevent animals from catching the laser spot.

5. Wide Compatibility: The SCULPFUN S9 Pro is compatible with various mature engraving software, such as LaserGRBL, LightBurn, Benbox, GrblController, LiteFire. It supports PWM mode engraving, Windows system, and MAC system (LightBurn). The engraving file format like JPG, PNG, DXF, SVG, AI, G-code, NC, BMP, etc. are supported.

6. Safe Design: The machine is equipped with a very safe power switch. Fixing holes are reserved on the four foot supports and the body structure to facilitate the fixing of the machine and the data cable.

7. A4 Steel Pad: The free A4 size steel pad can protect the table from laser damage and isolate fire hazards.

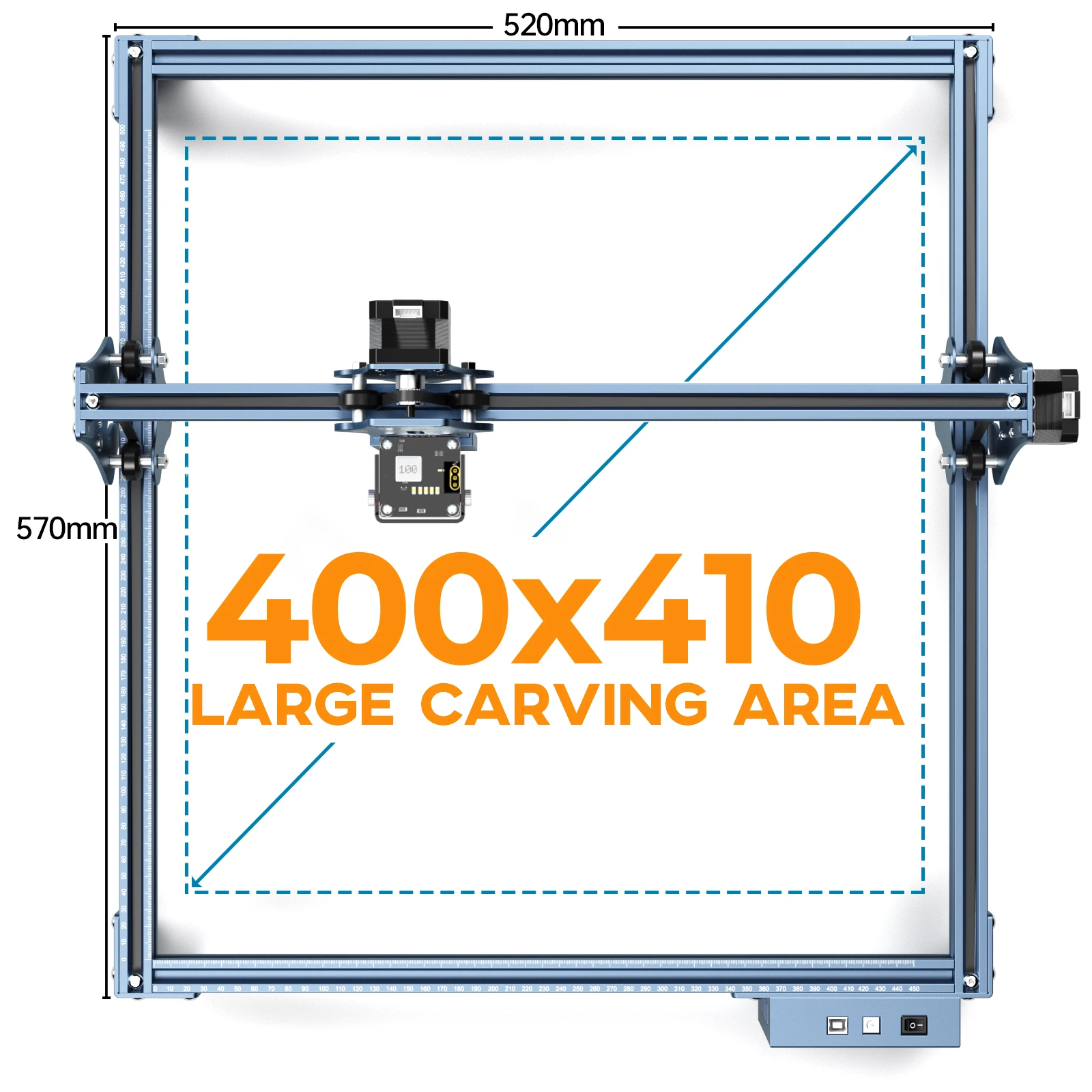

8. Right-angle Measuring Ruler: X-axis and Y-axis contain precise scale lines to form a right-angle measuring ruler, which is convenient for you to measure the size of engraving objects quickly. The 400x410mm large engraving area can meet your various engraving needs.

Specifications:

Product model: SCULPFUN S9 Pro

Engraving size: 400*410mm

Engravable/cuttable materials:

Engraving materials: wood, bamboo, cardboard, leather, PCB board, aluminum oxide,  304 stainless steel, ceramic, dark stone

Cutting materials: wood board, acrylic board, cardboard, non-woven fabric, bamboo sheet

Diode laser output power: 10W

Laser wavelength: 450±5nm

Engraving accuracy: 0.01mm

Focusing method: fixed focus laser + sliding device

Laser protective cover: The ultraviolet light filter cover on the laser protects the user's eyes and prevents animals from contacting the laser spot.

Operating software: LaserGRBL, LightBurn, Benbox, GrblController, LiteFire, support Windows system, support MAC system. Supported file formats NC, BMP, JPG, PNG, DXF and other image formats.

Data transmission method: USB connection

Power supply: International universal standard power input: 100-240V AC, 50/60Hz output: 12V 5A

Equipment net weight: 3.0kg

Package weight: 4.4kg

Packing size: 615*345*130mm

Precautions:

For detailed machine instructions and parameter settings, please refer to the manual.

When operating the laser engraving machine, please install the laser protection cover; if it is not installed, you need to wear goggles.

Do not touch the laser with your hands, otherwise it may burn your hands.

Please avoid strong impact on the machine.

Children under 14 are prohibited from using this product, and children over 14 need adult supervision.

The laser cannot be applied directly to any mirror-reflective object, which may cause harm to the operator or burn the laser.

Notes:

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures.

Please allow 1-3mm measuring deviation due to manual measurement. Thank you for your understanding!

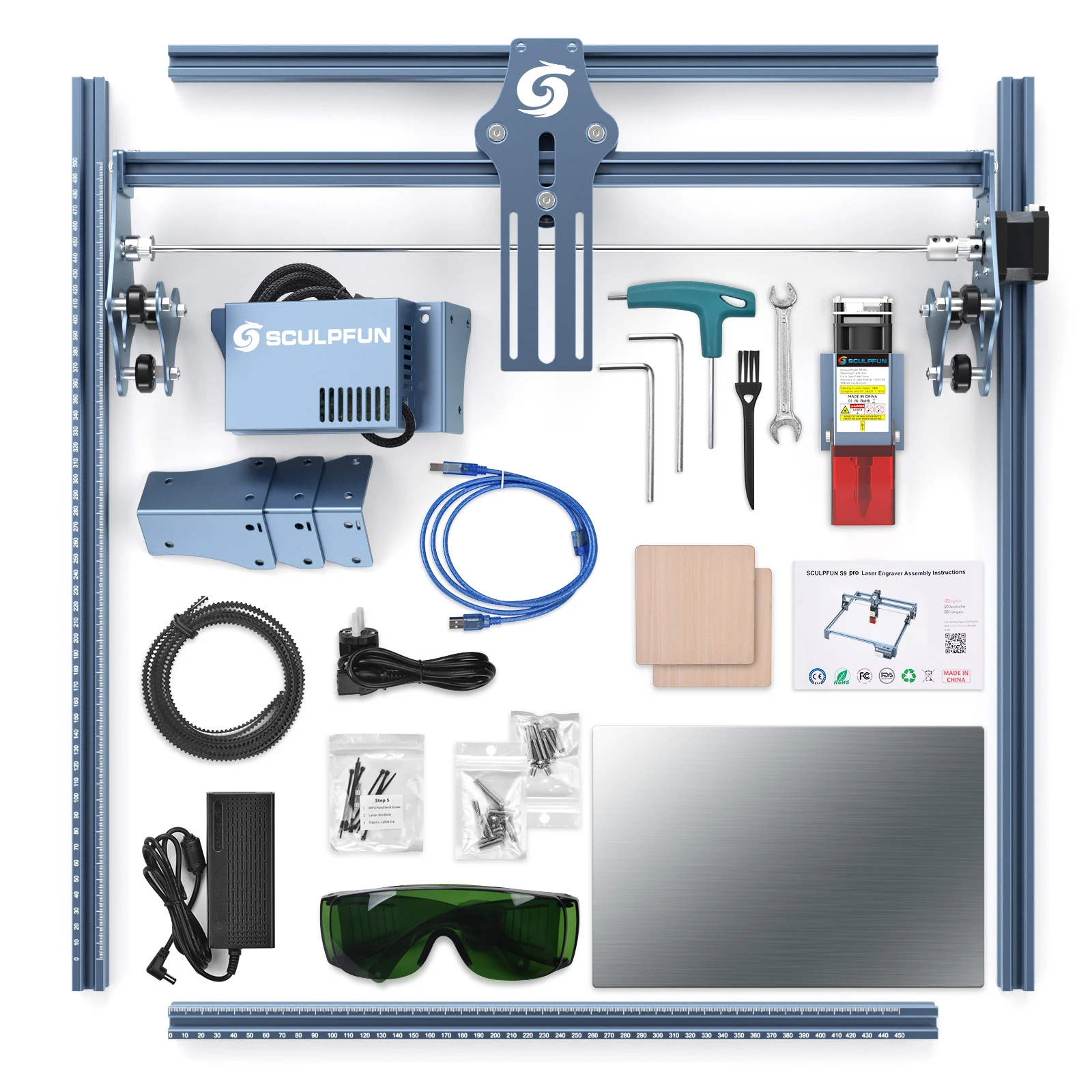

Packing List:

1 x X-axis assembly

2 x X profiles

2 x Y profiles

1 x Control box assembly

3 x Support feet

1 x Laser assembly

1 x 12V 5A power adapter

1 x Power cord

1 x USB connection cable

Step 1-5 screw installation kit

2 x Belts

1 x T-type M5 Hexagon socket screwdriver

1 x L-type M4 Hexagon socket screwdriver

1 x L-type M3 Hexagon socket screwdriver

1 x 8-10mm screw wrench

10 x Cable ties

1 x Brush

1 x Laser goggles

1 x 3mm thick 10x10cm small wood chip

1 x 10mm thick 10x10cm small wood chip

1 x A4 size steel desktop protective pad
