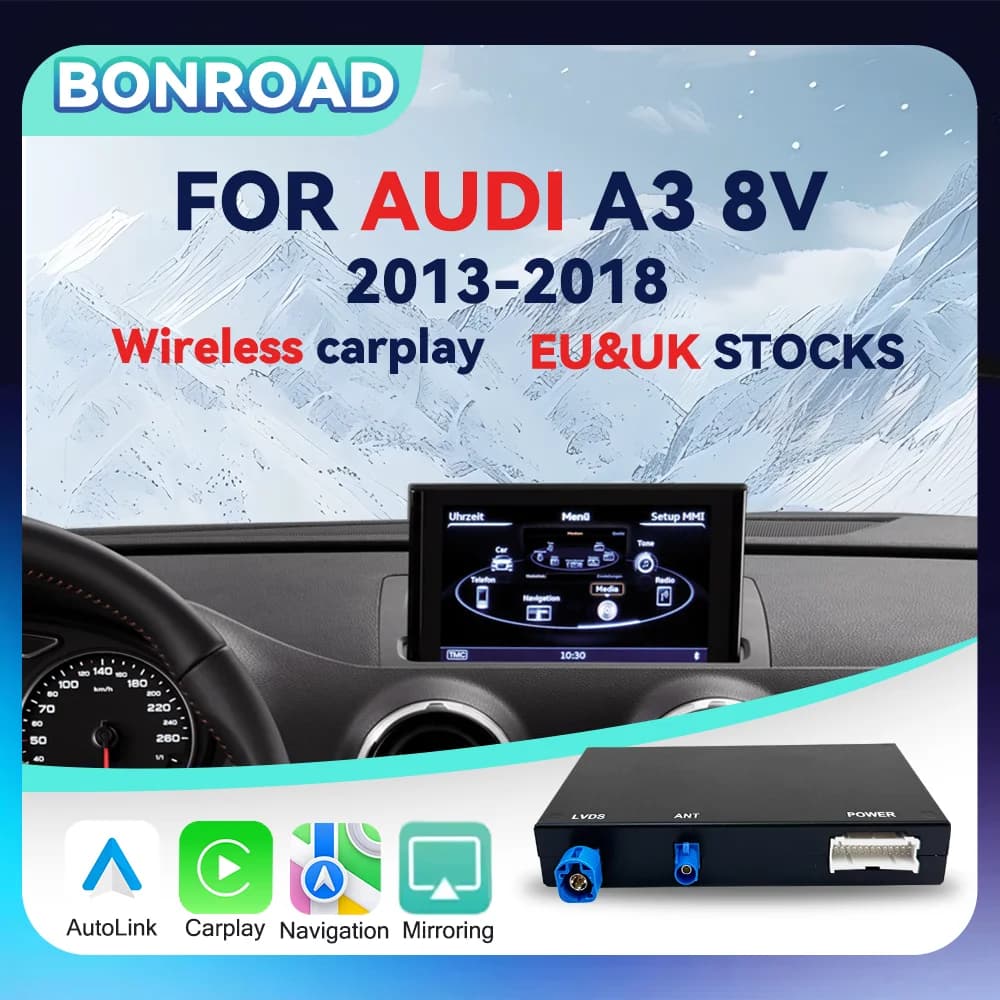

BONROAD Wireless CarPlay Android Auto Adapter Module MMI Box USB Video for Audi A3 8V 2013-2018 Bluetooth Navigation Mirror Link Reverse Camera Airplay Autolink

BONROAD Wireless CarPlay Android Auto Adapter USB Video for Audi A3 8V 2013-2018 Bluetooth Navigation Mirror Link Reverse Camera

For Audi A3 : 2013 - 2018 ( for both 5.8", 6.3", 7" and 8.3" screen)

This is a CarPlay interface decoder box, Not a car screen !!!

Notice:if your car is MIB system, need to check your car screen size, 7inch or 8.3inch, The size of the screen display, not the size of the entire screen.

If your car screen is 5.8 or 6.3inch, choose 6.3inch to order.

If your car is 7inch, choose 7inch-CLU version to order.

If your car is 8.3inch, choose 8inch-CLU version to order.

If you can't make sure which one to order, please kindly contact our customer service for help, thank you!!!

According to your car screen size, the software version not important.

How to make sure your car system?

1.Press "Setup" or "Menu" button on the radio

2.Go to "Settings"

3.Scroll down to ""Version Information"

4.Look for first letters and numbers of software version

and if your car have aux or ami port,if yes,you will need connect the aux/ami cable to active sound

for sound probelm,you will need connect the device bluetooth,then back origianl menu to choose external audio input

for aux or ami cable,we not attach,will need buy alone,the parcel not attach

For MIB/MIB2-AUDI 13-18years cars

MODEL:CX-ADM12

A3/S3 2013-2018 year 5.8/7inch A4L 2017-2018 year 7/ 8.3inch

A5 2017-2018year 7/8.3inch Q2L 2018year 7/8.3 inch

Q5L 2018year 7/8.3inch Q7 2016-2018year 7/8.3 inch

Reverse camera added, original camera turned off

Audio setting（The original car has Bluetooth phone, no need to add a microphone）

Setup---audio settings----use the original Bluetooth audio ----off

Original multimedia selection aux

Setup---audio settings----use the original Bluetooth audio -------------on

Cell phone Bluetooth connection to the original car Bluetooth audio, select Bluetooth audio playback

Adding Reversing Camera Wiring

cam-power：Connect to camera power
