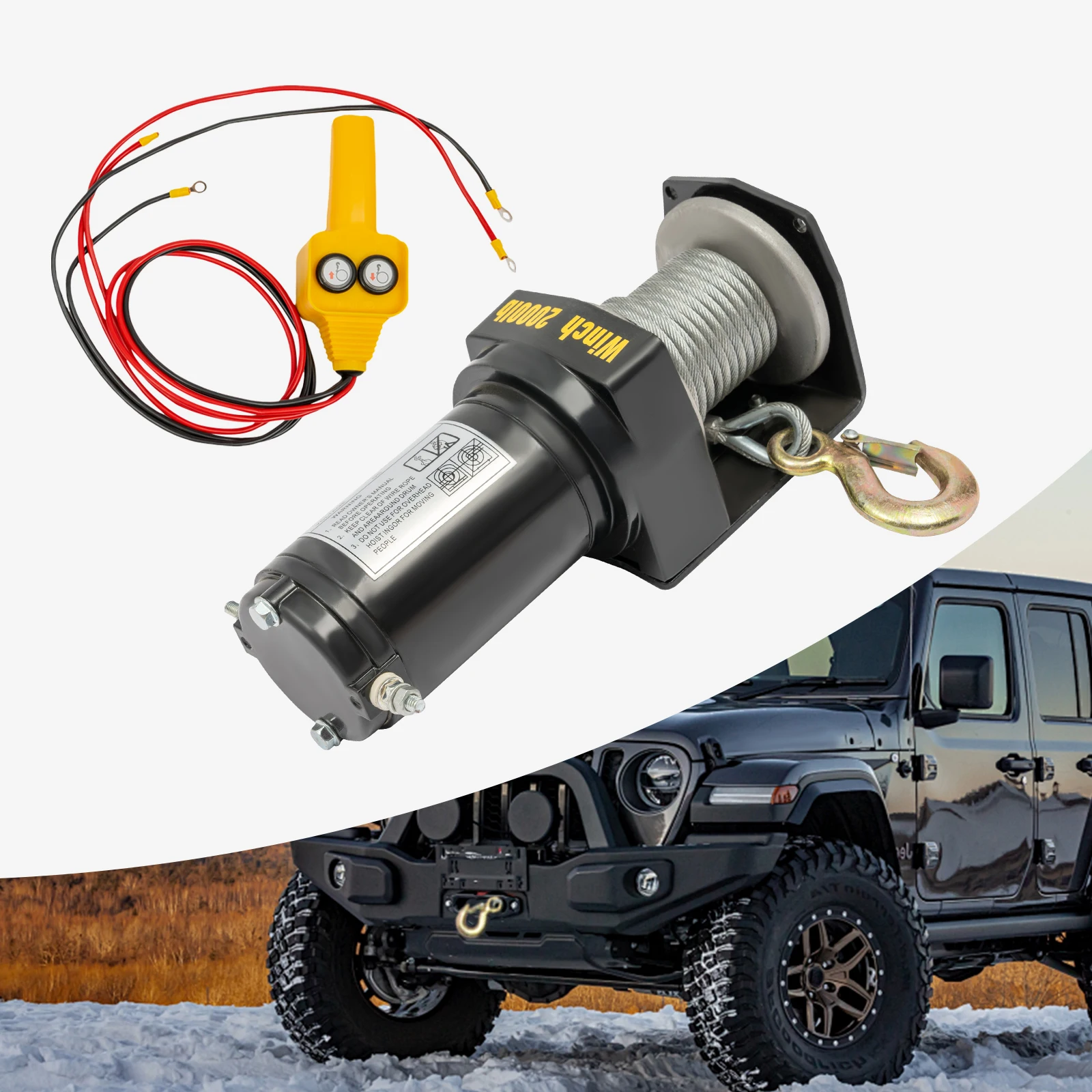

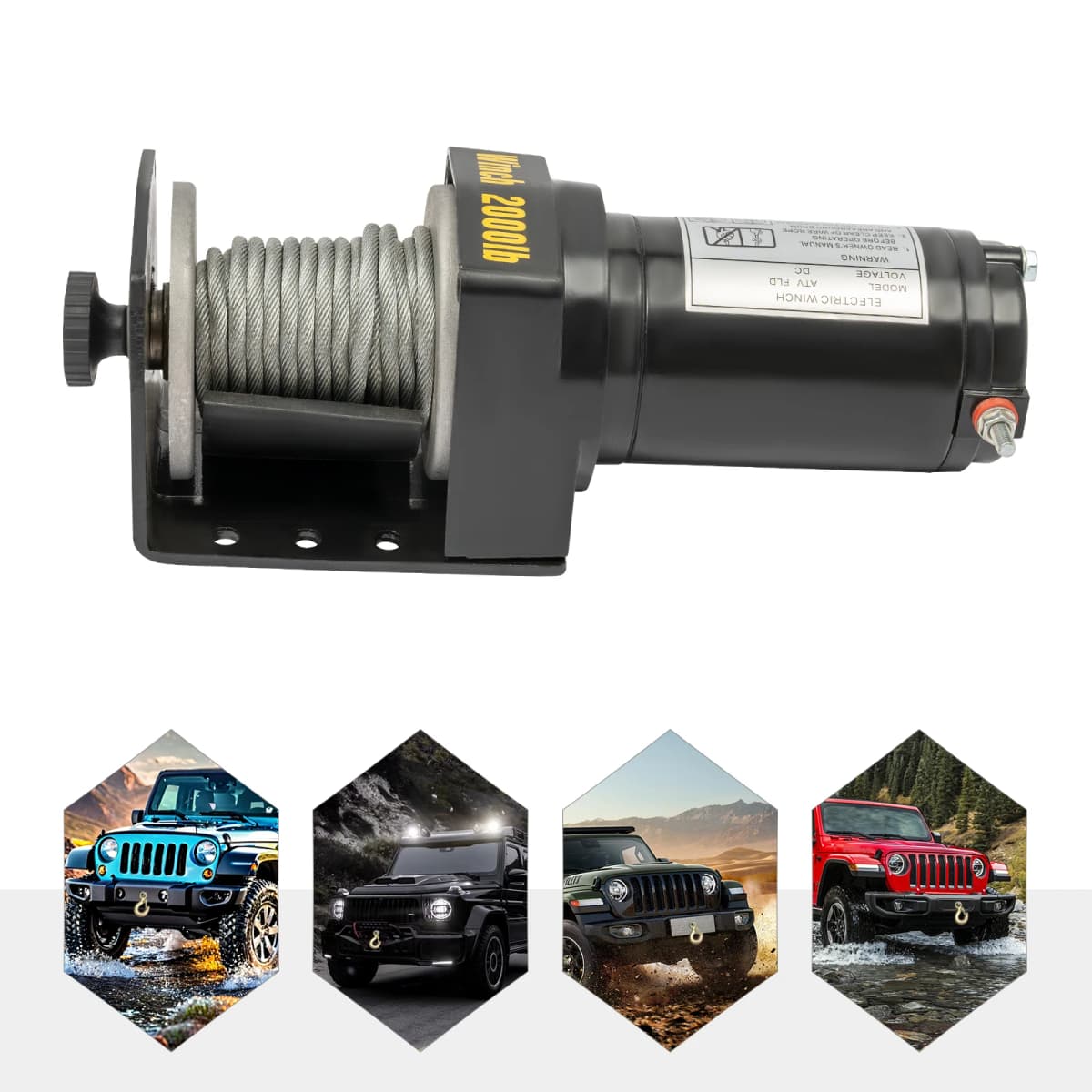

0.4KW Electric Winch DC12V, Black Electric Lifting Device IP67 Waterproof Grade

Specification

Material: Alloy Steel
Process: Spray Molding
Color: Black
Assembly Required: Yes
Motor Type: Pure Copper Motor
Voltage: DC12V
Power: 0.4KW
Current Consumption: 8-120 A
Waterproof Grade: IP67
Transmission Ratio: 153:1
Spare Speed: 4m/13.12ft/min
Max. Horizontal Traction Load: 900kg/1984.16lbs
Max. Vertical Lifting Capacity: 200kg/440.92lbs
Wire Rope Diameter: 4mm/0.16in
Rope Length: 6m/19.69ft
Installation Hole Spacing: 76mm/2.99in
Installation Aperture: 8.5mm/0.33in
Drum Size (D*H): 3.15*72mm/0.12*2.83in

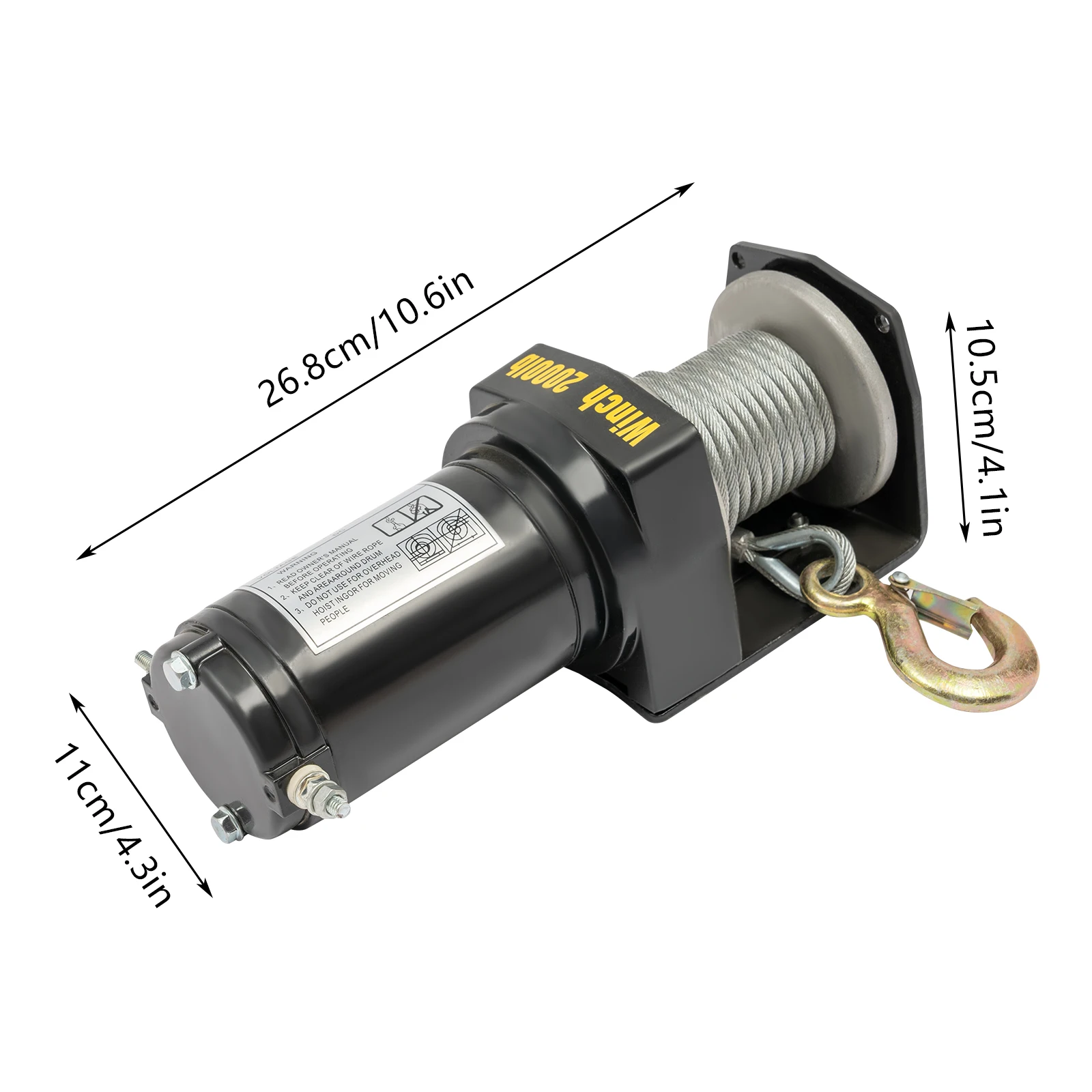

Product Size: 26.8*11*10.5cm/10.55*4.33*4.13in
Package Size: 33*24*15cm/12.99*9.45*5.91in
Gross Weight: 5.8kg/12.79lbs
Net Weight: 5kg/11.02lbs

Key Features

Build to Last: This product is made of high-quality alloy steel and after plastic spraying treatment, it does not easily rust, corrode, or deform, and has a long service life.

High Efficiency: The 0.4KW pure copper motor can retract the rope at a speed of 13.12ft/min, allowing you to quickly complete the rope retraction and improve efficiency.

Excellent Load-bearing: The steel wire rope with a diameter of 0.16 inches and a sturdy mounting base allow this product to lift a weight of 440.92 pounds vertically or a weight of 1984.16 pounds horizontally, allowing you to use this product with confidence.

Convenient Power Supply: This product uses a DC12V power supply, which you can connect it to most 12V power supplies for more convenient use.

Thoughtful Design: This product is equipped with a clutch switch, which can manually release the rope without being powered on. The steel guide rope device effectively prevents entanglement.

Good Protection: The well-sealed motor ensures an IP67 waterproof rating, ensuring that the product still maintains good performance in rainy or other humid environments, allowing you to use it with peace of mind.

Safety Gaurd: The motor adopts an intelligent core inside, which has over-temperature protection. In the event of a sudden power outage, the motor will automatically emergency brake to prevent the object from falling and prevent accidents.

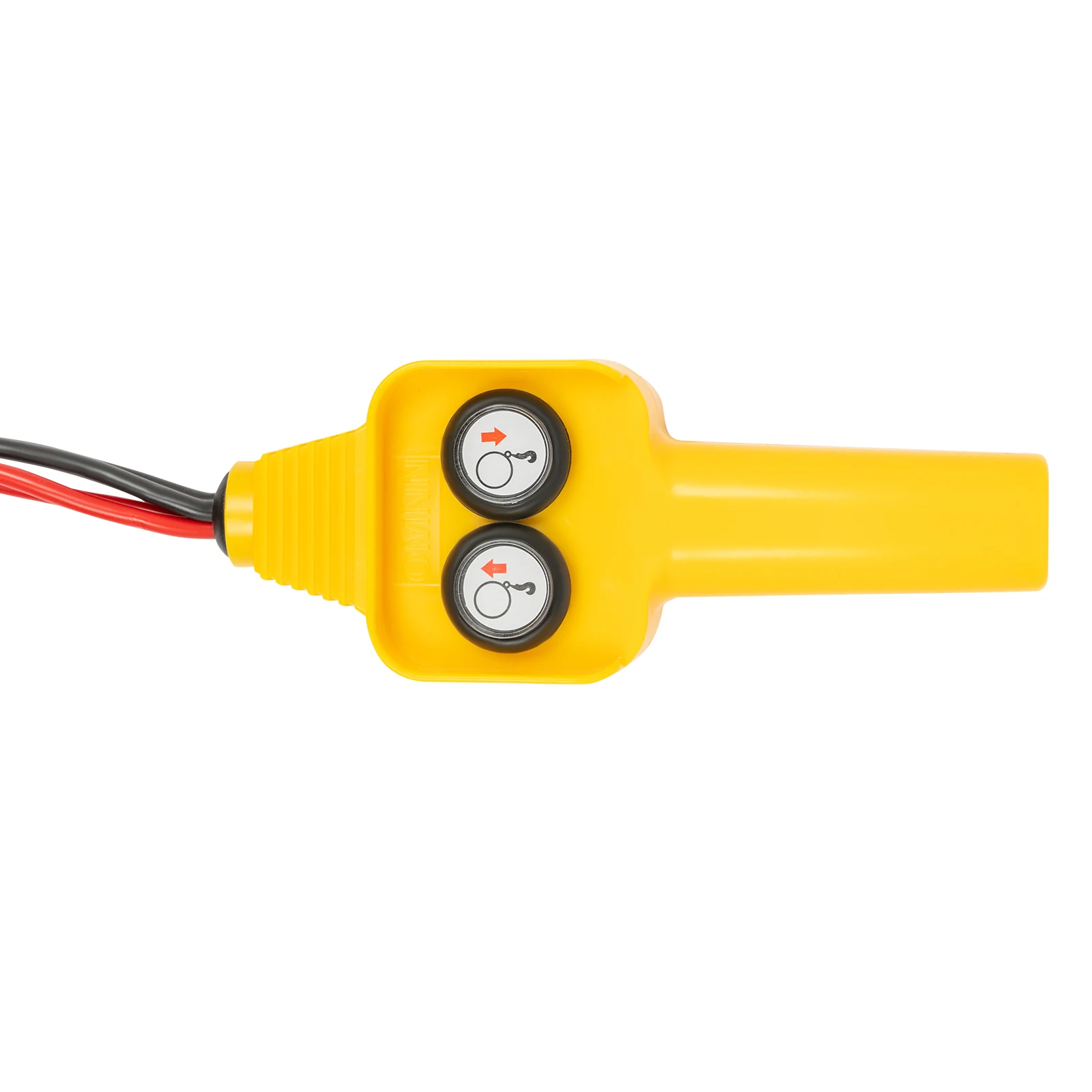

Easy to Operate: The product is equipped with a wired remote control, and the intuitive buttons on it allow you to easily learn how to use it.

Details

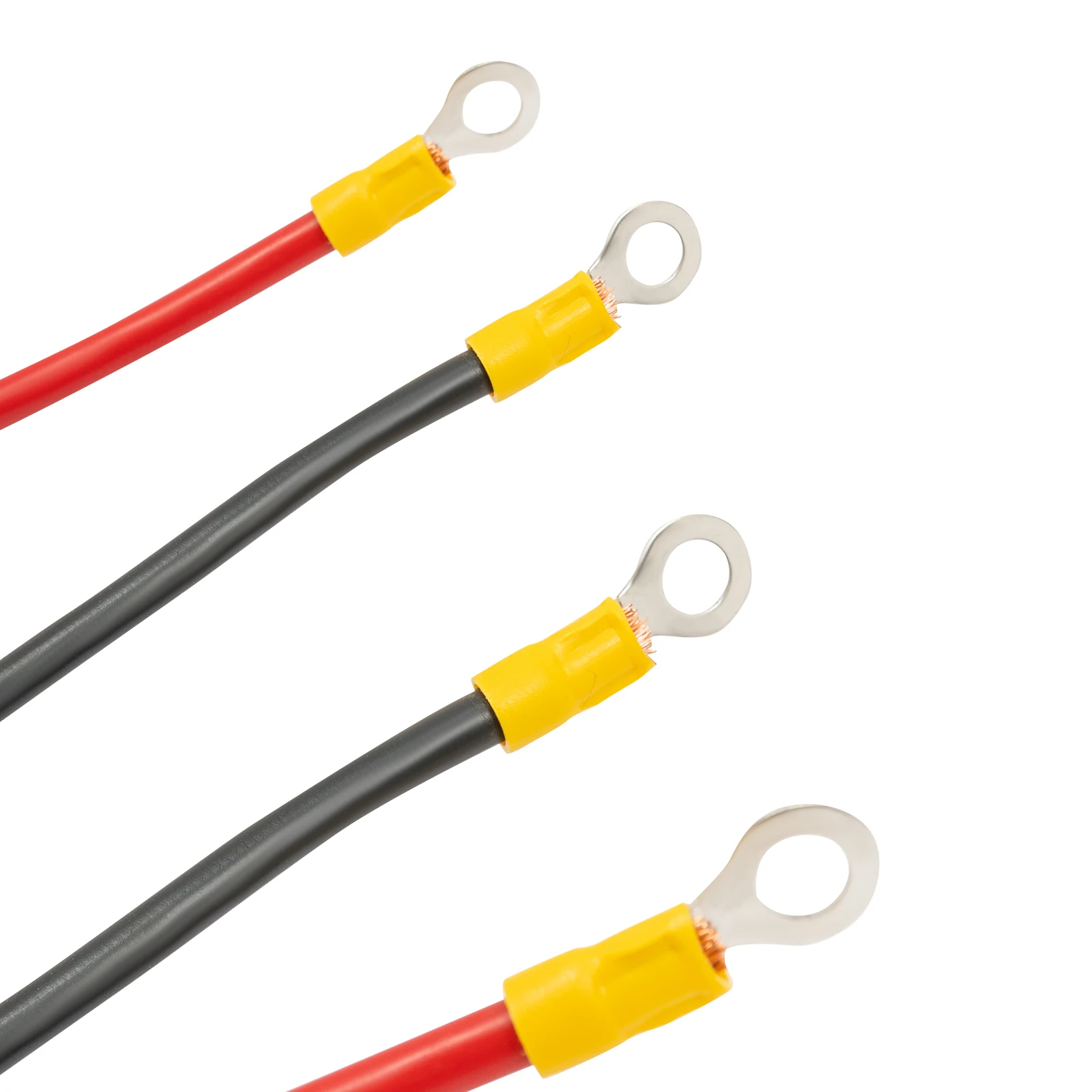

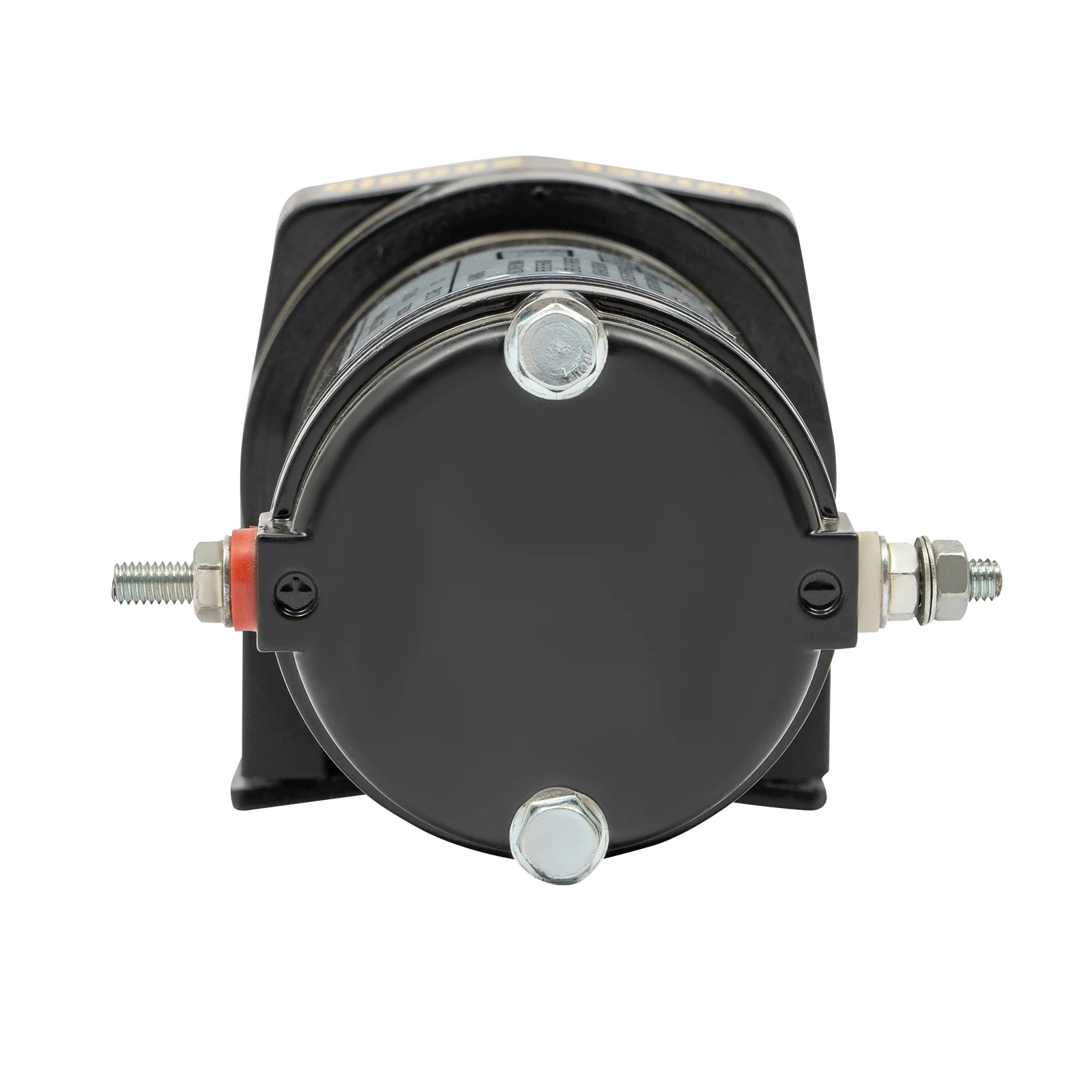

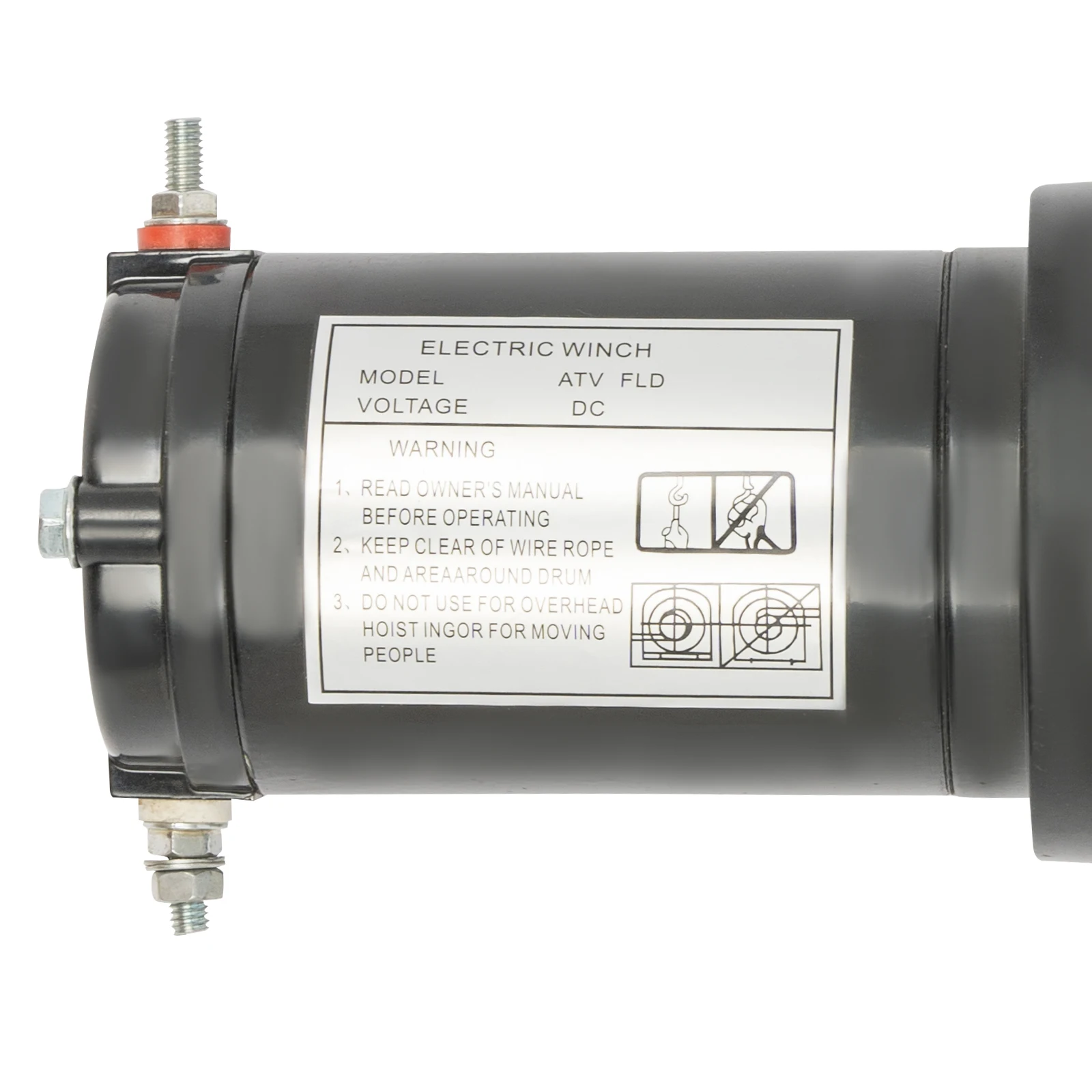

Power Terminal: The positive and negative poles are clearly labeled (red ring for the positive pole, white circle for the negative pole,) to avoid the wrong line connection.

Buckle: It can prevent heavy objects or vehicles from slipping off the hook, ensuring safe lifting and towing.

Application

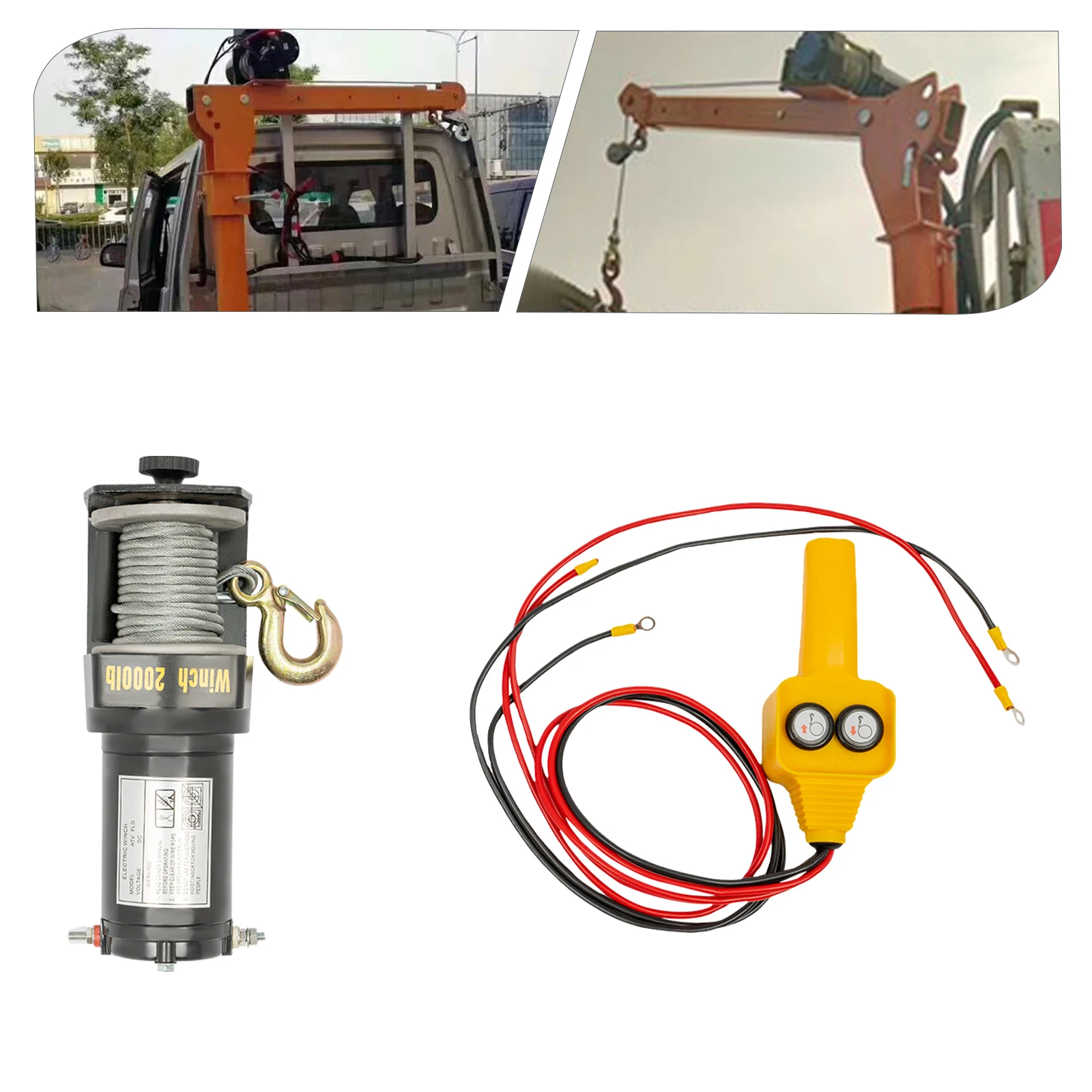

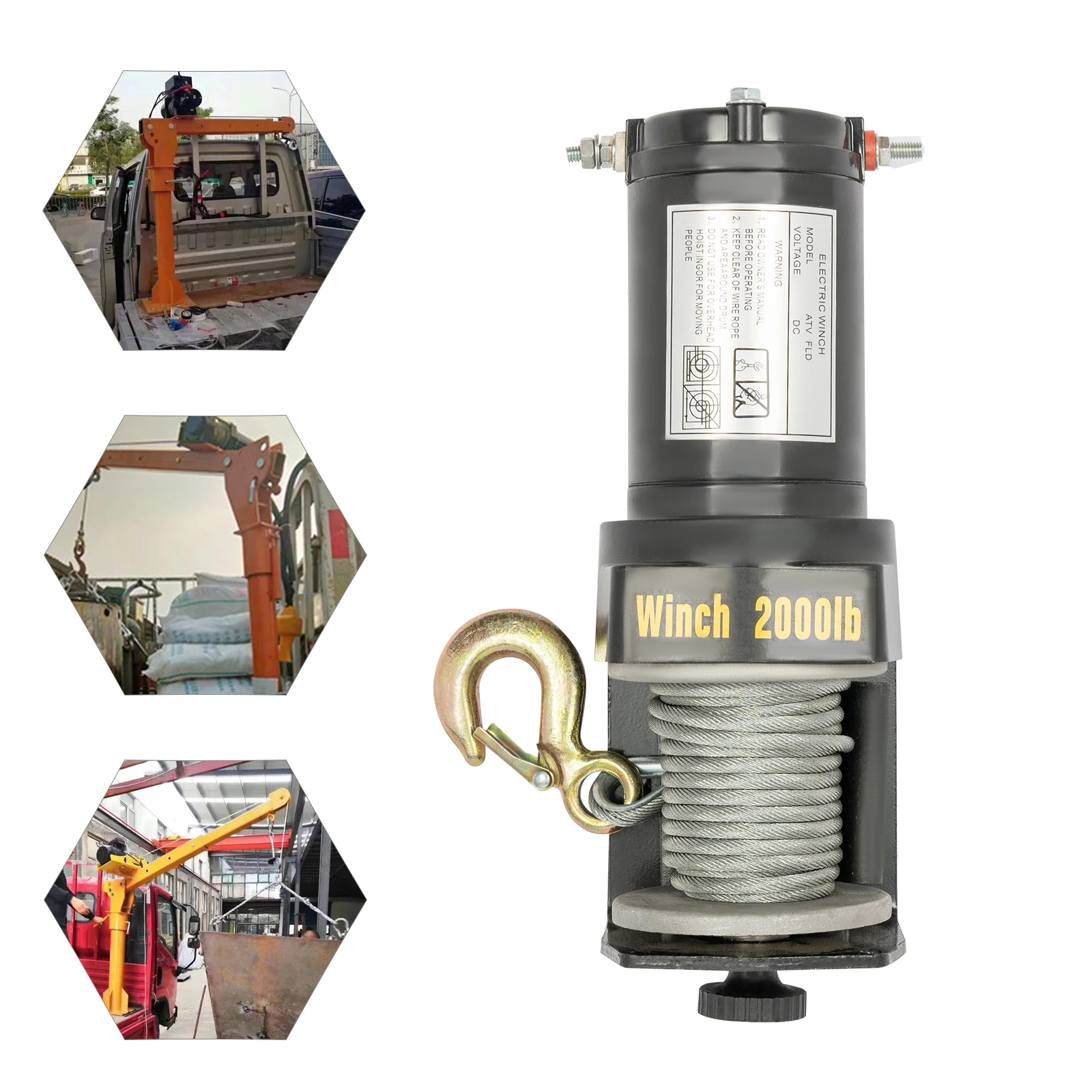

This product can be used for off-road vehicles, agricultural vehicles, ATV sports vehicles, yachts, and other special vehicles. Vehicle self-rescue can be carried out in harsh environments such as snow, swamps, sand, beaches, and muddy mountain roads, and may also be carried out under other conditions, such as clearing obstacles, towing items, installing facilities, as well as hydrology, forestry, transportation, border defense, and other outdoor activities.

Package Included

1 * Electric Lifting Device
1 * Controller
1 * English Manua

Notes

1.Please read the operating manual completely before use. And pay particular attention to the safety instructions included.
2.Please turn off the power when wiring and turn it on again after the wiring is completed.
3.Please stay away from the area around the rope and drum when using.
4.Please do not apply this product to overhead cranes or for moving personnel.
5.When the load that needs to be lifted or pulled exceeds half of the load capacity of this product, we recommend using pulleys to double the rope.
6.When operating this product, pay attention to maintaining a specific distance to prevent injury caused by rope breakage
7.When using, check for any damage or loose parts of the product. The rope may not be collected neatly during dragging. Please do not use your hands or other objects to guide the rope collection. If the rope is stacked on one side of the drum, please rotate the product in the opposite direction, adjust the rotation angle, and after completing the drag, the rope can be released and rewound neatly.
8.The product should not be used continuously for more than one minute. Stopping for a while after use can protect the motor from overheating and prolong the product's lifespan.
9.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
