65-75L 220V 200W Acrylic Polishing Machine Oxygen Hydrogen Generator For Flame Polishing Of Acrylic Crafts And Organic Glass

The product is suitable for flame polishing of acrylic crafts and organic glass, and can also be used for experimental teaching of water electrolysis to produce hydrogen and oxygen in schools.

Specifications

Color: Orange
Material: Iron, Brass
Process: Baking Paint, Spraying Paint
Flame Temperature: 2000-3000℃/3632-5432℉
Plug Type: EU Standard
Power Source: Corded Electric
Mount Type: Free Standing
Assembly Required: Yes
Air Tube Length: 1.5m/4.92ft
Air Tank Capacity: 1.5L/0.4Gal
Maximum Water Addition: 1L/0.26Gal
Power Cord Length: 1.5m/4.92ft
Working Current: 1.5±0.2A
Input Voltage: AC 220V
Output Voltage: DC 5±0.5V
Gas Production: 65-75L/17.17-19.81Gal/H
Working Pressure: 0.12-0.18MPa
Power: 200W
Soft Water Usage: 0.08L/2.7oz/H

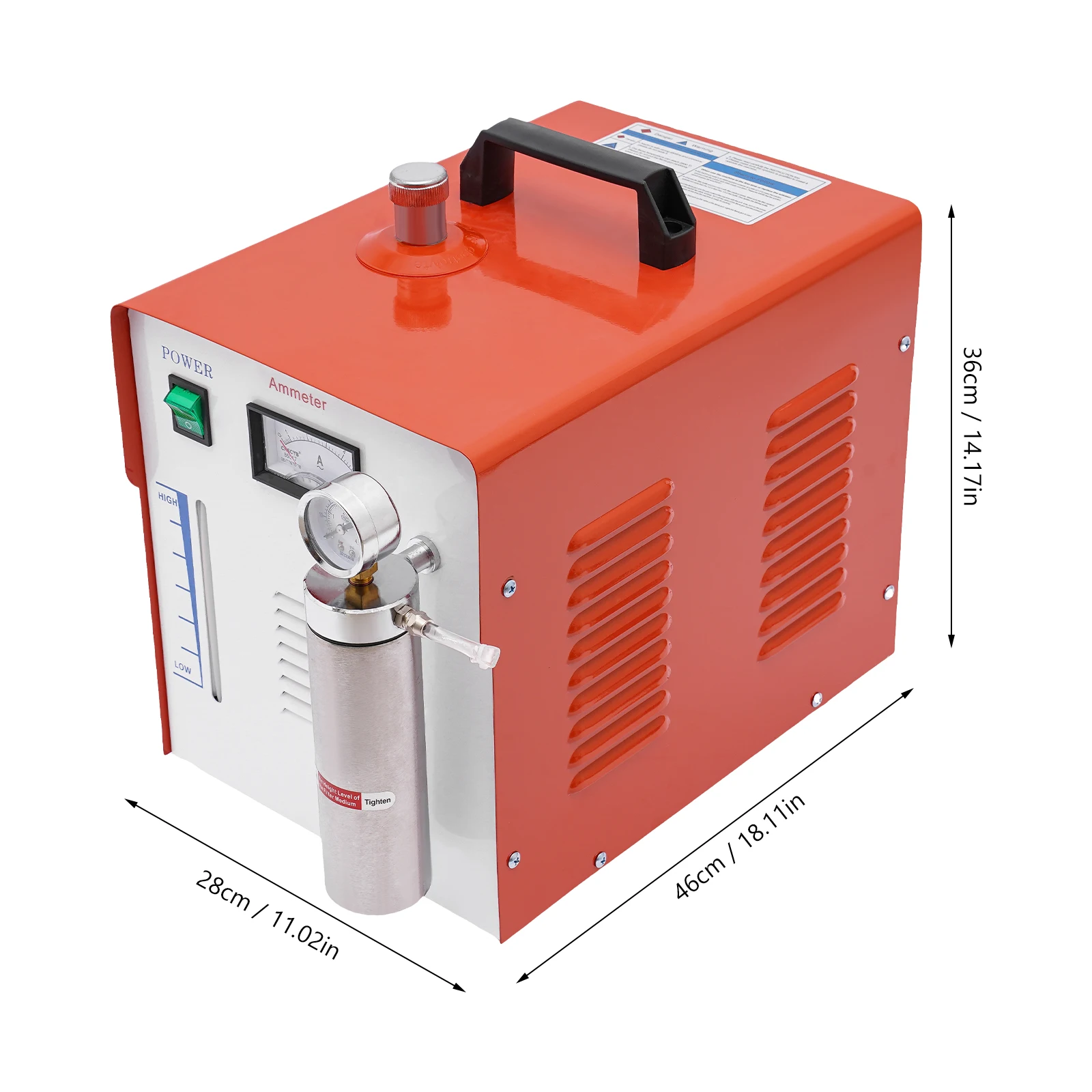

Product Size: 46*28*36cm/18.11*11.02*14.17in
Package Size: 47*30*37cm/18.5*11.81*14.57in
Gross Weight: 9kg/19.84lbs
Net Weight: 8.5kg/18.74lbs

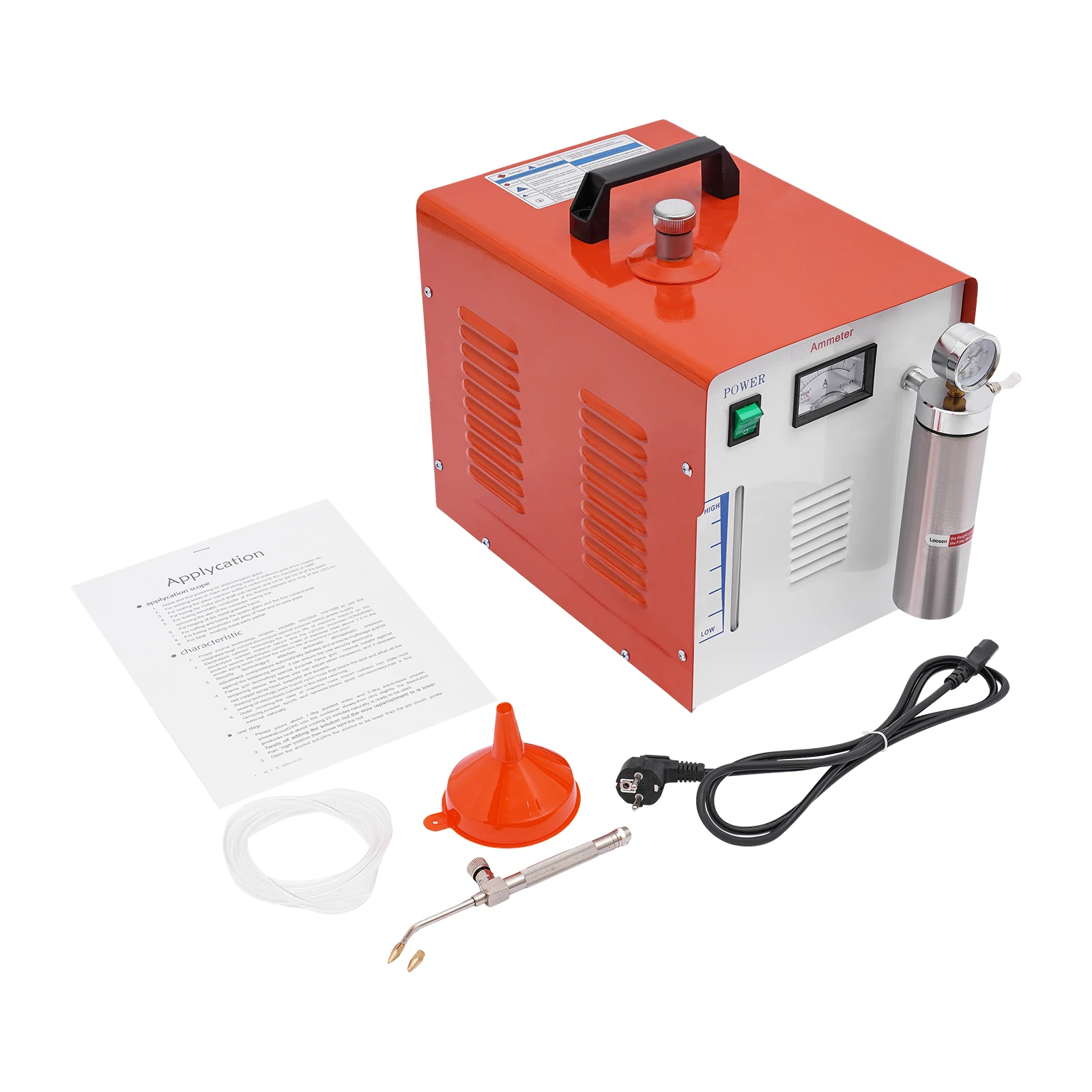

Package Included
1* Acrylic Polishing Machine
1* Flame Gun
2* Flame Nozzles
1* Air Tube
1* English Manual
1* Funnel
1* Power Cord

Notes
1.Please check the size carefully before ordering. Please make sure the tank is filled with clean water and all the connectors are fixed firmly.
2.It is recommended to use industrial alcohol to filter the produced gas, if not, you can also use clean water instead.
3.Please note that any accumulation of water in the hose will cause the flame to turn yellow, and should be discharged promptly. Please take care to check the hose connections for air leaks.
4.Please note that the electrolyte is alkaline, if accidentally contaminated, please rinse it with water in time.
5.If the phenomenon of tempering and implosion occurs, do not panic and worry, it is due to improper operation, air leakage, or gun malfunction, please check the pipeline or replace the gun.
6.Beware of electrical safety hazards. When using such tools, please take necessary personal protective measures and keep the product out of reach of children.
7.Please note that the product requires the addition of electrolytes (not included) for the first time, after which it can be added directly to purified water. Please unscrew the nozzle knob to remove the residual gas after you turn off the machine.
8.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.

Details

Non-slip Feet: They can reduce the vibration during operation, avoid slipping, and provide stable support for the product.

Brass Flame Nozzle: It is resistant to high temperatures, not easy to deform, and more durable. In addition, a spare no is included in the package in case of emergency.
