SucceBuy Mini Metal Lathe Machine 8.7x29.5 inch / 220x750MM 1100W Infinitely Variable Speed LED for Counter Face Turning Driling

Product Description

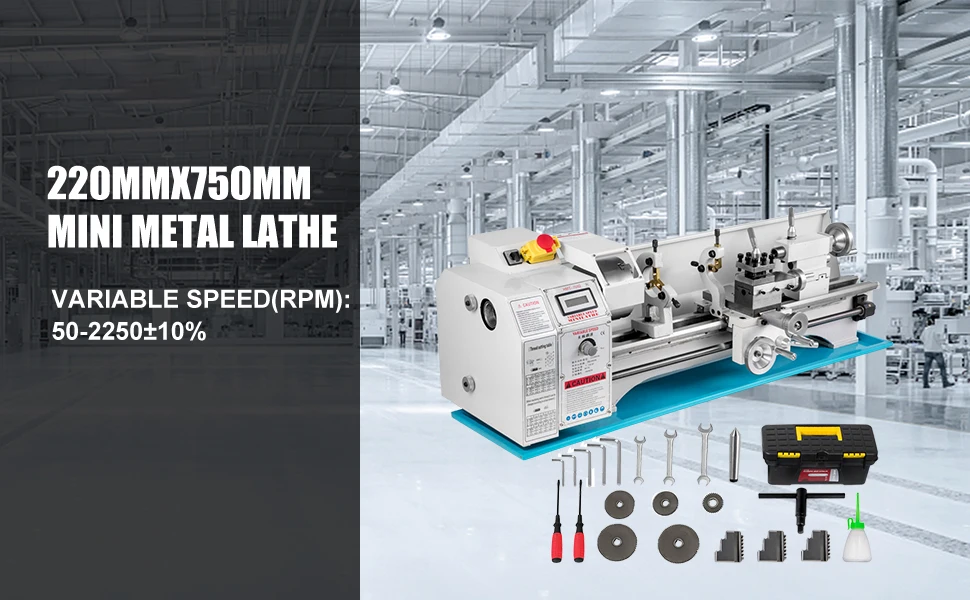

Metal Lathe Mini Lathe 29.5 Inch / 750 mm

0.01 mm Spindle Accuracy & Metal Gears & 8-44 T.P.I

The 220 x 750 mm precision metal mini lathe features 1100W motor, a 3-jaw chuck, a MT5 spindle taper, a MT2 tailstock taper, designed to perform various types of metal turning, simple to operate. Through high-frequency quenching process and precision grinding of high-quality cast iron bed. 500-2250±10%Rpm spindle speed is continuously adjustable. Steady rest and follow rest for large size or/and heavy workpieces.

Variable Speed Design

750 mm Large Swing Range

Professional Compound Rest

Supportive & Protective

Accurate Tailstock

Friendly Note

If your shipping address is in the United States, please provide a correct phone number.

Tough Equipment & Tools, Pay Less

SucceBuy is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, SucceByu is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, SucceBuy's products are sold in more than 200 countries and regions with 10 million plus members worldwide.

Why Choose SucceBuy?

Premium Tough Quality

Incredibly Low Prices

Fast & Secure Delivery

30-Day Free Returns

24/7 Attentive Service

Key Features

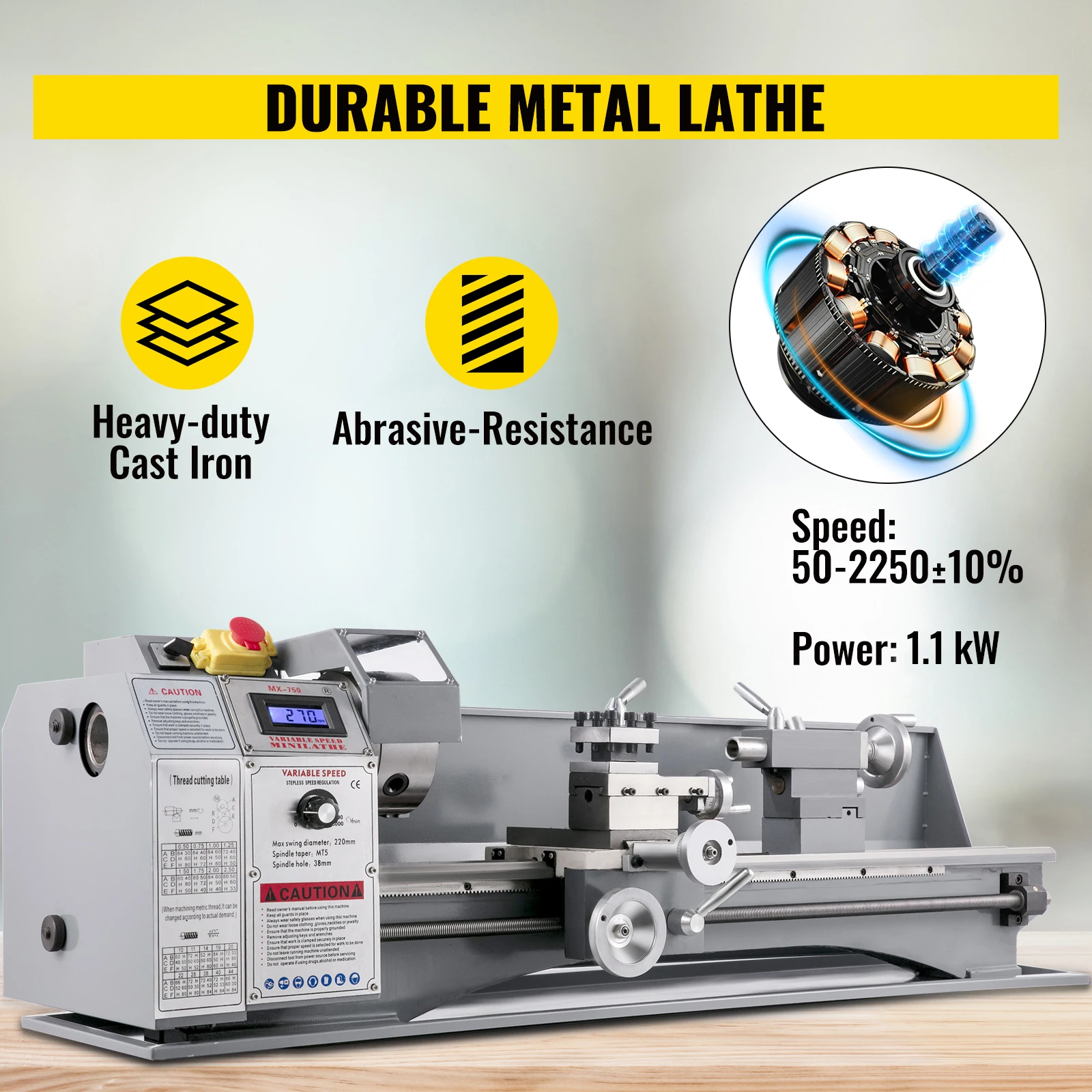

Rigid Cast Iron

The milling machine is made of rugged and wear-resistant cast iron, a tough material that features a long service life.

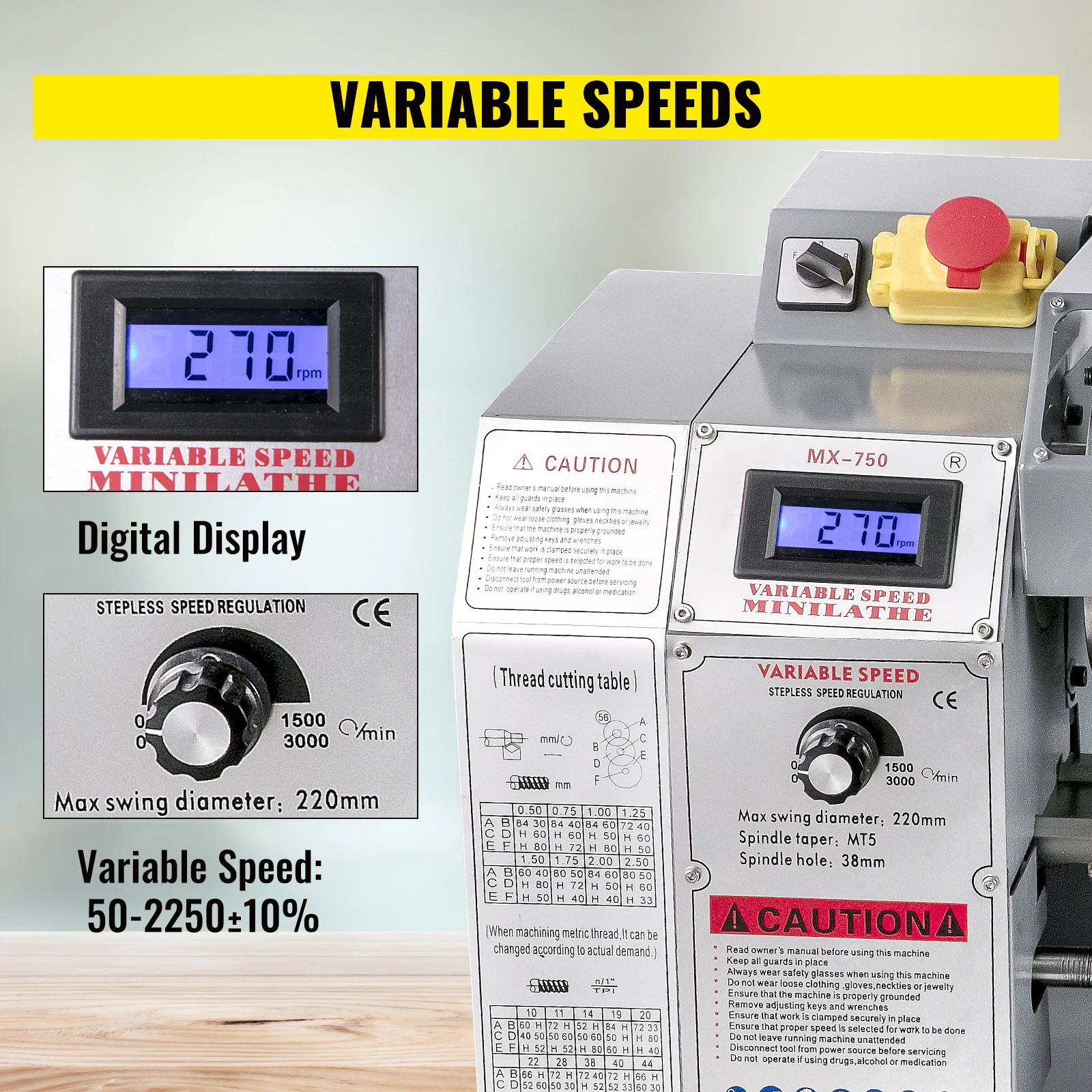

Variable Speeds

Motor Power: 1100W, Variable Speed(RPM): 50-2250±10%. Taper in Spindle Nose: MT5. Easily change the speed by turning the switch. Meanwhile, the indicator beyond notifies you of the ongoing operations.

Effortless to Use

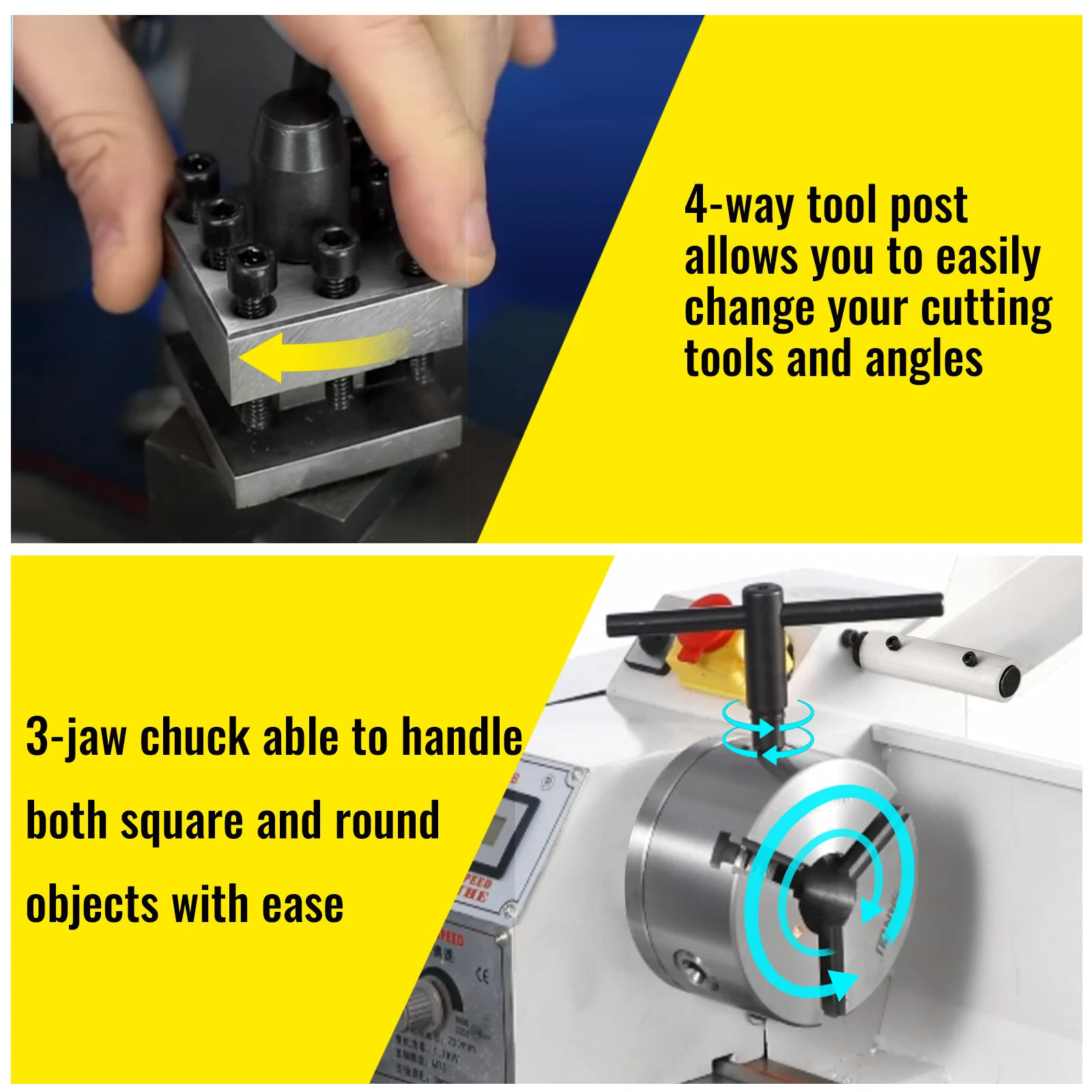

The mini lathe bears a 3-jaw chuck. The chuck is widely used where precise machining is required. 4-way tool rest offers positions of cutting. Heat hardening lead.

Large Swing Range

Swing Over Bed: 8.7"/220 mm, Swing Over Cross Slide: 29.5"/750 mm, 3-Jaw Chuck Diameter: 4.9"/125 mm. The lathe machine is equipped with a foot stock which gives support to the longitudinal rotary axis of a workpiece.

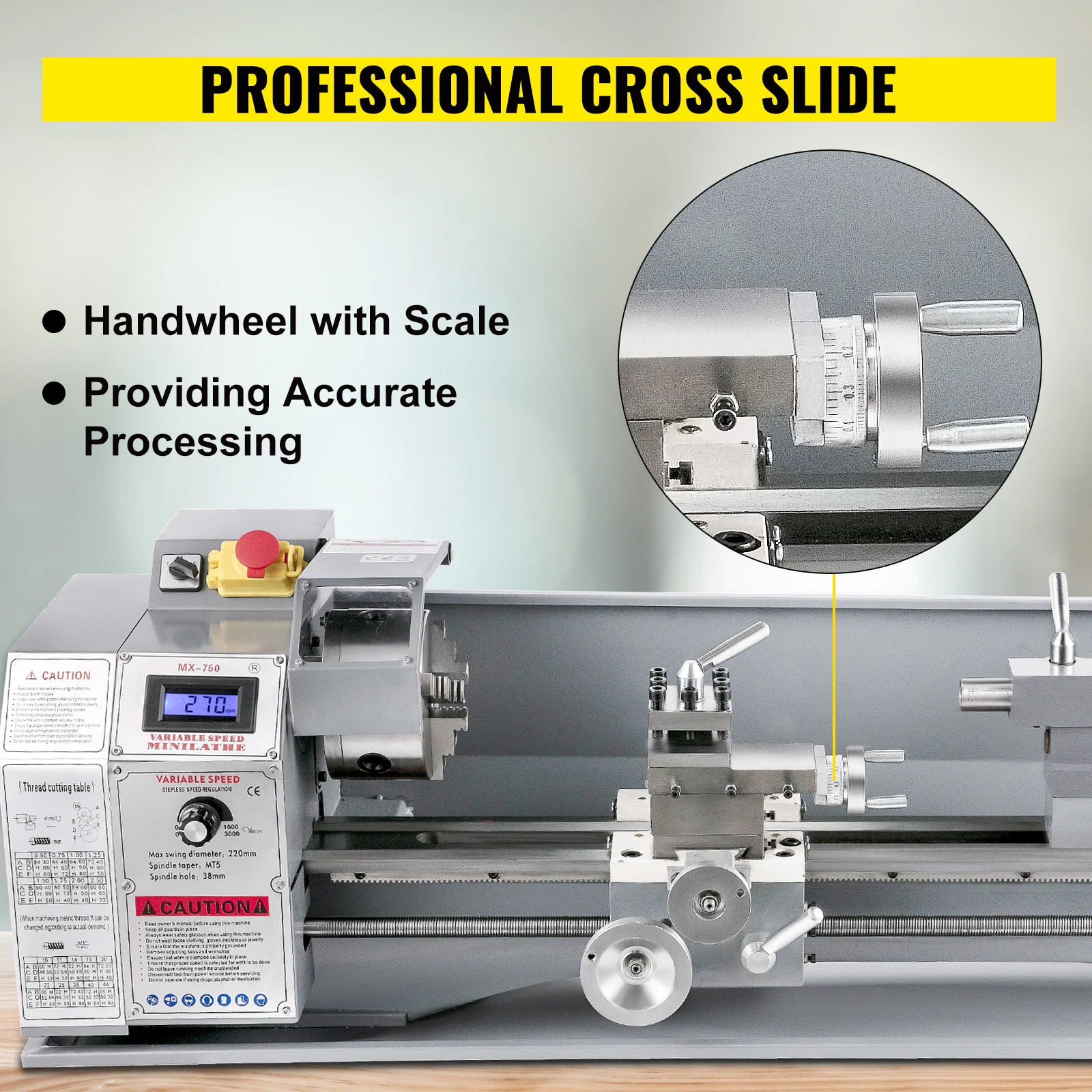

Professional Cross Slide

Designed with abrasive resistance, moving blades freely with feed rod. 8-44 T.P.I reversible lead screw. The v-slideways with distance between center: 29.5" / 750 mmm. A lamp is for accurate operation in a dark environment.

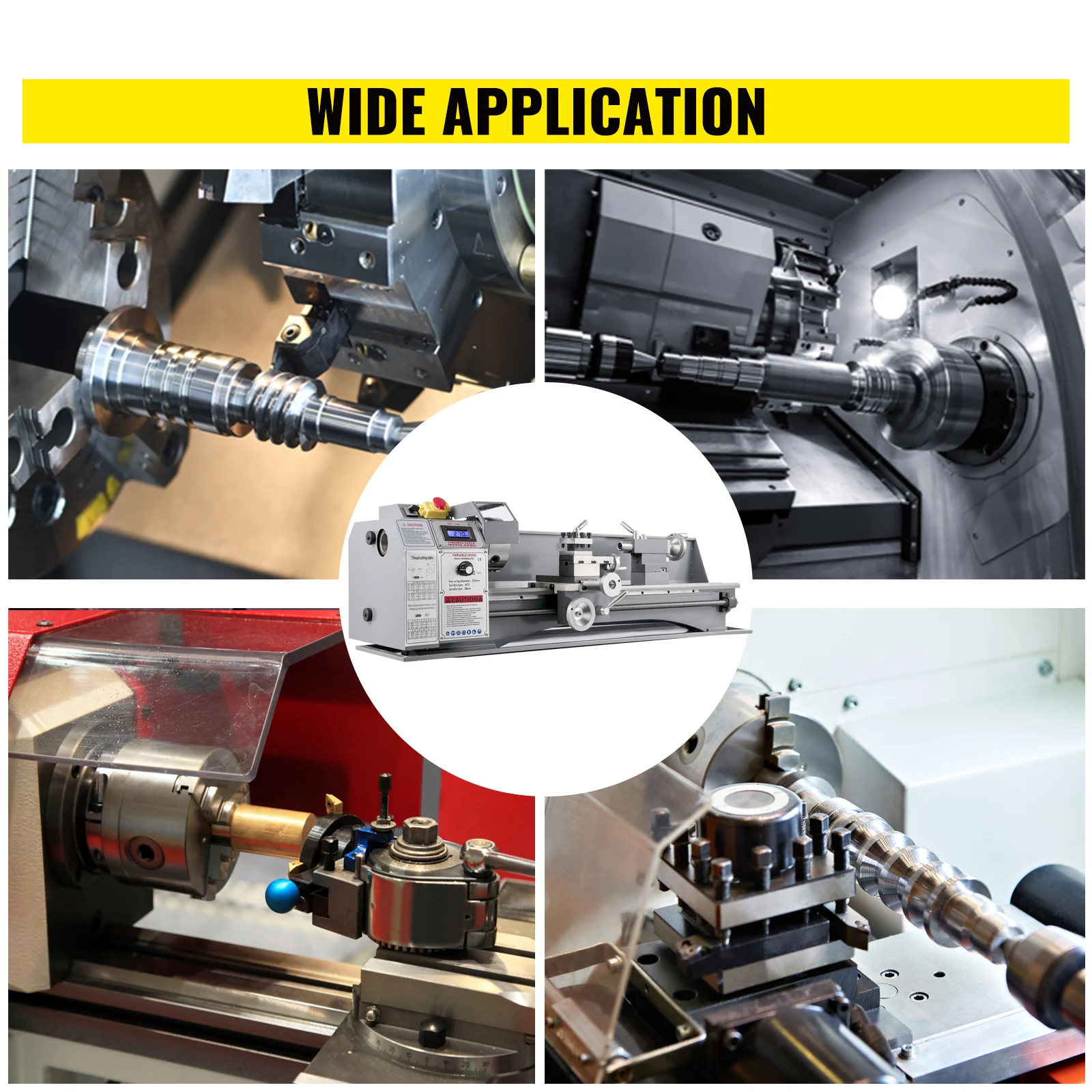

Wide Application

This mini metal lathe is idea for various processing tasks including turning, drilling, threading and cutting. The adjustment dials make your work with exact accuracy and precision.

Specifications

Power: 1100WVolt: 110V 60Hz for US, 220V 50Hz for EU
Phase: Single Phase
Swing Over Bed: 8.7" / 220 mm
Distance Between Centers: 29.5" / 750 mm
3-Jaw Chuck Diameter: 4.9" / 125 mm
Hole Through Spindle: 1.5" / 38 mm
Spindle Accuracy: 0.01 mm
Variable Speed(Rpm): 50-2250 RPM ±10%
Range of Imperial Threads: 8-44 T.P.I
Range of Longitudinal Feed: 0.02" - 0.1" / 0.5 - 3 mm
Gear Material: Metal
Item Weight:186 lbs / 84 kg

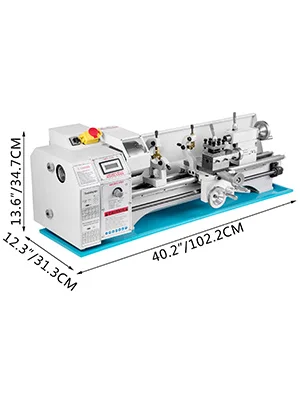

Item Dimension: 40.2" × 12.3" × 13.6" / 102.2 × 31.3 × 34.7 cm

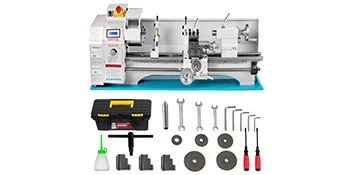

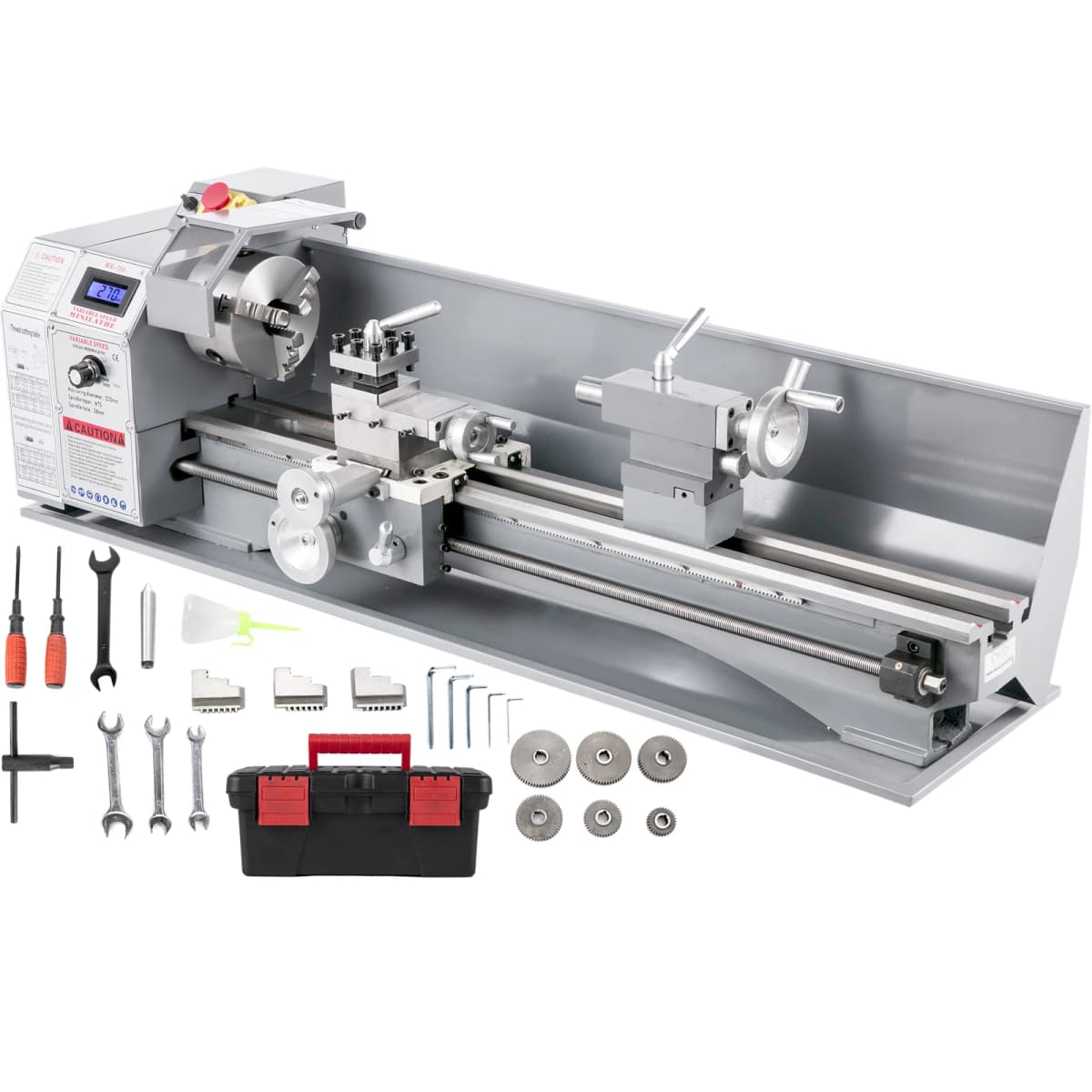

Package Content

1 x Metal Lathe
1 x Centre Rest
1 x Dead Center MT21 x Oil Gun
3 x Jaws
6 x Metal Gears
1 x Instruction Manual
2 x Screwdrivers
1 x Accessory Kit
1 x Chuck Wrench
3 x Wrenches
3 x Chuck Jaws

Features & Details

Infinitely Variable Speed: The mini metal lathe is driven by DC motor with Power: 1100W. Variable Speed(Rpm): 50-2250±10%. Taper in Spindle Nose: MT5. LED screen shows you the clear and accurate speed for accurate working. Soft start, change-over switch for clockwise or counter-clockwise spindle rotation. Operate either manually or with the adjustable auto feed rate.

750 mm Large Swing Range: The bench top lathe brings a 3-jaw Chuck with Diameter: 4.9"/125 mm. Swing Over Bed: 8.7"/220 mm and Swing Over Cross Slide: 29.5"/750 mm offers more possibilities for large size or/and heavy workpieces. Taper in Spindle Nose: MT5. Range of Imperial Threads: 8-44 T.P.I.

Professional Compound Rest: The mini lathe machine quick change tool post can achieve positions of internal cutting, face cutting and bevel cutting by changing the tool post angle and adjusting the compound rest, moving blades freely with feed rod. Heat hardening lead screw.

Supportive & Protective: Steady rest works as an end support, ensuring chatter-free operation. Follow rest is used for turning operations on long, slender workpices. Backsplash guard included.

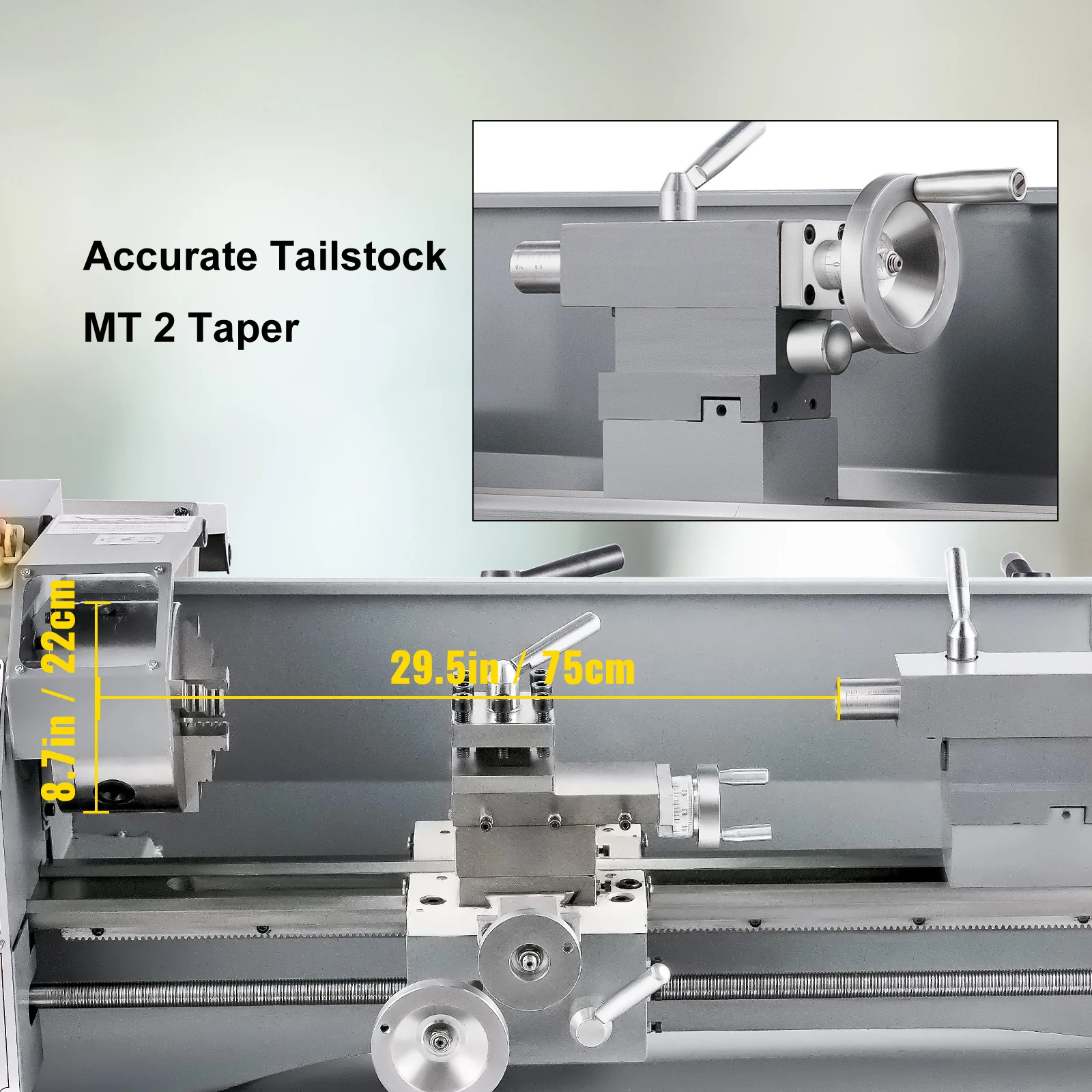

Adjustable Tailstock: Taper in Tailstock Spindle: MT2. Rotate the lever clockwise to lock the spindle, and rotate clockwise to advance the handwheel. To off-set the tailstock for cutting tapers by adjusting the four set screws located on the tailstock base.
