15 Ton Hydraulic Knockout Kit Punch Driver Kit 1/2'-4' W/ 10 Dies Carbon Steel Sheet Hole Opener Repair Tool Manuel Hole Digger

Specification

Model: SYK-15
Color: Yellow
Material: Steel, Cr40 Steel, Plastic
Surface Treatment: Spray Molding, Blackening
Operating Method: Manual, Hydraulic
Pressure: 15T
Working Stroke: 20mm/0.79 in
Punching Thickness: Iron Plate Within 3mm/0.12 in; Stainless Steel Plate Within 2mm/0.08 in
Dies Diameter: 101mm/3.98 in, 89mm/3.5 in, 76mm/2.99 in, 63mm/2.48 in, 51mm/2 in, 39mm/1.54 in, 32.6mm/1.28 in, 26.2mm/1.03 in, 20mm/0.79 in, 16mm/0.63 in

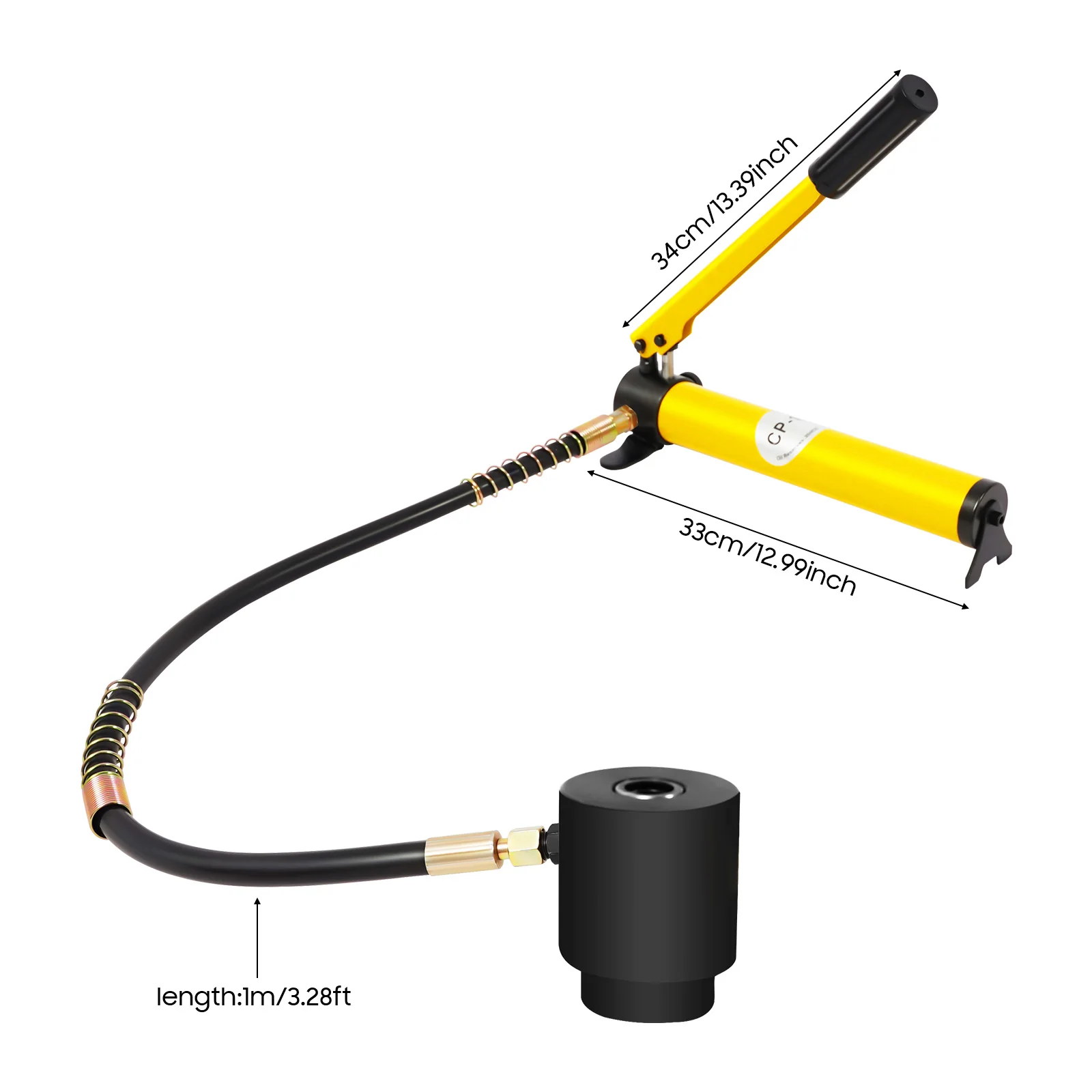

Product Size(L*W): 33*11cm/12.99*4.33 in
Handle Length: 34cm/13.39 in
Hose Length: 1m/ 3.28 ft
Package Size: 47.5*25.5*16cm/18.7*10.04*6.3 in
Gross Weight: 17.45 kg/38.47 lbs
Net Weight: 16.58 kg/36.55 lbs

Notes

1. No matter how big the hole, please note the following three points:
● First, use a hand drill (not included) to punch a 0.43-inch hole in the board.
● Second, if you are opening a small hole, directly with a small mold.
● Third, if you are opening a large hole of 1.28 inches in or more, you need to open the hole 2 times.
2. Please note that this product does not include iron plates, steel plates, electric drills, etc.
3. Please read the manual carefully and pay attention to the safety precautions before use.
4. Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.

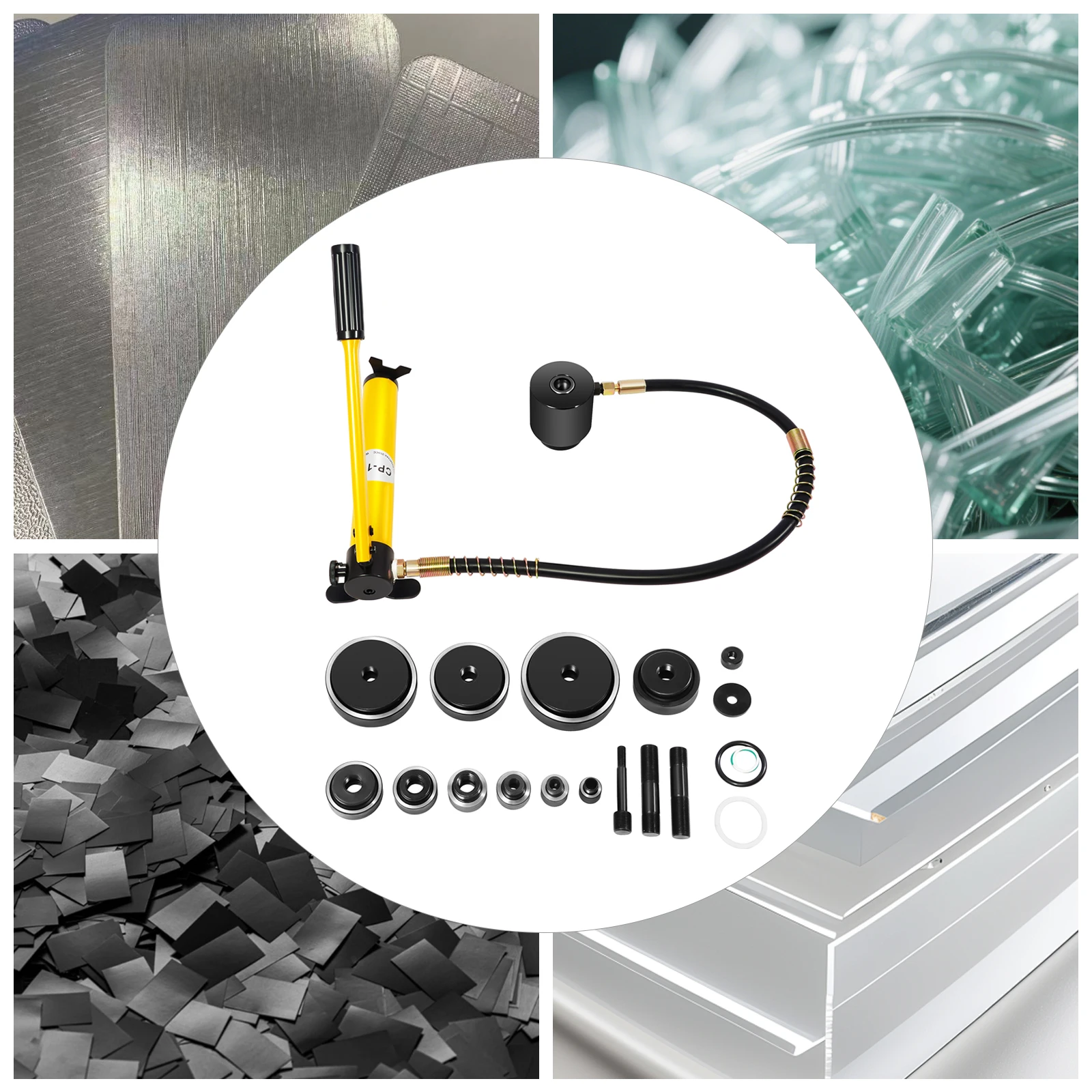

Package Included

‌1* Hydraulic Punch
10 Sets* Dies
1* Carrying Case
1* English Manual
Accessories for Assembly

Application

It can drill holes of different sizes in materials such as stainless steel, aluminum (soft alloy only), steel, brass, fiberglass, and plastic. It is suitable for iron plates with a thickness of less than 3mm and stainless steel plates with a thickness of less than 2mm. It is widely used in metallurgy, petroleum, electrical appliances, ships, machinery, construction sites, auto repairs, and other industries.
