4PCS Wireless Remote Control LED 6x18W 6 in 1 RGBAW+UV Par Light Battery Movable for Disco KTV Bar Christmas Lights

Control Principles:

1. If you are using console controls, you must connect them using signal cables.
2. Alternatively, if your host has a wireless transmitter (Note: You must purchase a DMX512 wireless transmitter to plug into the console; this will replace the signal cables), you can also control them without signal cables (Note: When transmitting wirelessly between fixtures, ensure there are no obstructions causing signal interference).
3. If you use a remote control to operate fixtures, signal cables may not be required as they synchronize automatically.
4. When controlling via a mobile app, adjusting one fixture automatically synchronizes all others without needing signal cables.

Charging:

3.When charging with the power cord, the battery voltage may reach 18V and display 100% charge. However, it is not fully charged because the battery requires 18V voltage for pulsed charging. Although the display shows 100%, when the power cord is disconnected and the light source is turned on, due to the high power consumption of the light source, the battery is not fully charged. The battery output does not reach 18V, so it displays a different charge level. The battery display requires data support. New batteries have weaker performance and cannot accurately record or identify this data. Please ensure charging exceeds 4 hours. For new batteries, we recommend charging for over 8 hours during initial use to ensure proper activation. Even when showing 100%, the charging icon will continue to indicate charging status. It will only stop flashing when the battery is truly fully charged.

Wifi：

The light fixture cannot connect to the internet. It only provides a Wi-Fi network. Your phone must disconnect from the internet, connect to the light fixture's Wi-Fi, and remain connected to this light fixture's Wi-Fi (your phone cannot access the internet).
1. First, enter HELP mode on the display screen. Press the confirmation button, then press Next. It will display a WiFi QR code. Use your phone to scan, download, and install the app.
2. After successful installation, select SHOW mode on the display screen. Press the confirmation button. On the display screen, select Step 5: WiFi Model mode. Press confirmation. On your phone, locate and connect to the light fixture's WiFi network. Then open the app to begin using it.

power supply:AC90-240V, 50/60HZ

Output Power:6x18W

Light source:RGBWA UV 6-in-1 color mixing

Control mode:WIFI wireless remote control/DMX512

WIFI signal:Barrier-free reception distance 17m

RC distance:Barrier-free receiving distance 10m

Charging time:7-8 hours

Battery capacity:8800 mAh

Channel:6/10 CH

Special function:RDM remote debugging address code

Strobe:20 hz

WIFI signal:2.4G WIFI

Material:Resistant cast aluminum housing

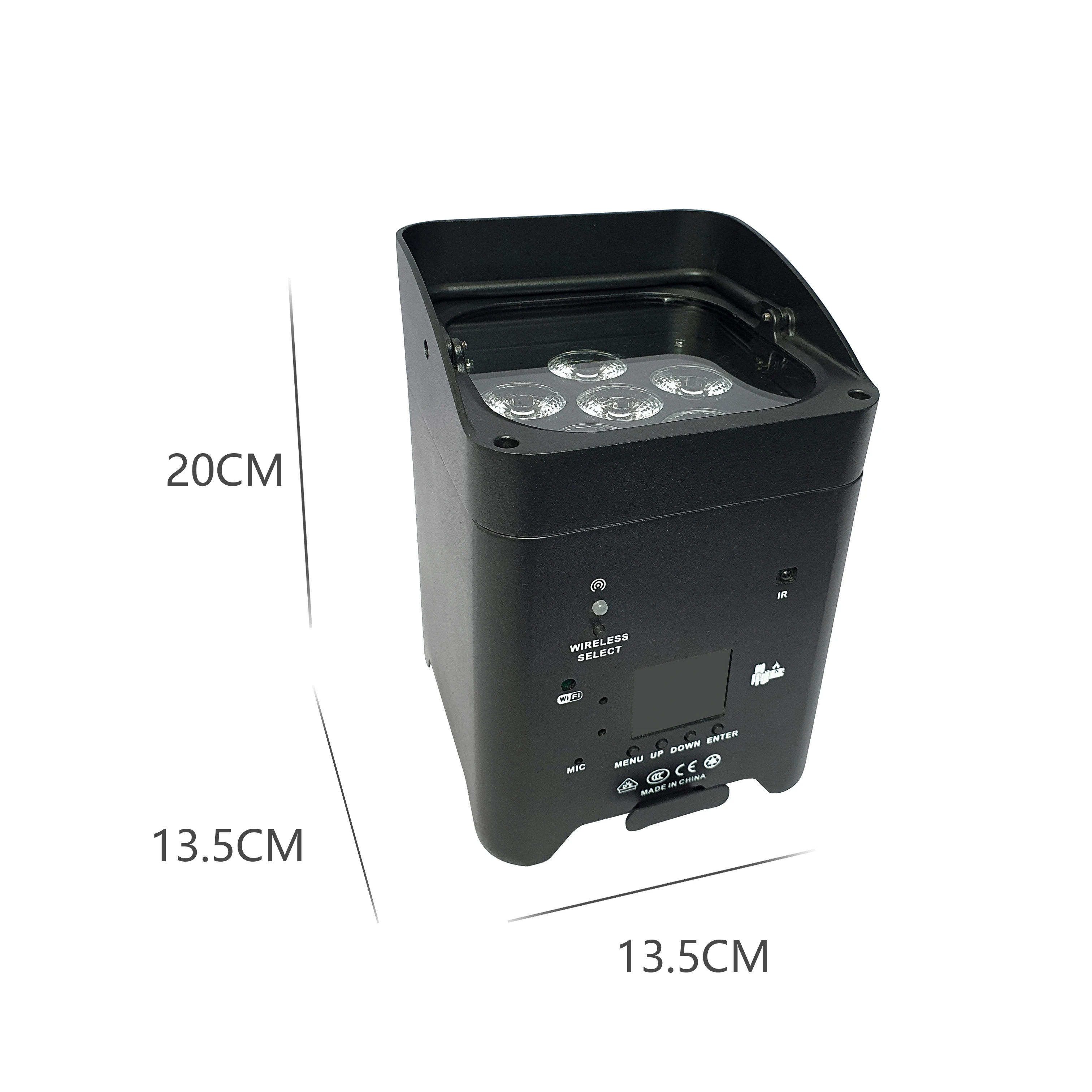

Product Size:13.5x13.5x20 cm

Product weight:2.35 kg



1. Lighting fixtures
