Huepar BOX-1G Osram Green Laser Level Self-leveling 130°/150° Horizontal & Vertical Nivel Laser Tools With Pulse Mode

Huepar BOX-1G Osram Green Laser Level Self-leveling 130°/150° Horizontal & Vertical Nivel Laser Tools With Pulse Mode

Huepar BOX-1G Green Cross Line Laser Level Specifications:

Laser Class: Class 2 (IEC/EN60825-1/2014), output power <1mW

Laser Wavelength: 510±5 nm

Leveling Accuracy: ±3mm/10m(± 1/13 In/33 Ft)

Leveling/Compensation Range: 4°±1°

Leveling Time: 3s

Working Distance (Line): 45m/150Ft (150 LUX)

Working Distance with Huepar Receiver(LR-5RG/LR-8RG/LR-6RG): 50m /198Ft

Operating Time: 4-8 hours with all laser beams on

Spread Covers: H130°/ V150°

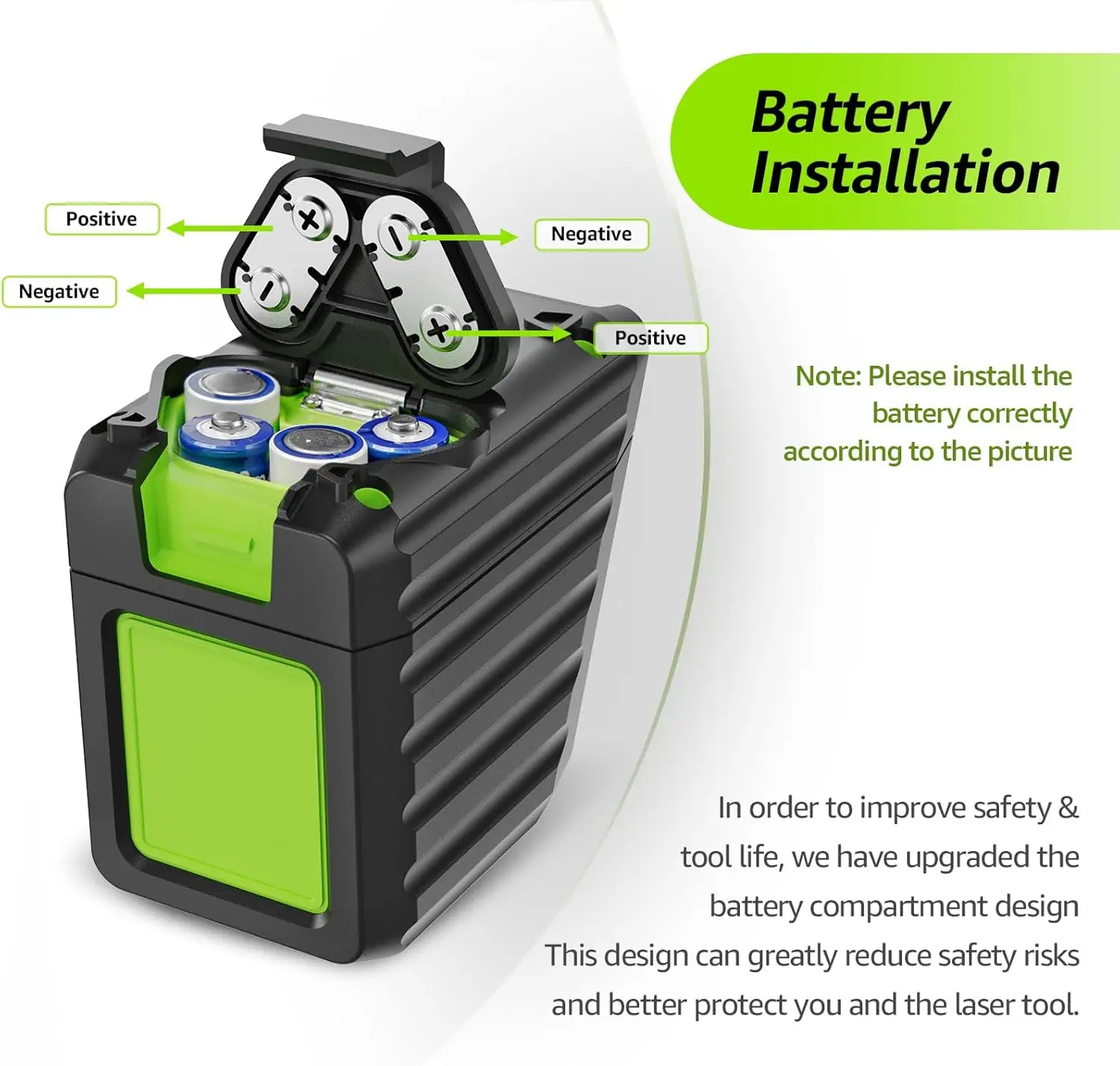

Power Source: 4×˝AA˝ (LR6), each one more than 1500mA

IP Rating: IP54, waterproof, dustproof and shockproof, reliable and tough

Operation Temperature Range: Between -10℃ and ＋50℃

Storage Temperature Range: Between-20℃ and ＋70℃

Size: 14*13*9cm

Warning:

Avoid direct exposure of the laser beam to the eyes.

The laser would be affected by strong sun light when work outside.

Package Contents:

1x Huepar Box-1G green laser level

1x Soft cloth case

1 x Magnetic Bracket

1 x Green Laser Target

1x Multi-language User's Manual

1x Paper Box

Features For Huepar BOX-1G Cross Line laser level:

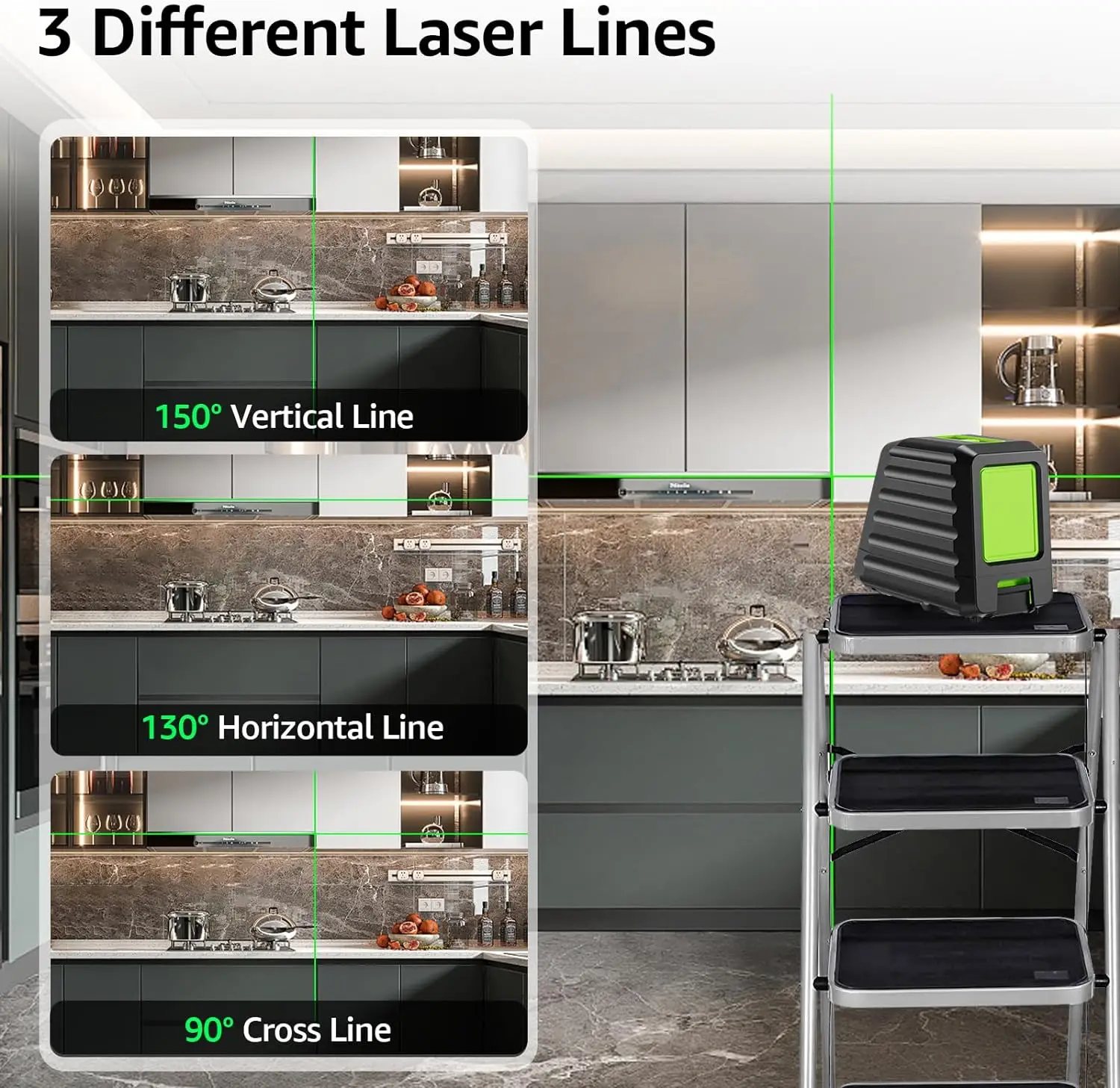

Three line switching functions:

Each time the power button is pressed once, the laser tool projects horizontal lines, vertical lines, and cross lines in sequence.

130° cover horizontal line and 150° vertical line (H130°/V150°)

2 MODES - Self-leveling mode & manual mode:

Self-leveling mode: When the laser tool is switched to the unlocked position, the self-leveling mode is enabled. The laser beam will flash continuously to indicate a level of no more than ±4°.

Manual Mode: When the pendulum lock is in the locked position, manual mode locks the laser line for use at any angle. The laser beam will flash every 3-5 seconds to remind you that it is not yet automatically leveling.

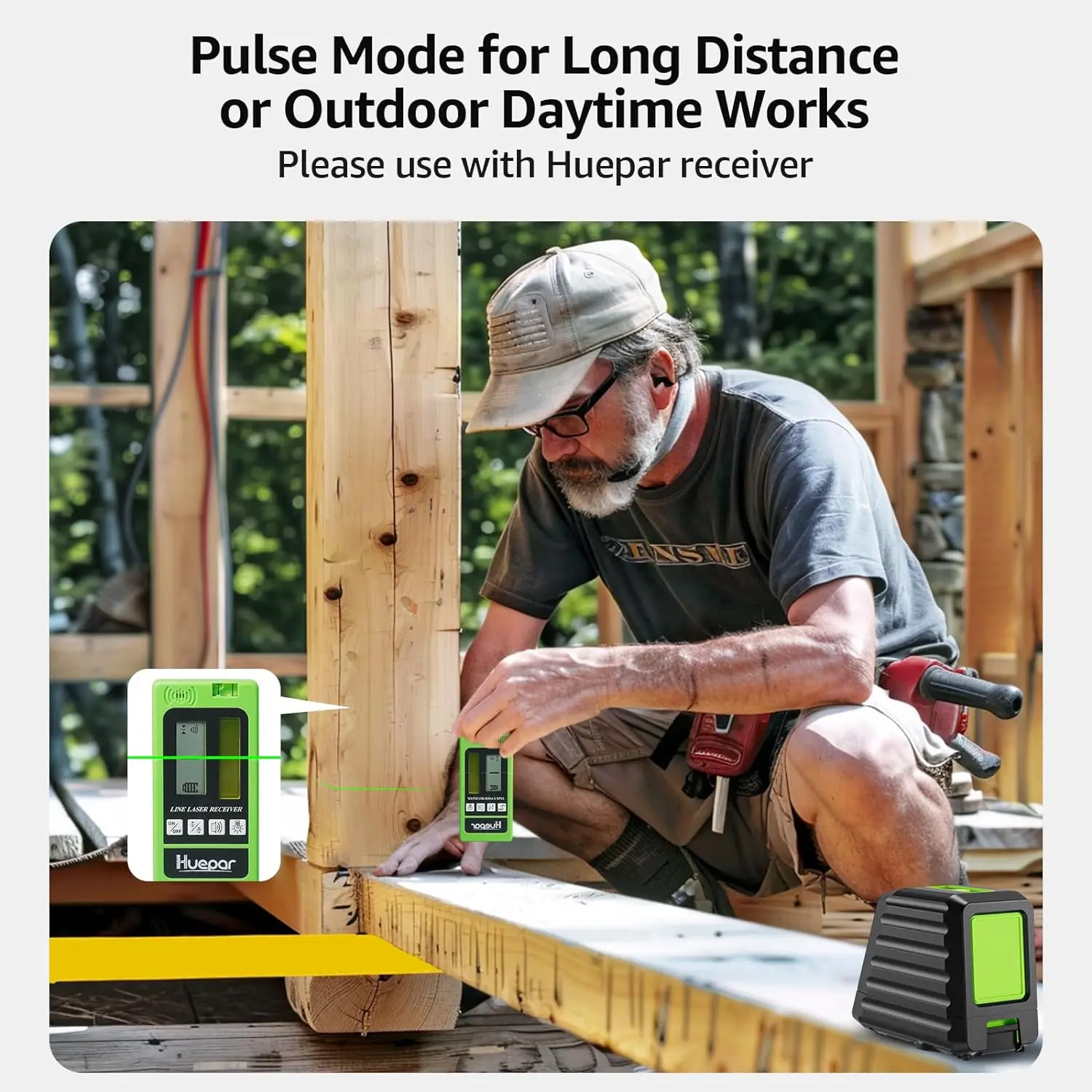

Pulse Mode:

Unlock the pendulum, press and hold the power button (for about 5 seconds) to turn on the pulse mode, then turn it on red.

When working outdoors or indoors with strong light, turn on the pulse mode can extends the working range up to 60m with Huepar laser receiver (LR-5RG/LR-8RG/LR-6RG)

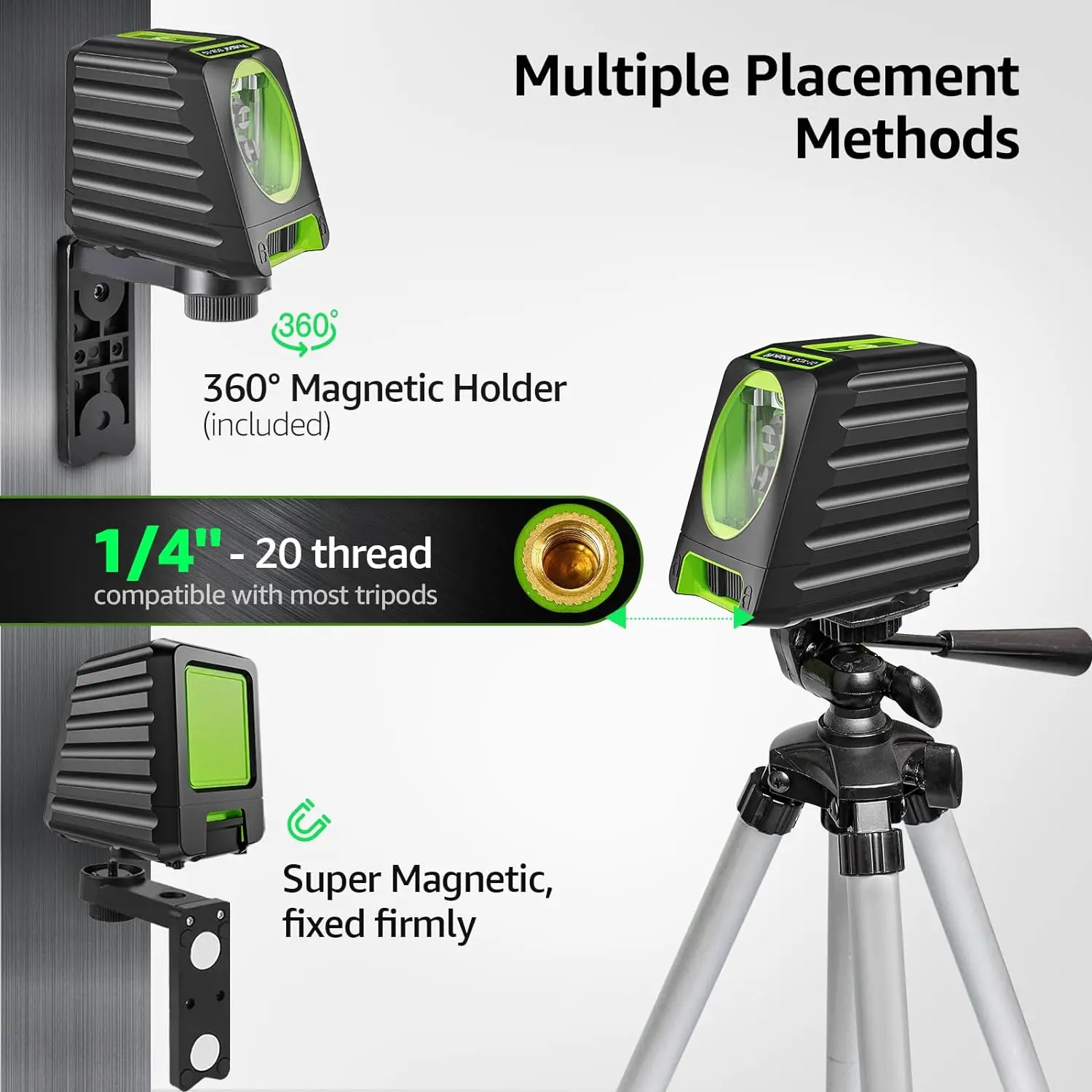

1/4" Mount With 0.65m Tripod:

It comes with 0.65m Tripod, it is accepted to do the height adjustment by using the 1/4" mount. It can also suitable for other standard tripods .

Sturdy Quality & Versatile Applications:

Robust, shock-proof housing with protection class IP54 (splash and dust proof); Quickly and easily align drilling holes, nails, paint interior walls and lay tile areas on walls, Mirrors, setting frame bottom plates, etc

Compact and Convenient:

Featuring a soft-grip, lightweight, and palm-sized design, the BOX-1GT is the most convenient, professional laser tool you can think of for jobs in all industries including ceiling installations, lighting fixtures, picture frame alignment, and walls Bricks to floor tiles and more.
