Concrete Vibrator Electric Bottle Concrete Compactor Bottle Shaker 4300RPM Hand Shaker for Concrete 1300W Indoor Vibrator

Description

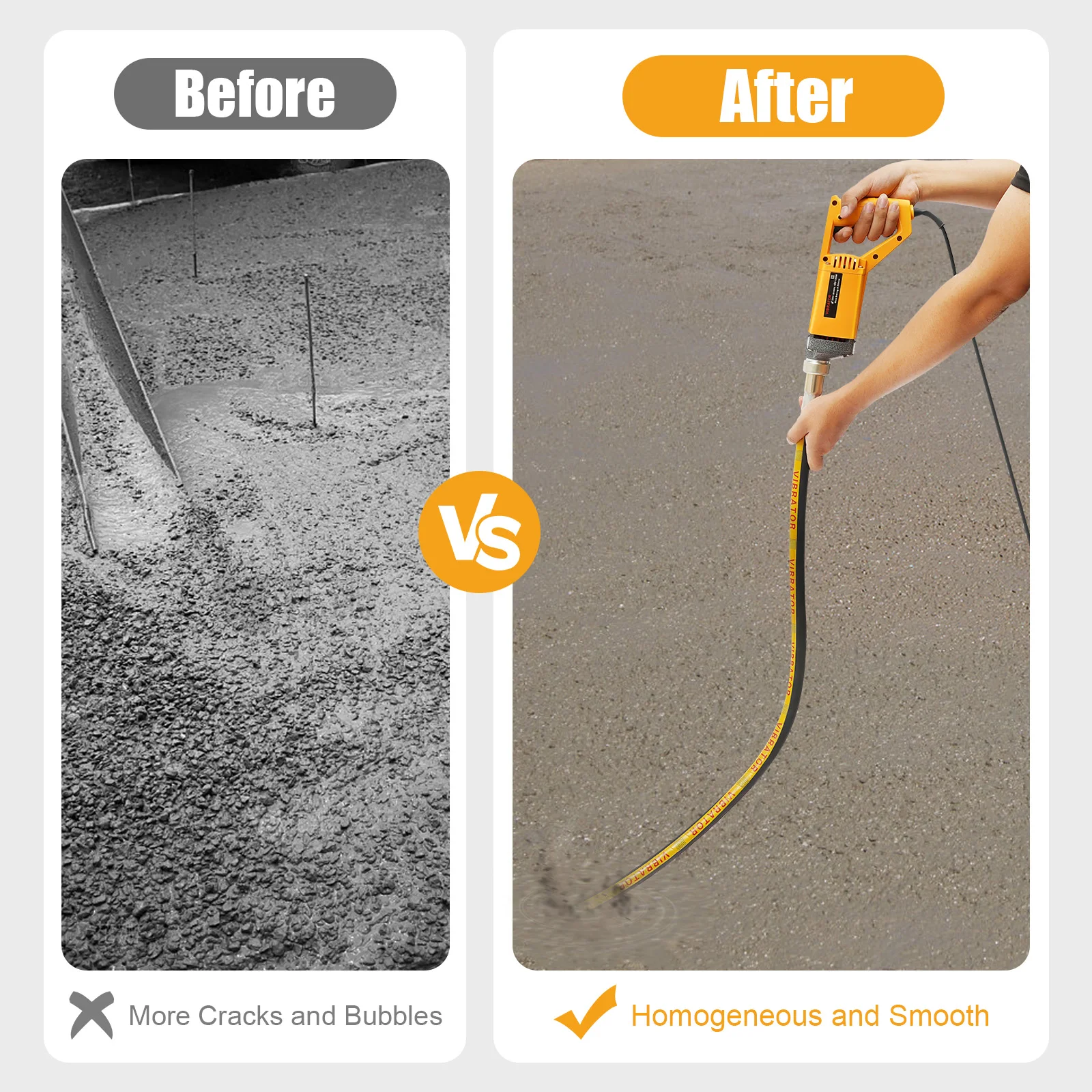

An efficient machine can facilitate your outdoor work, reduce your workload, and increase your productivity. Featuring a 1300-watt motor, this concrete vibrator is suitable for curing cement and removing all air bubbles to give you the toughest cement possible. It also makes the surface of the concrete flat, preventing cracks and defects from appearing after the concrete has cured.

Key Features

Excellent Materials: The shell material is made of high-grade nylon with high strength to resist abrasion and impact. The vibrating rod is made of steel wire and rubber materials, which is not easy to wear and break even after a long time of vibration.

High Efficiency: The high power (1300W) pure copper motor can make the product rotate with a high speed of 4300 rpm so that the concrete mixing can be done efficiently in a shorter period, thus saving you time, ensuring a high degree of homogeneity of the concrete and obtaining a smooth and even surface.

Good Performance: It removes air bubbles from the concrete and improves the density of the concrete while ensuring that the concrete is poured evenly over the reinforcing steel skeleton, thereby increasing the strength of the entire building.

Easy to Operate: Ergonomic handle design allows for better grip and control. The locking switch allows the machine to run for a long time, reducing work intensity and relieving finger fatigue.

Lightweight and Compact: It is lightweight and compact and allows you to easily carry it to the workplace.

Large Work Area: It is equipped with a long vibrating rod (6.6ft), allowing you to cover a large area to promote work efficiency.

Low Noise: The all-copper motor runs smoothly and works with very low noise, which provides you with a more comfortable and quieter working environment.

Guaranteed Customer Service: We aim to provide quality products and services. If you have problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

Details

Heat Dissipation Holes: The product is designed with multiple holes on both sides, which can ensure that the motor can dissipate heat for a long time, prevent burns, and prolong the life of the motor.

Threaded Connection: The high-precision threaded connection makes the vibrating rod lock firmly with the main unit and is not easy to fall off.

Application

It is widely used in commercial concrete, bridges, port construction, large dams, hydroelectric power plants, transportation, water conservancy, port, mine and metallurgy, high-rise building foundation pouring piles, dense steel mesh concrete walls and large, medium and small construction projects, patching and other repair jobs, etc.

Specifications

Model: 35-1

Material: Nylon, Steel Wire, Rubber, Copper

Style: Handheld Concrete Vibrator

Color: Yellow

Power Source: Corded Electric

Motor Type: Pure Copper Motor

Plug: EU Standard

Power: 1300W

Actual Power: About 1000W

Speed: 4300RPM

Plug Voltage: 220V 50/60HZ

Power Cord Length: 2m/6.6ft

Vibrating Rod Size(L*D): 2m*35mm/6.6ft*1.3inch

Package Size: 72*11*33cm/28.35*4.33*12.99in

Gross Weight: 6.9kg/15.21lbs

Package Included

1* Concrete Vibrator

1* Vibrating Rod

Notes

1. Before running the concrete vibrator, you should check whether the power cord connection is correct and put on insulated gloves (not included). After the power is turned on, if the concrete vibrator does not produce vibration, you can generally knock the end of the concrete vibrating rod to the ground, and after the vibrator makes a smooth and powerful chirping sound, you can carry out the pounding operation.

2. When a vibrating rod works, it should be inserted vertically or inclined into the soil, pounding vibration after some time can be. The vibration of the vibrating rod should be up and down pumping. The vibrating rod should not be bent more than 60°.

3. After working continuously for half an hour, the vibrating rod should stop for a while to prevent the machinery from heating too much and damaging the machine parts.

4. After using it for some time, the vibrating rod should be checked to see if the threaded connection of the rod head is loose to prevent the mortar water from penetrating the rod, causing the vibrating rod not to vibrate.

5. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
