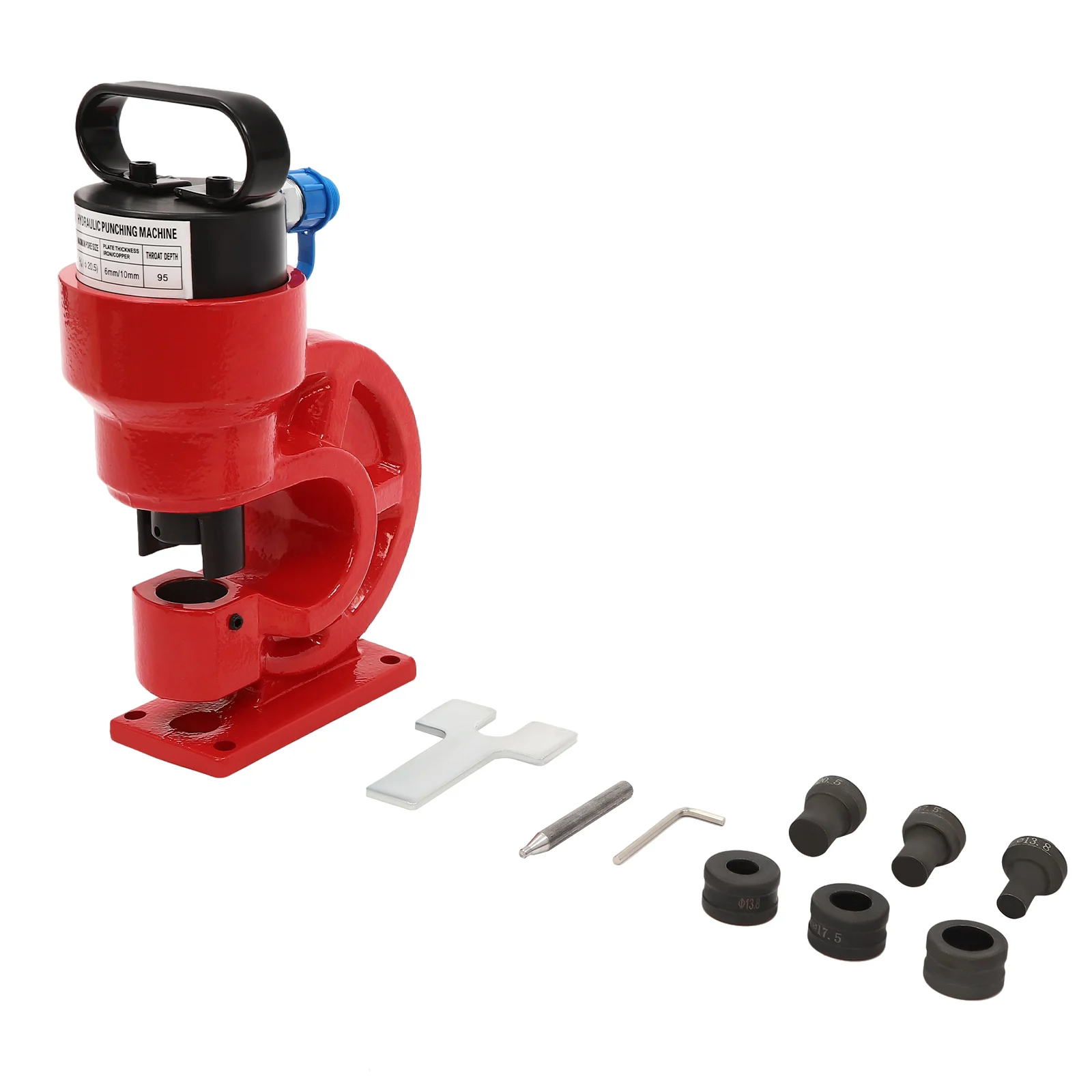

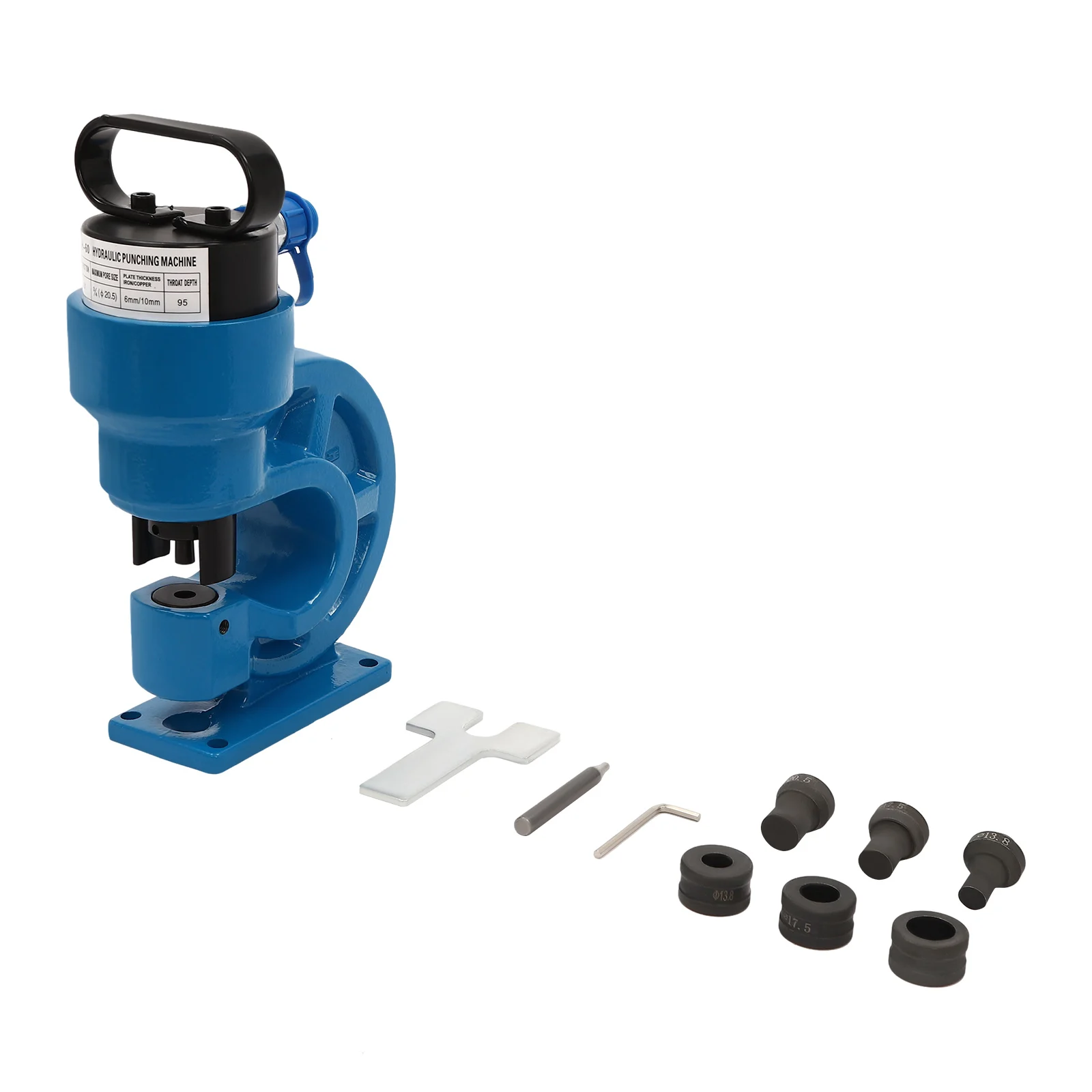

CH-60 Hydraulic Punching Machine with 4 Punching Dies Space Saving Blue/Red

Description

This hydraulic punching machine has been carefully designed to make your punching task efficient and accurate. Its 31T strong output, 3.74-inch throat depth, and multiple molds can meet your different drilling needs. The single oil return design and high-strength construction ensure robustness and longevity.

Key Features

Build to Last: Our product is mainly made of high-quality CR45 steel with plastic spraying and blackening processes, so it is resistant to deformation, oxidation, corrosion, and high temperatures, and has a long service life.

Powerful Punching Hole: It has a 3.74-inch throat depth that makes it easy to operate and punch well. In addition, the 31T punching pressure brings you efficient punching to meet your usage needs.

4 Punching Dies: It comes with four pairs of molds (one of them installed): 3/8", 1/2", 5/8", and 3/4", to meet your need for different punching tasks. We also provide a wrench for you to easily fix and remove the punching dies.

Strong Dies Fixing: The upper part of the die is locked with a locking cap and the lower part of the die is fixed with screws, ensuring stable and safe use.

User Friendly: It features a round smooth handle on the top, giving you a comfortable grip and making it easy to carry.The thickened rectangular base with pre-drilled holes is convenient for you to fix this product to the countertop to ensure higher stability.

Simple Installation: The product is already 95% assembled, and you can use it by simply connecting to an electric pump, which is very convenient!

Space Saving:It has a small footprint with a base length of 4.33 inches and can be placed on the desk without delaying the rest of your work.

Easy to Clean: Thanks to its smooth surface and simple construction, you can wipe it clean with a damp rag.

Customer Service: We aim to provide quality products and services. If you have problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

Details

Pump Joint: It has a cover to prevent dust from getting in and makes it easy to connect it to the hydraulic pump.

Concave Plate: It helps you to increase the width for your convenience.

Application

It can be used in the energy industry, interiors, power, construction sites, outdoors, bridge construction, billboards, industrial buildings, etc. It is suitable for L and H flat copper, busbars, flat iron, and aluminum. It can also be connected to CP-700, CP-700-2A, CP-800, DYB-63A, ZCB-700A pumps, or electric pumps(not included).

Specifications

Color: Blue/Red

Model: CH-60

Material: CR45 Steel

Process: Plastic Spraying and Blacken

Assembly Required: Yes

Output Ton: 31T/310KN

Throat Depth: 95mm/3.74inch

Maxiumu Pore Size: 3/4"(ф20.5mm)

Punching Dies Size: 3/8"(ф10.5mm), 1/2"(ф13.8mm), 5/8"(ф17.5mm), 3/4"(ф20.5mm)

Plate Thickness Iron/Copper/Aluminum: 6mm/0.236in, 10mm/0.394in

Package Size: 39*25*16cm/15*10*6in

Product Size: 24.5*35cm/9.65*13.78in
Base Length: 11cm/4.33in
Gross Weight: 17.6kg/38.8lbs

Package Included
1* Hydraulic Punching Machine
4* Punching Dies(One is Installed)
1* Concave Plate
Other Accessories for Use

Notes
1.Please note that it needs to be used with a pump (not included).
2.Please note that this product cannot be used for punching stainless steel.
3.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
