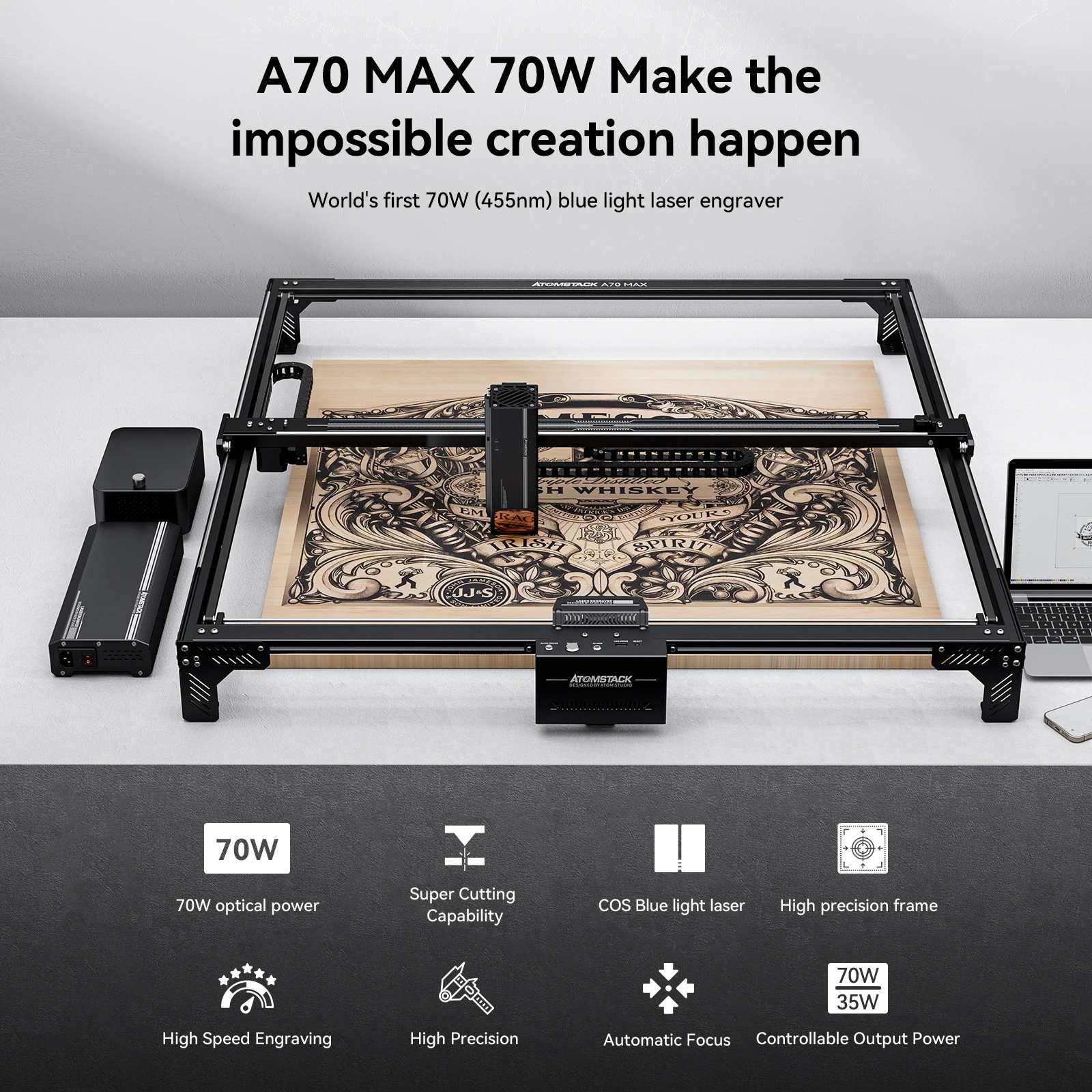

ATOMSTACK A70 MAX Laser Engraver 77W COS Blue Light Laser Power with F60 Air Assist Set 24000mm/min Engraving Speed 0.01mm Prec

Features:

1. Powerful cutting force: Atomstack A70 MAX is capable of cutting 25mm acrylic, 12mm MDF density board, 30mm pine board, 0.3mm stainless steel sheet.

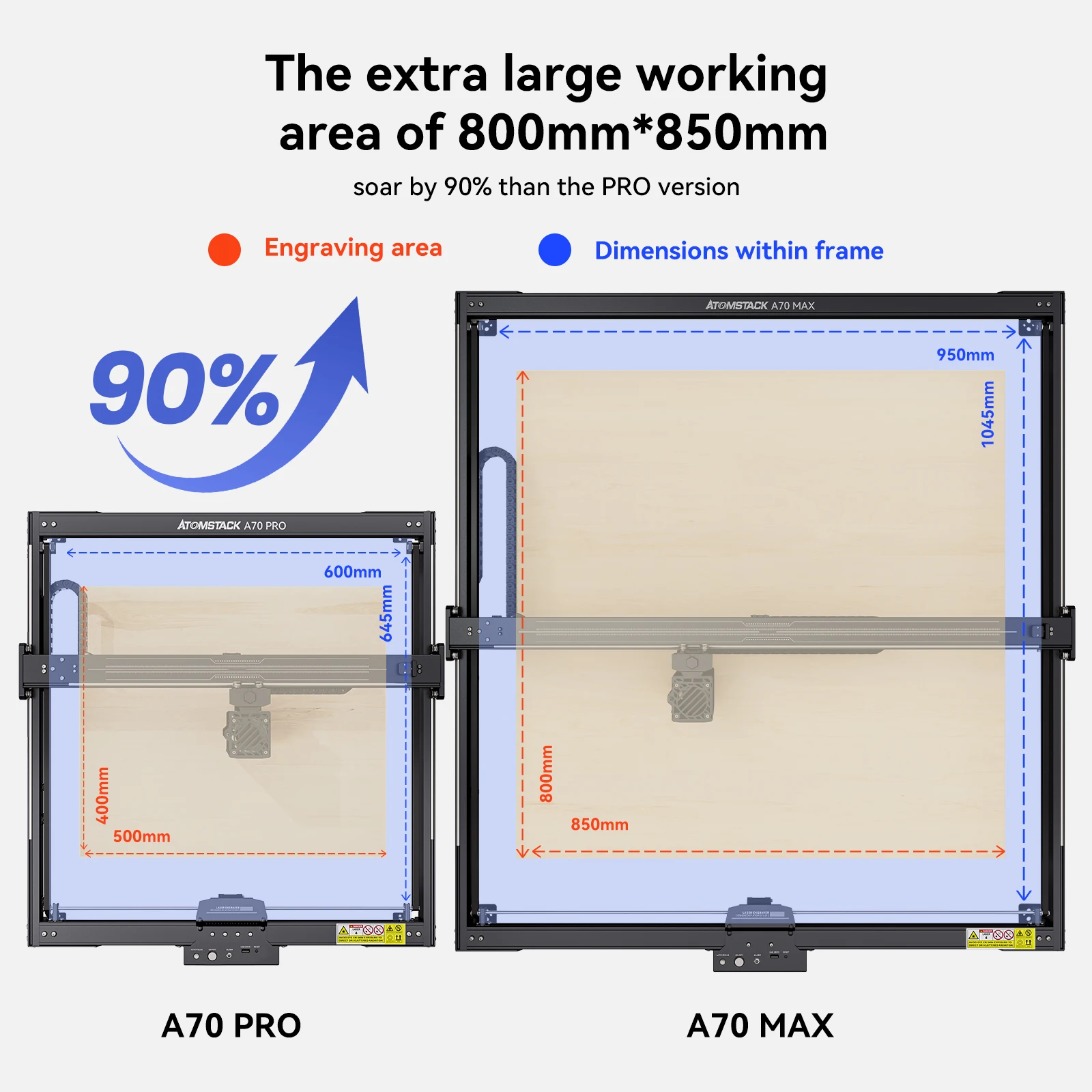

2. Max Version Processing Area: The most professional blue light laser cutting and engraving machine, standard 800X850mm large working area, frame can accommodate materials up to 1045X950mm with 4 support feet and fixed holes for stable operation on the workbench.

3. New motion structure: To ensure high-speed stable operation, the machine's three axes adopt a new low center of gravity dual-axis guide rail structure, stable operation at high speed, quiet, suitable for heavy-duty engraving and cutting work.

4. Offline work: Product comes with a second-generation smart board and control screen, can work offline without a computer or phone.

5. Standard large flow air assist: Maximum 60L/min air assist ensures flawless cutting work, surface of the cut lines does not turn yellow, extends the life of the laser.

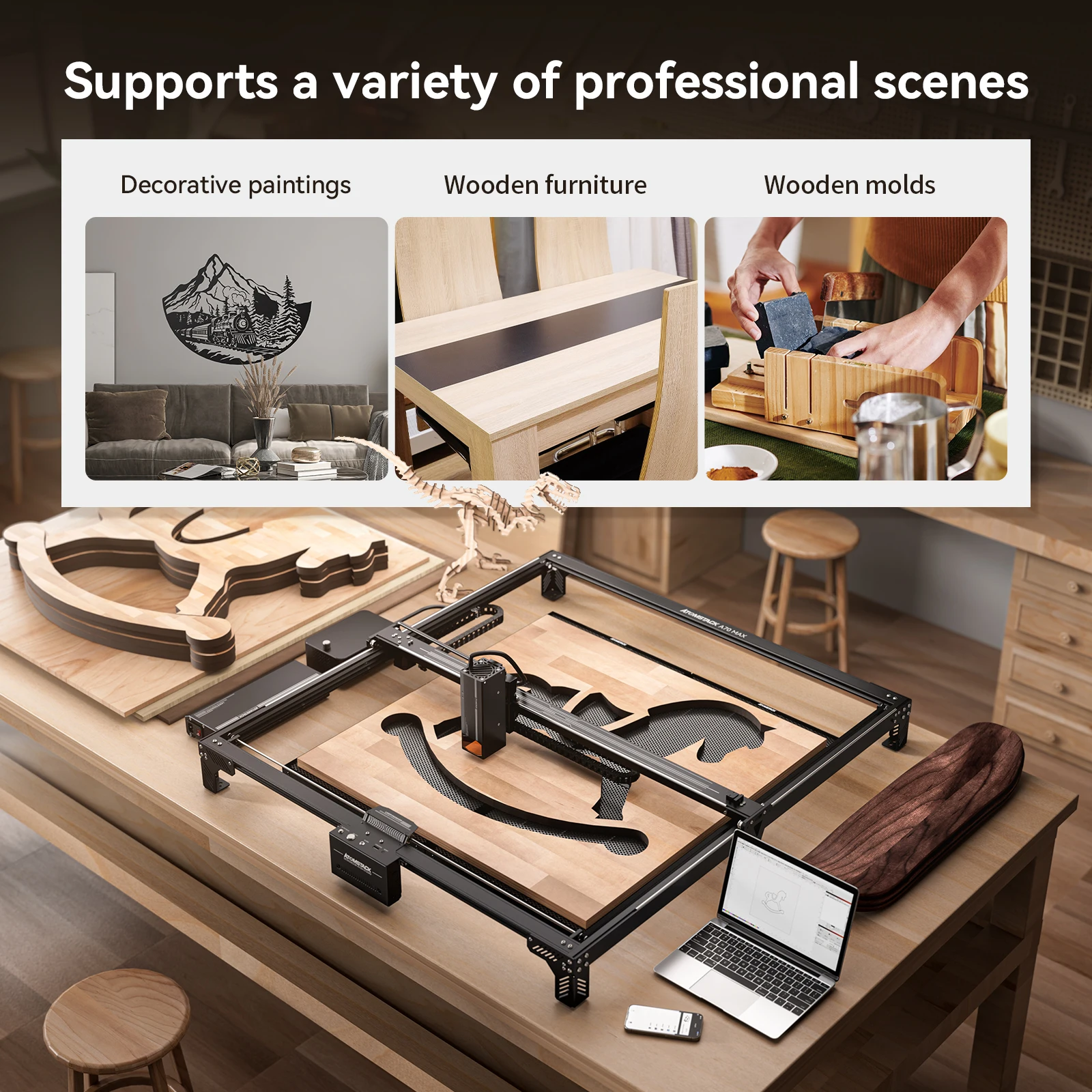

6. Multiple usage scenarios: Support work on reflective metals, ceramics, black acrylic, supports woodworking, painting art, DIY creation, billboards, metal marking, clothing design.

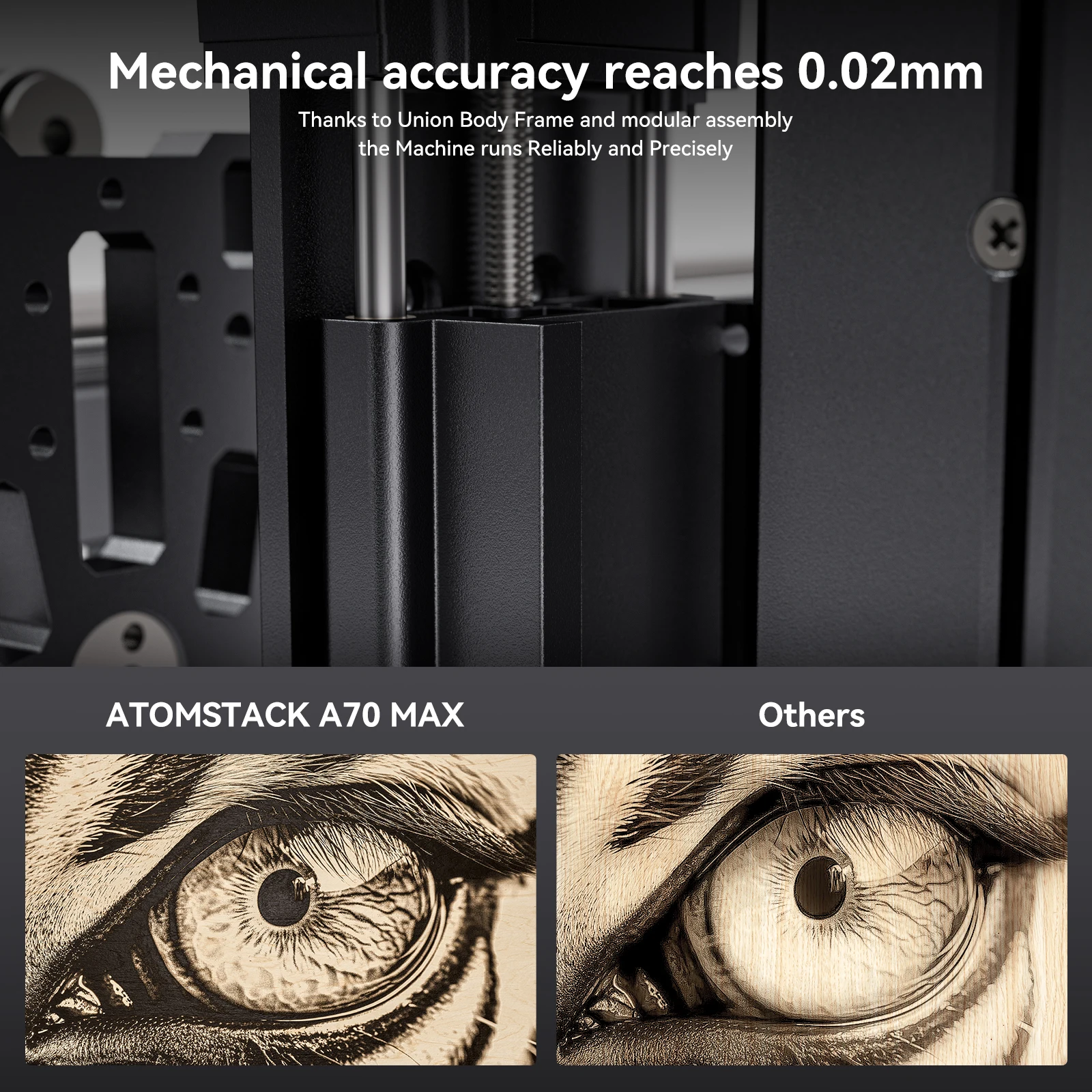

7. Quick accuracy maintenance: At a high-speed operation of 400mm/s, can maintain accuracy of 0.01mm.

8. Dual-mode focus adjustment: Supports manual and automatic focus adjustment, completes focus adjustment within 8 seconds.

9. Automatic flame alarm: Triggers an alarm and stops working when the wavelength points of the flame spot in the working area exceed 35%, accurate and fast.

10. Intelligent cooling system: Opens the double-layer air guide hood air assist, automatically turns on air assist during cutting for better heat dissipation and cutting effects.

11. Power-off resume function: In case of power outage during creation, resumes unfinished creation when power is restored.

Specification:

Product Model: AtomStack A70 Max

Device Size: 1056x1168x230mm

Engraving Size: 850x800mm

Working Principle: Engraving / Cutting

Engraving Materials: Wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective electroplated and painted metal, 304 mirror stainless steel, glass, ceramics, cotton, slate;

Cutting Materials: Thin steel plate, cardboard, non-woven fabric, wood, acrylic, more thin plastic sheets, sponge;

Input Power: 360W

Output Power: 70-77W, 35-39W

Maximum Speed: 400mm/s (24000mm/min)

Laser Wavelength: 455±5nm

Engraving Accuracy: 0.01mm

Repetition Accuracy: 0.1mm

Spot Size: 0.12x0.18mm (70W) / 0.08mmx0.12mm (35W)

Transmission Method: USB transmission

Focus Adjustment Method: Automatic focus + manual focus

Screen Control: 4.3 inches

Connection Support: Type-C, mobile WiFi, touch screen

Support Systems: IOS, Android, Windows, Mac

Operating Software: LaserGRBL, LightBurn, AtomStack Studio

Air Flow Rate: 0-60 L/min infinitely adjustable

Power Supply: Input 100-240V AC, 50/60HZ, output 12V 5A

Packing List:

1 x Atomstack A70 Max 70W machine

1 x 360W switching power supply

1 x F60 air assist kit

1 x Control Terminal
