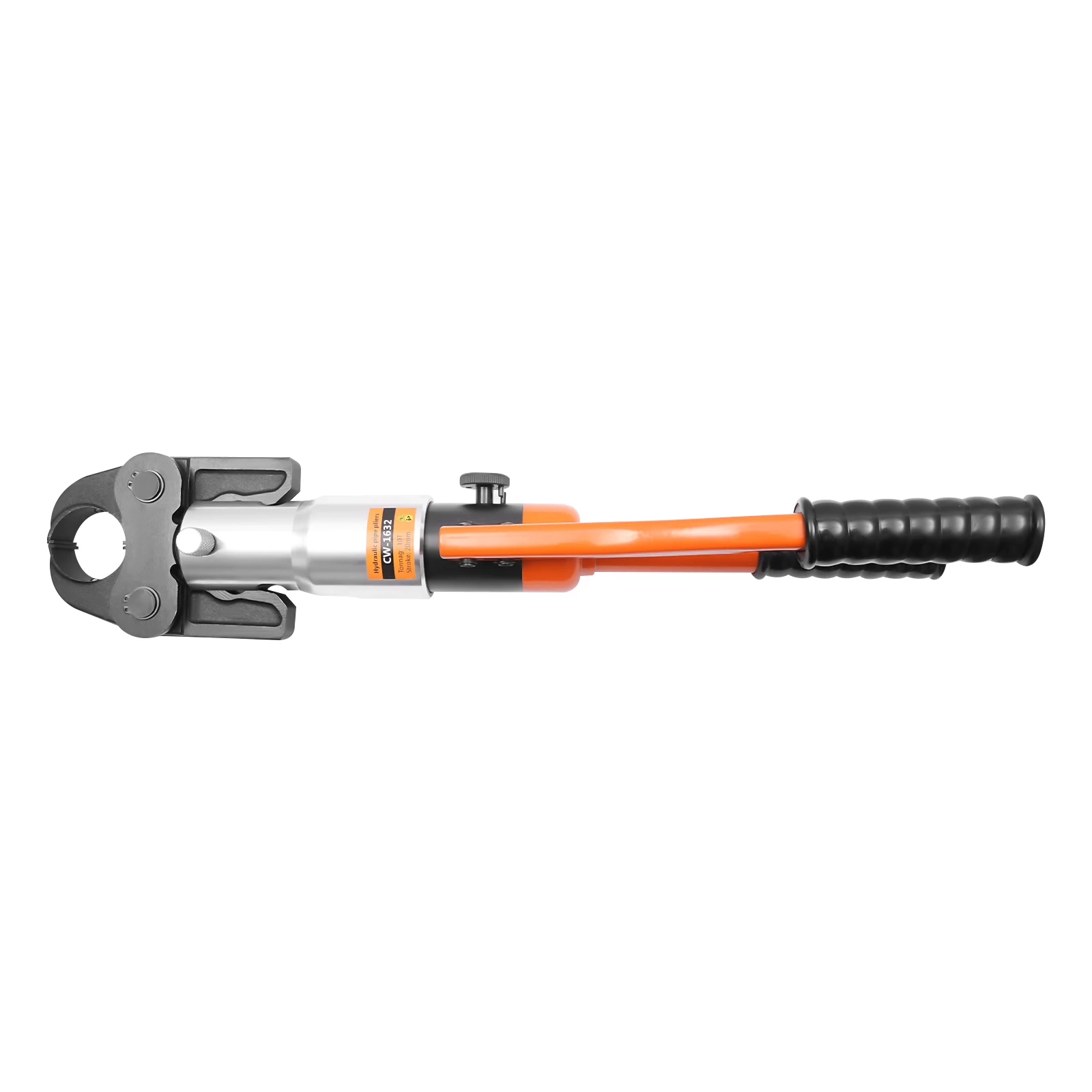

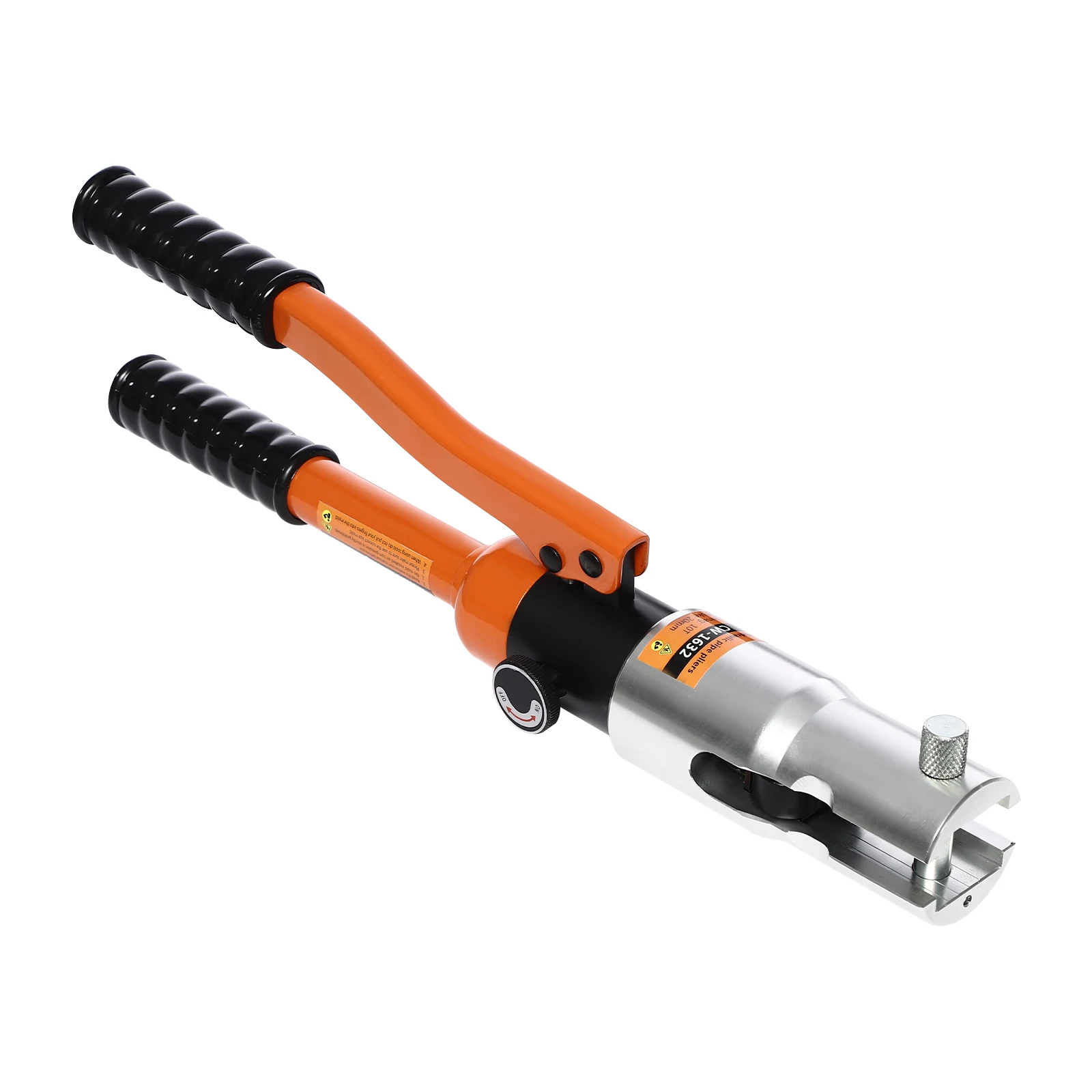

Professional Tube Crimping Pliers Hydraulic Press Tool Pressing Crimper To Crimp Pipes TH/U Molds Crimp Aluminum Plastic, PEX,

Professional Tube Crimping Pliers Hydraulic Press Tool Pressing Crimper To Crimp Pipes TH/U Molds It can be used to crimp aluminum plastic, PEX, and PB pipes. It is widely used in the fields of electric power, communication, transportation, petroleum, chemical industry, mining, metallurgy, shipbuilding, and so on.

How to Use

1. Check that the specifications of the mold and the pipe are matched.

2. Select the matching mold.

3. Load the mold.

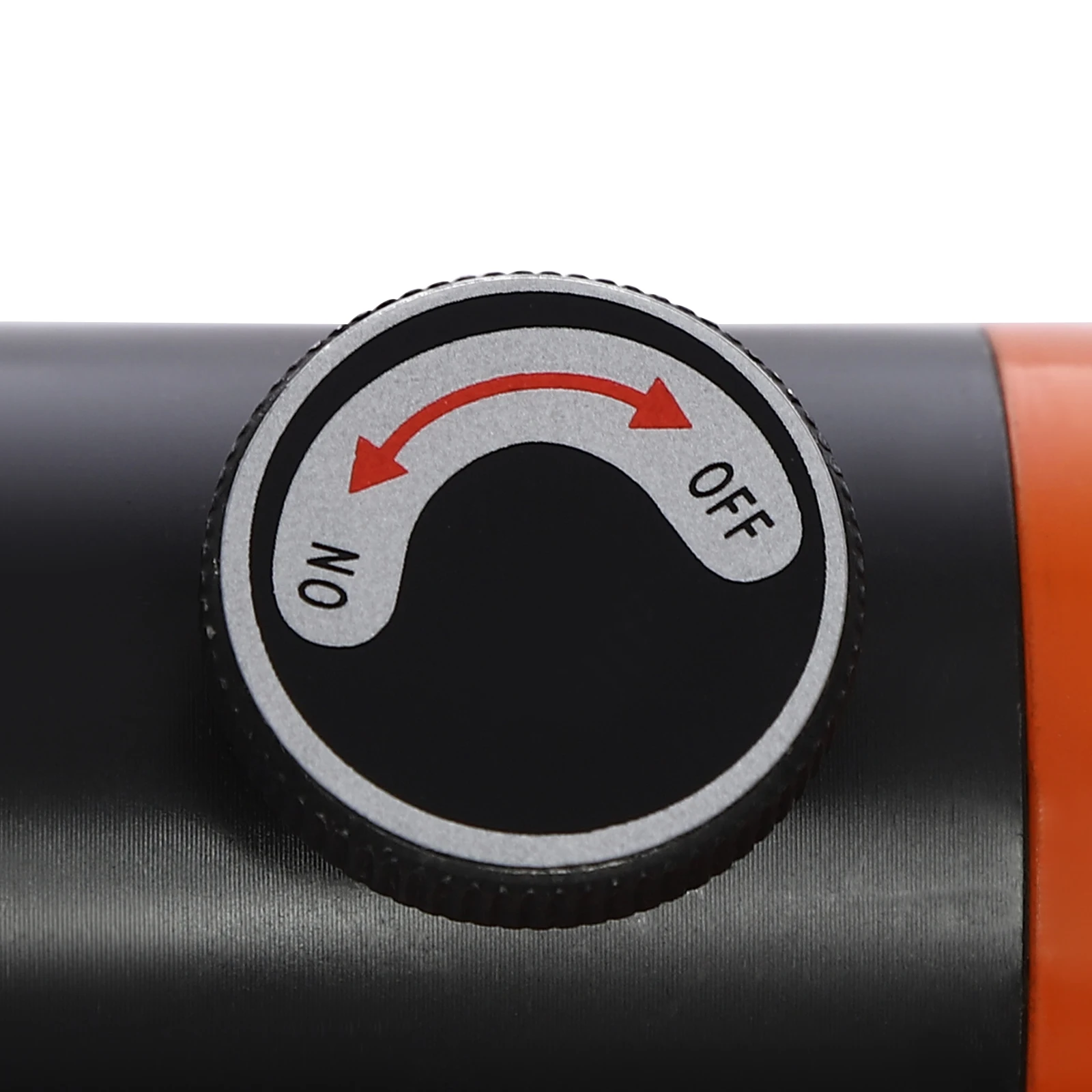

4. Turn the oil return switch clockwise and crank the handle repeatedly.

5. When the upper and lower molds touch one place, crimping is complete.

6. Then loosen the oil return switch.

Specification

Color: Orange

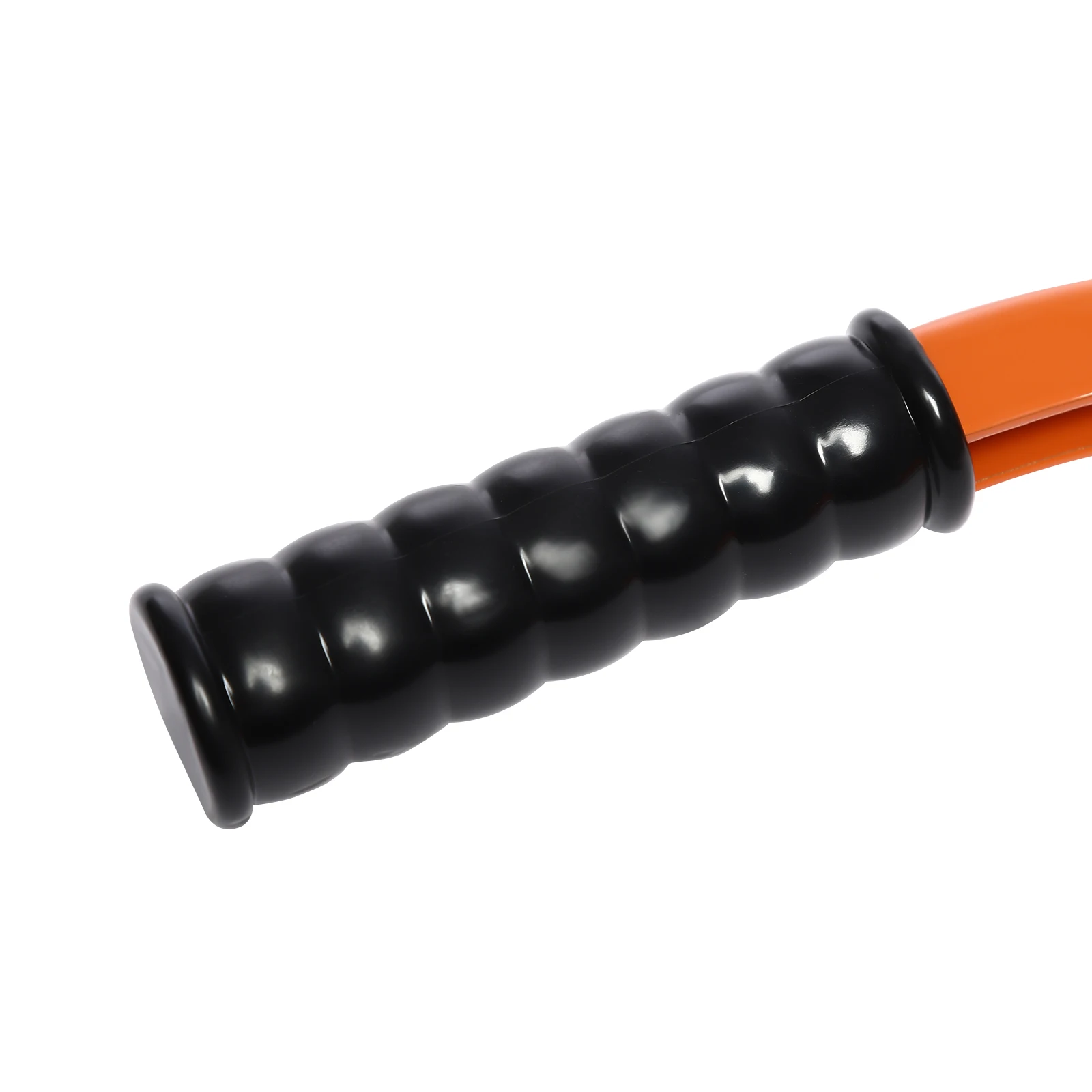

Grip Type: Ergonomic

Model: CW-1632

Stroke: 20mm/0.79in

Material: Aluminum, Cr40 Steel, 42Crmo

Process: Oxidized, Quenched, and Blackened Treatment

Maximum Crimping Force: 10T/100KN

TH Molds Specifications: TH16, TH20, TH26, TH32

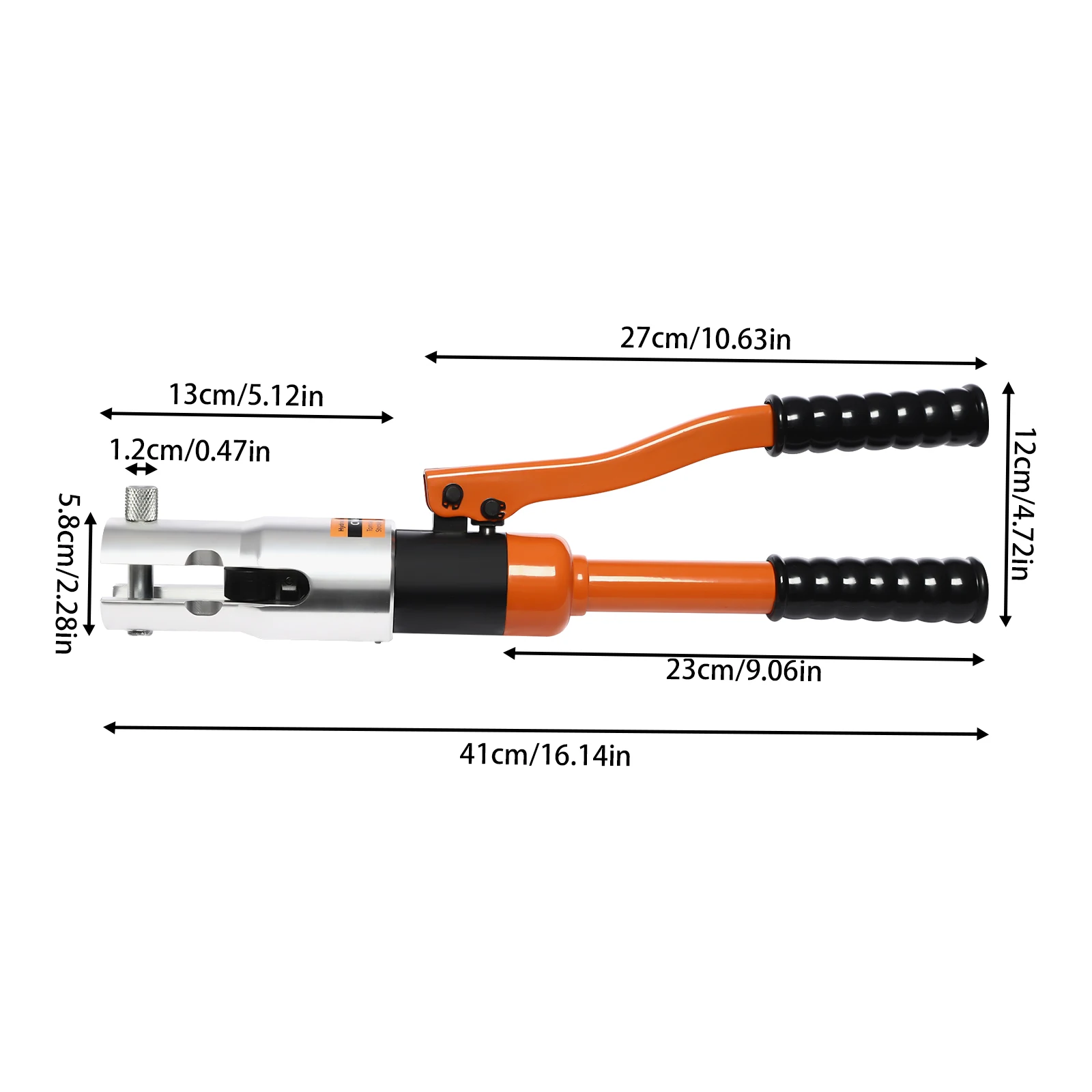

Hole Diameter: 12mm/0.47in

Tong Head Max. Width: 58mm/2.28in

Tong Head Length: 13cm/5.12 in

Handle Closed Opening: 12cm/4.72in

Handle Length: 23cm/9.06in, 27cm/10.63in

Overall Length: 41cm/16.14in

Package Size: 45*22*11cm/17.72*8.66*4.33in

Gross Weight: 5.5kg/12.13 lbs

Net Weight: 5kg/11.02 lbs

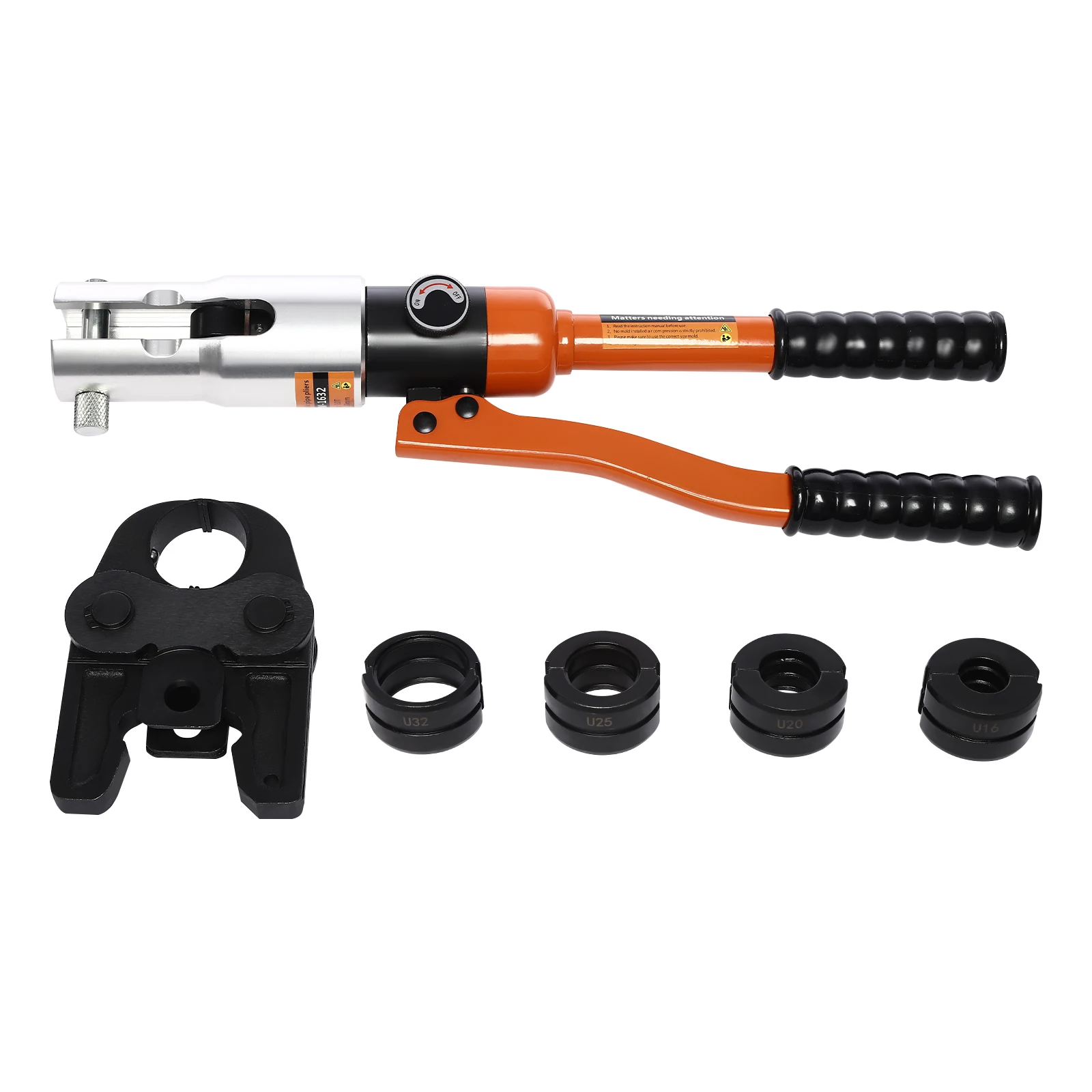

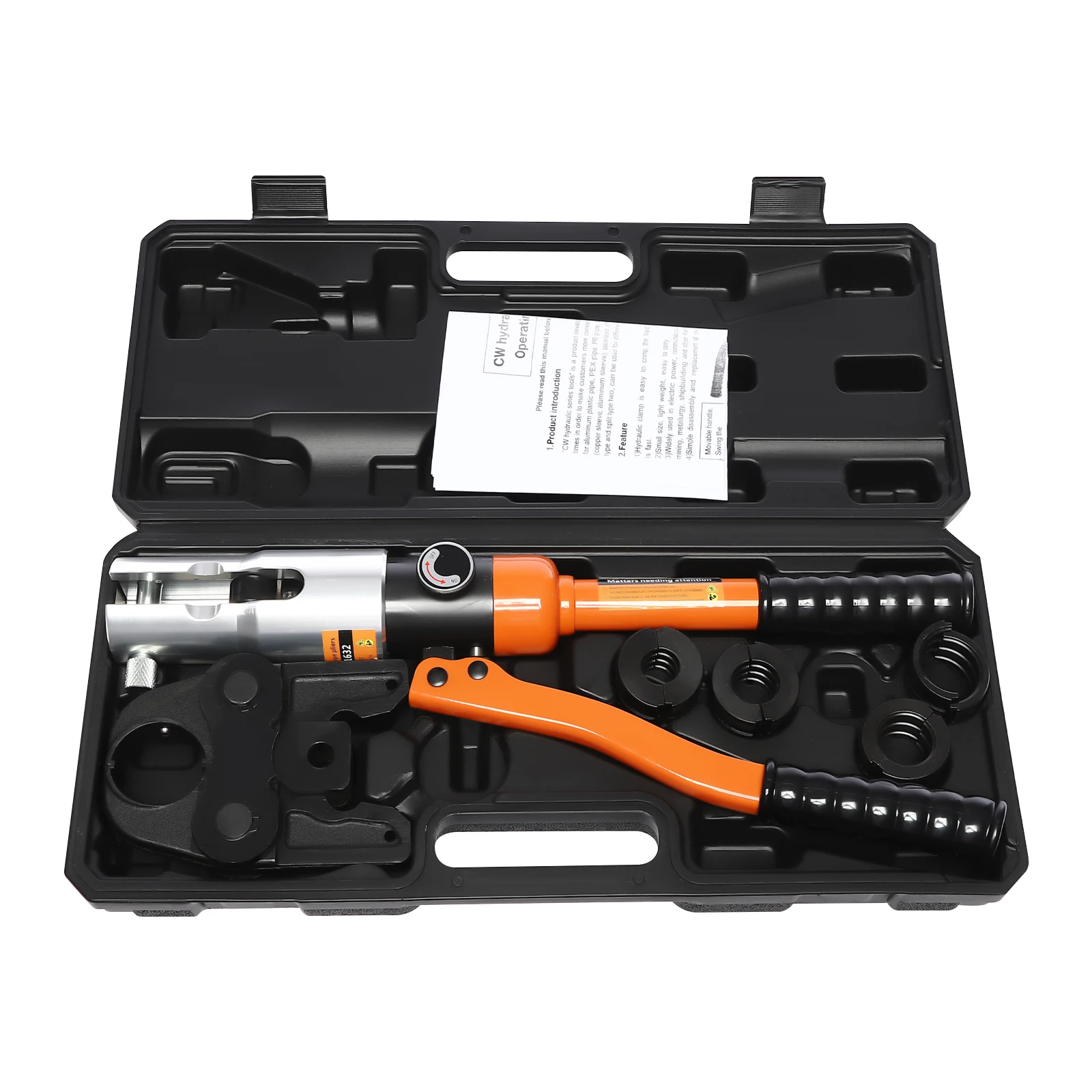

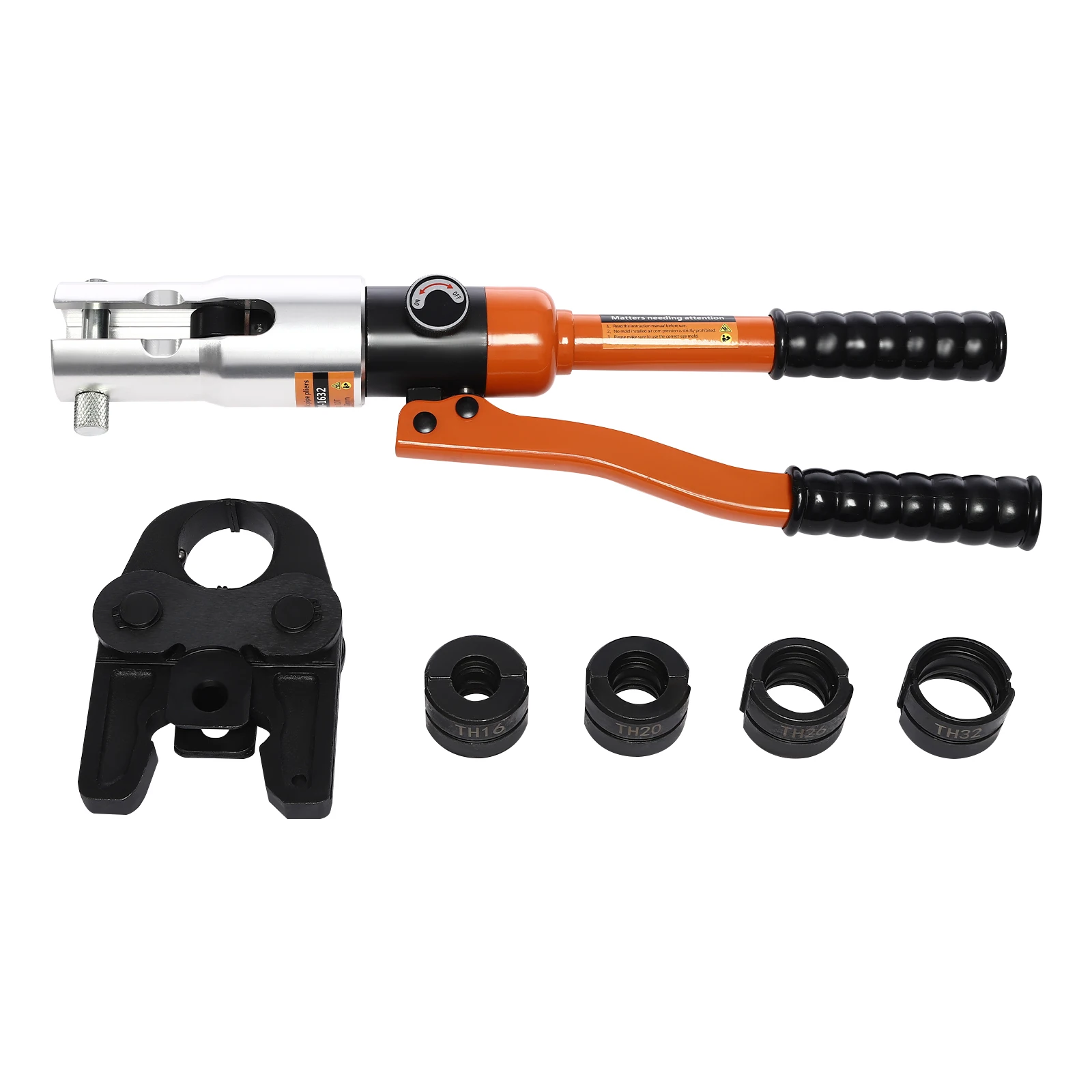

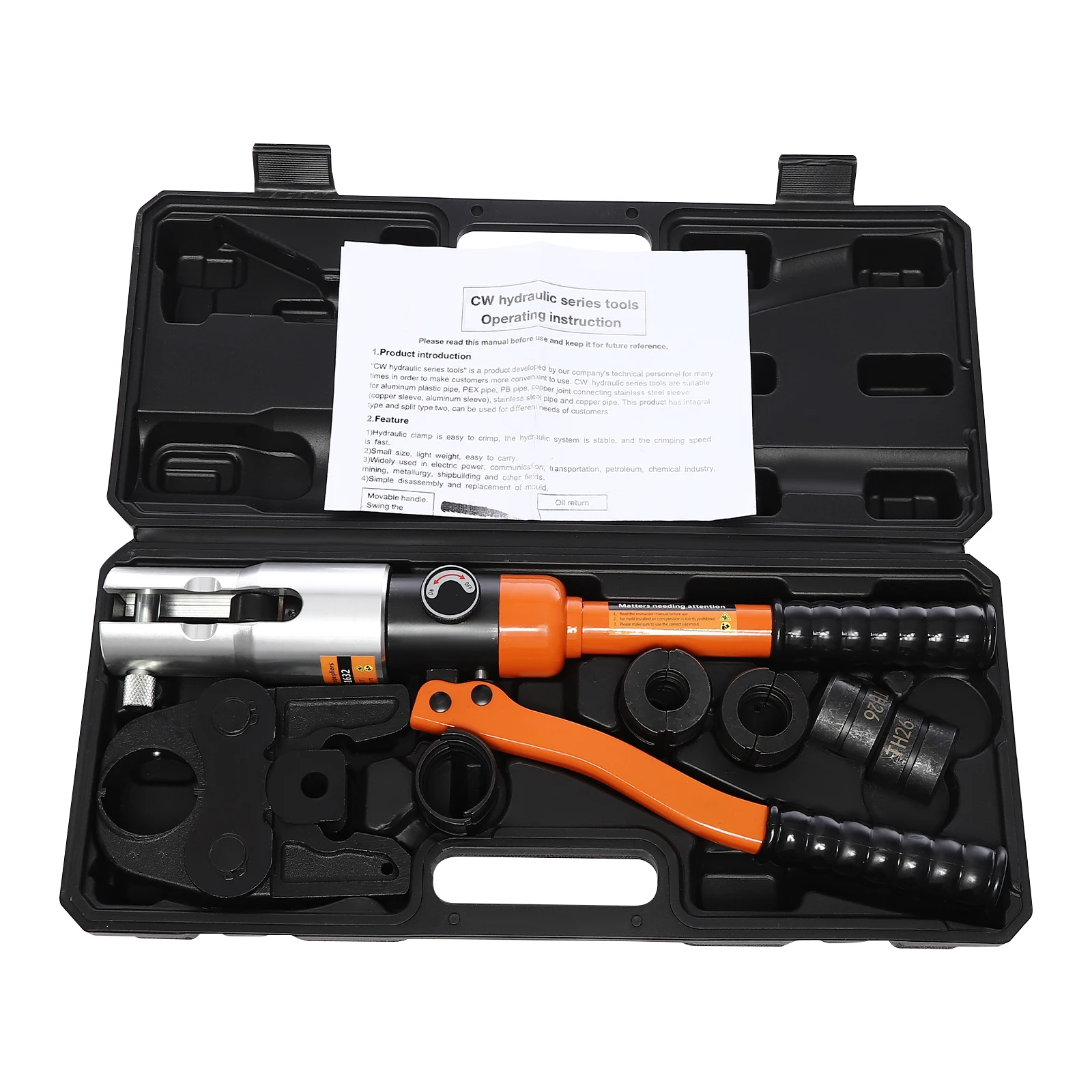

Package Included

1* Crimping Pliers

1* Butterfly Mold

4* TH Molds

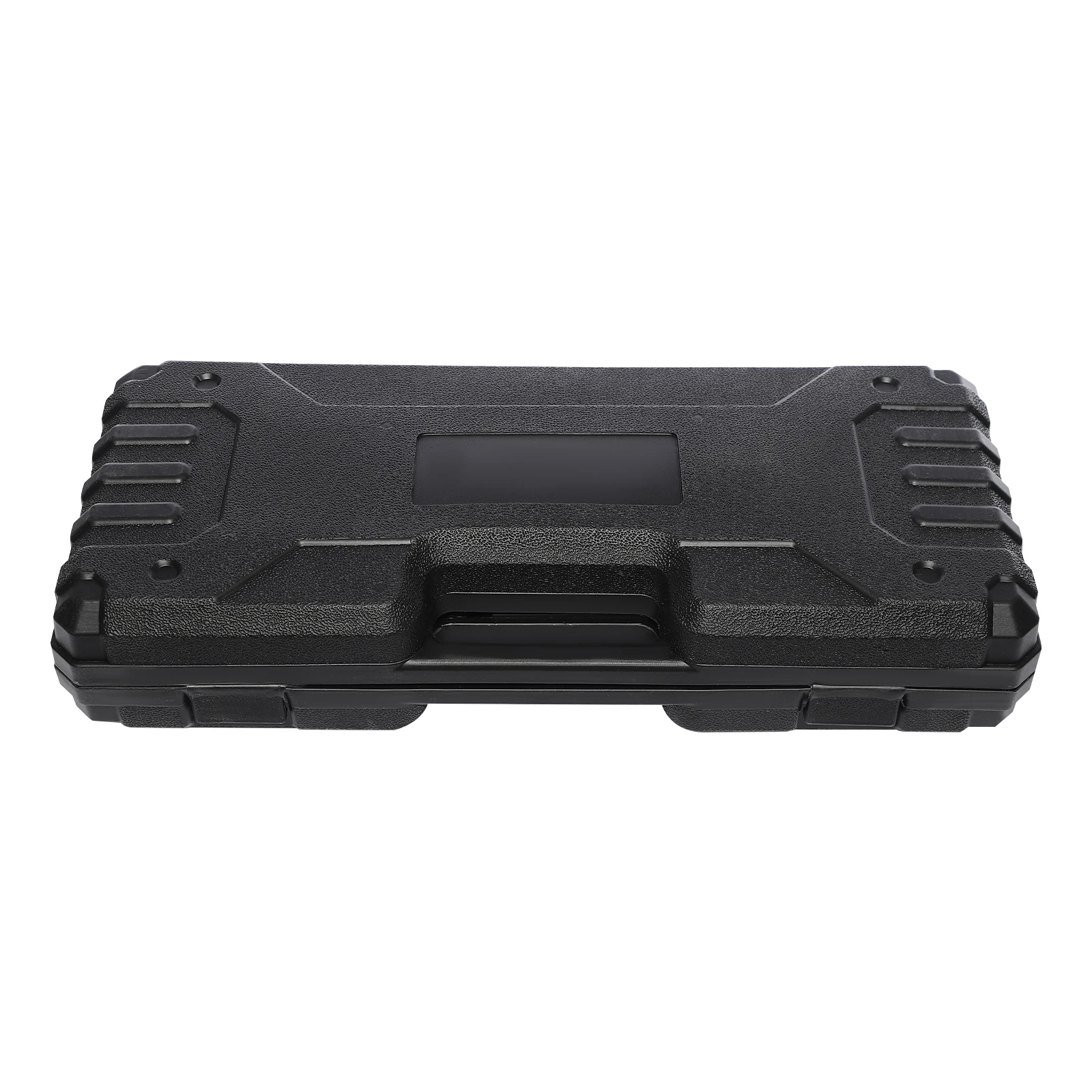

1* Toolbox
1* English Instruction

Specification
Color: Orange
Grip Type: Ergonomic
Model: CW-1632
Stroke: 20mm/0.79in
Material: Aluminum, Cr40 Steel, 42Crmo
Process: Oxidized, Quenched, and Blackened Treatment
Maximum Crimping Force: 10T/100KN
TH Molds Specifications: TH16, TH20, TH26, TH32
Hole Diameter: 12mm/0.47in
Tong Head Max. Width: 58mm/2.28in
Tong Head Length: 13cm/5.12 in
Handle Closed Opening: 12cm/4.72in
Handle Length: 23cm/9.06in, 27cm/10.63in
Overall Length: 41cm/16.14in
Package Size: 45*22*11cm/17.72*8.66*4.33in
Gross Weight: 5.5kg/12.13 lbs
Net Weight: 5kg/11.02 lbs

Package Included
1* Crimping Pliers
1* Butterfly Mold
4* TH Molds
1* Toolbox
1* English Instruction

Notes
1.Please check the product specification before purchasing.
2.Please read the English instruction manual carefully and the product label before use and pay special attention to the safety matters therein.
3.It is strictly prohibited to use the tool without a mold. Please use the correct size mold, and do not put your fingers into the mold during use.
4.Please do not crimp energized cables or wires.
5.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement and make sure you do not mind before ordering.
