Lexia 3 PP2000 Update Full Chip Firmware 921815C OBDII Code Reader Diagnostic Tool Scanner Diagbox V9.91 For Citroen for Peugeot

CD default included is Diagbox V7.83.

LEXIA3 DIAGBOX V7.83: PC Win7 32bits real system

http://www.360diag.net/a/downloads/Other_Related_Software/2019/0706/556.html

We Free Provide NEWEST Diagbox V9.91 and Service Box 2014 For Citroen by weblink  to download.

Buyer after place order ,please contact us to send you digital link only.

Lexia3 Diagbox V9.91 Google link: PC Request VM system

https://drive.google.com/drive/folders/1W9QjGJwhNdsVrtD2qrtTrIukjPtKvUdr?usp=sharing

https://www.jianguoyun.com/p/DQn6_sMQ1vLFBhjPn-oEIAA

Lexia3 SERVICE BOX 2014 for Citroen Only ：

https://mega.nz/file/7K4FlQKA#hfb6dhEH44WR-JSb236-EjMc9VNC6t1zfjtPWSS2Q60

Please Note:

Lexia3 Full Chips DOES NOT supports Suspension module For citroen c5 Model.

Our hardware has 13th communication and some europe old cars supports ,but for some current cars it does not supports .

For buyer feedback :

It doesn't connect with suspension module in two citroen c5, one from 2002 (Citroen c5 2002y,2.0l )another from 2005.

Firmware Reference is 921851C , V4.3.2

EU Stock Wholesale :

10pcs/Lot

Highlights For Diagbox V9.91:

1. V9.91 Support all compatible cars Untill 2021

2. V9.91 work for Citroen/for Peogeot/DS Automobiles/Opel Multi-Brands

3. V9.91 pre-activated version, install directly,no need to wait seller to activate for you,save time and money .But must run V9.91 on VM (Virtual Machine),VM installation is easy and fast.

We provide VM installation video and V9.91 installation video !

4. V9.91 Full function version:Diagnose, Resets, Adaptations,Telecoding of Modules....Excellent Live test byexperts of automotive repair over the world , they confirm the good feature of the release .

5. V9.91 Support win7 / win8 / win10 ( ONLY work on 64bit )

6. V9.91FULL in 24 languages BUT on the Virtual Machine loaded in English.

7. V9.91 can work with any version of lexia3 / lexia XS

Diagbox V9.91 Pay Attention:

1.Firstly Make sure your PC can run on VM ( Virtual Machine) , go to BIOS and enable INTEL Virtualization ,then start V9.91 on VW , we will send you video guide of V9.91 on VM , must follow video step and step !

2.It can be used on as many machines as you like so its not limited to one pc.

3.We only send link to download Diagbox V9.91, NO CD NO USB STICK !

4.If you have no lexia 3 pp2000 , ClickLEXIA3 PP2000to buy our lexia3 pp200.

5.The fully working diagnostic and programming software on Virtual Machine requires latest AMD or Intel Celeron/Pentium CPUs, 25/30 GB free HDD space and over 4 GB RAM.

DiagBox 9.91 on Virtual Machine run perfectly in:* 64Bit Microsoft Windows 7 Professional and Ultimate editions, Microsoft Windows 8, 8.1 or 10 and RAM memory over 8GB

For CITROEN SERVICE BOX 1/2014 TIS+EPC+WDS WIRING DIAGRAMS EPC WORKSHOP MANUAL

Description:

SPARE PARTS CATALOG WORKSHOP MANUALS ELECTRICAL DIAGRAMS

For CITROEN SERVICE BOX 2014

TIS EPC WDS SEDRE

For CITROEN SERVICE BOX 2014

In a single application workshop manuals, parts catalogs and wiring diagrams (SEDRE) for Citroen cars till 2014.

Repair and service manuals, spare parts catalog wiring diagrams collection into a single application (same used by for Peugeot dealers) for Windows Pc. Sections for mechanics, engine, body, interior, electrical, air condition, setting, suspension, etc .. Avalaible also VIN / VIS search.

Entirely in ENGLISH (but you can install it in many others languagese - se below). Release 1/2014 - version V 3.6.18 SB95. KEYGEN INCLUDED !!. Supplied with clear installation instruction in english language!

For CITROEN SERVICE BOX 2014

auto parts catalog, workshop manuals, wiring diagrams for CITROEN 2014!

LEXIA3 PP2000 Professional For Citroen/For Peugeot Diagnostic Scanner Newest Firmware 921815C Full Chips

What is the different between Lexia3 Full Chip and Lite Version Normal Chip ?

Compare OURS BEST QUALITY with OTHERS:

About Installation Tips:

Please make sure to install software on Native Real Computer System Win XP or Win 7 32bits . It does not supports virtual machine virtual box,it can't detect usb connection.

Please disconnect internet and WIFI on your real cmputer system.

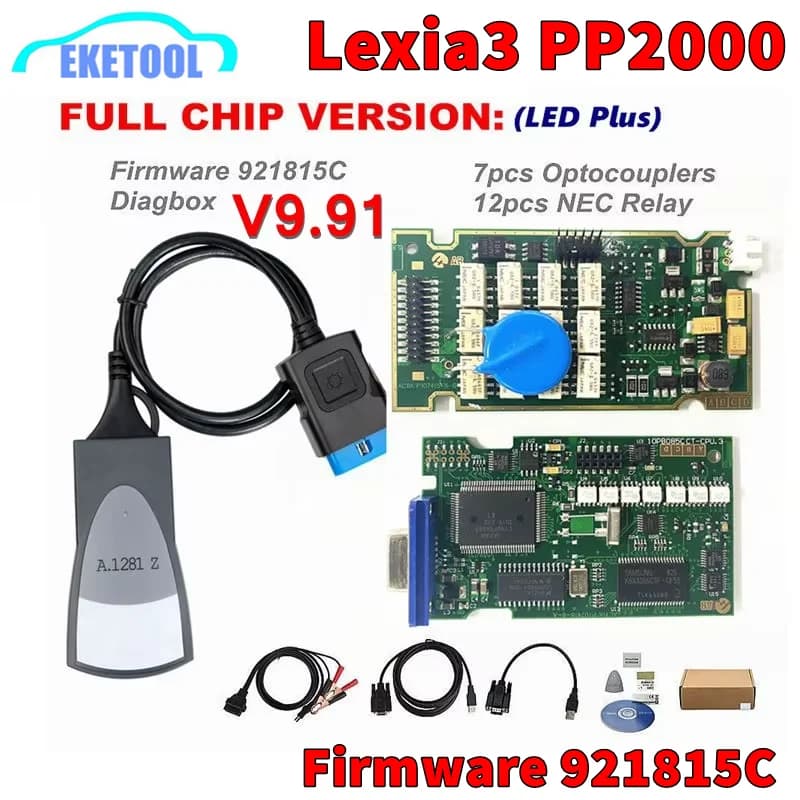

Full Chip PCB Display:

Optocouplers color will be white or black by random,Function will be the same.it does not affect function and usage，please note to this,thank you.

PCB Golden Edge,Full Chip

7pcs Optocouplers and Japan Chip

12pcs NEC Japan Relay

Firmware 921815C Reference C Full Chips

Golden Edge,12pcs NEC Japan Relay,and PCB board has 7pcs optocouplers

Newest Diagbox V7.83 upgrade in CD,please cehck below picture:

1.Open CD ,it will shows Newest V7.83 English Version update patch.

Please Note,V7.82 and V7.83 only have English Language. When you install this version ,please set up English.

(Diagbox V7.83 Upgrade Patch only have English Language version,if install this latest version only English language available. But now we have solution can change to another language now . If buyer need this video ,please feel free to contact us .Thank you )

2.Run Diagbox ,Diagbox with Multi-Language,you can choose the Language you need when install software

3.Installing DiagBox

4.Diagnox Upgrade Patchs password below：

V7.01~V7.76，Password:Scary01

V7.82 Password Require:Maitresox01

Then update to V7.83 password:Very Simple!

5.Newest Diagbox V7.83 For Citroen/For Peugeot

Highlight to Get PP2000 Full Chips:

Software Version:Lexia3 V48 PP2000 V45

Diagbox Version: V7.83(default version is V7.02,CD has upgrade patch inlcuded, buyer can update diagbox yourself)

System Require: Winows XP or Windows 7 32bits(other system can not compatiable) , and must close anti-virus program.or it will deleting exe software.

Activation Passowrd:Scary01

The all passwords to upgrade diagbox from 7.02 into 7.44 are scary01.

Update Attention: please cut the file "C:AWRoot\bin\fi\APPDIAG.SYS" out before update, and then click update package! after complete update please paste the cutted file back into the previous folder. which can avoid activating problem.

Note: update Free by Email. If newer version come out ,we can send you download link to update . (This is Copy one ,please Disconnect internet when install software,otherwise device damaged and broken)

Description:

Dealer lexia3,PP2000 diagnostic scanner for comprehensive for Citroen and for Peugeot cars diagnostic. You can do all as a authorized dealer does.lexia3,PP2000 diagnostics software allows you to perform complete diagnostics of all from 1995 untill present models. Diagnostics lexia3,PP2000 is performed via OBD-II connector (which is located near steering wheel) or via manufacturer-specific connector (only older cars, pre-2001).

For programming, diagbox support basic programming, but some programming like car alarm system need account username and password, we don't supply& haven't username and password, only for citroen and for peugeot center repair shop has username and password, please note it.

Supported Functions:

Unlike other universal car scanner tools which only read fault codes; this software performs nearly ALL the functions like the original dealer diagnostic tool. Our diagnostic interface contains K-Line multiplexor, CAN-BUS interfaces and SAE J1850 bus (both PWM and VPW).

Read fault codes

Displays all stored and pending fault codes with complete description,Program supports report printing or copy to clipboard.

Clear fault codes

This function clears all stored fault codes and other diagnostic information.

Measured Values

lexia 3 program displays live Data like Engine Speed, Battery voltage, Oxygen Sensor, Temperature.

Actuator test

Actuator test activates particular actuator (e.g. turn on fuel pump, lock/unlock wheel or doors, cut off fuel, etc)

Programming Functions/Adaptatio

This feature is of great importance in all vehicles because systems like Engine control units, Immobilizers, Airbags, Alarms, Body Control Units, and some others, require you to perform reset or programming procedures after car repair is done, or even configuration after replacing broken Control Unit.

Language:

English, Chinese, German, French, Japanese, Russian, Spanish, Portuguese, Swedish, Turkish, Dutch, Polish, Italian, Hungary, Greek, Czech

Package List:

1 x Main unit

1 x OBD2 16PIN Cable

1 x OBD2 to Clip Cable

1 x Long 9pin to USB cable

1 x Short 9pin to USB cable

1 x CD
