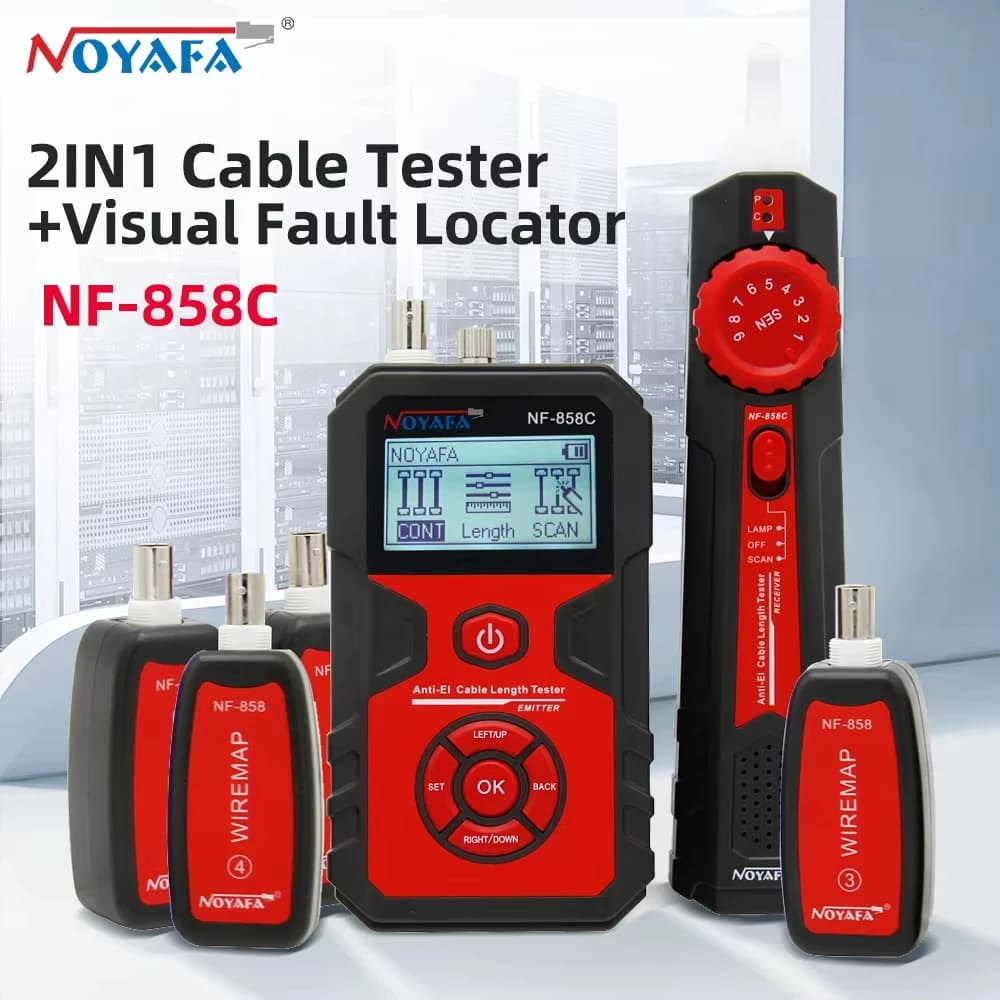

NOYAFA NF-858C Cable Tester Wire Tracker Line Locator Network Finder BNC Measure Cable Length POE Voltage Testing Trace Cable

Product Description:

Brand: NOYAFA
Product Name: Network Cable Tester
Type: NF-858C
Dimension(LxWxD): 135x78x35mm(Transmitter) 203x45x33 mm(Receiver)
Test Cable Type: Cat 5, Cat 6, BNC
Compatible Connectors: RJ45, BNC, VFL, Mirco USB
Max.distance of tracing: 2000m
Test Record Store：6 Groups
Battery Type: 3.7V/1000mAh Lithium Battery
Low Battery Indicate: 3.5±0.2V
Function and Faults LCD Display: LCD display ( length ,wire map, scan ,short,No adapter,Low battery )

Product Features:

1. No noise, anti-interference, no-load, and loaded line hunting.

2. This cable Tester can use the host and the remote to test the open circuit, short circuit, open circuit, cross, reverse connection of the network cable, BNC video cable, etc., and display it visually on the LCD.

3. NF-858C can find the required target line in many network cables, telephone cables, video cables and various metal cables.

4. It can measure the length and breakpoints of network cables, BNC coaxial cables by the method of open circuit, the length of cables can be measured up to 2000 meters, and the accuracy of measuring the length of cables and the location of breakpoints can reach 98%.

5. The specific short circuit location of the two-core cable can be found.

6. Using the port flashing function, you can quickly find the specific network cable when the switch and router are powered on.

7. Carry out crosstalk test on the network cable to solve the potential failure of slow Internet access.

8. Testing the state of the telephone line and the polarity test of the telephone line.

9. Testing the voltage and status of the POE switch.

10. Using the red light pen function to test the breakpoint and light leakage of the optical fiber.

11. The remote adapter has a sound prompt function when measuring line sequence.

12. Record function: can query the record of the previous test cable.

13. Lighting function, convenient to work in dark environment.

14. Equipped with four remote ends, four groups of lines can be tested at the same time, the corresponding remote ID numbers can be displayed on the screen.
