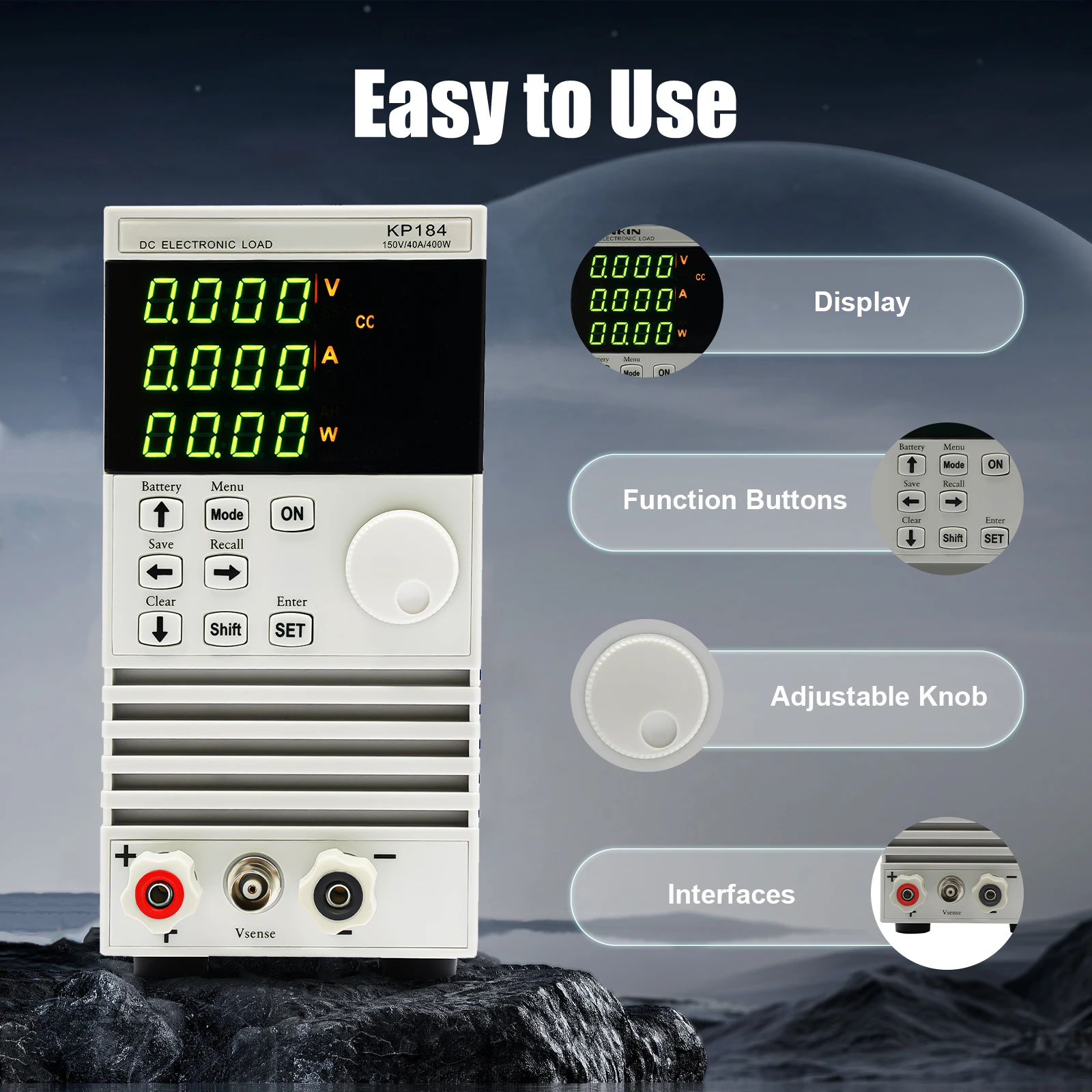

Electronic Load Battery Tester, Single Channel Meter KP184 DC Electro Load Battery Capacity Electronic Tester RS485/232 400W 40A

Description:

Load Mode: Low Cc, Cv, Cw, Cr Four Basic Load Modes, Low Input or Reverse Connection Protection and Alarm, with Multiple Load Online Synchronous Operation

High Precision and High Stability: Optimized Heat Dissipation Structure, High Power Density and Digital Control Mode, Higher Precision, Good Stability, Rs485, 232 Communication Interface, Modbus Protocol.

Protection Function: with over Voltage, over Current, Power Supply, over Temperature Protection Function, Low Voltage Remote Measurement Function;

Automatic Test Function: with External I / O Trigger Signal, Pass, Fail Command, Powerful Interface Friendly Pc Software Support.

Multi-test Function: Low 10 Khz Dynamic Test Function; Low Battery Capacity Test Function; Low Battery Internal Resistance Test Function; Low Overcurrent Protection Point/Time Test Function; Low Fan Pwm Control, Power Switch Power Supply 110vac/220vac Switching Use.

Features:

Model: Kp184

Power Plug: Us Plug/EU plug

Power Input:

Voltage: Ac 110v/220v±10%, 50±2hz

Power Consumption: < 20 W

Load Input:

Load Voltage: Dc 1 -150 V

Load Current: 0-40a

Load Power: 0-400w

Measurement Accuracy:

Current: ±0.05%+5ma

Voltage: ±0.05%+5mv

Control Precision:

Current: ±0.05%+5ma

Voltage: ±0.05%+5mv

Communication Method: Rs232/Rs485

Protection:

Overvoltage (Ov): Greater than 152 V off Load

Over Temperature (Ot): 85 ° C

Over Power (Op): Single Channel 410w

Power Input Fuse: 0.5a

Ambient Temperature Range

0～500c

Ambient Humidity Range: 10~90% Rh

Dc Input andale mono to Chassis Withstand Voltage: ±500vdc

Dc Input to Chassis Insulation Resistance: >20mω, 500vdc

Ac Input to Chassis Insulation Resistance: >20mω, 500vdc

Dimensions (Mm) L × B × H: About 300 × 90 × 190

Packing Size: 38.5*16*27cm

Weight: 4.5kg

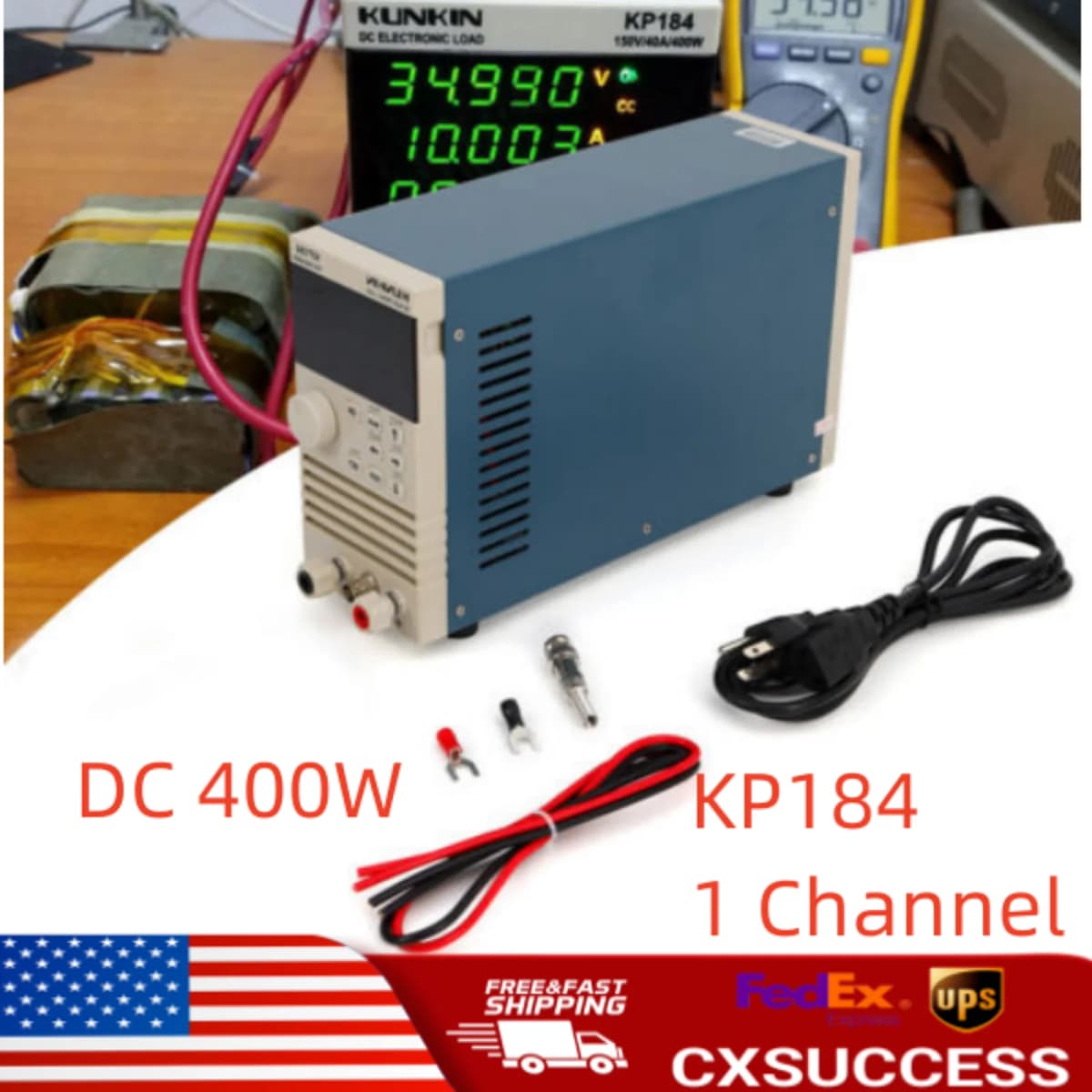

The Package Includes:

1 X Kp184 Dc Electronic Load

1 X Plug

1 X Remote Compensation andale mono

2 X Positive and Negative Test andale mono

2 X Test Cable

1 X User Manual
