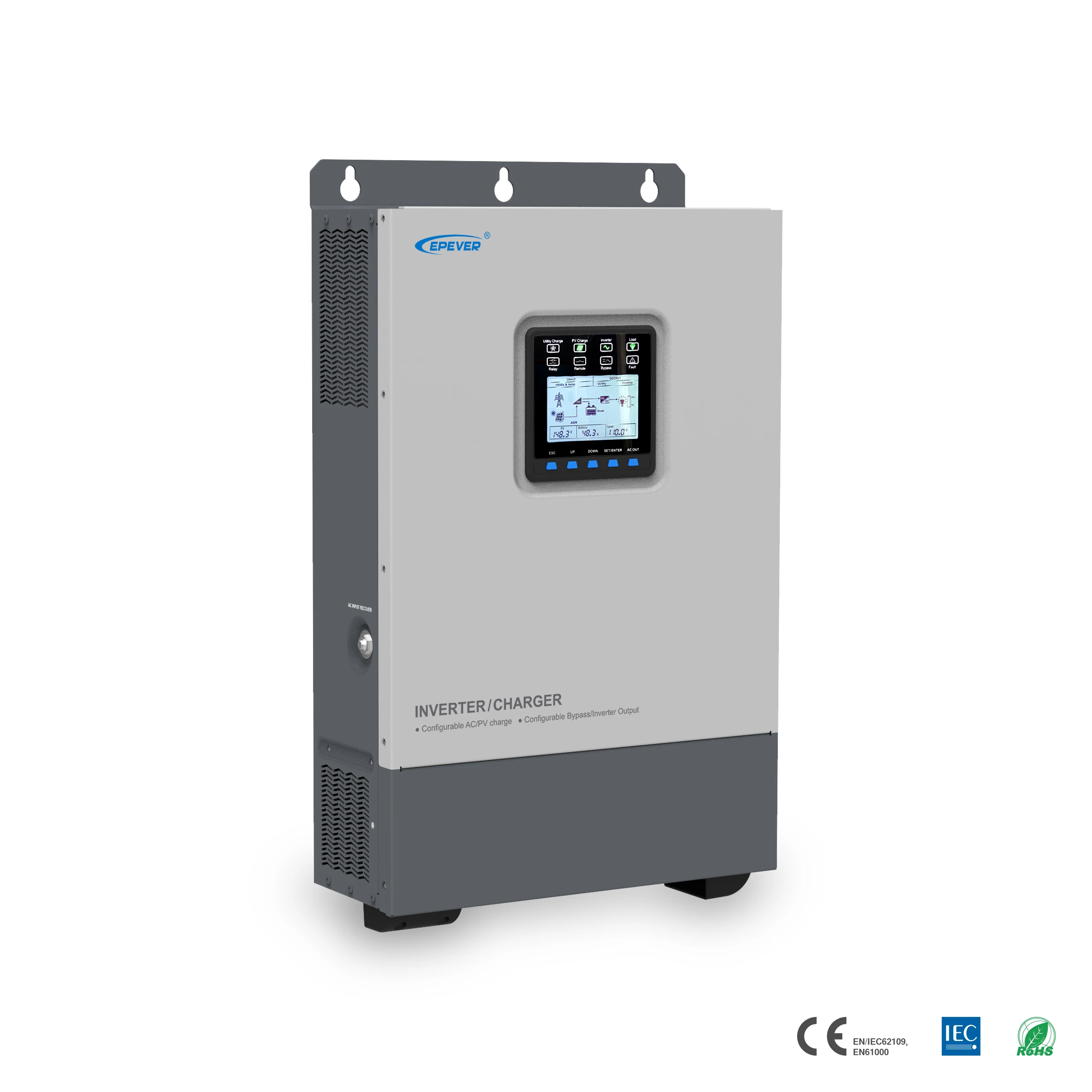

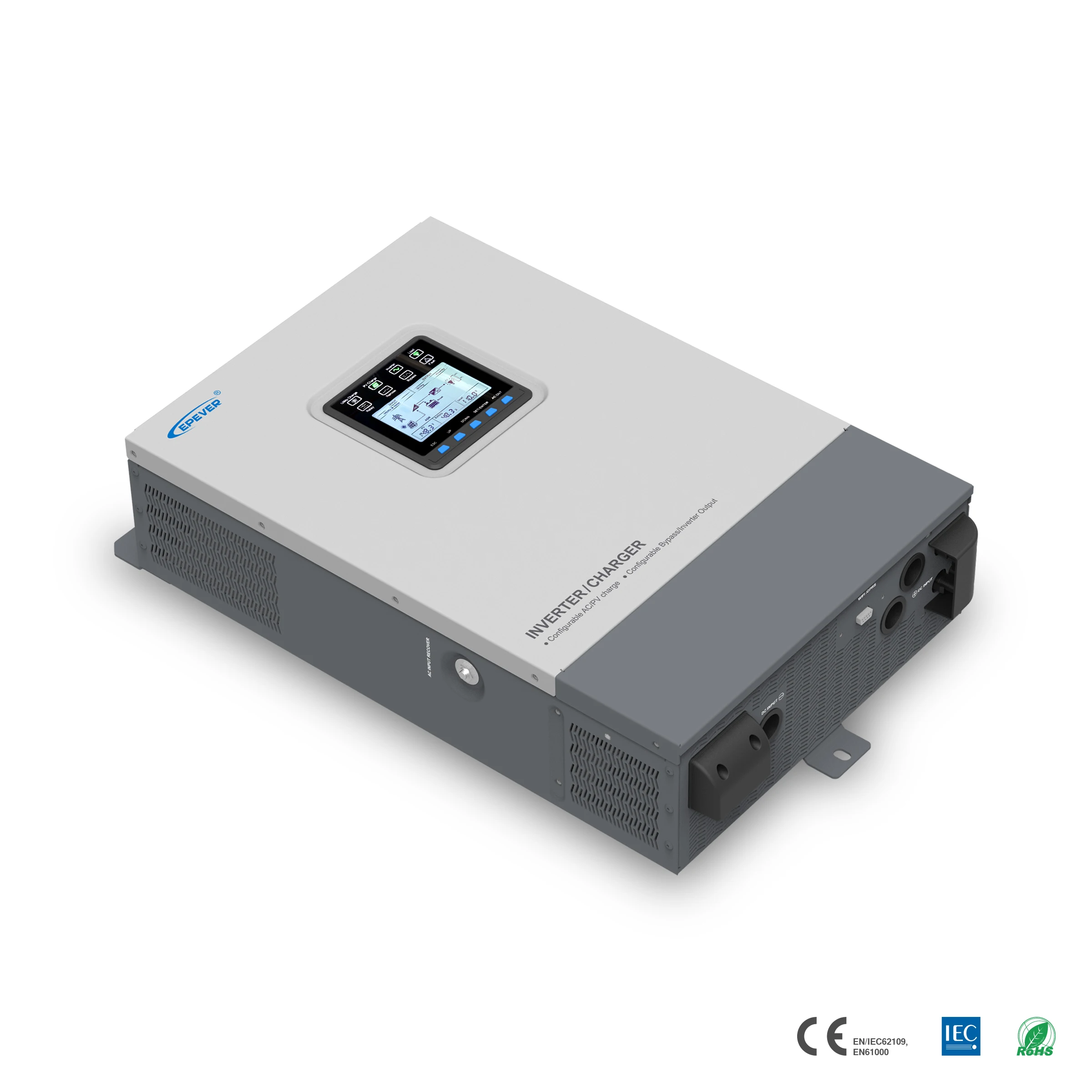

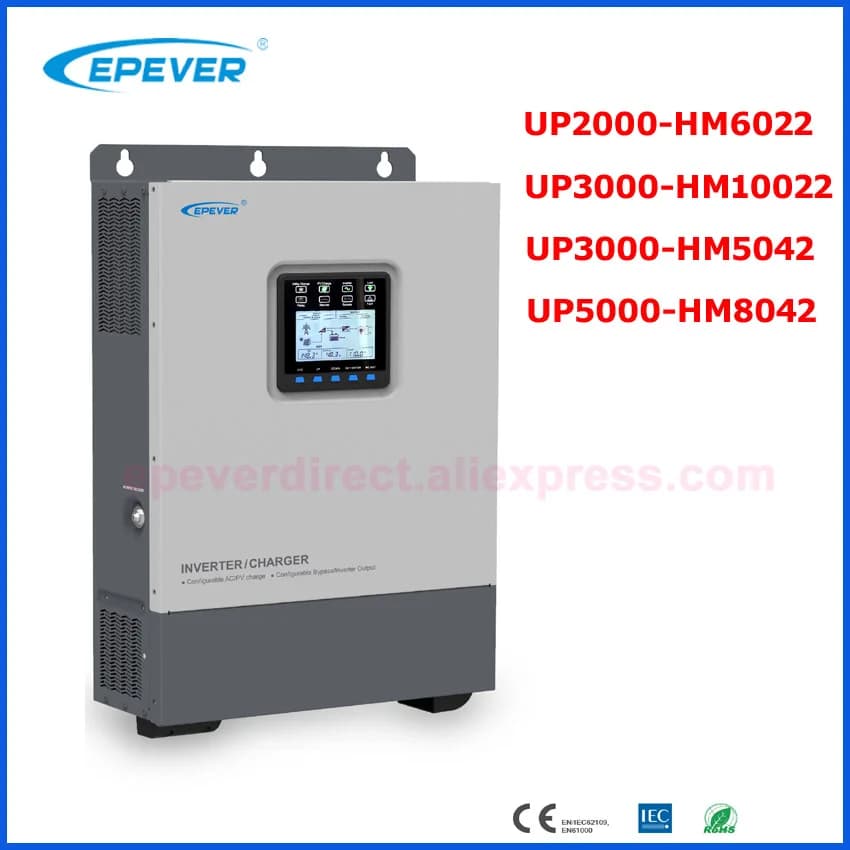

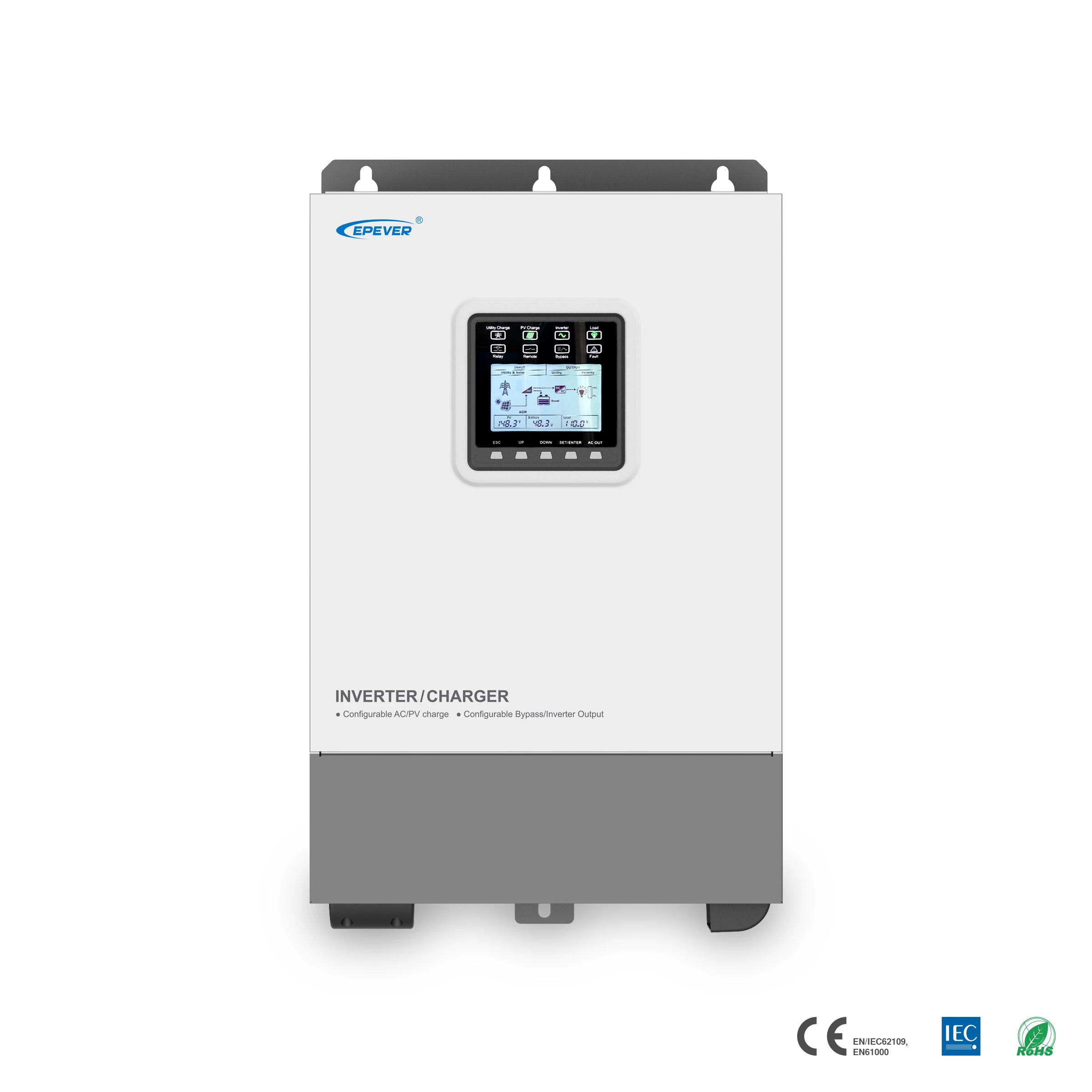

EPever UPower Inverter UP-HM series 3KW 5KW Solar Inverter 3000w 5000w dc 24v 48v to AC 220v 230v UP3000-HM10022 UP3000-HM5042

EPever UPower Inverter UP-HM series 3000w 5000w with dc 24v 48v to AC 220v 230v UP3000-HM10022 UP3000-HM5042

UPower-Hi series is an inverter charger that supports diversified energy management modes on solar/utility/generator charging, and utility/inverter power supply to the AC loads. To maximize solar energy utilization, users can choose energy sources according to actual needs and flexibly take the utility as a supplement. This inverter charger can raise the system's power supply guarantee rate, which is suitable for solar energy, utility/oil generator hybrid systems. It aims to provide users with high-quality, high-stability, and high-reliability electrical energy.

Features:

Supports the battery mode or non-battery mode

Surge current and reverse connection protections to support the lithium battery system perfectly

Three charging modes: Solar only, Solar priority, Utility & Solar

Two AC output modes: Utility priority and Inverter priority

High tracking efficiency of MPPT no less than 99.5%

PFC technology which achieves a high power factor of AC to DC charging and reduces the usage of power grid capacity

Advanced SPWM technology and pure sine wave output

Configurable battery charging current and discharging current

Configurable grid charging current

Self-learning SOC function

4.2 inch LCD to monitor and modify system parameters

Optional WiFi or GPRS Remote control via the RS485 isolated communication port

BMS-Link port and optional BMS-Link communication protocol module
