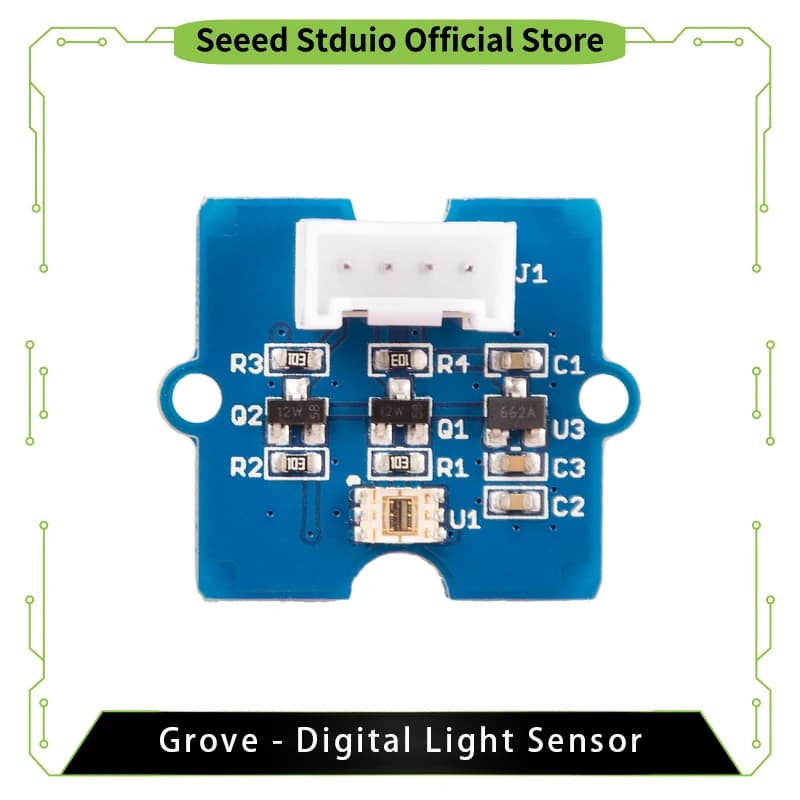

Grove - Digital Light Sensor

Features

🌱 Flexible detection modes: Infrared mode, full-spectrum mode, and human visible mode selectable

🌱 High-resolution: 16-Bit digital output at 400 kHz I2C Fast-Mode

🌱 Support measurement in various lighting situations: Support a wide dynamic range of 0.1 - 40,000 LUX and a wide operating temperature range of -40℃ to 85℃

🌱 Programmable interrupt function: User-Defined Upper and lower threshold settings

🌱 Grove unified socket: The product ensures "Plug and Play" and could be versatile for various applications of Grove

Description

The TSL2561 is controlled and monitored by sixteen registers (three are reserved) and a command register accessed through the serial interface. These registers provide for a variety of control functions and can be read to determine the results of the ADC conversions. Different from the traditional analog light sensor, such as Grove - Light Sensor, this digital module features a selectable light spectrum range due to its dual light-sensitive diodes: infrared and full spectrum.

You can switch between three detection modes to take your readings. They are infrared mode, full-spectrum, and human visible mode. When running under the human visible mode, this sensor will give you readings just close to your eye feelings. With its high-resolution and wide operating temperature range, you can use it to measure the change in light intensity in various light situations with many popular microcontrollers.

You can connect your Grove to these recommended development boards:

Seeed Studio XIAO RP2040

Seeed Studio XIAO nRF52840

Seeed Studio XIAO SAMD21

Wio-E5 CAN Development Kit

We have developed more than 400 Grove modules, covering a wide range of applications that can fulfil various needs. Click to explore the Grove Sensor family and get started to Grove your Idea. For all Grove users (especially beginners), we provide you with guidance PDF documents. Please download and read through Preface - Getting Started and Introduction to Grove before your use of the product.

Upgrade to Industrial Solutions

With the SenseCAP S2110 controller and S2100 data logger, you can easily turn the Grove into a LoRaWAN® sensor. Seeed not only helps you with prototyping but also offers you the possibility to expand your project with the SenseCAP series of robust industrial sensors.

The IP66 housing, Bluetooth configuration, compatibility with the global LoRaWAN® network, built-in 19 Ah battery, and powerful support from APP make the SenseCAP S210x the best choice for industrial applications. The series includes sensors for soil moisture, air temperature and humidity, light intensity, CO2, EC, and an 8-in-1 weather station. Try the latest SenseCAP S210x for your next successful industrial project.

Part List

Grove - Digital Light Sensor x1
