Grade A Lifepo4 Battery 360AH DIY 12V 24V 48V Lithium iron phosphate Cell Rechargeable golf cart batterie For RV EV Boat Camping

[About Europe Warehouse]

The Battery are in stock in warehouses in Europe. Customers from Europe who place an order today can receive the product approx 7-15 working days after order ship out.!!!

Note：

Based on the characteristics of LiFePO4 cells,About 95% of LiFePO4 cell capacity lies between 2.8V and 3.45V. Set BMS charge cutoff at 3.45V and discharge cutoff at 2.80V to extend battery life and avoid BMS false voltage protection.This is not a cell quality issue; balanced use is recommended.

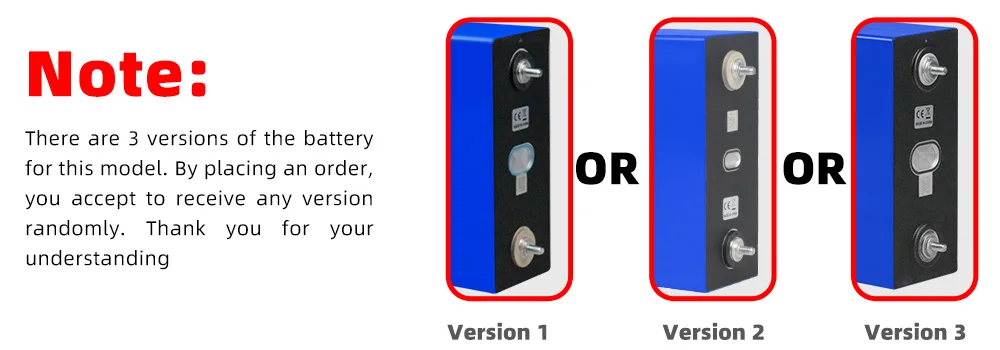

[Note for 360AH ]

There are three versions of the battery for this model By placing an order vou accent to receive any version randomly. Thank you for your understanding

[No delivery to certain postal codes. Check before ordering.]

Spain: 07000-07999, 38000-38999, 35000-35999, 51000-52999

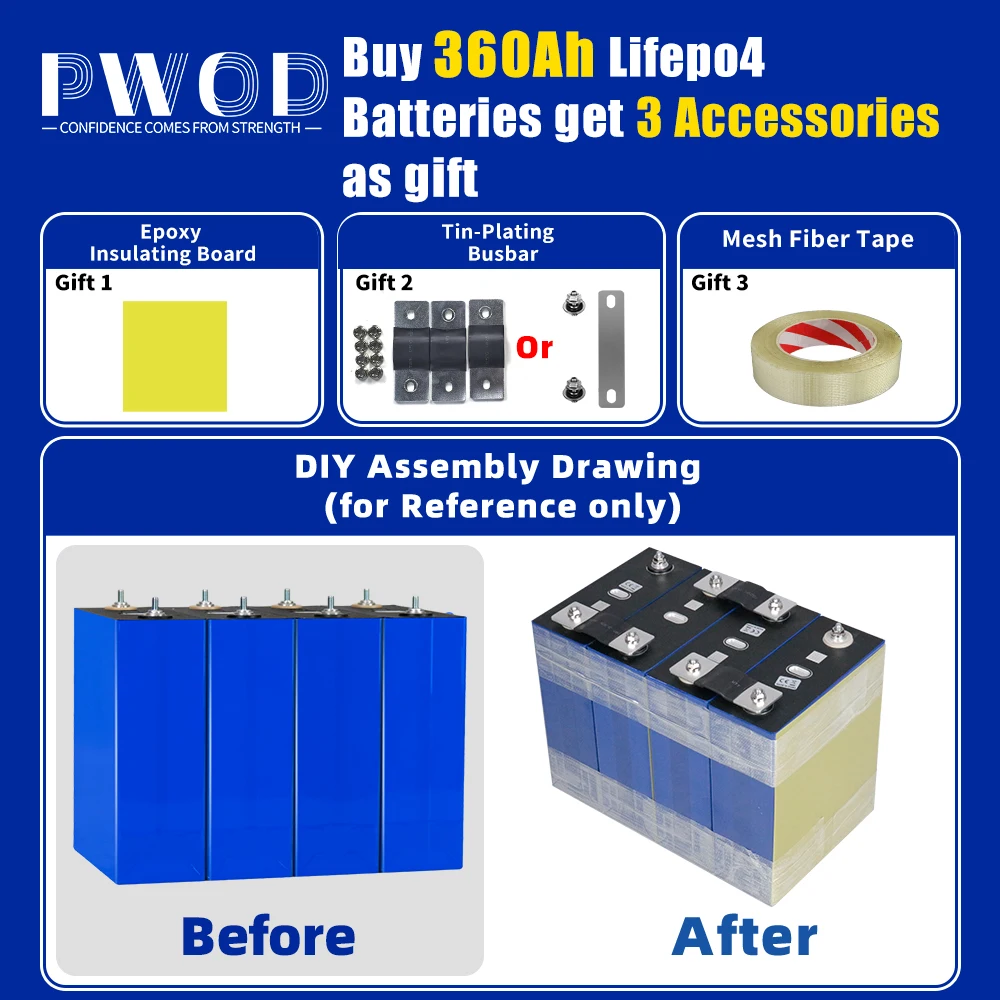

Big bonus! As long as you place an order, you will enjoy 3 kinds of accessories as a gift for your Excellent DIY Pack.

Gift 1: Epoxy Insulating Board, 5PCS for per 4PCS Battery.
Gift 2: Tin-Plating Busbar, 4PCS Busbars for per 4PCS Battery.
Gift 3: Mesh Fiber Tape, 1PCS Tape for per 4PCS Battery.

Note：For the gift, we will not accept any refund.The specific gift is subject to the actual delivery!

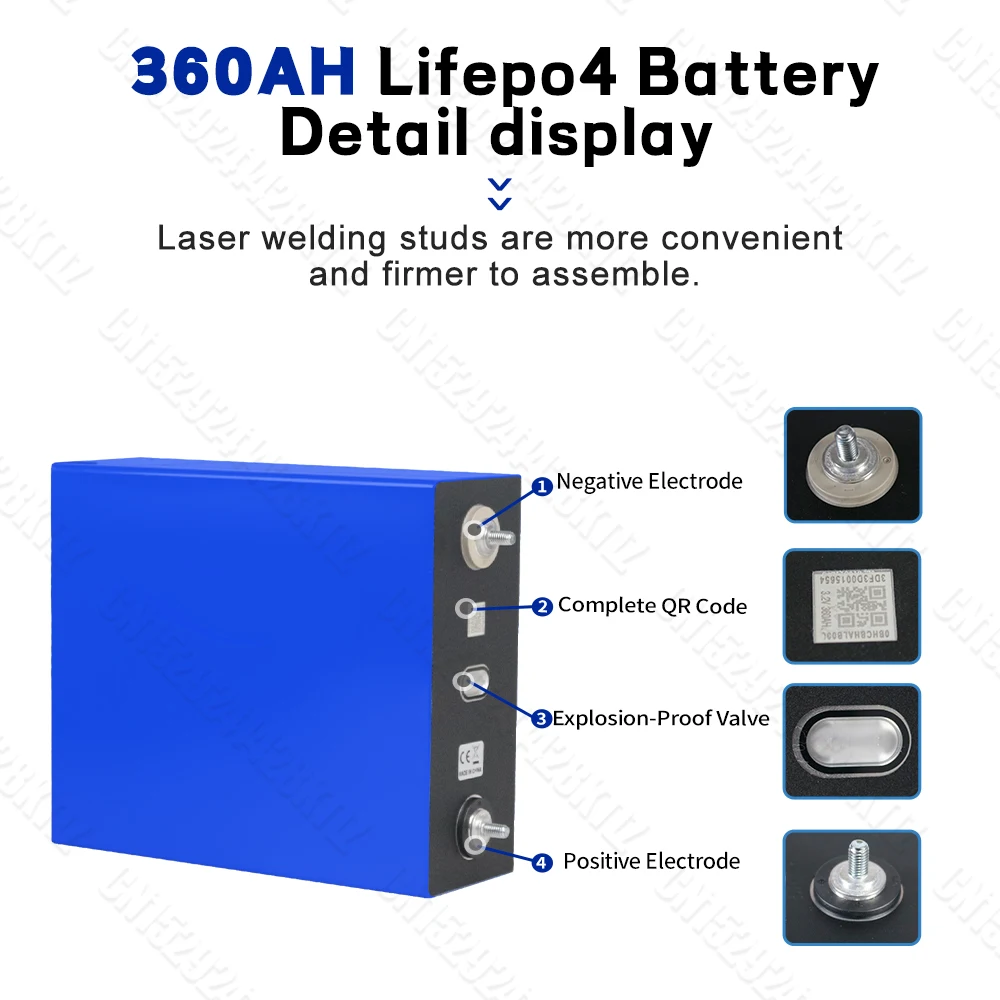

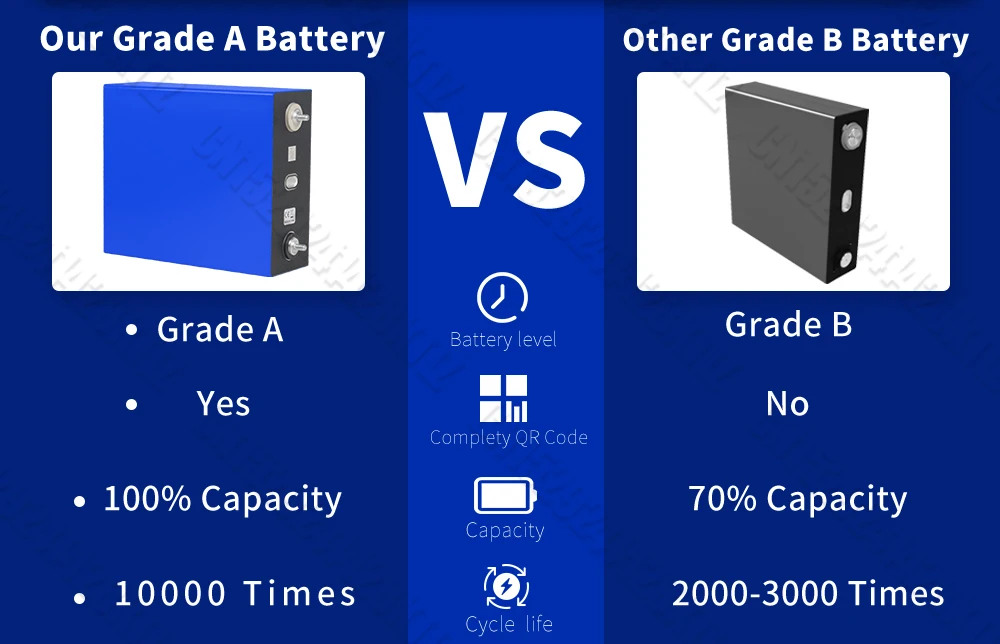

360AH Lifepo4 Battery

* Brand New and Grade A
* 10000 Cycles
* Long Sercice Life
* 100% Depth of discharge

[Product Specifications]

Battery Type:Lithium iron phosphate
Rechargeable:Yes
Shell Material:Aluminium
Nomincal Capacity:340AH-360AH
Nominal Voltage:3.2V
Cut off Charge Voltage:3.65V
Cut off Discharge Voltage:2.5V
Internal impedance:≤0.3mΩ

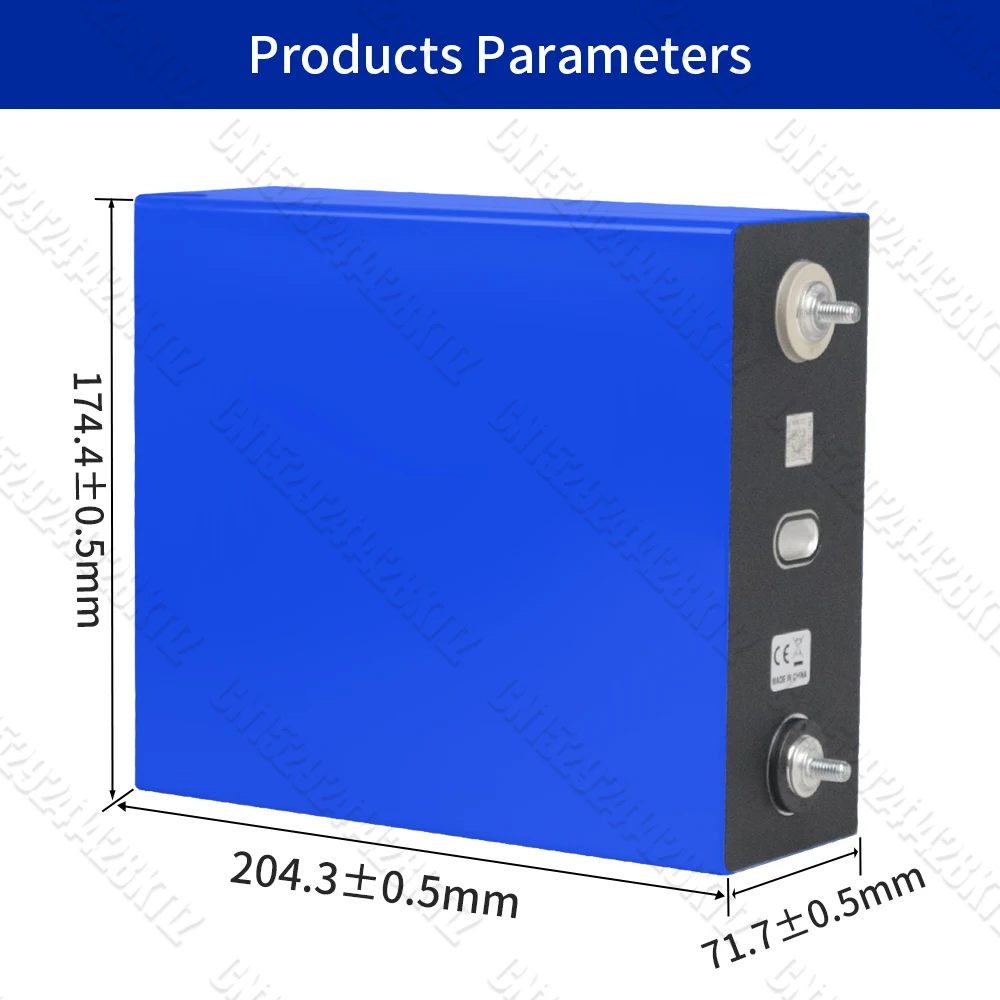

Dimensions(L*W*H):173*71.7*204.2±0.5mm
Weight:5.5kg±0.15kg
Cycle life：10000 times
Charging Temperature：0℃ ~ 55℃
Discharging Temperature：-20~55 ℃
Screw Size：M6
Suit for System：12V 24V 48V 72V 96V 108V Solar Energy Storage System
Applicantion：RV Vans Campers EV Boats Yacht Golf Carts Forklift Solar Battery

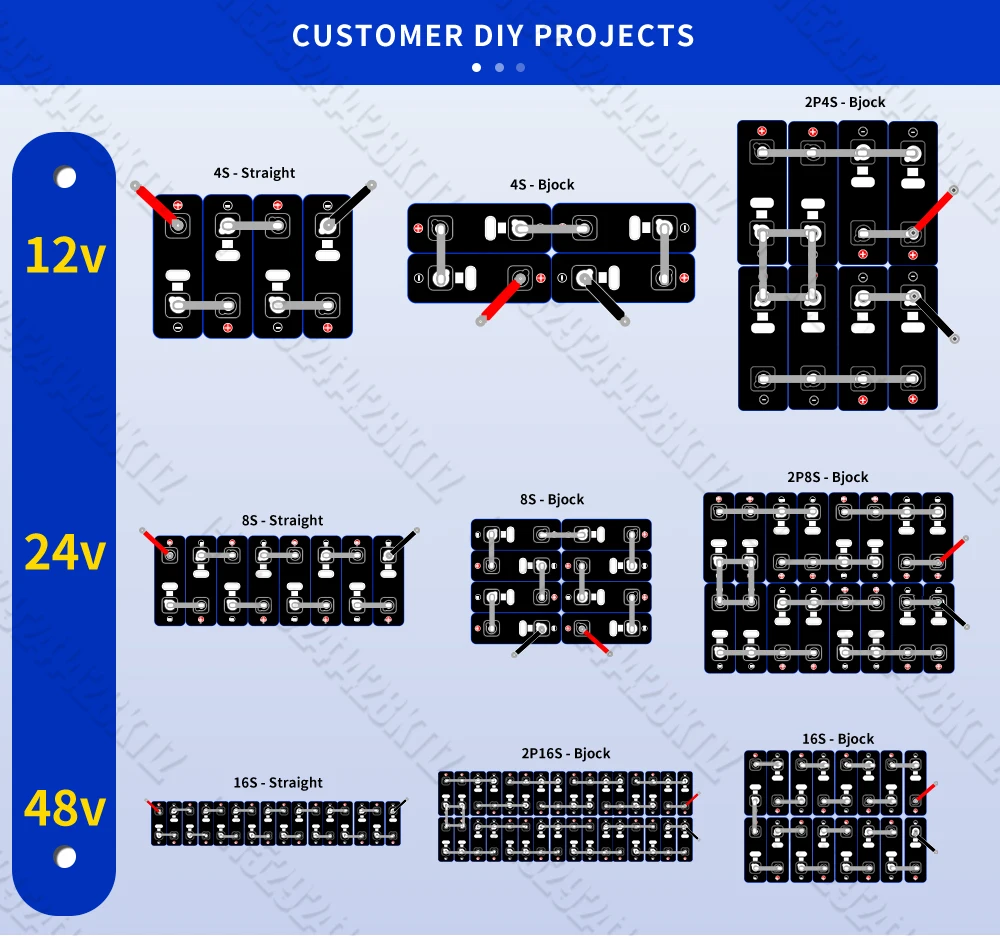

How to DIY assemble batteries?

1. Please balance the battery cells
before assembly.
2. Install and connect the screws.
3. Fix the entire battery pack with
an insulation board and wrap it
with nylon tape.
4. Install the BMS (Battery
Management System)!!.

🔸lf you have any questions or
concerns, please contact us and we
will help you resolve any doubts.

Precautions for assembling batteries

1.Lifepo4 battery packs should be
well waterproof and insulated
2.Prevent overshoot and discharge
3.Correctly connect the screws.
4.Be sure to install BMs properly!!!

Note:

It is recommended that all screw assembly be done manually; It is not recommended to use electric tools since Electric tools have a torque peak that can easily damage the terminals of laser welding.

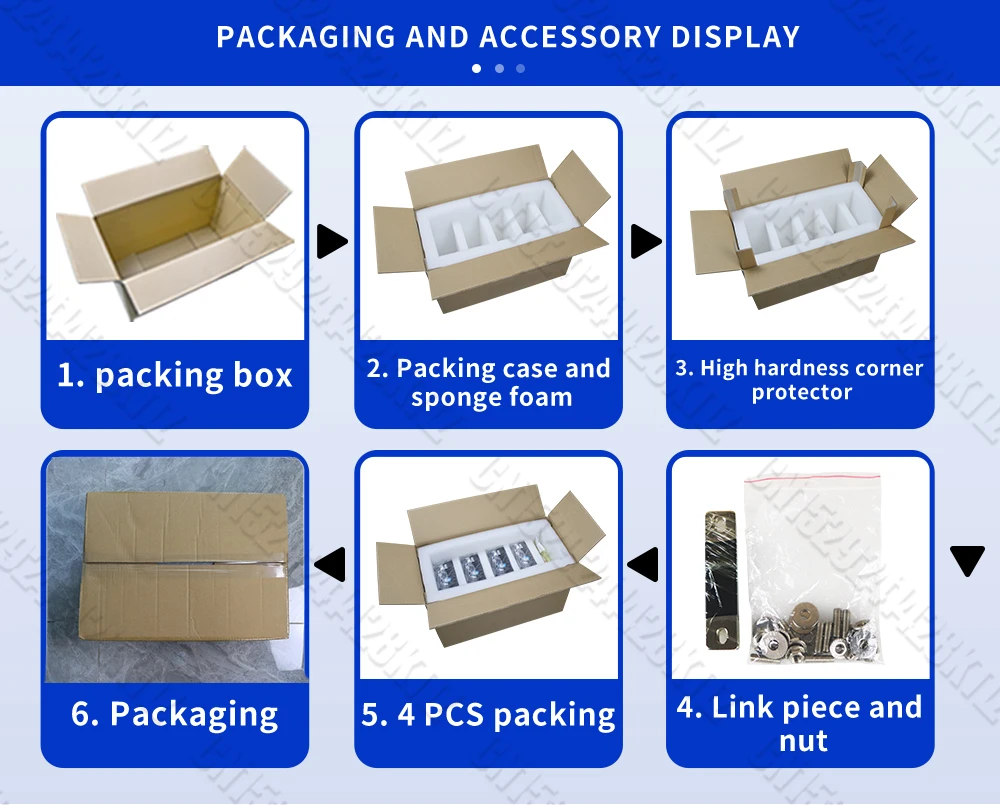

Product Packing

Customized high-strength sponge foam and aviation UN super hard Carton to ensure safe transportation

（Packaging may vary depending on the batch and upgrade situation. Please refer to the actualproduct for accuracy.）

FAQ

Q：Does the sending battery include BusBar connector and screws?

Yes ,we ship the battery with the BusBar connector and screws

Q：What is the life expectancy of a Lithium battery?

A: The typical estimated life of the Lithium Iron Phosphate (LiFePO4) battery is 5-15 years, or 2000 to 8000 charge cycles. One charge cycle is a period of use from fully charged, to fully discharged, and fully recharged again.

Q:If I want to solar charge LiFePO4/Lithium Ion battery, which already has PCB, would a normal controller work fine?

A: For LiFePO4 / Lithium Ion battery, we always recommend to use LiFePO4/Lithium Ion solar controller. Especially if you are using the battery as UPS (back up power supply). The Lead Acid solar controller will constantly provide pulse current to the battery, in the long run, it might damage the PCB. So the PCB won't be able to protect the battery when it should be..

Q：I am a distributor. Can I cooperate with battery warehouse for a long time?

A: Yes,Individual pricing for large scale projects and wholesale demands is available.

Q:Why I can't buy cells from your store？

A: This is usually unable to provide accurate logistics prices for your country. If you have any demand, please feel free to contact us

Q:Why hasn't my ups or Fedex transportation number been updated?

A: This is normal, because in countries with tariffs, our packages need to pass the customs of your country before they can be delivered to the local UPS or FedEx. Once they pass the customs and update the transportation number, you can usually receive the goods within 3-5 days.

Q:Is the cells I bought balanced?

A: we know the importance of maintaining the consistency of each cell in the battery pack, so we will match and balance all cells to ensure that the internal resistance, voltage and capacity of cells are completely matched and balanced before delivery. This process is very necessary.
