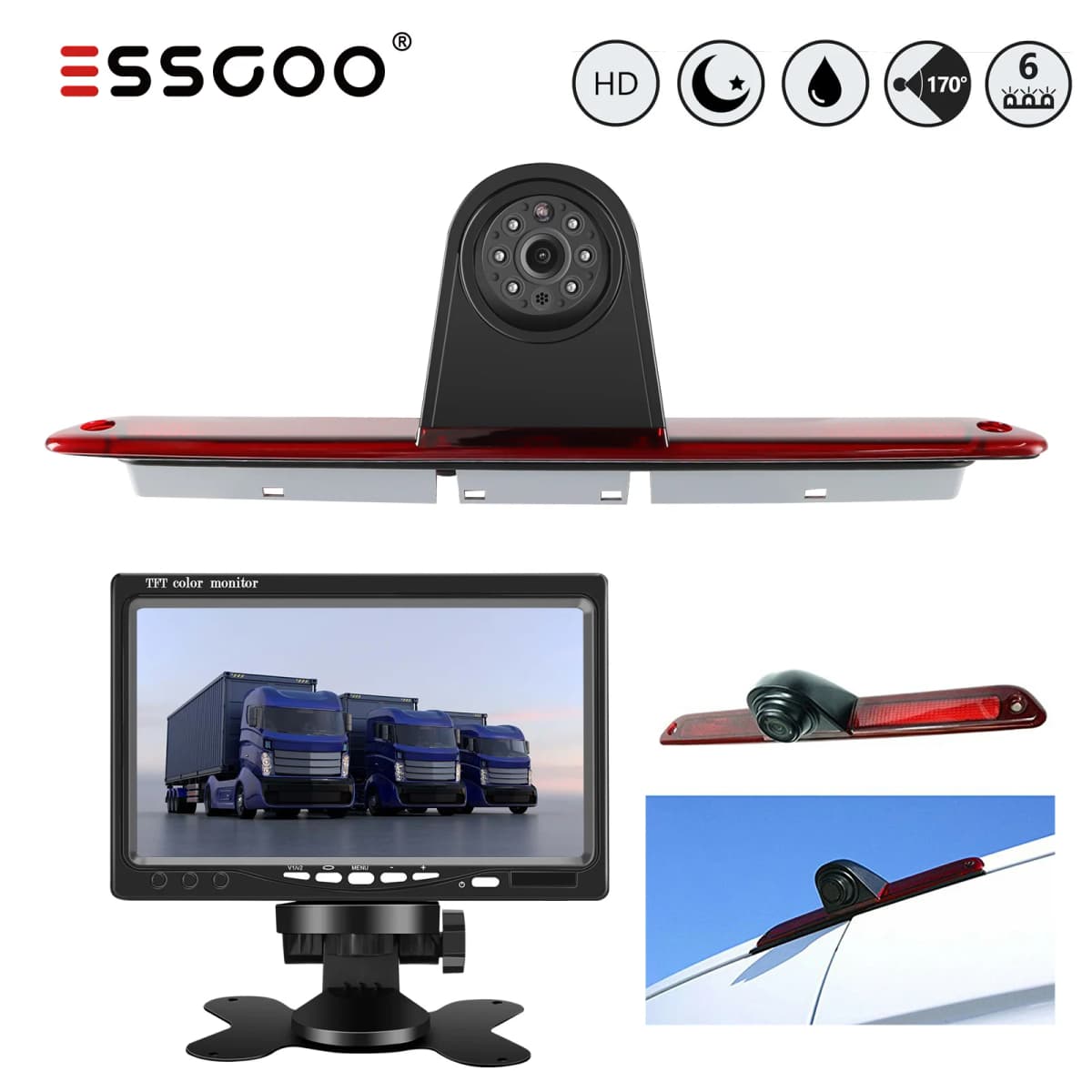

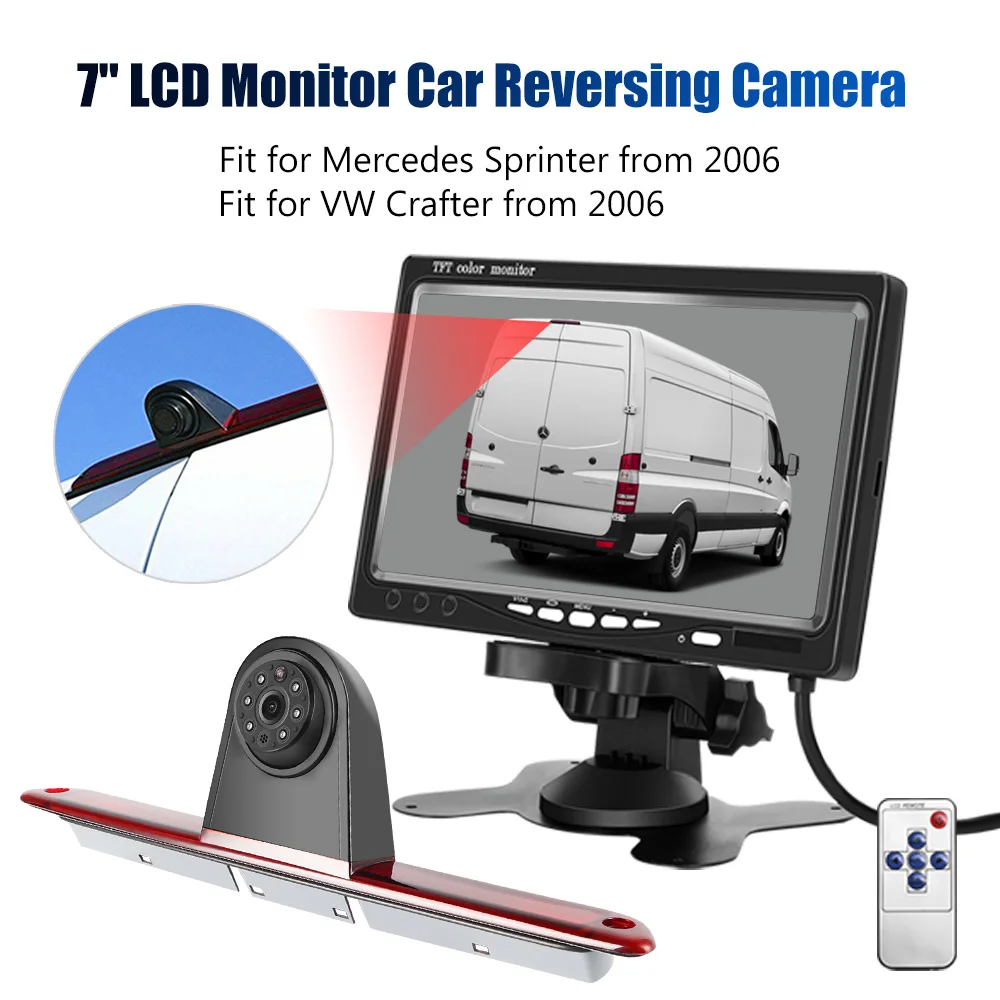

ESSGOO 7" TFT LCD Monitor +Rear View Camera 3rd Brake Light For Mercedes-benz Sprinter W906 Volkswagen Crafter Caravelle T5/T6

Description

Vehicle-specific reversing camera brake light for:

         for Mercedes Sprinter W906 2006-2018

         for Mercedes Sprinter W907 from 2018

         for Mercedes Sprinter W910 from 2018

         for VW Crafter 1st generation 2006-2016

【Set】 Reversing camera van with 3rd brake light (LED lighting) for Sprinter W906 VW Crafter.

【Transporter】 The cameras is the perfect solution in the sprinter class. Optimized camera housing for all vans, Sprinter W906 VW Crafter Reversing camera Supports you in maneuvering your van safely in confusing urban areas or on the campsite.

【Quality camera from CCD】 1/3 color HD CCD sensor, NTSC, resolution 720 x 480 pixels, detection angle: 170 degrees, voltage 12V, Camera lens can be flexibly adjusted for optimal visibility.

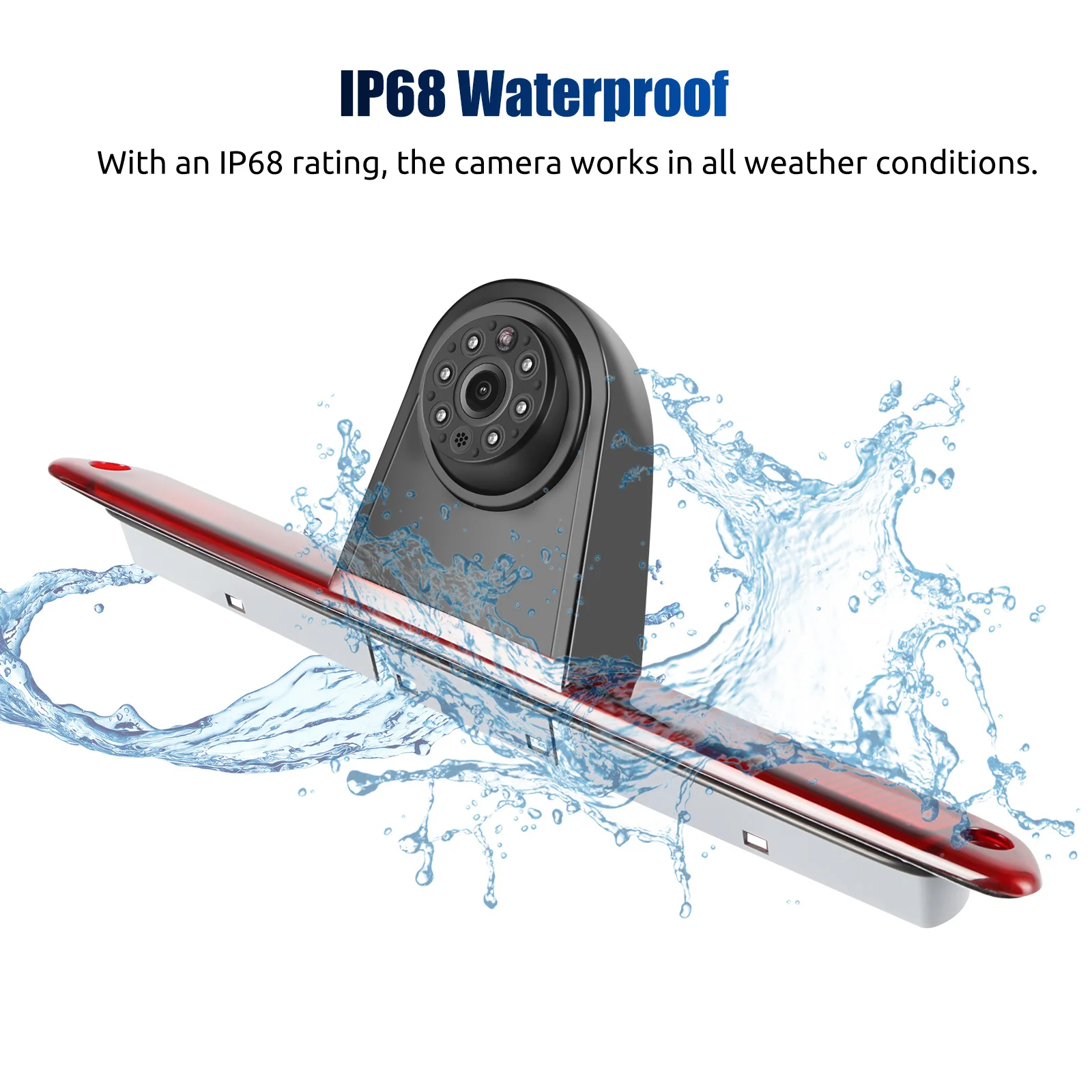

【Installation without Drilling or Caulking】 Top quality with CCD lens. Perfect view even at night. Protection class IP68, waterproof, Viewing angle 170 degree wide-angle lens.

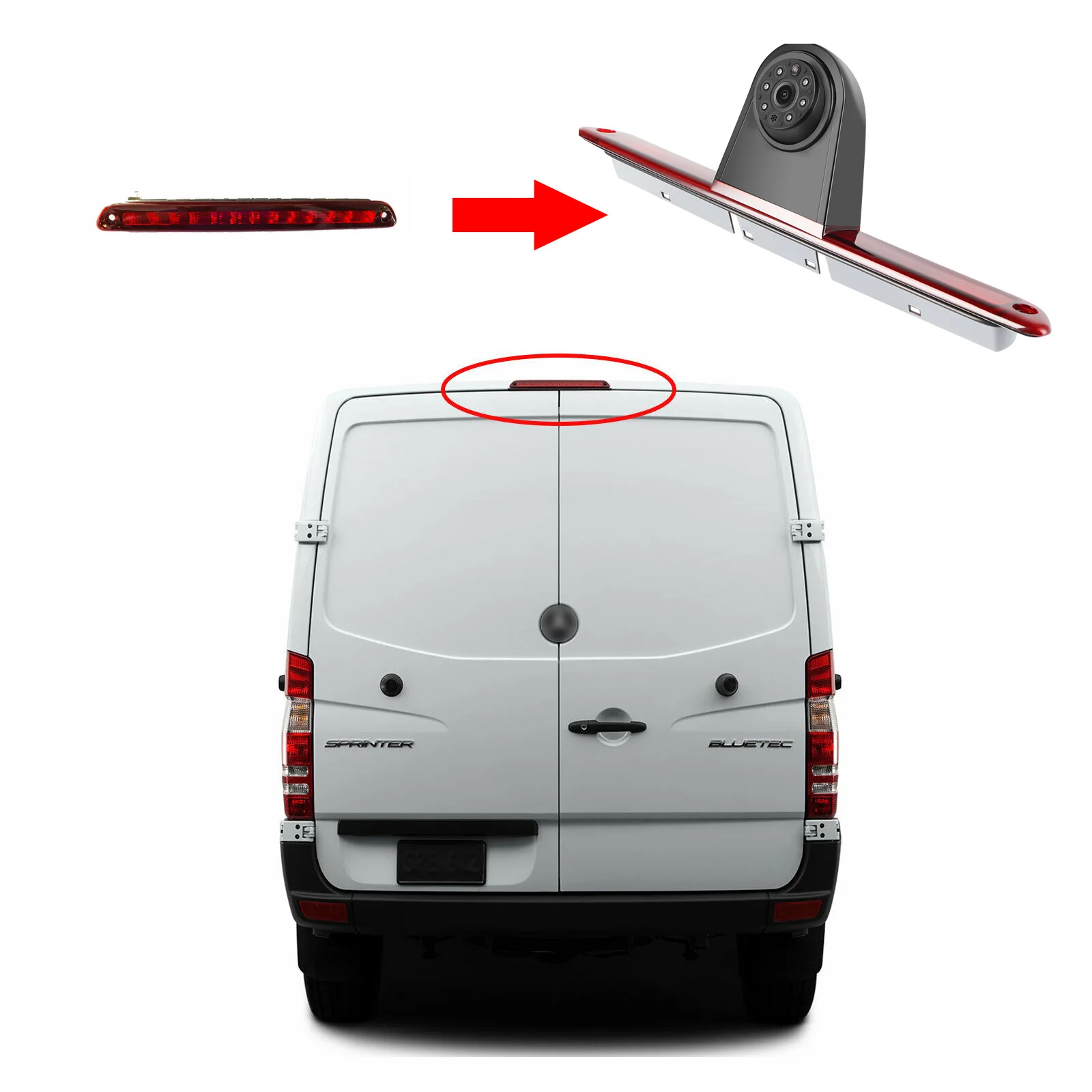

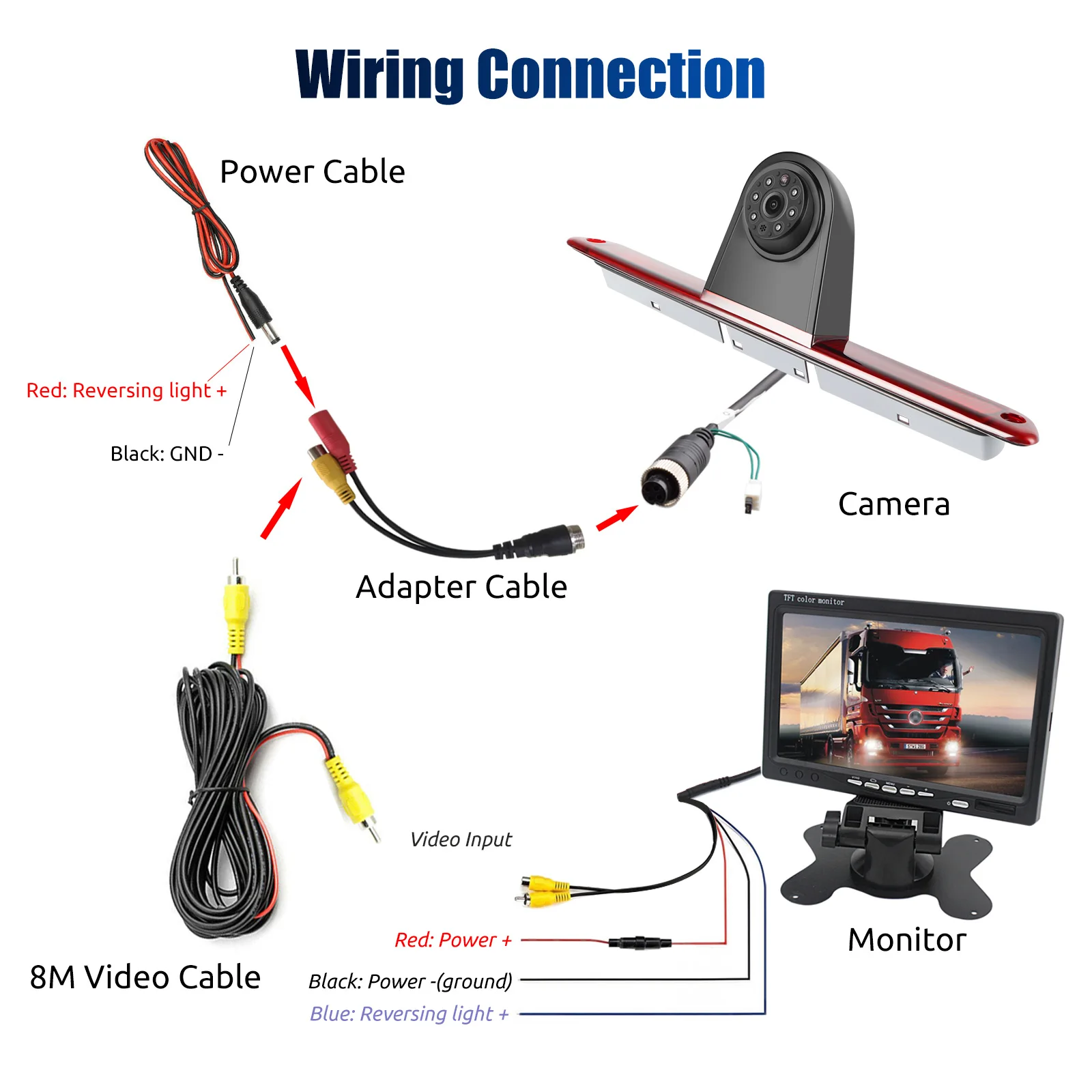

【Easy installation】 Take off the outer cover of the 3rd brake light and insert the special Sprinter W906 VW Crafter rear view camera. The connection cable is routed into the vehicle interior, where the supplied 8m cable with anti-vibration screw plug is connected Easy to install and use

TFT Color Monitor:

Screen Size: 7inch Fitment

Display Mode: 16:9 / 4:3

Video System: PAL / NTSC dual system automatically switches

Pixel: 800 x 480

Imput Power: 24V

Rated power: 6W

2AV input reversing automatic display

Contrast: 350:1

Display Size: 4:3 / 16:9

Working temperature: -4℉ to 140℉ (-20℃ to 60℃ )

Storage temperature: -40℉ to 185℉ (-40℃ to 85℃ )

Brake Light Camera:

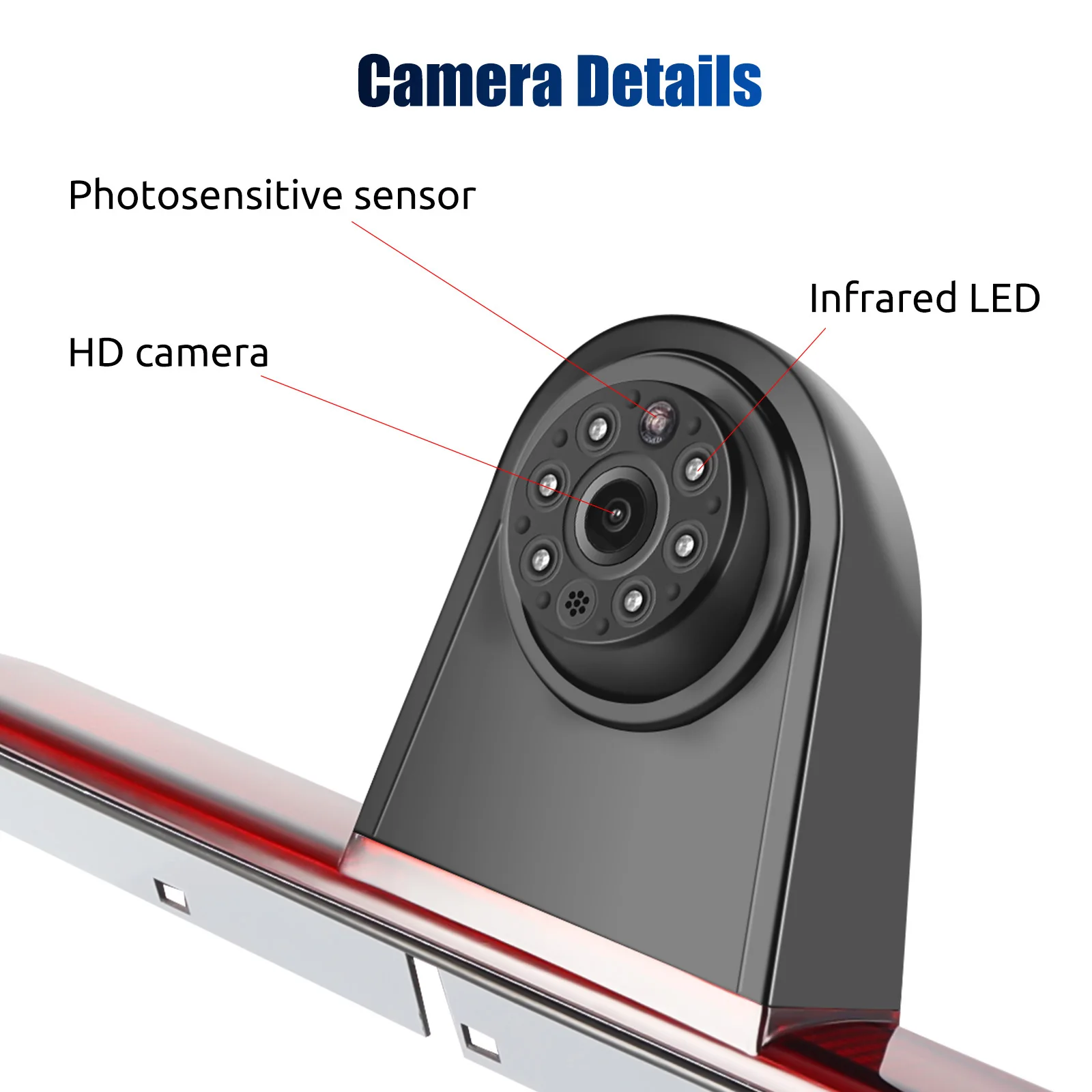

Camera: rear view camera for Sprinter/Crafter

Image sensor: 1/3 PC2099CMOS

Resolution: 720*480 pixels

TV lines: 700TVL

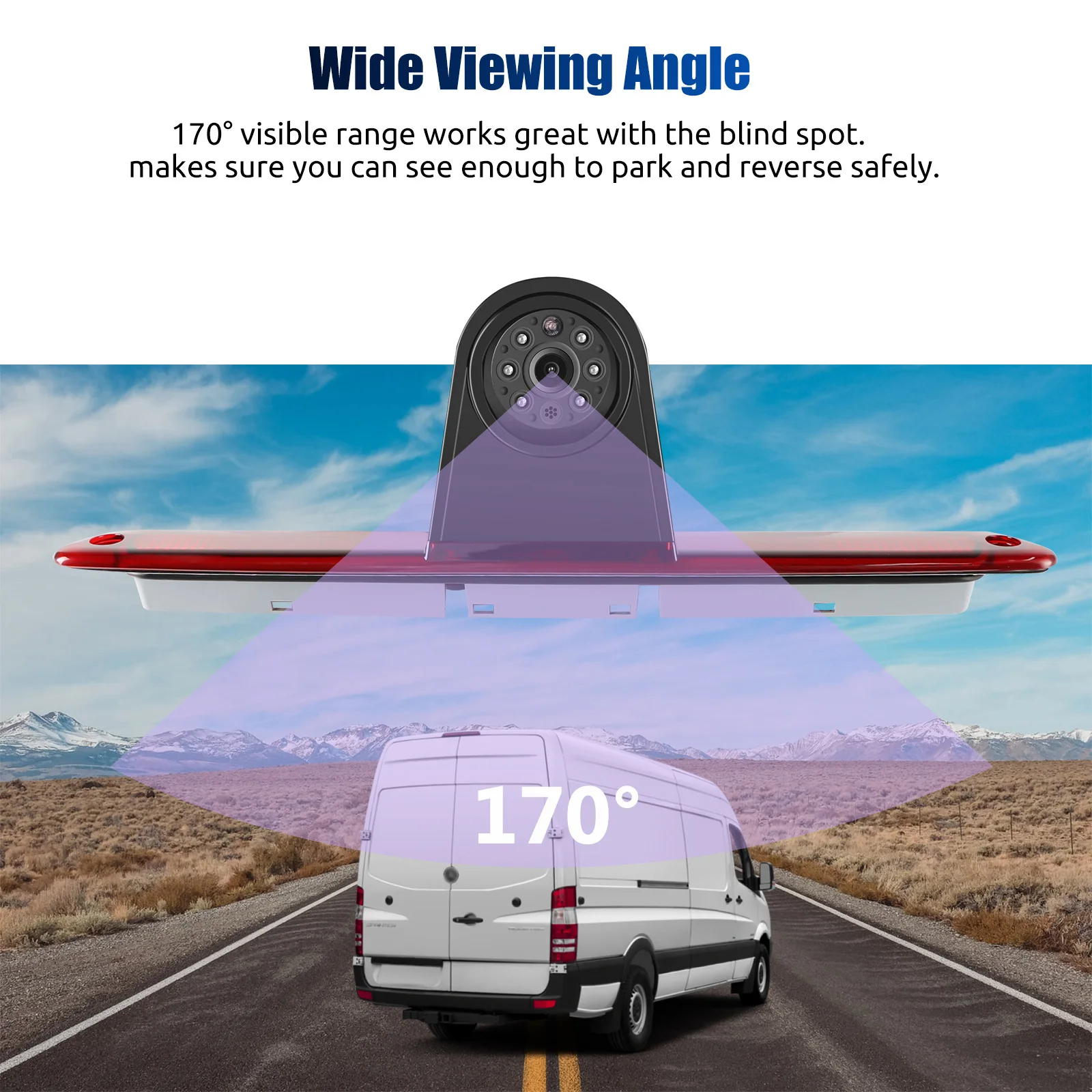

Angle of detection: 170°

Material camera body: plastic

Minimum illumination: 0.1 lux

Video Standard: PAL Voltage: 12V

Ambient temperature range: -20°C ~ 75°C

Power Consumption: <2W

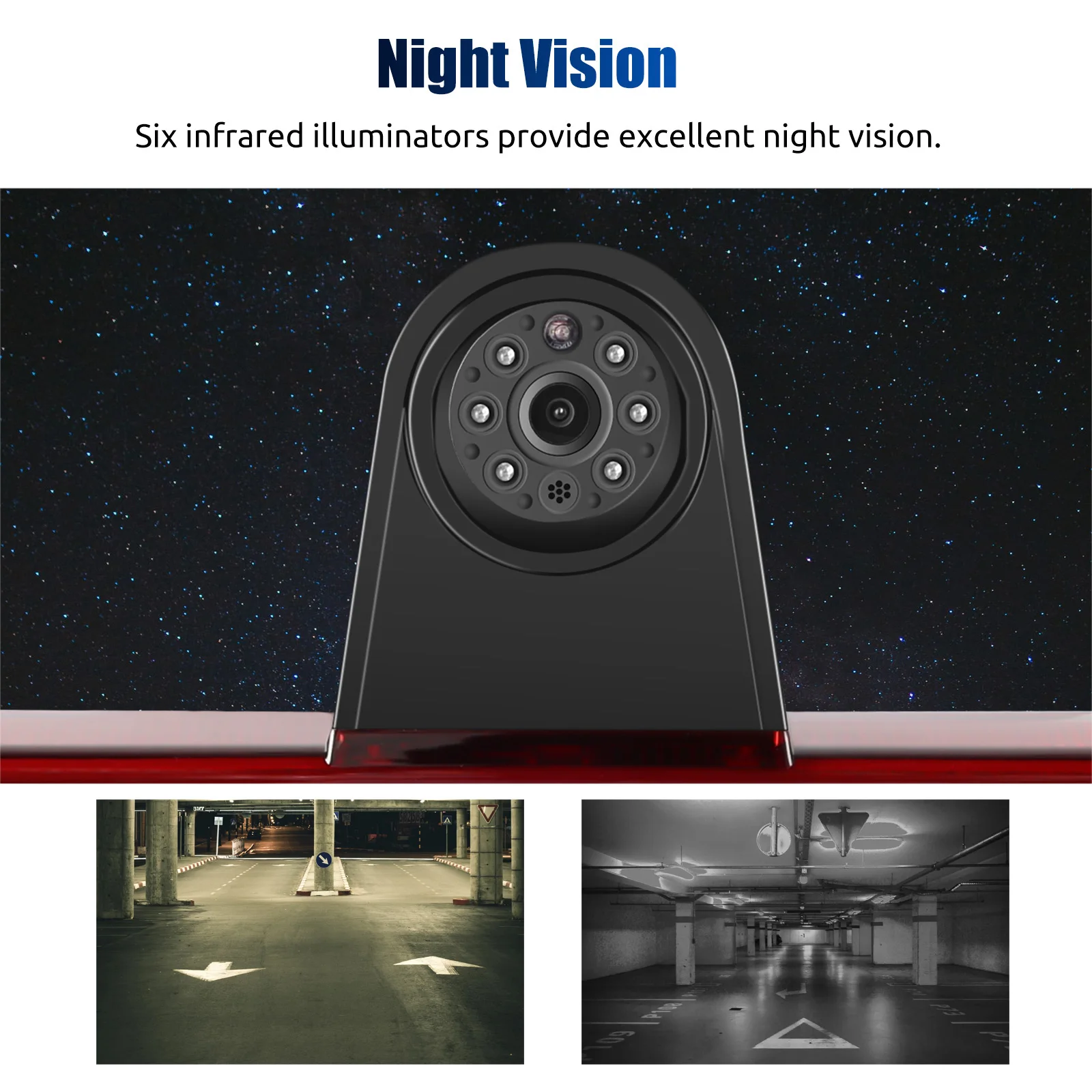

Night vision: 6 infrared diodes with brightness sensor

IP68 splashproof

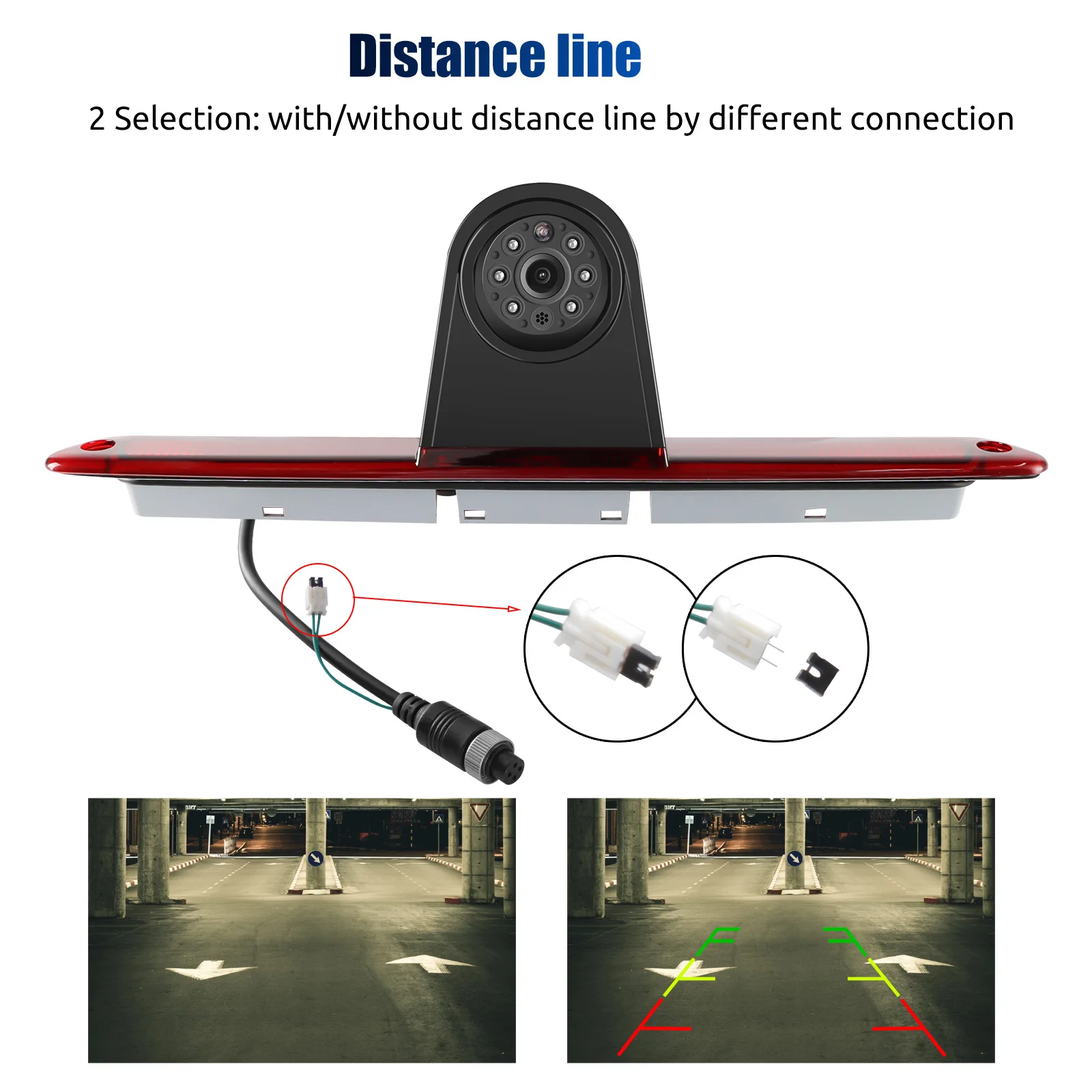

Distance lines: optional

RCA Video Cord: 8m/26.2ft

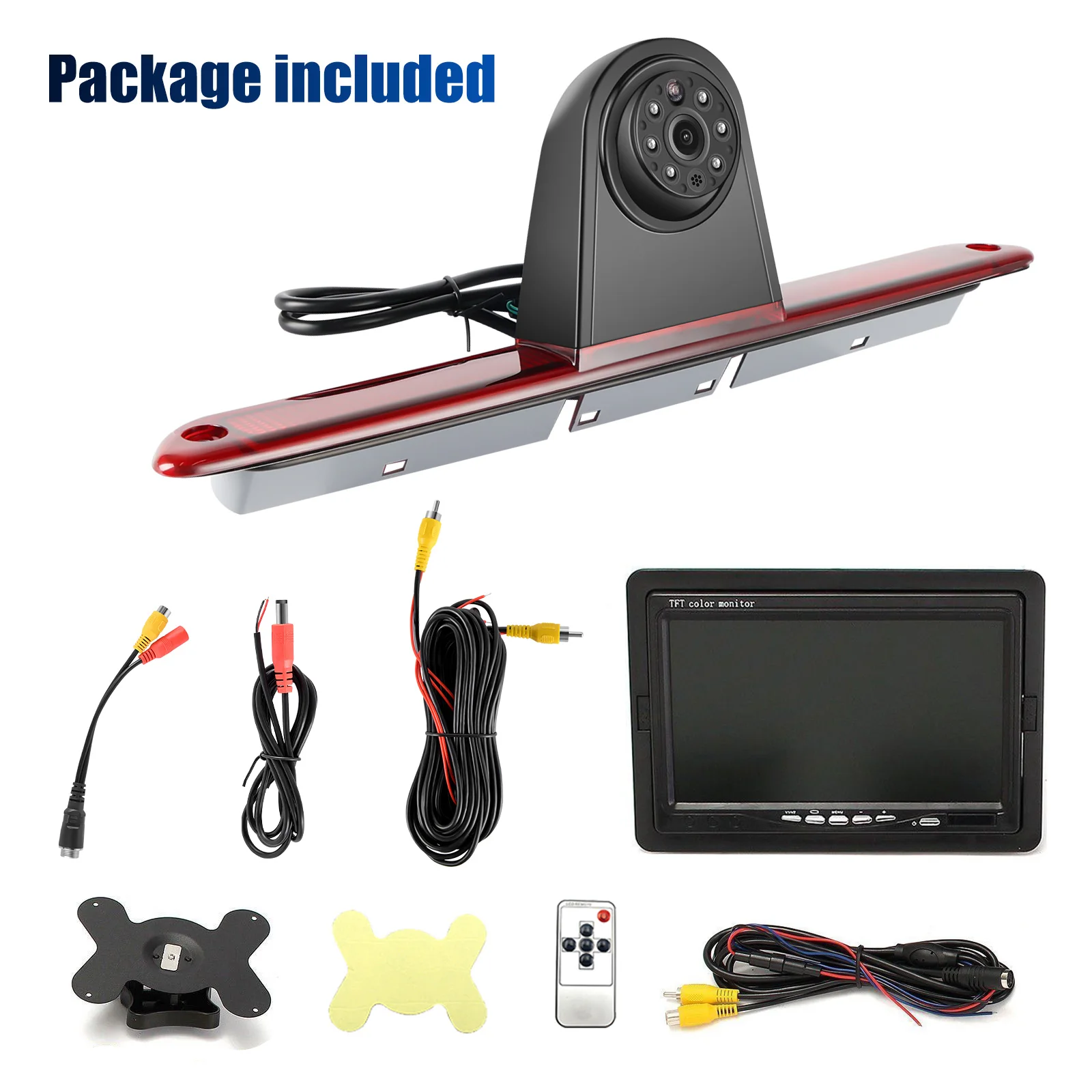

Package Content:

1 x 7" TFTT LCD Monitor

1 x Mounting Plate

1 x Remote Controller(Not include Battery)

1 x Manual

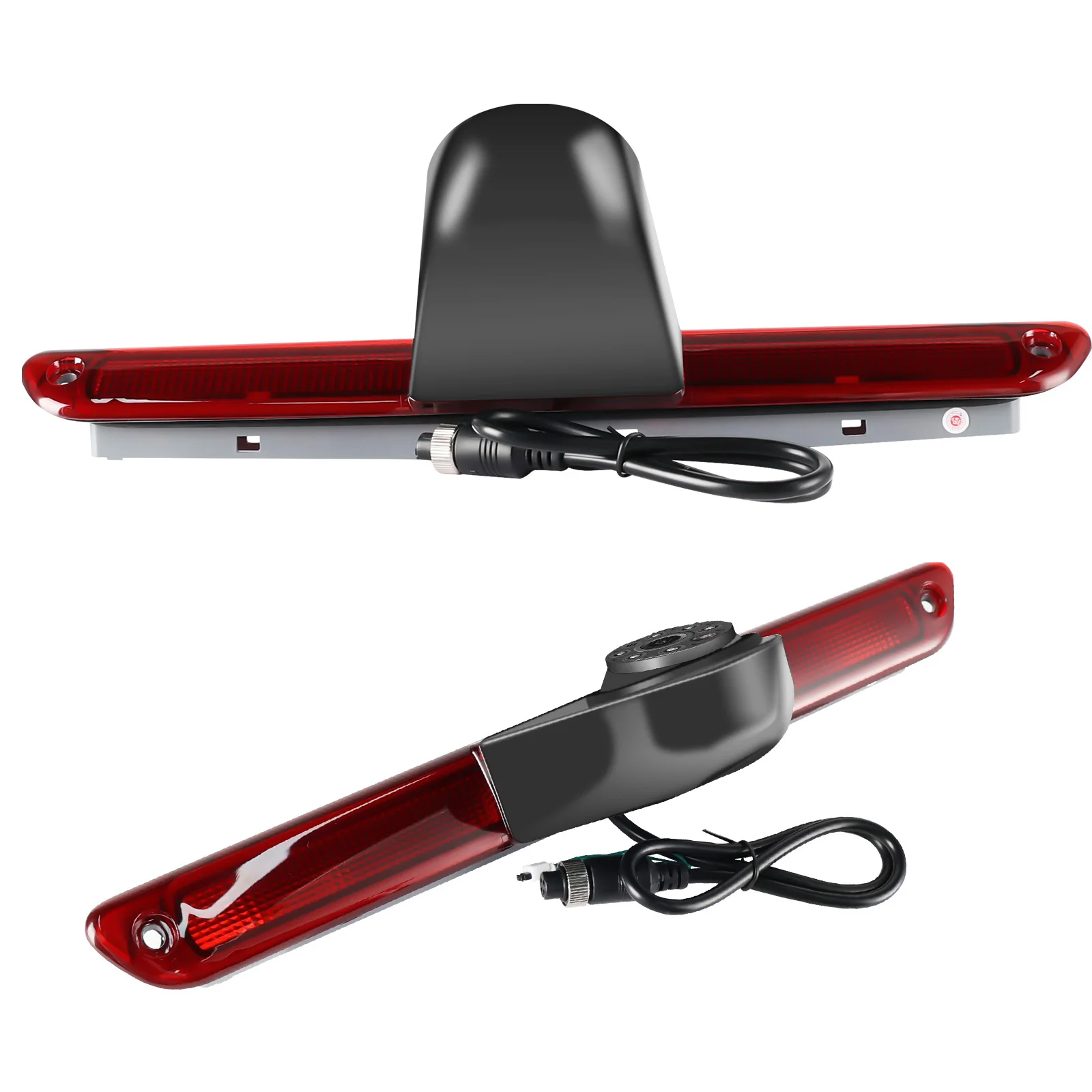

1x reversing camera integrated in brake light housing

1x 8m/26.ft Cable

1x Adapter Cable

1x Power Cable
