V1.42 V1.38 Orange 5 Full Adapters Programming Device Hardware + Enhanced Function Orange5 Newest Version Software V1.38 SN:5C38

Orange5 With Full Adapter Programming Tool Orange 5 ECU Programmer Device Hardware+Enhanced Function

Please Pay Attention:

Now ORANGE5 has optional of different version Simple Version Or Full Set Version to choose from. Please check different Color options when order, and choose the RIGHT configuration you need.

Type Version: V1.38  / V1.42

Each hardware type Software Does not Support Update.

Language: English,Russian,Chinese

Systems: WIN 10 64bits / WIN 7 32bits .

Mostly supports WIN 10 system . DO NOT supports old system WIN 98 or WIN XP or WIN 8. Do not supports VM System.

Please Pay Attention:

The default software version please never try to use higher version or update online, or device will get locked.

Orange5 ONLY connect via USB power supply 5V voltage. It can not connect external power supply via 12V ,otherwise it will burn, always shows corrupt and kill the board. And Please do not update .

V1.38 and V1.42 both supports MTRK licenses

but need depends on details chips model as reference  and test in real operation.

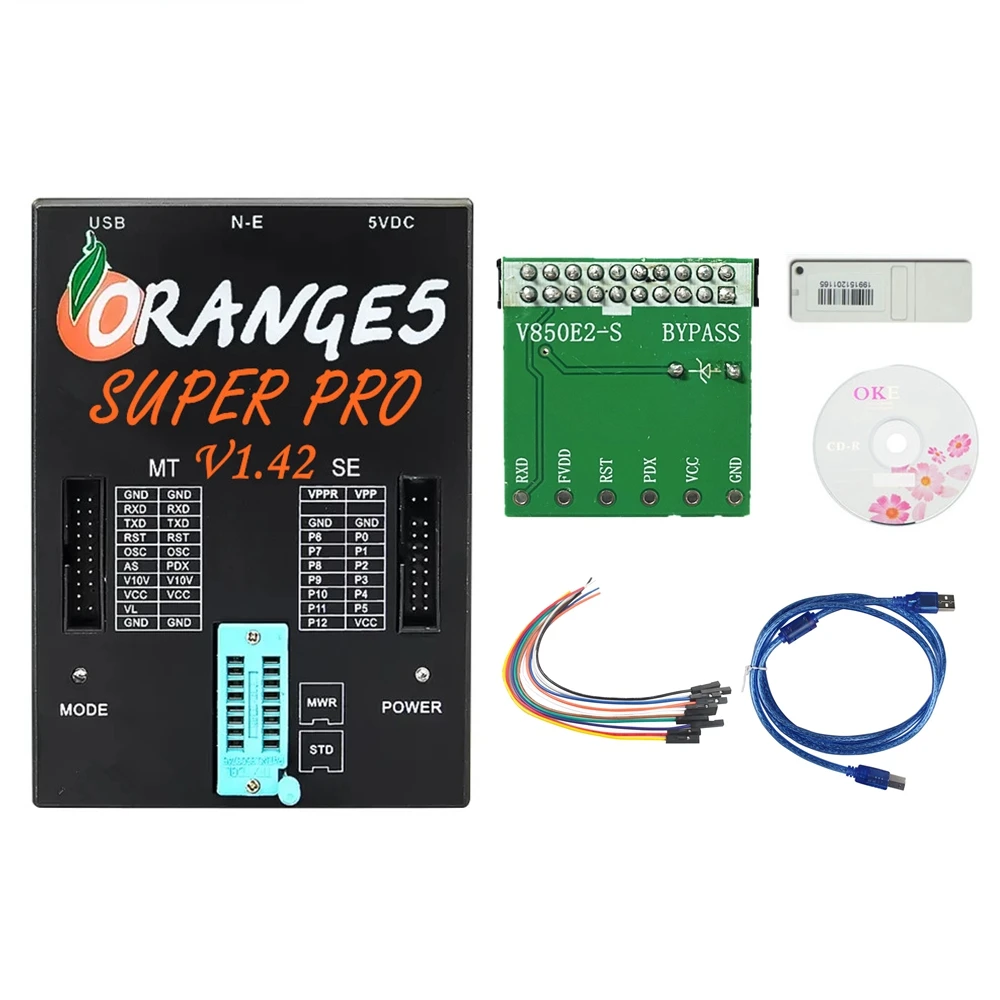

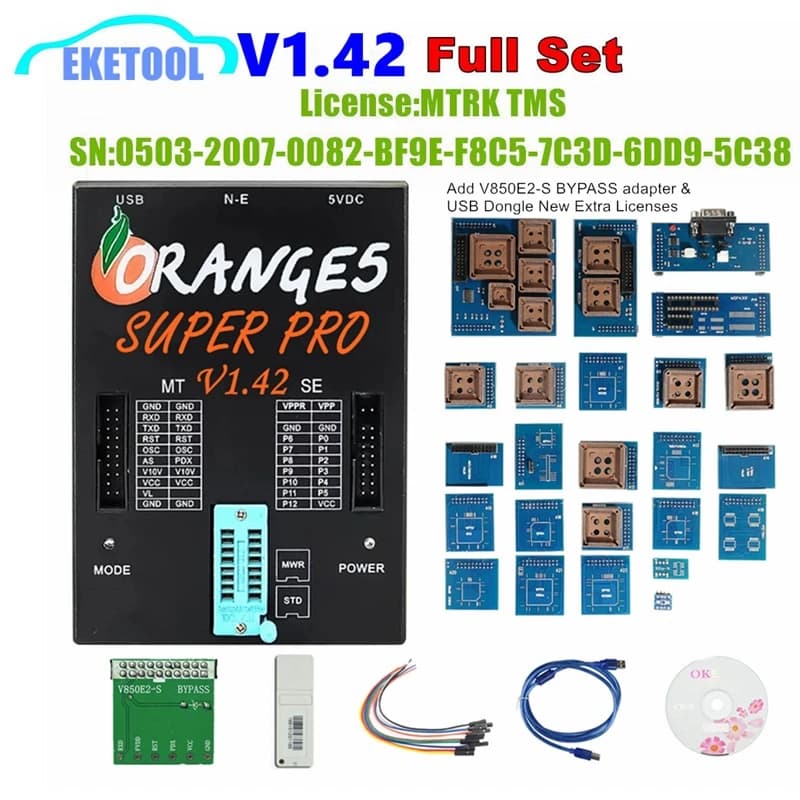

New V1.42 With USB Dongle and V850E2-S BYPASS adapter

Authorization: MTRK TMS

SN: 0503-2007-0082-BF9E-F8C5-7C3D-6DD9-5C38

Below are V1.42 supports list:

V1.38 New Released With Full Licenses and V1.38 included all Function of All previous version (V1.34/V1.35/V1.36/V1.37).

Authorization: MTRK TMS

SN: 0503-2007-0082-BF9E-F8C5-7C3D-6DD9-5C38

Newest V1.38 Add New authorizations and Supports New ST Chips

Compare with V1.34/V1.35 plus/V1.36, below are NEWEST V1.38 Add all authorization:

V1.38 supports the latest ST and integrates the functions of the previous V1.35 PLUS and V1.36/V1.34.

Description:

Orange 5 programmer is a professional programming device for memory and microcontrollers. Unique feature of the current series programmers is built-in macro language for writing down protocols, which gives fast and easy capability to add new types of micro schemes, precisely meeting manufacturers' requirements to read/write algorithms.

Orange5 Technical Info:

* USB power supply (USB2.0/3.0)

* Universal easy to plug panel ZIF16 for EEPROM

* Control of contacts in the sockets

* Two expansions compatible with Orange4 and Omega MTRK

* Protection against overcurrent

* Overload voltage protection

* Two types of power supply: Standart (USB) and enhanced (USB + external power supply)

* Three 3 adjustable voltage and current control: Voltage of power supply ( 2.0...5.0V ), programming voltage (2.0...21.0V), additional static 10V for microcontrollers

* High-speed bidirectional pin drivers with adjustable voltage (2.0...5.0V)

* Wave cycle generator with frequency ( up to 24 Mhz) and out voltage(2.0...5.0V) adjustment

* Capability of functional emulation of class CDC USB devices

* Built-in 32-bit virtual machine

* Supported interface: I2C, SPI, MicroWire, JTAG, UART, BDM, ISO7816, K-LINE (via adapter), CAN (via adapter)

* Programmer is encolsed in a functional box. Supported working under Windows XP/7 32bit. [*Win8.1]

- Installation and Work with Orange-5 under Windwos 7 and Windows 8.1

CnCterm - Terminal program for work with COM ports.

Feature:

Supports any COM ports, incuding virtual ones from 1 to 20

Works with text (ASCII) and HEX mode

Creating a list of commands that allows editing and fast sending

Fine-tuning the exchange rate

Saving files including command and port settings.

Saving incoming data in binary files

File transfer via serial port.

Delay settings for bytes and blocks

"Echo" mode

Delay settings between incoming data

Managment of DTR, RTS chains, visualising DSR, CTS, CD, RI

Program doesn't need to be installed

Supports Orange5 programmer in emulation mode.

Orange5 Programmer Chip List:

Immo HPX 9V0

EEPROM:

MicroWire,4Wire,Adesto,AKM,Altera,Amic,Atmel,BOSCH,Catalyst,Chingis,Dallas/Maxim,EON,ESMT,EXEL,Fairchild,Fujitsu,GI,GigaDevice,Grundig,HOLTEK,Hynix,ITT,KHIC,Macronix,MicroChip,Micron,Mitsubishi,Motorola,NEC,NSC,Numonyx,OKI,PCT,Philips,Pioneer,PMC,Ramtron,Rohm,Samsung,Seiko,Siemens,Sony,Spansion,SST,ST,Winbond,Xicor,XUSSR,YMC,MCU,Atmel,Infineon,MediaTek,MicroChip,Nordic,NSC,Philips,Renesas,Samsung,SiLabs,ST,TI,Motorola, Freescale,MC68HC11,MC68HC12

Program with Adapter.

Licenses for M08V, TMS370, Renesas V850 are optional.

For detail chip type model list,pls contact us ,we will send you list link.
