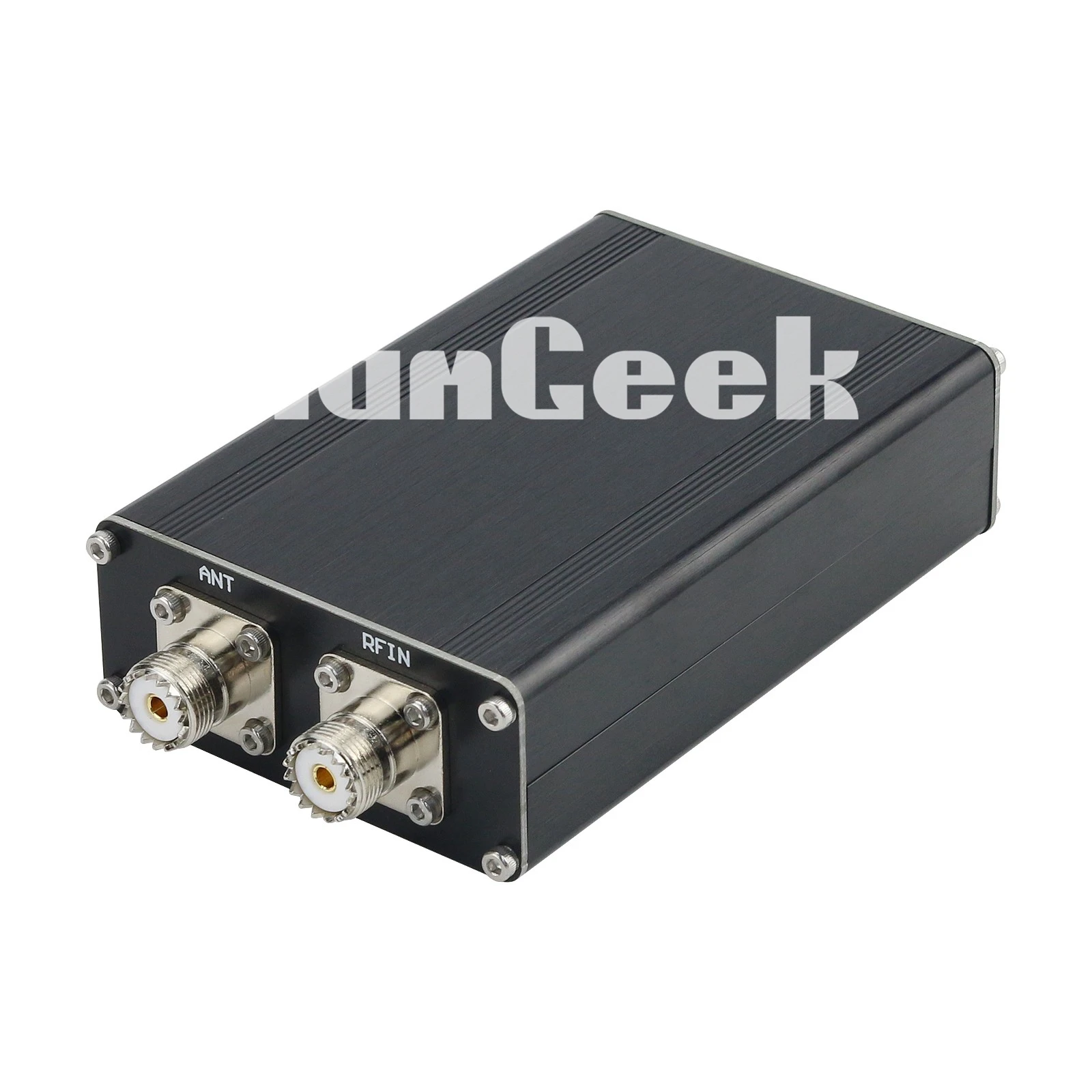

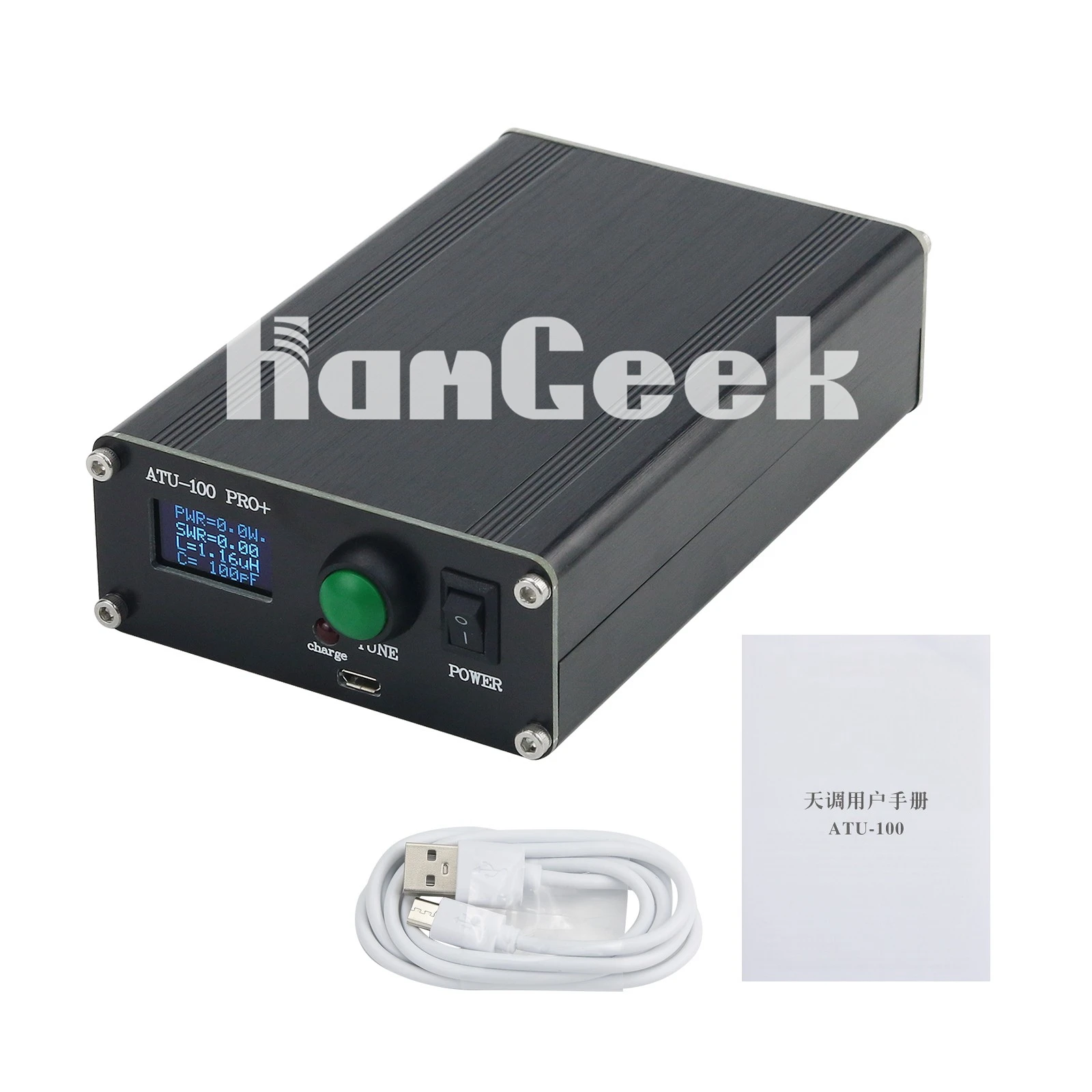

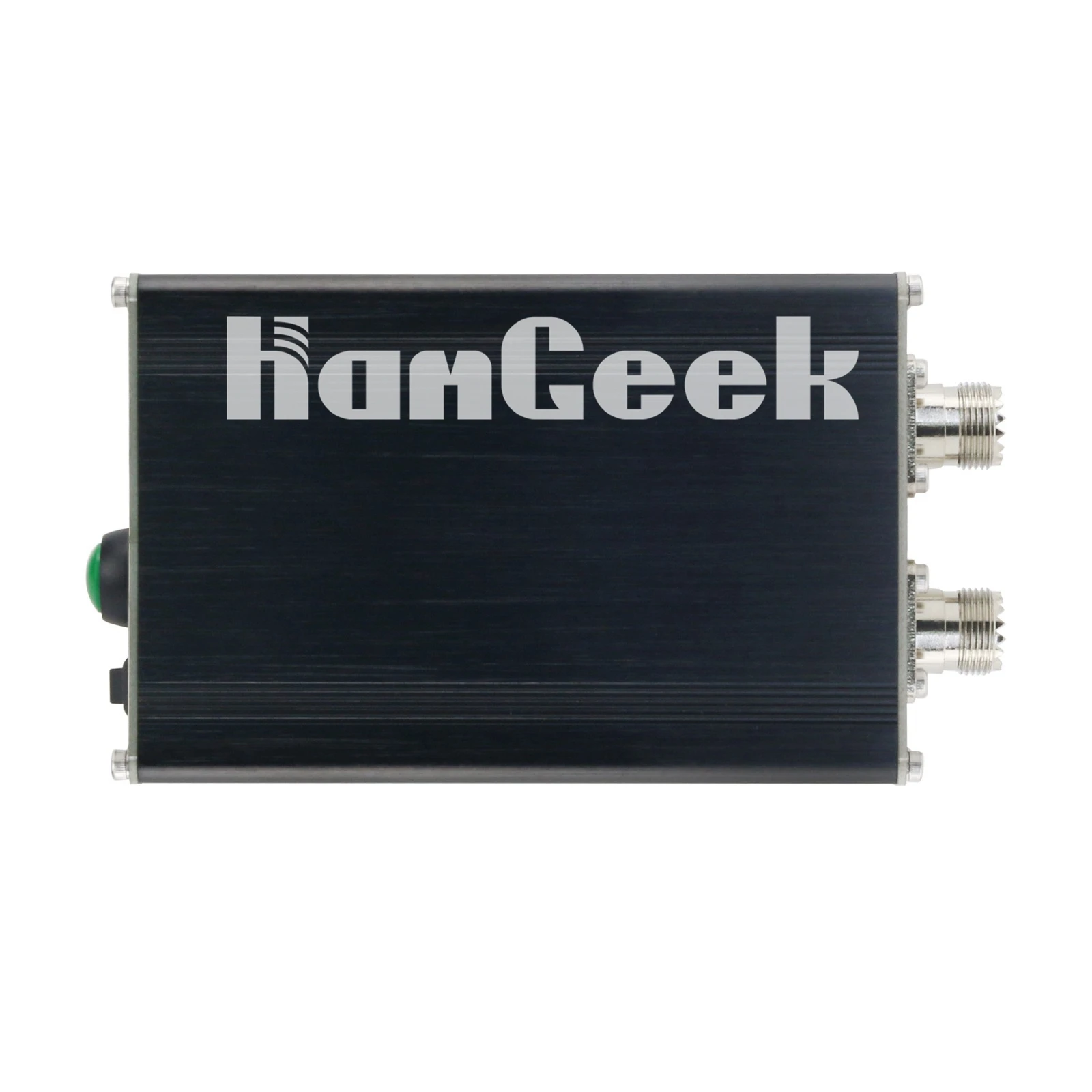

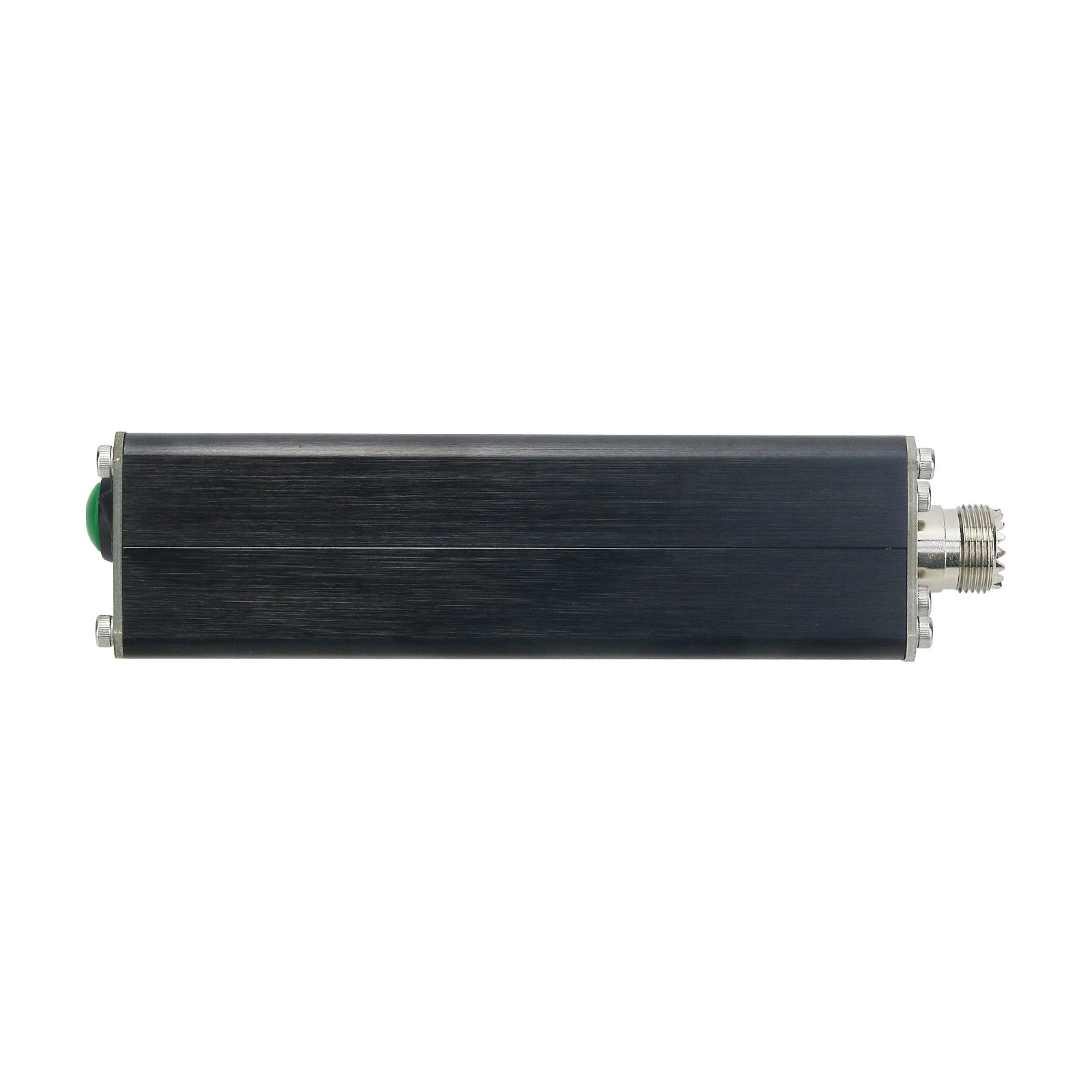

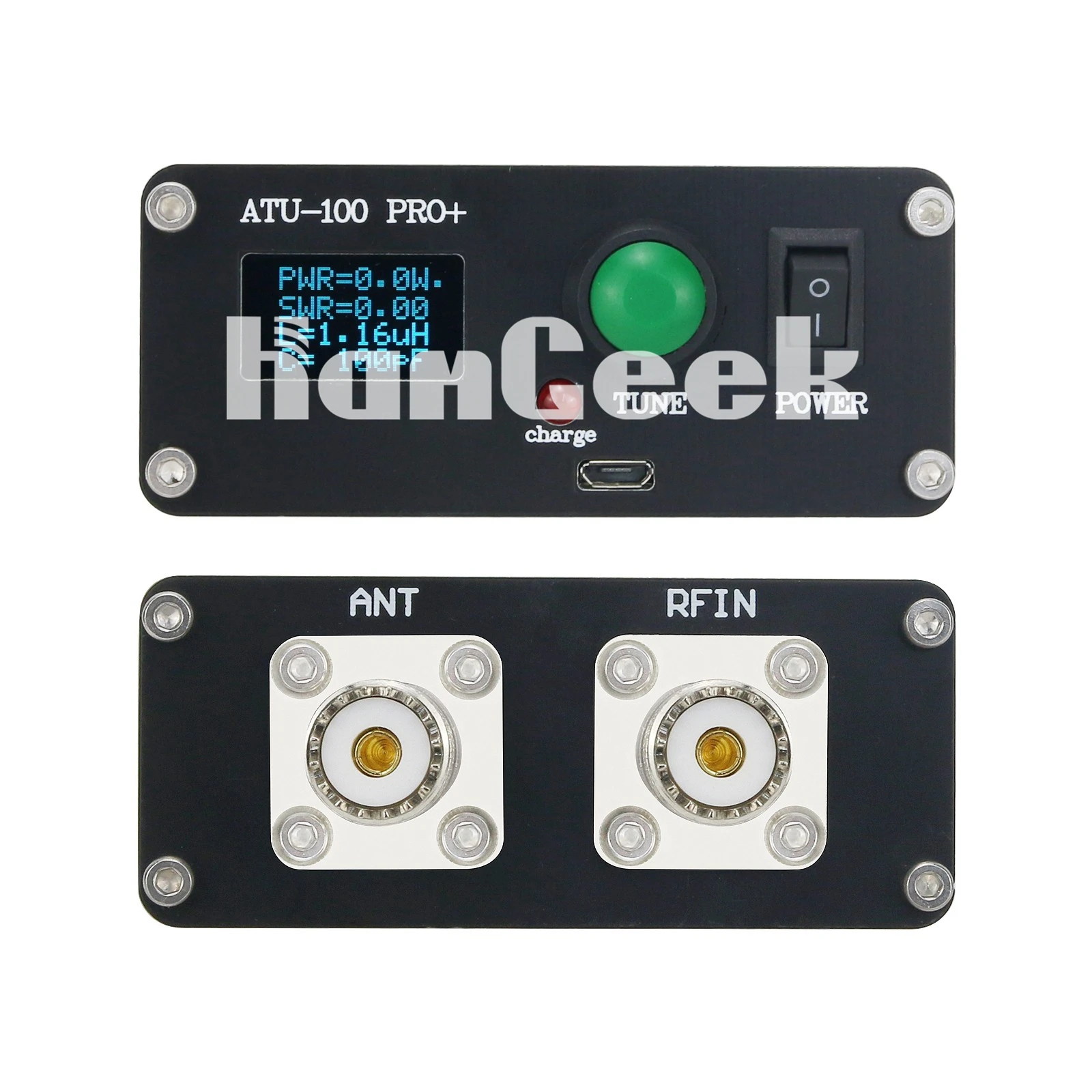

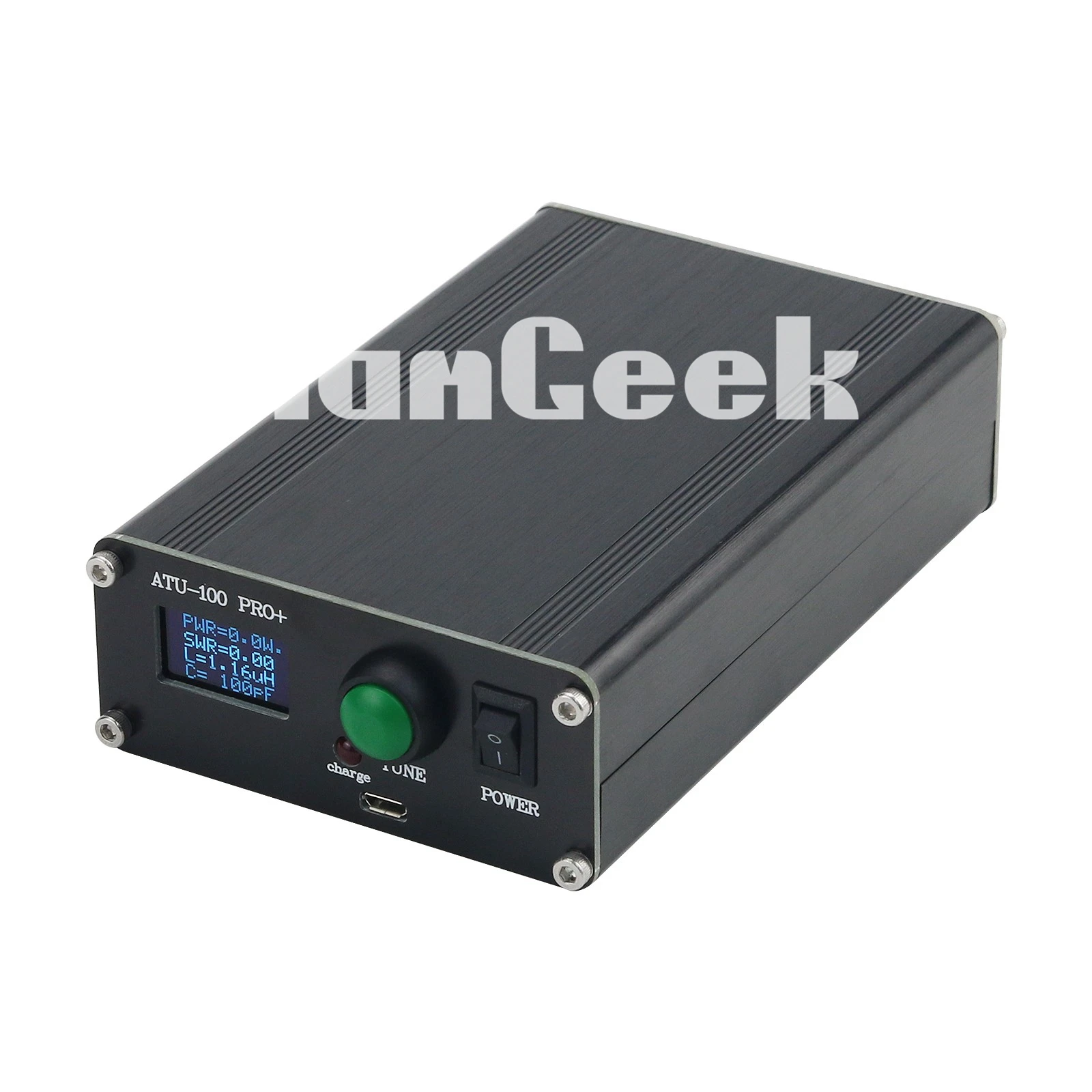

Hamgeek Automatic Antenna Tuner 100W 1.8-50MHz w/ 0.96-Inch OLED Display ATU100 Assembled with Shell

Hamgeek Automatic Antenna Tuner 100W 1.8-50MHz w/ 0.96-Inch OLED Display ATU100 Assembled with Shell

Features:

- 0.96-inch OLED display
- Frequency 1.8-50 MHz
- Power supply voltage range: 10-15V DC
- Maximum current consumption: 300 mA
- Maximum working power: 100W
- Maximum possible measured power: 150W
- 1W: It is necessary to start setting the minimum power
- Minimum possible measured power: 0.1W
- Step for measurement on powers under 10W: 0.1W
- Step for measurement on powers above 10W: 1W
- Power measurement accuracy: 10%
- Specified maximum inductor: 8.4 uH capacity
- The minimum installation step of inductor: 0.05μH
- Maximum installation capacity: 1870 pF capacitor
- Minimum installation step: 10 pF

Package Included:

-1 x Automatic Antenna Tuner with Shell

Note:
- The product is assembled and with shell.
- Due to its design, stable standing wave value cannot be measured when the power is lower than 10W, so the adjustment work cannot be guaranteed. QRP radio users please not purchase the product.
