Manual Shoe Repair Machine, Leather Sewing Machine For Nylon Thread, Silk Thread, And Cotton Thread

Anti-slip Legs: The three legs with anti-slip pads provide better stability and ensure smoother sewing, as well as better protection for your floor, making it a good helper for old and long-term shoe machines with locks.

NeedleCollet: It serves to hold the needle in place, thus giving you a tighter and more precise stitching alignment.

 Wire Machine: You can place the used bobbins on it for coiling, thus providing you with more convenience in your work.

Application

It can be widely used in homes, stores, etc., for sewing various sizes of cloth shoes, rubber shoes, leather shoes, travel bags, raincoats, etc., and is suitable for nylon thread, silk thread, and cotton thread.

How to Use

1. Assemble the tripod at first. Put the main body on the tripod. Make sure it is the same angle as the two corners.

2. Swing the nylon thread in the studs.

3. These card slots fit with the locks. Assemble the crank. Rotate the handle at ease to start the machine.

4. Thread through the route step by step.Easy to pull the string when it is finished.

5. Use the screwdriver to pry open the base. Take out the small coil and thread it.

6. Observe whether the needle has touched the operating pieces. Use the wrench to twist the needle when it does touch.

7. Alter the sewing space by controlling the spin button. Choose your desired space clockwise or counterclockwise.

Specification

Model: JX-JJ

Material: Iron

Color: Black

Process: Electroplating, Spraying

Type: Semi-manual

Maximum Stitch Width: 6mm/0.24in

Maximum Cutting Thickness: 3-5mm/0.12-0.2in(Actual Cutting Thickness Depends on Material)

Assembly Required: Yes

Mount Type: Floor Standing

Number of Items: 1

Gross Weight: 11kg/ 24.25 lbs

Net Weight: 10.5kg/ 23.15 lbs

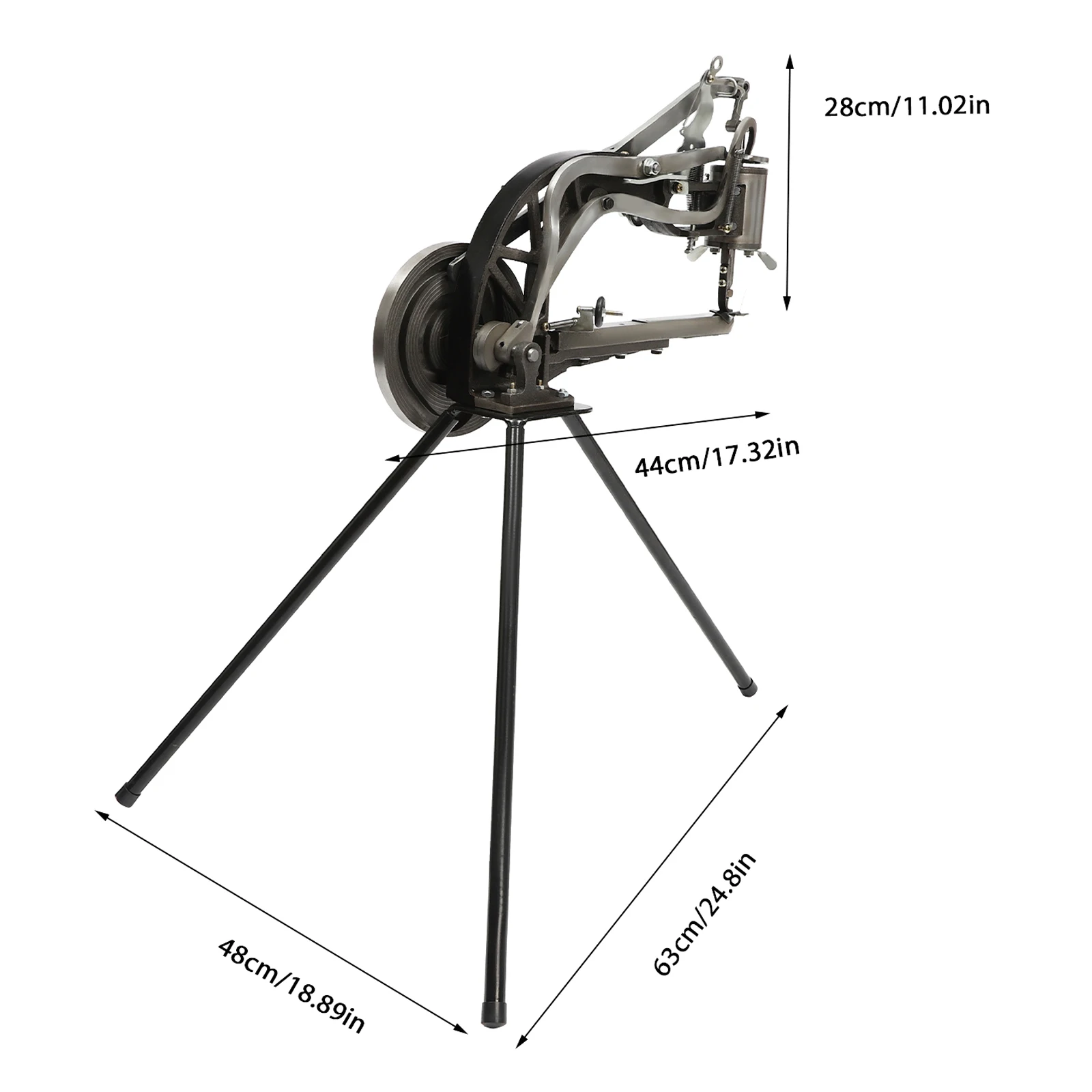

Product Size(L*H): 44*28 cm/ 17.32*11.02 in

Stand Size: 63*48cm/24.8*18.9in

Package Size: 48*13.5*30.5 cm/18.9*5.31*12 in

Package Included

Package Included
1 * Hand Cobbler Shoe Repair Machine
1 * English Manual
All Accessories for Installation

Key Features

Build to Last: This product is made of high-quality iron, and the surface has been electroplated and painted, with high hardness, high abrasion resistance, anti-corrosion, anti-rust performance, and long service life.

Easy to Assemble: The installed host part, the English manual, and complete installation parts can help you finish the installation quickly and accurately.

360° Adjustable Direction: The 360° adjustable direction universal wrench, foot, and needle enable you to adjust your working route at any time. You can put a tall boot on and sew a full circle or something else without rotating the boot.

Manual Benefits: The hand crank operation allows you to have a good grasp of the strength and accuracy of the machine operation. You can control the speed at will and adjust it at any time, which is ideal for DIY. You can pause it as often as you need to, and at the same time, it allows you to access places that are not accessible to most machines.

Easy to Operate: The convenient presser wrench can control the rise and fall of the presser foot by controlling the upper and lower plates (the presser foot lifts when the upper plate is under pressure, and the presser foot lowers when the lower plate is under pressure). The ergonomic handle is easy to grip, thus making hand cranking easier. At the same time, the well-made bobbin makes the lines tighter and the special turntable operation is easier to use.

Ingenious Design: The presser plate allows you to adjust the tension of the cotton thread and you can adjust the stitch length at will by turning the screw up/down (up to 0.24in width) to optimize the curvature of the spindle to reduce friction, and the new spindle shape makes the machine run more smoothly, improves roughness or stuck bearings, and makes the product look better.

Ideal Gift: This machine is not only practical but also has a simple and fashionable appearance, making it an ideal gift for DIY enthusiasts, mothers, and friends.

Protective Packaging: To prevent the product from being damaged during transportation as much as possible, this product uses foam that can effectively resist normal compression and drops.

Good Customer Service: Communication is the best way to solve problems. If you encounter any problem after purchase, please contact us in time before opening or unpacking the box. We will do our best to solve the problem for you.
