360Camera 2Din Android 13 Car Radio For Renault Logan Sandero/Lada Largus Car Multimedia GPS Carplay Intelligent autoradio SWC

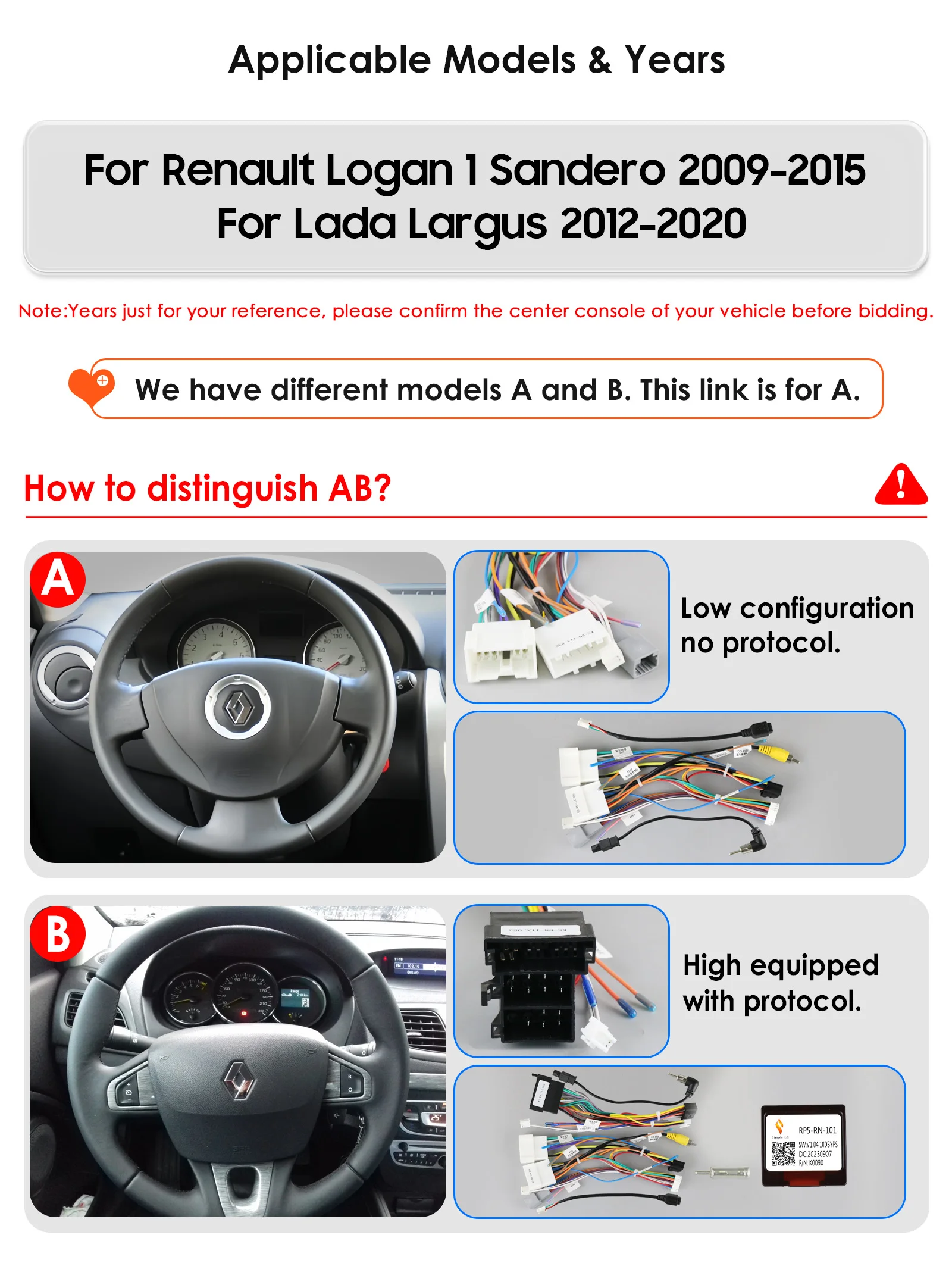

Applicable Models & Years

for Renault Logan 1 Sandero 2009 2010 2011 2012 2013 2014 2015

for Lada Largus 2012 2013 2014 2015 2016 2017 2019 2020

Note:

1. type A without canbus box ; Type B included canbus box

2. Compatible list just for your reference ,please confirm shape & size of certer console before bidding.

>Impotant Notice as follows:

① All products have been passed strict quality test before shipment, make sure high quality;

② Please write your full name and correct address with zip code when you order.

③ Please check your original car radio size and appearance & its compatible list with the Notice details before make a order bid to avoid mistake; if needs other adapter for installed which needs to order separately except the description accessories picture shows.

④ our item not includes installation instructions except the rear camera instruction file, but you can contact us on order chat if needs helps for installation;

⑤ Professional installation is necessary,the car maintenance store is the best choice for you;

-----> Basic functions: Android 12/13 + 9 inch Display Screen + Quad Core 1.2GHZ (Eight core UIS 7862A 1.8Ghz / UIS 7862S 2.0Hhz optional)+ DDR3 1GB Flash (2GB/3GB/4GB/6GB/8GB optional) + 16 GB Memory (32GB/64GB/128GB optional) + WIFI (4G Network optional)+ Mirror link+ Steering Wheel Control + RDS+DSP(optional)

----->Special functions:

1) Plug and Play: Radio' power cable is pin to pin, easy to install;

2) Built-in Carplay/ Android Auto: P2-CP/P3-CP/W1/S1/S2/S4/S6/S8 version supporting, just use your phone cable connect it, stable and easy to use;

----->Optional accessories:

1) AI Voice Control: just say the command word control the radio without hands, make drive more safe;

2) ADAS DVR Camera, Tire Pressure Monitoring, OBD2, External Microphone, RCA cable; 3) If the Car Original Wire connectors is special(not the same as our accessories Pin) which needs to order separately adapter for install.

This list shows the S series Model ,The other item picture not show on this description list ,but you can check the details on follow first picture shwos its functions ,Please choose the model you need before bidding.

 Smart Car Infrtainment: AI Voice Control System Open safe Driving

Car Model: This unit will fit the following car model

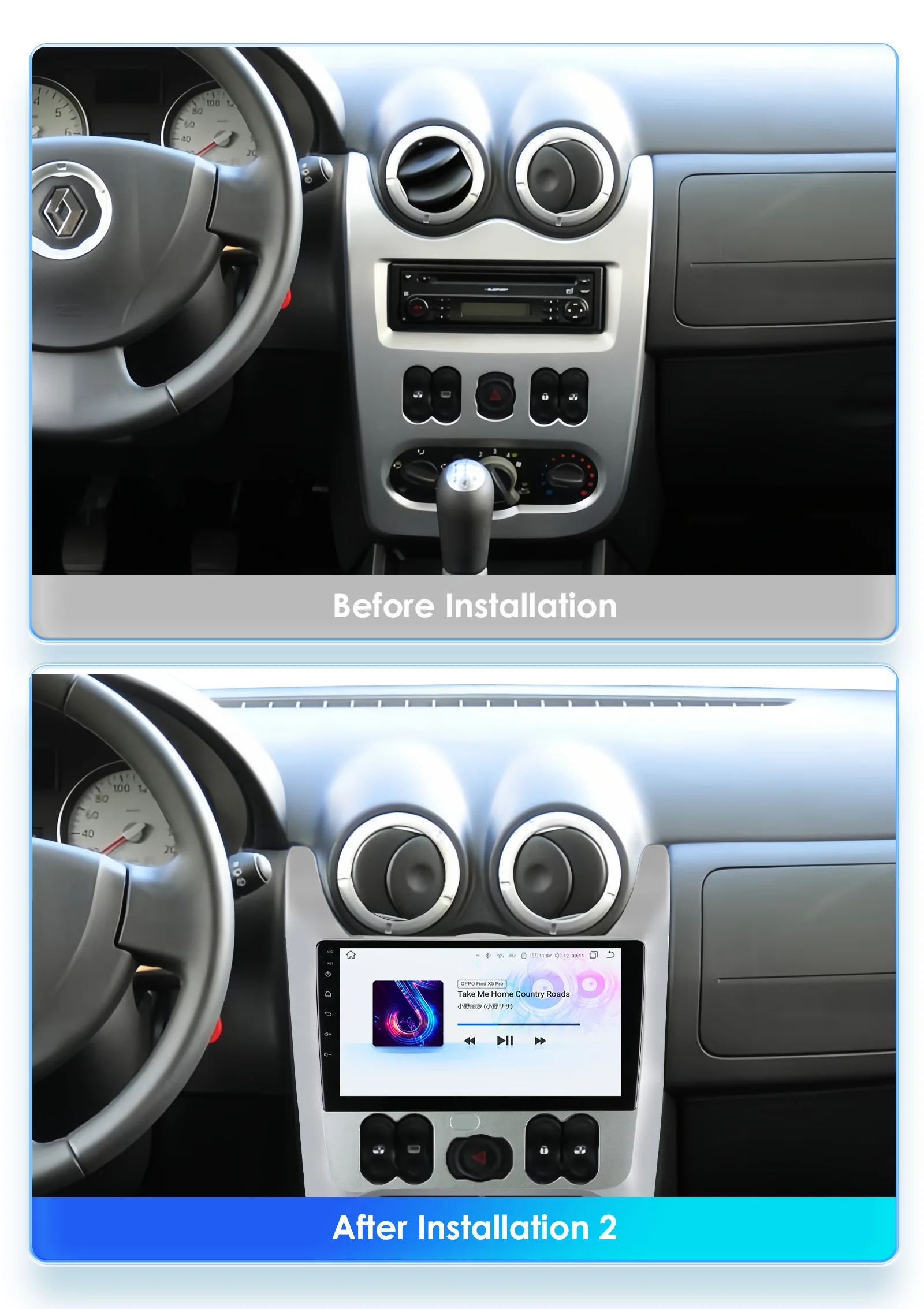

Before installation VS After installation

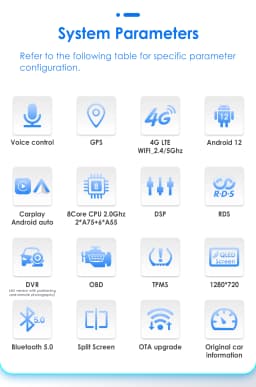

System Parameters: Refer to the following table for specific parameter configuration

User interface: S Series (can set as Day Mode & Night Mode or 12 color type: Purple/ Dark blue / Black / Golden , and so on) included S8/ S7/ S6/ S5/ S4/ S3/ S2/ S1 version; and HCSeries included P1 / P2-CP version.

Extreme Performance: A new generation of new CPU architecture, equipped with Two A75,six A55,super performance release ,easy to deal with daily needs. The specific CPU model please refer to the products configuration table. 7862A 1.8Ghz.

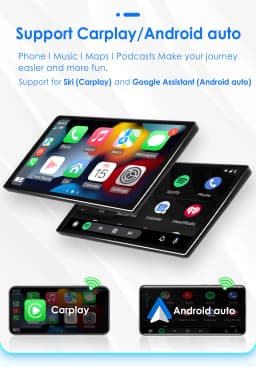

Support Carplay / Android auto: Phone / Music / Maps / Podcasts Make your journey easier and more fun. support wireless carplay,wired android auto,wireless android auto(which needs to set its cell phone wifi hotspot's AP Band as 5 Ghz band).

Support for Siri (Carplay) and Google Assistant (Android Auto)

Built-in DSP BU32107EFV: We use BU32107EFV and BD37534FV DSP IC in different configurations products. The specifit difference please refer to the product configurations table.

Professional radio chip: Receive more stable radio station ,less radio noise, higher performance during driving.  (We use 4745,TDA7708 and integrated radio IC in different configurations products, the specific different please refer to the products configuration table.)

Bluetooth 5.0 Dual Channel: Stable and long distance Bluetooth connection. Stable and long distance WIFI connection. (On its main interface can show "Model phone battery display")

Built-in 4G Network: Please enter the SIM card before turn on the device. Include the 4G card slot, and the 4G antenna!

3 Ways to share network from iPhone and android phone

Audiovisual Feast

10.33inch 1600*720 / 8Core 1280*720 QLED Screen / 4Core 1280*720 QLED Screen / P1L 4Core 1024*600 IPS Screen : Fine picture quality, true color, suiltable for more scenes, to meet your requirements

S series Button color changing function: Original Light color ,Red ,Yellow ,White ,Green ,Blue ,Cyan ,Purple.

AI Voice Car System Relax Driving( Need to buy separately)

(1) Online Radio

with an internet data connection,you can listen to online channels with no noise interference compared to traditional radio ,allowing your journey to enjoy the ultimate listening experience.

Customize settings ,Supports 20 countries ,add to favorites, Quality broadcast.,we will open up more national radio staions ,thanks you for your supports.

(2) Anti-Theft

this feature is only supported in the 4G version (S3/S4/S5/S7/S8 options)

Locus Management:Trajectory info function allows you to check the vehicle driving trajectory in a certain time on your cellphone.

(3) Parking location: Parking location function allows you to see your vehicle location,easy to find your vehicle,and you can set an electric fence for your vehicle,when your cehicle leaves the fence range,it will send an alarm to your cellphone.

AI Security: AI Security function allow you to check the electric fence alarm, and also you can snapshot a picture from the DVR when the device is on to see what is nearby your vehicle, ( this function require you to buy a 1080P DVR from us).

(4) AI Voice Car System Relax Driving( Need to buy separately)

AI Intelligent Assistant Pack

our AI intelligent assistant pack included the AI voice assistant Pro,for S series radio S3 ,S4,S5,S7,S8 will add these functions works: track tracking ,packing location and online radio functions.

Customize the desktop window it can display local music ,bluetooh music, radio ,Spotify, Youtube music , Apple music played.Desktop App shortcuts

Customizable application add ,delete,move.

One-screen interaction:

You can display Navi,DVR,BD,TPMS separately on yor desktop.

Gesture touch function

The gesture function controls the car media player during the driving easily, without distractiing yourself to look at the screen to operate the car media player ,which make the driving safer.

1.Double finger zoom in and out

2.Double finger slide up & down

3.Double finger slide left & right

4.slide the left edge of the screen

5.slide the right edge of the screen

6.slide the bottom edge of the screen

Introduction to interface functions

Support Torque Pro ( OBD2 & Car ) : You can connect a PJ-908 Bluetooth OBD2 Scanner Tool to use this function. Note: this PJ-908 Bluetooth OBD2 scanner Tool is not included,you can contact us to buy it together.

You can click on the image below to purchase

DAB+ Box ( Needs to order separately) : This radio has been installed DAB player APP, just connect with a DAB+BOX via USB Port to use this DAB+ Function, support input digital radio Programs and touch operation.you can use unit's touch screen to search and change programs ,and this unit can supply power to the connected DAB+ BOX.

You can click on the image below to purchase

TPMS Function( Needs to order separately) :  Tire Pressure Monitoring: Real-time displays 4 tires pressure and temperature,Tire Pressure Monitoring system will be warning when the tire temperature is high, pressure is low.You can click on the image below to purc

Small cooling fan : Note:  the S series 8Core all included.; 4Core items not includes the Fan and not support this function.

GPS Navigation: Supports Online and Off line Google map, Navitel, Waze, Herewego To avoid congestion choose lanes recently , the way of voice complement sensory information.

Supports AV-OUT: AV OUT box ( Needs to order separately)

Optical and coaxial digital audio output

Note: This function is only supported by S5-S8 series.

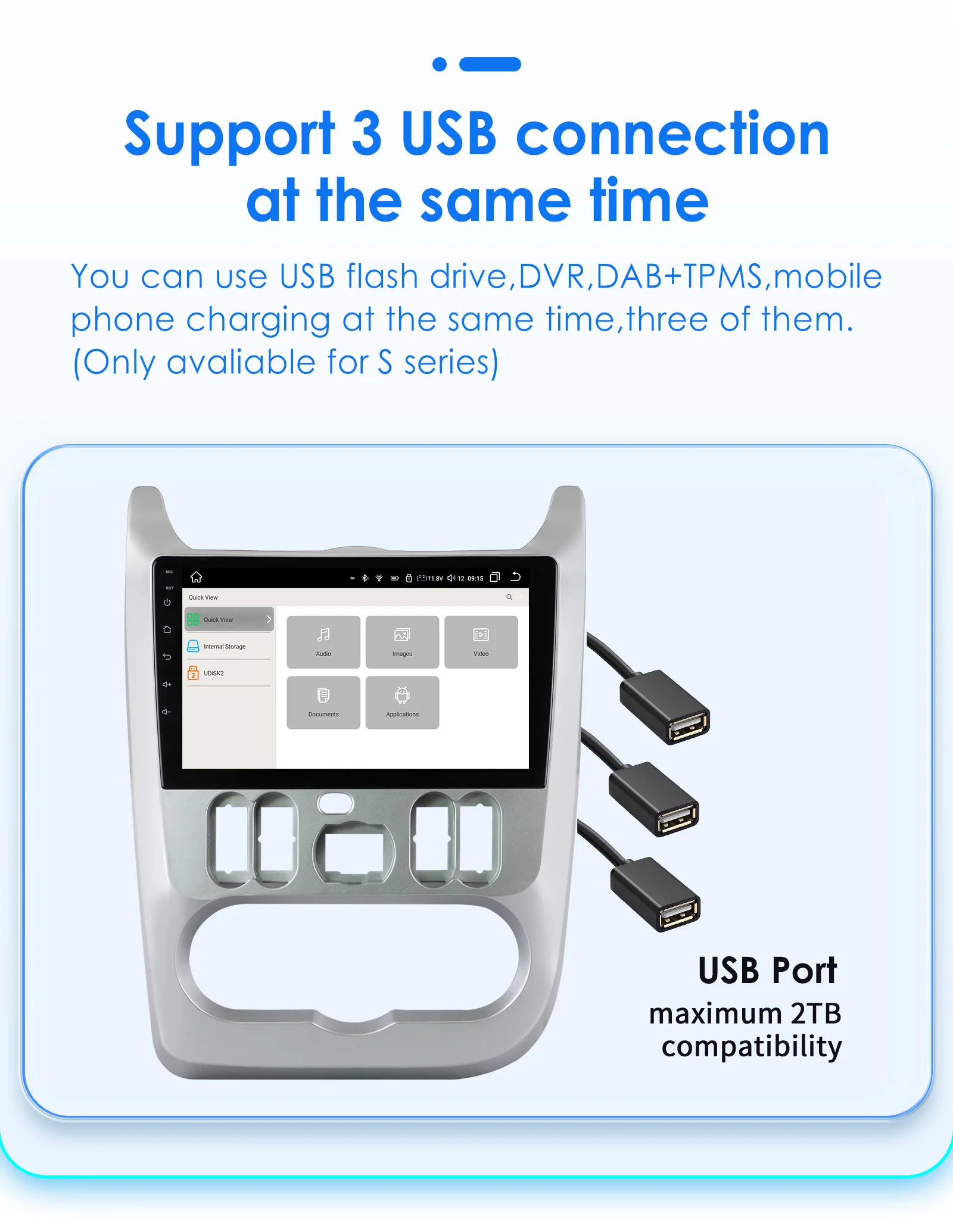

S Series Support 3 USB Connection:

External Memory: USB port up to 2TB,this unit can play the video and audio files from your external device.

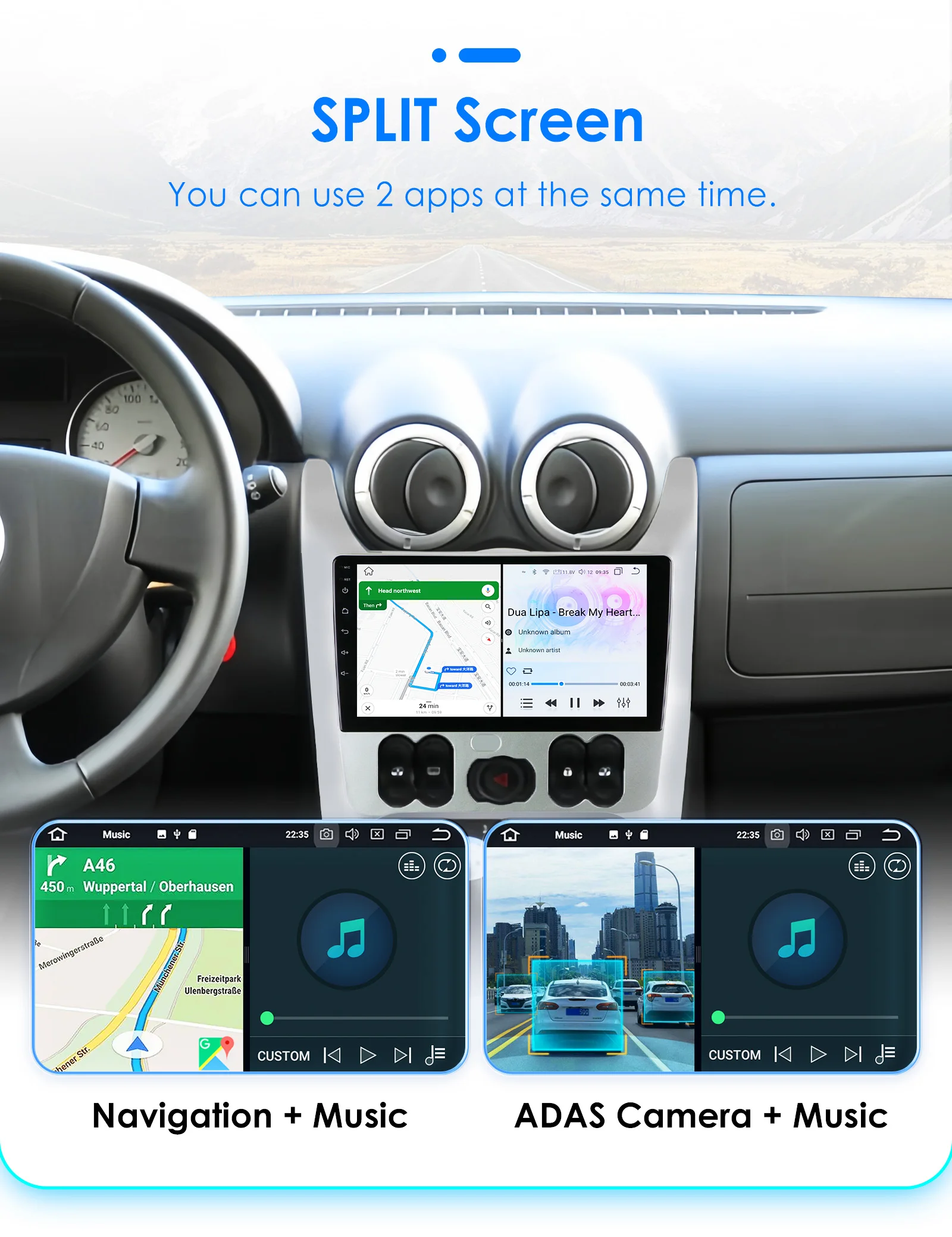

Split Screen : You can use 2 apps at the same time (such as: Navigation + Music , ADAS Camera + Music ,etc.)

PIP(Picture in Picture): the ability to watch video in small window on top of the screen, you car adjust the size.

HD 1080P ADAS DVR Camera(Needs to order separately) --connect with the USB port:  LDWS(Lane Departure Warning Distance),FCWS(Forward Collision Warning Distance), 1080P(High Definition Car DVR)

Rear View System(Rear View Camera needs to order separately):  A car video system that supports a backup camera displays troublesome blind spots on a monitor , allowing a driver to see hazard such as pets ,children playing ,or mailboxes ,as they backup.

Original Car Information Display

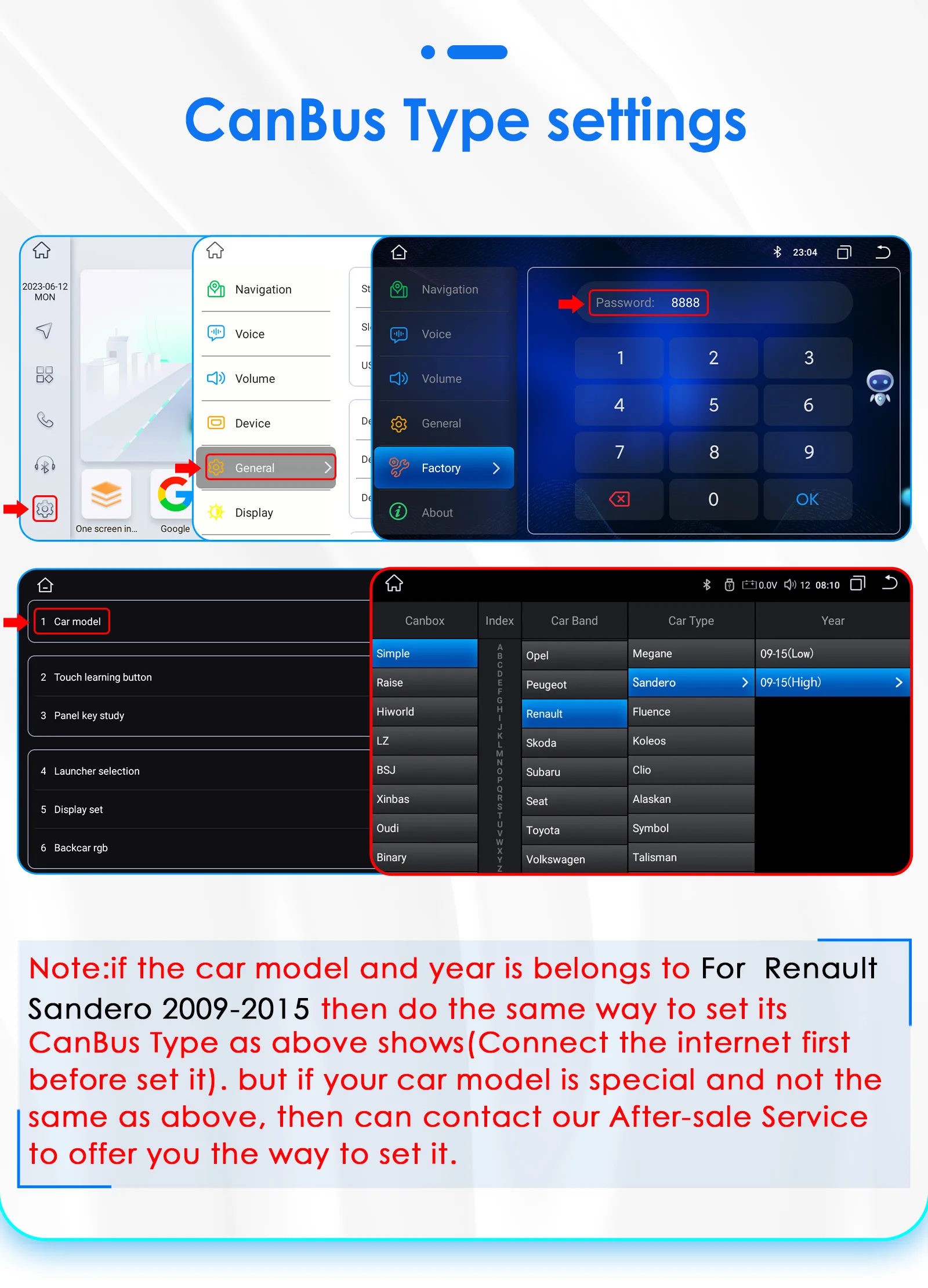

S seires Canbus Type settings: Factory--8888(Password)--Simple--Renault--Sandero--09-15(High)--ok.

for P Series code is 16176699

Steering Wheel Control: You could change the music ,volume more easily via your steering wheel and also make your driving safer.

Its Wire Diagram of each pin wire details

radio backside wire diagram details:

Product Size: Please kindly to compare with your original radio's size before bidding ,if size's are different which cannot install.

Standard Accessories: which ship with the head unit together(but please pay attension to the red words of accessory whether can get or not which depends on the item option you choose to buy it)

Connector Pin Pictures:

(Notice: if the connector pin to install with the car wires' cable is not the same as them which needs to contact the after-sale service to order special wire for installing)

The following is a description of the 360Camera model

Note :only the "360Camera S8" model can support 360 Cameras,if you need 360 Camera Function,please order the "360Camera S8"
