Mate1 RC Charger 100 W 10 A Smart RC Charger with XT60 Balance and Compatible with 2-6s LiIon/LiPo/Life 3-18S NiMH Various Mode

Mate1 RC Charger 100 W 10 A Smart RC Charger with XT60 Balance and Compatible with 2-6s LiIon/LiPo/Life 3-18S NiMH Various Model

Specification:

Product Model:Mate I

Display Type:Backlight 2x16 LCD

Input Power:100V~240V AC, 50~60Hz~1.5A

Charging Current:0.1~10A

Maximum Charging voltage:26.4V

Maximum Charging power:100W

Maximum Discharging power:5W

Discharge Current:0.1~1.5A

Cell Balancing:2~6s

USB Output:5V/2.4A

Operatina Temperature:0~35℃

Storage Temperature:-10~55℃

Operating Humidity:45%-80%

Storage Humidity:10%-93%

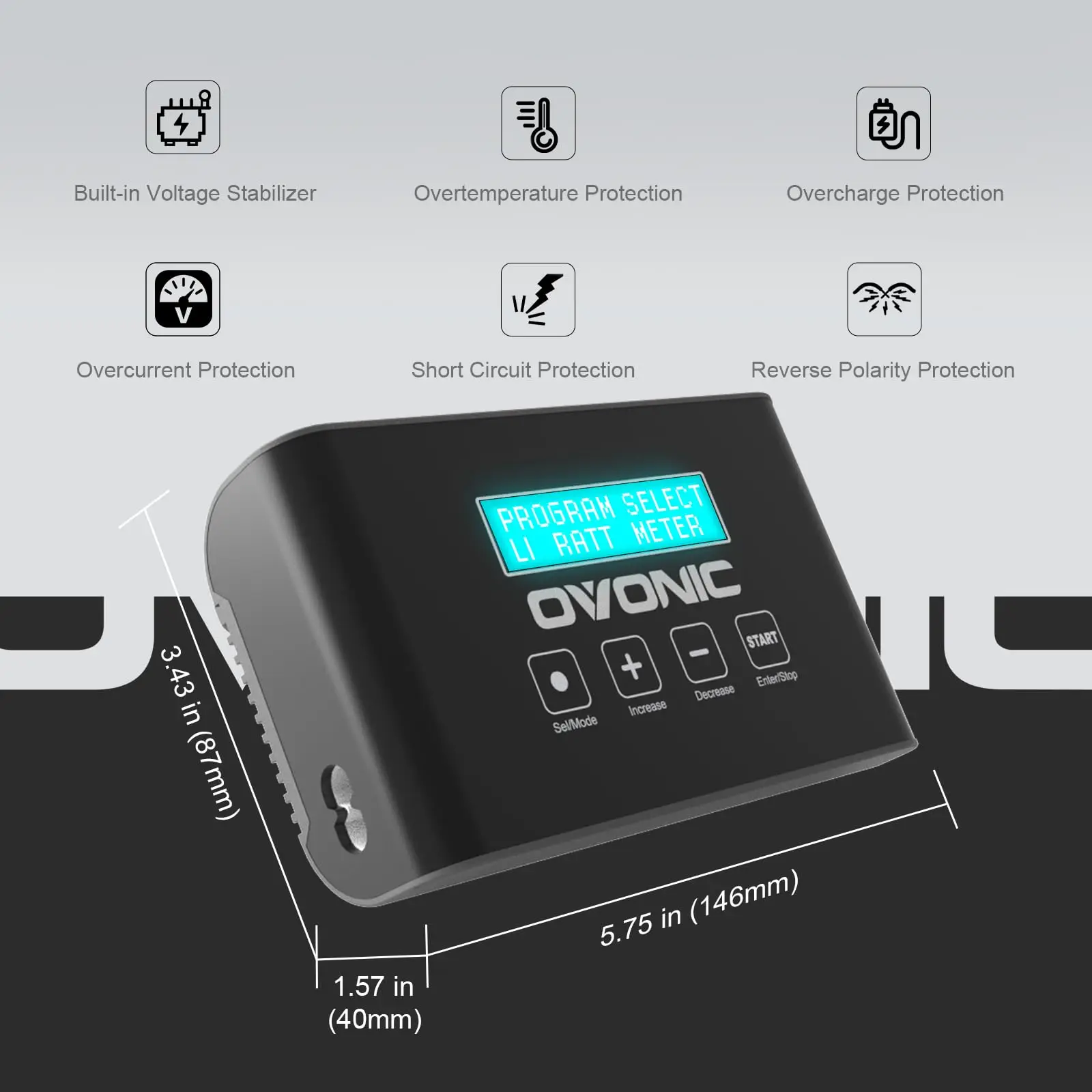

Dimensions:146x87x40mm

Product Net Weight:0.4kg

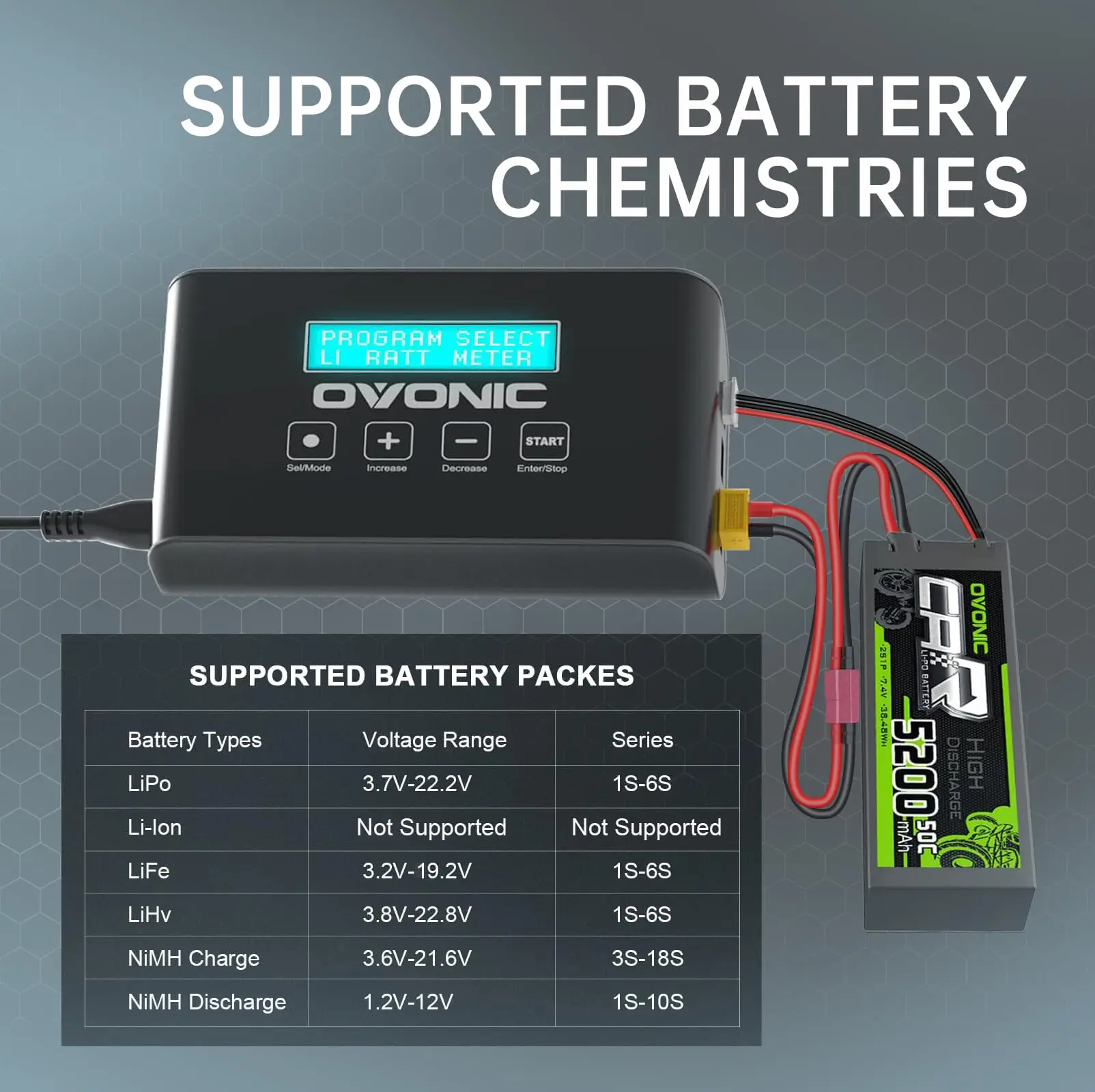

Supported Battery Type:LiPo/LiFe/LiHv (1~6S)/NIMH charge (3~18s)/NIMH discharge (1~10s)

Key Features:

Supports 100W 10A: OVONIC 100W 10A Smart LiPo Charger features a USB output of 5V/2.4A and operates on 100V~240V AC at 50-60Hz with a current of 1.5A. It includes multiple functions such as a safety timer, voltage check, 12 parameter memory, capacity (mAh) cut-off, and auto power off for enhanced user convenience.

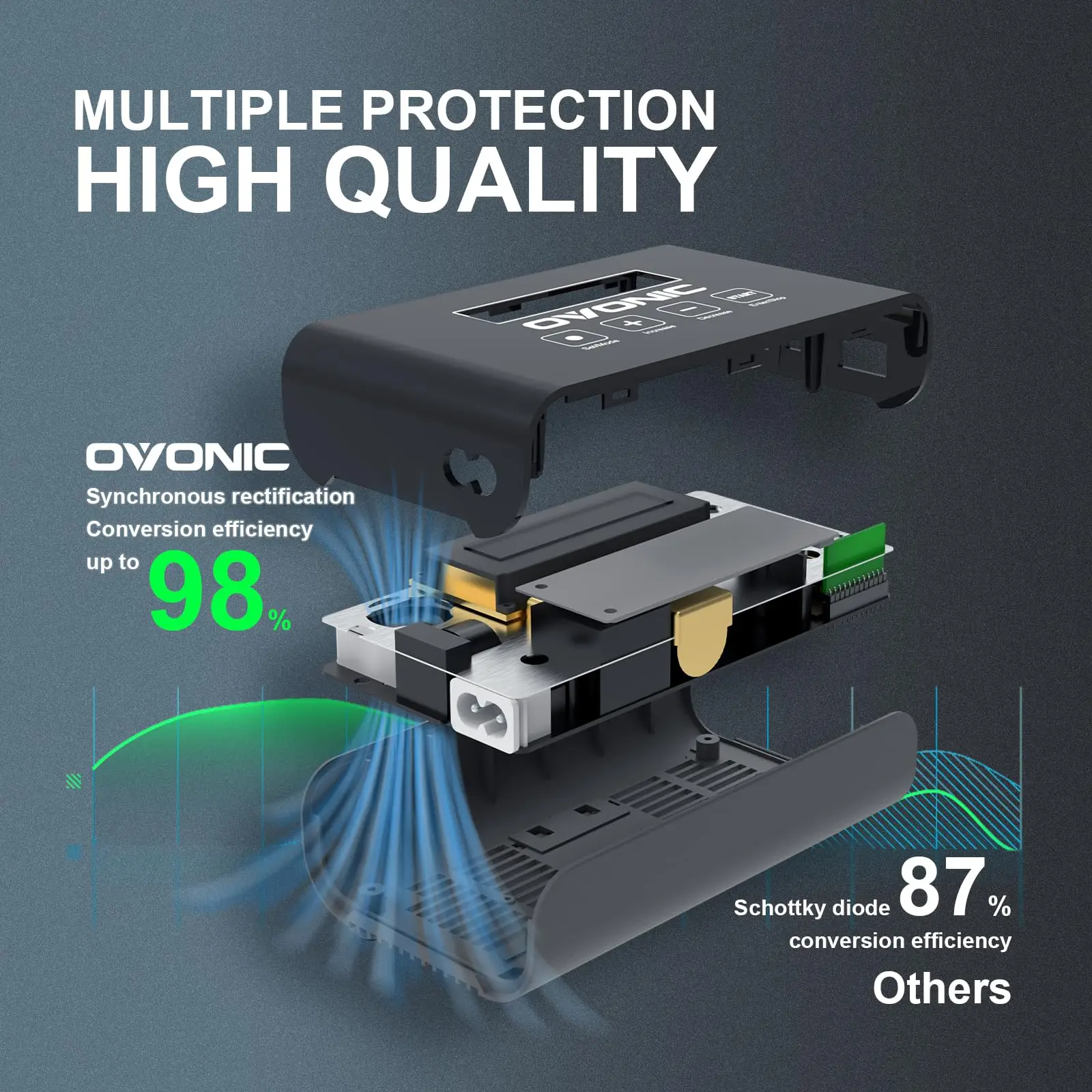

High Conversion Efficiency: Utilizing advanced synchronous rectification technology, the OVONIC Mate 1 achieves an impressive conversion efficiency of up to 98%. This significantly reduces charging time compared to the 87% efficiency of traditional Schottky diodes, especially for batteries of the same capacity.

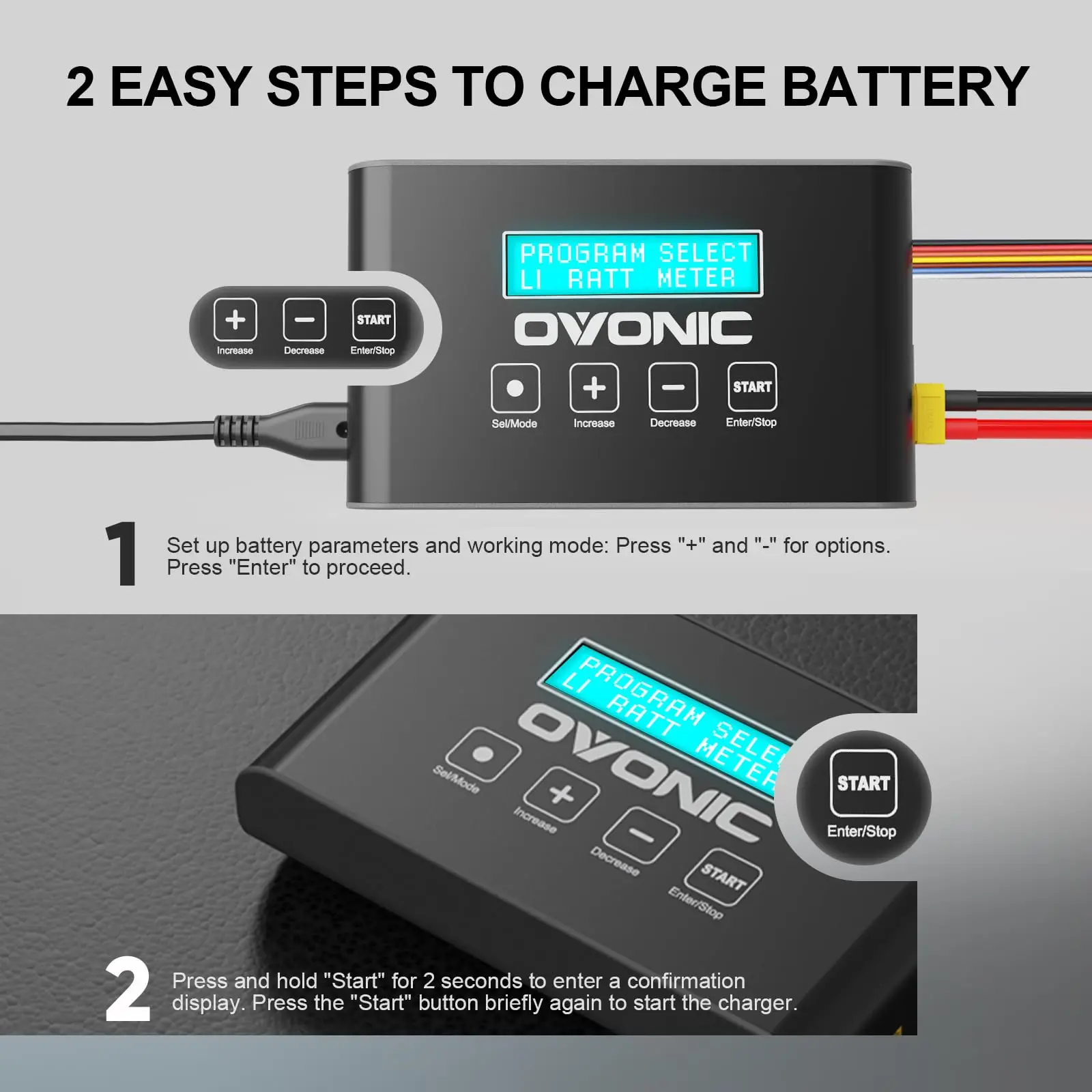

Supports Various Battery Types: Compatible with LiPo/LiFe/LiHv (1S-6S) and NiMH (3S-18S) batteries, this charger offers multiple modes including balance charge, normal charge, fast charge, storage charge, discharge, cycling, and battery meter. Always select the correct battery type when charging.

Built-in Balancing Capabilities: OVONIC Mate 1 features built-in balancing capabilities, eliminating the need for a separate balance board. This simplifies the LiPo battery charging process, reduces complexity and risks, and can enhance both charging efficiency and equipment longevity.

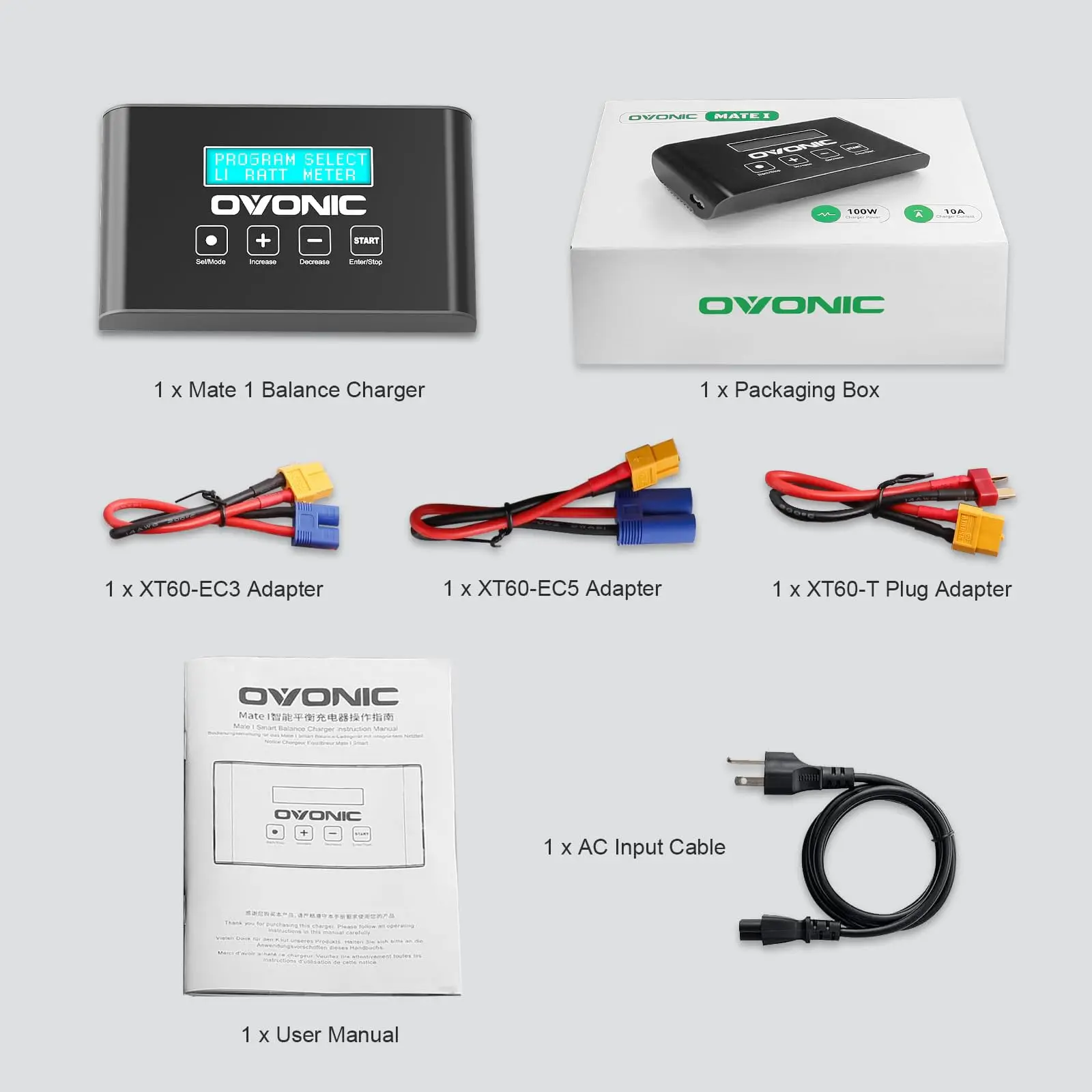

What In the Box?

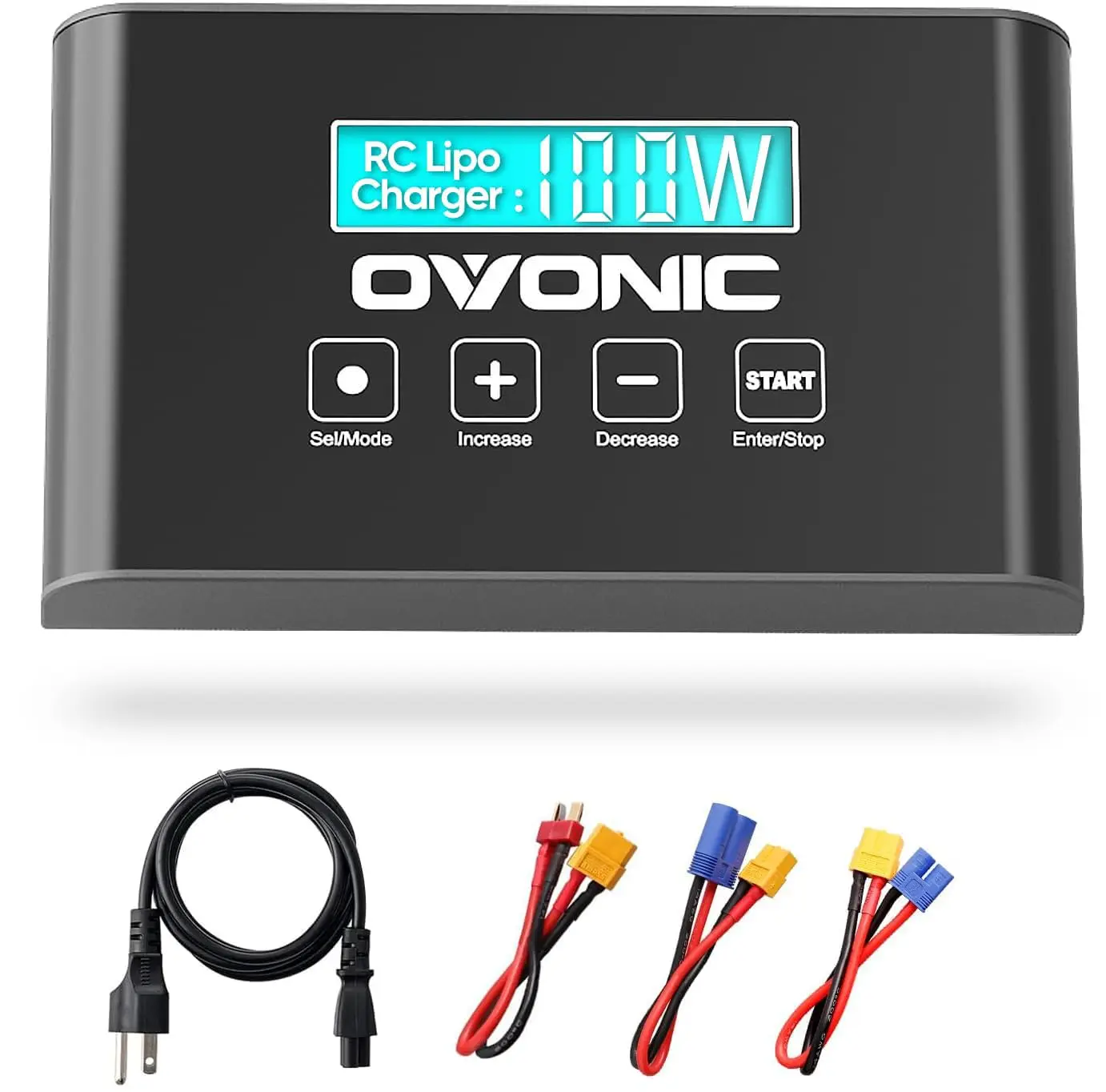

1X OVONIC Mate I 100W 10A Smart Balance lipo charger

1X AC Input Cable

1X XT60-T plug adapter

1X XT60-EC3 adapter

1X XT60-EC5 adapter

1X User Manual
