T25 T28 Turbo GT2871 GT2860 Dual Ball Bearing Racing Turbocharger w/ Wastegate

Legal Note: Not For Sale or Use in California, or New York.(for all vehicles registered in these states)



GT2871 Racing Dual Ceramic Ball Bearing Billet Turbocharger
Application:Universal for Turbo Manifold with T25 Flange (T28 Flange can be converted to T25 Flange, Adapter is needed).
​Perfect for all 1.5L-2.0L engine, for all 4 cylinder engine

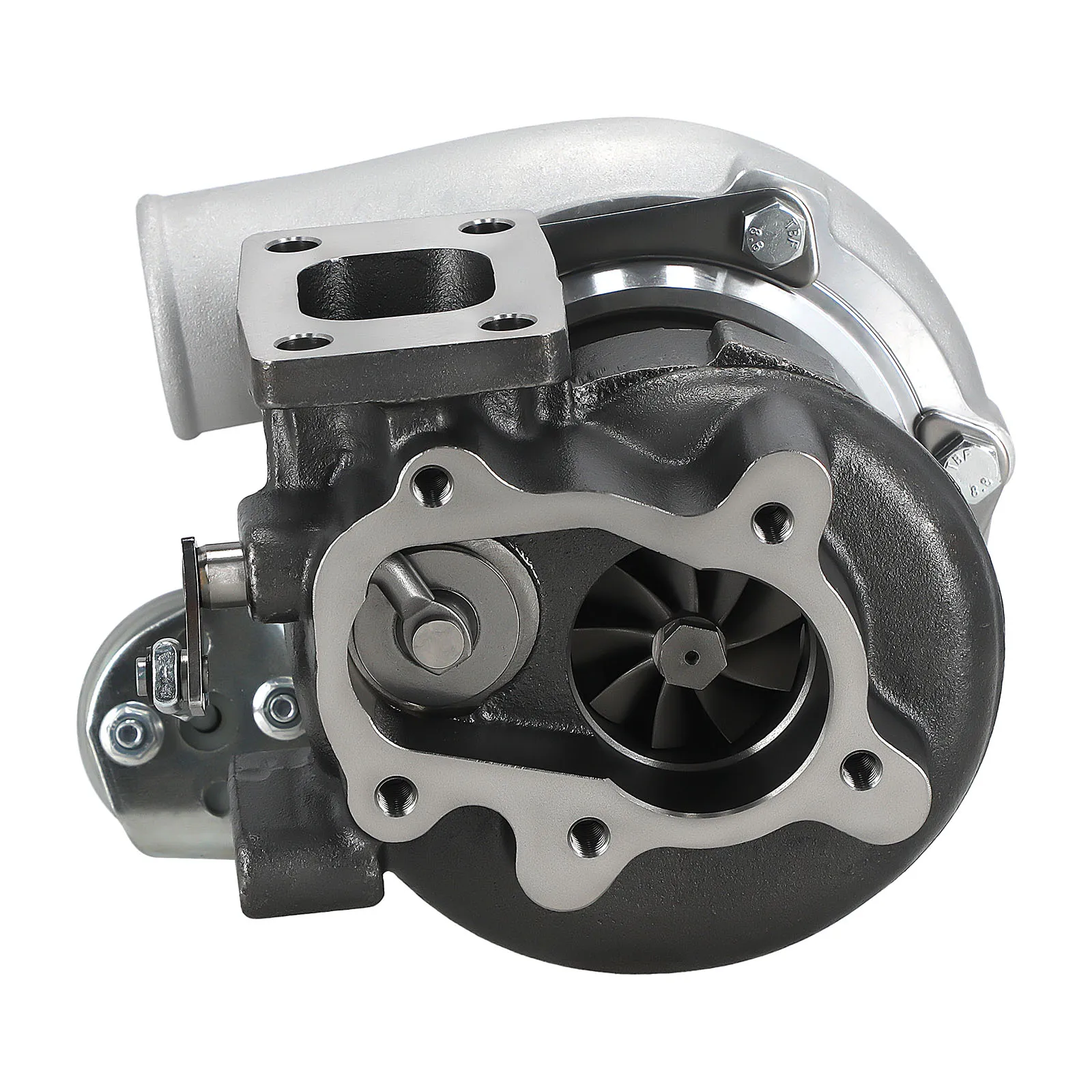

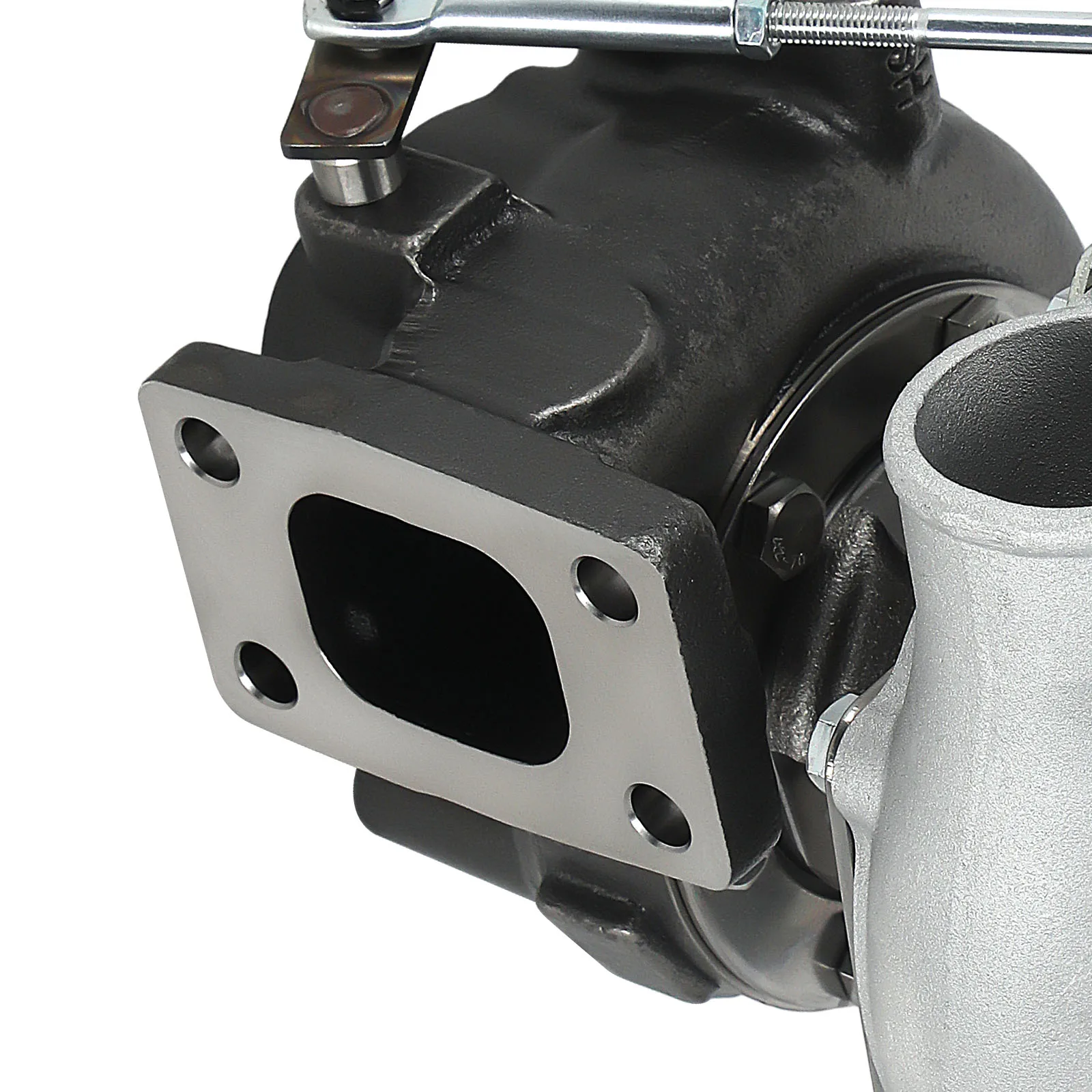

Specification:Exhaust Inlet Flange: Standard T25 Flange
​Exhaust Outlet Flange: 5-BoltTurbine:
​Turbine Trim: 76.3
​Turbine A/R: 0.64
​Turbine Inducer Diameter: 53.8mm
​Turbine Exducer Diameter: 47mmCompressor:
​Compressor Trim: 48
​Compressor A/R: 0.60
​Compressor Inducer Diameter:49.2mm
​Compressor Exducer Diameter: 71 mmCooling Type: Water+Oil Cooling
​Bearing Type: Dual Ceramic Ball Bearing

​Horse Power: Boost Horse Power up to 350BHP

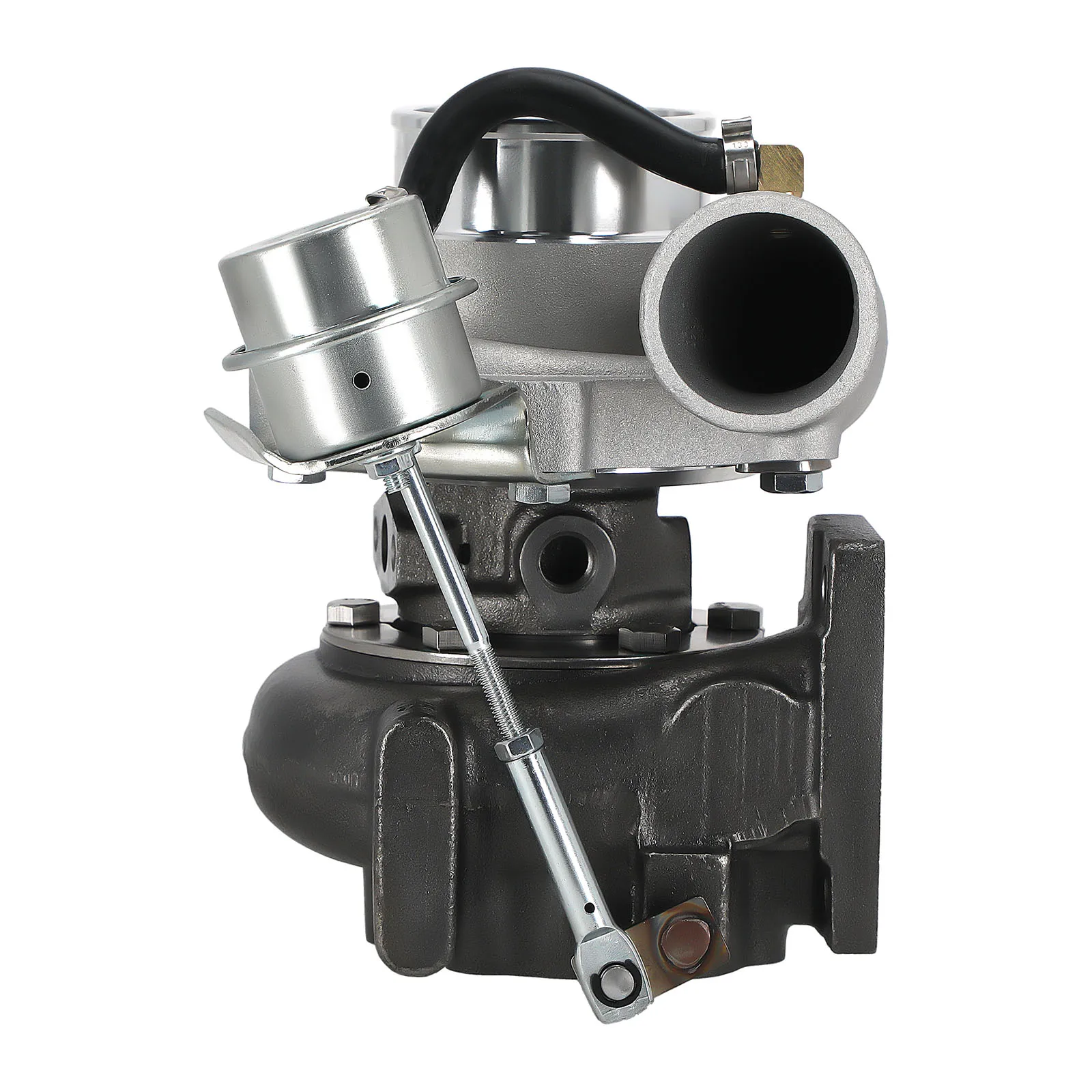

​Wastegate: with Wastegate
​Oil Restrictor: Yes
​Oil Restrictor Size: Inside diameter 2mm
​Oil Feed Size: 12mm
​Oil Drain Size: 14mm
​Oil Drain Thread Pitch: 40mm
​Oil Inlet Size: M12*1.25
​Oil Outlet Size: M14 & 2*M8*1.25
​Water Thread Size: M14*1.5
Turbo Type: Individual
​Universal Fitment: Yes
​Finish:Matte
​Condition: 100% Brand New
​Accessories: You will get exactly as shown as picture above
​Package Size:25x 23 x 26 cm
​Package Weight: 7950g
Features:*Product Material
​1. Turbine housing: Stainless steel turbine housing - temperature resistant up to 1020℃
​2. Steel Turbine Wheel: K419 alloy - high oxidation stability and resistance  up  to 1000℃
​3. Compressor housing: ZL104 aluminum with lightweight

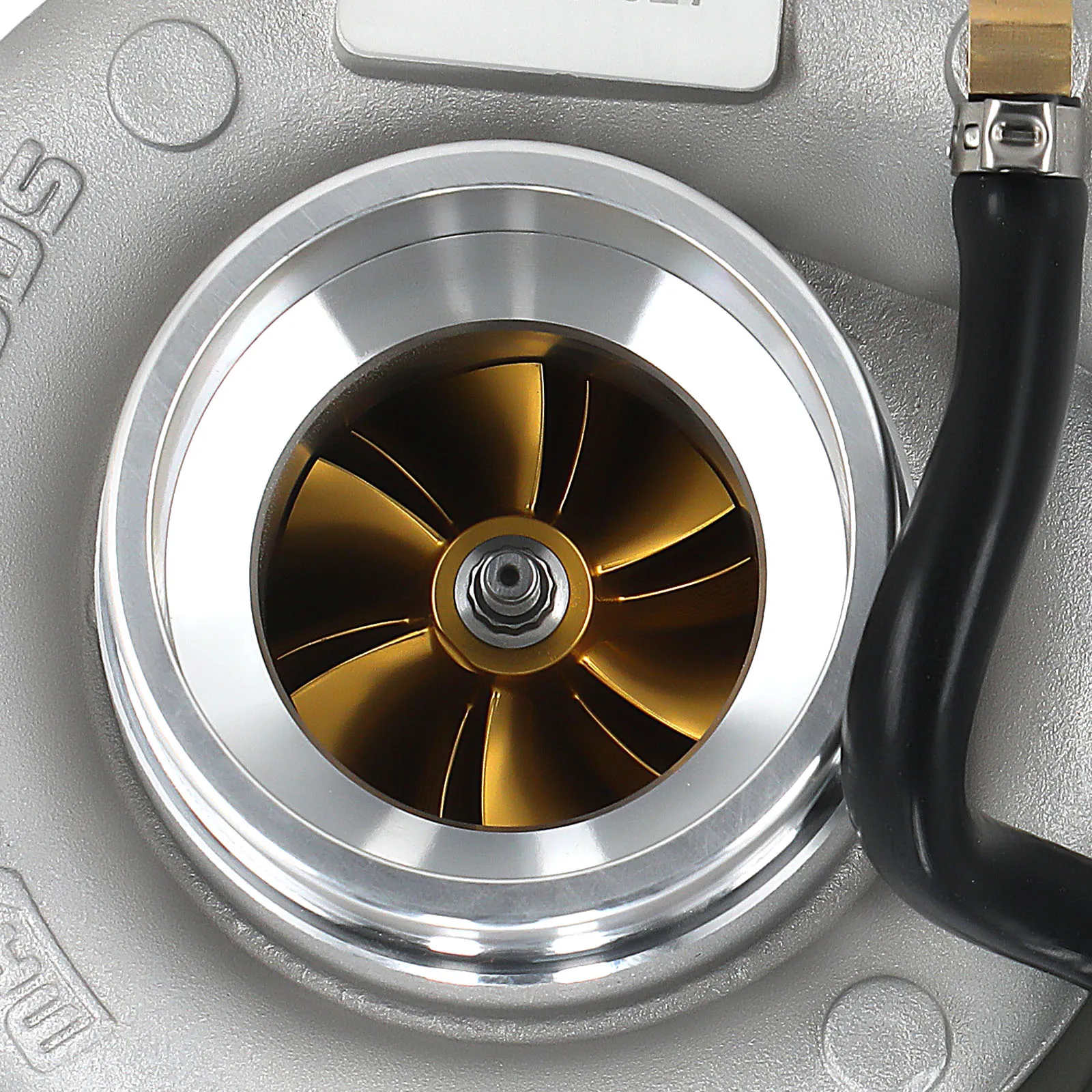

​4. Billet Compressor Wheel: Forged CNC full-machined billet aluminum compressor wheel provides a larger horsepower range and maximum boost responseFeature1. Racing turbocharger
​2. Excellent high temperature resistance，high efficiency and durability
​3. Rich experience in turbo production and own factory
​4. High-Speed oil seal ring and Precision clearance* Technology Advantage:
​1. 100% balancing Test by TURBOTECHNICS  VSR3
​2. G3-min-Flow VNT Turbo testing
​3.  Advanced Actuator Tester/Programmer

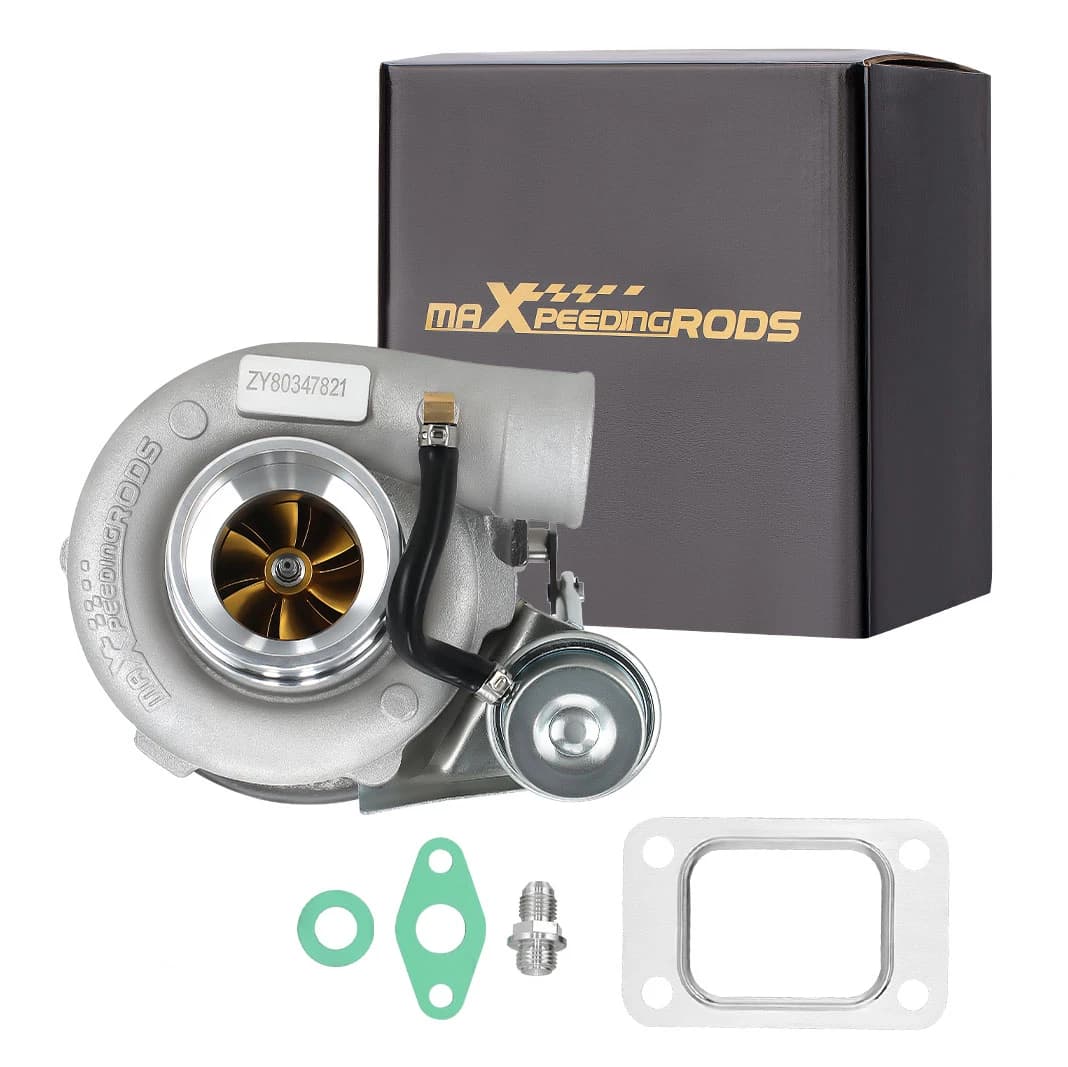

Package included:1x Turbocharger
​1x Oil Gasket
​1x Flange Gasket
​3x Washers
​2x Bolts
​1x Restrictor
​1x Manual
​1x Brochure
​1x Sticker
Notice: * Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
​* Make sure the oil drain line is lower than the turbo itself.
​* Gasoline car must install a water cooling device to avoid overheating.
​* Ensure exhaust outlet are well sealed by welding
​* The degree of modification of the universal turbo depends on your individual vehicle.Professional installation is highly recommended.
​* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
​* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
