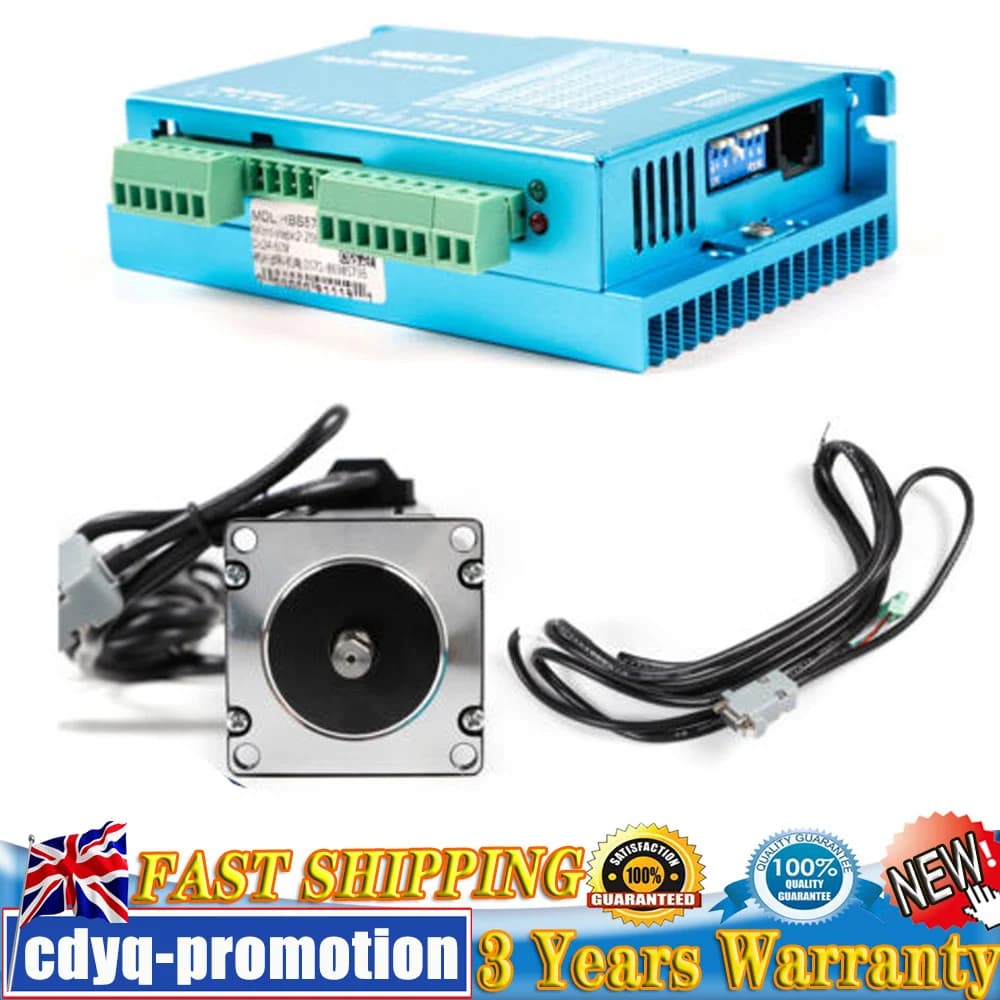

57 Full Closed Loop Stepper Motor Drive set 3.0 NM ACT MOTOR GMBH Nema 23 32-bit DSP Digital Stepper and Driver HBS57

ACT MOTOR GMBH 1PCNema23 Closed Loop Stepper 3.0Nm 4A+ 1PC Driver HBS57 Engrave
Info zu diesem Artikel
HBS57 setzt die neueste spezielle Motorsteuerung DSP-Chip und Vektorsteuerungstechnik Closed-Loop um das Problem vollständig von Open-Loop Schrittmotor verloren Schritt zu überwinden
Und zugleich deutlich die Hochgeschwindigkeitsleistung des Motors verbessern, die Erwärmung des Motors verringern und Motorvibrationen reduzieren, die Bearbeitungsgeschwindigkeit und Genauigkeit
Und reduzieren Maschine Energieverbrauch. Wenn der Motor kontinuierlich überlastet ist, wird der Fahrer Ausgang ein Alarmsignal in der Zeit, die die gleiche wie die Zuverlässigkeit des Systems AC-Servo aufweist.
HBS57 ist ausgestattet mit 42 und 57 Serie Closed-Loop-Schrittmotoren, die für herkömmliches Schritt System-Upgrades bequem sind.
Die Kosten betragen nur 50% des AC-Servosystem.

Features:
HBS57 adopts the latest dedicated motor control DSP chip and vector closed-loop control technology to completely overcome the problem of open-loop stepping motor lost step, and at the same time significantly improve the high-speed performance of the motor, reduce motor heating and reduce motor vibration, improve machining speed and accuracy, and reduce Machine energy consumption. When the motor is continuously overloaded, the driver will output an alarm signal in time, which has the same reliability as the AC servo system. HBS57 is equipped with 42 and 57 series closed-loop stepping motors, which is convenient for traditional stepping system upgrades. The cost is only 50% of the AC servo system.
Specification:
Driver Model: HBS57
Voltage: DC24-60V
Phase current: 5A/Pha (peak current)
Subdivision: 2-256 subdivision Maximum 51200 steps / lap
Processor: 32-bit DSP digital
Pulse voltage: 5V-24V signal compatible
Response frequency: up to 200KHz
Pulse mode: single pulse (default) double pulse (software adjustable)
Cooling method: natural cooling

Motor Model: 57HBS30
Phase current: 4.0A/Pha
Torque: 3.0N.m
Shaft diameter: 8mm
Shaft length: 21mm
Step angle;:1.8°
Step angle accuracy: ±5%
Surface temperature: 80℃ or less (rated current)
Motor line: 3m
Encoder line: 3m
Include:
1x HBS57 driver
1x 57HBS30 motor
1x 3m motor line
1x 3m encoder line
