3306.93lbs Manual Winch Hand Crank Winch Boat Winch With 32.81ft Cable 4:1/8:1

Description

This hand winch with winch cable has a traction of 3306.93lbs and provides excellent working performance. The compact size and lightweight can provide great convenience for your travels. Two drive ratios (4:1/8:1) and a bi-directional traction design can make your operation easier. It will be the ideal tool for any traction job.

Key Features

High-quality Material: This product is made of high-quality A36 steel and alloy steel hooks, with high hardness, wear resistance, strong pressure resistance, and long service life.

Strong Traction: The scientific design and sturdy material make the product a 3306.93lbs of lateral force and a 1102.31 lbs of longitudinal force, providing excellent traction work.

Fine Processing: The surface treated by multiple processes such as polishing, high-temperature quenching, and electroplating not only has better anti-corrosion and rust resistance but also gives it a higher gloss and a more stylish appearance.

Easy to Store and Carry: The compact size (7.6*3.9*7.2 inches) and detachable handle design make the product easier to carry and store.

Two-way & Two-speed: Two drive ratios (4:1/8:1) allow you to adjust the speed and traction in both directions (forward & backward) provides greater convenience for your work.

Easy to Use: The labor-saving ergonomic curved handle makes it easier to turn and reduce user fatigue. The holes at the bottom can be bolted anywhere for traction tasks.

High Security: This product adopts self-locking screws and an anti-release design, which can provide greater security for your operation.

Easy to Clean: The electroplated smooth surface makes the product easier to clean. You only need to use a wet/dry rag to wipe it gently.

Details

Anti-release Hook: The anti-release hook with latch makes the fixing more solid. The alloy steel material provides you with a higher level of security.

Stable Base: The enlarged base makes the winch more stable so that you can smoothly and efficiently carry out traction.

32.81ft Winch Cable:32.81ft winch cable can provide you with a wider and freer traction work with fewer distance restrictions.

How to Pull Out the Winch Cable

First press down the pawl, then loosen the bite of the pawl and gear, and finally withdraw the winch cable.

Application

This product can be used in snow, swamp, desert, beach, muddy mountain roads and other harsh environments for vehicle self-rescue, and in other conditions for clearing obstacles, dragging items and other work. It is commonly used as a safety device for oil, environmental protection, forestry, transportation, fire fighting, construction sites, warehouses, transportation and other field sports.

Specification

Material: A36 Steel, Alloy Steel

Color: Black

Process: Polishing, High-Temperature Quenching, Electroplating

Assembly Required: Yes

Power Source: Manual

Gear Ratio: 4:1, 8:1

Transverse Traction: 1500kg/3306.93 lbs

Longitudinal Traction: 500kg/1102.31 lbs

Winch Cable Length: 10m/32.81ft

Speed: Bidirectional ( Forward and Backward ) / 2- Speed
Gross Weight: 5kg/ 11.02 lbs
Net Weight: 4.5kg/ 9.92 lbs

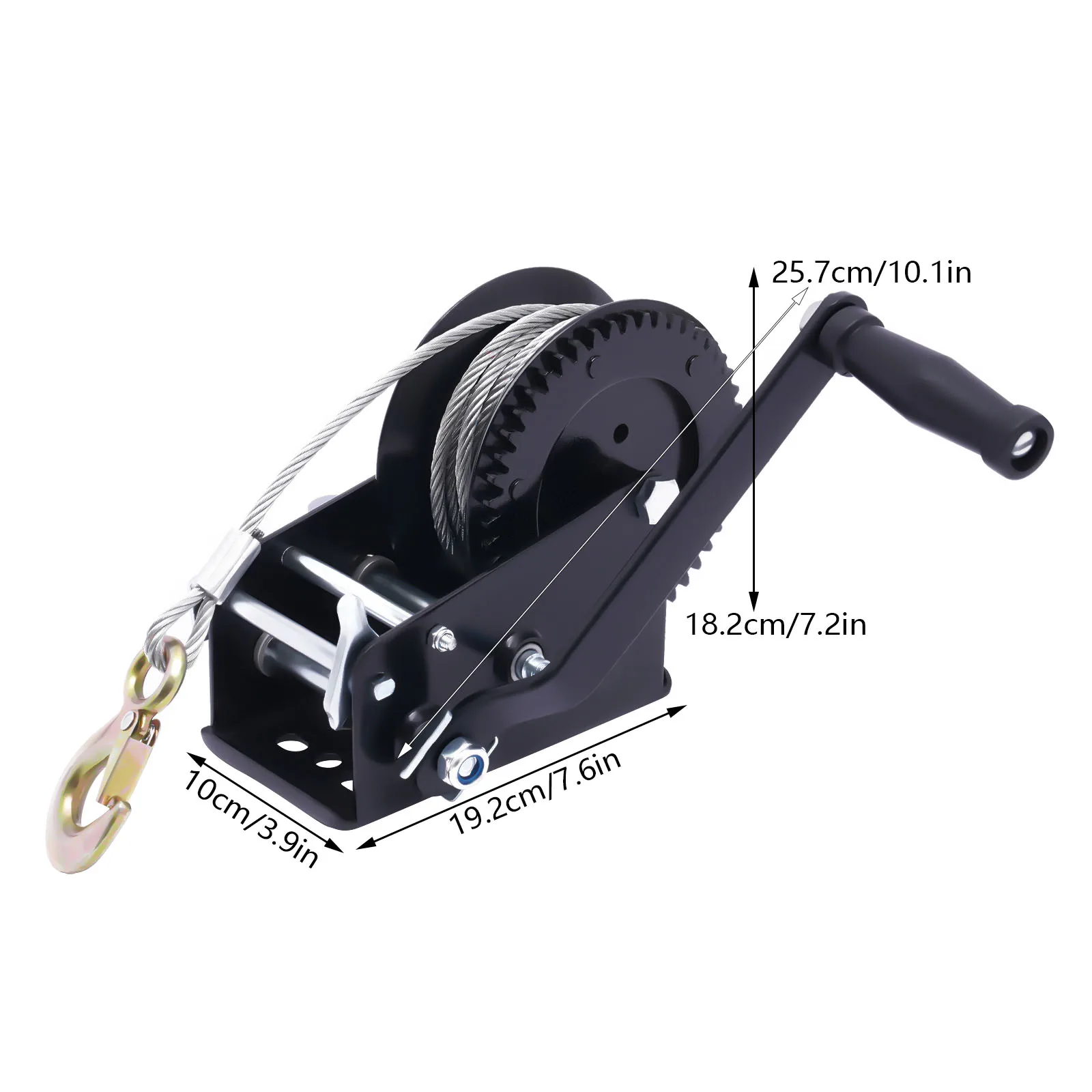

Product Size: 19.2*10*18.2 cm/ 7.6*3.9*7.2in

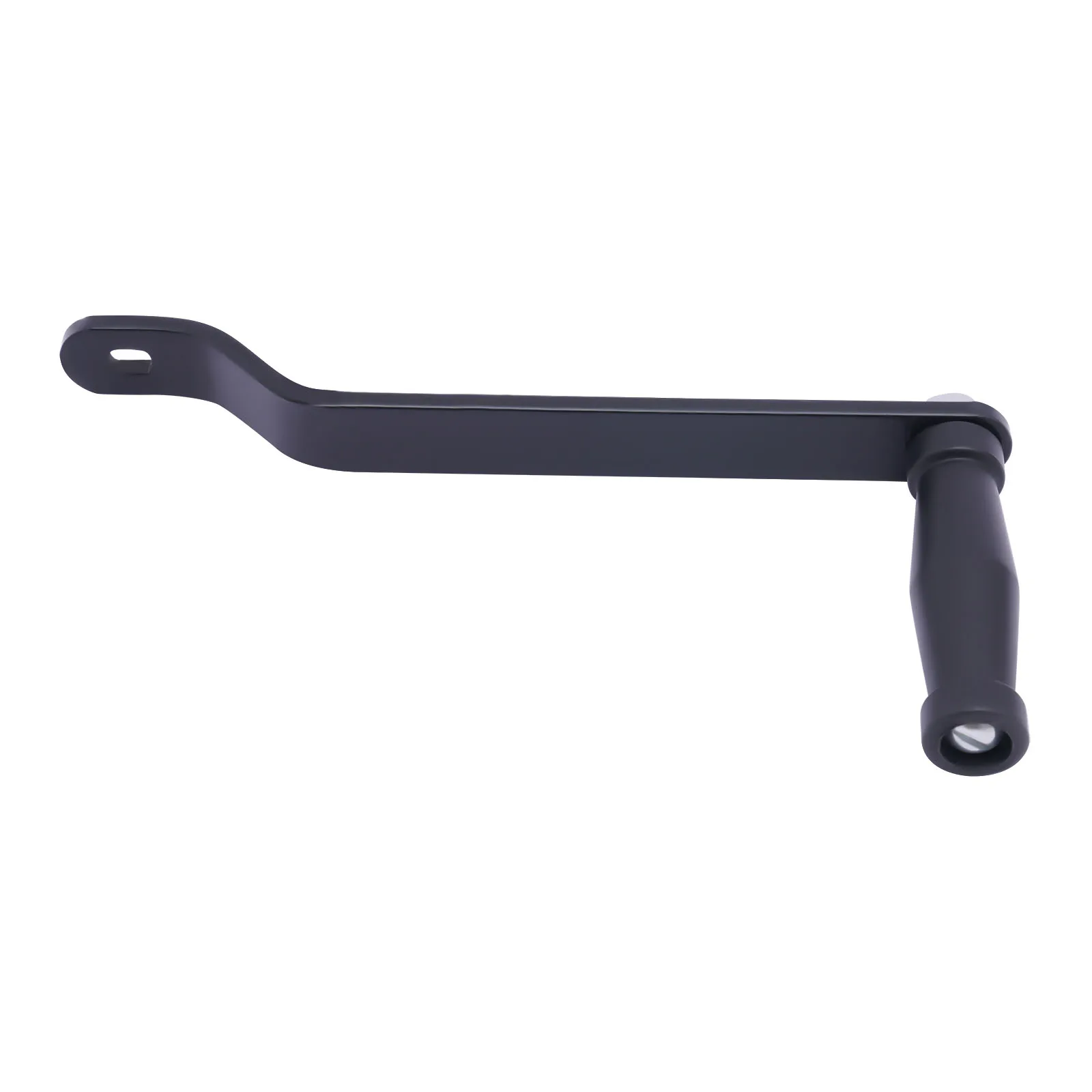

Handle Length: 25.7cm/10.1in
Package Size: 26*19*15cm/ 10.24*7.48*5.91in

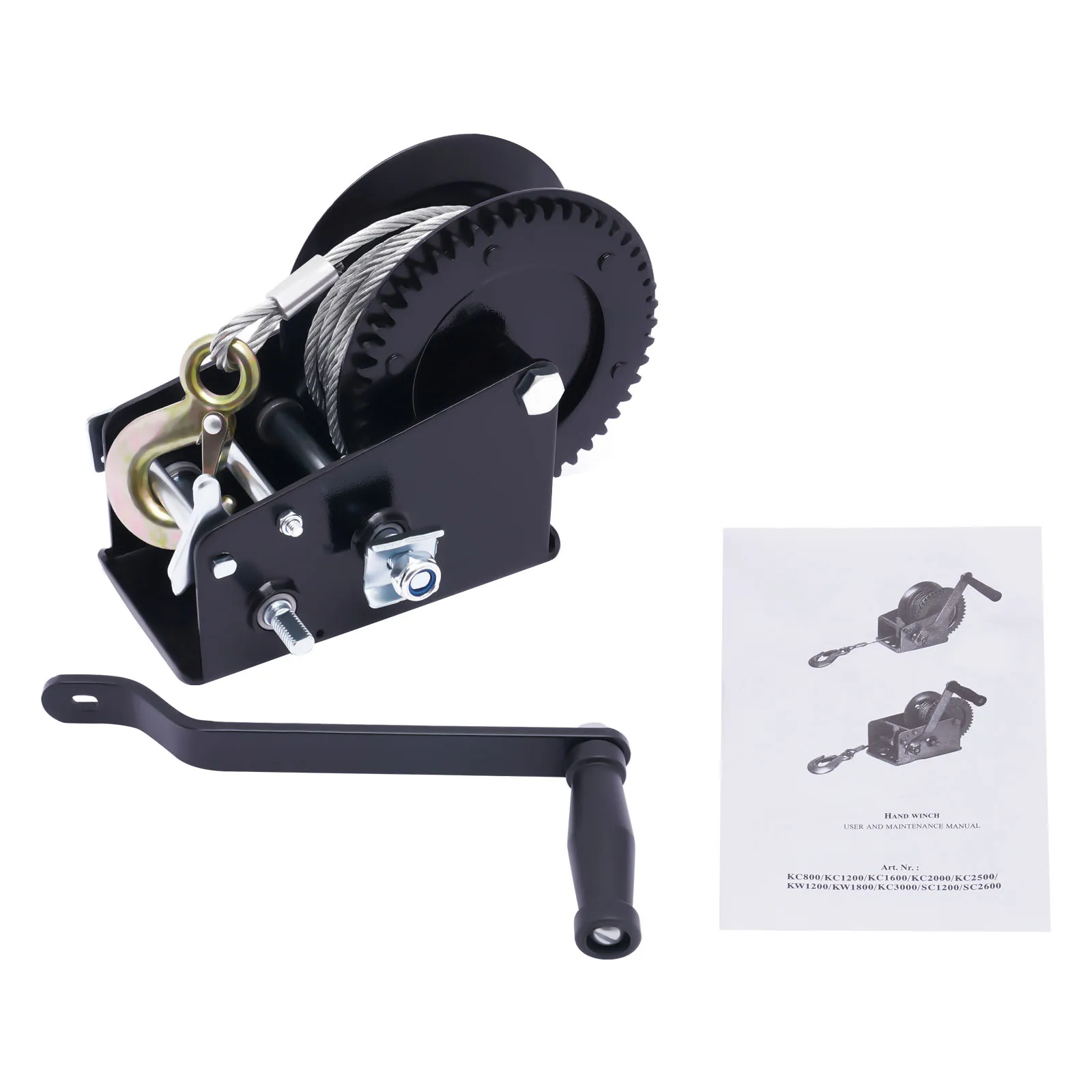

Package Included
1 * Hand Winch with Cable
1 * Handle

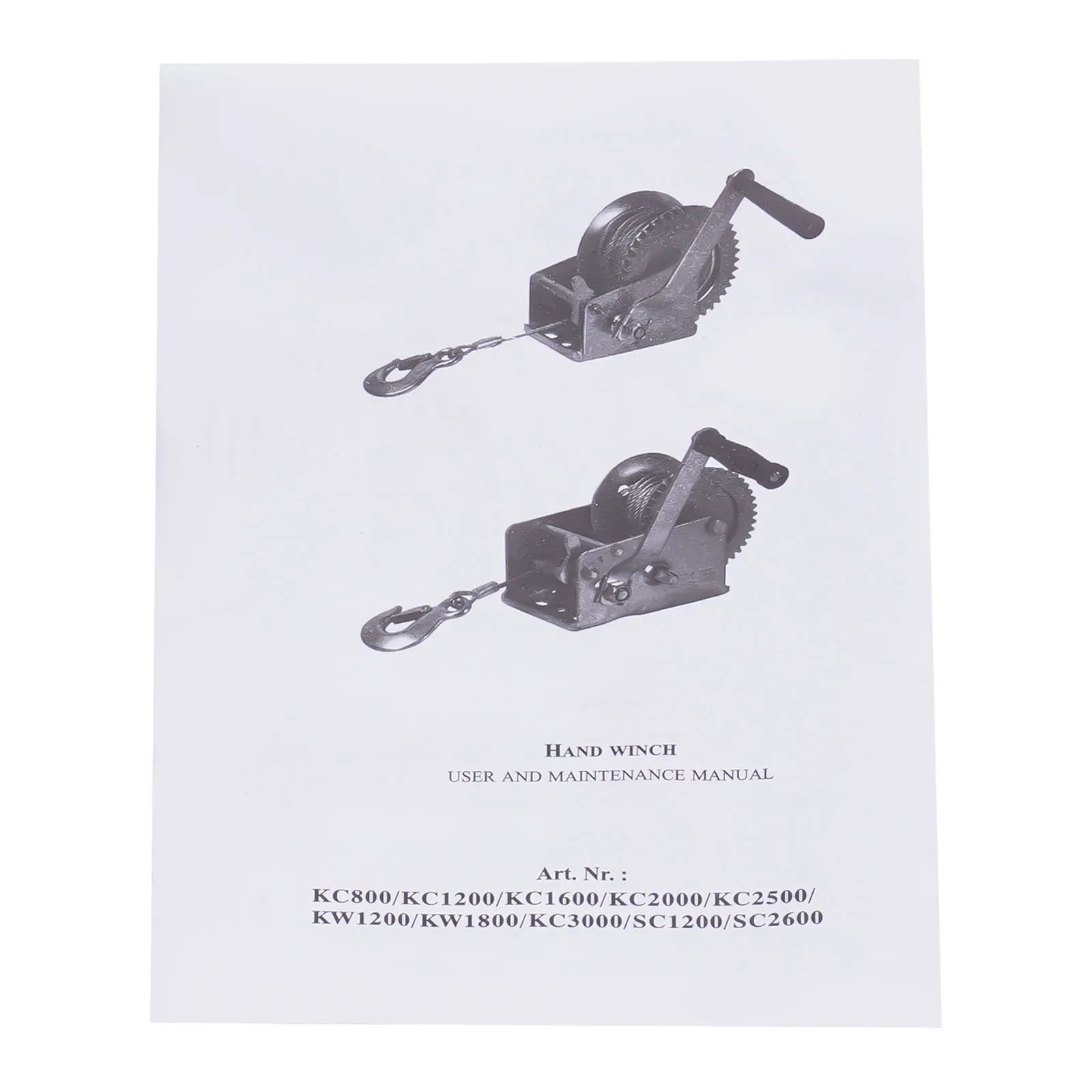

1 * English Manual

Notes
1.The winch is strictly prohibited to carry people and to use overload!
2.When the winch is working, it is forbidden to touch the wire rope, drum, and gear disk. In the work, it is best to cover a piece of light fabric on the wire rope to prevent injury because of the sudden break of the wire rope, and the wire cable can not be used for lifting work.
3.When working you should ensure that there are at least 5 turns of wire rope on the reel, in order to make the wire rope not slip off.
4.When the winch is working, you should try to keep the wire rope perpendicular to the hub to prevent the wire rope from wearing at the edge of the hub!
5.It is recommended to use a dynamic pulley when pulling heavy loads to relieve the hand-cranking force!
6.Before use, please add lubricating oil to the gears and bushings to prevent the winch wear caused by the lack of oil.
7.If the hand winch is frequently used for a long time, it should often check the winch gears and bushings for lack of oil, and whether the wire rope wear. You should immediately stop using it if you find the wire rope worn seriously to avoid danger.
8.Please read the operating manual completely before use. And pay particular attention to the safety instructions included.
9.Please allow the slight color difference caused by the shooting light and the 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
