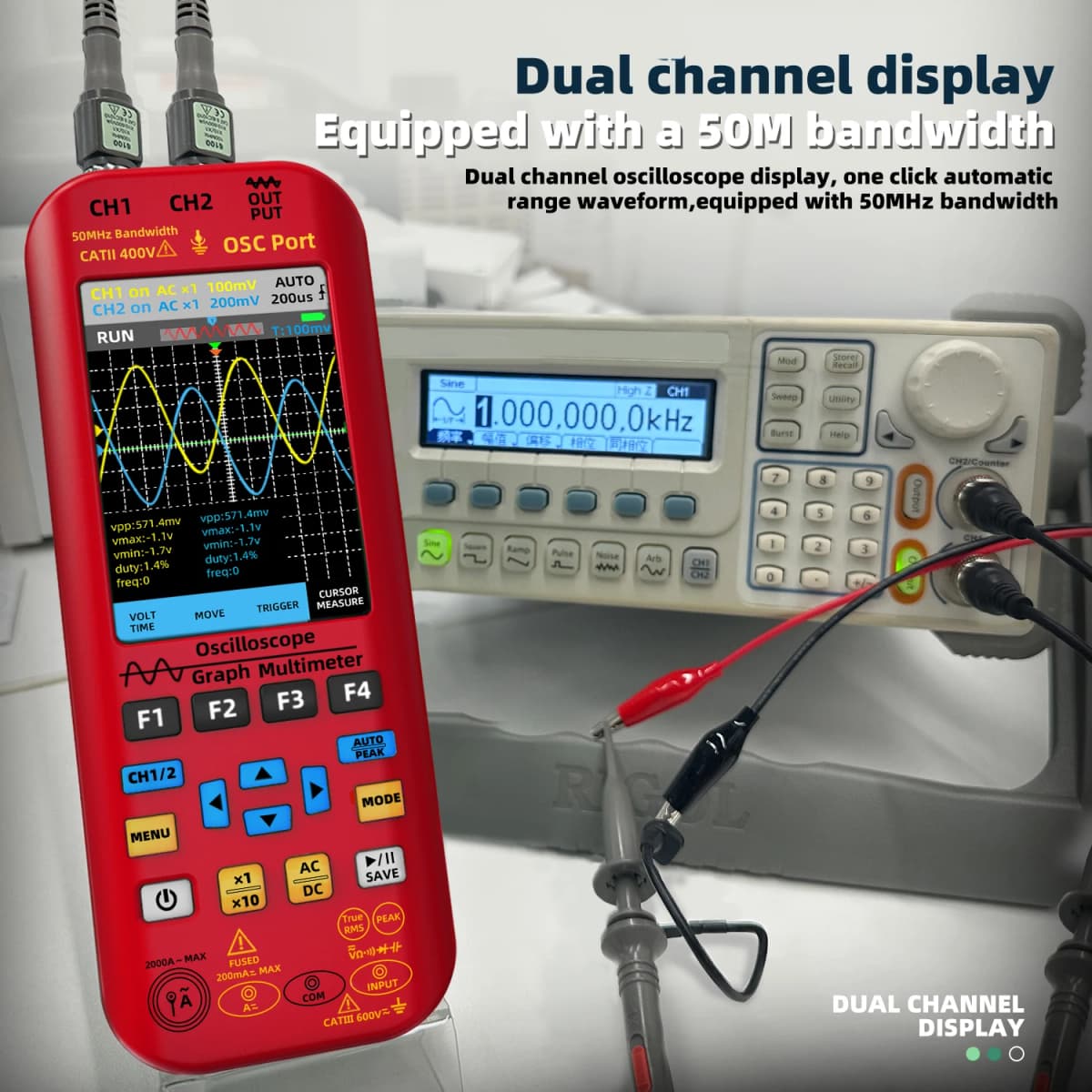

NEW Handheld Oscilloscope Multimeter DDS Generator 2 Channels, 50MHz Bandwidth 250MSa/s Sampling Rate 20000 Counts voltmeter

BSIDE Dual Channel 50MHz Oscilloscope Multimeter Flex Coil 2000A AC/DC Voltage Capacitance Connectivity Multifunction Tester

BSIDE O9 portable oscilloscope adopts FPGA+MCU+ADC hardware architecture, dual-channel sampling rate of 280MS/s, analog bandwidth of 50Mhz, built-in high-voltage protection module, maximum support for peak voltage measurement ±400V, is a high-performance product integrating the three functions of oscilloscope, multimeter and signal transmitter.

It adopts a 3.98-inch 480*320px resolution full-view high-definition TFT display, built-in 5000mAh rechargeable lithium battery, 10 hours standby in oscilloscope mode, 24 hours in multimeter mode, and high-quality EVA handbags and other ultra-high configurations.

Can be used with a flexible current clamp. It can test the current of 2000A.

The digital multimeter mode is 6000 bits, true RMS, and supports AC/DC voltage, current, temperature, capacitance, resistance, diode, NVC, continuity and other measurement functions. Attributes such as automatic shutdown, low battery alarm, etc.

Built-in DDS function signal generator, which can output 7 kinds of function signals, the maximum output of all signals is 2MHz, and the step size is 1Hz; The output frequency, amplitude, and duty cycle are adjustable.

Product Introduction:

[Data Storage and Export]: The data of this graphic oscilloscope meter can be saved and exported to your flash drive, computer, PC, etc.

[Rechargeable]: The handheld oscilloscope multimeter comes with a rechargeable battery and charging cable, ensuring that you never have to worry about running out of power during the measurement.

[Carrying case]: The digital oscilloscope multimeter comes with a high-quality EVA carrying case, which is perfect for use on the go.

Specification:

Maximum display: 20000 count screen

Size: 3.9 inches

Bandwidth: 50MHz

Real-time scanning rate: 250MSa/s

Input impedance: 1MΩ

Maximum Input Voltage: ×1 Range<150V, ×10 Range<300V (DC+AC Peak)

Horizontal seconds range: 100ns/div -20s/div

Vertical sensitivity: 20mV/div -10V/div

DC voltage: 20mV 0.001mV ± (1%+5); 200mV/2V/20V 0.01mV/0.0001V/0.001V/ ±（0.8%+3）; 200V/1000V 0.01V/0.1V ±（1%+5）

AC voltage: 20mV 0.001mV ± (1.2%+5); 200mV/2V/20V 0.01mV/0.0001V/0.001V/ ±（1%+3）; 200V 0.01V ±（1.2%+5）; 750V 0.1V ±（1.2%+5）

DC current: 20mA/200mA 0.001mA/0.01mA ±(1%+3)

AC Current: 20mA/200mA 0.001mA/0.01mA ±(1.2%+5)

Flexible Current Clamp AC Current: 200A/2000A 0.1A/1A ±(1%+5)

Resistance: 200Ω 0.01Ω ± (1.2%+5); 2K Ω/20K Ω/200K Ω 0.0001K Ω/0.001K Ω/0.01KΩ ±（1.0% + 3）; 2MΩ 0.0001MΩ ±（1.2% + 5）; 20MΩ 0.001MΩ ±（1.5% + 5）； 200MΩ 0.01MΩ ±（1.5% + 5）

Capacitance: 999.9nF 0.01 nF ± (5% + 20) 9.999 μF/999.9 μF 0.001 μF/0.01 μF ± (4.5% + 5); 99.99mF 0.001mF ±（5.0%+10）

Temperature: -20~1000°C/-4~1832°F 1°C/1°F ±(2.5% + 5)

Diode: Yes

Continuity: Yes

Power supply: 5000mA

Size: 216.6x84.5x36mm

Weight: 384g

Package includes:

1 x Handheld Oscilloscope Multimeter

1 x EVA suitcase

2 x oscilloscope probes

1 x Oscilloscope Accessory

1 x multimeter pen

1 x Crocodile Clip

1 x box

1 x charging cable

1 x Instruction Manual

1 x warranty card

1 x User Manual
