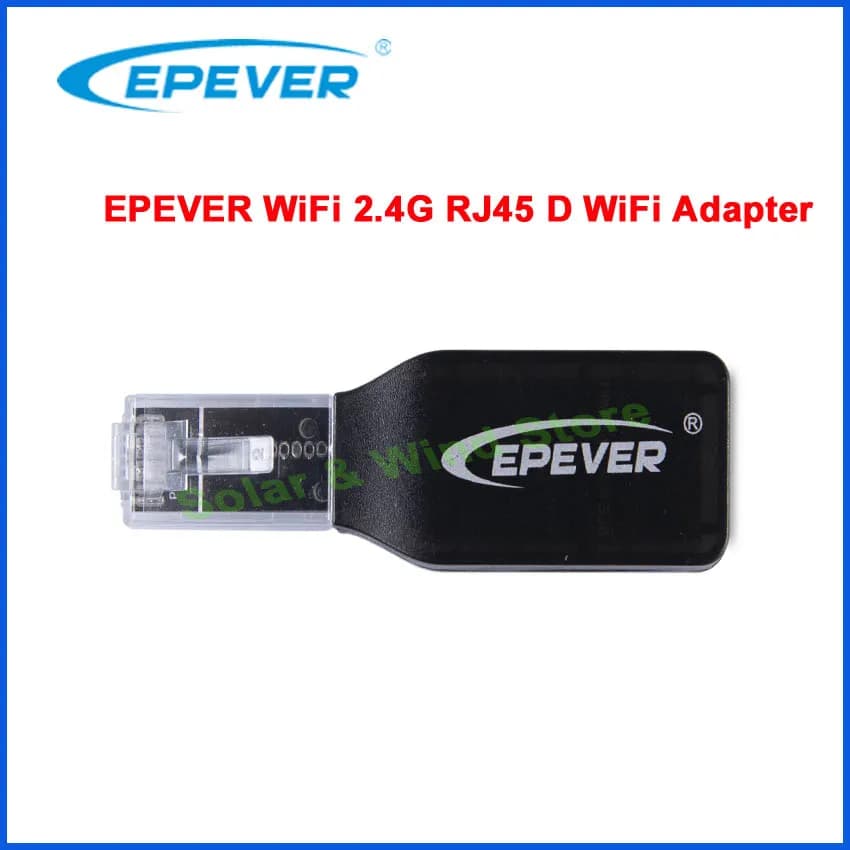

EPEVER WiFi2.4G RJ45 D WiFi Adapter for MPPT Solar Charge Controller Communication Monitoring by Mobile Phone App

EPEVER WiFi2.4G RJ45 D WiFi Adapter for EPEVER MPPT Solar Charge Controller Communication Monitoring by Mobile Phone App

EPEVER WiFi Adapter for Communication Monitoring by Mobile Phone APP for Solar Charge Controller

Overview:

The EPEVER WiFi 2.4G RJ45 D WiFi adapter is mainly used for real-time transmission of various power generation data from EPEVER controllers, inverters, hybrid inverter chargers, etc. to the EPEVER cloud server. It supports wireless monitoring and parameter setting of on-site devices via cloud servers, mobile apps, or large screens.

Features:

2.4G WiFi Networking Communication

Works with Controllers with RJ45 Interface

Plug-and-Play with Easy Setup

Communication Port Powered Directly, No External Power Required

Communication Distance: Up to 20 Meters

Support Two Working Modes: Offline Monitoring; WIFI Data Upload to the Cloud

Products suitable for Solar Guardian app: XTRA, TRIRON, Tracer-AN

Compatible Products:

Controllers: XTRA, Tracer-AN, TRIRON

For the WIFI2.4G adapter install and wifi connection, please check the following video:

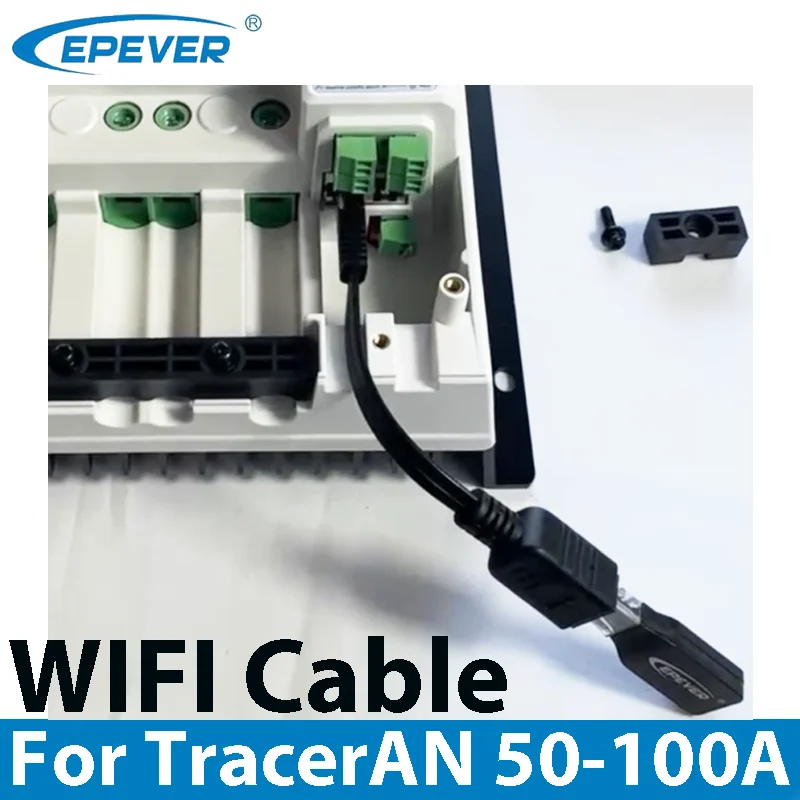

Cable for WIFI connection Use for Tracer-AN 50-100A

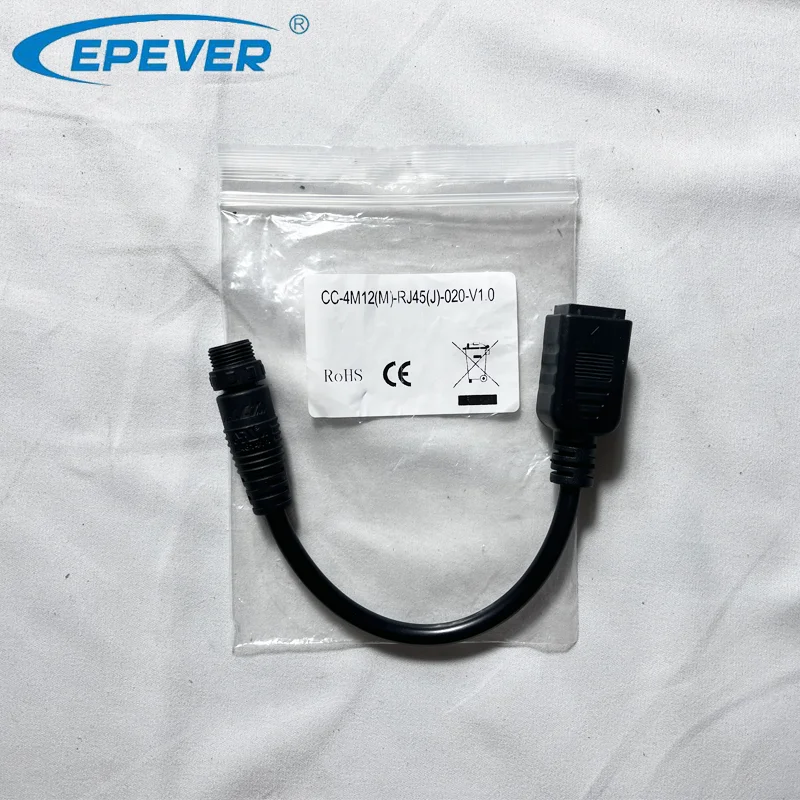

Waterproof cable for WIFI connection Use for Tracer-BP
