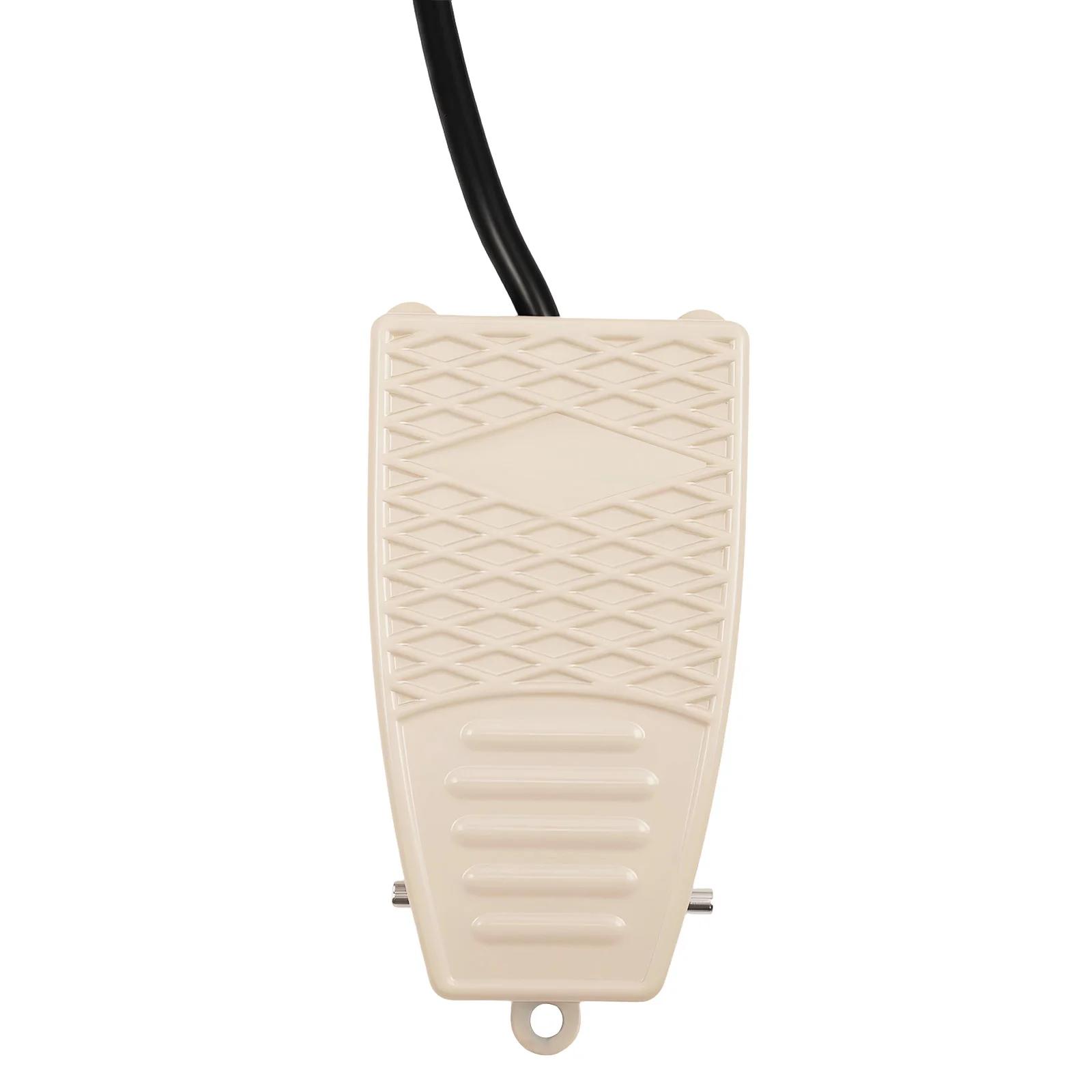

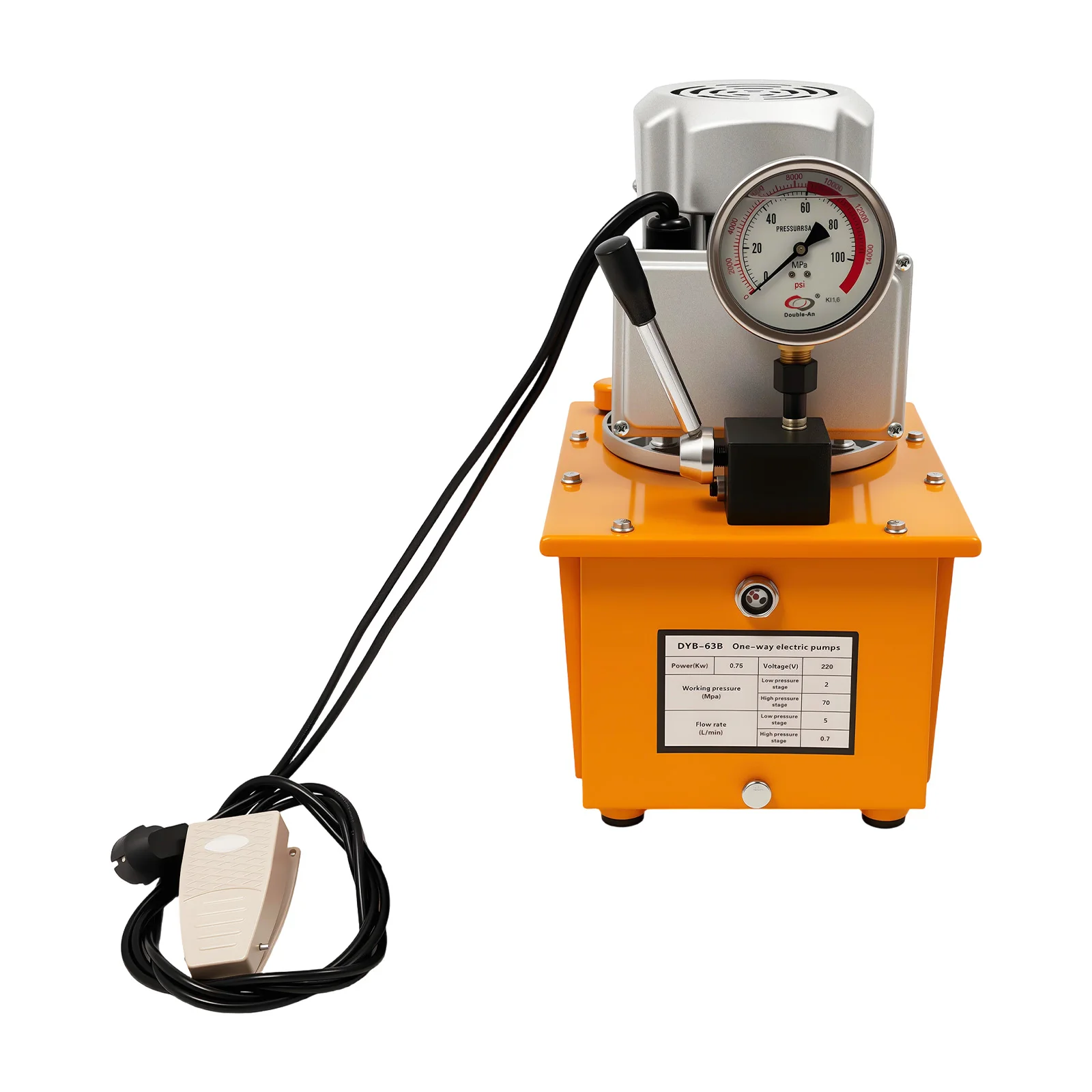

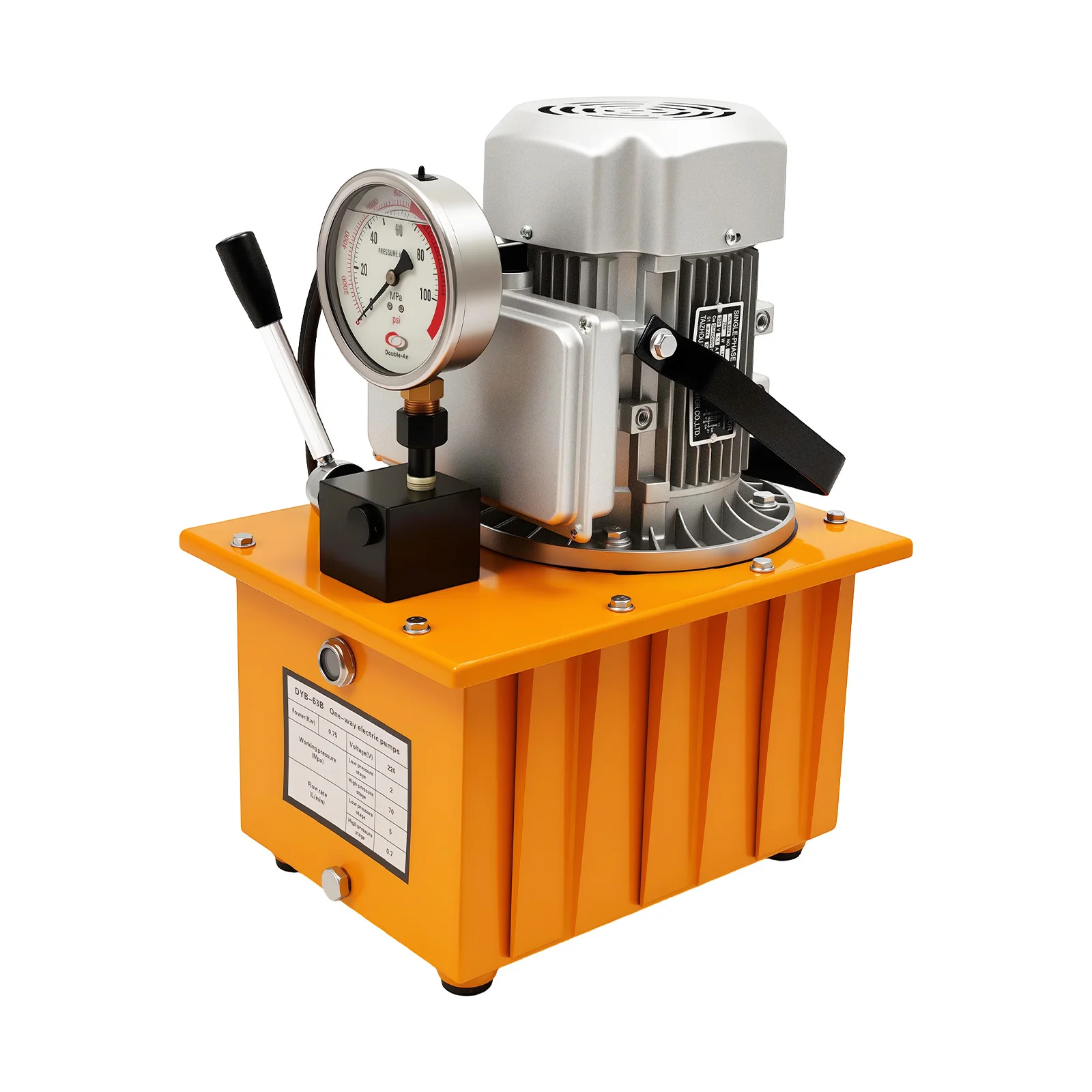

Electric Hydraulic Pump Power Unit 7L 750W 10000PSI with Manual Valve Pedal Mag 2Mpa - 70Mpa

Electric Hydraulic Pump Power Unit 7L 750W 10000PSI with Manual Valve Pedal Mag 2Mpa - 70Mpa

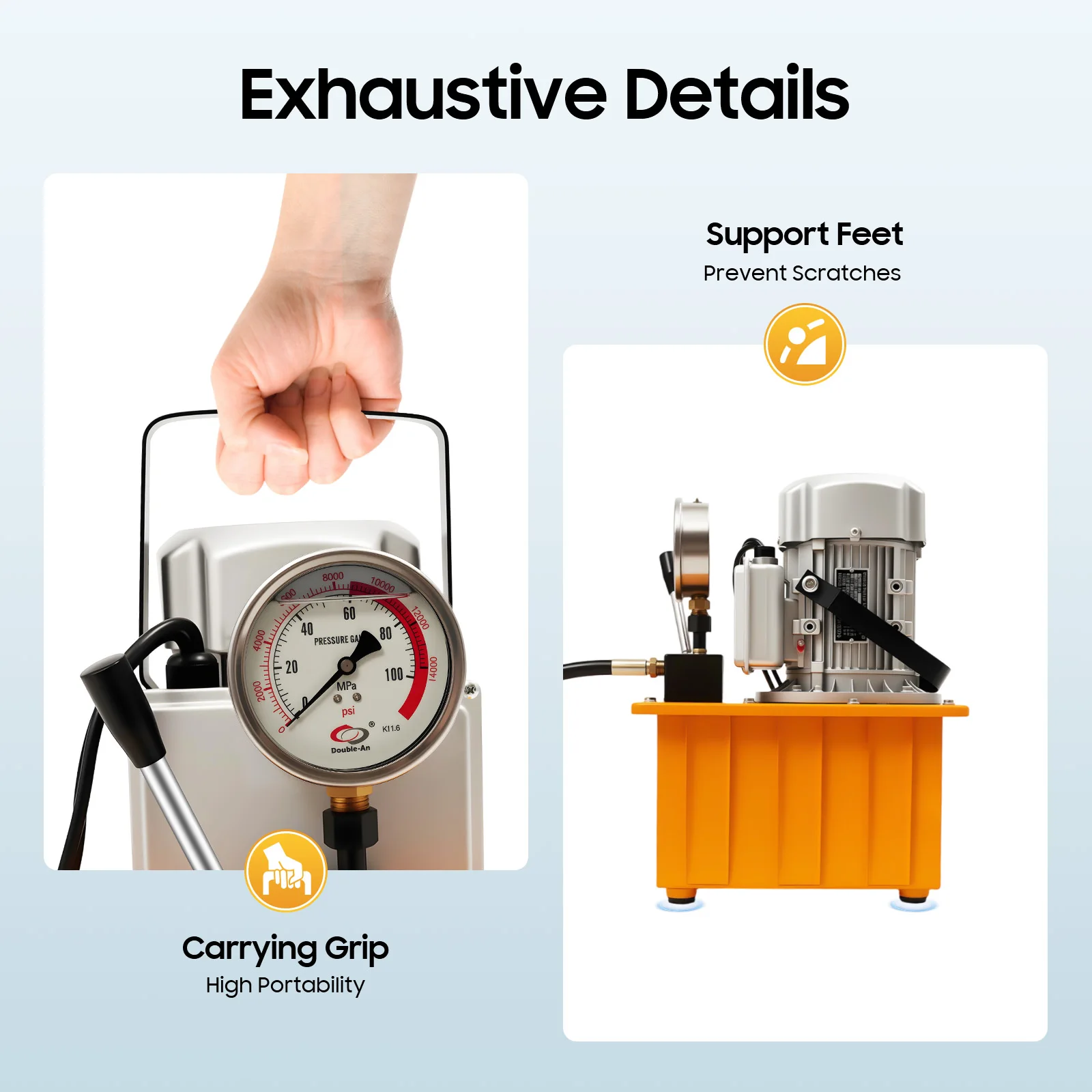

Support Feet: They maintain stable operation while also preventing scratches on the floor.

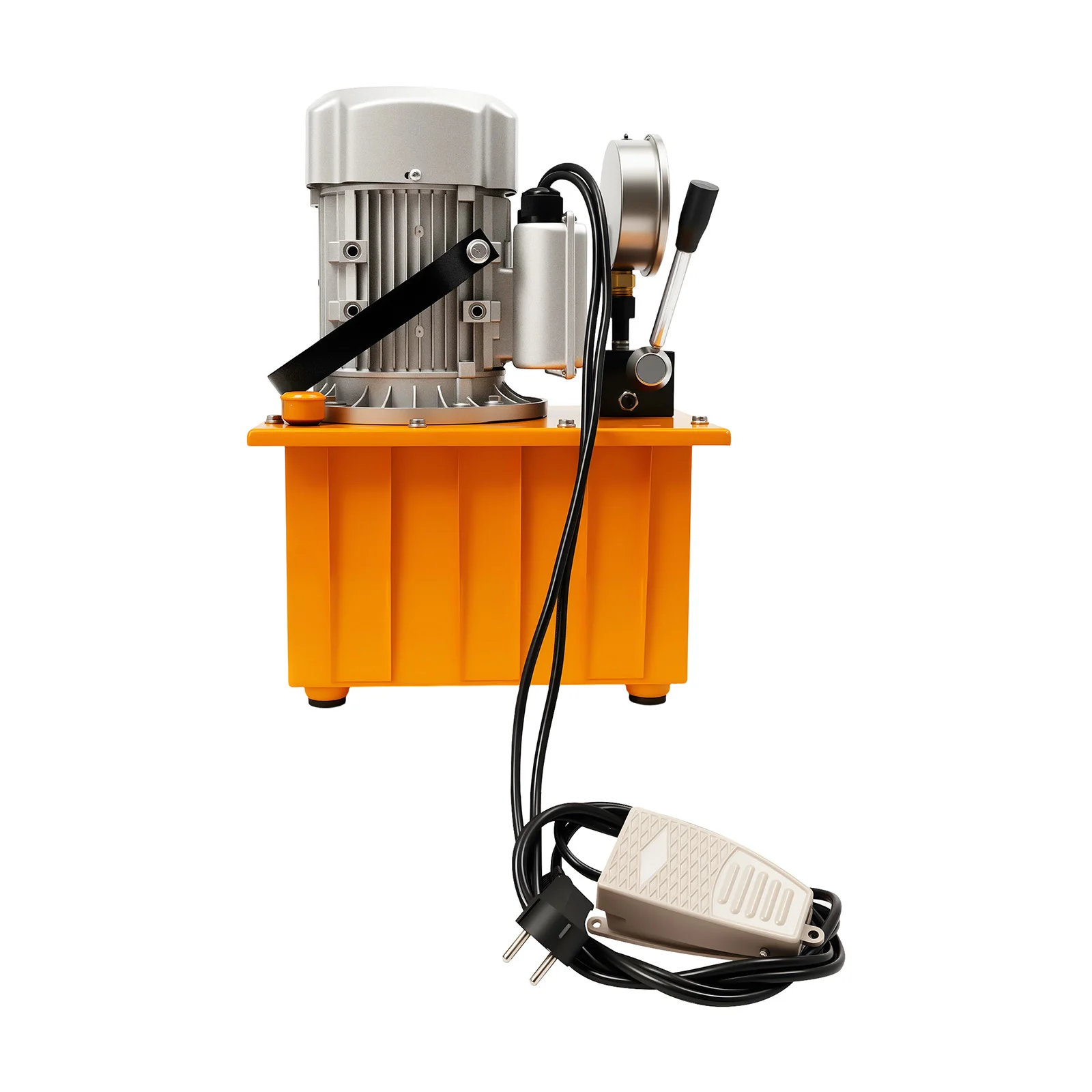

Long Power Cord: A 4.92-ft long power cord can provide you with more usage positions and keep you away from the power source for safer use.

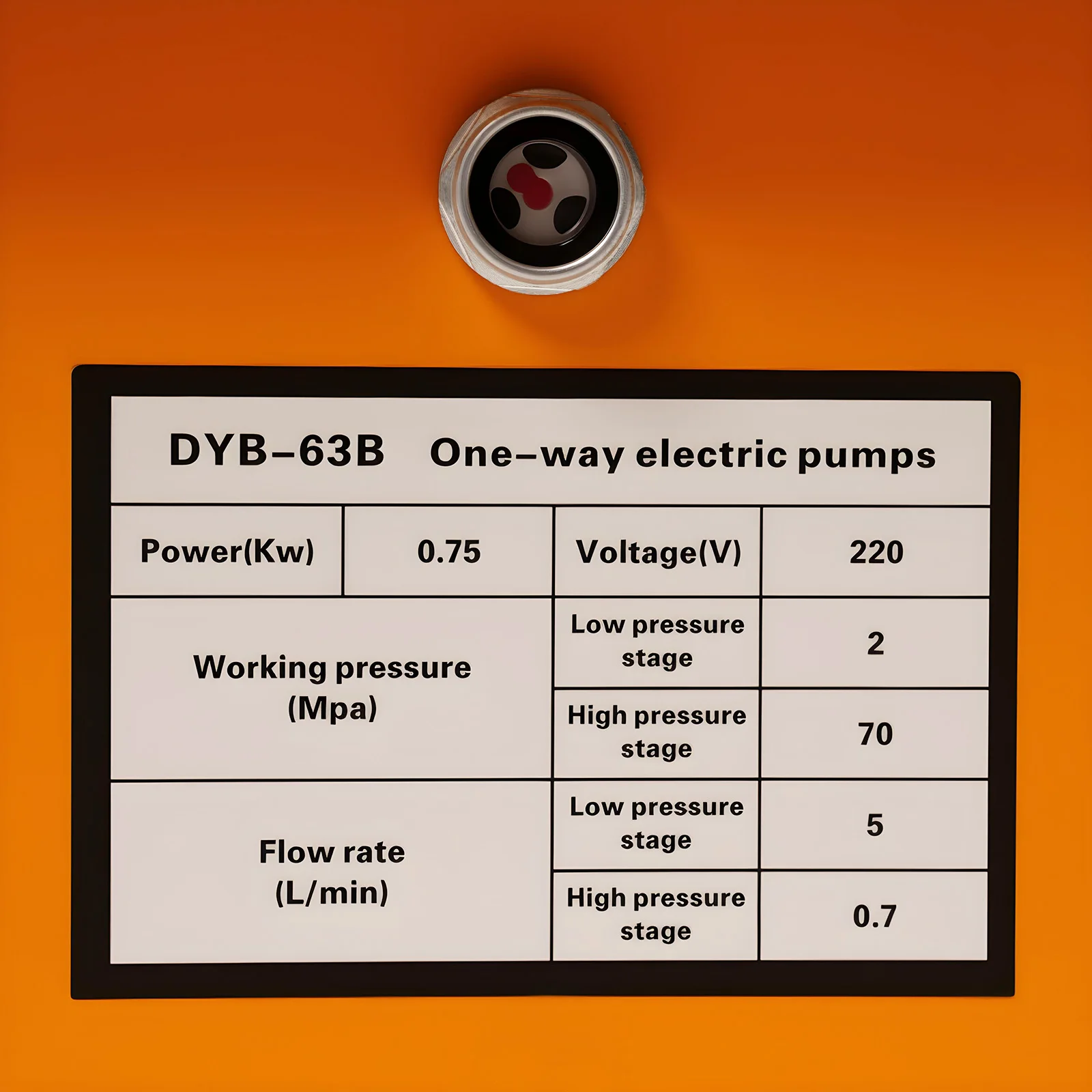

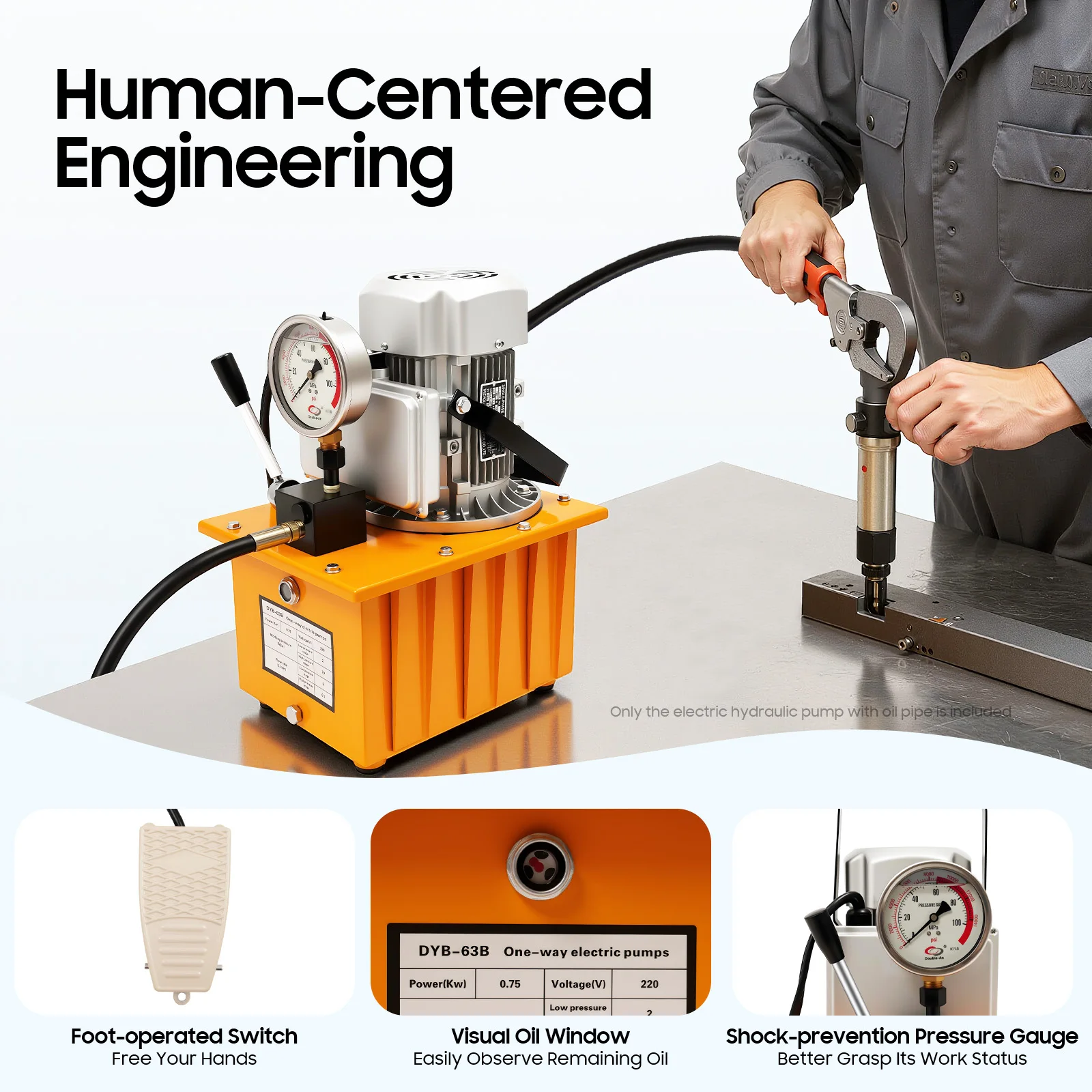

Visual Oil Window: It allows you to observe the amount of hydraulic oil in the tank, making it convenient for you to refuel in a timely manner.

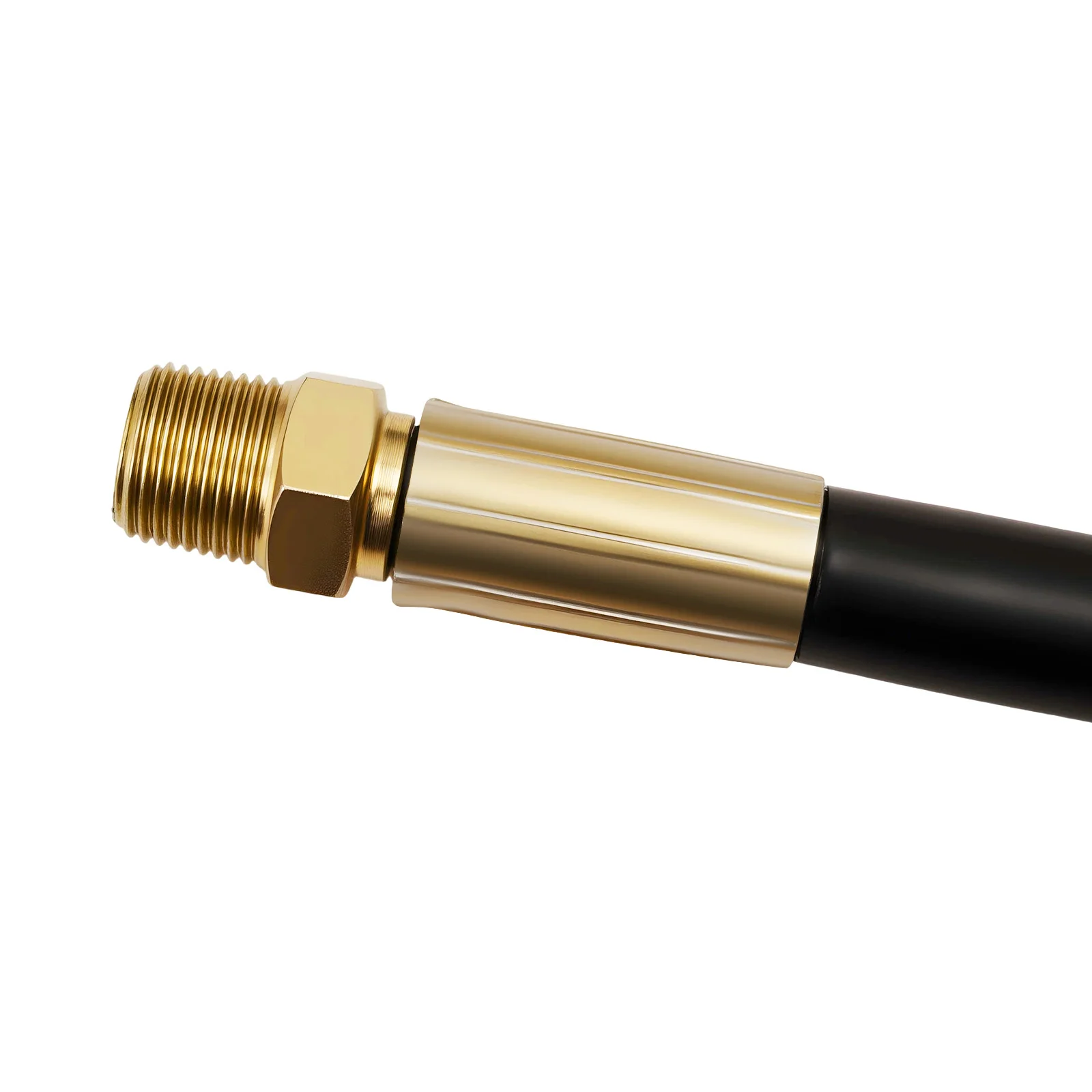

Oil Pipe Dust Cover: It can prevent dust or debris from entering the oil pipe when it is not in use, keeping it unobstructed.

Application

This product is suitable for a variety of hydraulic equipment, working on several assignments such as lifting, pressing, bending, straightening, cutting, assembly and disassembly.

Specification

Material: Steel

Color: Black, Orange

Style: Modern

Process: Spray Molding, Blacking

Plug Type: EU Standard

Input Voltage: AC 220V 50Hz

Flow Rate: 0.6L/0.13Gal/Min(＞7Mpa) - 5L/1.1Gal/Min(＜7Mpa)

Working Pressure: 290-10152PSI/2-70Mpa

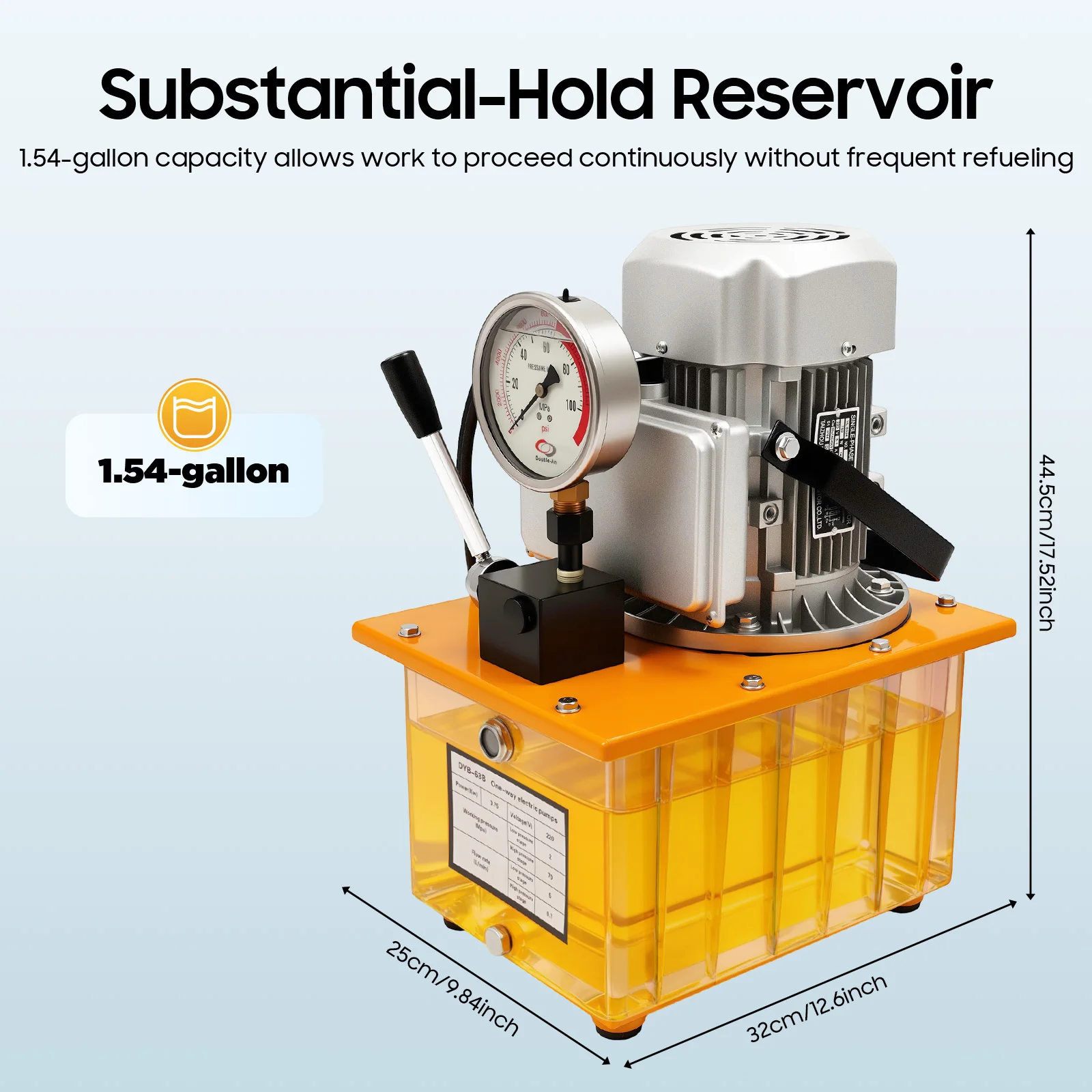

Oil Capacity: 7L/1.54 Gal

Motor Power: 750W

Motor Speed: 1400RPM

Regular Working Temperature: Below 40 ℃/104℉

Motor Type: Copper Wire Motor

Oil Pipe Joint Type: Taper Thread ZG-3/8

Compatible Oil: Hydraulic Oil Between # 0 and # 32

Power Cord Length: 1.5m/4.92 ft

Oil Pipe Length: 1.8m/5.91 ft

Product Size: 32*25*44.5cm/12.6*9.84*17.52in

Package Size: 51*37*29cm/20.08*14.57*11.42in

Gross Weight: 24.25kg/53.46 lbs

Net Weight: 23.04kg/50.79 lbs

Package Included
1* Electric Hydraulic Pump
1* Oil Pipe

Notes

1.Please check the size and product parameters carefully before ordering.
2.Please be advised that the pressure should not exceed 63Mpa when using this product
3.Please be advised that if the product temperature is too high or if it is used continuously under high pressure for a period of time, it should be stopped and allowed to cool before continuing to be used.
4.Please be informed that the pressure of the pressure relief valve and safety valve of this product have been set before leaving the factory, so you cannot increase the pressure arbitrarily, but can only reduce the pressure according to the actual working pressure, which can improve the service life of the product.
5.Please be aware that the motor must be reliably grounded during the use of this product.
6.Please be informed that it cannot be turned on for use when there is no oil in the fuel tank.
7.Please allow the slight color difference caused by the shooting light and the 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
