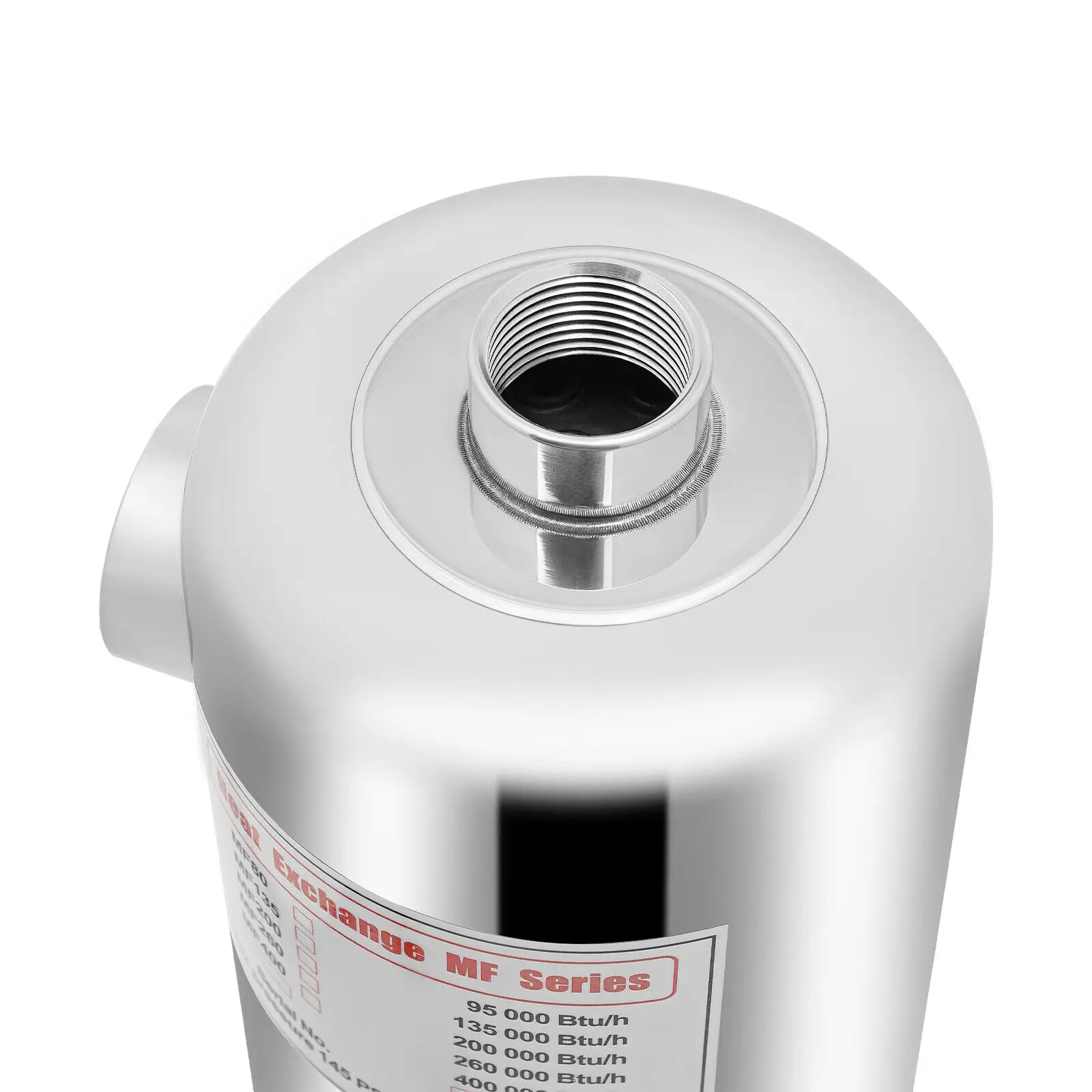

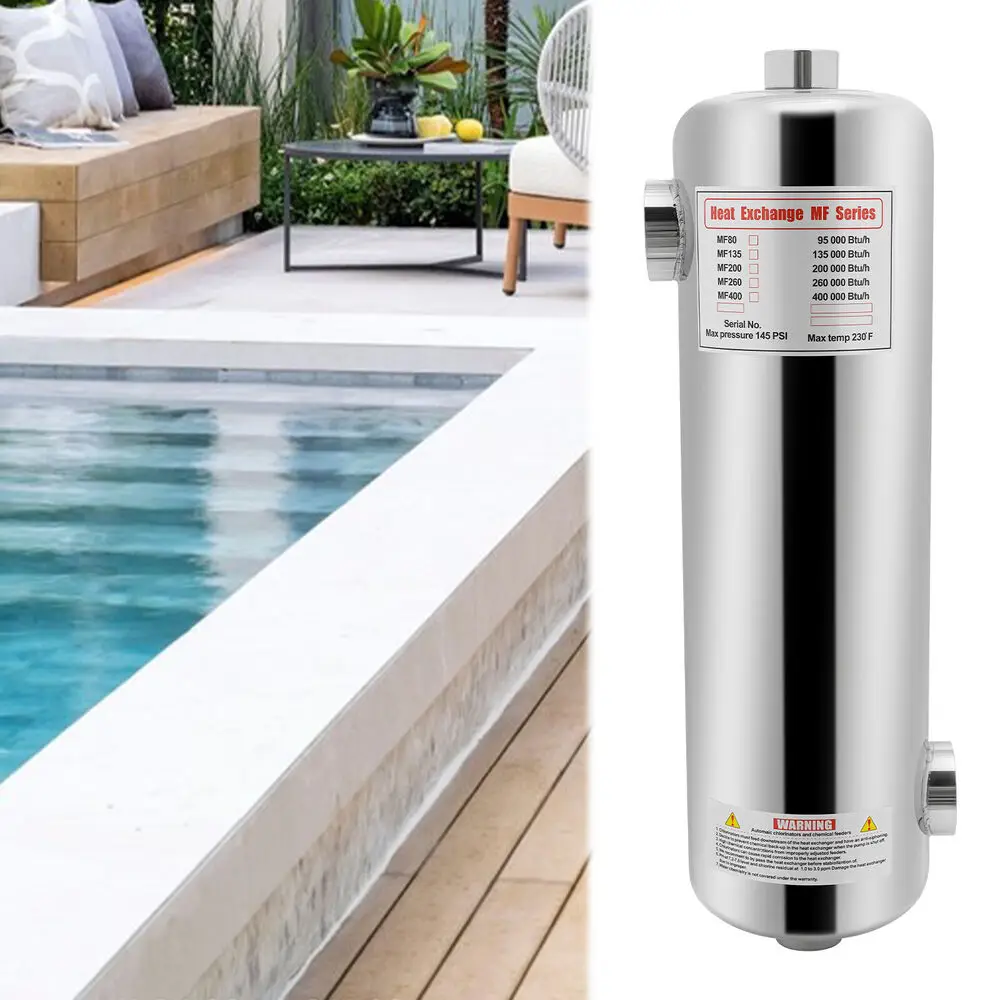

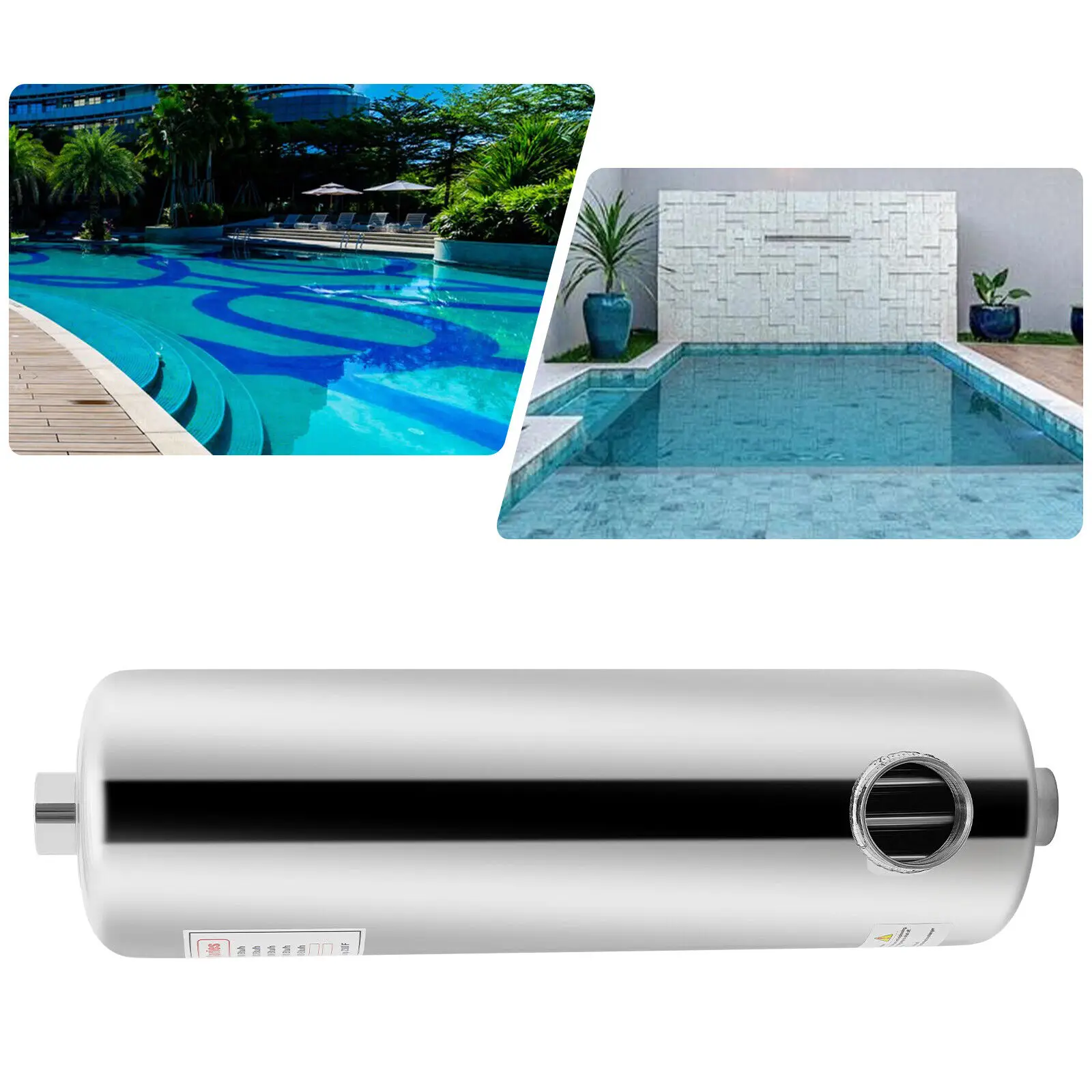

Pool Heat Exchanger Swimming Pool Heat Exchanger Pool Heating System Stainless Steel 60 kW 485*134mm

Specification
Model: MF200
Color: Silver
Material: SS304 Stainless Steel
Surface Treatment: Polishing Treatment
Power: 60 kW
Output: 200kBtu/h
Pool Connection Diameter: G1 1/2''
Heater Connection Diameter: G1''
Number of Tubes: 25
Pressure Test: Pool Water Circuit--10bar
Hot Water Circuit--5bar
Pressure Bearing: 2.5kg/ 5.51lbs
Pool Water Flow:250L/ min
Hot Water Flow: 30L/ min
Dimensions (L*W): 48.5*13.4cm/ 19.1*5.3in
Package Size: 54*19*19cm/ 21.3*7.5*7.5in
Gross Weight: 5.2kg/ 11.5lbs
Package Included
1* Heat Exchanger
All Needed Accessories
Notes
Please note that the fine and dense pipe interfaces for the normal high-temperature circuit are 2 ends (1-inch interface), and the low-temperature circuit uses the high-speed flow 2-side reverse interface (1.5-inch or 2-inch interface).
Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
