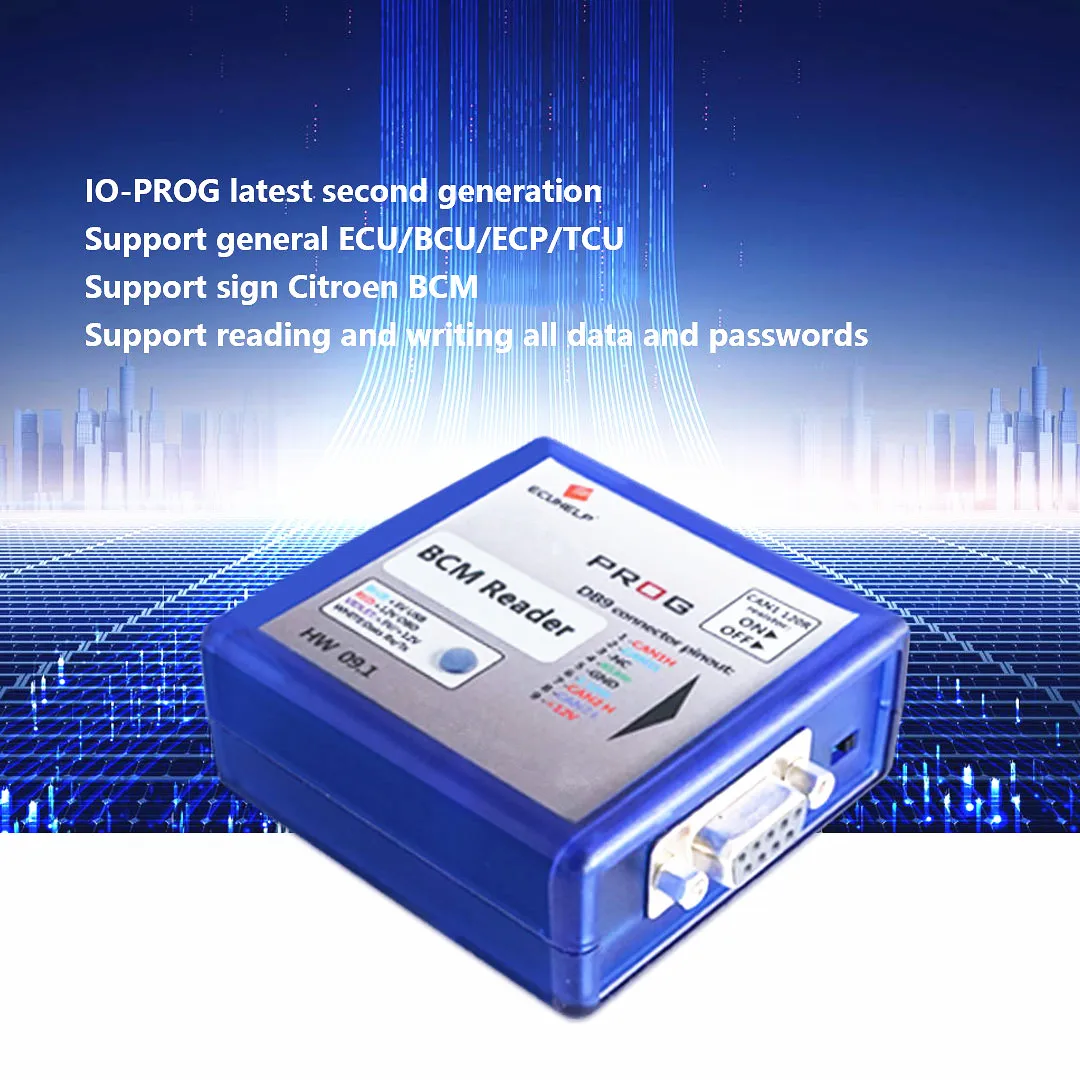

Full PSA BSI IO-PROG ECU TCM BCM &EPS Programmer BD9 Connector Pinout I/O Terminal IO PROG ECU Programmer HW 09.1FLASH EEPROM

The following support list has been added to the previous full version of GM/OPEL

BSI PSA Version Newly added license as below:

MULTITOOL PSA BSI

Siemens D76F0018+95160 KLINE (BSI-E0X-00/BSI-F0X-00); EEPROM 95160

R/W, show PIN;

Siemens 1L00M+95128/95256 CAN (BSI-S0X-00); EEPROM 95128/95256 R/W, show PIN, 9S12DP512 FLASHR/W;

Continental SC667050+95256 CAN (BSI-Q0X-00); EEPROM 95256 R/W, show

PIN, SC667050 FLASH R/W;

Valeo 4L00M+95128/25128 CAN (BSI2004-P0X-00); EEPROM 95128/25128 R/W, show PIN, 9S12DP512 FLASH R/W;

Valeo 2M48H+24C128 CAN (BSIEV-X0X-00); EEPROM 24C128 R/W, show PIN, 9S12XEP768 FLASH R/W;

Valeo SC667152+95256 CAN (BSI-N0X-00); EEPROM 95256 R/W, show PIN, SC667152 FLASH R/W;

Johnson Controls easy CAN4+29LV400+95128 CAN (BSI2004-H0X); EEPROM

95128 R/W, show PIN,29LV400BB FLASH R/W;

Johnson Controls easy CAN4F1M-32+95128 CAN (BSI04EV-K0X); EEPROM

95128 R/W, show PIN, Johnson Controls easy CAN4F1M-32 FLASH R/W; SPC560B60+95128 Support

list as below:CAN (BSI04EV2-KEX);

EEPROM 95128 R/W, show PIN, SPC560B60 FLASH R/W

MULTITOOL FORD/BCM

FORD LEAR BCM MC9S12XEP768. MC9S12XEP768

ln addition, fixed the bug that opel/qm Delphi BCM could not read. OPEL BCM DELPHI 70F3238 + 93C86

OPEL BCM DELPHI 70F3379 + 93C86

OPEL BCM DELPHI 70F3533/70F3634:

For Supported List ,it ONLY can supported current opened license modules . It DOES NOT add extra activation support list via Simcard.

Full version +PSA BSI has covered all Full Version Function and add extra PSA BSI New released Function.

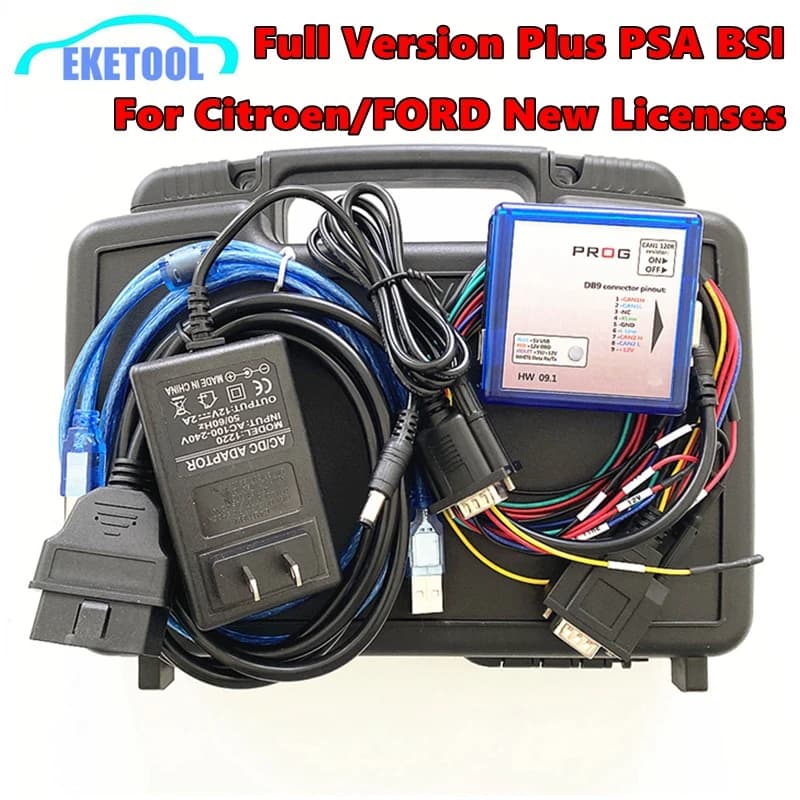

Added White Clip and PSA BSI cable:

BASIC PACKET:MULTITOOL +OPEL/GM ECU LICENSE

MULTITOOL OPEL/GM ECUReading/writing of OPEL/GM ECUs by CAN (OBD

or wired on the bench) . Also software has bootpin recovery mode. Supported OPEL/GM ECU types:

* ACDELCO E83 MPC5565 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY;

* ACDELCO E78 MPC5566 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY;* ACDELCO E87 MPC5565 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY;

* ACDELCO E39 MPC5566 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY;

* ACDELCO E39A MPC5566 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;

* ACDELCO E98 MPC5674 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;

* DELPHI DCM3.7AP MPC5566 FLASH R/W.CAN (OBD);

* DELPHI DCM3.7AP R5F72544 FLASH+DATAFLASH R/W.CAN (OBD);

* DELPHI DCM3.7AP R5F72513 FLASH+DATAFLASH R/W.CAN (OBD)

* ACDELCO E37 M58BW016DB FLASH R/W.CAN (OBD);

* ACDELCO E38 AM29BDD160GB FLASH R/W.CAN (OBD);

* ACDELCO E92 MPC5674 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;

* ACDELCO E80 MPC5676 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;

* ACDELCO E82 MPC5676 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;

* ACDELCO E67 S29CD016 FLASH R/W.CAN (OBD);

* ACDELCO (BOSCH)E84MPC5676 FLASH R/W.CAN (OBD);* EEPROM DUMP VIEWER, EDITOR.

New liecense added full Opel license version as below:

MULTITOOL OPEL BCM

Supported BCM/BSI types

OPEL DELPHI BCM 70F3238+93C86 CAN . EEPROM 93C86 R/W, show PIN, reset PIN. 70F3238 FLASH R/W;

OPEL DELPHI BCM 70F3379+93C86 CAN . EEPROM 93C86 R/W, show PIN, reset PIN. 70F3379 FLASH R/W;

OPEL DELPHI BCM 70F3633 CAN . 70F3633 DATA & PROGRAM FLASH R/W, show PIN, reset PIN;

OPEL/GM BOSCH BCM 70F3469+24C16.70F3469 FLASH R/W. EEPROM 24C16

R/W show PIN, reset, change odometer, change VIN;

OPEL/GM BOSCH BCM 70F3385+24C16.70F3385 FLASH R/W. EEPROM 24C16

R/W show PIN ,reset, change odometer, change VIN;

OPEL/GM BOSCH BCM 70F3558+24C32.70F3558 FLASH R/W. EEPROM 24C32

R/W show PIN, reset,change odometer, change VIN;

OPEL/GM CONTINENTAL BCM 70F3469+95160(25160). 70F3469 FLASH R/W. EEPROM 95160(25160) R/W show PIN, reset, change odometer, change VIN;

OPEL/GM CONTINENTAL BCM 70F3558+95320(25320) .70F3558 FLASH R/W. EEPROM 95320(25320) R/W show PIN, reset, change odometer, change VIN. =============================================================

MULTITOOL OPEL/GM TCMReading/writing of OPEL/GM TCM 6T30, 6T35, 6T40, 6T45, 6T50, 6T70, 6T75, 6T80, 6L45, 6L50, 6L80, 6L90 via CAN (OBD or

wired on the bench). Supported OPEL/GM TCM types:

TCM 6T30, 6T35, 6T40, 6T45, 6T50 AM29BDD160GB FULL FLASH R/W. CAN

(OBD); TCM 6T70,6T75,6T80,6L45,6L50,6L80,6L90

FULL M58BW016DB FLASH R/W. CAN (OBD).

MULTITOOL OPEL/GM EPSReading/writing of OPEL/GM EPS modules via

CAN (OBD or wired on the bench). Supported OPEL/GM EPS types:

EPS BOSCH 70F3187+95080 70F3187 FLASH R/W 95080 EEPROM R/W. CAN(OBD).

IO Terminal Full version New Licenses Added For Open:

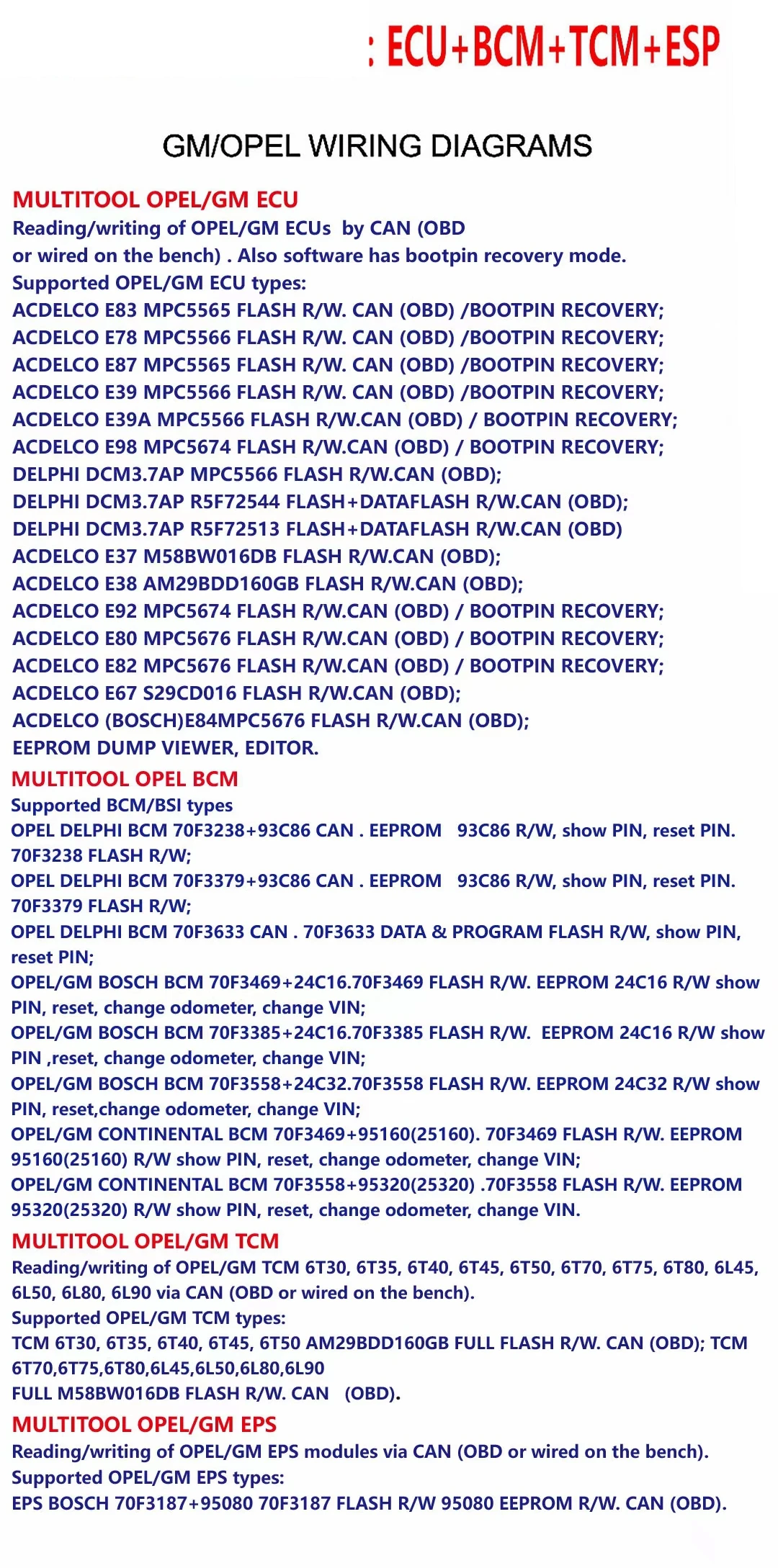

ECU+BCM+TCM+ESP For GM/Opel Wiring Diagrams

IO-PROG Terminal Multi Tool for reading and writing OPEL ECU BCM TCM EPS

For reading / writing OPEL ECUs BCM TCM EPS by CAN (OBD or on bench) . Also software has bootpin recovery mode.

Add Opel ECU E84 E98 Reading and Writting compared to the old version.

Supported For OPEL ECU types

ACDELCO E83 MPC5565 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY;

ACDELCO E78 MPC5566 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY;

ACDELCO E87 MPC5565 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY;

ACDELCO E39 MPC5566 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY;

ACDELCO E39A MPC5566 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;

ACDELCO E98 MPC5674 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;

DELPHI DCM3.7AP MPC5566 FLASH R/W.CAN (OBD);

DELPHI DCM3.7AP R5F72544 FLASH+DATAFLASH R/W.CAN (OBD);

DELPHI DCM3.7AP R5F72513 FLASH+DATAFLASH R/W.CAN (OBD);

ACDELCO E37 M58BW016DB FLASH R/W.CAN (OBD);

ACDELCO E38 AM29BDD160GB FLASH R/W.CAN (OBD);

ACDELCO E92 MPC5674 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;

ACDELCO E80 MPC5676 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;

ACDELCO E82 MPC5676 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;

ACDELCO E67 S29CD016 FLASH R/W.CAN (OBD);

ACDELCO (BOSCH) E84 MPC5676 FLASH R/W.CAN (OBD);

EEPROM DUMP VIEWER, EDITOR.

MULTITOOL For OPEL BCM

Supported BCM/BSI types

OPEL DELPHI BCM 70F3238+93C86 CAN . EEPROM 93C86 R/W, show PIN, reset PIN. 70F3238 FLASH R/W;

OPEL DELPHI BCM 70F3379+93C86 CAN . EEPROM 93C86 R/W, show PIN, reset PIN. 70F3379 FLASH R/W;

OPEL DELPHI BCM 70F3633 CAN . 70F3633 DATA & PROGRAM FLASH R/W,show PIN, reset PIN;

OPEL BOSCH BCM 70F3469+24C16.70F3469 FLASH R/W. EEPROM 24C16 R/W show PIN, reset, change odometer, change VIN;

OPEL BOSCH BCM 70F3385+24C16.70F3385 FLASH R/W. EEPROM 24C16 R/W show PIN ,reset, change odometer, change VIN;

OPEL BOSCH BCM 70F3558+24C32.70F3558 FLASH R/W. EEPROM 24C32 R/W show PIN, reset,change odometer, change VIN;

OPEL CONTINENTAL BCM 70F3469+95160(25160). 70F3469 FLASH R/W. EEPROM 95160(25160) R/W show PIN, reset, change odometer, change VIN;

OPEL CONTINENTAL BCM 70F3558+95320(25320) .70F3558 FLASH R/W. EEPROM 95320(25320) R/W show PIN, reset, change odometer, change VIN.

MULTITOOL For OPEL TCM

Reading/writing of OPEL TCM 6T30, 6T35, 6T40, 6T45, 6T50, 6T70, 6T75, 6T80, 6L45, 6L50, 6L80, 6L90 via CAN (OBD or wired on the bench).

Supported OPEL TCM types:

TCM 6T30, 6T35, 6T40, 6T45, 6T50 AM29BDD160GB FULL FLASH R/W. CAN (OBD); TCM 6T70,6T75,6T80,6L45,6L50,6L80,6L90 FULL M58BW016DB FLASH R/W. CAN (OBD).

MULTITOOL For OPEL EPS

Reading/ writing of OPEL EPS modules via CAN ( OBD or wired on the bench).

Supported OPEL EPS types:

EPS BOSCH 70 F 3187 + 95080 70 F 3187 FLASH R/ W 95080 EEPROM R/ W. CAN ( OBD).

New Release IO-PROG ECU Programmer BD9 Pinout I/O Terminal IO PROG HW 09.1 FLASH/EEPROM K-Line CAN MULTITOOL For OPEL

Highlights:

Universal Support For Buick For Cadillac For Opel Deco Computer board

E37 E38 E39 E67 E83 E89 E87 E78 E80 E82 E84 E98 clone computer version SIMTEC77.78 general!

No need buy licenses ,hardware+software use directly !

Please Note:

According to specialist check ,E84 and E94 can not supports calculate password. Also Genius does not supports too.

Description:

I/O Terminal is a software and hardware solution designed for work with a

great number of ECUs, automatic transmissions,BSI installed in VAG, Mitsubishi, Mazda, Ford, Nissan, Subaru, Suzuki, Opel, Volvo, Alfa Romeo, Fiat, Jaguar,Land Rover, Lancia, Maseratti, Hyundai, Kia, Daewoo and other vehicles using the OBD-II data link connector.

I/O Terminal Advantages:

Combination of K-line and CAN interfaces provides ideal software compatibility without acquiring an expensive J2534 device

Reading and flashing of FLASH and EEPROM memory image using the diagnostic connector link.

Checksums testing and correction. Safe reading and flashing

Licensing:

The software is marketed on a module basis. Each module is a separate program which functions independently with one joint adapter. You can download

and use only the software you have licenses on. Licenses are stored on special

cards which are to be inserted in the special adapter slot before the software

use. Some license can be recorded on one card, others require separate

recording.

Purchased licenses please contact your suppliers.now basic edition only with

OPEL ecu licenses.All licenses will be activated in future.
