Autel Maxicom Mk906S Pro Diagnostic Tool Bluetooth Scanner Car Ecu Coding Mk906 Pro Automotive Tools Pk Ms906Bt Mk906 Pro

Support Multiple Languages

English, Spanish, French, German, Russian, Japanese, Korean, Polish, Portuguese, Swedish, Persian, Turkish, Thai, Vietnamese, Hebrew, Arabic, Indonesian, Italian, Dutch, Traditional Chinese

(Please leave the S/N of machine to authorize the language you want after you receive it.)

1 Year Warranty and 1 Years Free Update

Autel MaxiCOM MK906S Pro

MaxiCOM MK906S Pro is an OBD2 Wi-Fi Diagnostic Scanner and TPMS Tool with Bluetooth VCI, a high-powered eight-inch advanced diagnostic tablet featuring expanded software and cloud-based data and repair services.

The MK906(S) Pro is an Octa-core processor, an Android 10 operating system, and 128 GB of memory to enable the tablet to perform advanced diagnostics, including coding and adaptations, access comprehensive repair information, and conduct battery and electrical system analysis.

Features

● Advanced ECU Coding & Adaptation: Provides component adaptation or variant coding functions for custom configurations, reprogram adaptive values for certain components after making repairs

● Bi-directional Control:
Receive information and send commands to subsystem to perform active tests

● OE-Level All System Diagnostics:
Diagnose all available vehicles' electrical systems and sub-systems in minutes. Support 50 meters (164 feet) BT wireless diagnosis

● 36+ Services & Initialization & Adaptation & Calibration:
BMS, EPB, ABS Bleeding, Oil Reset, SAS, DPF, Throttle Relearn, Headlight Adjustment, Disable Transportation, Crankshaft Resync, Air Suspension, Window Initialization, Airbag Repair, Cylinder Power balance, VGT Learn Gearbox Match, TPMS Full Functions, Seat Calibrations, etc

● Powerful Hardware Configuration:
11600 mAh large battery; 128G memory; Android 7.0 System ; 16M rear camera & 5M front camera ; 8 core processor; 8 inches 1920*1200 LCD touch screen.

● Cloud-based Accufix Repair Database:
Access to a vast database of repair and diagnostic tips along with proven field fixes

● Personalization Setting:
Compatible with BMW, JEEP, Fiat, Porsche, and so on

● Guided Function:
Compatible with VW, Audi and etc.

● Flash Hidden Features:
Compatible with Audi, BMW F & E chassis and etc.

Advanced ECU Coding

Autel MK906 Pro diagnostic tool can perform many advanced features that were previously only available on dealership tool, such as refresh hidden functions, disable annoying functions, enhance vehicle performance, customize OE settings, reprograms the adaptive data for certain components after repairs or replacements, customized configurations for high-end models and so on to enhance fuel efficiency and ensure safe driving.

- Online ECU Coding: Compatible with Volkswagen, BMW, Seat, Porsche, etc. Obtain the online data from the server and no need to match ECU manually; Code your car fast and easily via the Internet to solve your car's problems; Restore the vehicle functional status after replacing the on-board modules

- ECU Module Replacement: Compatible with Asian cars like Honda, Nissan, Toyota, Hyundai, Kia, etc. Introduce the new ECU module replacement to the car system and make the cars run smoothly

36+ Special Services

Autel scanner MK906 Pro, functions as Autel MaxiSys MS906 Pro but with 2022 newest software, service functions the same as MaxiSys MS908 and Maxicom MK908, collects more than 36 special functions, and allows you to easily solve thousands of repair problems, saves you from the dilemma of seeking repair solutions around, greatly improves your work efficiency and helps you serve more customers.

Simply by spending the cost of one diagnostic scanner, you can get the functions from multiple devices：

◆ Oil Reset: Reset the mileage or driving time to zero after maintenance to start a new cycle.
◆ EPB: Reset the brake pad after replacing the brake pad/ the brake pad sensor circuit/ the servo motor or when the brake pad indicator lightens.
◆ SAS: Calibrate the steering angle after replacing the steering angle position sensor, replacing the mechanical parts of the steering system and completing the four-wheel positioning, etc.,
◆ BMS: Reset the monitoring unit of the car battery after replacing a battery or a battery monitoring sensor.
◆ DPF: Remove particulate matter from the trap to keep the trap stable.
◆ Suspension: Adjust the height of the body.
Throttle: Initialize the throttle actuators to turn the learning value of the ECU to the initial state.
◆ More: WIN DR ROOF, Seats, Odometer, Lang Change, Headlamp, CHG Tire Size, TEC Learn, Cylinder, Trans Adaption, Air Bag Rest, etc.

New Added Functions

Refresh hidden functions: stimulate hidden functions like Auto Park function, tilting rear-view mirrors, one-button lift window, start and stop memory, cancel power-on rule statement, display digital speed, residual temperature control, adjust turn signal flashing times, single door opening function, automatic window closing function for VW, BMW, Seat, Porsche, Renault, etc.

Customize Configurations: After component replacement and configuration change, the relevant vehicle system can re-recognize the new driver.

Customize Individual Customization: Set up functions only available in high-end vehicles, such as adaptive cruise holding system, vehicle positioning, remote start, and air conditioning, etc.

All System Diagnosis

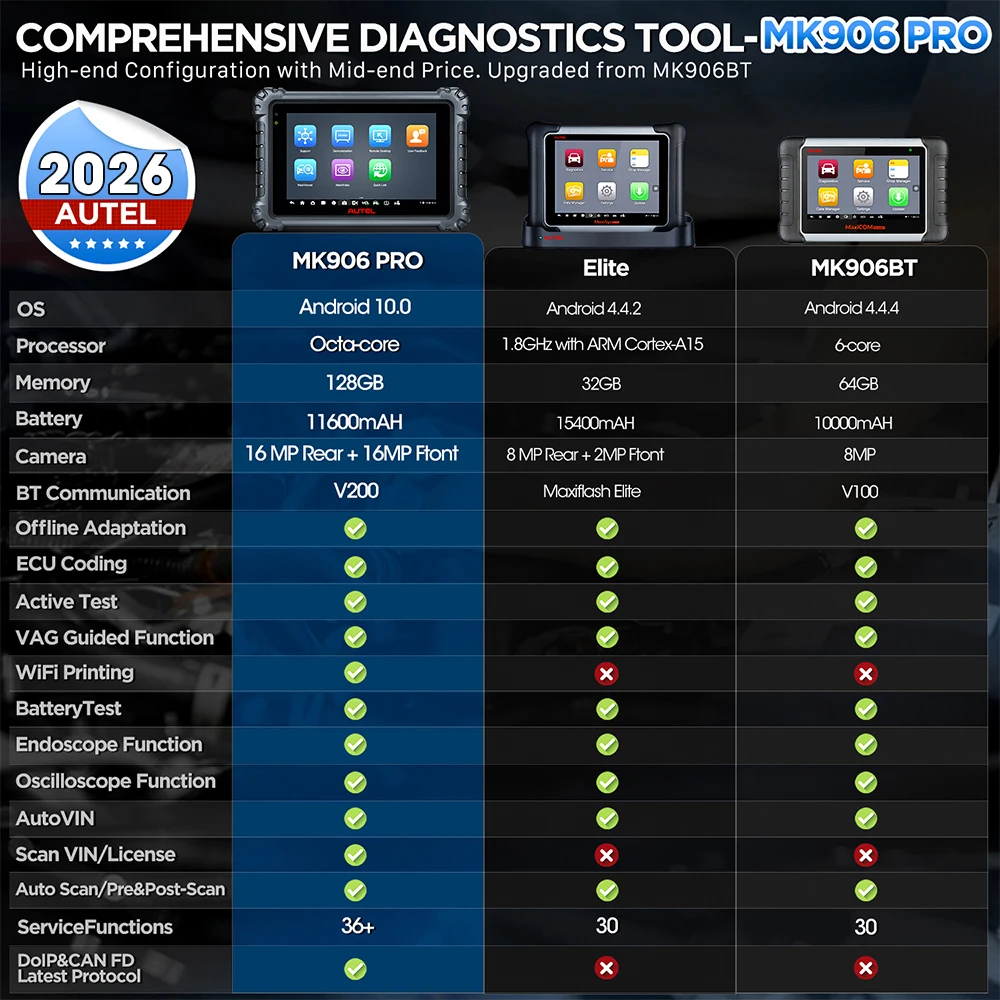

Autel MK906 Pro has greatly improved from MS906/ MK906BT/ MS906BT/ MS906TS, now it has the same ability in terms of all system diagnosis and have gone through thousands of test on various car models.

Our test results show that it has much wider compatibility and can even support some of the latest car models in 2021, able to access all electrical systems like ABS, SRS, TPMS, Engine, IC, Transmission, BCM, Chassis, Steering, Airbags, Air Conditioning, IMMO, Air Suspension, Air Suspension, Cruise Control, etc., able to scan all vehicle systems to read/ clear codes, view live data, freeze data frame, turn off the light to resolve vehicle issues. Its all-system diagnosis ability is equal to the Same as MaxiSys Elite/ MS908/ MK908/ MK908P.

Bi-Directional Control

Bi-Directional Control (Active Test): Pinpoint Car Problems in Minutes!

As 2022 newest upgrade version of MK808TS/ MP808TS/ MS906TS, Autel MK906 Pro is able to perform Bi-directional Control (Active test) to control various sub-systems or components to perform active tests (also known as component tests) like turning the fuel pump on/off, cycling the A/C Clutch on/off, EVAP test, windows, doors, sunroofs, wipers, to determine the integrity, monitor the operations to check whether they are functioning properly or not and quickly locate the fault causes, which can not be achieved on these old models.

Specification

Hardware
CPU: Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53)
Memory: 4/128GB
Android: Android 10.0
LCD: 8” 1920*1200
Battery: 11600 mAh
Camera: Front:16 Megapixel / Rear: 16 Megapixel

Diagnostic Functions
Special Function: 36
Guide Function: Support Volkswagen, Audi
Coding and Adaptation: BMW F and E chassis coding / Porsche Coding / Ford offline adaptation

Expanded Function
TPMS: No
ADAS: Support
Battery and Electrical System Testing: Support
Cloud Services: Support
Remote Expert(Coming Soon): Support
Cloud Report Storage: Support

Packing List

● 1 x Main Unit
● 1 x MaxiVCI V200
● 1 x MV108 Camera Inspection Tool
● 1 x AC/DC Adapter (12V)
● 1 x Type C USB Cable
● 1 x Cigarette Lighter Adapter
● 1 x Spare Fuse(6x30cm 2 PCS)
● 1 x USB to Etherent Adapter
● 1 x Quick Reference Guide
● 1 x Packing List
● 1 x Soft Cloth
● 1 x Carrying Case (380x300x120mm)
