SucceBuy Brushed DC Motor 1/2HP 90V 56C 1750RPM TENV 2.05 N.m Rated Torque for Wire Peeler Baler Paper Cutter w/ 2x Carbon Brush

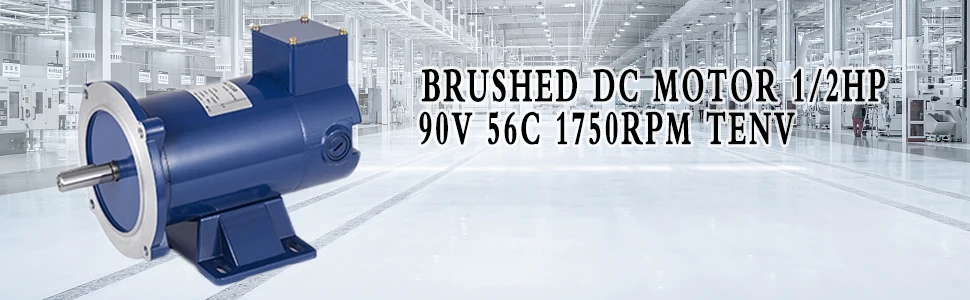

Brushed DC Motor 1/2HP 90V 56C 1750RPM TENV

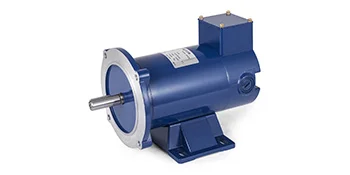

The 1/2HP DC motor we offered is permanent magnet DC motor, 90V voltage, TENV system, 56C frame and 1750RPM rated speed. With removable base and durable stylish blue casing, high efficiency with long life, you can rest assured to buy.

Permanent Magnet DC Motor

Efficient & Durable

Detachable Base

Spare Carbon Brushes

Why Choose SucceBuy?

Premium Tough Quality

Incredibly Low Prices

Fast & Secure Delivery

30-Day Free Returns

24/7 Attentive Service

Key Features

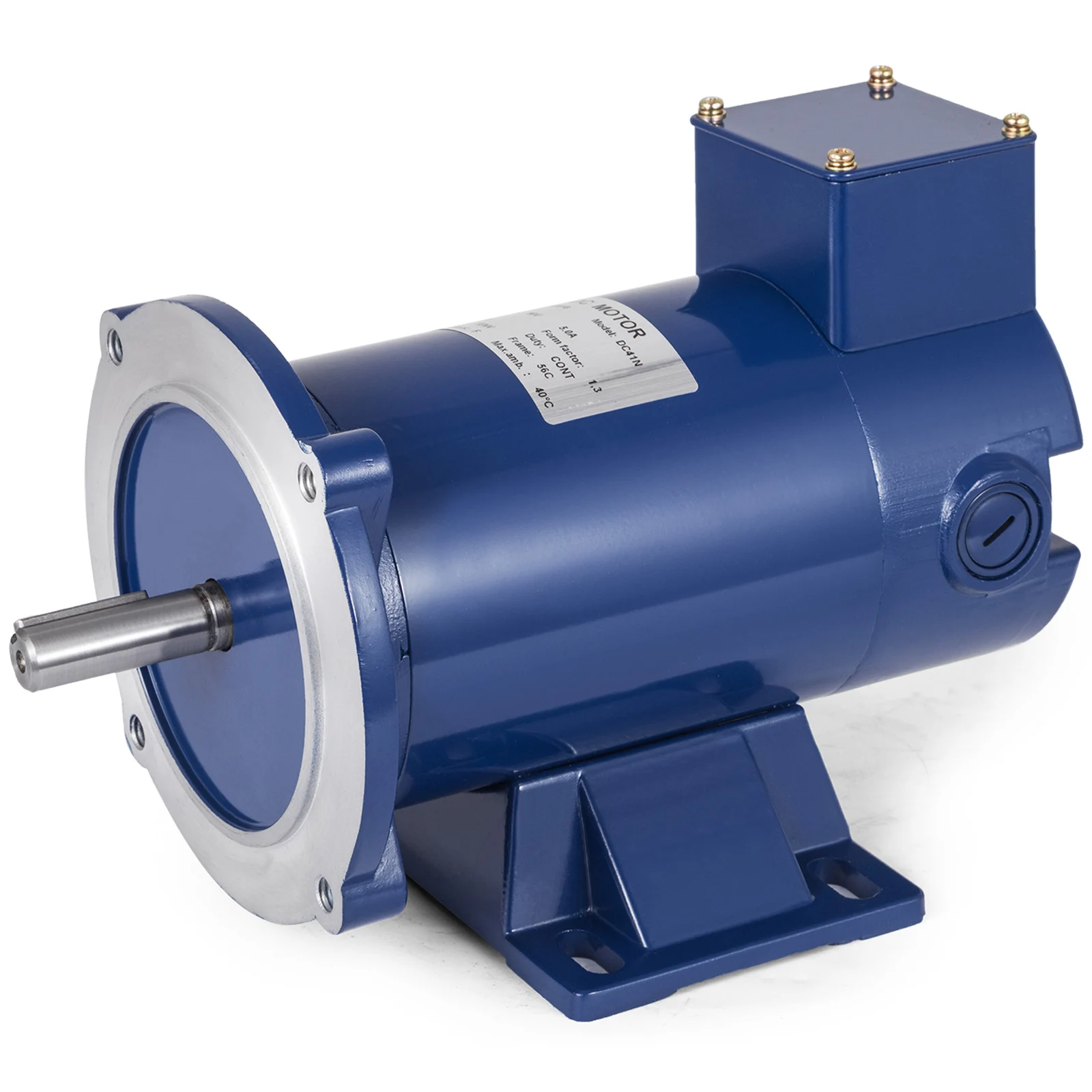

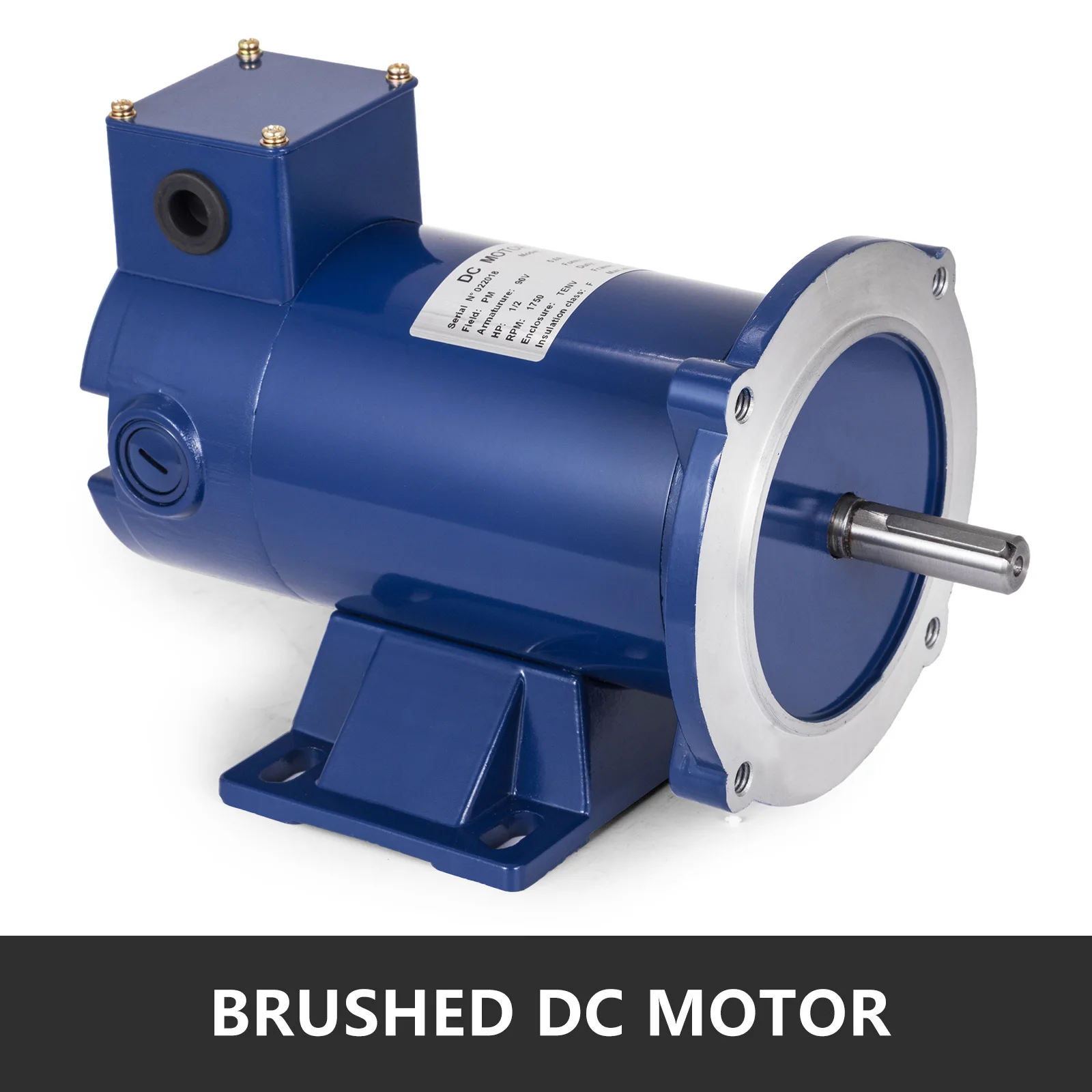

Brushed DC Motor

With built-in fan cooling system, the TENV (totally enclosed non-ventilated ) motor can dissipate heat better to prevent damage from overheating. Rated Speed: 1750 RPM, HP: 1/2.

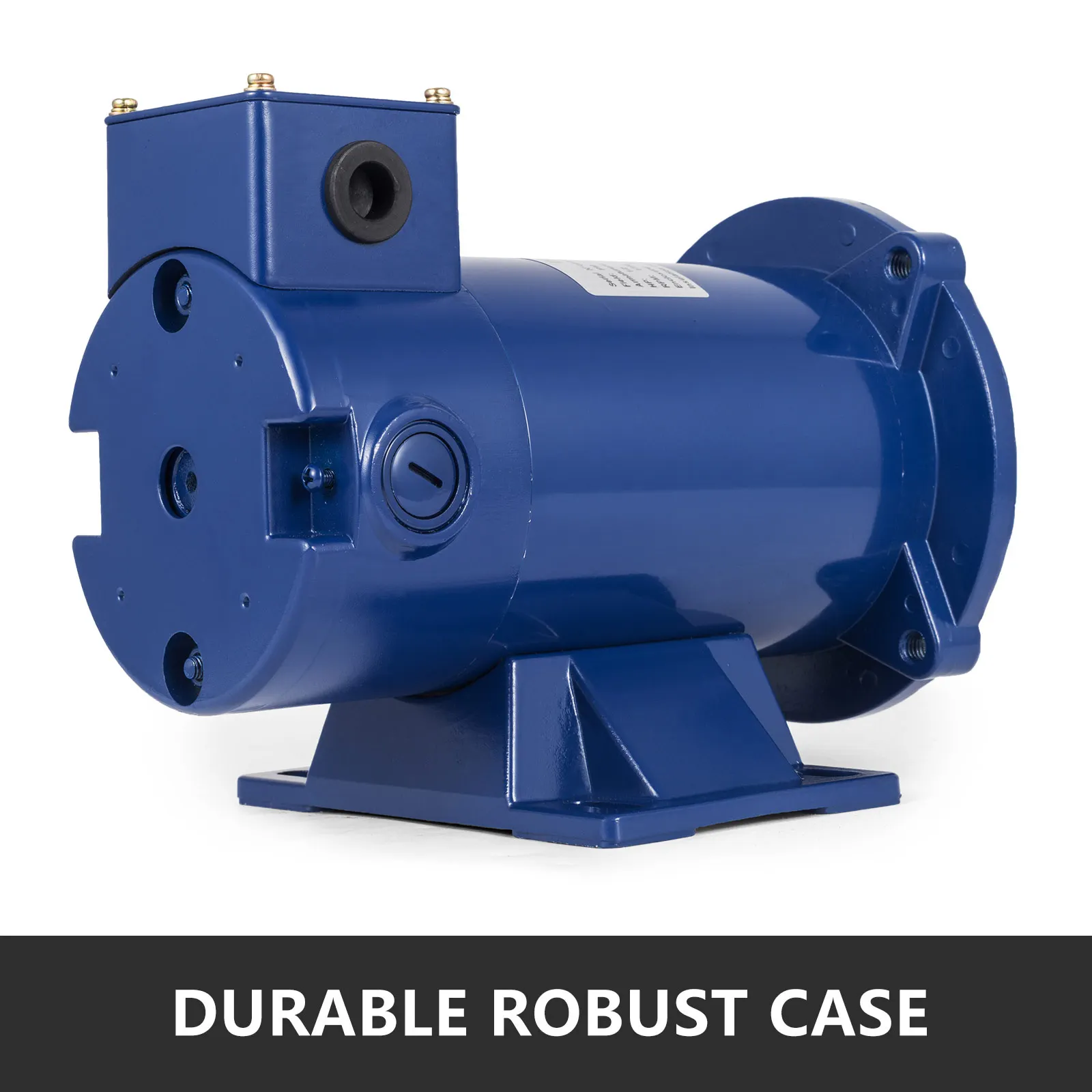

Durable Robust Case

High quality steel outer casing, F insulation class, durable and robust. Double seal ball bearings with permanent grease filling for long life.

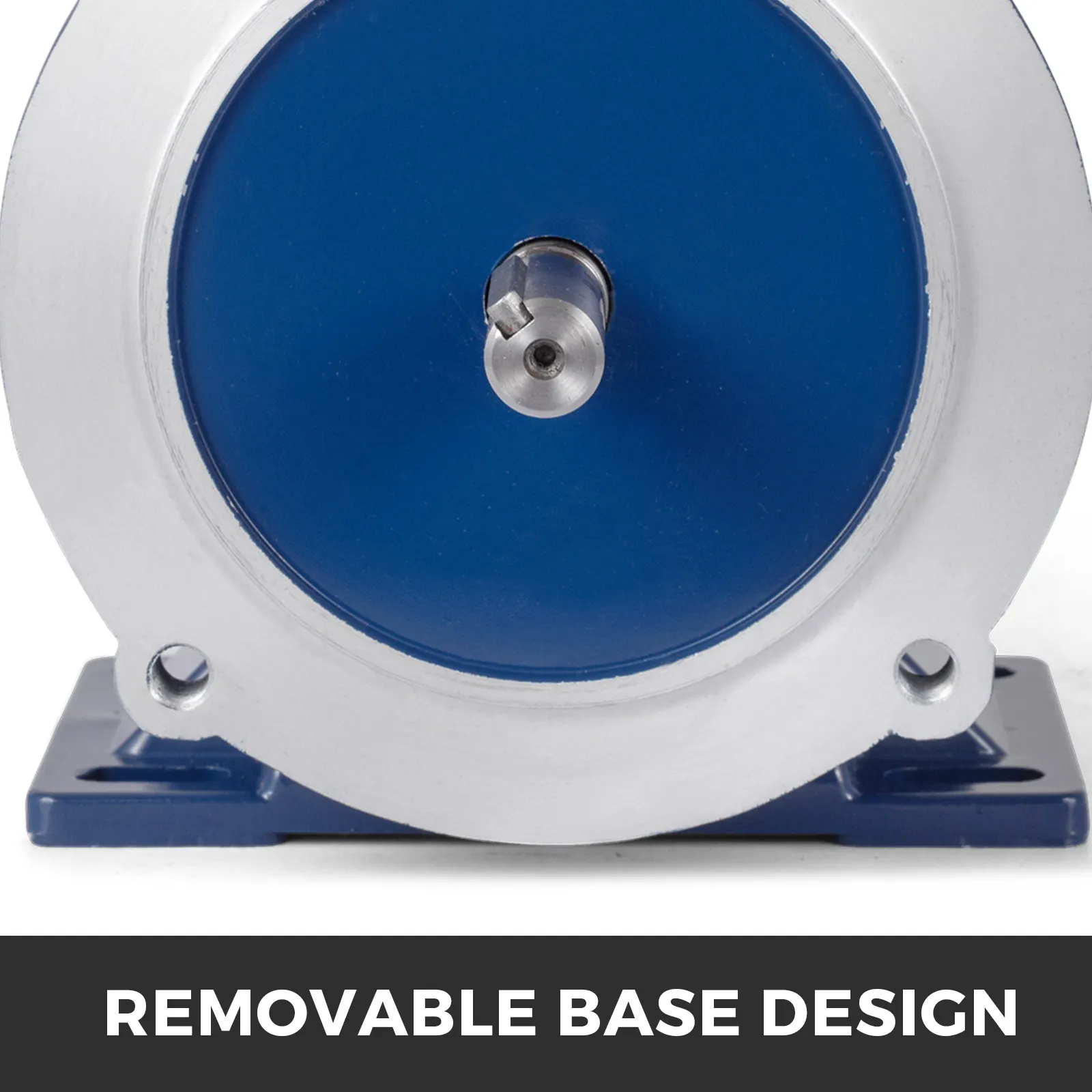

With Removable Base

Our tenv dc motor has removable base and 56C frame for dual mounting versatility. Easy to mounted and remove.

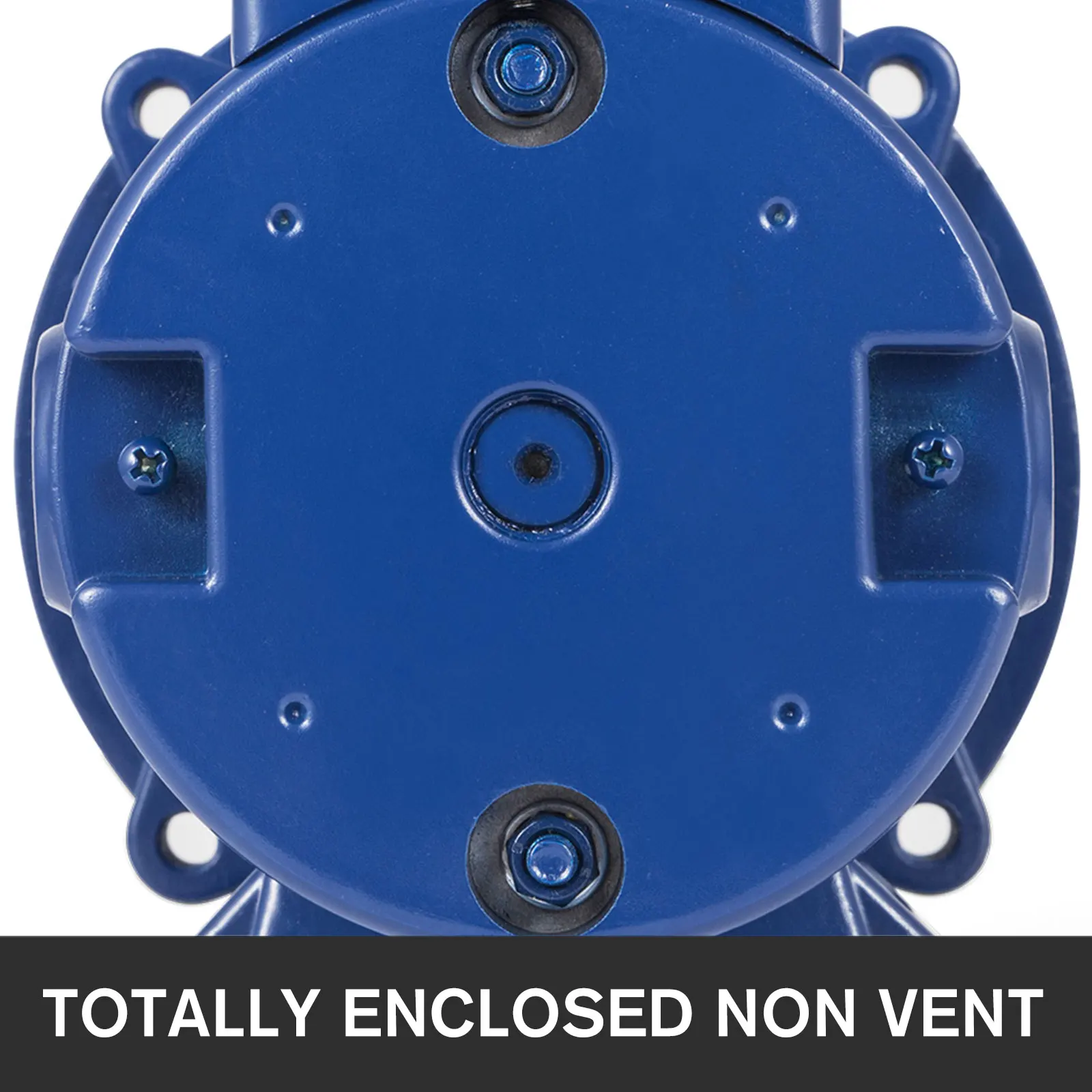

Totally Enclosed Non Vent

The motor is TENV (totally enclosed Non Vent) brushed DC motor. The built-in fan cooled for no temp rise. Aluminum alloy end plate to prevent corrosion.

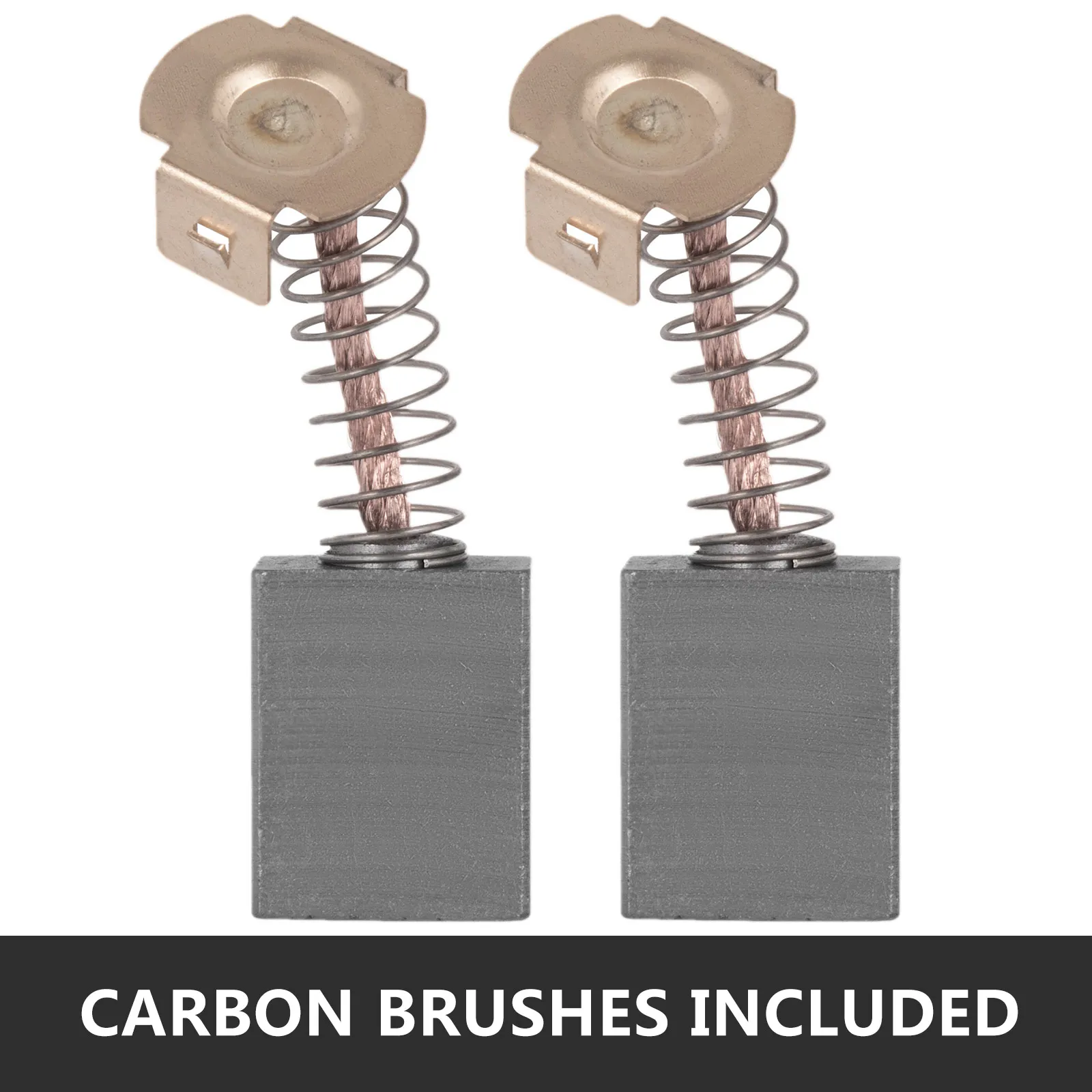

Carbon Brushes Included

One pair of spare carbon brushes. Carbon brush is consumable part, should be replaced regularly. Insulation Class: F, Service Factor: 1.10.

Wide Application

Specifications

Rated Voltage: 90V

Rated Current: 5.0 A

Rated Power: 1/2 HP

Rated Speed: 1750 RPM

No-load Speed: 1930 RPM

Rated Torque: 2.05 N.m

Enclosure: TENV

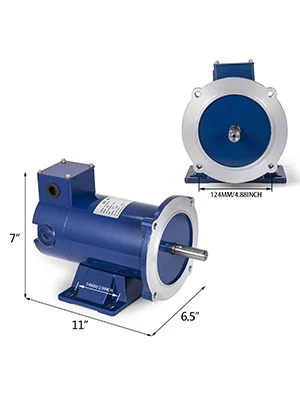

Frame: 56C

Service Factor: 1.10

Package Content

1 x 1/2HP DC Motor

2 x Carbon Brush
