20T Hydraulic Cylinder Jack Ram Multi-Acting Low Profile Lifting for Car Machinery Shipbuilding

Description

This is a hydraulic cylinder jack with a lifting capacity of 44092 pounds. This jack is made of a variety of strong and durable 45 steel, so it has a strong lifting force. The powerful lifting force enables it to lift a variety of very heavy items quickly and firmly. The compact design is not only very portable but also allows it to work in narrow spaces.

Key Features

Great Durability: The main material of this jack is hard and strong 45 steel. It can withstand great weight without deformation or twisting. It has a long service life.

Strong Lifting Force: This jack has a strong lifting force of 44092 pounds, so it can lift a lot of heavy objects. The strong lifting force can meet your most lifting needs well.

Multi-section Design: Multi-section jacks can be used in narrower and lower spaces. In addition to the height of the jack body, the two pistons also increase the stroke so that the jack can lift higher and be more convenient to use.

Access to More Spaces: Compared to traditional large jacks, this one has a compact body, which allows it to work not only in big places but also in narrow and tight spaces.

Multi-angle Available: You can place this jack at any angle on a flat surface to meet your different lifting needs.

Smooth Lifting: If this jack is operated normally on a smooth surface, it will lift items smoothly without jams.

Easy to Carry and Store: This hydraulic jack has 2 retractable stroke pistons. When they contract, the hydraulic jack will be very thin and compact, which is easy to carry and store.

Time and Energy Saving: It is difficult to lift heavy objects manually. But with this jack, you can easily and quickly lift heavy objects. It is time and energy-saving.

Guaranteed Customer Service: We aim to provide quality products and services. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

Details

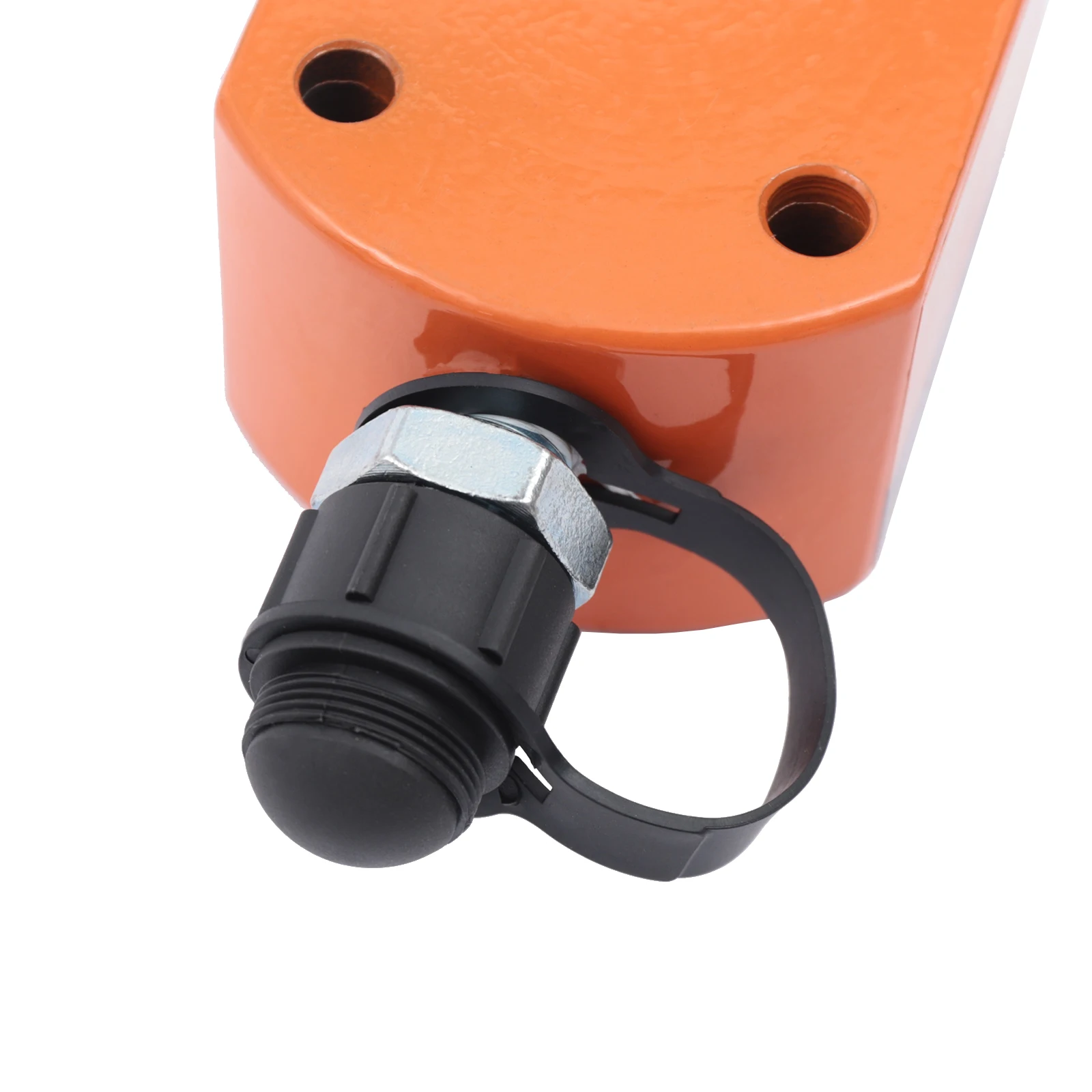

Connector: This jack has a ZG-3/8 connector to quickly and easily connect it to the pump. Moreover, the connector is designed with a dustproof cover. You can put the cover on when it is not in use, which can extend the life of the jack.

Protection Parts: The stop ring can protect the jack at full lift. The spindle prevents breakage under load. The seal ring can seal efficiently to extend the life of the jack.

Piston Blackening Treatment: The pistons of this jack are blackened to prevent them from rusting. The treatment also prolongs their service life. So the pistons can be used for a long time.

Bolt Holes: The jack is designed with two bolt holes. You can fix the bolts in these two holes if you need the jack to be more firmly fixed.

Application

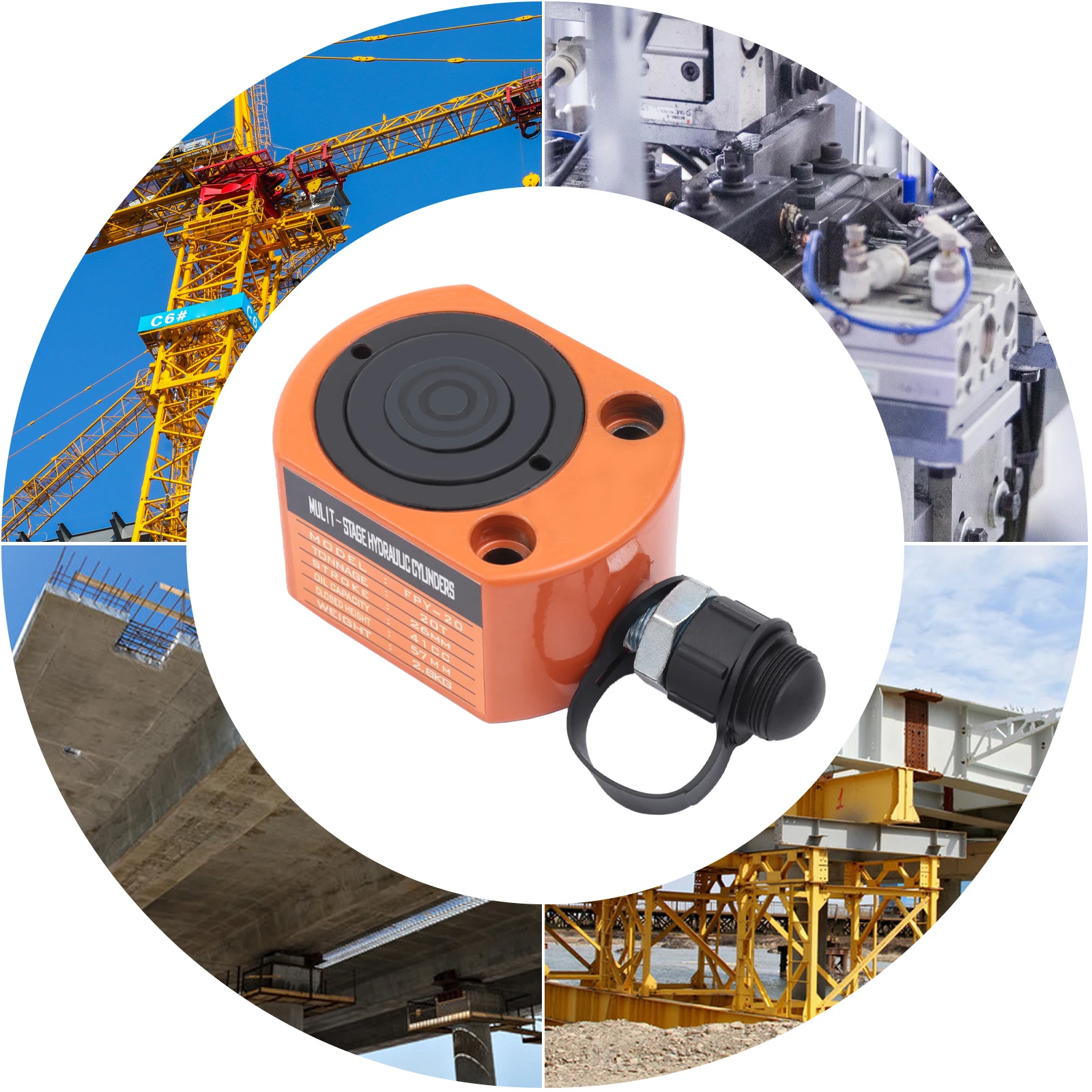

This hydraulic jack is often used in industries such as electric power, chemical industry, steel, bridges and machinery.

Specification

Model: FRY-20

Color: Orange

Product Type: Hydraulic Jack

Main Material: 45 Steel

Range of Application: Lifting Equipment

Oil Capacity: 41cc

Section Quantity: 2

Connector Model: ZG-3/8

Use Angle: 360 Degrees

First Section Tonnage: 20T/44092lbs

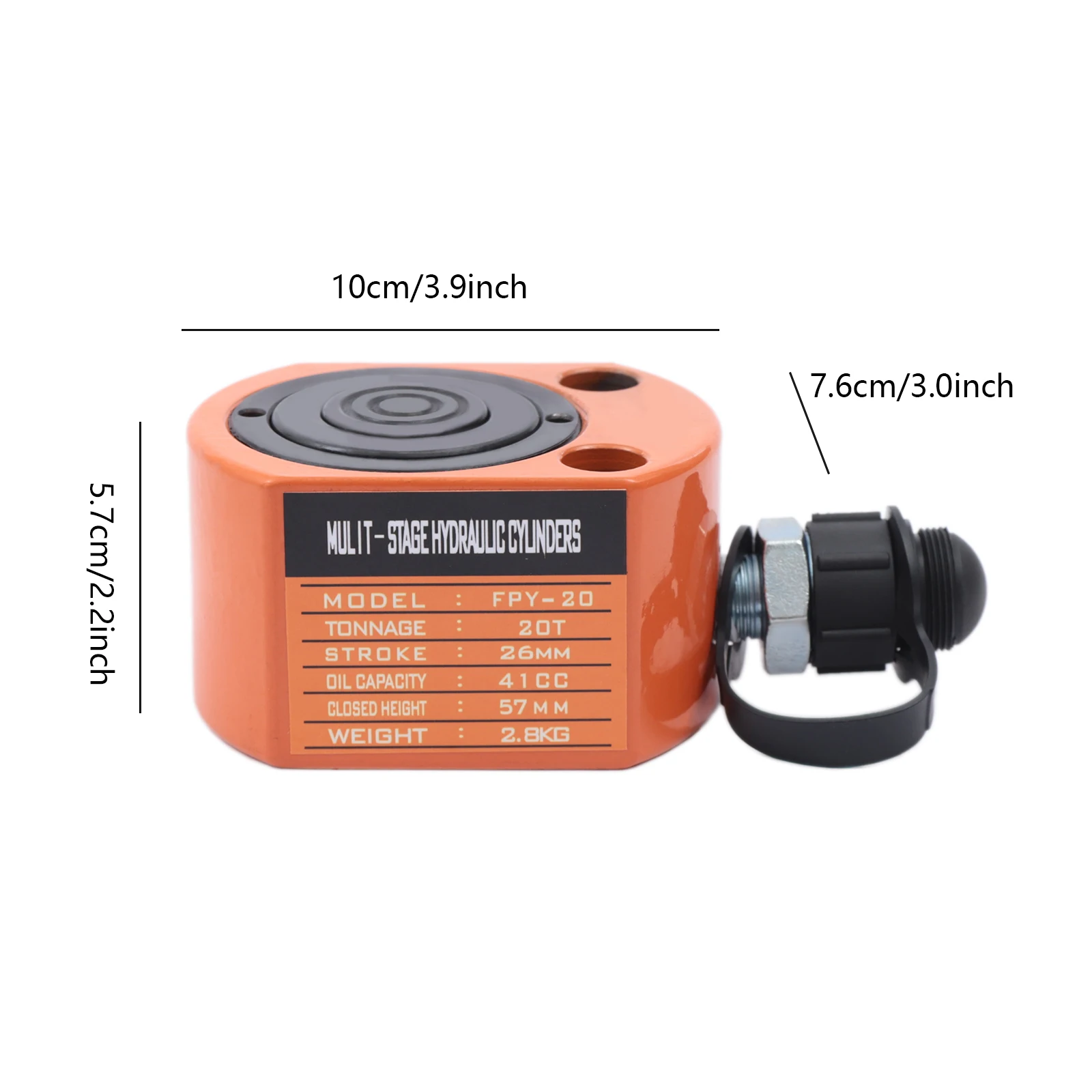

Second Section Tonnage：7T/15432lbsTotal Tonnage: 20T/44092lbsFirst Section Stroke: 1cm/0.39inchSecond Section Stroke: 1.6cm/0.63inchFirst Section Piston Diameter: 5cm/1.97inchSecond Section Piston Diameter: 3.1cm/1.22inchTotal Stroke: 2.6cm/1.02inchClosed Height: 5.7cm/2.2inchProduct Size: 10*7.6*5.7cm/3.9*3*2.2inchPackage Size: 18.5*10*6.5cm/7.28*3.94*2.56inchGross Weight: 3kg/6.6lbsNet Weight: 2.8kg/6.17lbs
Package Included1* Hydraulic Cylinder Jack
Notes1. For proper operation, all cylinders need to be connected to a solid lifting surface. Using thin cylinders on sandy, muddy or loose surfaces can cause cylinder damage.2. This jack needs to be used with a pump. The pump is not included in the package.3. This multi-section jack's pistons will not retract automatically after use, so you need to retract them manually.
