1600W Solar Micro Grid Tie Inverter with Smart WiFi DC 22-50V AC for 60/72 Cells Solar PV Grid Tie Micro Inverter

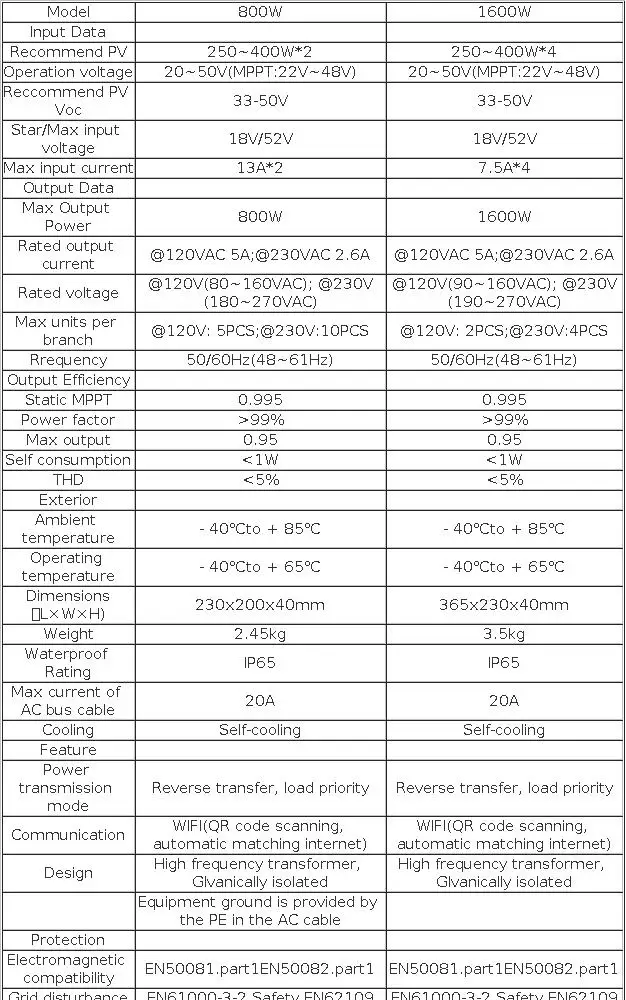

PRODUCT PARAMETER

Description

IMI series inverter Using IP65 waterproof streamline design which effectively prevent rainwater on the surface erosion, built-in high-performance maximum power point tracking MPPT function better able to track changes in the solar luminosity and control different output power, effectively capture and collect sunlight AC electric power transmission using the reverse transmission technology, . The inverter output power can provide load priority use, extra electricity to the grid, efficient use of the inverter to the power emitted, electricity transmission rate of up to 99%.

The convenient way to directly scan the QR code to connect to the network is a major feature of it, allowing non-professional users to monitor the power generation system data in real time through a smartphone.

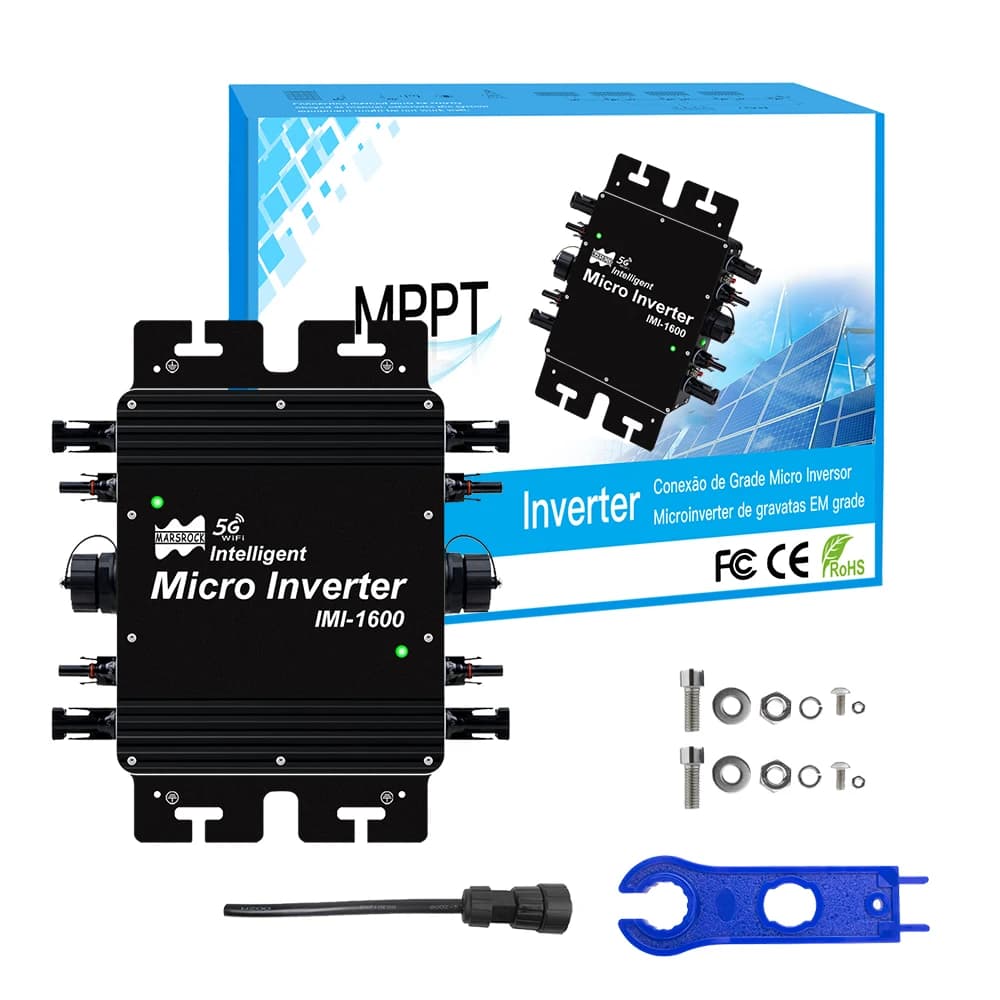

Detail images

Feature

1.IMI Series adopt scanning the QR code to connect with internet which is easy to be operated through Smart Phone APP or PC to monitor power system data.

2.IMI inverter using IP65 waterproof streamline design, which can effectively prevent rainwater on surface erosion.

3.Built-in high performance maximum power point tracking function, can track changes in the solar luminosity and control different output power, effectively capture and collect sunlight and use of the inverter to the power emitted, electricity transmission rate of up to 99%.

4.High precision phase detection;Over and under voltage protection; Over and under frequency protection; Islanding protection.

5.Flexible installation. The PV input power workable from 250-450W. DC input 20-50V design can suitable for 36Cells, 60 cells, 72 cells put into in series or in parallel.
