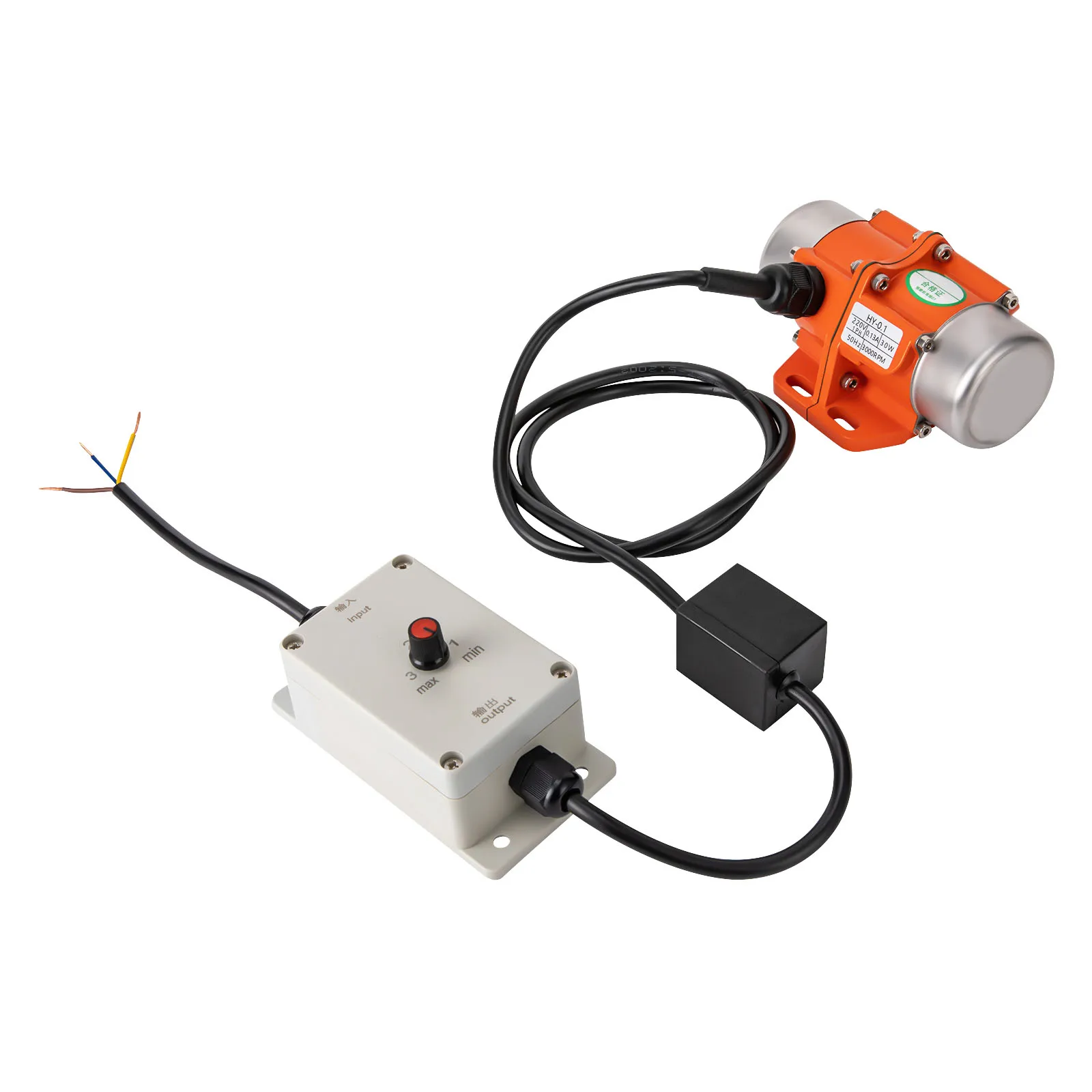

3000RPM 30W Vibration Motor Vibrationsmotor Hand Start AC Asynchronous Motor with Speed Controller 220V

Description

An efficient machine can facilitate your outdoor work and increase your productivity. This high-quality vibration motor can be used in many areas. It features precision bearings, rotors, and copper wire coils to ensure smooth and energy-efficient operation. The IP65 protection rating of this product can somewhat ensure the safety of your use, and it is suitable for many occasions. It is a reliable motor you don't want to miss!

Key Features

Sturdy and Durable: Superb aluminum alloy, copper, and plastic spraying process, making the product have corrosion resistance, rust resistance, abrasion resistance, oxidation resistance, and other characteristics, which can ensure long service life.

Good Performance: This vibration motor adopts precision bearings, rotors, and copper coils, which can make the machine run smoothly and efficiently, save electricity, and improve your working efficiency.

Stable Structure: The sealed structure, tightly connected components and thicker base ensure smooth operation of the motor.

High Safety: F insulation class, fully enclosed protection, high-temperature resistant pure copper coil and IP65 protection class better ensure safety during operation, so you can use it with peace of mind.

Low Noise: The high-quality low noise bearing has low noise (65dB), providing you with a more comfortable and quiet working environment.

Easy to Operate: The product is wired simply, with yellow wire for ground, blue wire for zero, and brown for fire. In addition, the simple structure and detailed English instruction allow you to complete the installation and start using it quickly.

Easy to Move: The small size ( 5.7*4.6*2.6chch) and lightweight (3.3lbs) of this vibration motor make it very convenient to change the working position.

Guaranteed Customer Service: We aim to provide quality products and services. If you have problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

Details

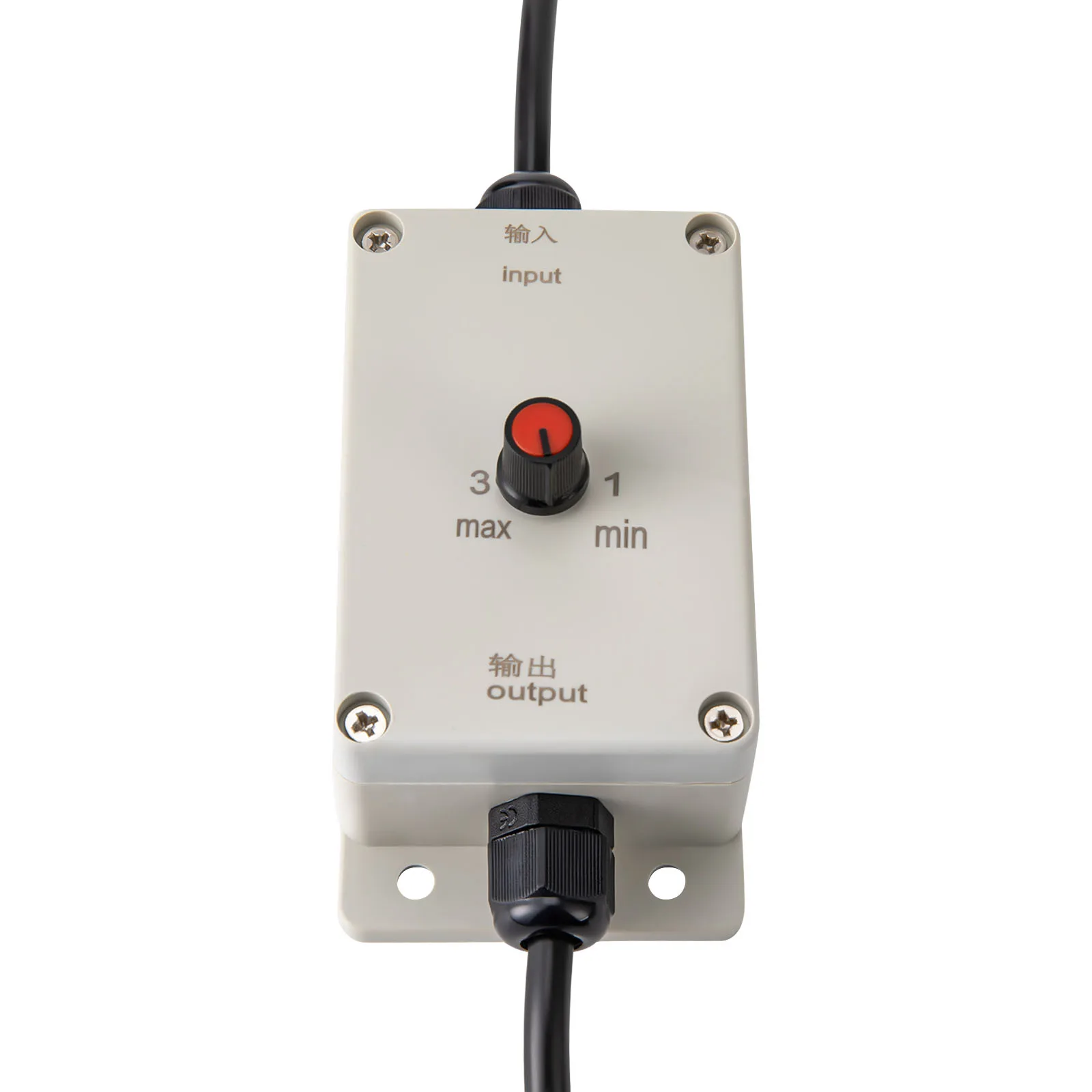

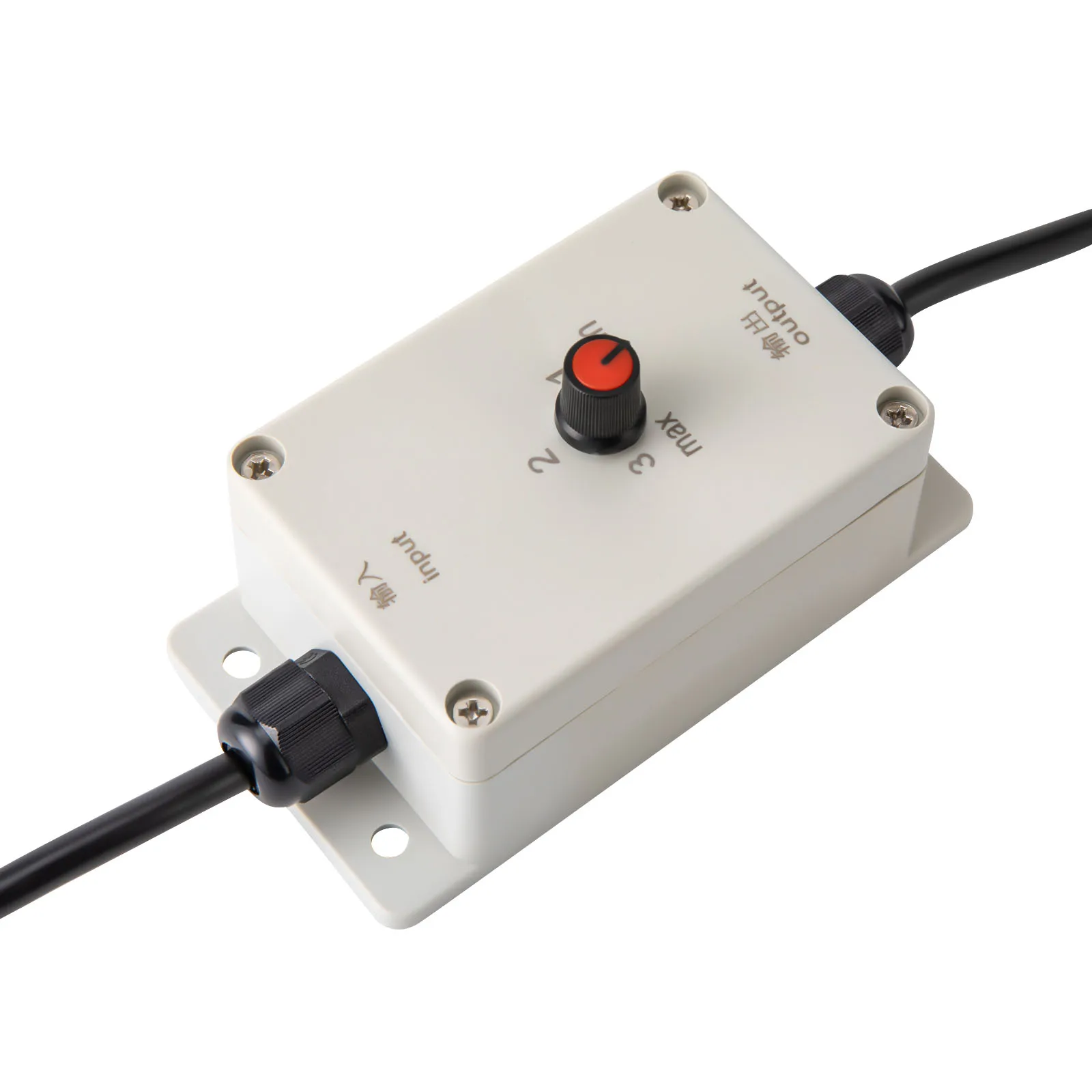

Pre-drilled Holes: Pre-drilled holes in the motor and speed controller base help you quickly secure them with tools such as screws (not included), allowing for more stable operation.

Pure Copper Coil: We use a pure copper coil with low-temperature rise and high-temperature resistance, which can ensure stable output.

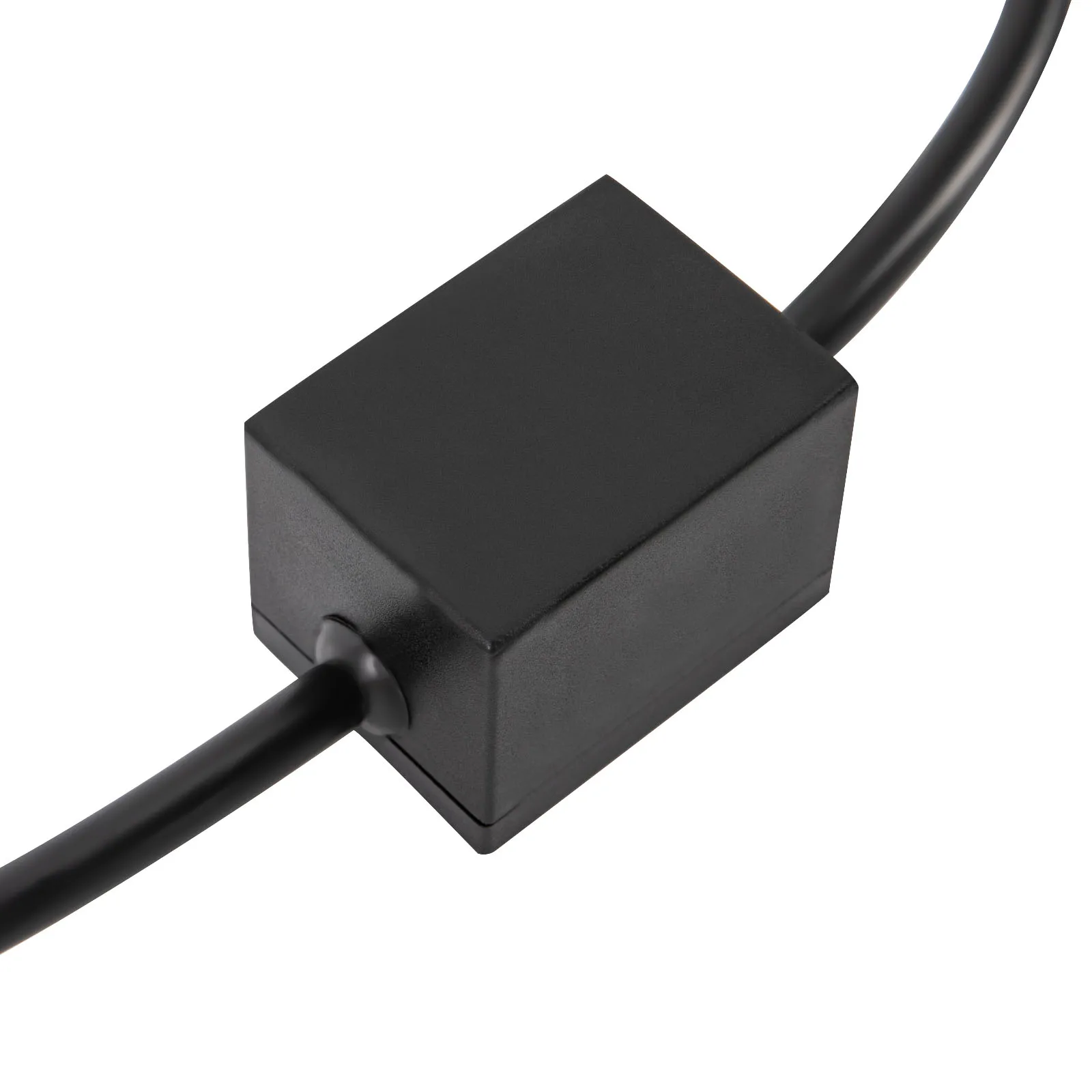

Anti-twist Sheath: It can prevent the power cord from disconnecting and breaking, etc.

Application

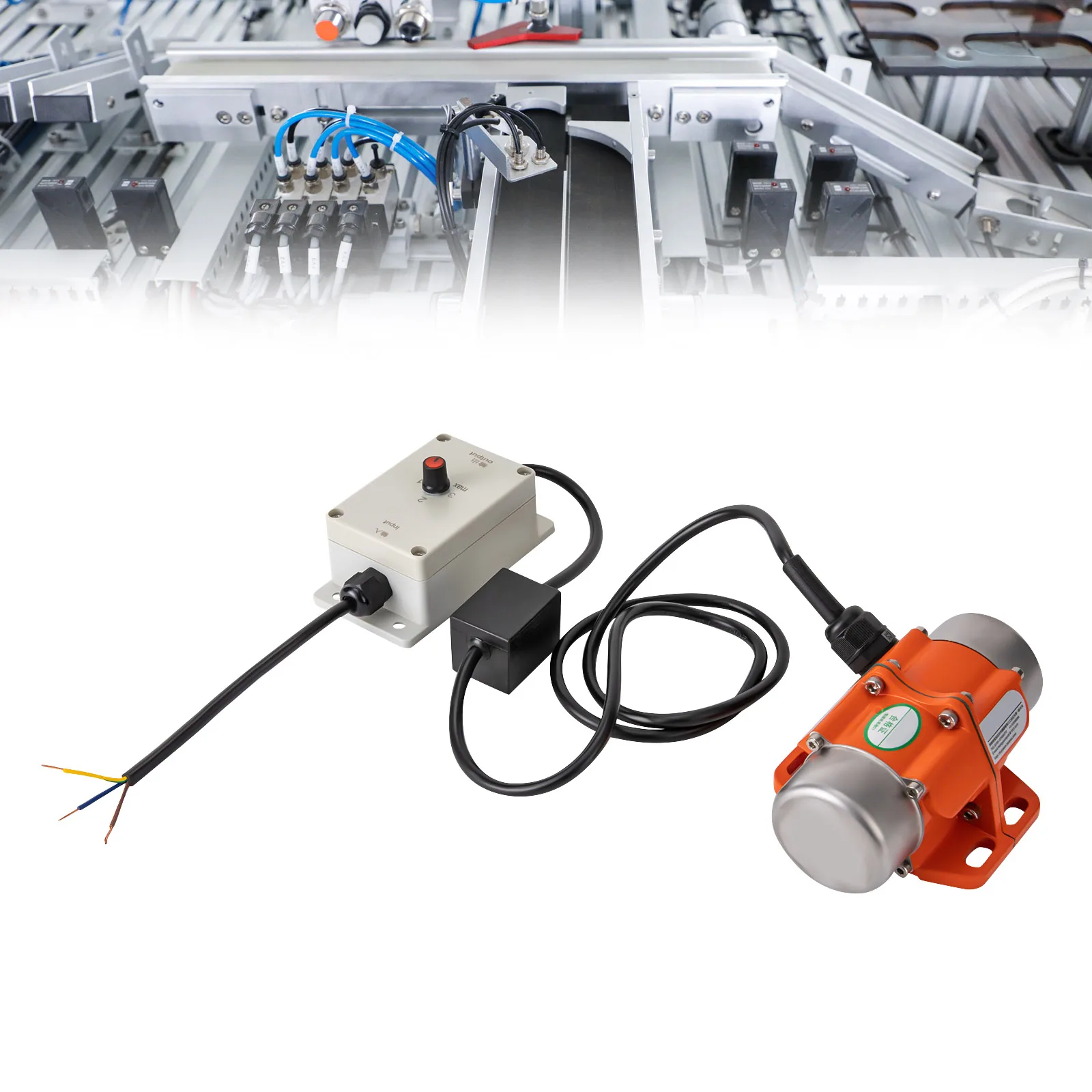

It can be widely used in mining, metallurgy, coal, electric power, construction, medical, casting, food, powder spraying equipment, grain machinery, and other fields.

Specifications

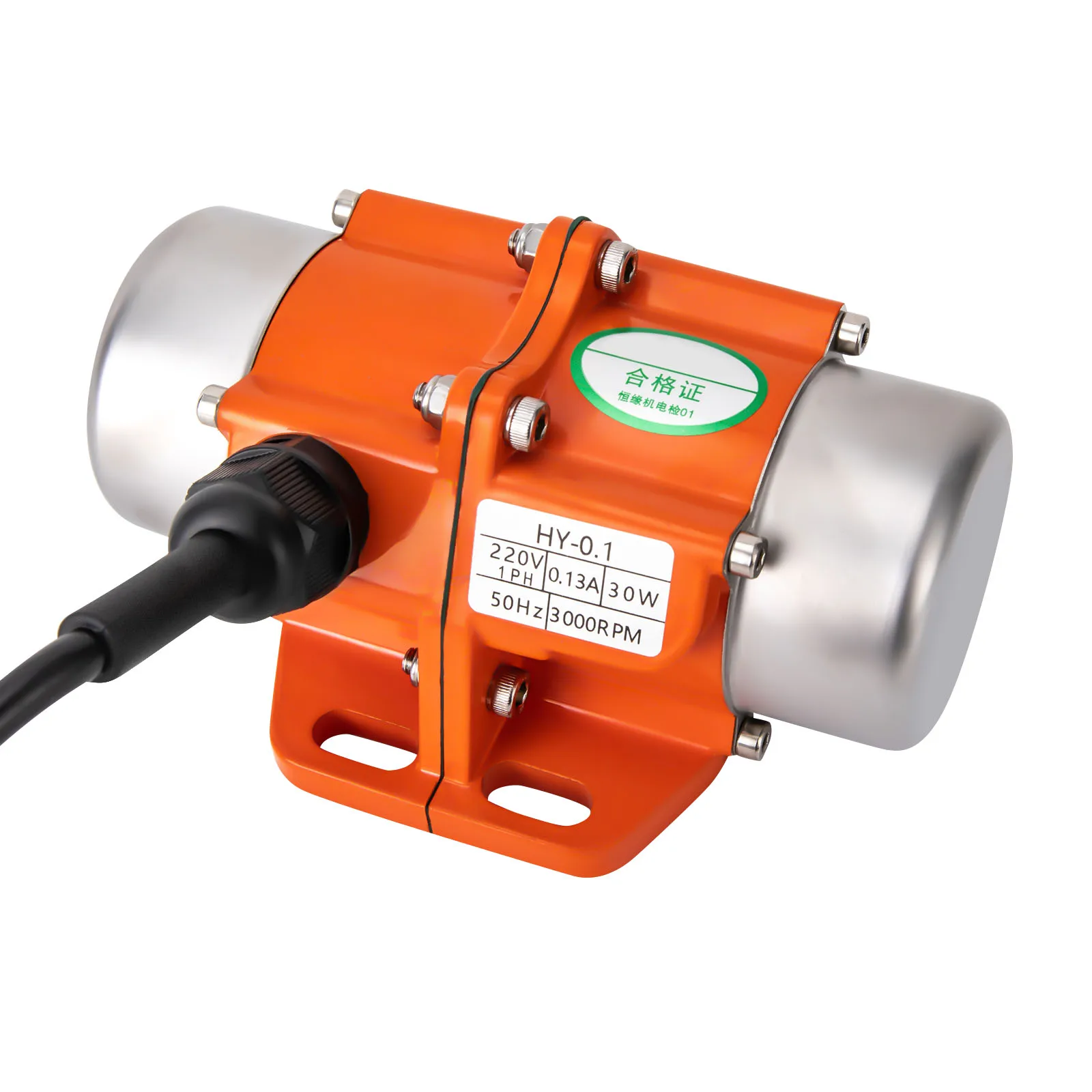

Model: HY-0.1

Material: Aluminum Alloy, Copper

Surface Treatment: Plastic Spraying

Color: Orange, Silver, Black

Motor Type: AC Asynchronous Motor

Assembly Required: Yes

Mount Type: Free Standing

Rated Voltage: 220V

Rated Power: 30W

Frequency: 50HZ

Maximum Speed: 3000RPM

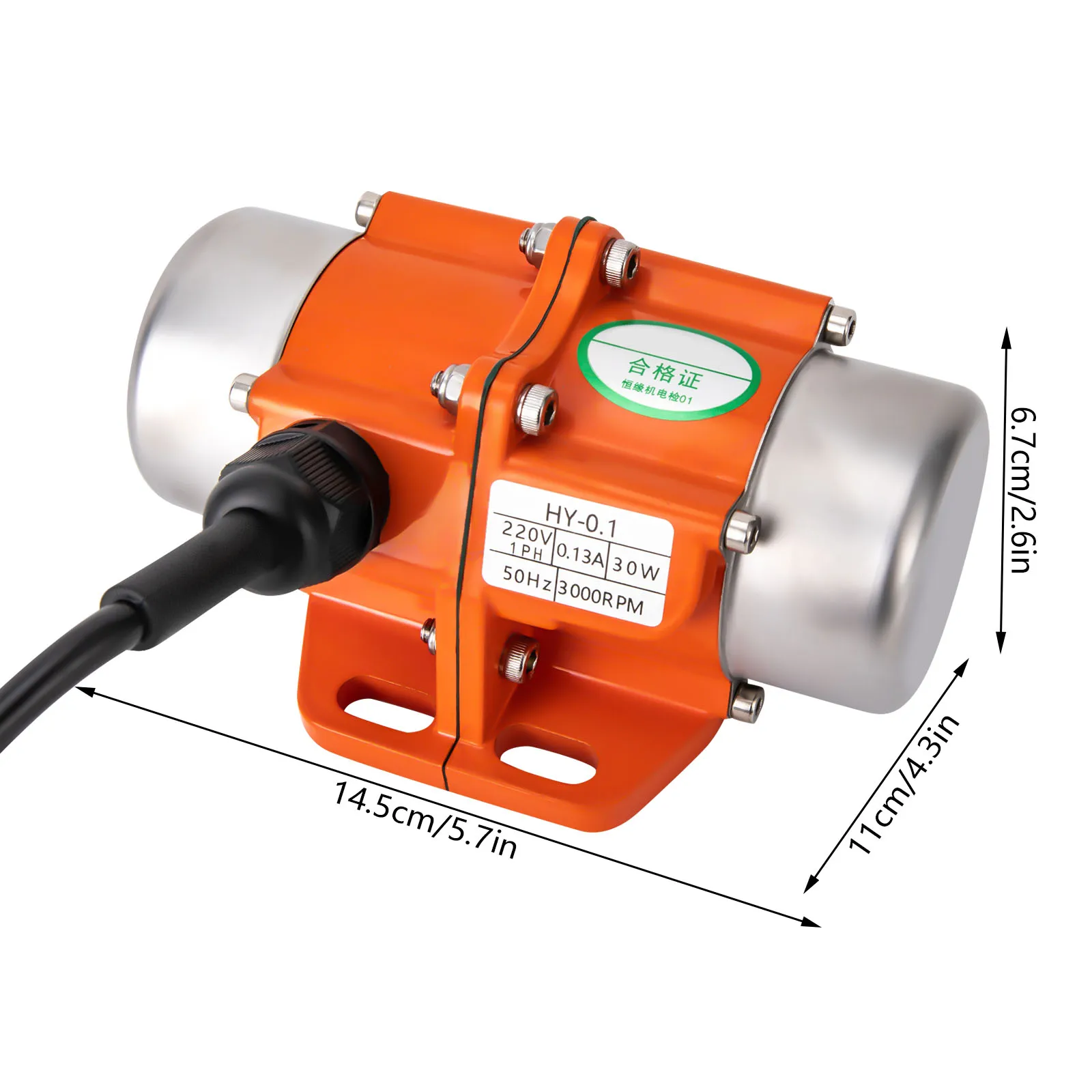

Plug Type: Bare WireInsulation Level: F  Protection Class: ClosedStarter System: Hand StartPower Source: Corded ElectricNumber of Items: 1Protection Grade: IP65 Noise: 65dB Power Cord Length: 1.5m/ 4.9ftGross Weight: 1.9kg/ 4.2lbsNet Weight: 1.5kg/3.3lbsPackage Size: 23*13*16cm/ 9.06*5.1*6.3inchProduct Size: 14.5*11*6.7cm/ 5.7*4.6*2.6inch
Package Included1*Vibration Motor1*Speed Controller1*English Manual

Notes1. Please note that one speed controller can only control one motor.2. When energized, please set the controller to the maximum scale to start the vibration motor, then adjust it from the fastest to lower speeds as required.  It may not be possible to start the vibration motor at a low speed. It can only be started at high speeds. 3. Please note that in order to meet the installation needs of different customers, the product does not include a plug.4. Please read this manual carefully before use and installation and take note of the safety precautions contained herein.5. In order to ensure the normal installation and use of the motor, please confirm the motor model and installation size before purchase.6. Before use, please fix the motor with screws (not included)  to avoid safety accidents, and remember to check the tightness of the mounting screws and the dust on the surface of the vibration motor regularly.    7. Please note that the ambient temperature for using this product should not exceed 122℉.8. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
