28kw/60kw Swimming Pool Heat Exchanger Stainless Steel Swimming Pool Heater For Simming Pools Spas Hot Tub Tray Heating

28kw/60kw Swimming Pool Heat Exchanger Stainless Steel Swimming Pool Heater For Simming Pools Spas Hot Tub Tray Heating

Description

This swimming pool heat exchanger is crafted from premium materials, ensuring robust construction and reliable durability. Its compact design with flexible installation options suits diverse pool environments. The unique reverse port configuration provides excellent hydrodynamic performance, while efficient use and multiple user-friendly features stable, high-performance use.

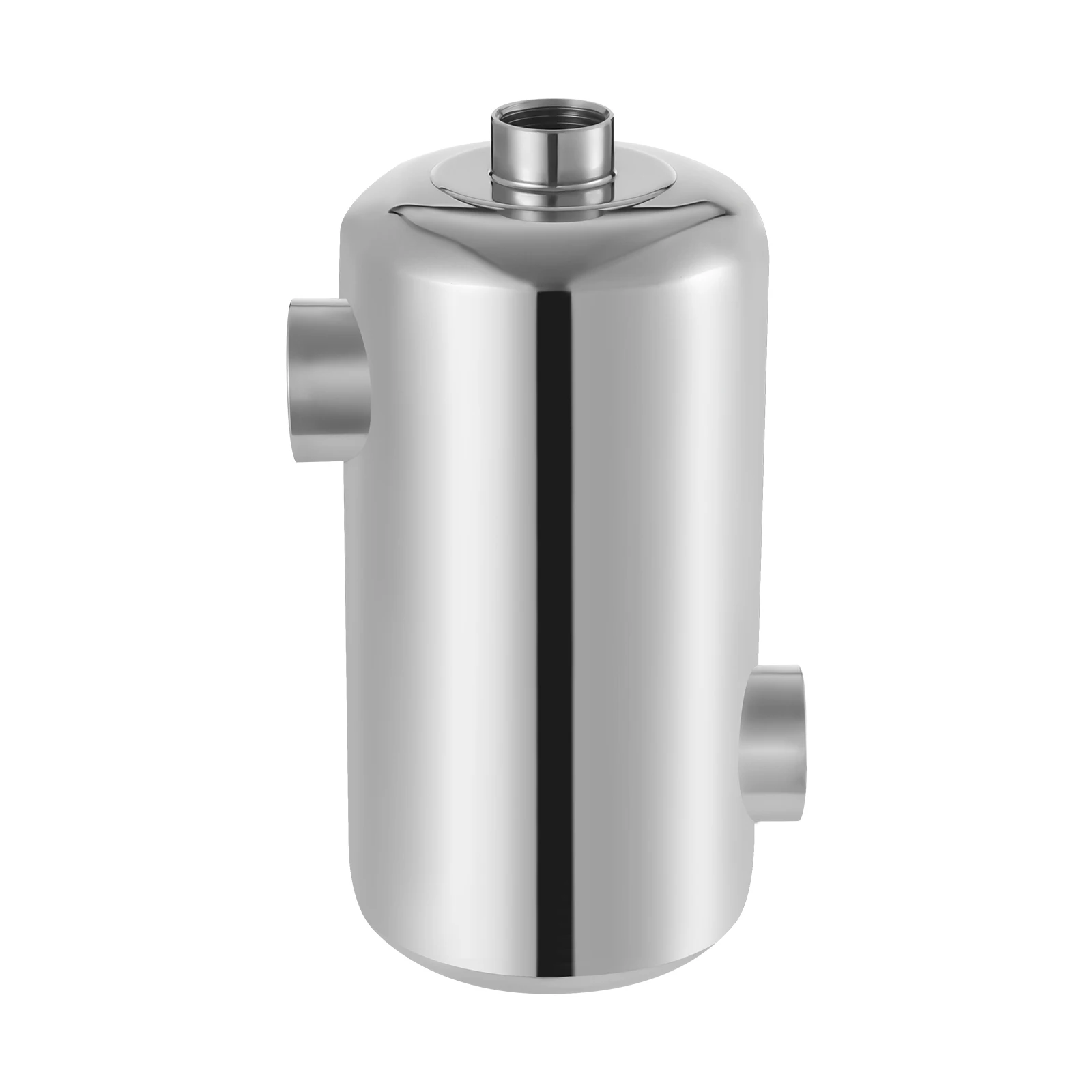

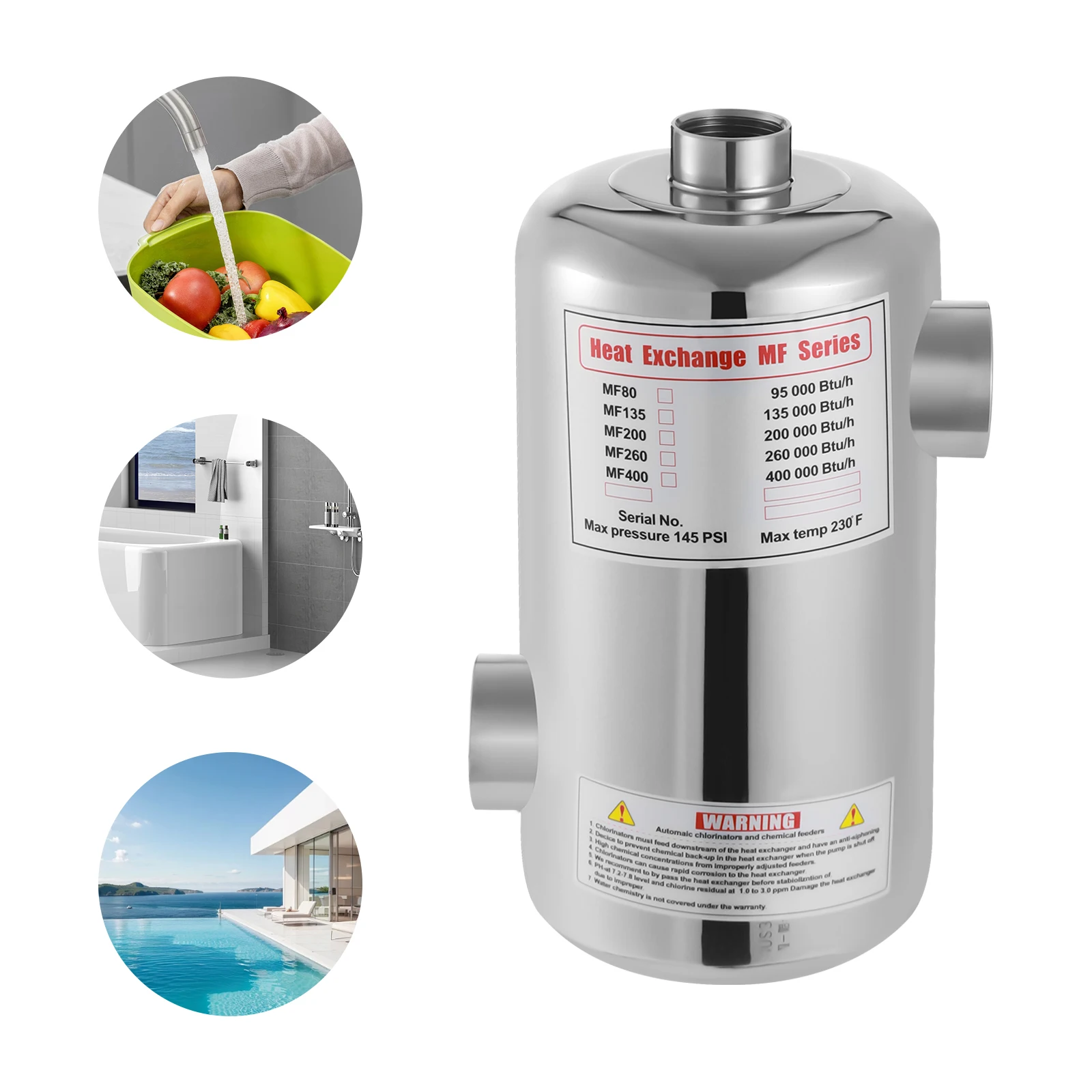

28Kw Swimming Pool Heat Exchanger

Key Features

Long Service Life: Constructed from polished 304 stainless steel, it offers water endurance and extended longevity, making it particularly suitable for chlorinated or saltwater pools and hot spring baths.

High Efficiency: Its 28kW power provides you with 40 GPM of pool water flow and 4.75 GPM of hot water flow. Two fluids of different starting temperatures flow through the heat exchanger. Heat is transferred from one fluid to the other.

High-Efficiency Heating: Based on the temperature difference between incoming water and hot water, it delivers 28K Btu/H of thermal output, enabling instant heating and significantly reducing wait times.

Enhanced Efficiency: Its unique corrugated tube design ensures high-speed internal use, maximizing utilization of solar or boiler heat sources to significantly boost thermal efficiency.

Healthy and Hygienic: The non-storage design ensures two separate channels for hot and cold fluids, greatly reducing the risk of contaminated water sources.

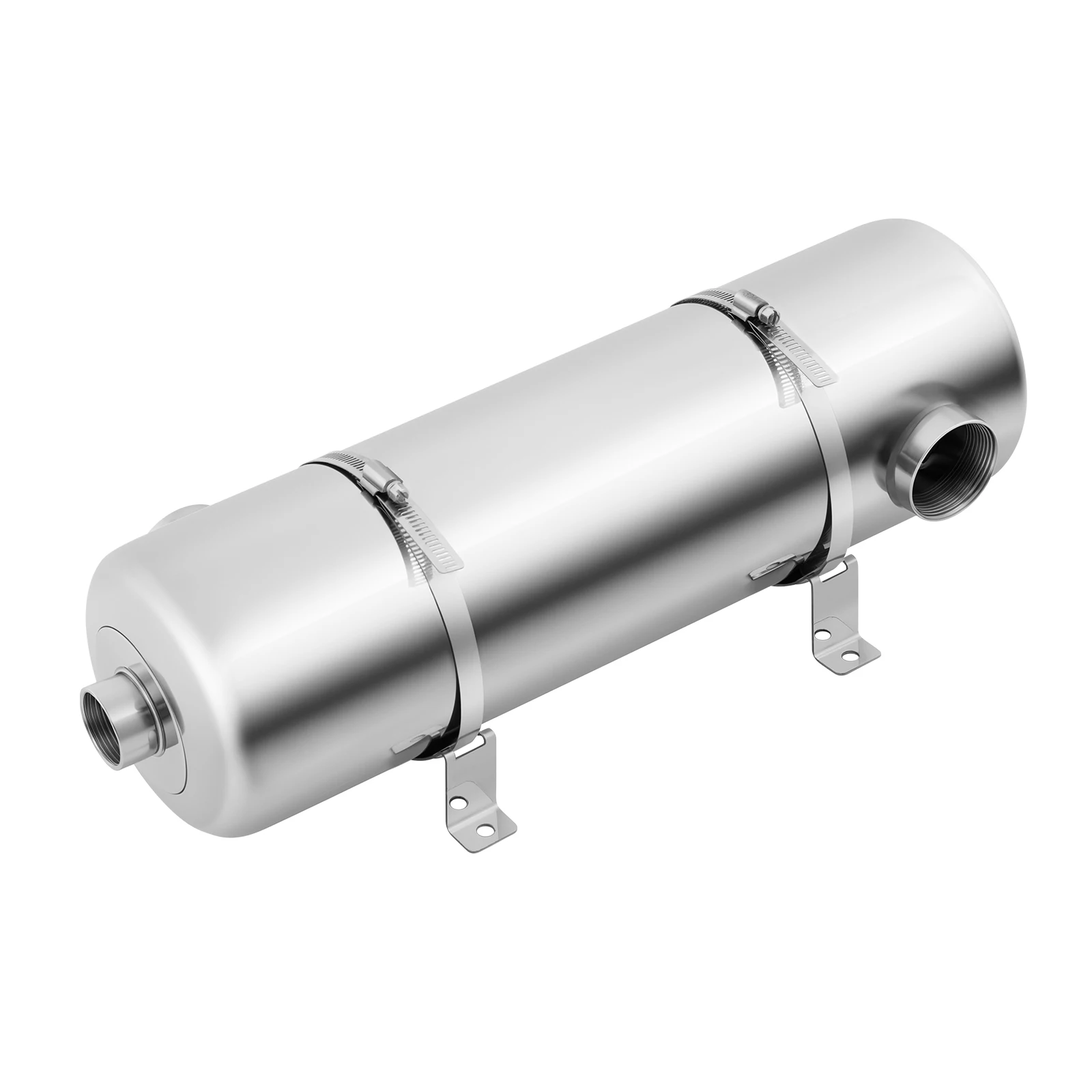

Flexible Installation: It can be installed vertically or horizontally according to your needs. The compact size (6.3*11.5in) can effectively save installation space.

Simple Cleaning: Smooth surfaces and a simple structural design facilitate easy daily maintenance.

Customer Service: We aim to provide quality products and services. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

Details

Rapid Pipeline Heat Dissipation: It accelerates heat exchange rates to ensure maximum thermal transfer efficiency.

Safety Housing: Constructed from 304 stainless steel, the protective housing prevents direct contact between heating elements and people or animals, enhancing using safety.

Reverse Outlet & Inlet: The inlet and outlet are reversed, both on opposite sides, which can optimize water flow dynamics and improve heat transfer efficiency.

Application

It is suitable for swimming pools, spas, hot tub tray heating, outdoor wood stoves, circulating heat, forced air heating, radiant floor heating, snow melting, solar hot water, and more. It can be used with any type of pool water, whether treated or salt water.

Specification

Color: Silver

Assembly Required: Yes

Material: 304 Stainless Steel

Process: Polishing, Sanding

Power: 28kW

Output: 28kBtu/h

Pressure Test: 2.5kg/cm³

Pool Water Circuit: 10bar

Hot Water Circuit: 5bar

Pressure Bearing: 2.5kg/5.51lbs
Pool Water Flow: 150L/40gal/min
Hot Water Flow: 18L/4.75gal/min
Max Pressure: 4kg/cm³
Max Temp: 120℃/248 °F
Applicable Pool Volume: 150m³/5297.2ft³

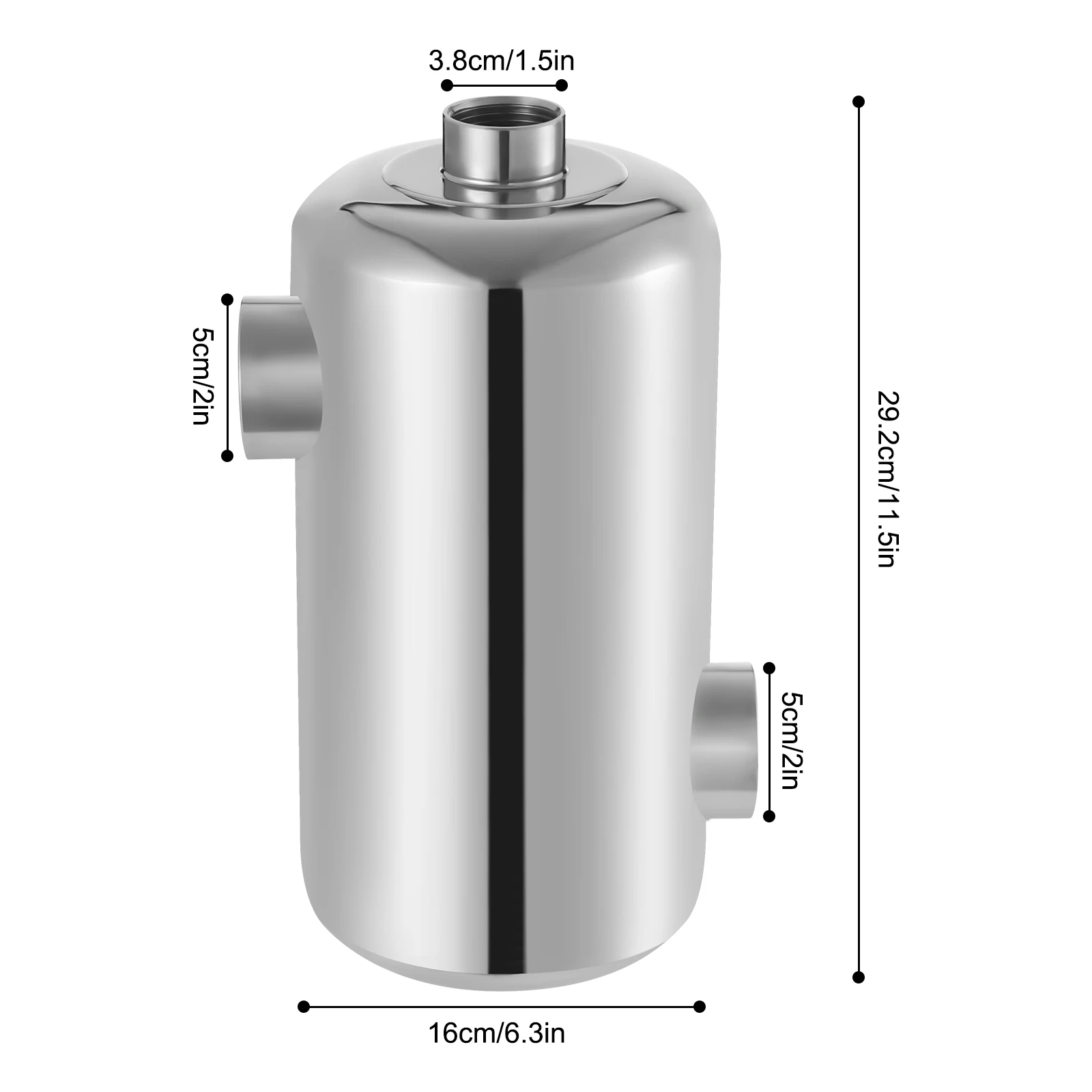

Product Size(D*L):13.4*29.2cm/5.28*11.5in
Total Width:16cm/6.3in

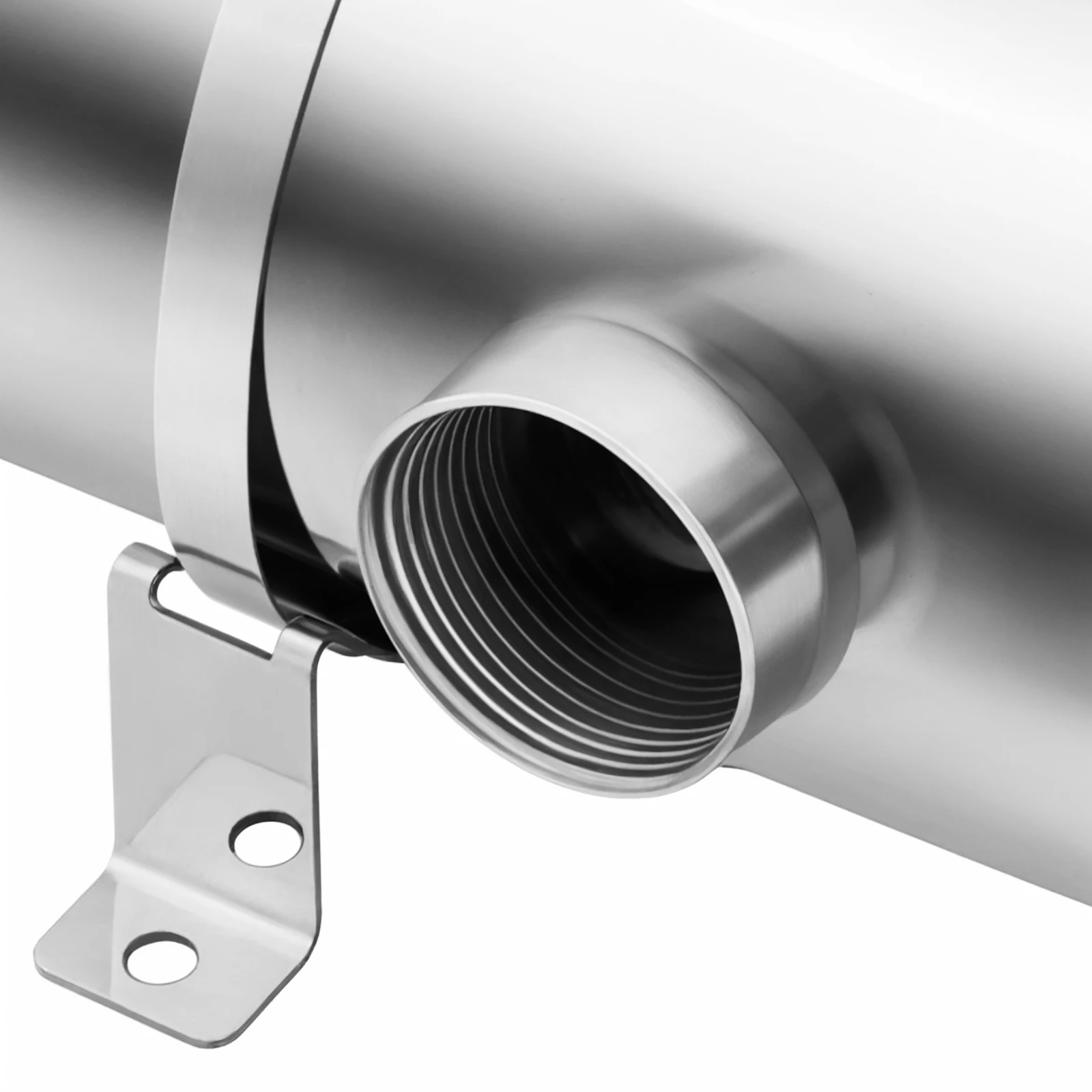

Each Side Port Size: 5cm/2in

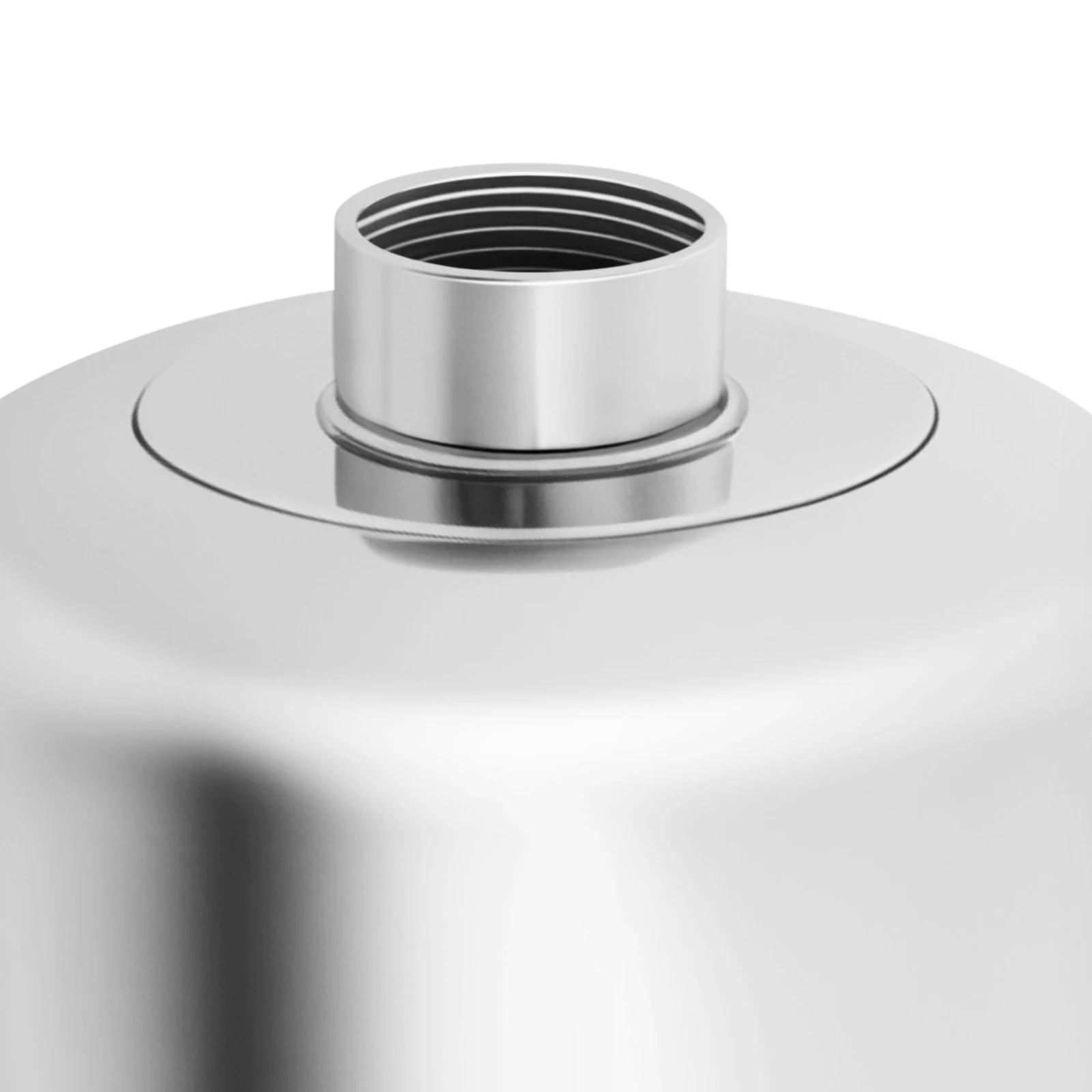

Top Port Size: 3.8cm/1.5in
Gross Weight: 3.5kg/7.72lbs
Package Size: 35*20*20cm/13.78*7.87*7.87in

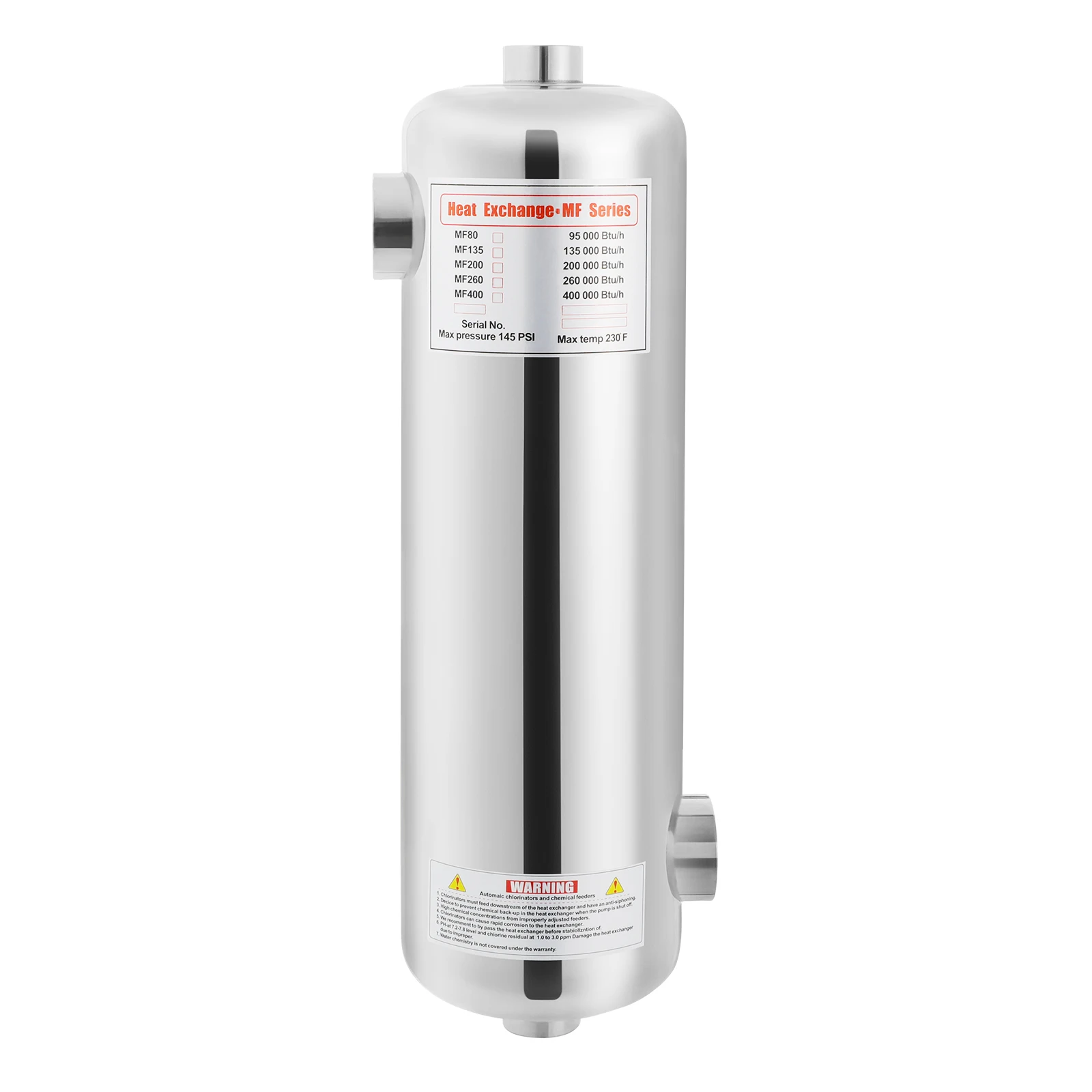

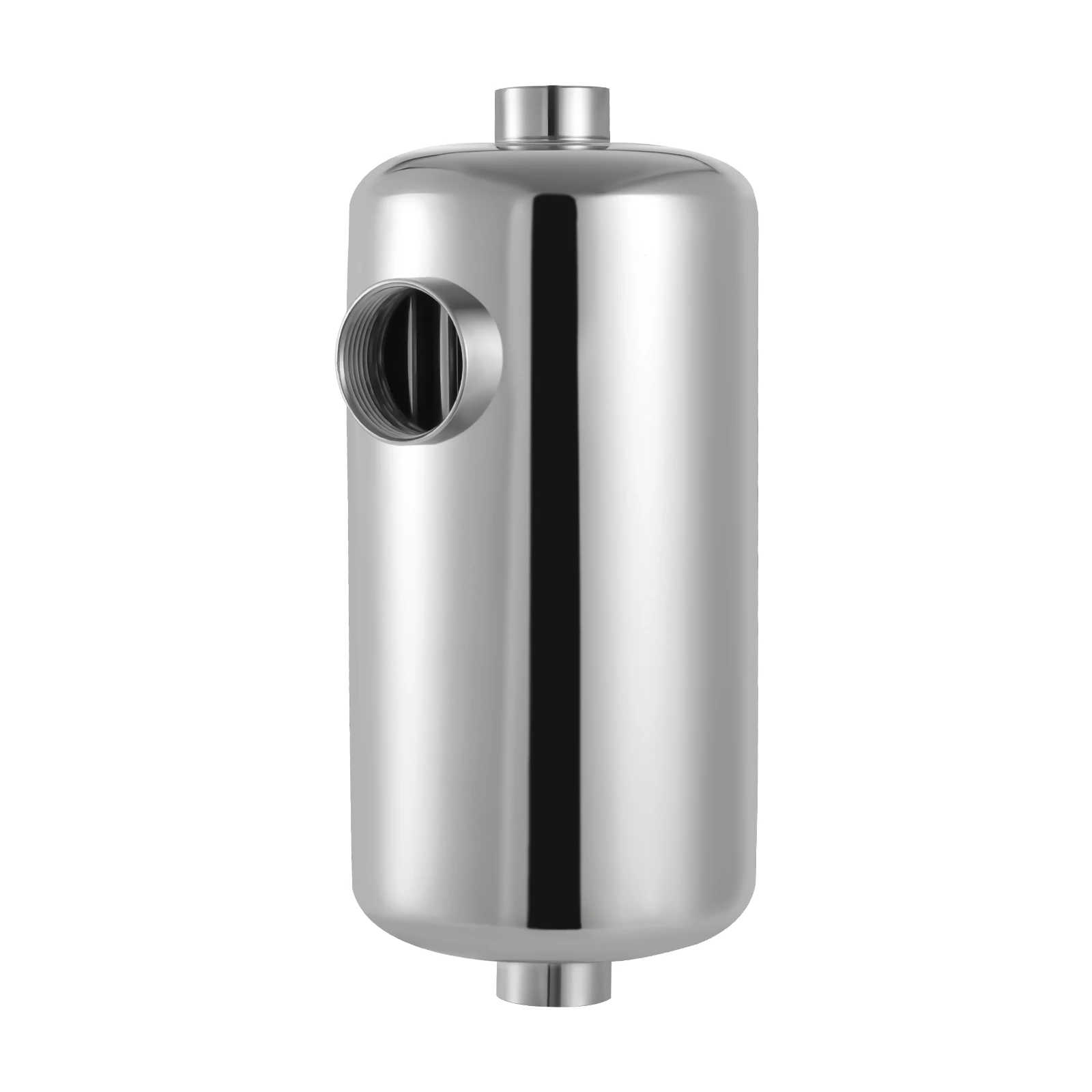

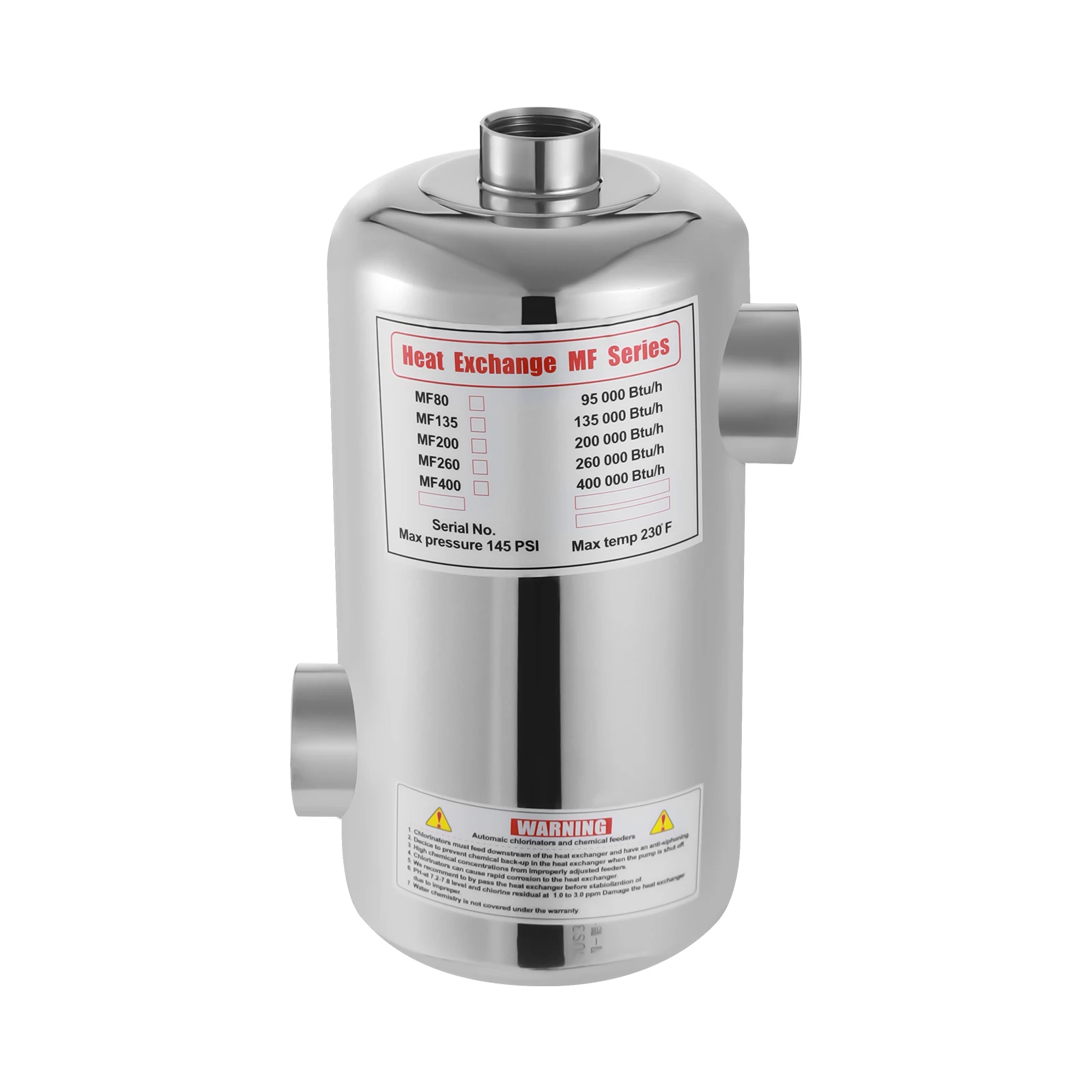

60kw Swimming Pool Heat Exchanger

Key Features
Rugged and Durable: It is made of SS 304 stainless steel, which is repeatedly polished and sanded to resist rust and provide a long service life, ideal for chlorinated or saltwater pools and spas.

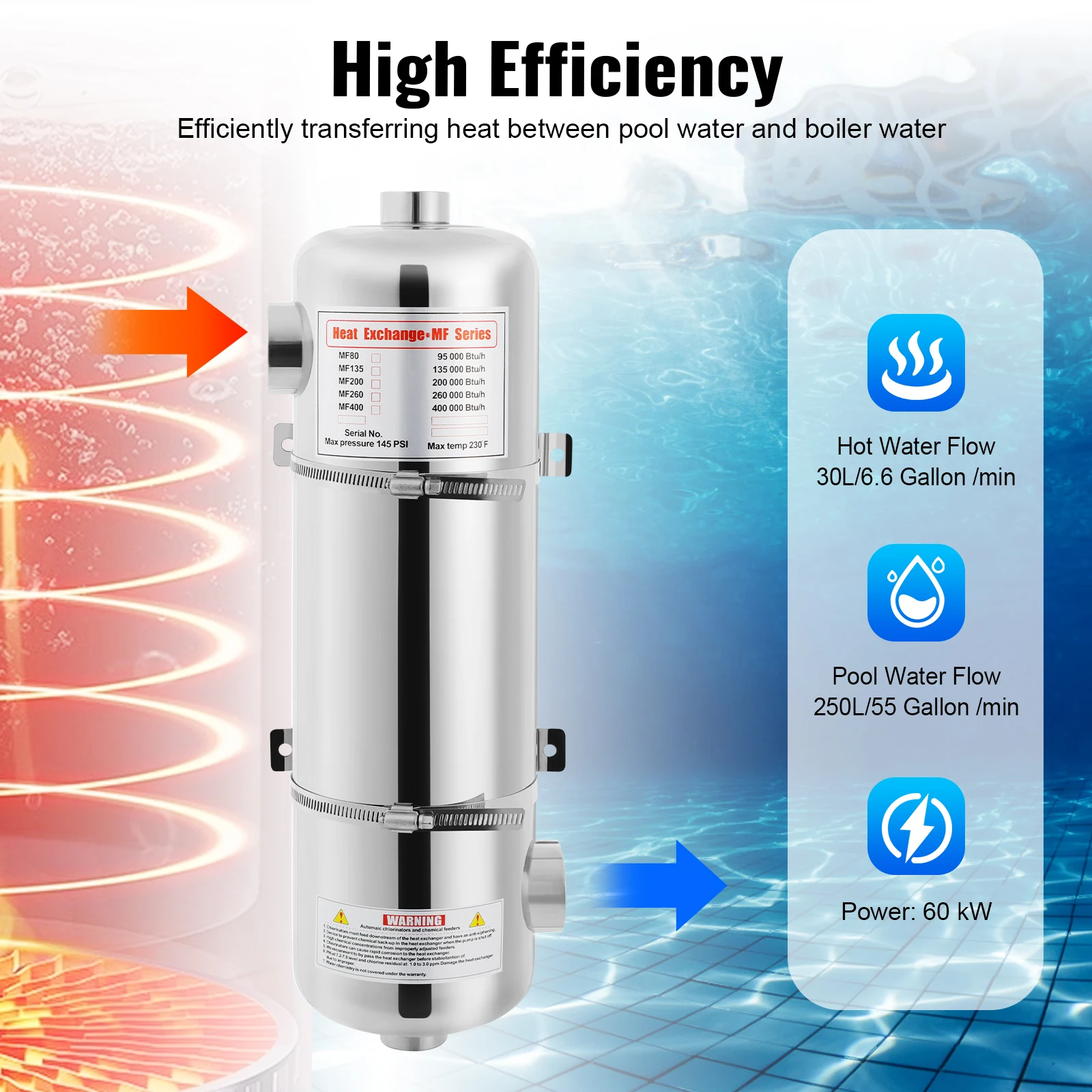

High-Capacity Thermal Transfer: Providing 60kW of power, it efficiently manages a pool water flow of 55 GPM and a dedicated hot water flow of 6.6 GPM. Its advanced design maintains ideal separation between pool and boiler water while improving heat exchange efficiency.

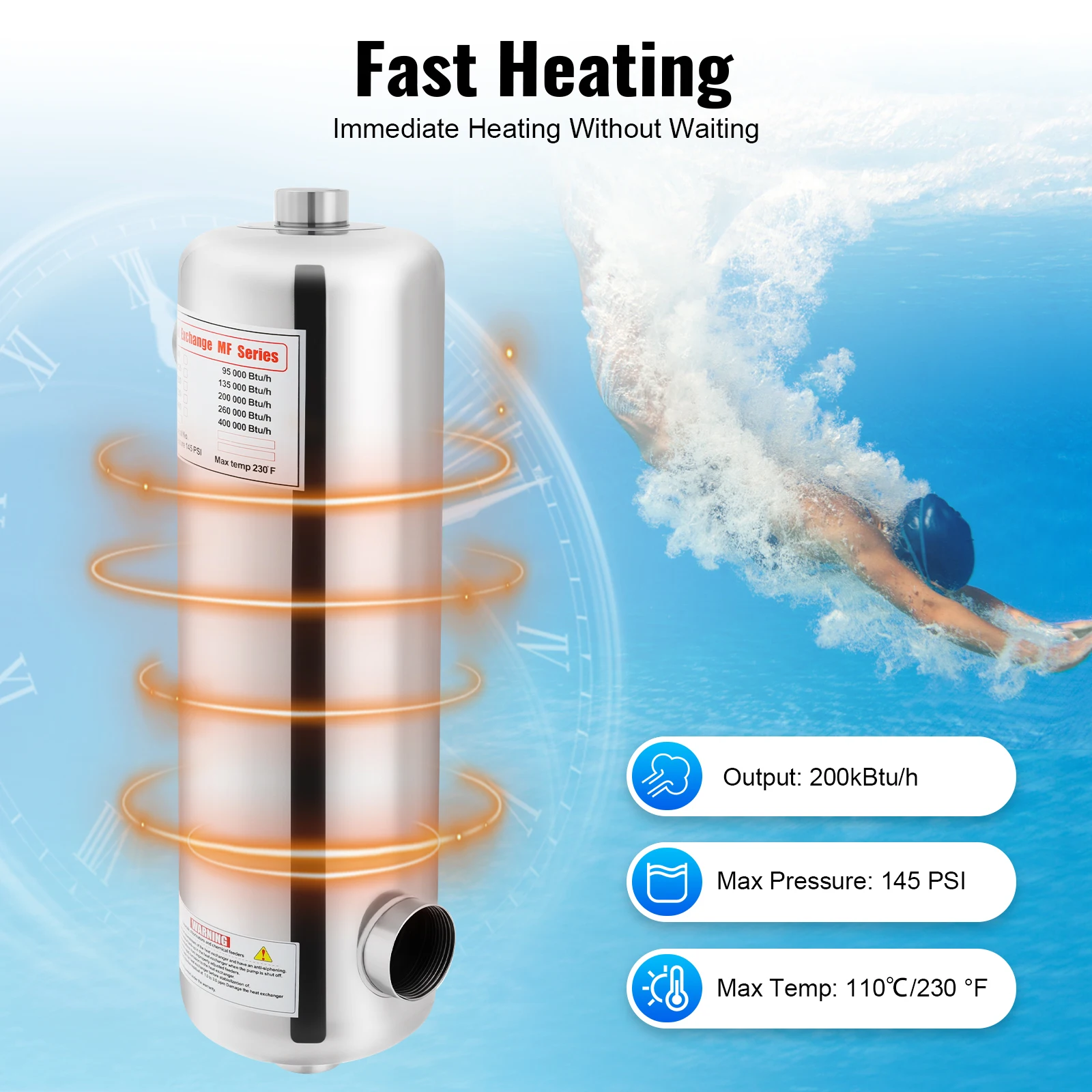

Rapid Heating Performance: Engineered for a temperature differential of 140°F, this product provides an immediate heat output of 200K Btu/H, ensuring fast and responsive warmth without waiting.

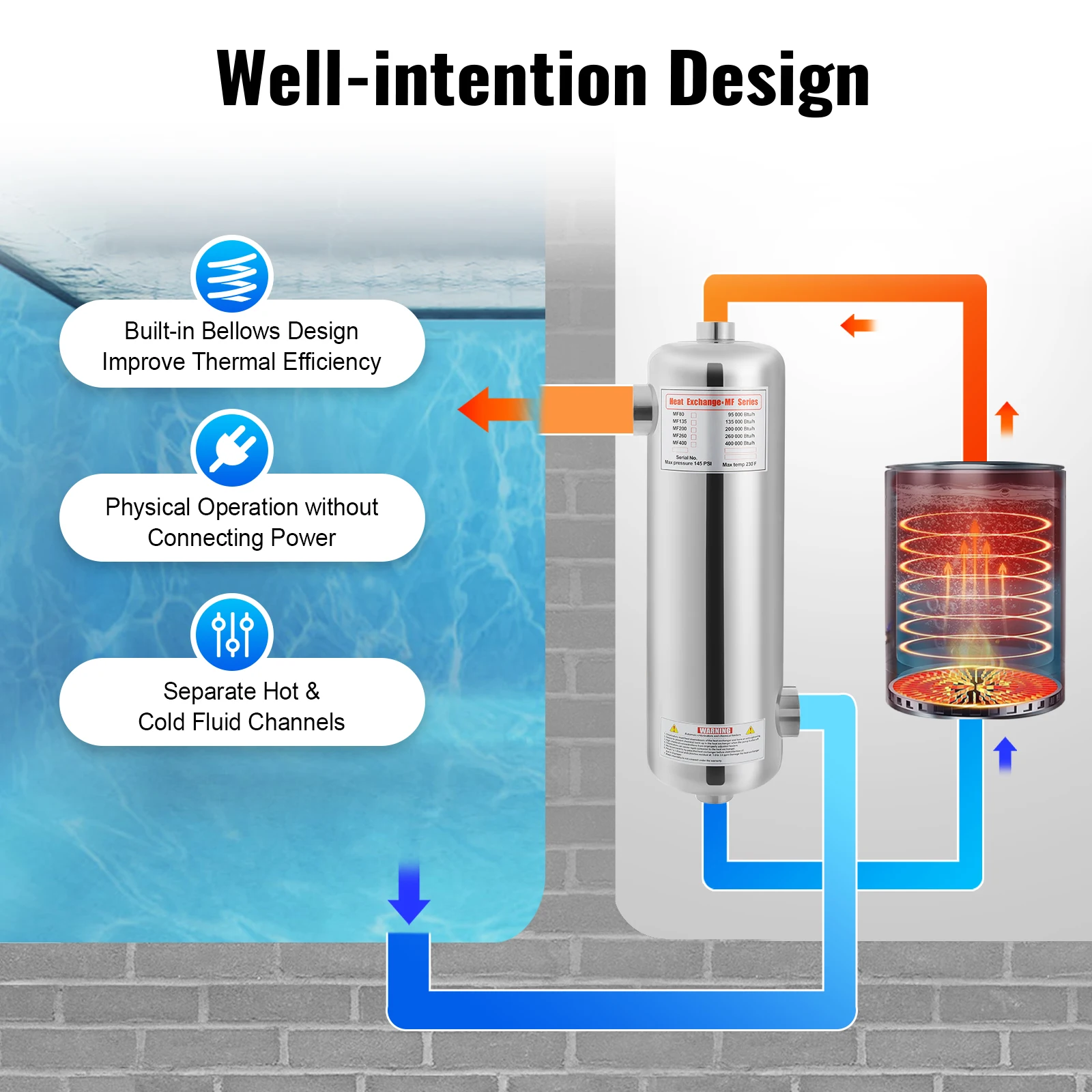

Optimized Energy Efficiency: The innovative bellows design promotes high-velocity internal running performance, improving the use of energy from solar or boiler sources to significantly enhance its overall thermal efficiency. The purely mechanical control without electrical connection requirements ensures reliable and energy-saving performance.

Healthy and Hygienic: The non-storage design ensures two separate channels for hot and cold fluids, greatly reducing the risk of contaminated water sources.

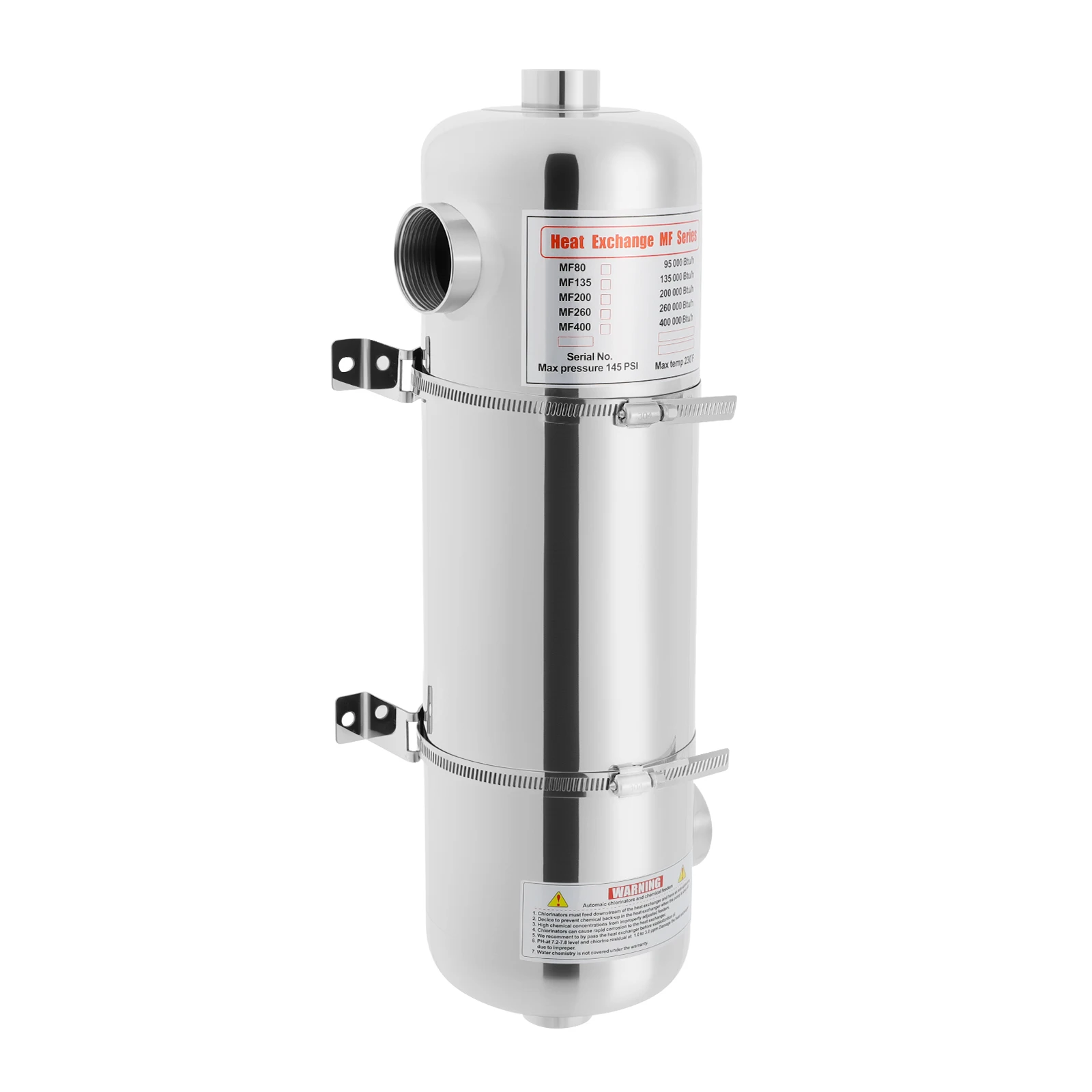

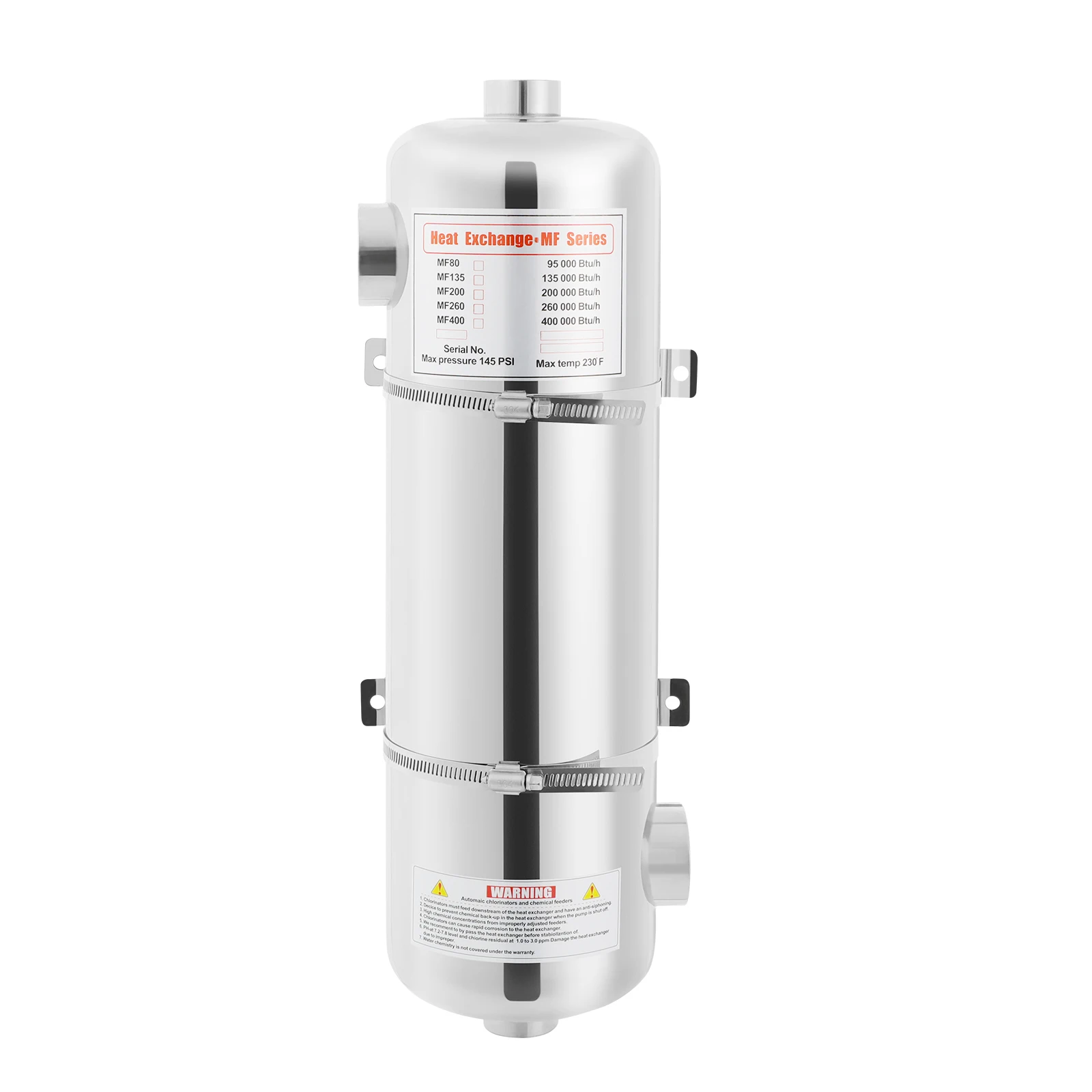

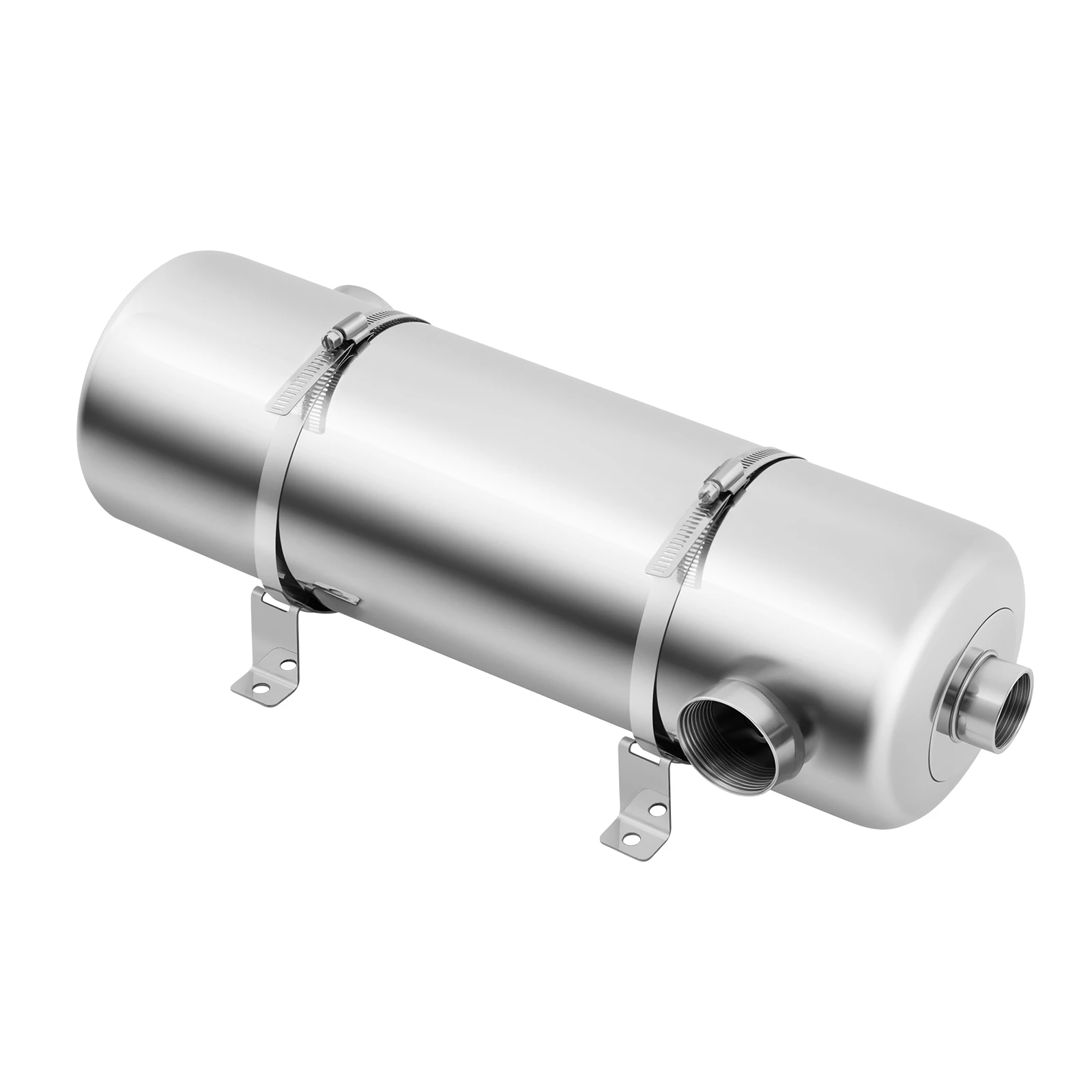

Adaptable Mounting Methods: Designed for versatility, it supports both vertical and horizontal installation. Its compact footprint (5*19") allows for efficient use of space in various equipment layouts.

Easy Cleaning: Thanks to its smooth and non-marking surface, you can easily clean it with a damp cloth.

Customer Service: We aim to provide quality products and services. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

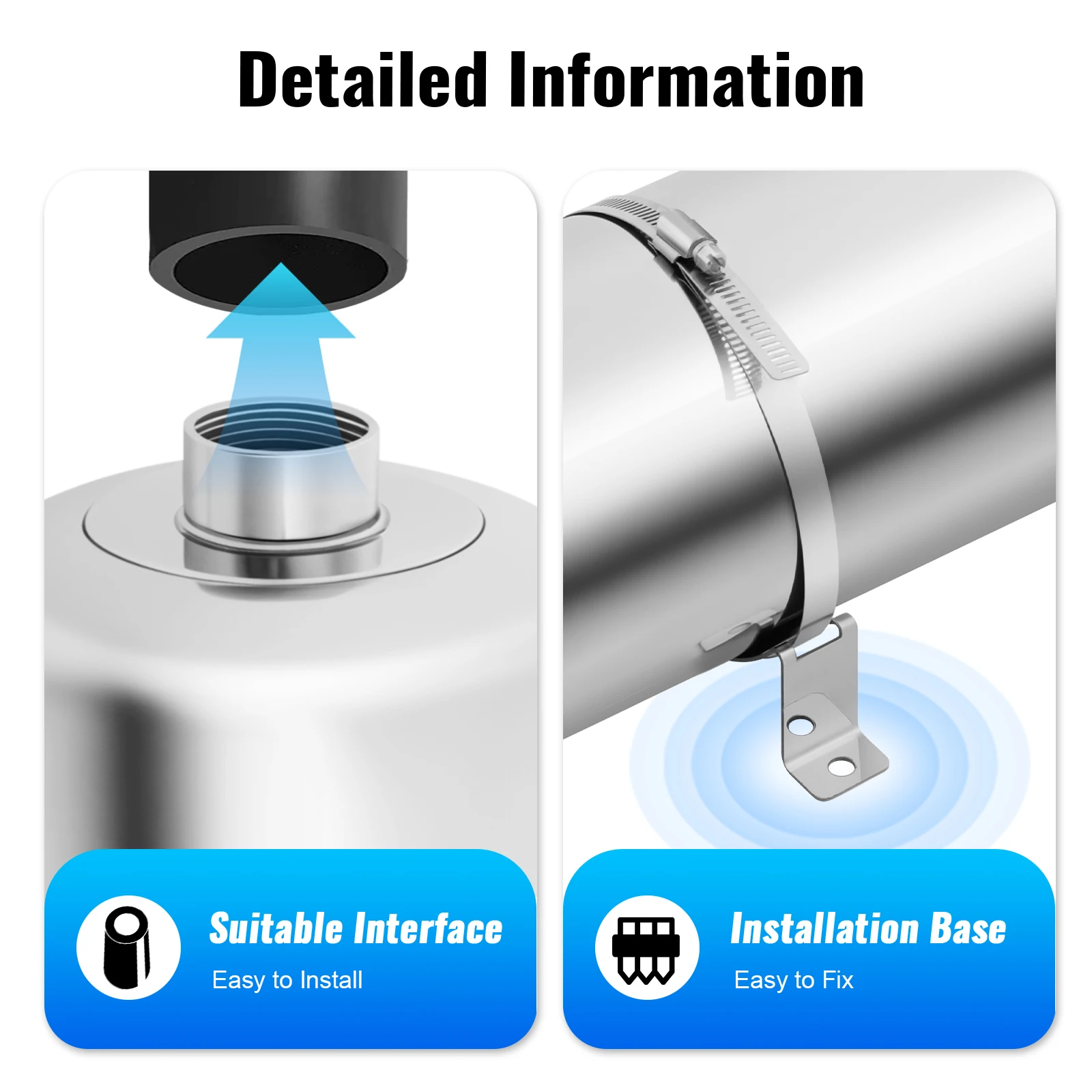

Details
Efficient Pipeline Heat Dissipation: The internal piping design accelerates the rate of heat exchange, ensuring ideal thermal transfer performance is consistently achieved.

Safety Housing: The premium 304 stainless steel outer shell encloses the heating element, preventing accidental contact with users or animals for utmost user safety.

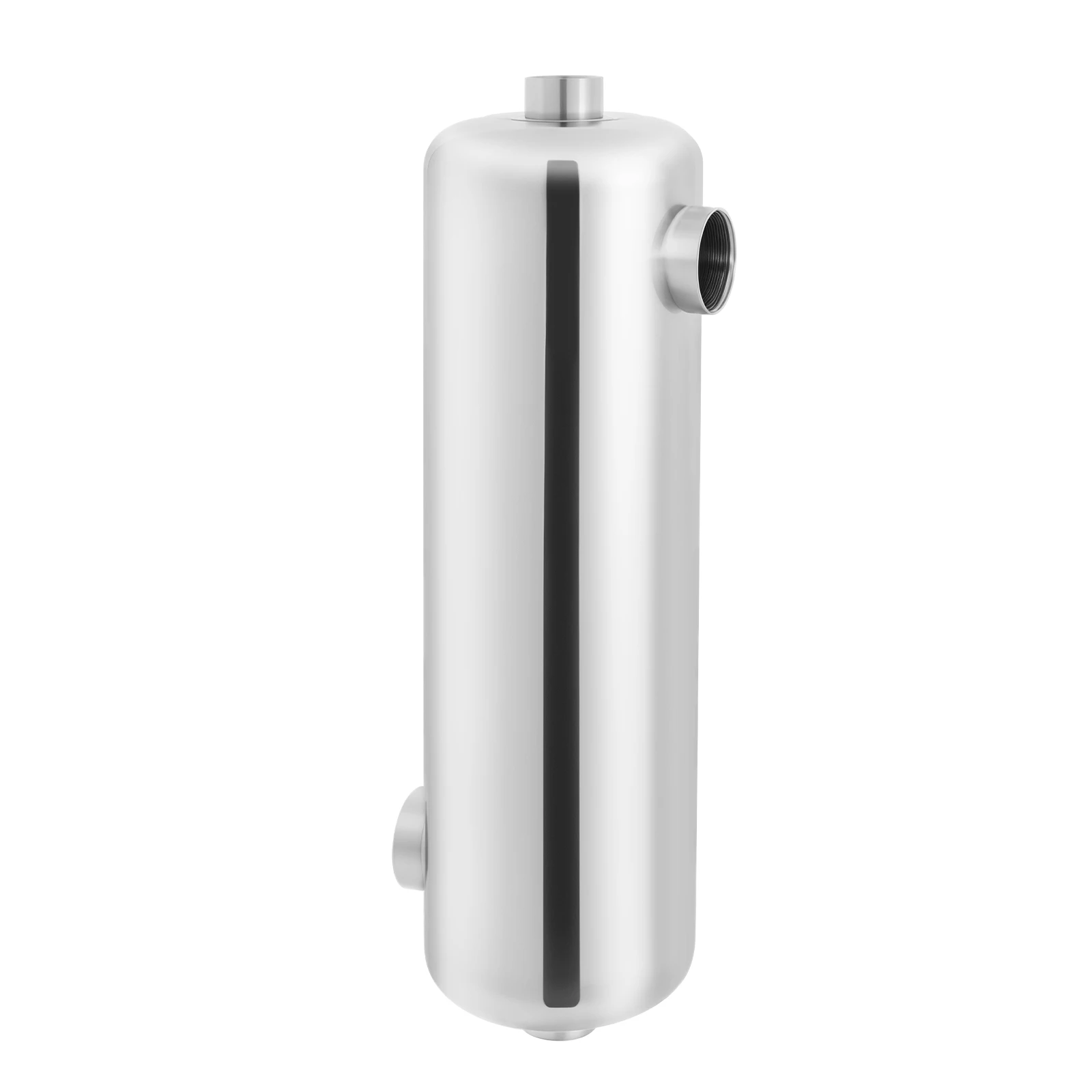

Reverse Outlet & Inlet: The inlet and outlet are reversed, both on opposite sides, which can optimize water flow dynamics and improve heat transfer efficiency.

Application
It is suitable for swimming pools, spas, hot tub tray heating, outdoor wood stoves, circulating heat, forced air heating, radiant floor heating, snow melting, solar hot water, and more. It can be used with any type of pool water, whether treated or salt water.

Specification

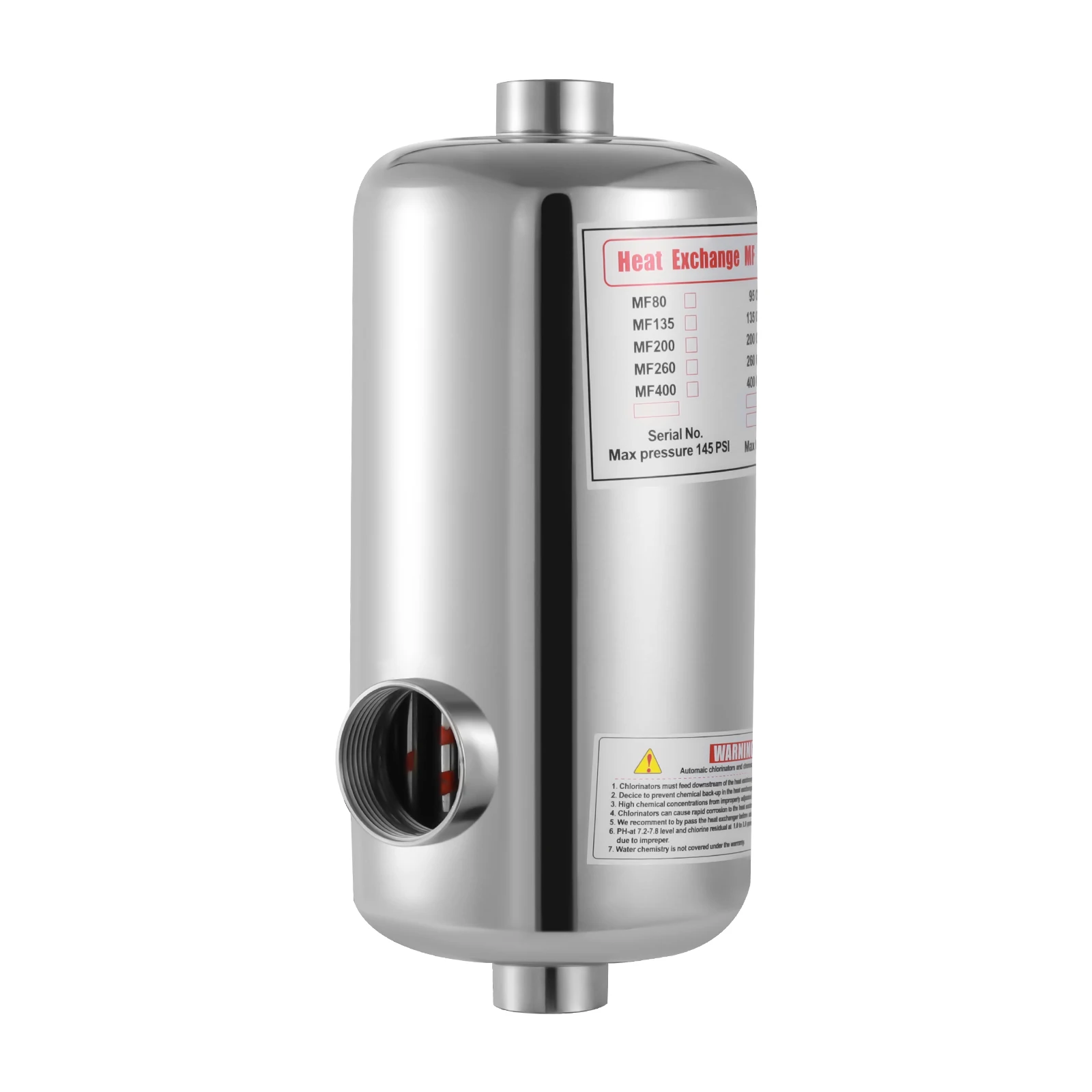

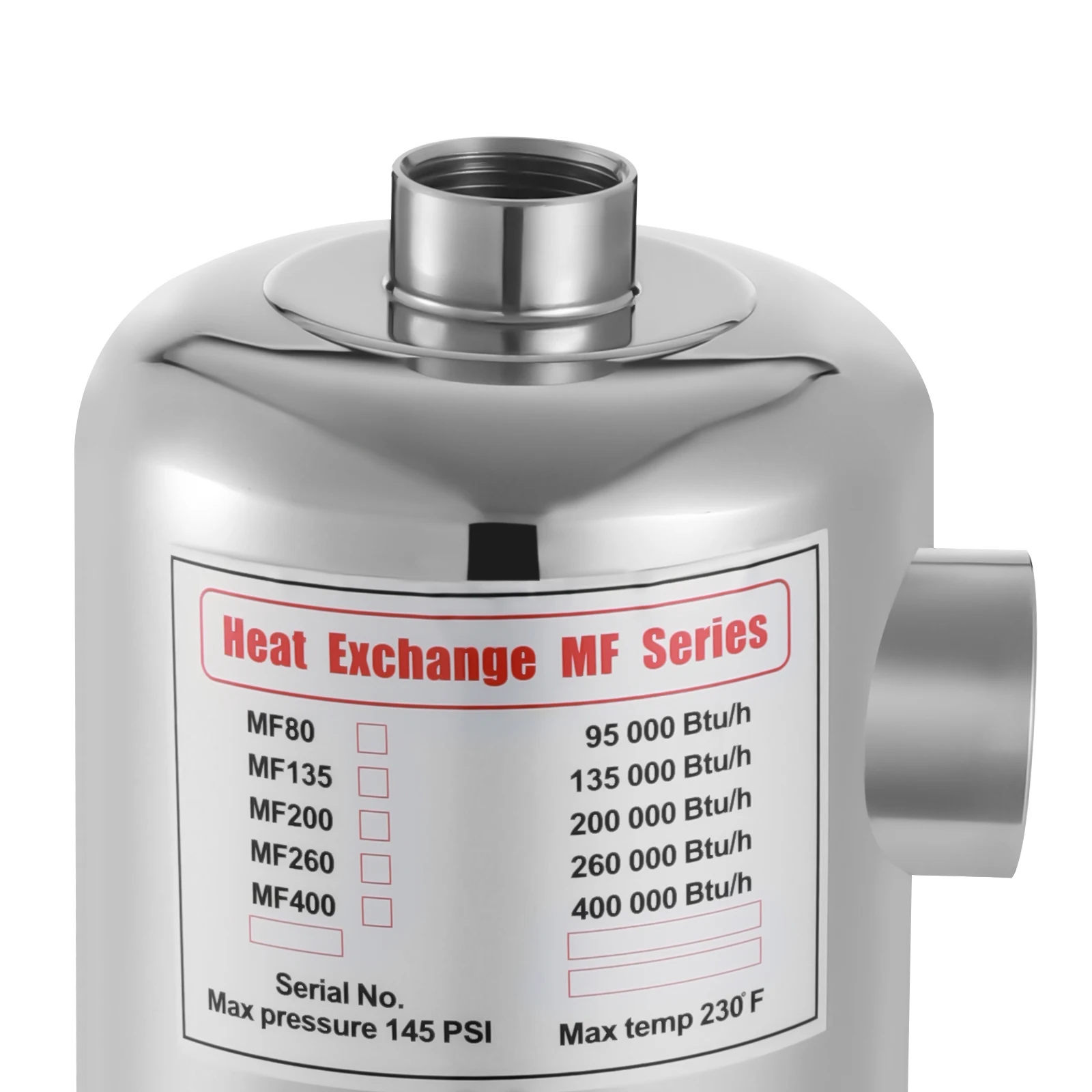

Model: MF-200
Color: Silver
Mount Type: Freestanding
Assembly Required: Yes
Material: SS304 Stainless Steel
Process: Polishing
Power: 60 kW
Output: 200kBtu/h
Pressure Test:
Pool Water Circuit--10bar
Hot Water Circuit--5bar
Pressure Bearing: 2.5kg/ 5.51lbs
Pool Water Flow: 250L/55 Gallon /min
Hot Water Flow: 30L/6.6 Gallon /min
Max Pressure: 145 PSI
Max Temp: 110℃/230 °F
Applicable Pool Volume: 250m³

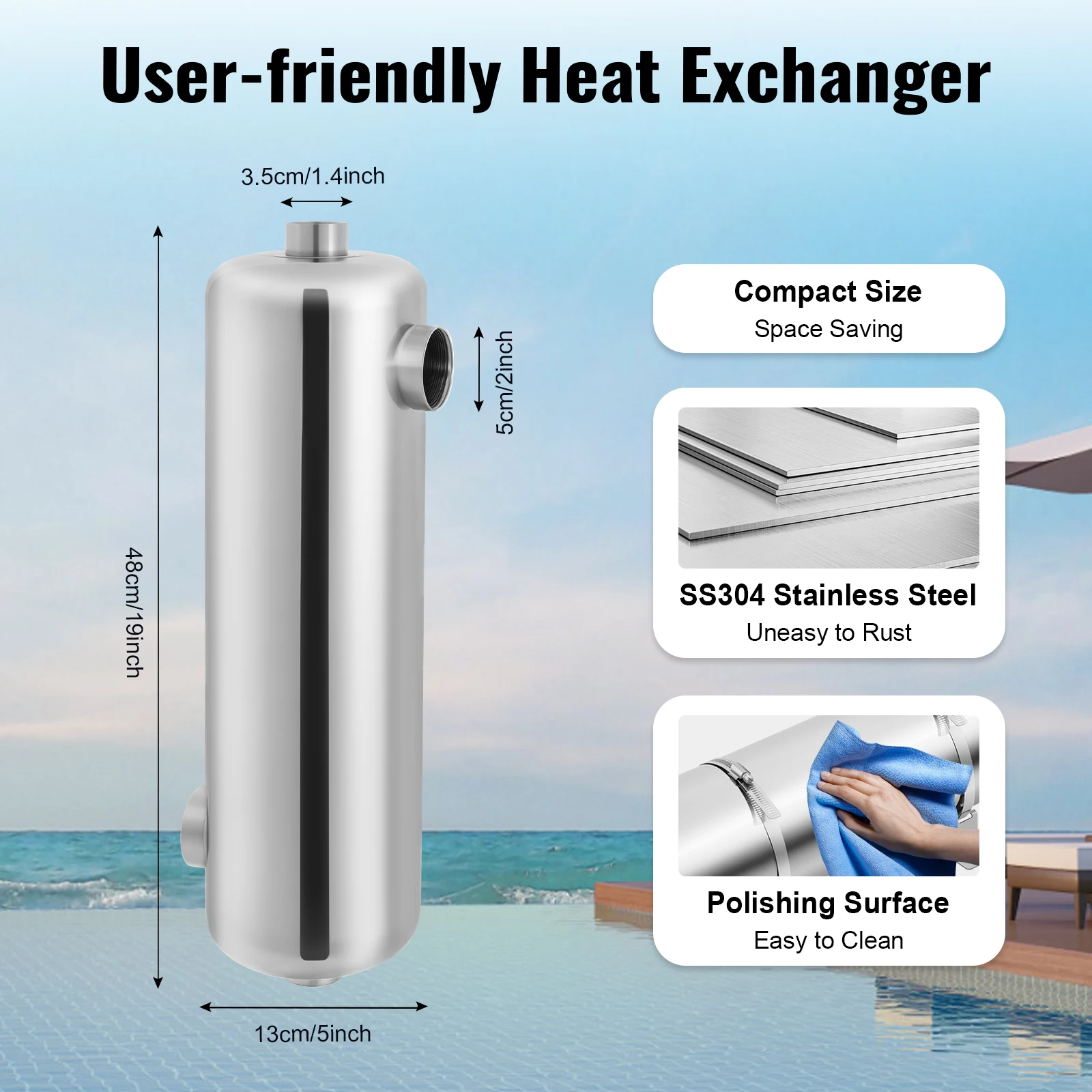

Product Size(D*H):13*48cm/5*19in
Side Port Size: 5cm/2in
Top Port Size: 3.5cm/1.4in
Package Size: 49*17*17cm/19.29*6.69*6.69in
Gross Weight: 4.7kg/10.36lbs

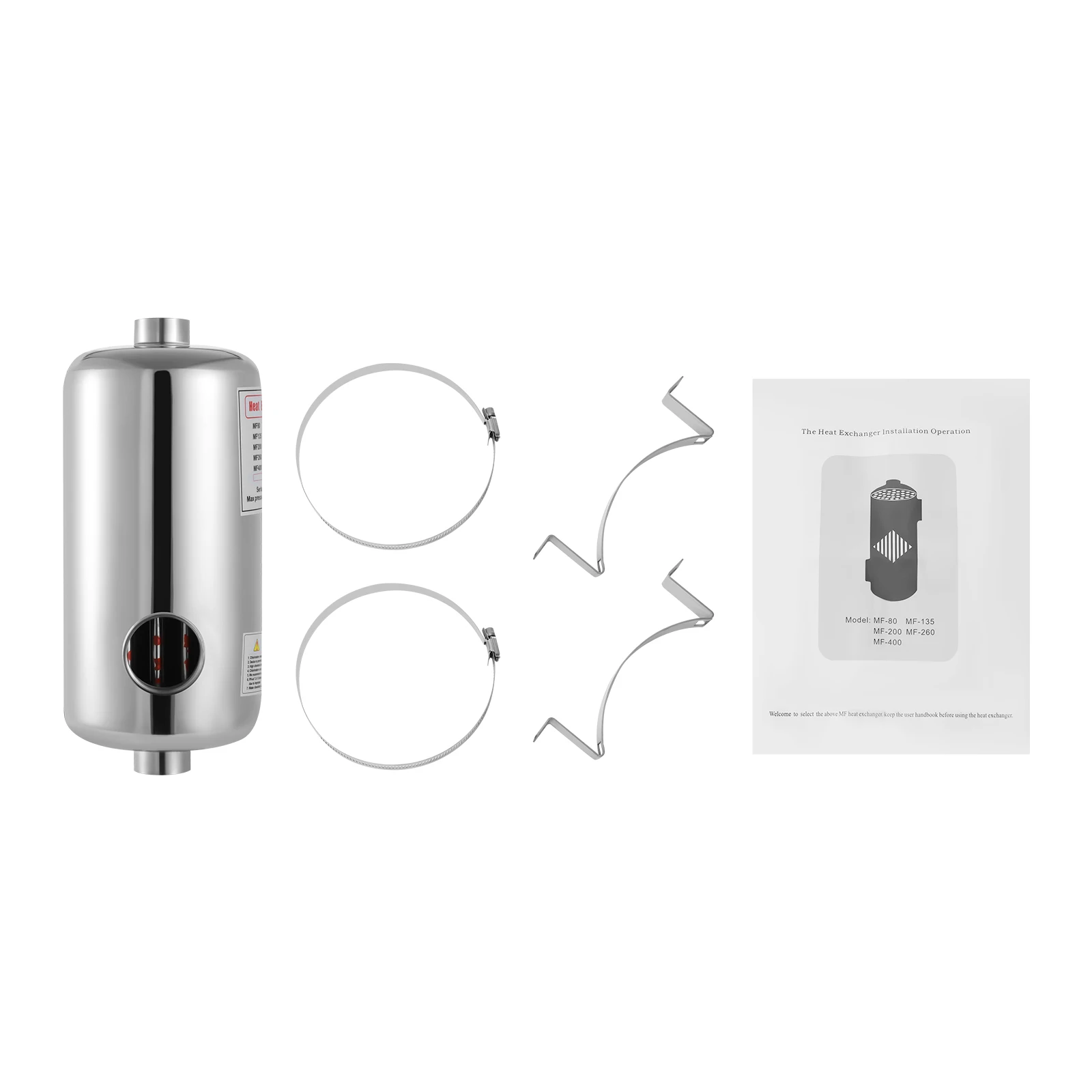

Package Included
1* Swimming Pool Heat Exchanger

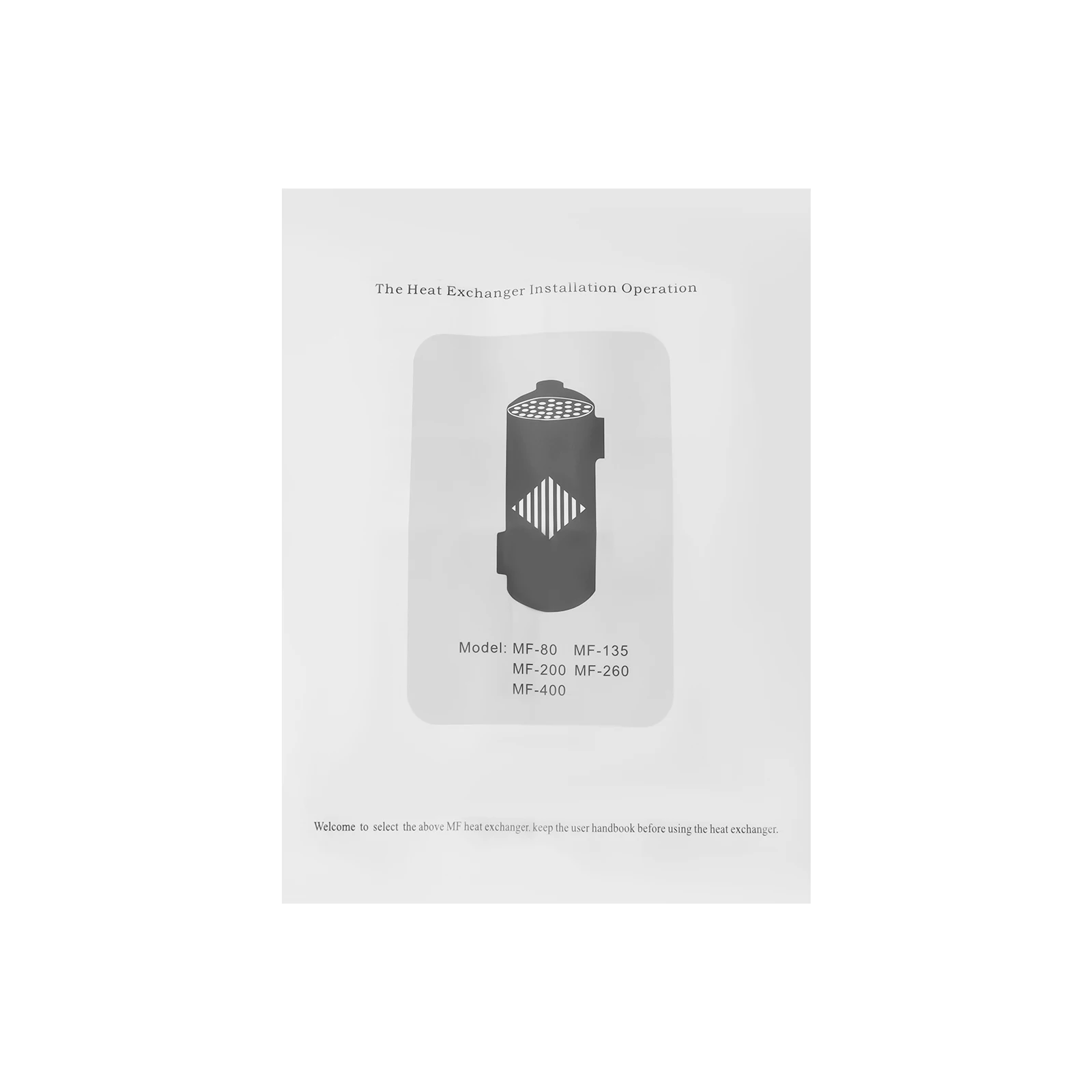

1* Chinese and English Manual

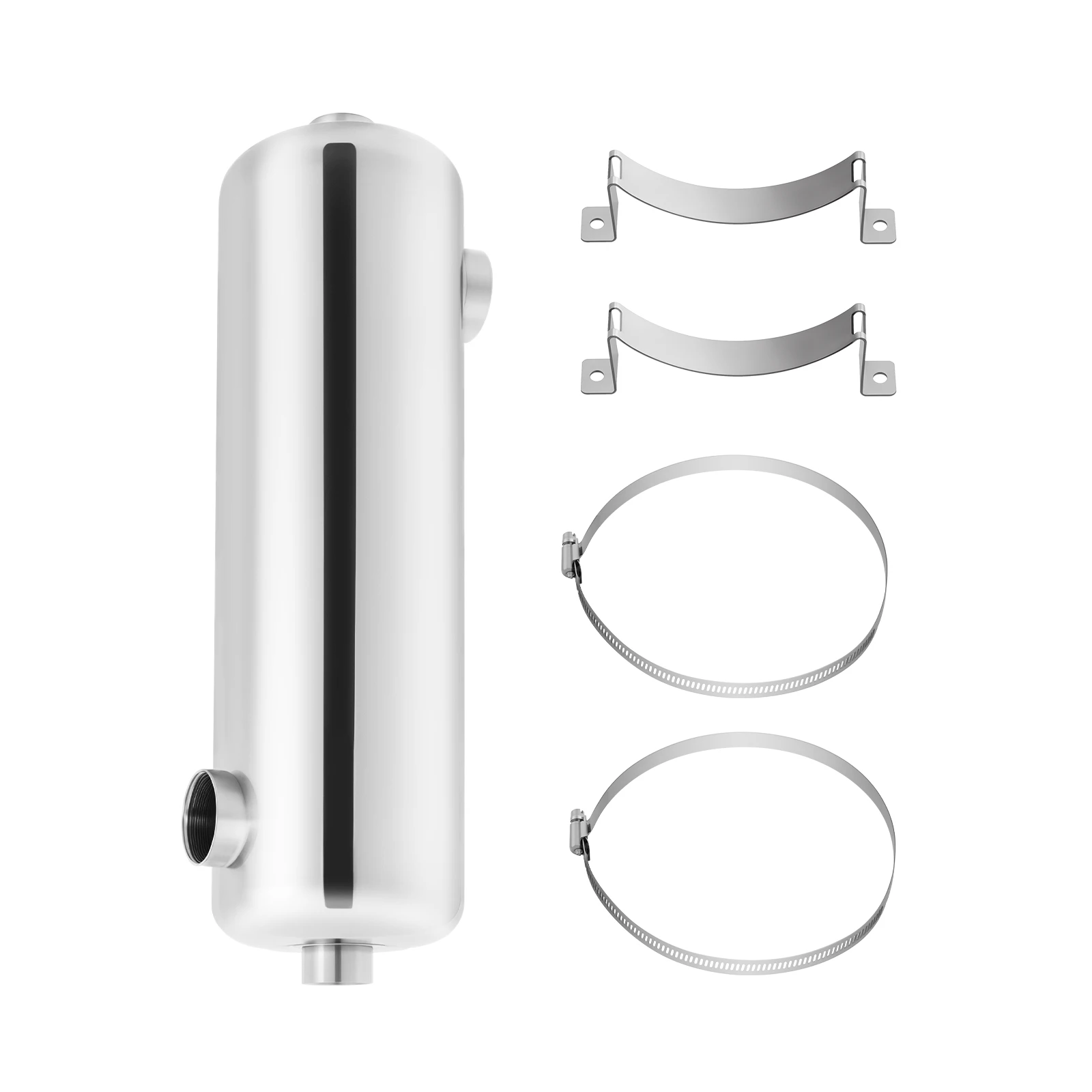

All Accessories for Use

Notes
1.Please check the style and size before purchasing.
2.Please read the instruction manual and label completely before installation and use, and pay particular attention to the safety instructions included.

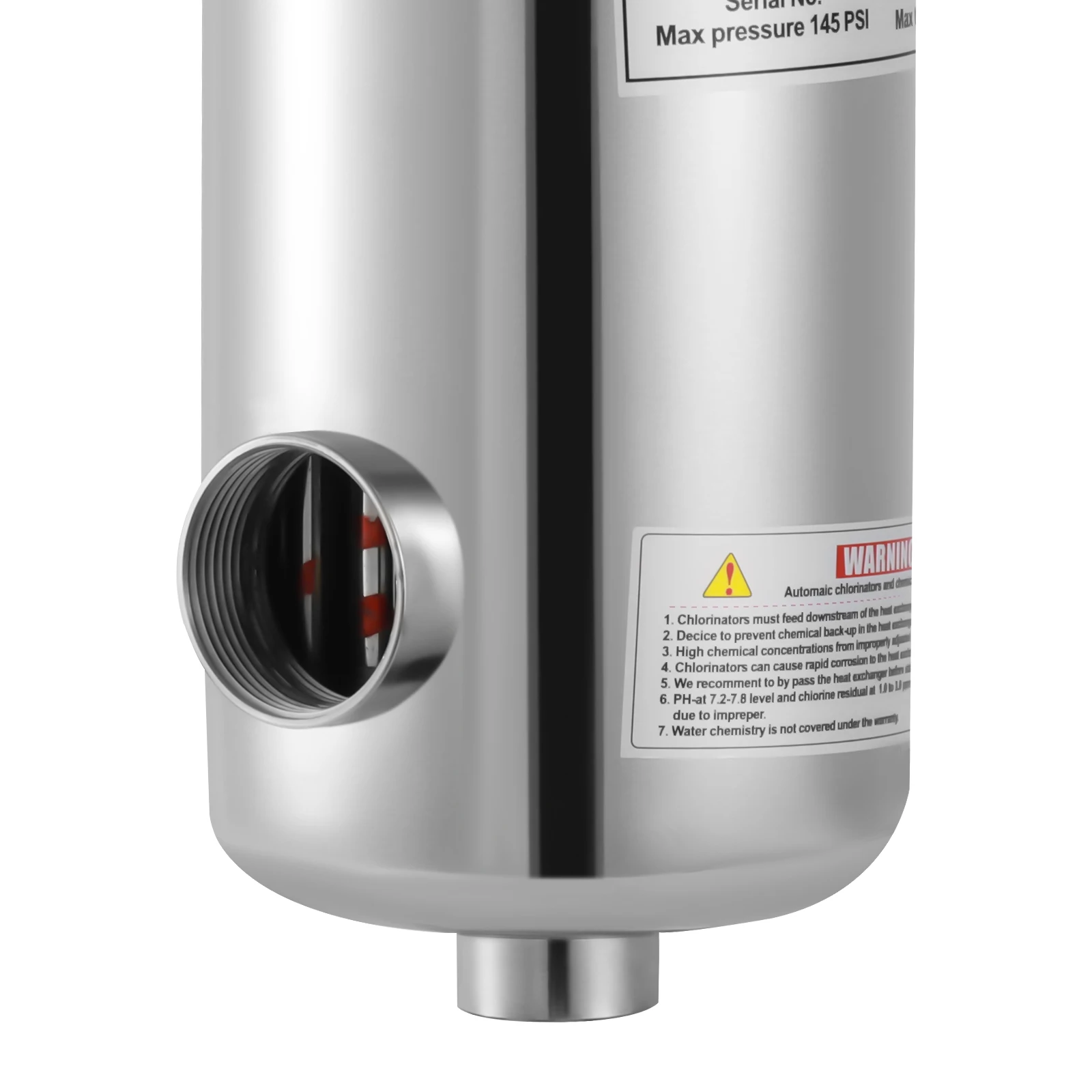

3.Please note that the recommended maximum chloride concentration in fresh/clean water below 140°F in the exchanger is 300 mg/L and should be reduced as the water temperature increases. Exceeding the recommended chloride concentration or direct use of the chlorinator may result in stainless steel pitting. Titanium pool heat exchangers are recommended for use in environments with high chloride concentrations or in salt water systems.
4.Please note that the heat exchanger is always installed in a counter flow pattern and should be installed downstream of the filter and pump equipment. It must be auxiliary to the boiler water and take the usual precautions to prevent air locks.
5.People must not be in the water while the heat exchanger is working.
6.Please do not put 2 heat exchangers into a swimming pool at the same time.
7.The product requires a heating circuit to work properly and a thermostat circuit to ensure a continuous thermostatic effect.
8.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement and make sure you do not mind before ordering.
