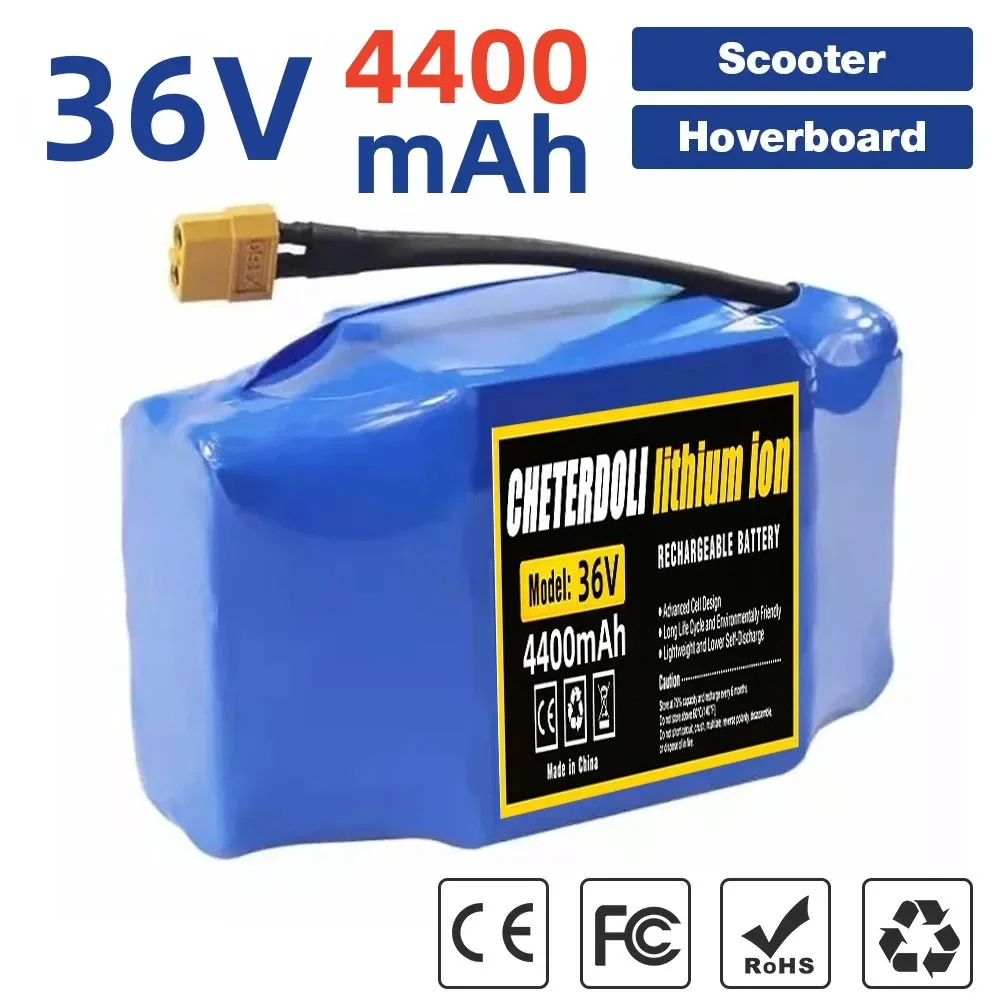

36V 4400mAh 10s2p Lithium Rechargeable Battery,True for Electric Self-balancing Scooter HoverBoard Unicycle, Exceptional Battery

Specifications

Model: AY-36V102P

Cell type: ay-22P

Cell count: 20 pieces(10S2P)

Nominal voltage: 36V

Charge voltage: 42V

Typical capacity: 4400mAh

BMS rated current: 15A discharge and 5A charge

BMS function:Overcharge, overdischarge, overcurrent, short circuit protection.

Connector: XT60 for discharge and Charge

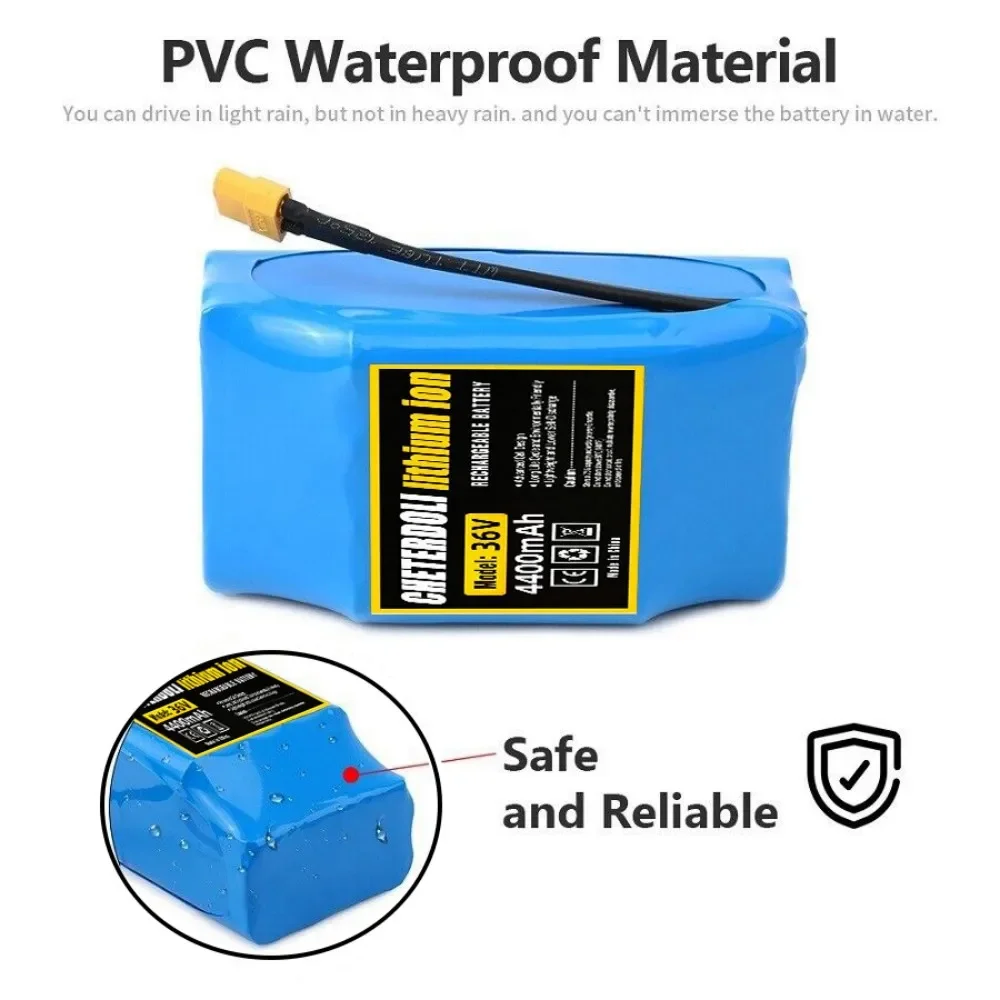

Package: heat shrinkable PVC, random color

Output voltage range: 28V-42V

Discharge cut-off voltage: 28V

Charge cut-off voltage: 42V

Charge method: CC-CV

Max. Charge current: 5A

Charge temperature: 0-45 ° C

Discharge temperature: -10-60 ℃

Storage temperature: -20-45 ° C (3 months)

Cycle life: 80% DOD after 500 cycles

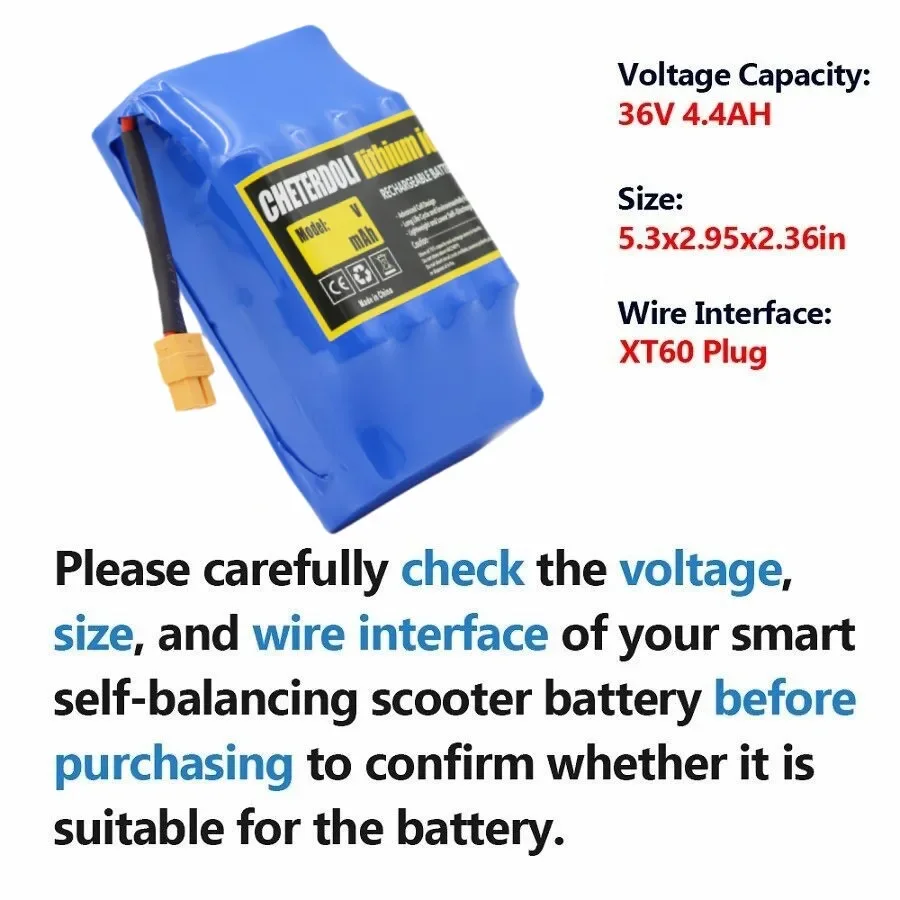

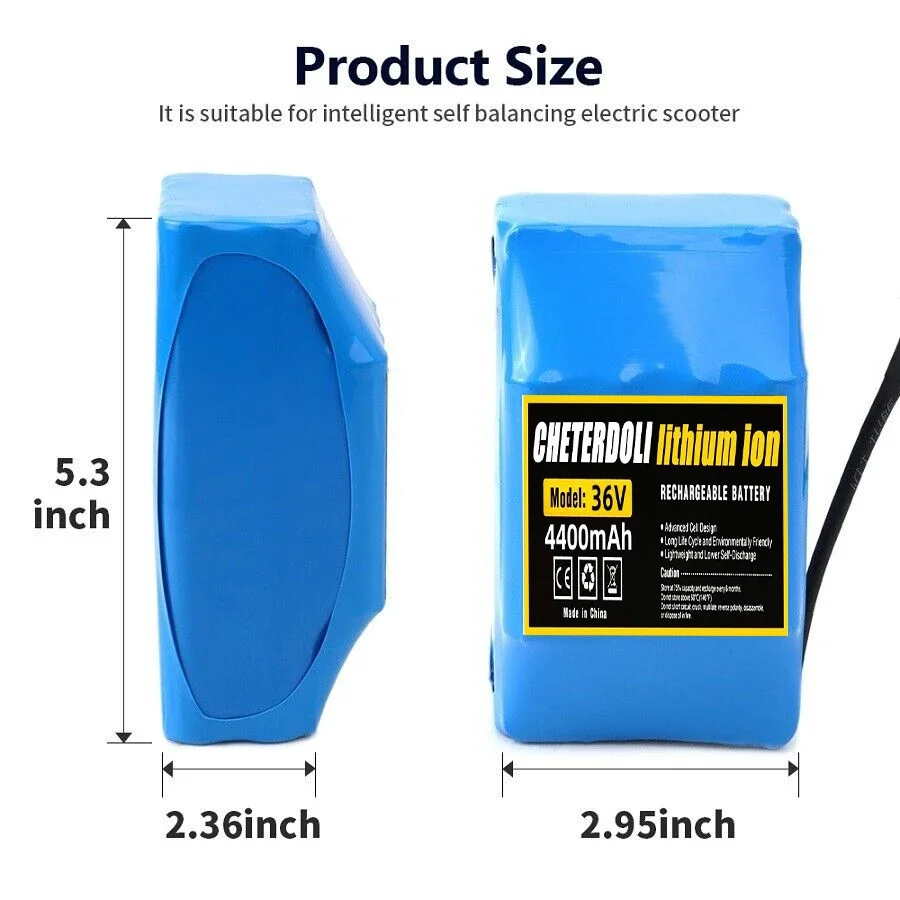

Size: 136 * 76 * 60 mm(±3mm)

Weight: 900g(±50g)

The battery pack does not have a communication cable. If the original battery of your electric bicycle needs to communicate with the controller, this battery cannot be used to replace the original battery. It can only be used to extend the battery.

Warranty

- Period: 1year

- Coverage: Cells, other part are not covered by the warranty.

- Ingress of water, disassembly, modification, No use Match charger,Short circuit, failure due to personal reasons, etc., are not covered by the warranty.

- Treatment method: Send the replacement part to the buyer for replacement,Or communicate the appropriate solution with the seller.

Application

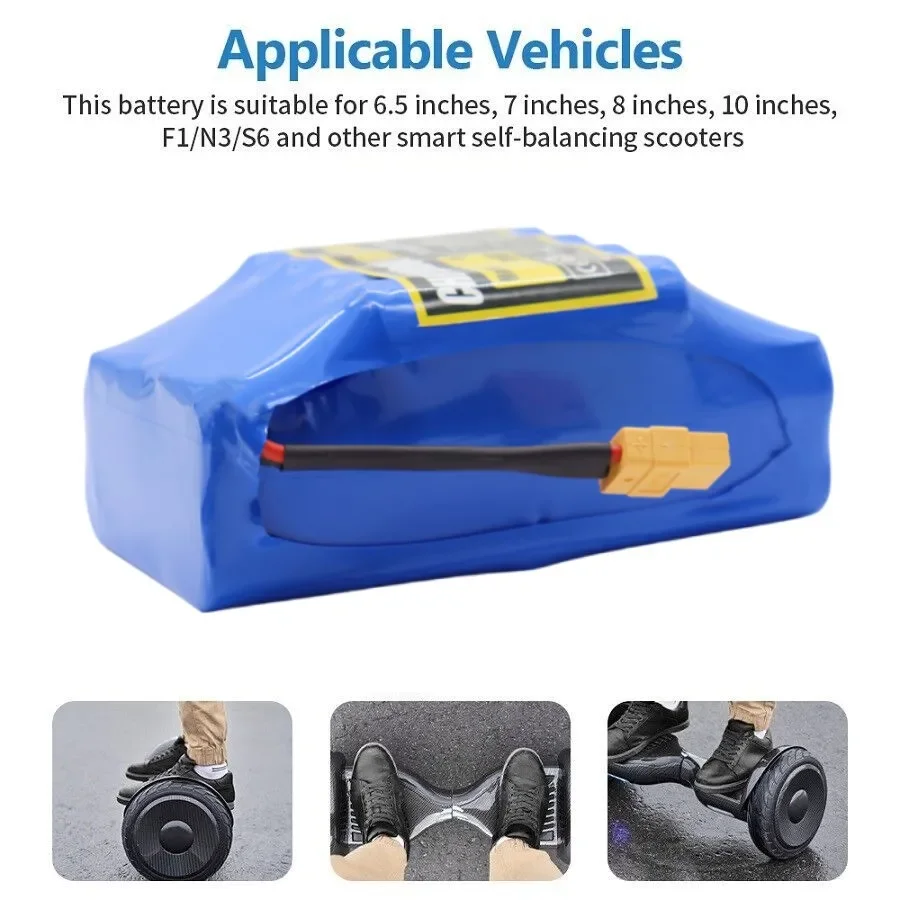

Suitable for less than 450W all 36V DC equipment. E-bike, scooters, etc.
